| CX-ED1579L with 5 Stainless Steel Faceplates (CX-EMP-1, CX-EMP-2, CX-EMP-3, CX-EMP-4, & CX-EMP-5) |
CX-ED1579L with 5 Stainless Steel Faceplates (CX-EMP-1, CX-EMP-2, CX-EMP-3, CX-EMP-4, & CX-EMP-5)
|
|

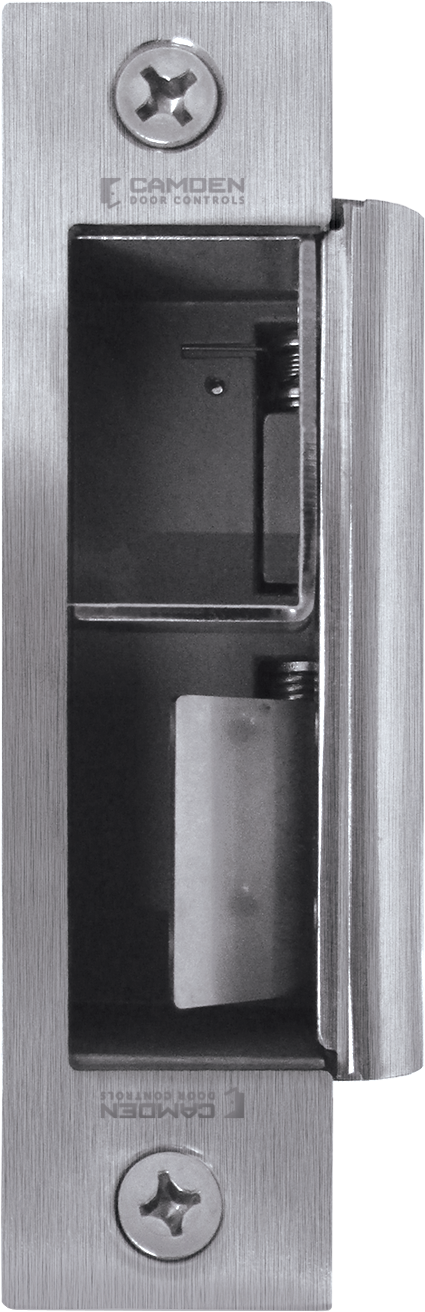

Camden CX-ED1579L Grade 1 electric strike for mortise and cylindrical locksets offers the very best strike quality and features, with the added value of built-in latch monitoring, five stainless steel faceplates and 'Universal' performance, including field selectable voltage and fail safe/fail secure operation.
|
|
|

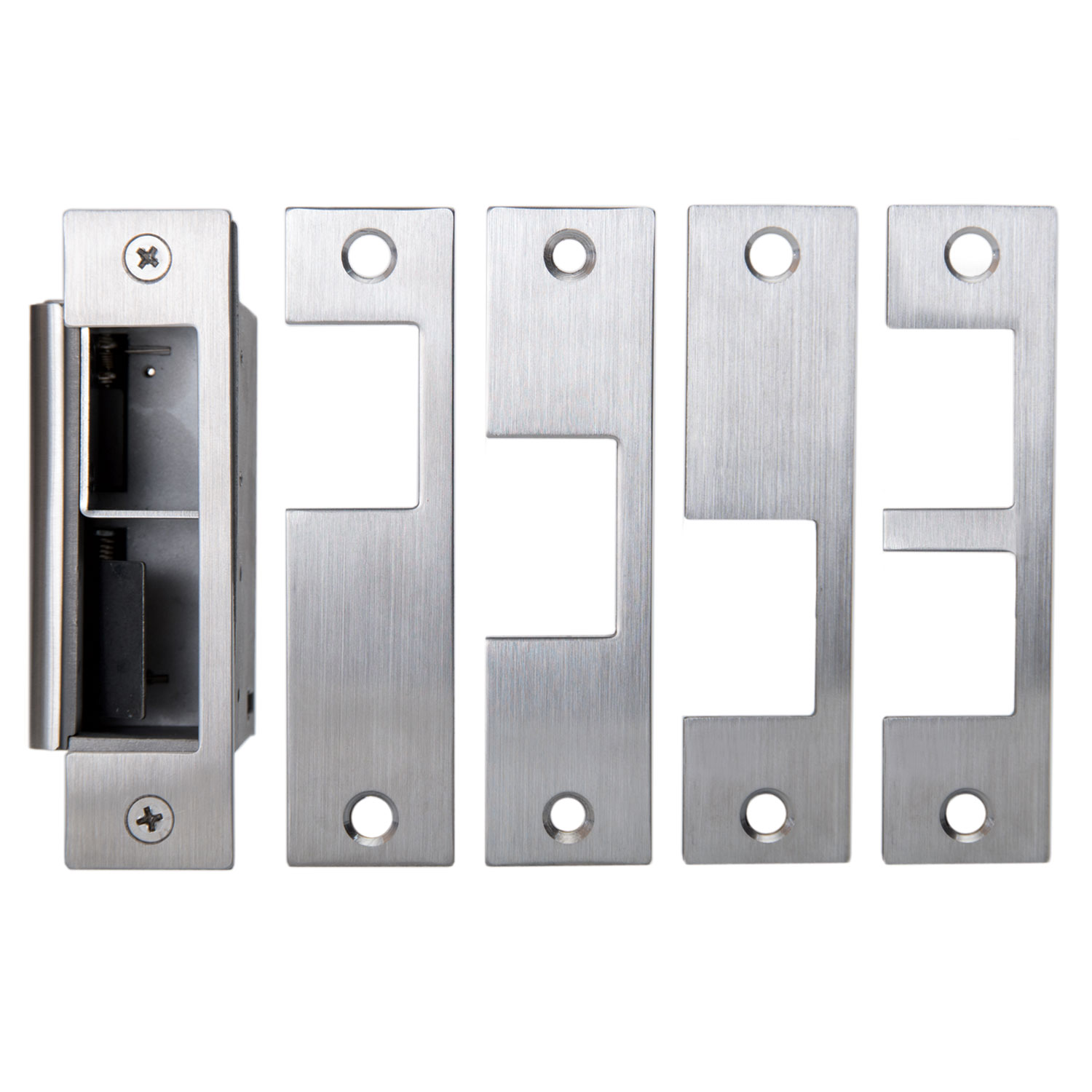

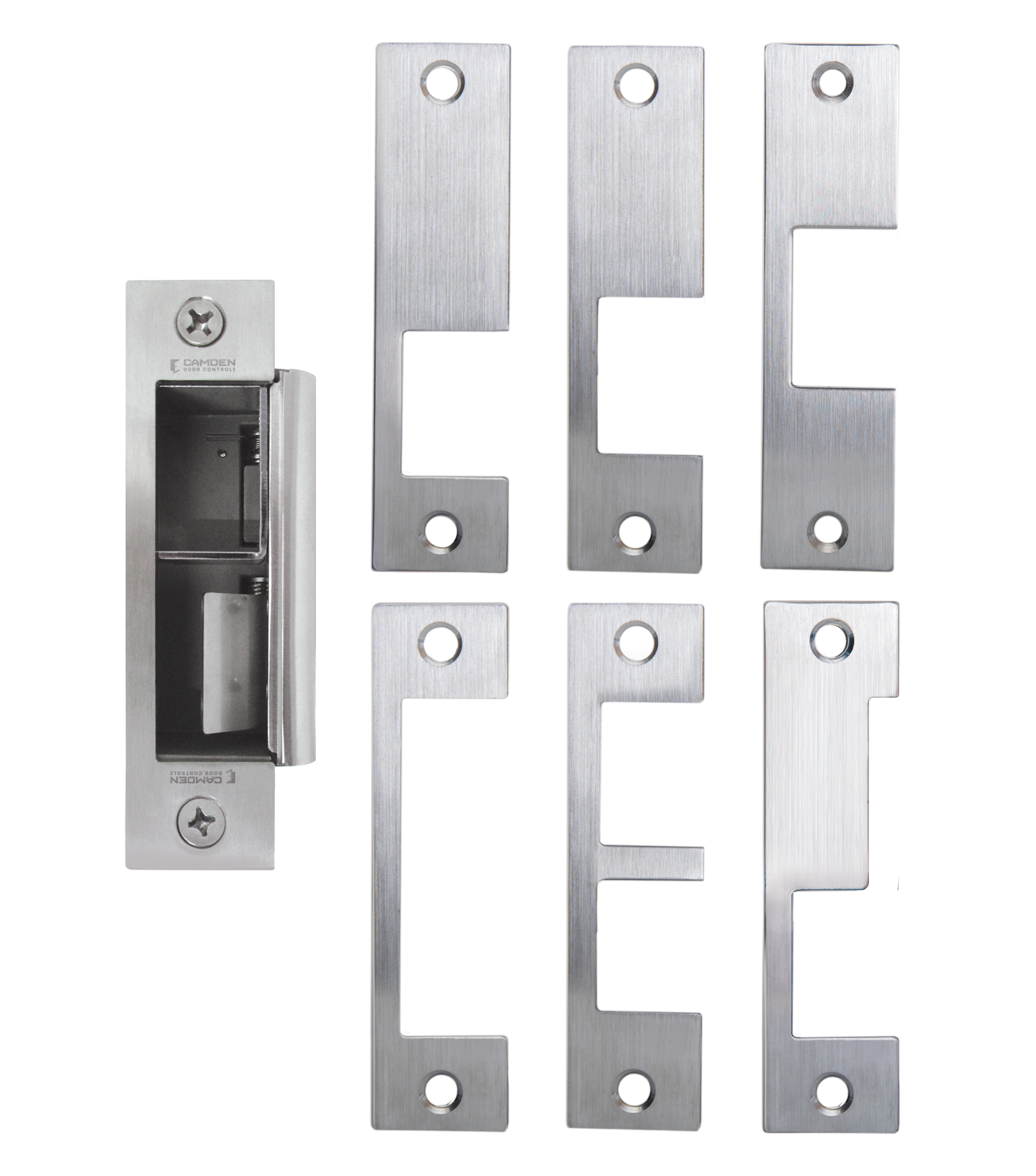

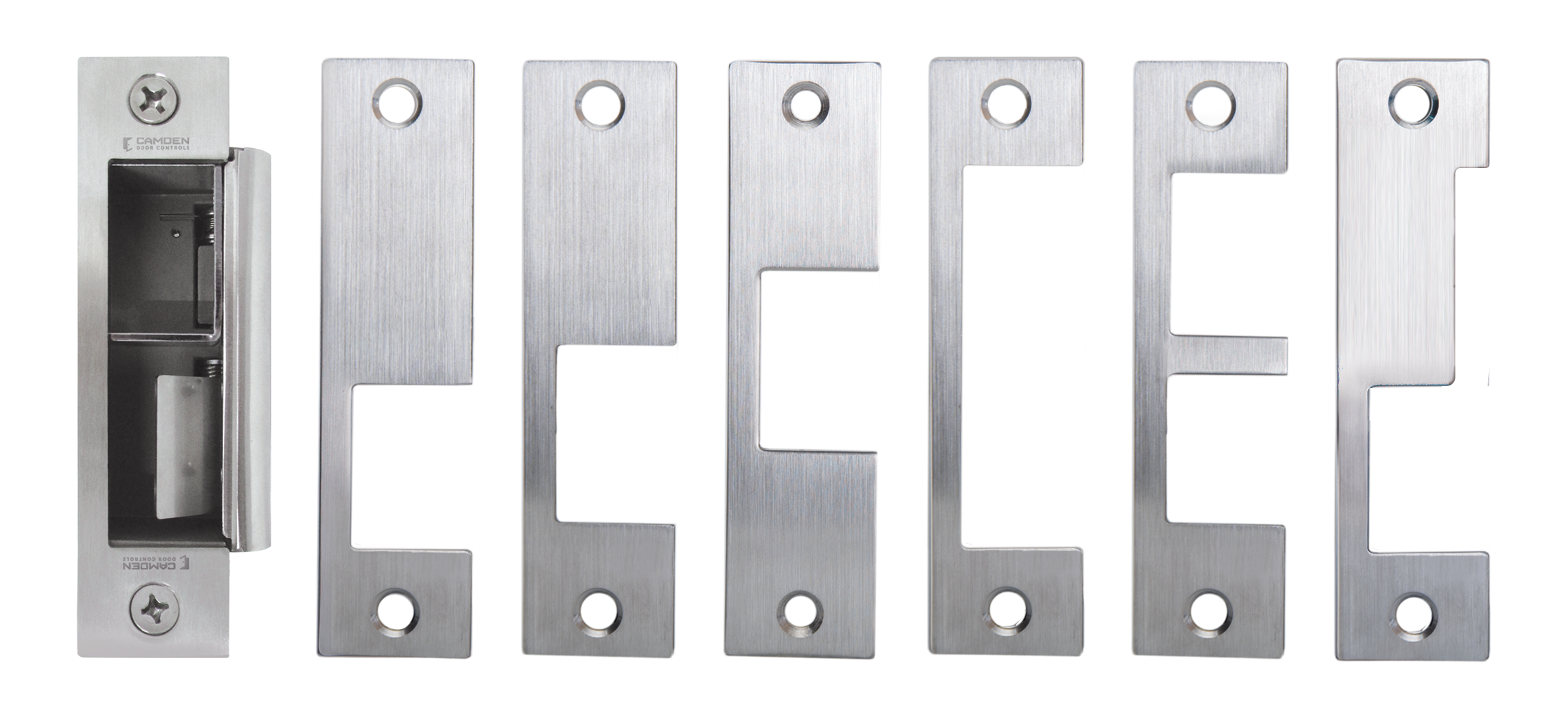

| CX-ED1579L Packaged with 5 Faceplates |
|
|
|
| Product Line Overview Presentation |
|
|
|
CX-ED1579L Installation Video
|
[ X ] |
|
|
|
|
| CX-ED1579L Installation Video |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
F2162
|
|
|
HES
|
1006CLB
|
|
|
Locknetics
|
MS100F
|
|
|
Trine
|
4100CDBM
|
|
|
Von Duprin
|
6400
|
|
|
|
| CX-ED1579L with 5 Stainless Steel Faceplates (CX-EMP-1, CX-EMP-2, CX-EMP-3, CX-EMP-4, & CX-EMP-5) |
CX-ED1579L with 5 Stainless Steel Faceplates (CX-EMP-1, CX-EMP-2, CX-EMP-3, CX-EMP-4, & CX-EMP-5)
|
|
Camden CX-ED1579L Grade 1 electric strike for mortise and cylindrical locksets offers the very best strike quality and features, with the added value of built-in latch monitoring, five stainless steel faceplates and 'Universal' performance, including field selectable voltage and fail safe/fail secure operation.
|
|
|
|
|
|
|
| CX-ED1579L Packaged with 5 Faceplates |
|
|
|
|
| Product Line Overview Presentation |
|
|
|
CX-ED1579L Installation Video
|
[ X ] |
|
|
|
|
| CX-ED1579L Installation Video |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
F2162
|
|
|
HES
|
1006CLB
|
|
|
Locknetics
|
MS100F
|
|
|
Trine
|
4100CDBM
|
|
|
Von Duprin
|
6400
|
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
For mortise and cylindrical locksets
-
3/4” (19mm) latch projection (throw)
-
5 stainless steel faceplates included
-
Selectable fail safe/fail secure operation
-
Selectable 12/24V AC/DC
-
Latch monitoring
-
Non-Handed, LH/RH
-
Easy Fit connectors for power and monitoring wires
-
Stainless steel strike body
-
5 year warranty
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
260 mA @ 12V AC/DC
150 mA @ 24V AC/DC
|
| Static Strength: |
1,500 Lbs.
|
| Dynamic Strength: |
70 Ft-Lbs.
|
| Mode: |
Fail-Safe/Fail-Secure, Field Selectable
|
| Operation: |
AC - Buzz
DC - Silent
|
| Duty: |
Continuous (DC)
|
| Mounting: |
Non-Handed
|
| Endurance: |
1,500,000 Cycles (Factory Tested)
250,000 Cycles (Ul Verified)
|
| Fire Rating: |
UL10C/Can4-S104
3 hour (fail secure only)
|
| Latch Bolt Monitor: |
SPDT, 100 mA @ 24 VDC
|
| Dimensions: |
4-7/8"H x 1-1/4"W x 1-3/4"D
(124mm x 32mm x 45mm)
|
CX-ED1579L Installation Video
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CX-ED1579L
Grade 1 ‘All In One‘ fire rated strike, 12/24V AC/DC, for mortise and cylindrical locksets
EDI DATA, APPROVALS
|
|
Grade 1 ‘All In One‘ fire rated strike, 12/24V AC/DC, for mortise and cylindrical locksets
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10.65""L x 2.125""W x 3.25""H
Weight: 2.0lbs.lbs.
UPC:670454184368
Country of Origin:Taiwan
|
| |
Marking Templates
click to expand section
|
|
Net Cost
|
|

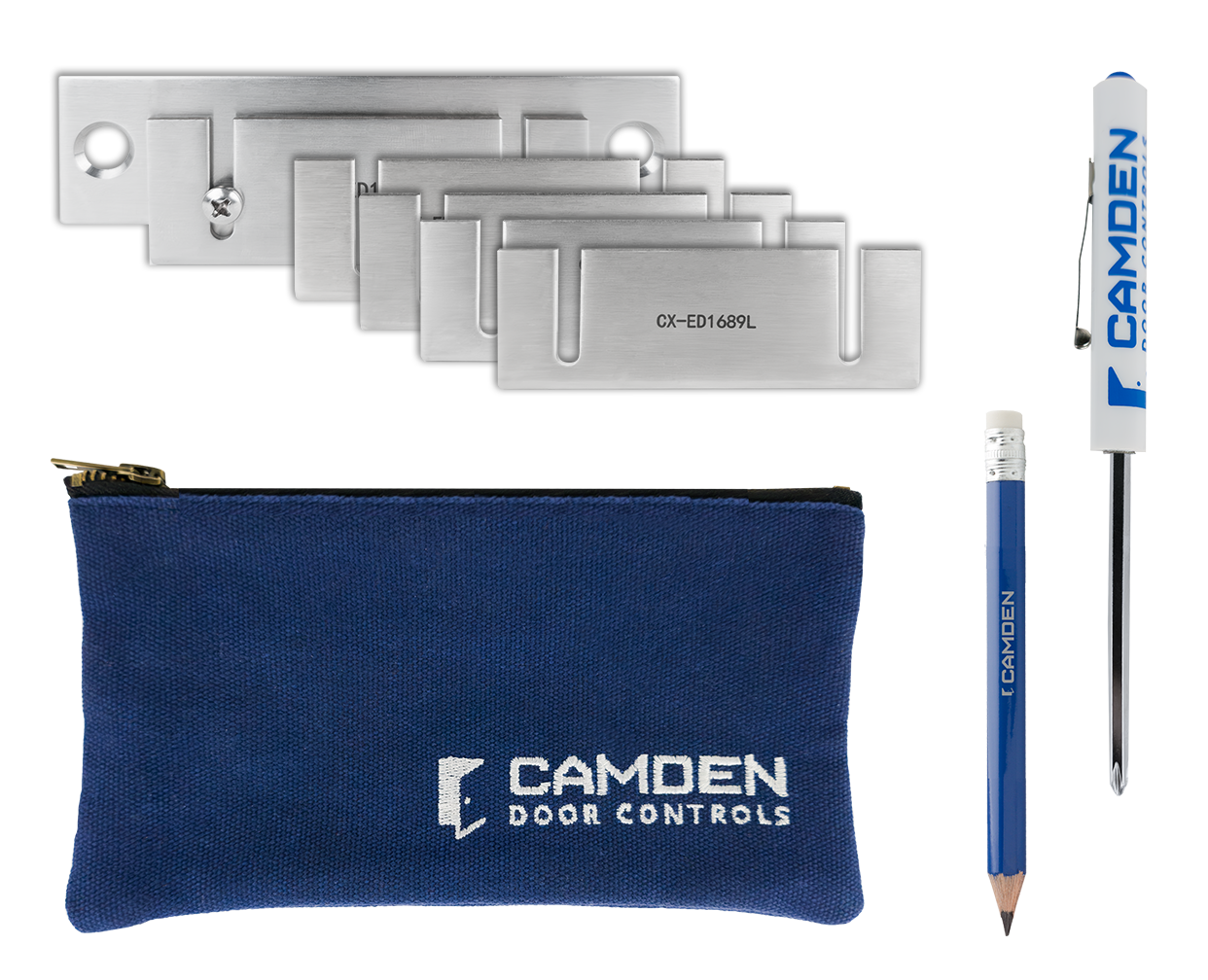

CX-STR-TMPKIT
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
EDI DATA, APPROVALS
|
|
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 4.5"W x 1.5"H
Weight: .85lbs.
UPC:670454222039
Country of Origin:Taiwan
|
| |
|
|
|
Faceplates: Included
click to expand section
|
|
Net Cost
|
|
|
CX-EMP-1
Stainless faceplate for Sargent, Schlage & Yale Mortise locksets
EDI DATA, APPROVALS
|
|
Stainless faceplate for Sargent, Schlage & Yale Mortise locksets
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454183736
Country of Origin:Taiwan
|
|
|
CX-EMP-2
Stainless faceplate for Arrow, Corbin, Falcon, & Mortise locksets
EDI DATA, APPROVALS
|
|
Stainless faceplate for Arrow, Corbin, Falcon, & Mortise locksets
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454183743
Country of Origin:Taiwan
|
|
|
CX-EMP-3
Stainless faceplate for center line mortise or cylindrical locksets
EDI DATA, APPROVALS
|
|
Stainless faceplate for center line mortise or cylindrical locksets
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454183750
Country of Origin:Taiwan
|
|
|
CX-EMP-4
Stainless faceplate for mortise locksets with deadbolt
EDI DATA, APPROVALS
|
|
Stainless faceplate for mortise locksets with deadbolt
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454183767
Country of Origin:Taiwan
|
|
|
CX-EMP-5
Stainless faceplate all mortise locks with latch & deadbolt
EDI DATA, APPROVALS
|
|
Stainless faceplate all mortise locks with latch & deadbolt
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
Country of Origin:Taiwan
|
| |
|
