| Locking Pushbutton Switch |
Locking Pushbutton Switch
|
|

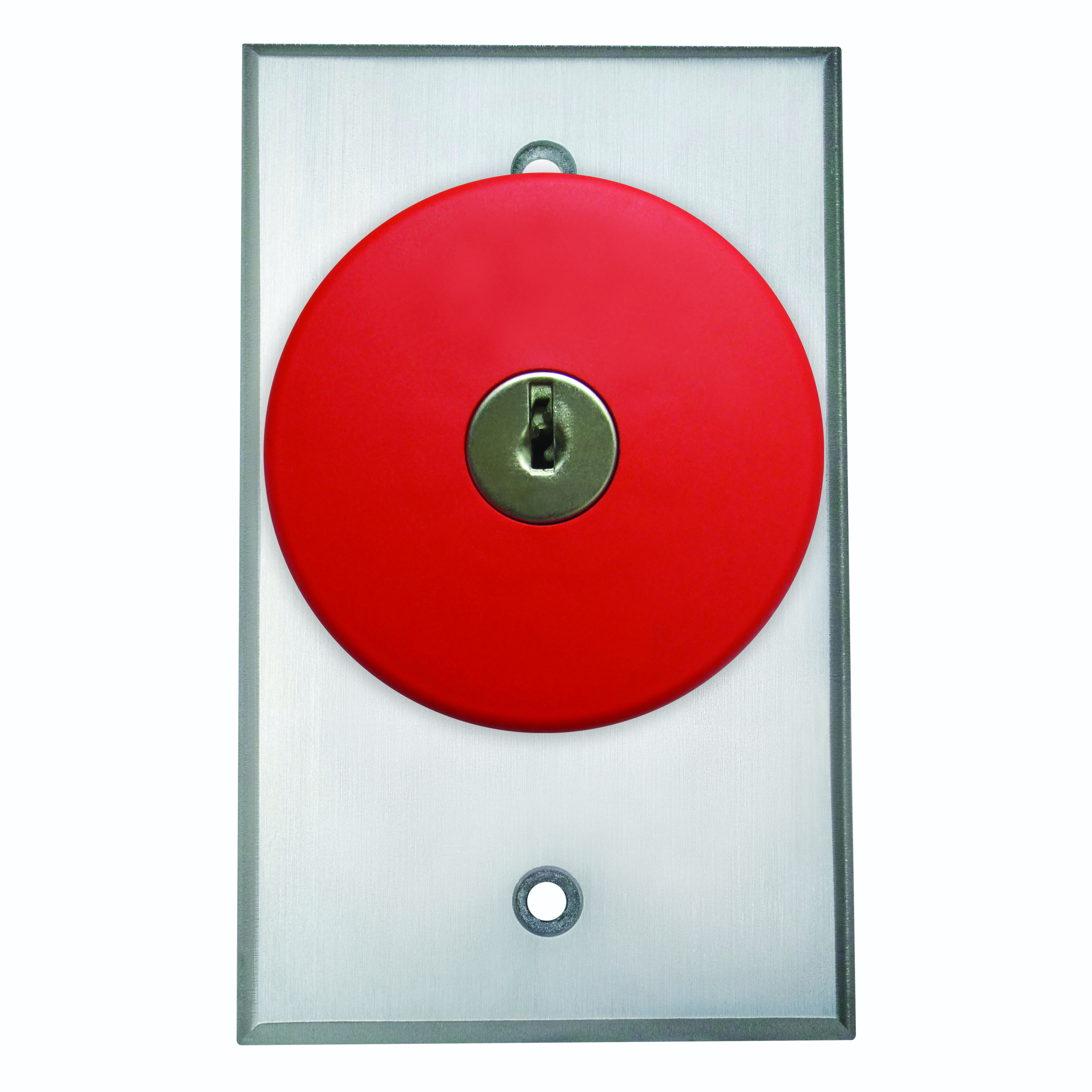

CM-6000 Series Locking push buttons are specially designed and manufactured for lock-out or emergency applications. Once pushed, the button latches and cannot be reset unless the key is inserted and turned in the center locking cylinder.
Red buttons have a 2-3/8" (60mm) diameter. They are supplied with a 1/4" thick brushed aluminum single gang faceplate.
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this series |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
KR-1
|
CM-6050/12
|
|
Dormakaba (RCI)
|
920-MA32D
|
CM-6050R
|
|
|
| Locking Pushbutton Switch |
Locking Pushbutton Switch
|
CM-6000 Series Locking push buttons are specially designed and manufactured for lock-out or emergency applications. Once pushed, the button latches and cannot be reset unless the key is inserted and turned in the center locking cylinder.
Red buttons have a 2-3/8" (60mm) diameter. They are supplied with a 1/4" thick brushed aluminum single gang faceplate. |
|
|
|
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this series |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
KR-1
|
CM-6050/12
|
|
Dormakaba (RCI)
|
920-MA32D
|
CM-6050R
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Large 2-3/8" (60mm) locking red button
-
Vandal resistant 1/4" thick aluminum plate
-
Ideal for lock-out or emergency shut-down applications
-
3 year warranty
| Switch Type: |
Push To Lock (Maintained)
|
| Current Rating: |
6 A @ 30 VDC
|
| Temp Range: |
-13°F to 158°F (-25°C to 75°C)
|
| Dimensions: |
4-1/2" x 2-3/4" x 1-3/4" (114mm x 70mm x 44mm)
|
| Std. Finish: |
Brushed Aluminum
|
|
|
|
Single Gang Faceplate
click to expand section
|
|
Net Cost
|
|
 |
CM-6030 |
RED,PUSH TO LOCK, KEY TO RELEASE, N/O, MAINTAINED
EDI DATA, APPROVALS
|
|
RED,PUSH TO LOCK, KEY TO RELEASE, N/O, MAINTAINED
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.75lbs.
UPC: 670454127877
Country of Origin: CA
|
|
|
CM-6040 |
RED, PUSH TO LOCK, KEY TO RELEASE, N/C, MAINTAINED
EDI DATA, APPROVALS
|
|
RED, PUSH TO LOCK, KEY TO RELEASE, N/C, MAINTAINED
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.75lbs.
UPC: 670454128003
Country of Origin: CA
|
|
|
CM-6050 |
RED,PUSH TO LOCK, KEY TO RELEASE N/O & N/C, MAINTAINED CM-6050
EDI DATA, APPROVALS
|
|
RED,PUSH TO LOCK, KEY TO RELEASE N/O & N/C, MAINTAINED CM-6050
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.75lbs.
UPC: 670454128089
Country of Origin: CA
|
| |
|
new option
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34D
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer 2-3/4"W x 4-1/2"H x 3"D
|
Surface Box, Extra Deep - For wireless. Heavy duty grey polymer 2-3/4"W x 4-1/2"H x 3"D
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
|
|
|
|
|
