| Lazerpoint RF 915Mhz.Wireless System |
|
|
Lazerpoint RF™ is a completely new wireless solution for automatic door operators. The system introduces the many advantages of 915MHz. spread spectrum wireless technology to the automatic door market. The system encompasses the widest range of transmitters, receivers, activation devices and switch enclosures available today. Lazerpoint RF™ receivers also supports 300MHz., 390MHz., and 433MHz. transmitters, with the use of optional daughterboards.
|
|
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
BEA
|
10RD433
|
CM-RX-90
|
|
|
10RD433EH
|
CM-RX-90
|
|
|
10RD900
|
CM-RX-90
|
|
|
10TD433HH1
|
CM-TXLF-1
|
|
|
10TD433HH2
|
CM-TXLF-2
|
|
|
10TD433HH3
|
CM-TXLF-4
|
|
|
10TD433HH4
|
CM-TXLF-4
|
|
|
10TD433PB3V
|
CM-TX-9
|
|
|
10TD433PB9V
|
CM-TX-9
|
|
|
10TD900HH1
|
CM-TXLF-1
|
|
|
10TD900HH2
|
CM-TXLF-2
|
|
|
10TD900HH3
|
CM-TXLF-4
|
|
|
10TD900HH4
|
CM-TXLF-4
|
|
|
10TD900PB
|
CM-TX-9
|
|
Dormakaba (RCI)
|
9DRCR433EHT
|
CM-RX-90
|
|
|
9DRCR433VB
|
CM-RX-90
|
|
|
9RCT4331
|
CM-TXLF-1
|
|
|
9RCT4332
|
CM-TXLF-2
|
|
|
9RCT4333
|
CM-TXLF-4
|
|
|
9RCT4333V1
|
CM-TX-9
|
|
|
9RCT4334
|
CM-TXLF-4
|
|
|
9RCT4339V1
|
CM-TX-9
|
|
MS Sedco
|
CP/RX
|
CM-RX-90
|
|
|
CP/TX
|
CM-TX-9
|
|
|
S-TRX-HH
|
CM-TXLF-1
|
|
Wikk
|
1TRANSL300-1
|
CM-TXLF-1FB
|
|
|
1TRANSL310-1
|
CM-TXLF-1FB
|
|
|
1TRANSM300-1
|
CM-TXLF-1
|
|
|
1TRANSM310-1
|
CM-TXLF-1
|
|
|
2TRANSL300-2
|
CM-TXLF-2FB
|
|
|
2TRANSM300-2
|
CM-TXLF-2
|
|
|
RECEIVER2CHAN
|
CM-RX-90
|
|
|
SWTRAN300M
|
CM-TX-9
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
- LAZERPOINT RF™ is compatible with all automatic door operators.
- Advanced 915MHz spread spectrum (broadband) wireless communications for outstanding range and performance.
- Multi-year battery life (using inexpensive 'AAA' alkaline batteries) and exclusive 'low battery','gas gauge' and 'stuck switch' audible alerts.
- New CM-RX90 advanced reciever, with 1 relay, features 3 relay modes (delay, non-delay & latching). Ideal for vestibule applications.
- RX-92 receiver model with two channels plus 6 operating modes; saves time and money by avoiding the cost of buying and installing additional components.
- Optional plug-in receiver modules provide compatibility with other RF frequencies.
- ‘PUSH AND LEARN' transmitter enrollment and signal strength indicators, makes LAZERPOINT RF™ the easiest system to install
- Ultra compact switch transmitter fits anywhere, including jamb box.
CM-TX9: 2 1/4” x 5/8” x 3/8” (57mm x 16mm x 10mm)
- Ultra compact receivers can be mounted in door operator cabinets. CM-90: 2-5/8"” x 1-1/2"” x 1” (67mm x 38mm x 25mm)
- Compact ADA compliant 1, 2 and 4 button key FOBs.
CM-TXF1/2/4: 2 9/16” x 1 9/16” x 5/8” (65mm x 40mm x 16mm)
- Innovative FOB base for wheelchair, visor, belt or wall mouting.
CM-TXLFB: 4” x 1 5/8” x 3/4” (102mm x 42mm x 19mm)
- Plug-in Lazerpoint RF™ wireless transmitter module for CM-120 series digital keypads and CM-330 series hands free switches
CM-TX99:1 9/16” L x 9/16” W x 5/16” H (40mm x 15mm x 8mm)
- Camden product quality backed by a full 3 year replacement warranty
| Wireless Frequency: |
905.25 / 915.25 / 925.25 MHz. Spread Spectrum |
| Wireless Range: |
CM-TX-9/99:
500ft (152m) open area
CM-TXLF Series:
250ft (76m) open area |
| Receiver Capacity: |
40 CM-TX Series Transmitters |
| Codes: |
1 Million Unique (20 Bit) Codes |
| Power/Voltage: |
CM-RX90/91/92:
12/24 V, AC/DC
CM-TX9
(2) AAA alkaline batteries (supplied)
(2) AAA Lithium batteries (option)
CM-TX-99
Plug-in, power by device
CM-TXLF Series:
CR2032 Lithium battery |
| Battery Life: |
CM-TX-9: 500,000 cycles
CM-TXLF 115,000 cycles |
| Status & Alarm Indicators: |
CM-TX-9/TXLF:
Transmission confirmation, low battery, battery test & stuck switch
CM-90/91/92:
Relay status, signal strength, erase mode & pot position |
| Output: |
CM-RX90:(1) SPDT relay, 3 modes
CM-RX91: (1) SPDT relay, 1 mode
CM-RX92: (2) SPDT relays, 6 modes |
| Contact Rating: |
3 Amps @ 30VDC |
| Current Draw: |
CM-TX-9: 2 mA
CM-RX90: 23mA - 43mA
CM-RX91/92:23mA - 63mA |
| Time Delay: |
CM-RX90/91: 1-30 seconds
CM-RX92: #1 D.O.R. 1-30 sec.
#2 D.O.O. 1-15 sec.
#2 D.O.R. 1-30 sec. |
| Temp Range: |
Alkaline: 32°F to 122°F (0°C to 50°C)
Lithium: -40°F to 122°F (-40°C to 50°C) |
|
Manuals
|
| CM-RX-90 V2 Manual_Eng-Rev3 |
pdf |
0.61 |
DOWNLOAD
|
| CM-RX-90 V2 Manual_Fr-Rev3 |
pdf |
0.63 |
DOWNLOAD
|
| CM-RX-91 Manual_Eng-Rev3 |
pdf |
2.09 |
DOWNLOAD
|
| CM-RX-91 Manual_Fr-Rev3 |
pdf |
2.64 |
DOWNLOAD
|
| CM-RX-92 Manual_Eng-Rev3 |
pdf |
7.67 |
DOWNLOAD
|
| CM-RX-92 Manual_Fr-Rev3 |
pdf |
7.39 |
DOWNLOAD
|
| CM-TX-9 Manual_Eng-Rev6 |
pdf |
0.45 |
DOWNLOAD
|
| CM-TX-9 Manual_Fr-Rev6 |
pdf |
0.43 |
DOWNLOAD
|
| CM-TX-99 Manual_Eng-Rev3 |
pdf |
0.29 |
DOWNLOAD
|
| CM-TX-99 Manual_Fr-Rev3 |
pdf |
0.30 |
DOWNLOAD
|
| CM-TXLF Manual_Eng-Rev6 |
pdf |
0.72 |
DOWNLOAD
|
| CM-TXLF Manual_Fr-Rev6 |
pdf |
0.72 |
DOWNLOAD
|
| Lazerpoint_CM-GTXLF_Manual_R6 |
pdf |
0.76 |
DOWNLOAD
|
|
Spec Sheets
|
| Lazerpoint RF_Spec Sheet_R10 |
pdf |
2.60 |
DOWNLOAD
|
|
Reference Guides
|
| Lazerpoint RF_Product Comparision |
pdf |
0.21 |
DOWNLOAD
|
|
Promotion
|
| Touchless Wave Article |
pdf |
0.67 |
DOWNLOAD
|
| Lazerpoint RF_Competitive Advantages |
ms-powerpoint |
0.48 |
DOWNLOAD
|
| Why use Camden Lazerpoint RF |
pdf |
0.04 |
DOWNLOAD
|
| Lazerpoint RF_FOB Introduction Presentation |
pdf |
0.90 |
DOWNLOAD
|
| Lazerpoint Magazine Article_Locksmith Ledger_2018 |
pdf |
5.59 |
DOWNLOAD
|
|
High Resolution Images
|

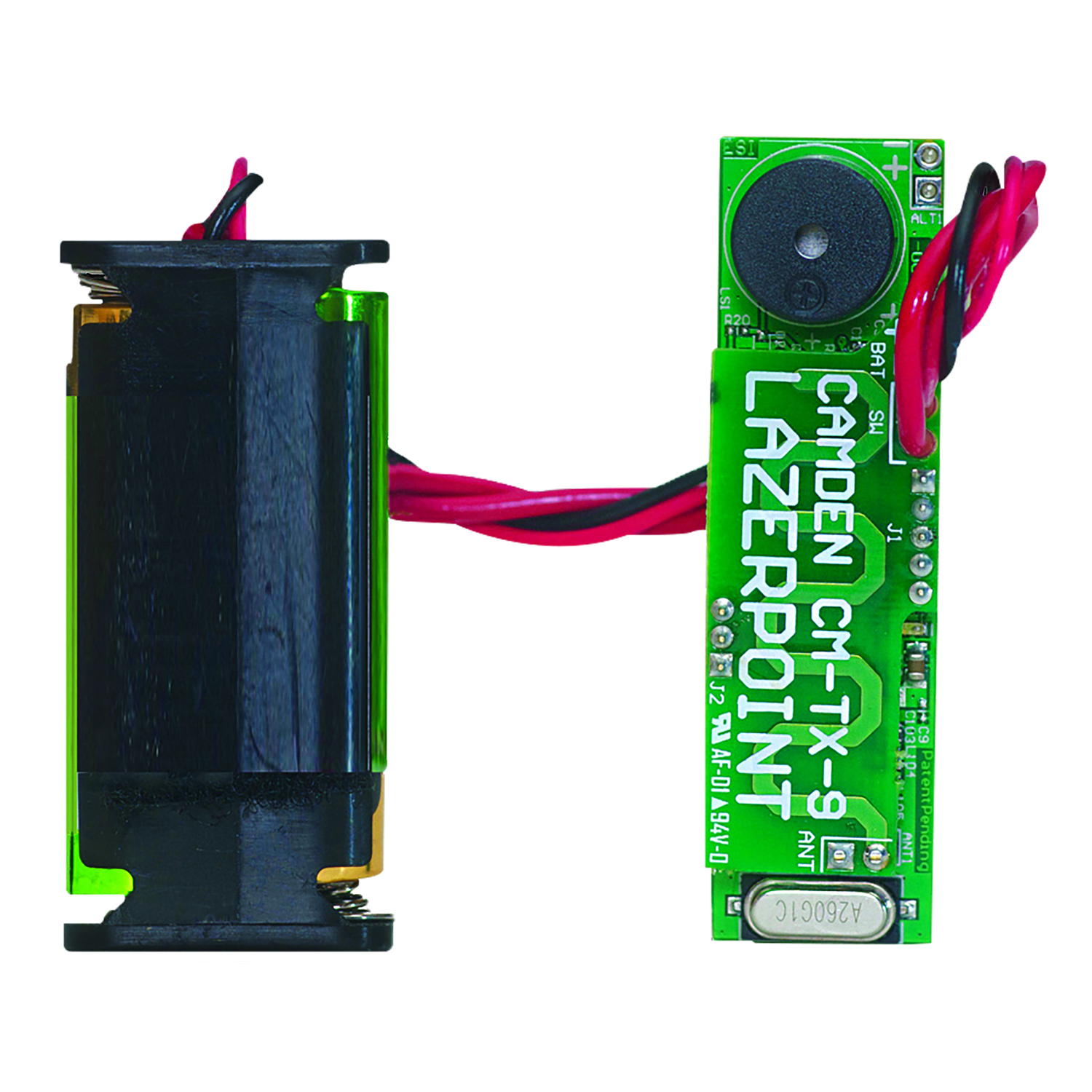

| CM-TX-9 |
jpeg |
1.79 |
DOWNLOAD
|

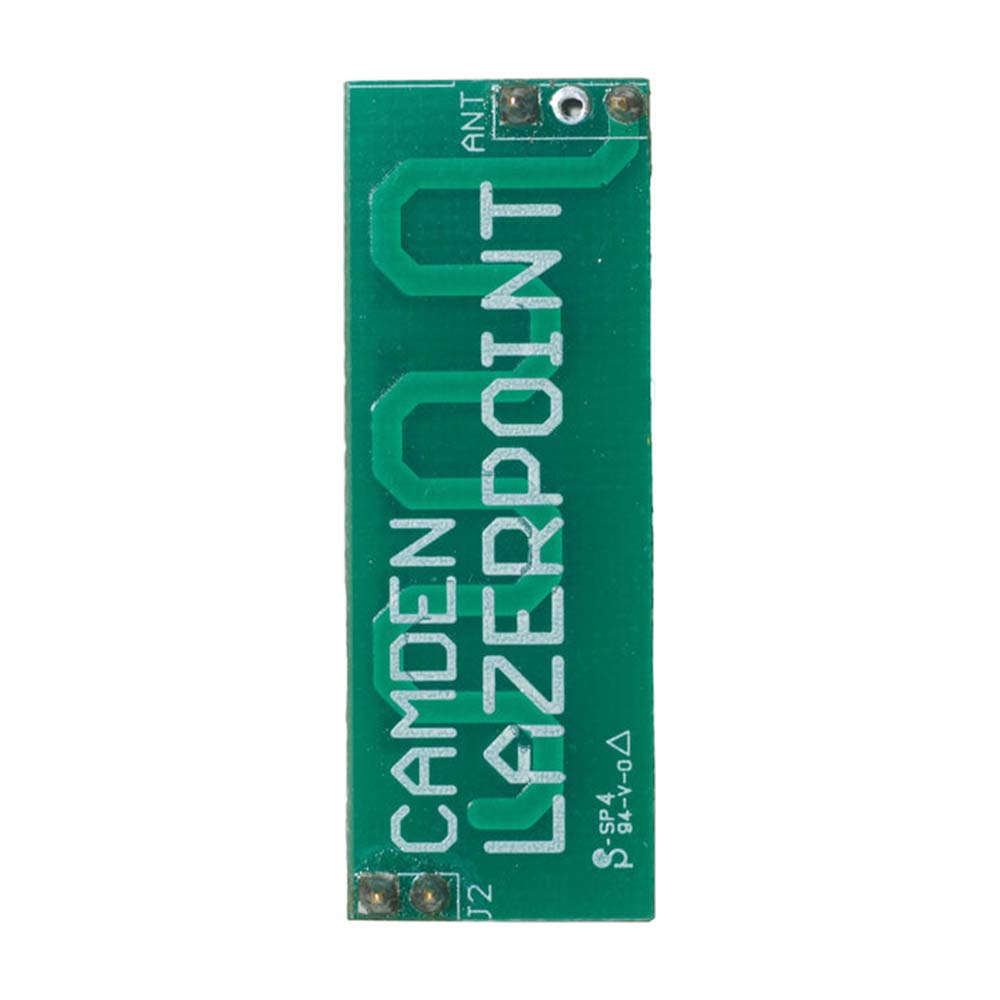

| CM-TX-99 |
jpeg |
0.04 |
DOWNLOAD
|
| CM-TXLF-1 |
pjpeg |
2.13 |
DOWNLOAD
|

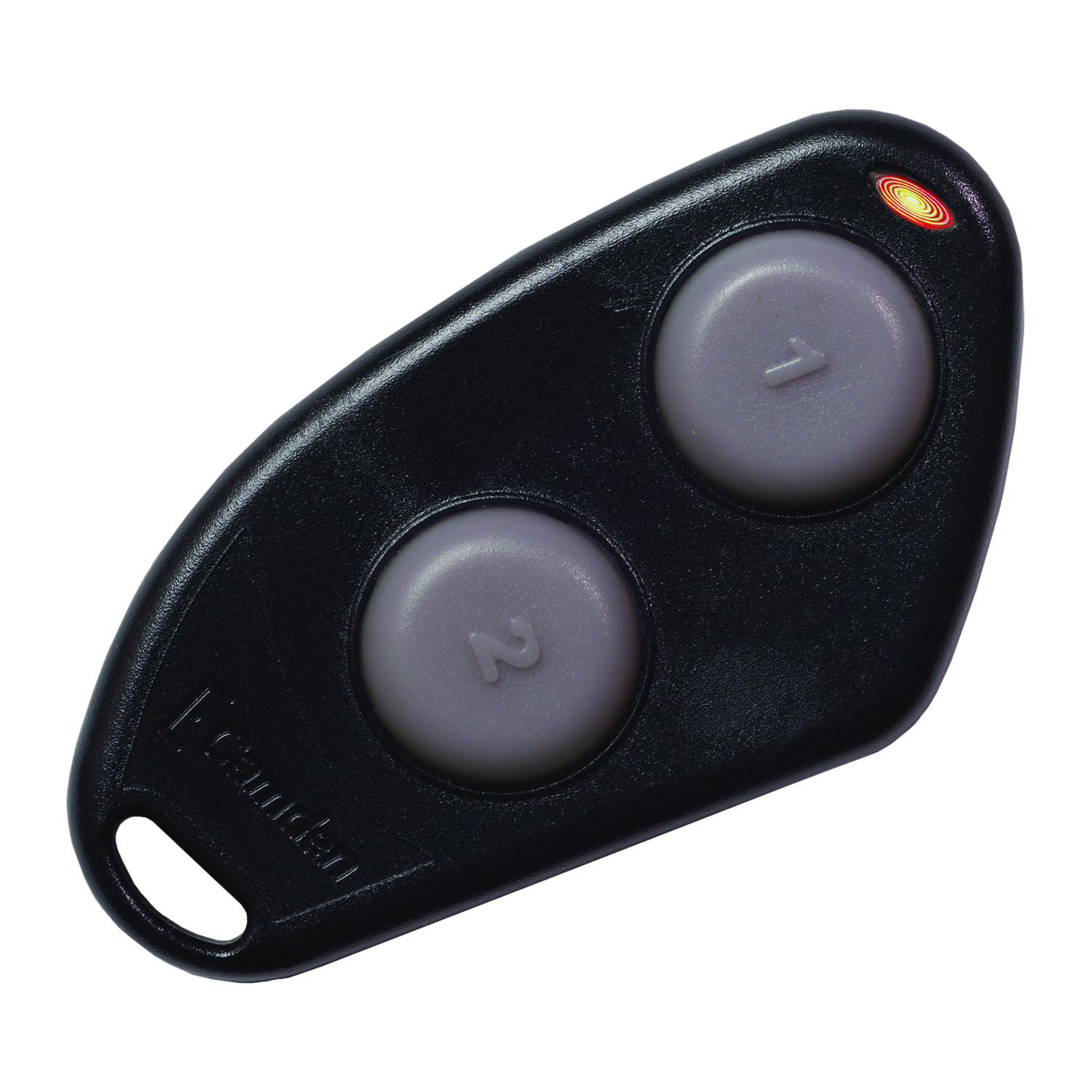

| CM-TXLF-2 |
pjpeg |
2.18 |
DOWNLOAD
|

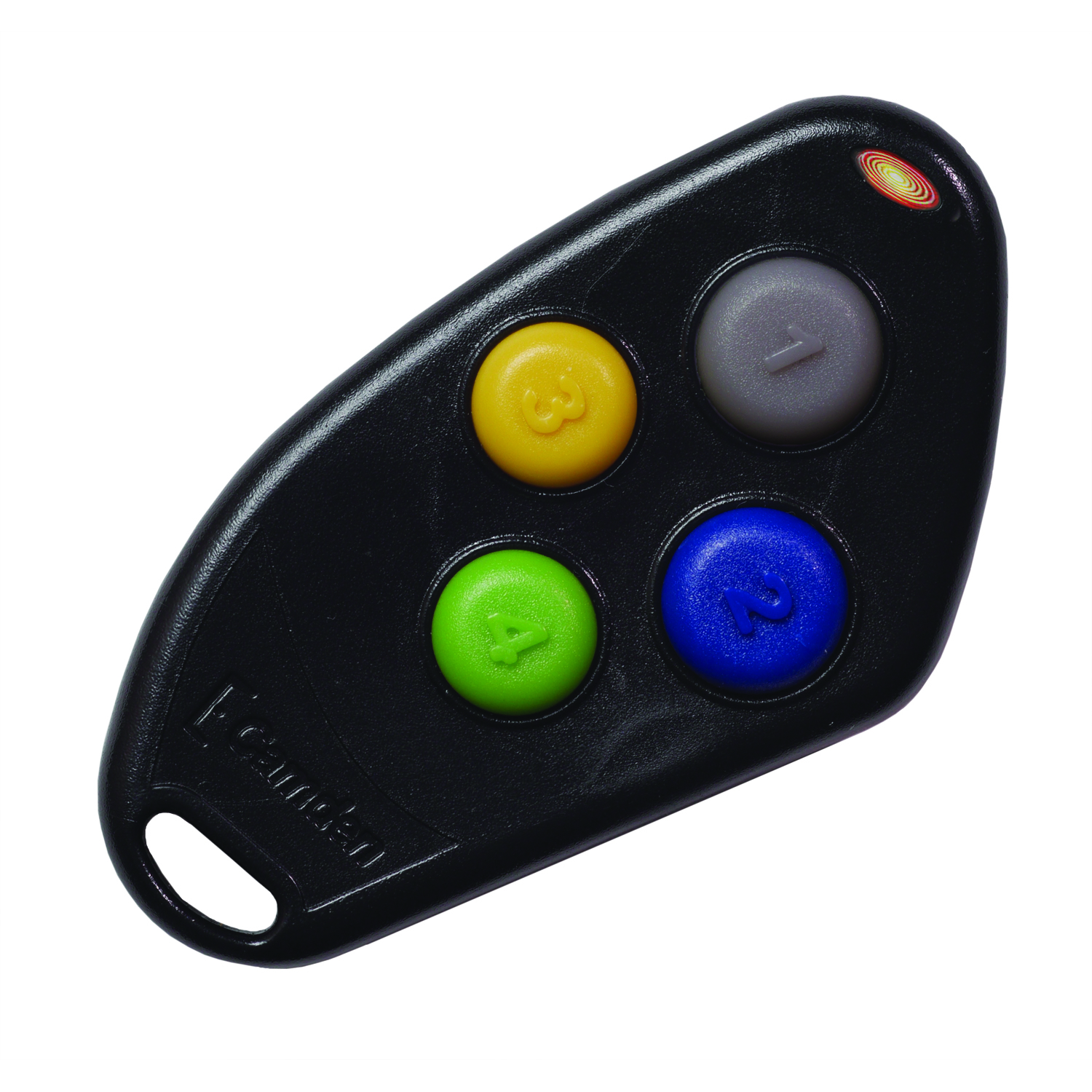

| CM-TXLF-4 |
pjpeg |
2.11 |
DOWNLOAD
|
| CM-TXLF-1LP |
jpeg |
0.64 |
DOWNLOAD
|

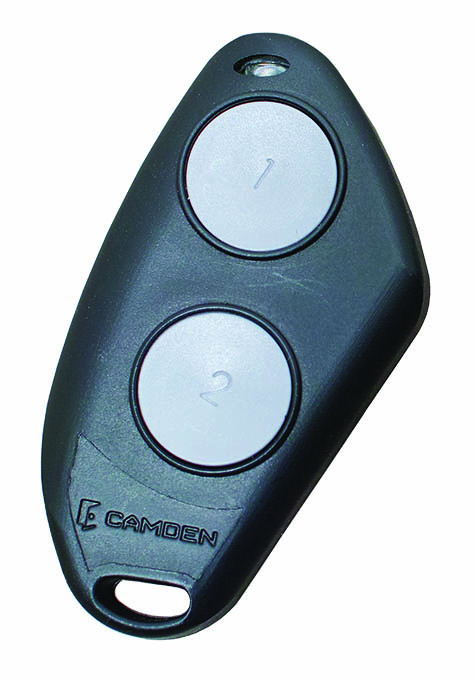

| CM-TXLF-2LP |
jpeg |
0.64 |
DOWNLOAD
|

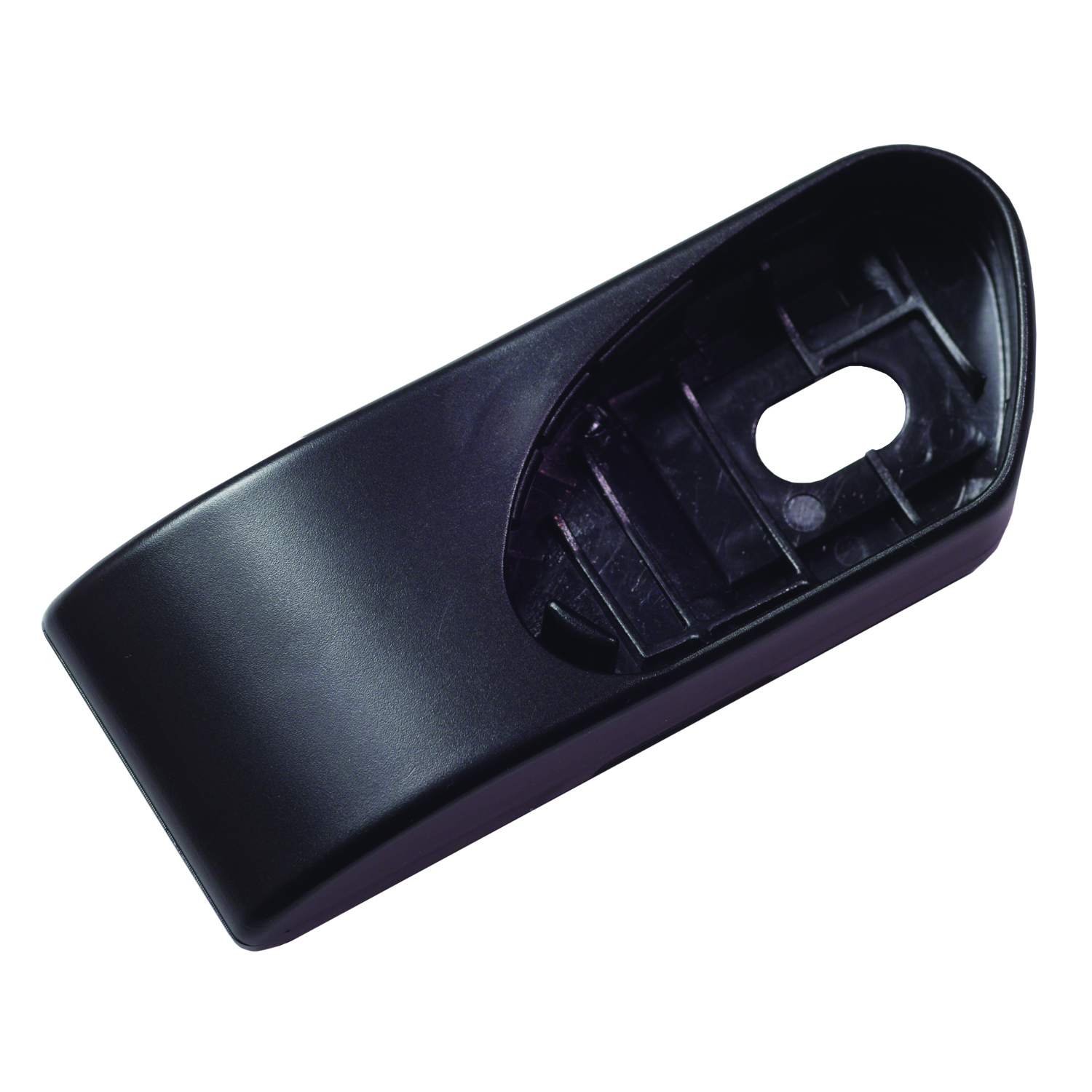

| CM-TXLF-B |
jpeg |
1.82 |
DOWNLOAD
|
| CM-RX-90 |
jpeg |
2.27 |
DOWNLOAD
|
| CM-RX-91 |
jpeg |
1.25 |
DOWNLOAD
|

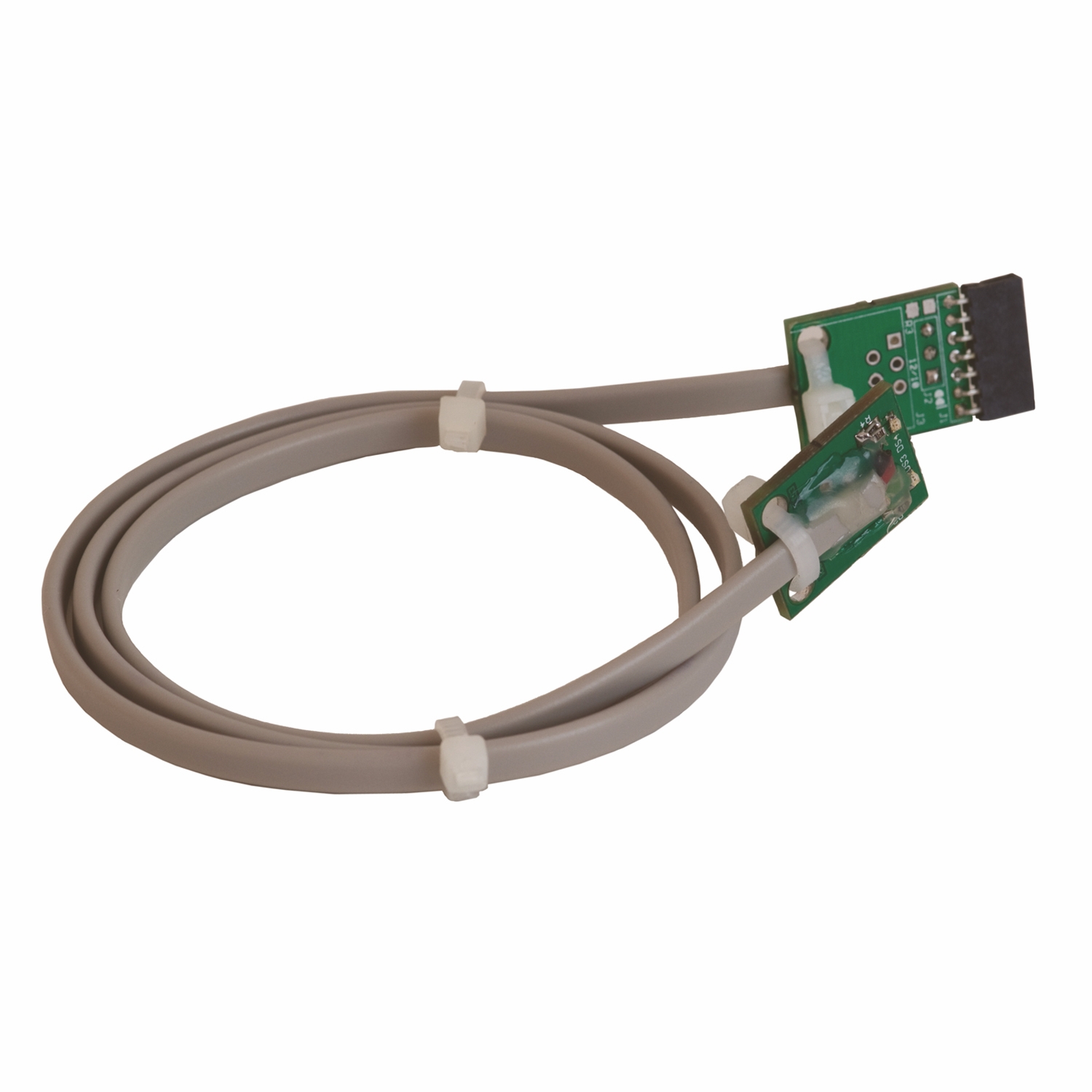

| CM-RX-DBO |
jpeg |
0.97 |
DOWNLOAD
|
| CM-RX-92 |
jpeg |
1.16 |
DOWNLOAD
|
| CM-RFL254-A |
jpeg |
0.43 |
DOWNLOAD
|
| CM-RFL454-LPA |
jpeg |
0.23 |
DOWNLOAD
|
| CM-RFL464-SA |
jpeg |
0.27 |
DOWNLOAD
|

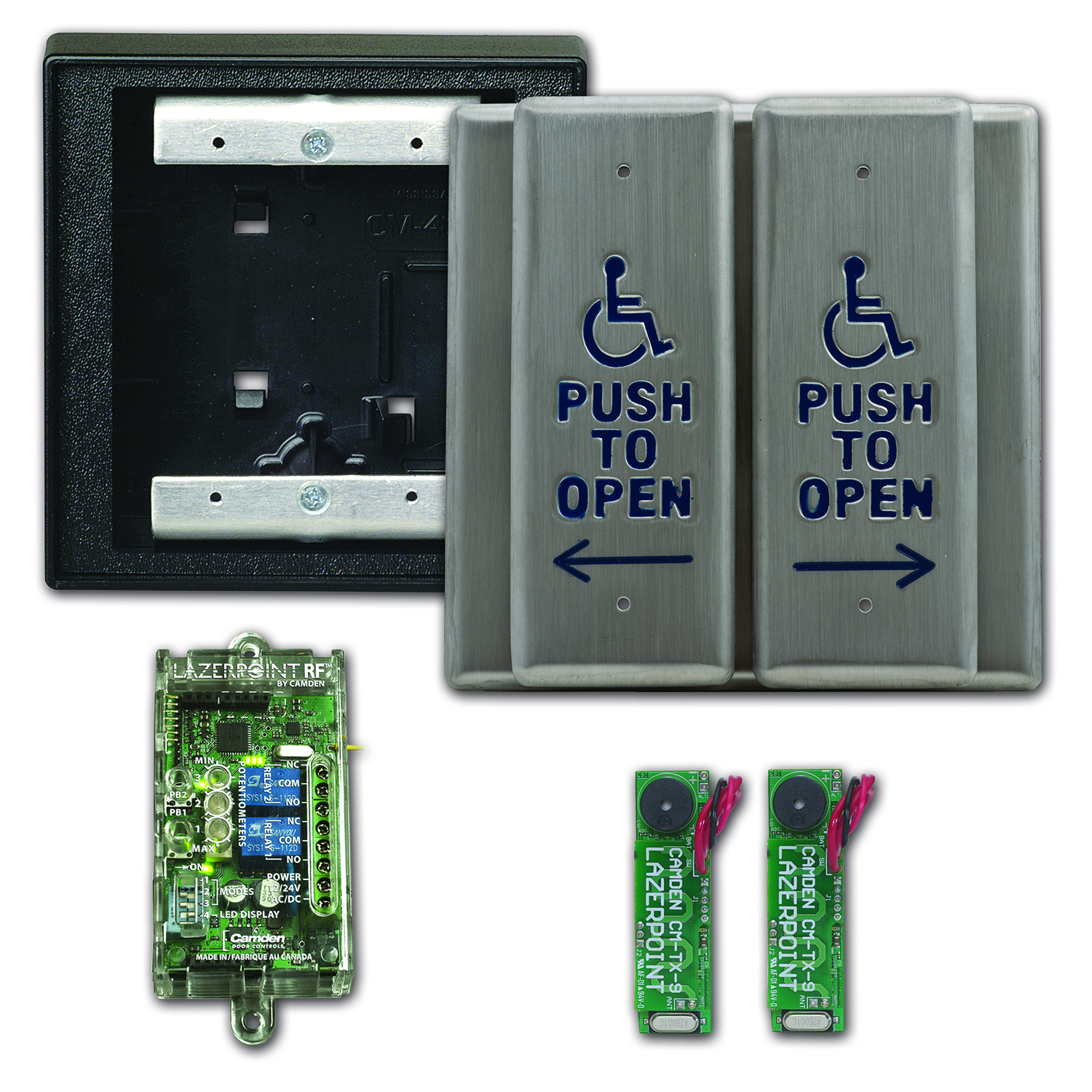

| CM-RFL25204 |
jpeg |
2.95 |
DOWNLOAD
|
Touchless WaveProduct Line Overview
Wireless Door Activation - An Installers Guide
|
|
|
Switch Transmitters
click to expand section
|
|
Net Cost
|
|
CM-TX-9
Wall Switch Transmitter
EDI DATA, APPROVALS
|
|
Wall Switch Transmitter
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.16lbs.
UPC:670454161987
|
|
CM-TX-99
915Mhz. plug-in transmitter for SureWave(tm) CM-331 and 332 series touchless switches and CM-120 Series Keypads.
EDI DATA, APPROVALS
|
|
915Mhz. plug-in transmitter for SureWave(tm) CM-331 and 332 series touchless switches and CM-120 Series Keypads.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454167996
|
|
CM-xxx-L2
Add 'L2' to CM-TX-9 model # for AAA lithium batteries in place of alkaline. Required for outdoor applications below 0C, -32F
EDI DATA, APPROVALS
|
|
Add 'L2' to CM-TX-9 model # for AAA lithium batteries in place of alkaline. Required for outdoor applications below 0C, -32F
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
| |
|
Key FOB Transmitters
click to expand section
|
|
Net Cost
|
|

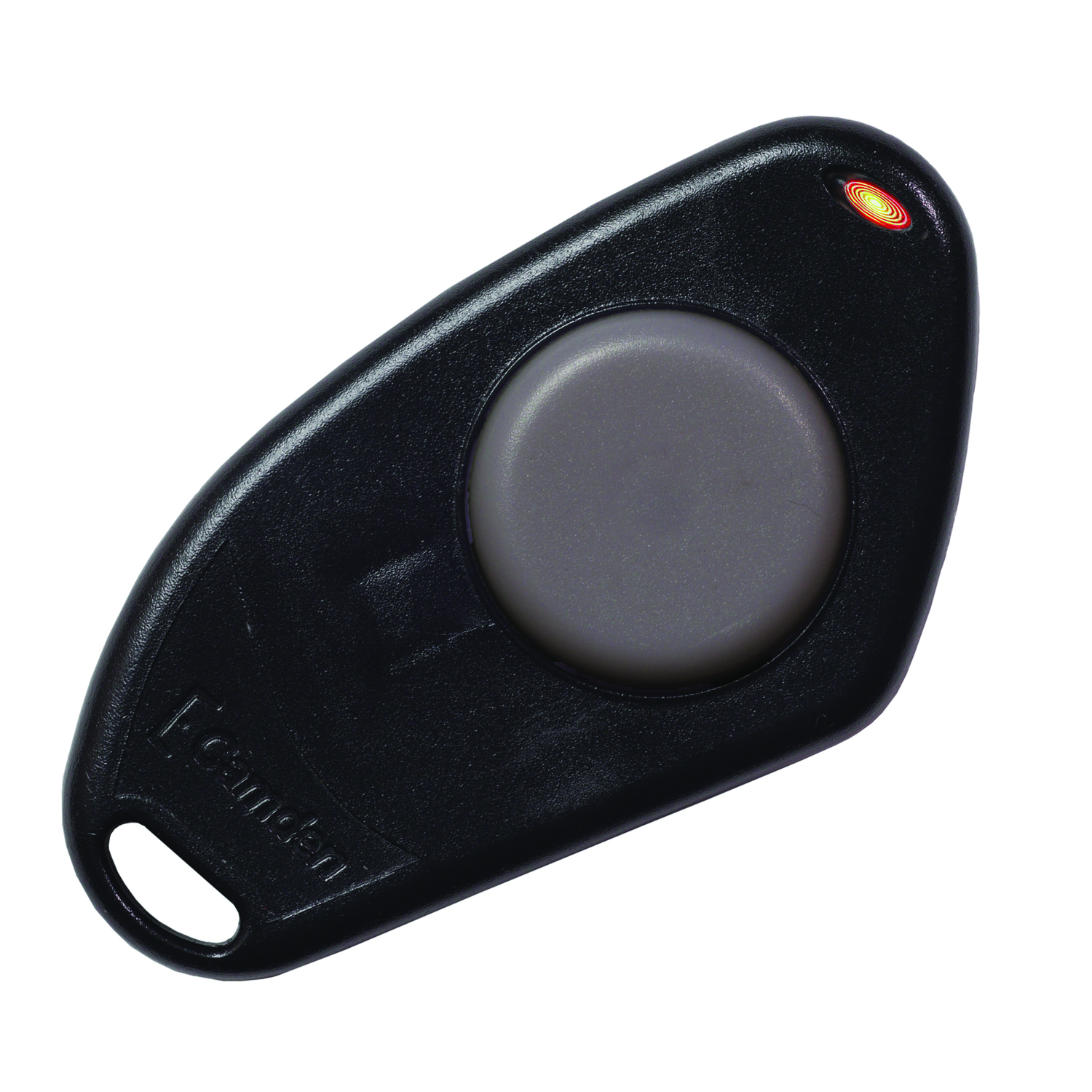

CM-TXLF-1
One button key FOB
EDI DATA, APPROVALS
|
|
One button key FOB
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454172921
|
|
CM-TXLF-2
Two-button key FOB
EDI DATA, APPROVALS
|
|
Two-button key FOB
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454172938
|
|
CM-TXLF-4
Four-button key FOB
EDI DATA, APPROVALS
|
|
Four-button key FOB
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454172945
|
|

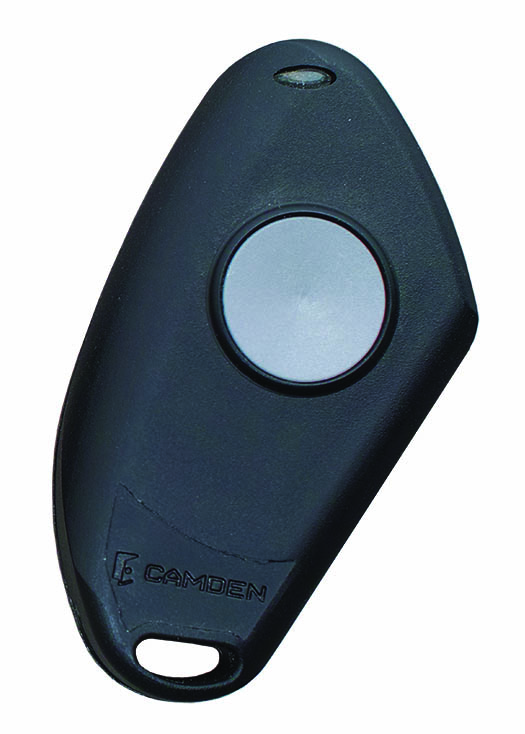

CM-TXLF-1LP
One button recessed key FOB
EDI DATA, APPROVALS
|
|
One button recessed key FOB
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454195258
|
|
CM-TXLF-2LP
Two button recessed key FOB
EDI DATA, APPROVALS
|
|
Two button recessed key FOB
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454195265
|
|
CM-TXLF-B
Key FOB base, for wall, belt/visor or wheelchair mounting
EDI DATA, APPROVALS
|
|
Key FOB base, for wall, belt/visor or wheelchair mounting
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9.5"L x 4"W x 1"H
Weight: 0.1lbs.
UPC:670454173218
|
| |
|
Receivers
click to expand section
|
|
Net Cost
|
|

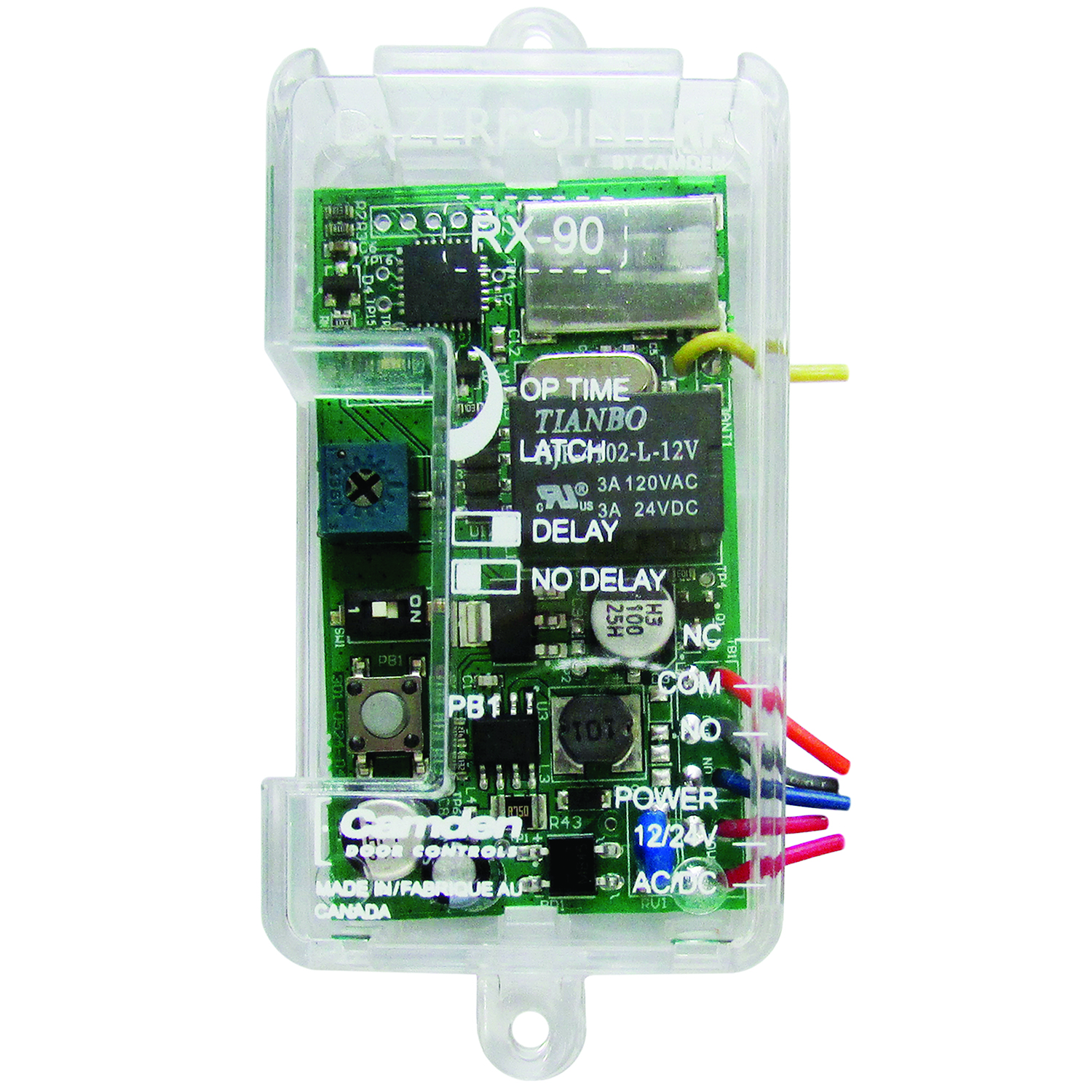

CM-RX-90
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver
EDI DATA, APPROVALS
|
|
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.2lbs.
UPC:670454188847
|
|
CM-RX-91
Basic Single Relay Receiver
EDI DATA, APPROVALS
|
|
Basic Single Relay Receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.23lbs.
UPC:670454162656
|
|

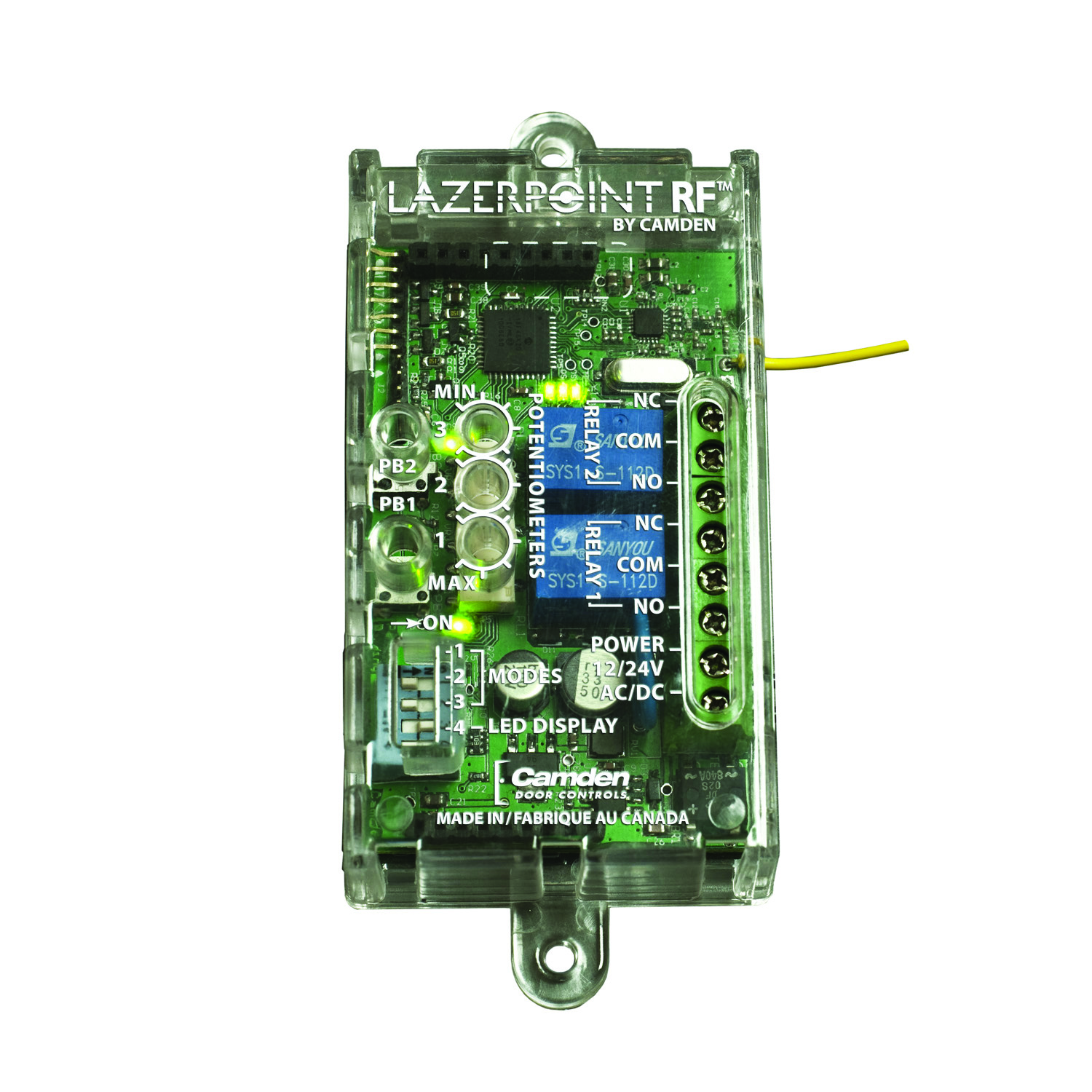

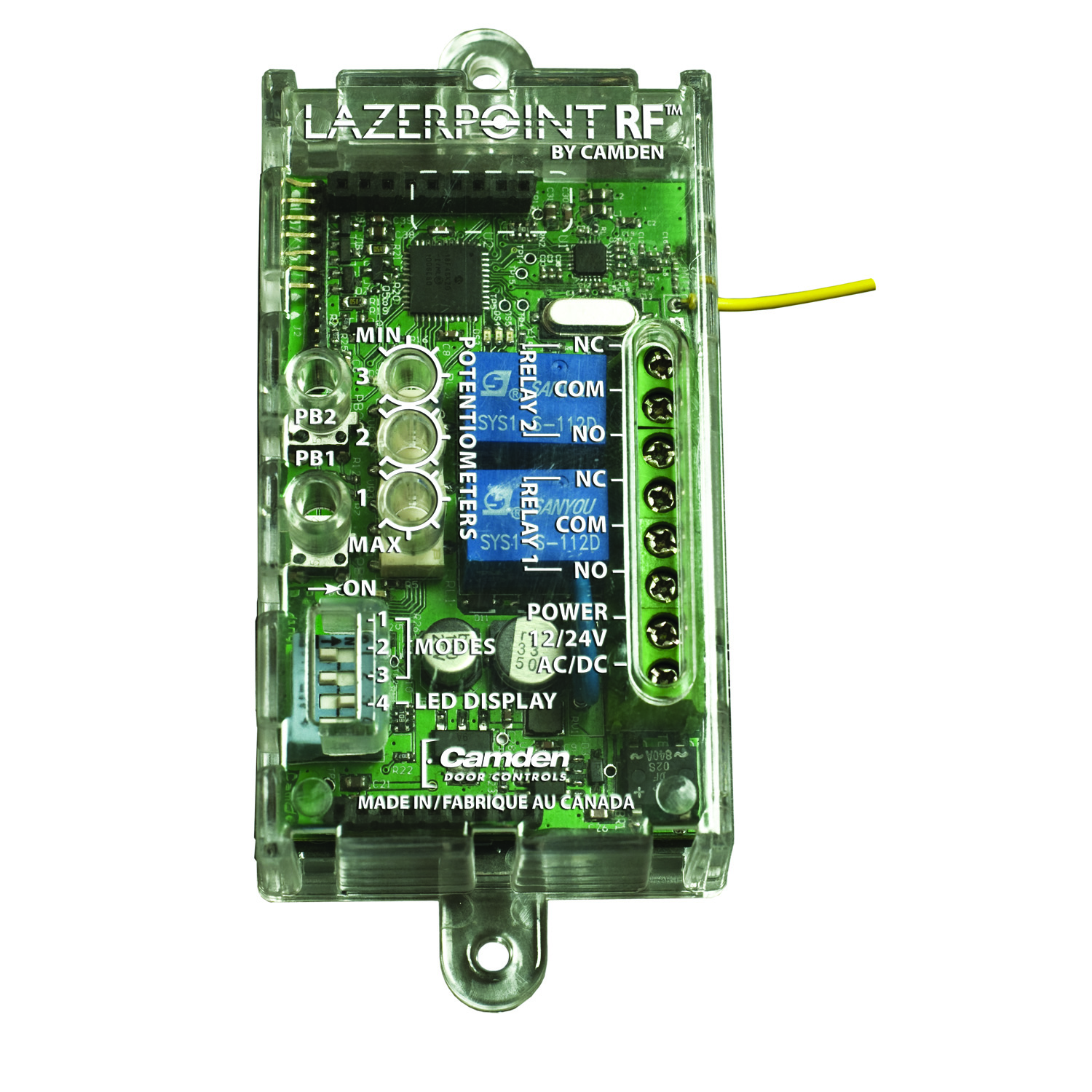

CM-RX-92
Full Function Dual Relay Receiver
EDI DATA, APPROVALS
|
|
Full Function Dual Relay Receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.27lbs.
UPC:670454161994
|
| |
|
new option
|
WIRELESS KITS W/ 1 RELAY RECEIVER
|
|
|
CM-25 Jamb Width Push Plate
click to expand section
|
|
Net Cost
|
|

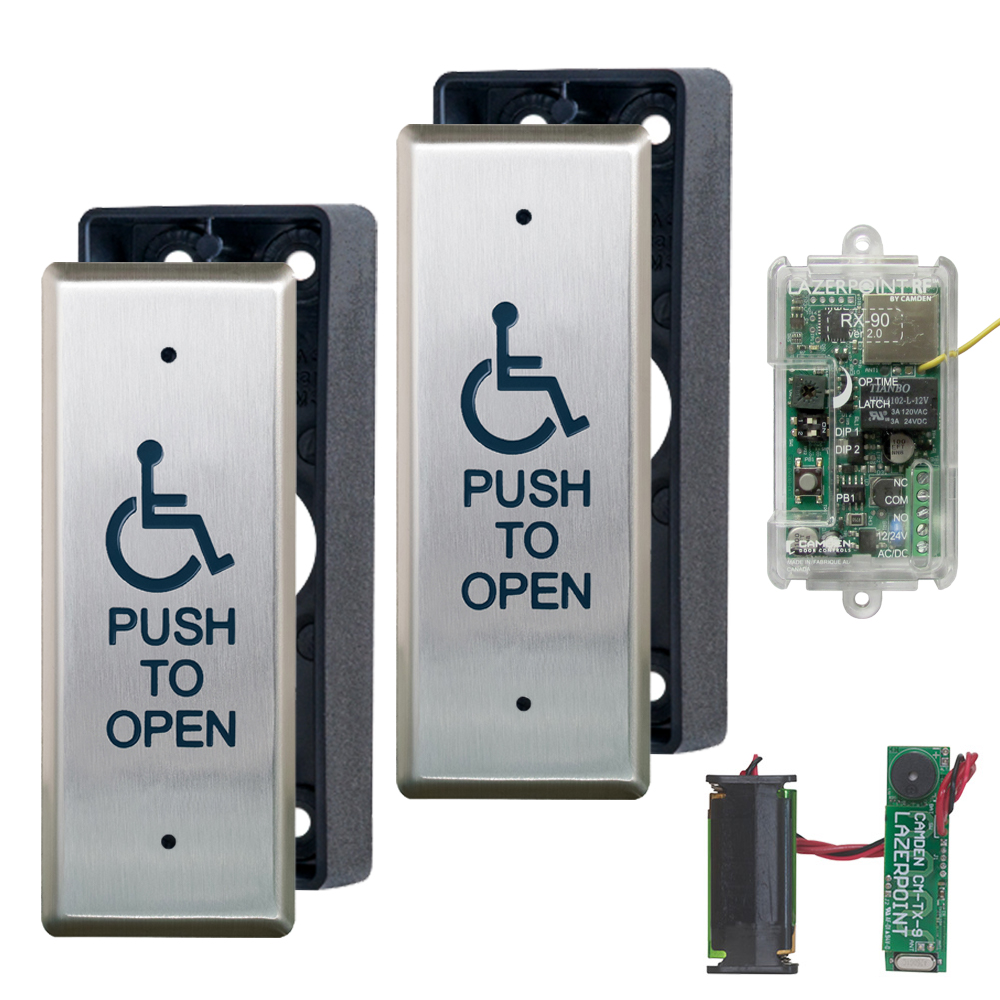

CM-RFL254-A
EDI DATA, APPROVALS
|
|
CM-RFL254-A
(2)
Narrow push plate switch, vertical mounting;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)

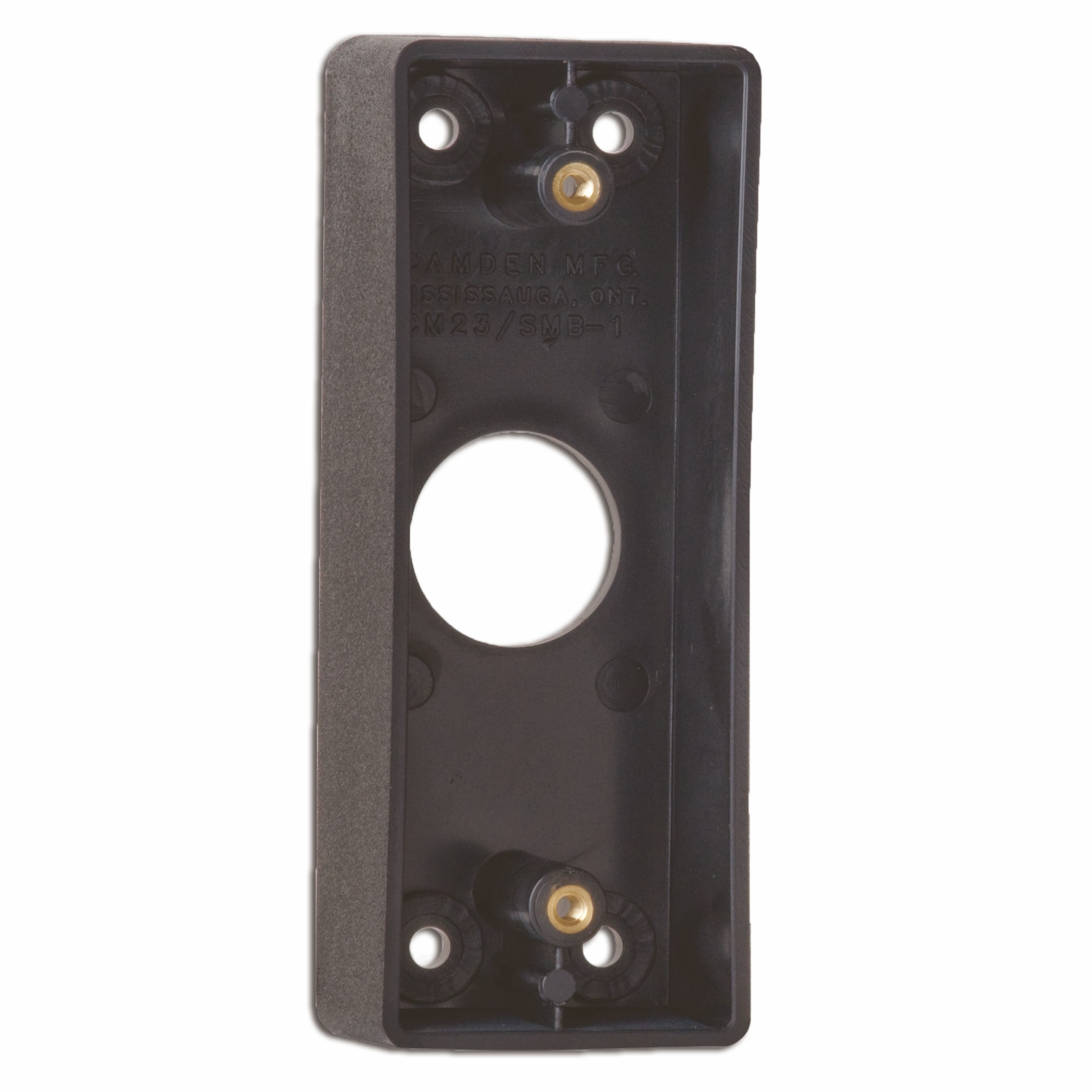

Surface Box, Deep - For wireless.;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.00"L x 8.00"W x 7.25"H
Weight: 2.1lbs.
|
| |
|
CM-35 Single Gang Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL352-A
EDI DATA, APPROVALS
|
|
CM-RFL352-A
(2)
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting;
'WHEELCHAIR' symbol, blue graphic;
(2)

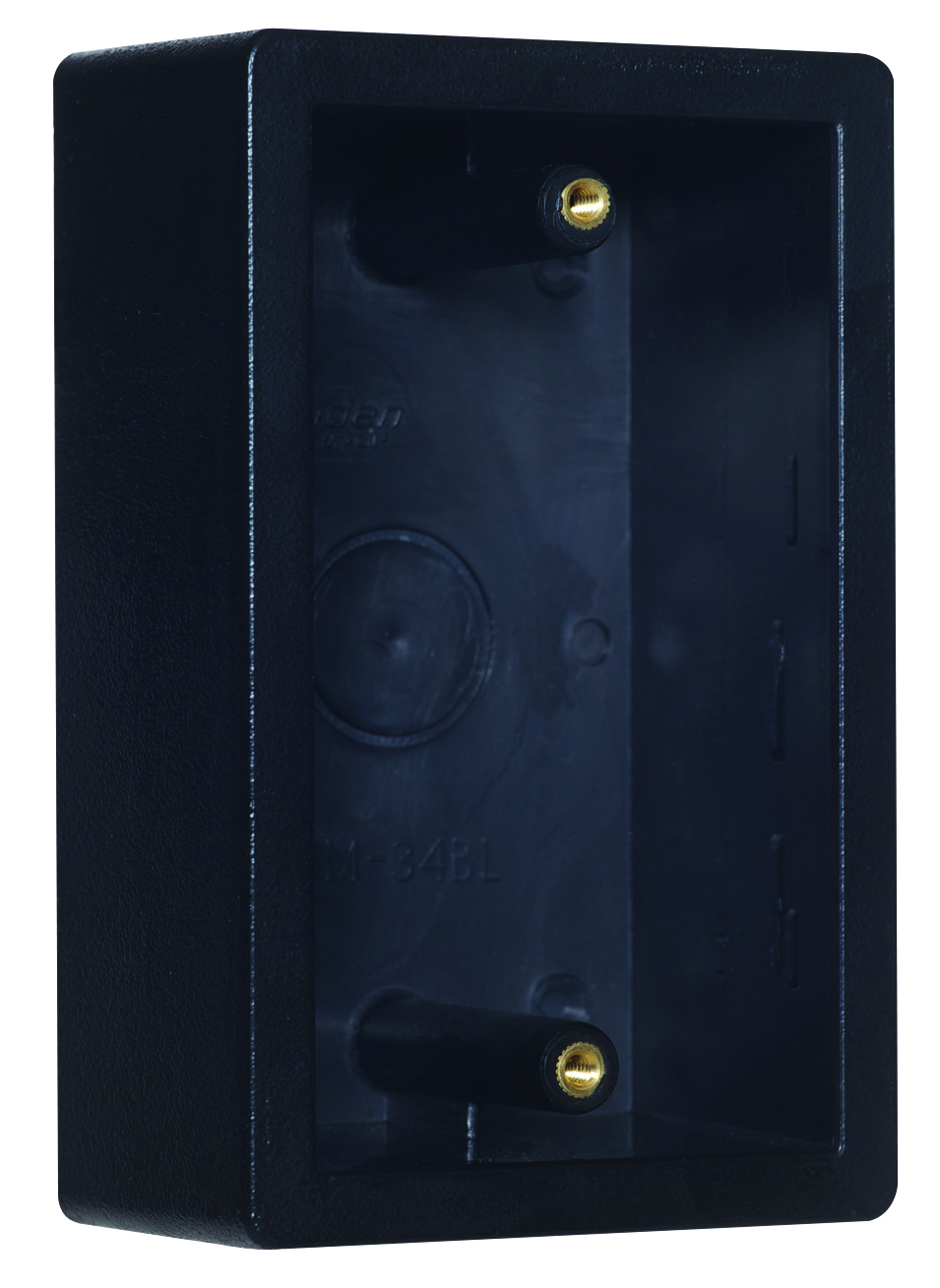

Surface Box, Standard Depth. Double wall;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.00"L x 8.00"W x 7.25"H
Weight: 2.1lbs.
UPC:670454210920
|
|
CM-RFL353-A
EDI DATA, APPROVALS
|
|
CM-RFL353-A
(2)
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting;
'PUSH TO OPEN', black graphics;
(2)
Surface Box, Standard Depth. Double wall;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 2.1lbs.
|
|
CM-RFL353F-A
EDI DATA, APPROVALS
|
|
CM-RFL353F-A
(2)
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting;
'POUSSEZ POUR OUVRIR', black graphics;
(2)
Surface Box, Standard Depth. Double wall;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 2.1lbs.
|
|
CM-RFL354-A
EDI DATA, APPROVALS
|
|
CM-RFL354-A
(2)
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Standard Depth. Double wall;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 2.1lbs.
UPC:670454189455
|
|
CM-RFL354F-A
EDI DATA, APPROVALS
|
|
CM-RFL354F-A
(2)
4-1/2" x 2" (114mm x 50.8mm) Single gang push plate switch, vertical mounting;
'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR';
(2)
Surface Box, Standard Depth. Double wall;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 2.1lbs.
|
| |
|
CM-26CB Blue Jamb Width Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL26CB4-A
EDI DATA, APPROVALS
|
|
CM-RFL26CB4-A
(2)
Narrow Blue Push Plate Switch, White Graphics, Exposed Screws.;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Deep - For wireless.;
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 2.1lbs.
UPC:670454189417
|
| |
|
CM-40 4 1/2" Round Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL404-47-A
EDI DATA, APPROVALS
|
|
CM-RFL404-47-A
(2)
4-1/2" Round Push Plate Switch;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface, Round, Standard Depth, provision for wireless. black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 3.0lbs.
UPC:670454189462
|
| |
|
CM-45 4 1/2" Square (Concealed Screws) Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL454-LPA
EDI DATA, APPROVALS
|
|

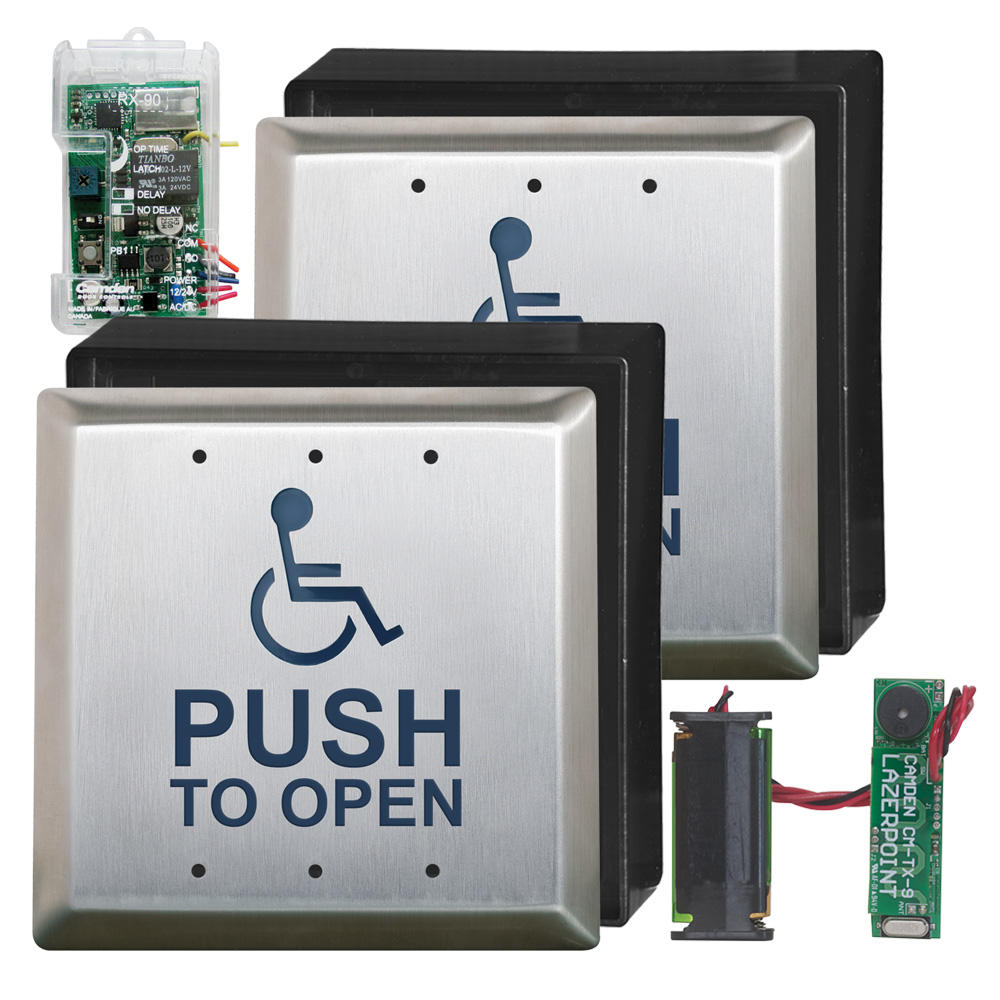

CM-RFL454-LPA
(2)
4-1/2" Square Push Plate Switch, Concealed Screws;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Shallow depth, provision for wireless, black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 3.1lbs.
UPC:670454189196
|
| |
|
CM-46 4 1/2" Square (Exposed Screws) Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL464-LPA
EDI DATA, APPROVALS
|
|
CM-RFL464-LPA
(2)
4-1/2" Square Push Plate Switch, Exposed Screws;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Shallow depth, provision for wireless, black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 3.2lbs.
UPC:670454189479
|
| |
|
CM-46CB Blue 4 1/2" Square (Exposed Screws) Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL46CB4-LPA
EDI DATA, APPROVALS
|
|
CM-RFL46CB4-LPA
(2)
4-1/2” Square Blue Push Plate Switch, White Graphics, Exposed Screws.;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Shallow depth, provision for wireless, black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 3.1lbs.
UPC:670454189486
|
| |
|
CM-60 6" Round Push Plate
click to expand section
|
|
Net Cost
|
|
CM-RFL604-69-A
EDI DATA, APPROVALS
|
|
CM-RFL604-69-A
(2)
6" Round Push Plate Switch;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface, Round Standard Depth, provision for wireless. black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.00"L x 8.00"W x 7.25"H
Weight: 3.8lbs.
|
| |
|
WIRELESS KITS W/ 2 RELAY RECEIVER
|
|
|
CM-2520 Vestibule Switch
click to expand section
|
|
Net Cost
|
|
CM-RFL25204-SD
EDI DATA, APPROVALS
|
|
CM-RFL25204-SD
(1)
Double Gang Vestibule Push Plate Switch;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(1)
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS);
(2)
Wall Switch Transmitter;
(1)
Full Function Dual Relay Receiver.
EDI DATA, APPROVALS
| 1x |
|
|
| 1x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.0"L x 8.0"W x 7.25"H
Weight: 3.1lbs.
UPC:670454196651
|
| |
|
|
SWITCH KIT OPTIONS
|
|
|
Click to expand section
|
|
|
|
|
| Receivers |
|
Net Cost |
|
|
- B
Replace “A” suffix in kit model number with “B” suffix to order RX-91 receiver in place of RX-90 receiver
|
Replace “A” suffix in kit model number with “B” suffix to order RX-91 receiver in place of RX-90 receiver
|
|
|
|
|
- D
Replace “A” suffix in kit model number with “D” suffix to order RX-92 receiver in place of RX-90 receiver
|
Replace “A” suffix in kit model number with “D” suffix to order RX-92 receiver in place of RX-90 receiver
|
|
|
| Lithium Batteries (Kit) |
|
Net Cost |
|
|
-L3
(4) 'AAA' Lithium Batteries in place of alkaline Add suffix 'L3
|
(4) 'AAA' Lithium Batteries in place of alkaline Add suffix 'L3
|
|
|
| Architectural Finishes |
|
Net Cost |
|
|
-PB
Polished Brass Finish Add suffix 'PB' to any CM-40, 45 or 60 Series RFL Kit
|
Polished Brass Finish Add suffix 'PB' to any CM-40, 45 or 60 Series RFL Kit
|
|
|
|
|
-SB
Satin Brass Finish Add suffix 'SB' to any CM-40, 45 or 60 Series RFL Kit
|
Satin Brass Finish Add suffix 'SB' to any CM-40, 45 or 60 Series RFL Kit
|
|
|
|
|
-AB
Antique Brass Finish Add suffix '-AB to any CM-40, 45 or 60 Series kit
|
Antique Brass Finish Add suffix '-AB to any CM-40, 45 or 60 Series kit
|
|
|
|
|
-OB
Oil Rubbed Bronze Finish Add suffix '-OB to any CM-40, 45 or 60 Series kit
|
Oil Rubbed Bronze Finish Add suffix '-OB to any CM-40, 45 or 60 Series kit
|
|
|
| Water Tight Option |
|
Net Cost |
|
|
WT
(2) water tight switches Add suffix 'WT' to any CM-40, 45, 46 and 60 Series RFL Kit
|
(2) water tight switches Add suffix 'WT' to any CM-40, 45, 46 and 60 Series RFL Kit
|
|
|
| Vestibule Switch Options |
|
Net Cost |
|
|
-LV
Add suffix 'LV' to any Lazerpoint switch kit, with CM-RX90 or CM-RX92 receiver, to to add (1) CM-RFL2520 Kit, with low profile surface box
|
Add suffix 'LV' to any Lazerpoint switch kit, with CM-RX90 or CM-RX92 receiver, to to add (1) CM-RFL2520 Kit, with low profile surface box
|
|
|
|
|
-V
Add suffix 'V' to any Lazerpoint switch kit, with CM-RX90 or CM-RX92 receiver, to add (1) CM-RFL2520 Kit, with std. depth surface box
|
Add suffix 'V' to any Lazerpoint switch kit, with CM-RX90 or CM-RX92 receiver, to add (1) CM-RFL2520 Kit, with std. depth surface box
|
|
|
|
|
|
