CM-5000 Series

2-3/8" Pushbutton, Aluminum Faceplate

ADA Compliant UL 294 Compliant
< Mushroom Push Buttons

CM-5000 Series

2-3/8" Pushbutton, Aluminum Faceplate

Catalog Menu BROWSE
CM-5085RPTE
Single Gang, 2-3/8" Pneumatic Mushroom
Pushbutton with
Aluminum Faceplate
CM-5085RPTE
Single Gang, 2-3/8" Pneumatic Mushroom
Pushbutton with
Aluminum Faceplate

CM-5000 Series heavy duty mushroom push buttons are specially designed and manufactured to meet the stringent demands of high traffic exit control applications. Buttons are 2-3/8" (60mm) diameter and available in either green, red or blue. Switches feature 1/4" thick brushed aluminum single gang faceplates.

Note: Button engraved graphic options, as shown, are only available on Momentary Switches. Push/Pull and Push/Turn Switches cannot be engraved across the center of the button.

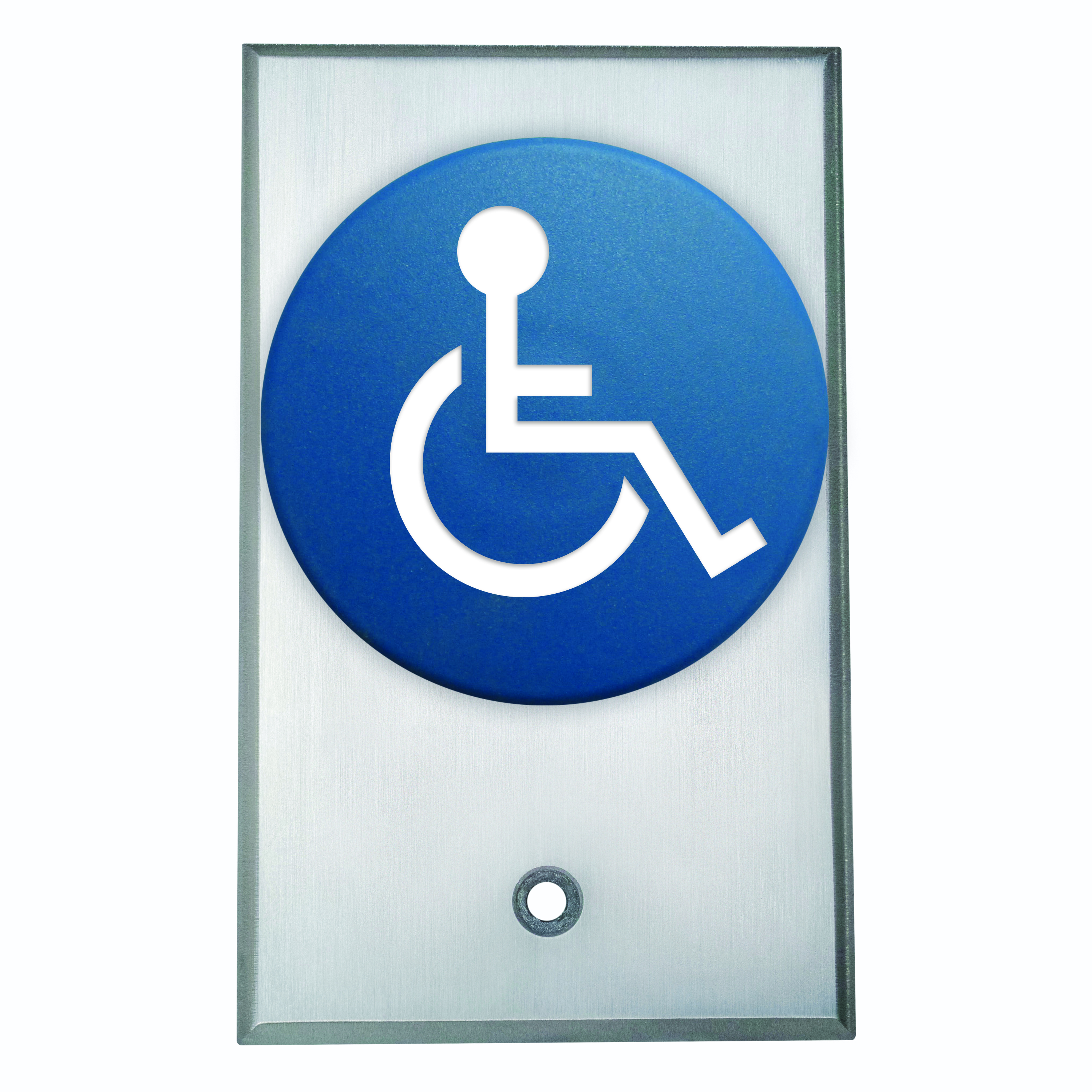

CM-5000BH, Single Gang, 2-3/8" Mushroom Pushbutton w/ Aluminum Faceplate:
CM-5000BH, Single Gang, 2-3/8" Mushroom Pushbutton w/ Aluminum Faceplate
CM-CPC1 Flush mount weather and vandal resistant cover available for this series:
CM-CPC1 Flush mount weather and vandal resistant cover available for this series

COMPETITIVE MODELS
CM-5085RPTE
Single Gang, 2-3/8" Pneumatic Mushroom
Pushbutton with
Aluminum Faceplate
CM-5085RPTE
Single Gang, 2-3/8" Pneumatic Mushroom
Pushbutton with
Aluminum Faceplate

CM-5000 Series heavy duty mushroom push buttons are specially designed and manufactured to meet the stringent demands of high traffic exit control applications. Buttons are 2-3/8" (60mm) diameter and available in either green, red or blue. Switches feature 1/4" thick brushed aluminum single gang faceplates.

Note: Button engraved graphic options, as shown, are only available on Momentary Switches. Push/Pull and Push/Turn Switches cannot be engraved across the center of the button.
CM-5000BH, Single Gang, 2-3/8" Mushroom Pushbutton w/ Aluminum Faceplate:
CM-5000BH, Single Gang, 2-3/8" Mushroom Pushbutton w/ Aluminum Faceplate
CM-CPC1 Flush mount weather and vandal resistant cover available for this series:
CM-CPC1 Flush mount weather and vandal resistant cover available for this series

COMPETITIVE MODELS
FEATURES SPECIFICATIONS RESOURCES
MODELS
Click to configure switch model Pricing Wizard
Single Gang Faceplate
CM-5000: CM-5000 Series:2-3/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons CM-5000: CM-5000 Series:2-3/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons
CM-5000
Spring Return, N/O, Momentary
EDI DATA, APPROVALS
Spring Return, N/O, Momentary
EDI DATA
APPROVALS


CM-5010
Spring Return, N/C, Momentary
EDI DATA, APPROVALS
Spring Return, N/C, Momentary
EDI DATA
APPROVALS


CM-5020
Spring Return, N/O & N/C, Momentary
EDI DATA, APPROVALS
Spring Return, N/O & N/C, Momentary
EDI DATA
APPROVALS


CM-5085
Spring Return, DPST 1-60 sec Pneumatic Time Delay Request to Exit Switch
EDI DATA, APPROVALS
Spring Return, DPST 1-60 sec Pneumatic Time Delay Request to Exit Switch
EDI DATA
APPROVALS


CM-5085RPTE: CM-5000 Series:2-3/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons CM-5085RPTE: CM-5000 Series:2-3/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons

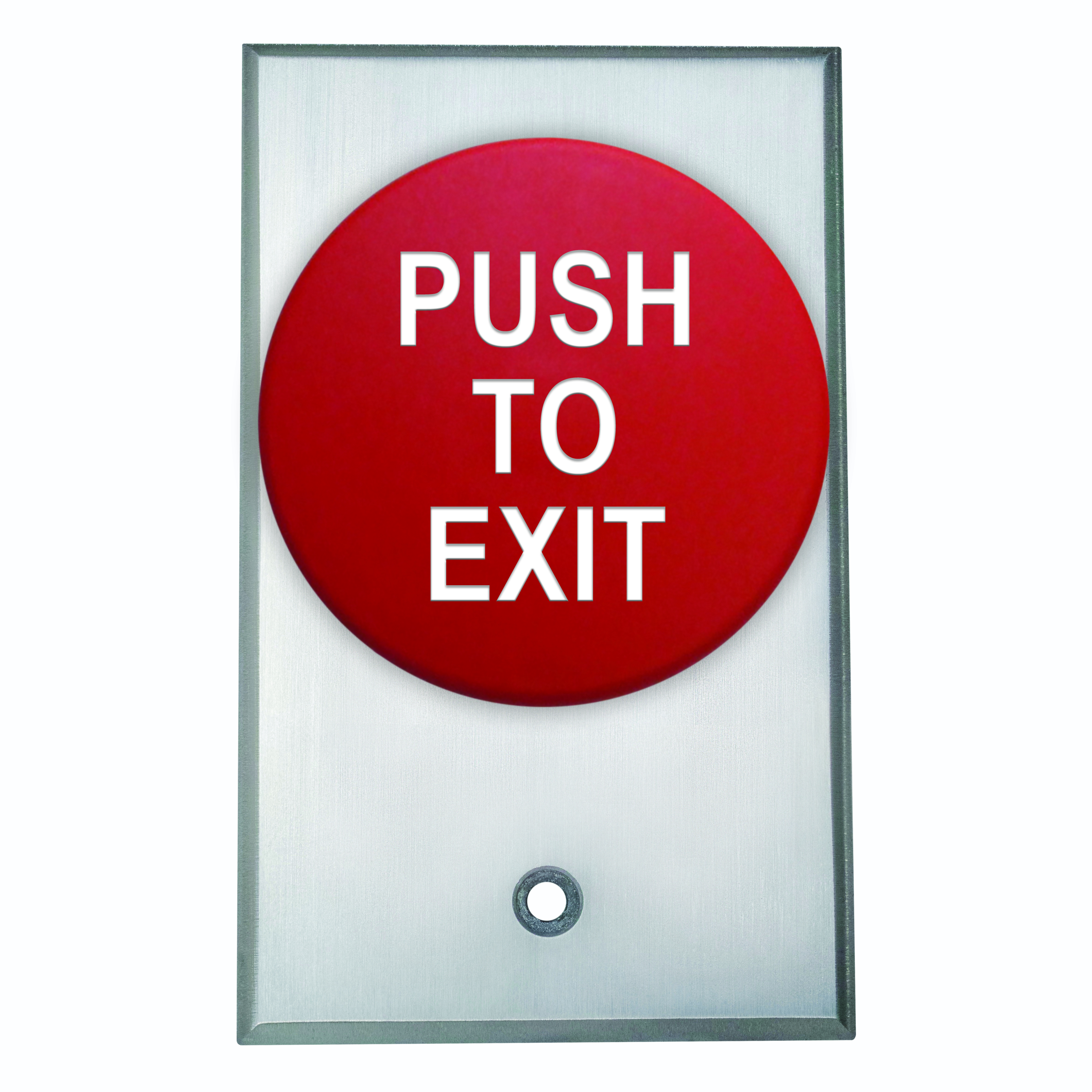

CM-5085RPTE
Spring Return, DPST 1-60 sec Pneumatic Time Delay, Red Button, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available
EDI DATA, APPROVALS
Spring Return, DPST 1-60 sec Pneumatic Time Delay, Red Button, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available
EDI DATA
APPROVALS


CM-5085GPTE: CM-5000 Series:2-3/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons CM-5085GPTE: CM-5000 Series:2-3/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons

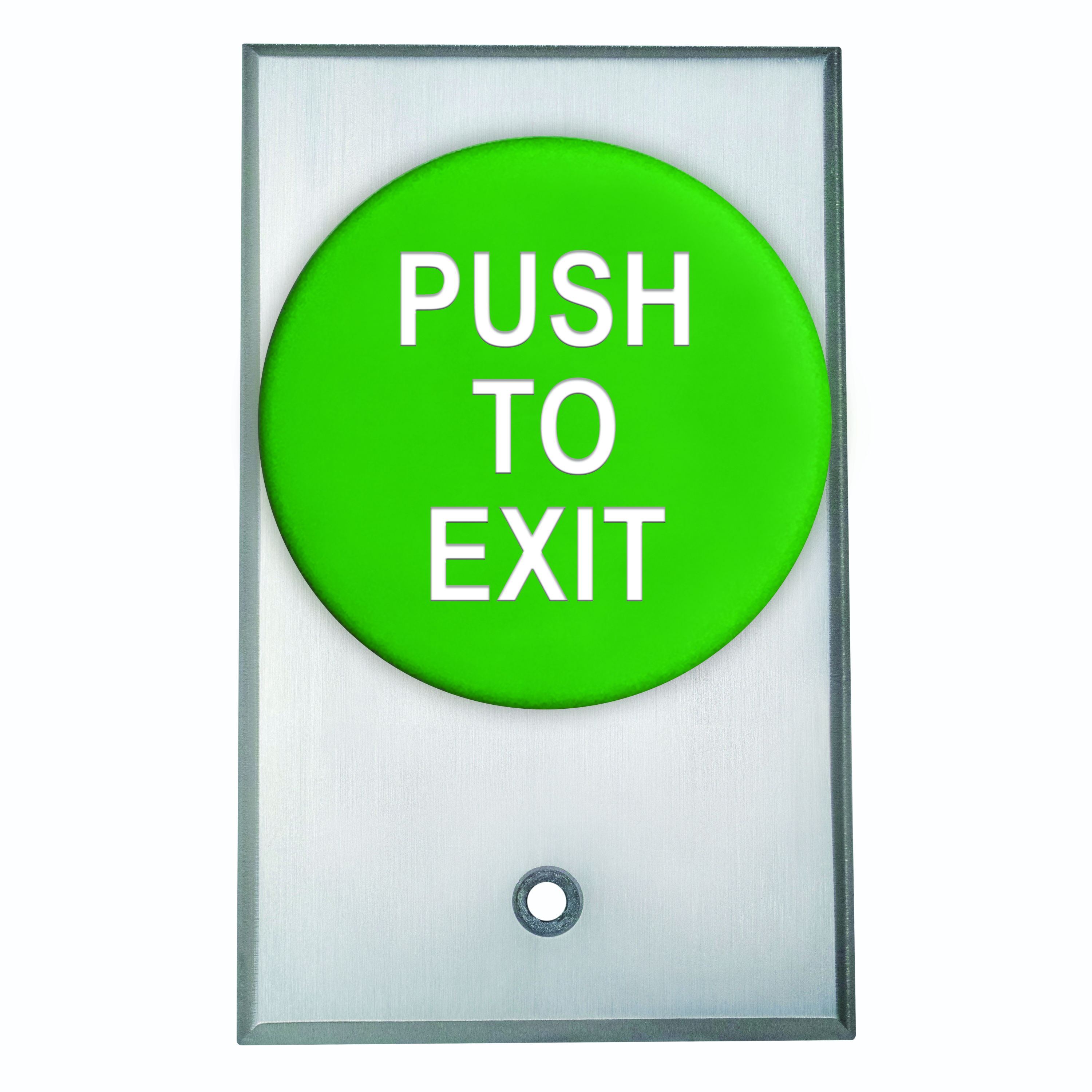

CM-5085GPTE
Spring Return, DPST 1-60 sec Pneumatic Time Delay Green Button, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available
EDI DATA, APPROVALS
Spring Return, DPST 1-60 sec Pneumatic Time Delay Green Button, 'PUSH TO EXIT'. Complete model. No 'Options or Finishes' available
EDI DATA
APPROVALS


CM-5030
Push/Pull, N/O, Maintained, Red Only
EDI DATA, APPROVALS
Push/Pull, N/O, Maintained, Red Only
EDI DATA
APPROVALS


CM-5040
Push/Pull, N/C, Maintained, Red Only
EDI DATA, APPROVALS
Push/Pull, N/C, Maintained, Red Only
EDI DATA
APPROVALS


CM-5050
Push/Pull, N/O & N/C, Maintained, Red Only
EDI DATA, APPROVALS
Push/Pull, N/O & N/C, Maintained, Red Only
EDI DATA
APPROVALS


CM-5060: CM-5000 Series:2-3/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons CM-5060: CM-5000 Series:2-3/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons
CM-5060
Push/Turn to Release, N/O, Maintained, Red Only CM-5060
EDI DATA, APPROVALS
Push/Turn to Release, N/O, Maintained, Red Only CM-5060
EDI DATA
APPROVALS


CM-5070
Push/Turn to Release, N/C, Maintained, Red Only
EDI DATA, APPROVALS
Push/Turn to Release, N/C, Maintained, Red Only
EDI DATA
APPROVALS


CM-5080
Push/Turn to Release, N/O & N/C, Maintained, Red Only
EDI DATA, APPROVALS
Push/Turn to Release, N/O & N/C, Maintained, Red Only
EDI DATA
APPROVALS



OPTIONS & FINISHES
Click to expand section

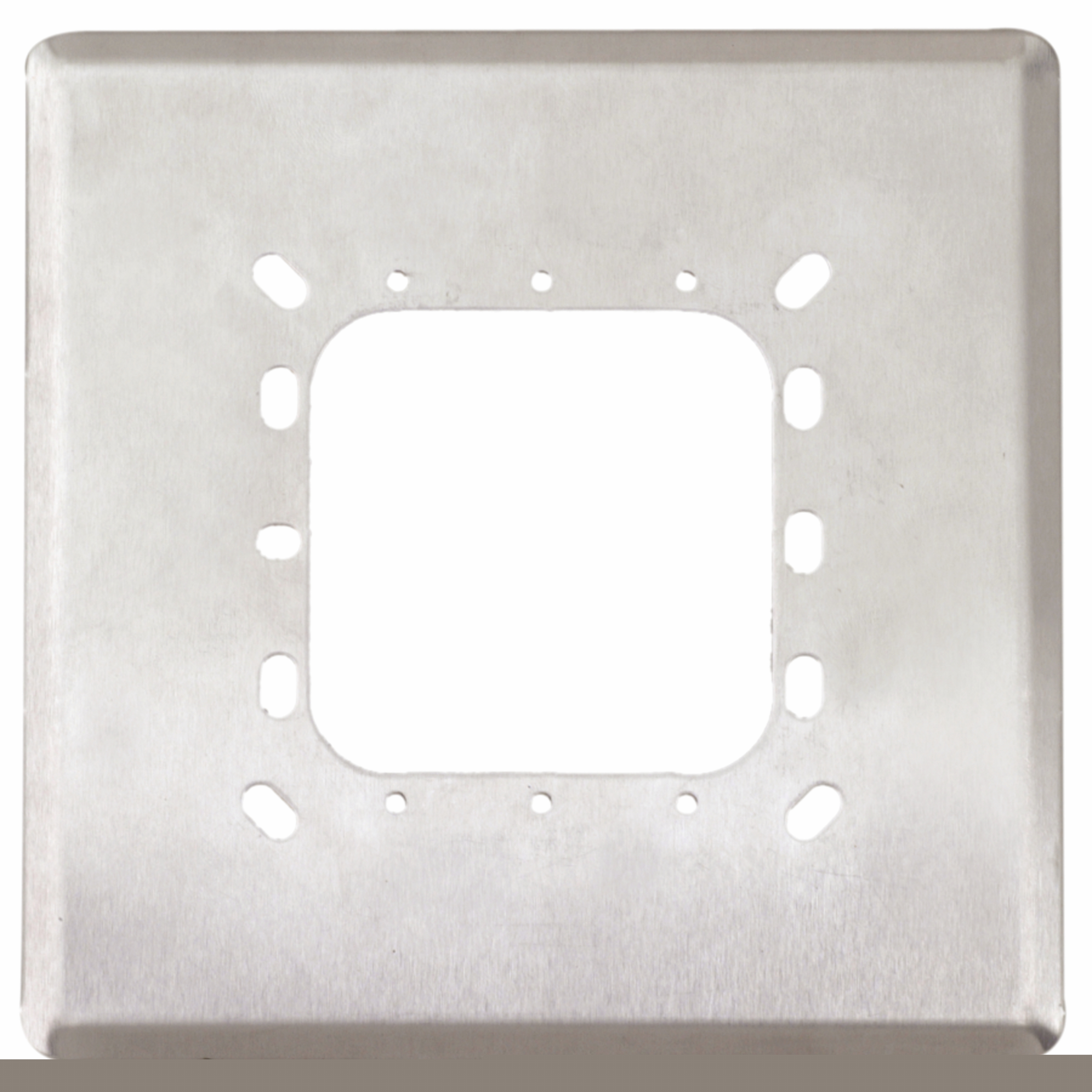

Faceplate Options
FACEPLATE OPTIONS
Button Color Options
BUTTON COLOR OPTIONS
Button Graphic Options
BUTTON GRAPHIC OPTIONS
new kit
COMPATIBLE MOUNTING BOXES
Click to expand section
Mounting Boxes & Accessories
MOUNTING BOXES & ACCESSORIES
