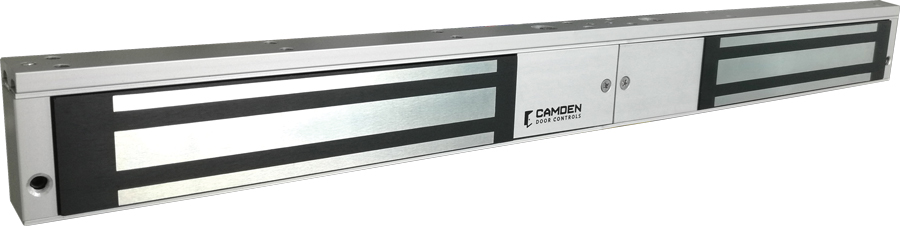

| CX-92S-06, 600 lbs. Surface Mount Double Door - Basic |
|
|
Camden CX-92 Series 600 & 1200 lbs. double door magnetic locks offer the best performance and value! The 'TDS' option provides an adjustable timer, lock sensor, door status switch, relay and LED.
|
| CX-92S-06, 600 lbs. Surface Mount Double Door - Basic |
|
Camden CX-92 Series 600 & 1200 lbs. double door magnetic locks offer the best performance and value! The 'TDS' option provides an adjustable timer, lock sensor, door status switch, relay and LED. |
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
- 600 and 1,200 Lb. models are UL and ULC listed
- Weather and vandal resistant constuction proven over thousands of installations
- Compatible with all access/egress systems
- Field selectable 12/24 VDC operation
- On board MOV power surge protection prevents damage to mag lock
- A wide range of mounting brackets and spacers available
- Lifetime warranty
| Voltage: |
12/24 VDC |
| Current Draw: |
CX-92S-06: 2 x 480 mA @ 12 VDC 2 x 240 mA @ 24 VDC
CX-92S-12:
2 x 420 mA @ 12 VDC 2 x 210 mA @ 24 VDC |
| Temp Range: |
32°F to 131°F (0°C to 55°C) |
| Contact Rating: |
TDS Models Only
Bond Sensor: 2A @ 24 VDC
Door Status Switch: 0.5A @ 28V AC/DC |
| Holding Force: |
CX-91S-06: 600 lbs. (272 kg.) CX-91S-12: 1,200 lbs. (544 kg.) |
| Dimensions: |
Body:
CX-92S-06: 19-3/4" x 1-5/8" x 1-1/8"
(500m x 42mm x 27mm)
CX-92S-12: 21" x 2-5/8" x 1-9/16"
(532mm x 67mm x 40mm)
Armature Plate:
600 lbs.: 2 x 7-1/4" x 1-1/2" x 15/32"
2 x (185mm x 38mm x 12mm)
1,200 lbs.: 2 x 7-9/32" x 3" x 5/8"
2 x (185mm x 61mm x 16.5mm) |
|
Manuals
|
| CX-92S-06-12_Manual_R5 |
pdf |
0.72 |
DOWNLOAD
|
|
Spec Sheets
|
| CX-92 Series_Spec Sheet_R2 |
pdf |
1.56 |
DOWNLOAD
|
|
Reference Guides
|
| Camden Magnetic Lock Cross Reference |
pdf |
0.14 |
DOWNLOAD
|
| Guide To Code Compliant Mag lock Installation |
pdf |
0.77 |
DOWNLOAD
|
|
High Resolution Images
|
| CX-92S-06 |
jpeg |
0.08 |
DOWNLOAD
|
| CX-92S-12 |
jpeg |
0.11 |
DOWNLOAD
|
|
|
|
1200 lbs.
 click to expand section
|
|
Net Cost
|
|

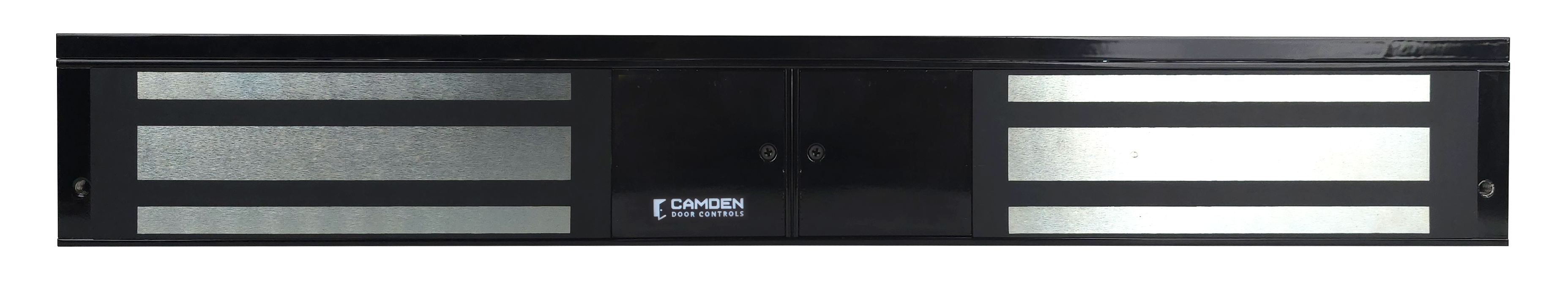

CX-92S-12

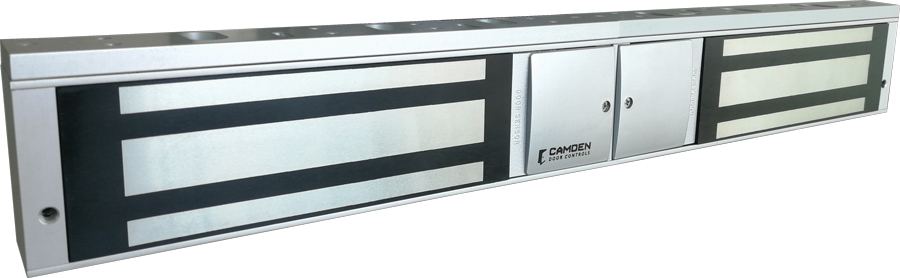

1,200 lbs. Surface mount double door magnetic lock - basic
EDI DATA, APPROVALS
|
|
1,200 lbs. Surface mount double door magnetic lock - basic
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.75"L x 11.5"W x 3.5"H
Weight: 10.88lbs.
UPC:670454170095
|
|

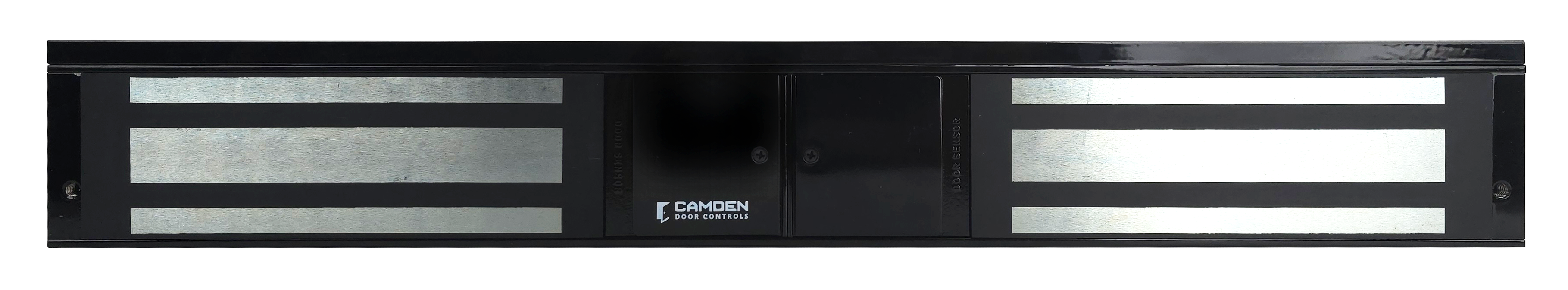

CX-92S-12TDS
1,200 lbs. Surface mount double door magnetic lock - with adjustable timer, door status switch, lock sensor/relay & LED
EDI DATA, APPROVALS
|
|
1,200 lbs. Surface mount double door magnetic lock - with adjustable timer, door status switch, lock sensor/relay & LED
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.75"L x 22"W x 3.5"H
Weight: 21.47lbs.
UPC:670454155580
|
| |
|
600 lbs.
click to expand section
|
|
Net Cost
|
|

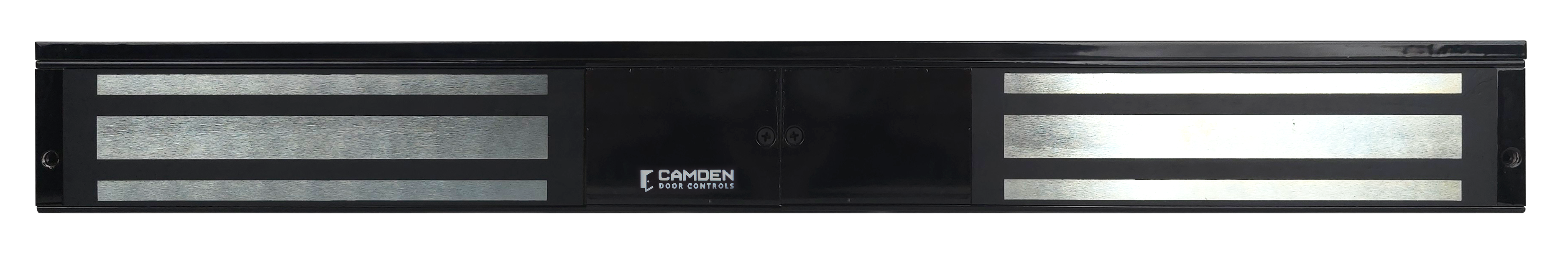

CX-92S-06
600 lbs. Surface mount double door magnetic lock - basic
EDI DATA, APPROVALS
|
|
600 lbs. Surface mount double door magnetic lock - basic
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.5"L x 20.5"W x 2"H
Weight: 9.05lbs.
UPC:670454150370
|
|

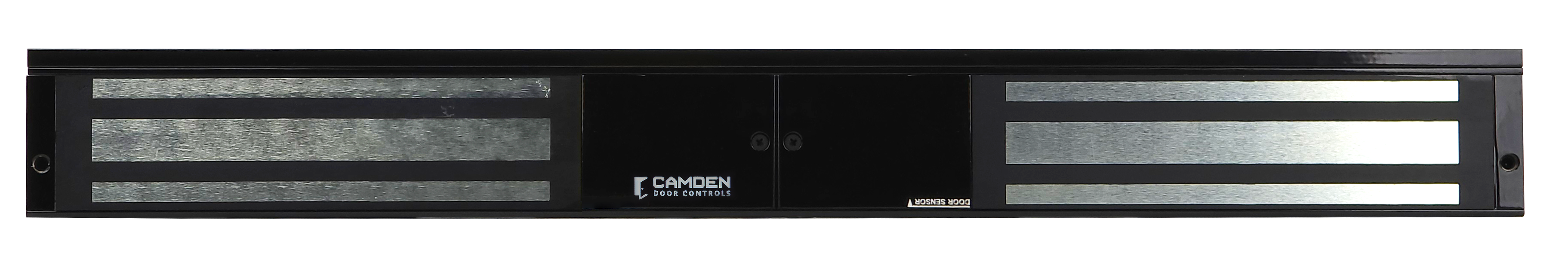

CX-92S-06TDS
600 lbs. Surface mount double doors - with adjustable timer, door status switch, lock sensor/relay & LED
EDI DATA, APPROVALS
|
|
600 lbs. Surface mount double doors - with adjustable timer, door status switch, lock sensor/relay & LED
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.5"L x 20.5"W x 2"H
Weight: 9.05lbs.
UPC:670454155597
|
| |
|
|
