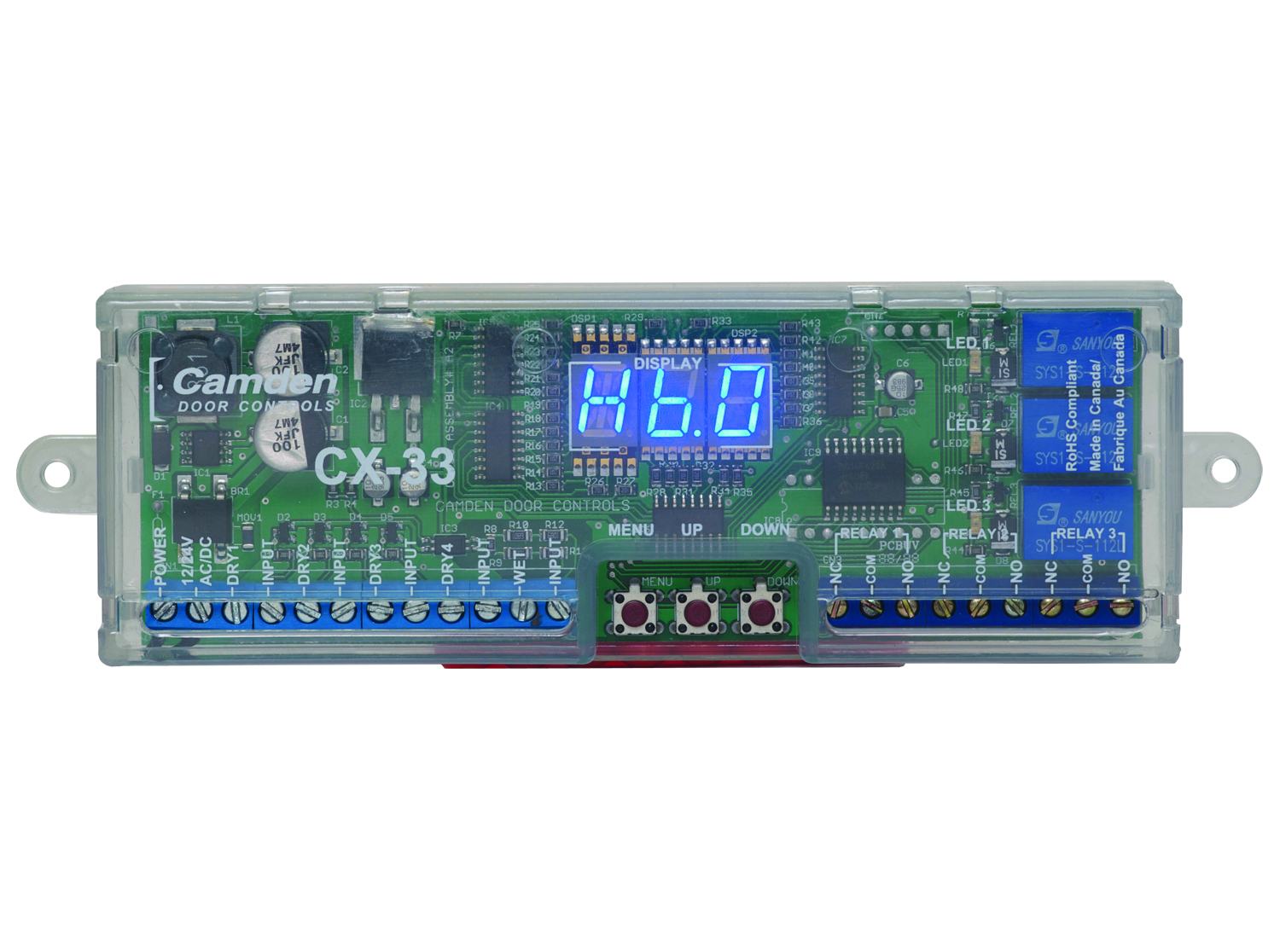

CX-33 Advanced Logic Relay
|
|
Camden's CX-33 is a 'state of the art' logic relay designed to support virtually any automatic door application. The CX-33 features 15 operating modes, with sub-modes, and easy programming with large LCD display and push button selection. Applications: Programmable modes include up to 3 door sequencing, airlocks, lock-out-relay, fire door in stairwells, and for control of automatic operators in restroom applications, with support of illuminated indicator of occupancy status.

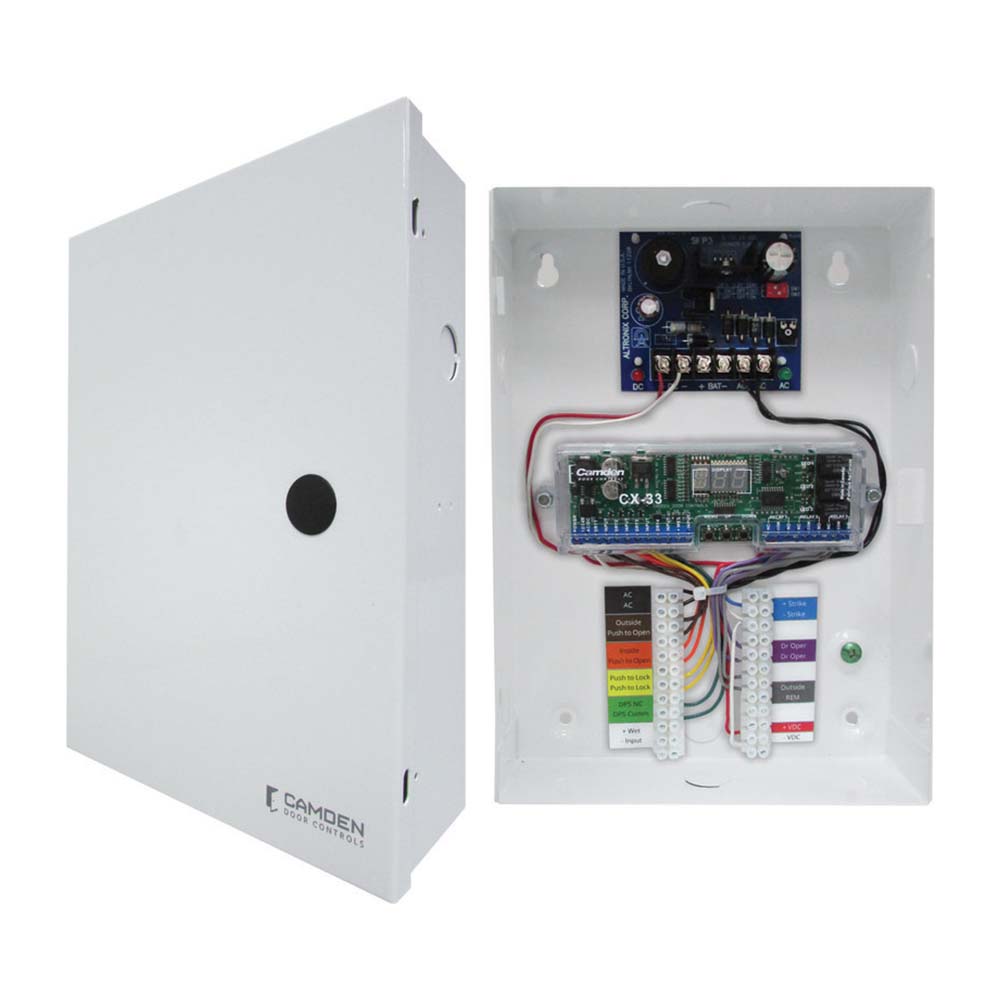

Camden's CX-33-PS metal cabinet includes a pre-wired CX-33 advanced logic relay and 2.5 Amp power supply, with the option for a cabinet lock.
|
|
|
| CX-33PS Cabinet features large color coded pre-wired terminals |
|
| CX-33 Advanced Logic Relay |
CX-33 Advanced Logic Relay
|
Camden's CX-33 is a 'state of the art' logic relay designed to support virtually any automatic door application. The CX-33 features 15 operating modes, with sub-modes, and easy programming with large LCD display and push button selection. Applications: Programmable modes include up to 3 door sequencing, airlocks, lock-out-relay, fire door in stairwells, and for control of automatic operators in restroom applications, with support of illuminated indicator of occupancy status.
Camden's CX-33-PS metal cabinet includes a pre-wired CX-33 advanced logic relay and 2.5 Amp power supply, with the option for a cabinet lock.
|
|
|
|
|
|
|
| CX-33PS Cabinet features large color coded pre-wired terminals |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Ideal for most automatic door applications, as well as air lock and other security applications.
-
15 operating modes, with sub-modes. Selection and configuration with 3 push buttons
-
Easily sequence multiple inputs with multiple maintain and hold outputs.
-
Large 3 segment (blue) LED display
-
Selectable time delays, with delay on input activation
-
‘Tried and true’ power circuitry ensures outstanding power filtering and surge protection.
-
Larger terminal strips allow larger wire gauge, or more conductors to be connected.
-
Clear plastic case provides better protection of circuit board and easy mounting.
-
12/24V AC/DC
-
3 year warranty
-
CX-33PS:
Metal Cabinet with CX-33, 2.5 Amp power supply, and color-coded wiring terminal to centralize and protect components.
| Time Delay (Delay on Activate): |
0-10 Seconds
|
| Voltage: |
12 to 30V AC/DC
|
| Current Draw: |
105 mA Typical, 320 mA Maximum
|
| Response Time: |
.5 Seconds
|
| Display: |
Blue LED: 1 Alpha/Numeric and 2 x 7-Segment
|
| Input: |
4 x Dry
1 x Wet: min. 4.5V AC/DC
|
| Output: |
3 x Form C (SPDT)
|
| Contact Rating: |
3 A @ 24 VDC
|
| Temp Range: |
-22°F to +185°F (-30°C to +85°C)
|
| Electrical Life: |
100,000 Operations @ Rated Capacity
|
| Time Delay (Hold 1 timer): |
0-50 Seconds
|
| Time Delay (Delay 1 Timer): |
0-15 Seconds
|
| Time Delay (Hold 2 timer): |
0-50 Seconds
|
| Time Delay (Delay 2 timer): |
0-60 Seconds
|
| Time Delay (Hold 3 Timer): |
0-50 Seconds
|
| Dimensions: |
2"L x 6"W x 7/8"H
(51mm x 152mm x 22mm)
|
| Mounting: |
2 x #6 Screws or Velcro
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CX-33
Advanced Logic Relay
EDI DATA, APPROVALS
|
|
Advanced Logic Relay
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 7"L x 3"W x 2"H
Weight: 0.5lbs.
UPC: 670454169587
Country of Origin: CA
|
|
CX-33PS
Advanced Logic Control Relay & Power Supply Cabinet Pre-wired for general door control applications. Order pre-wired cabinets for restroom control system kits separately. 60-40E032 for CX-WC11 Kit, 60-40E033 for CX-WC13 kit, 60-40E035 for CX-WC16 kit
EDI DATA, APPROVALS
|
|
Advanced Logic Control Relay & Power Supply Cabinet Pre-wired for general door control applications. Order pre-wired cabinets for restroom control system kits separately. 60-40E032 for CX-WC11 Kit, 60-40E033 for CX-WC13 kit, 60-40E035 for CX-WC16 kit
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454202123
Country of Origin: CA
|
| |
|
|
OPTIONS
|
|
|
Click to expand section
|
|
|
 |
| CABINET LOCK |
|
| Cabinet Lock |
|
Net Cost |
|
|
/L
Add suffix 'L' to model nubmer for Cabinet Lock
|
Add suffix 'L' to model nubmer for Cabinet Lock
|
|
|
|
|
