| Surewave™ Series Hands Free Switches |
|
|
SureWave™ 2nd generation hands-free switches that provide superior door activation in new and retrofit access control and automatic door applications. CM-333 and CM-336 battery powered models are supplied with (2) AA alkaline batteries. Lithium batteries recommended for environments below 0°C (32°F). To order, select option below. CM-324 Series (original) single relay wired hands-free switches features an operating range of 1-30", adjustable time delay of 1-5 seconds, and provides superior performance in all ambient lighting conditions.
CM-325 Series hands-free switches are specifically designed for use in healthcare and facilities where highly reflective surfaces (chrome or polished stainless steel) cause standard touchless switches to false activate.
Add 'F' to graphic option for French language.

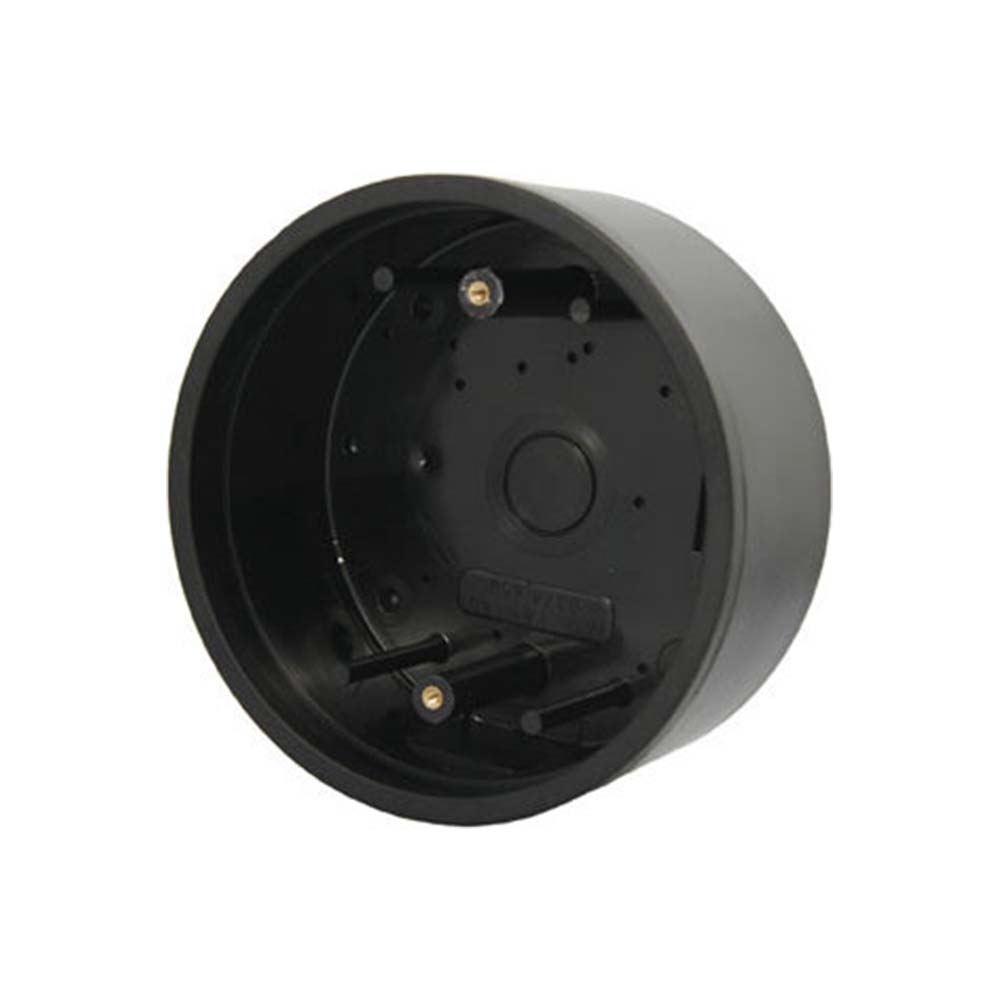

Camden has introduced a new 6" surface mount round mounting box as well as a complete range of conversion kits for mounting SureWave™ switches on existing square and round push plate switch boxes.
|
|
|

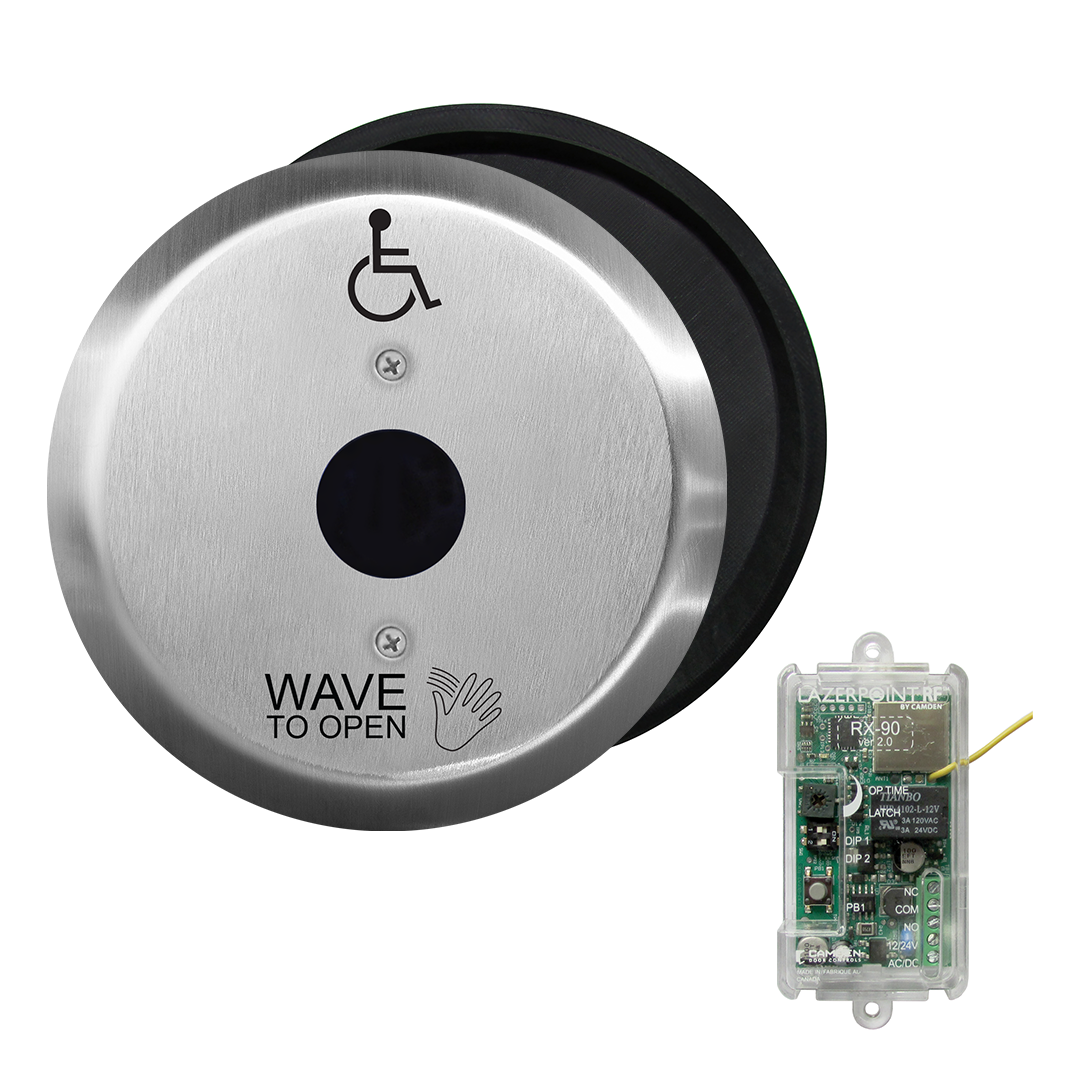

| CM-331/42R-SGLR Round 6" Stainless Steel Faceplate with Light Ring |
|
|
|

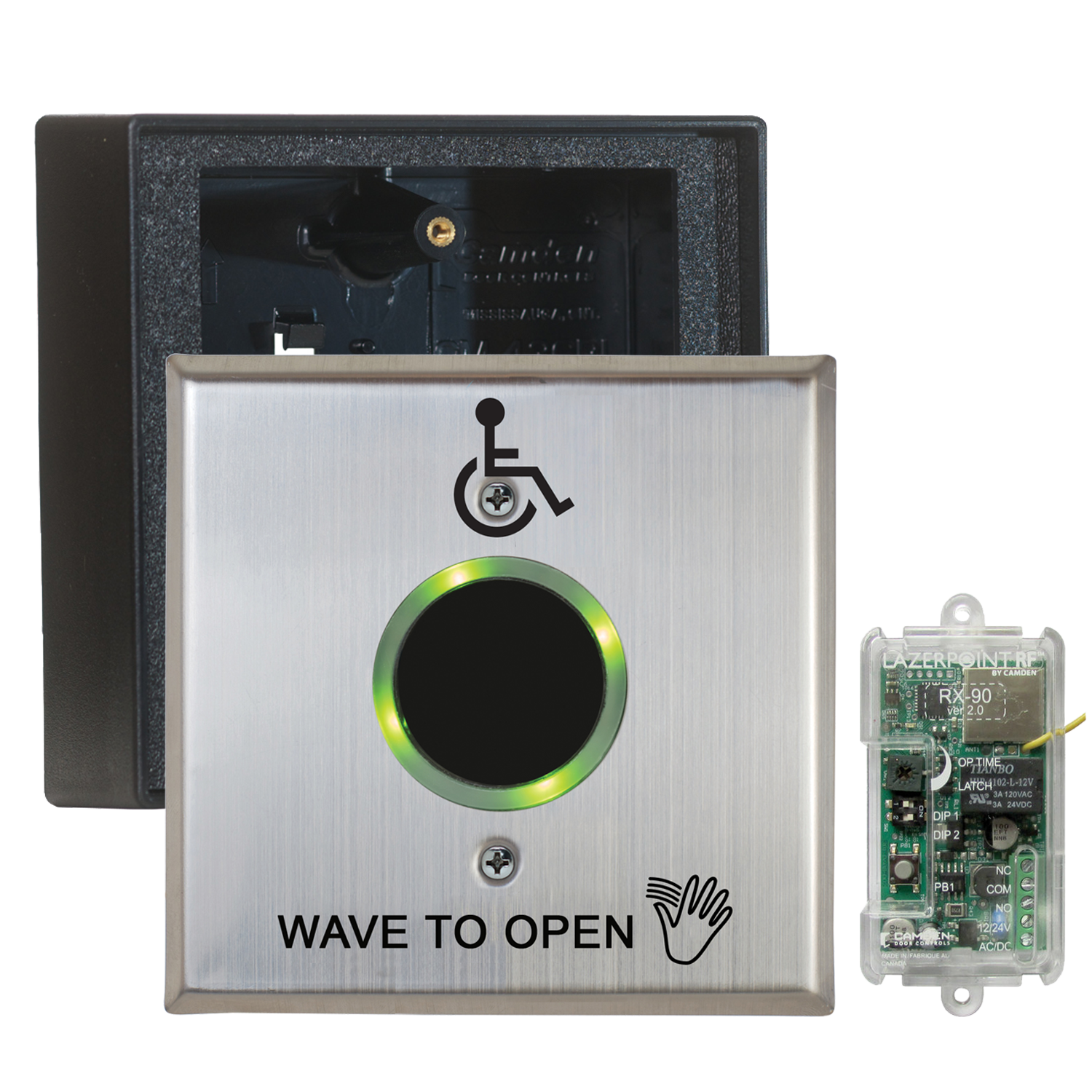

| CM-331/42WS-SGLR, Double Gang, SS Faceplate with LED light Ring |
|
|
|
| CM-336 : 5 Things You Need to Know |
|
|
|
| Part of Our Touchless Wave Product Family |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
NTS-1
|
CM-331/41S-SGLR
|
|
|
NTS-2
|
CM-331/41SN-SGLR
|
|
|
NTS-3
|
CM-331/41SW-SGLR
|
|
BEA
|
10MS11D
|
CM-331, /41, CM-xxxS, CM-xxx/W
|
|
|
10MS11J
|
CM-331, /41, CM-xxxS, CM-xxx/N
|
|
|
10MS11S
|
CM-331, /41, CM-xxxS
|
|
|
70.5226
|
CM-331, /41
|
|
|
70.5227
|
CM-331, /41, CM-xxx/W
|
|
|
70.5272
|
CM-331
|
|
|
70.5273
|
CM-331, CM-xxx/W
|
|
Dormakaba (RCI)
|
910TC
|
CM-330, /41
|
|
|
912
|
CM-330, /41
|
|
MS Sedco
|
216
|
CM-331, /41, CM-xxxS, CM-xxx/W
|
|
|
216-L
|
CM-331, /41, CM-xxxS
|
|
|
216-N
|
CM-331, /41, CM-xxxS, CM-xxx/N
|
|
|
216TX-HT
|
CM-330, /41, CM-xxxS
CM-330, /42, CM-xxxS
|
|
|
NGS-IR-A
|
CM-331, /41
|
|
Securitron
|
WSSW1
|
CM-331, /41, CM-xxxS
|
|
|
WSSW2
|
CM-331, /41, CM-xxxS, CM-xxx/W
|
|
Wikk
|
4X4NOTOUCH32D
|
CM-331-SW-SGLR
|
|
|
SFANOTOUCH32D
|
CM-331-S-SGLR
|
|
|
| Surewave™ Series Hands Free Switches |
|
SureWave™ 2nd generation hands-free switches that provide superior door activation in new and retrofit access control and automatic door applications. CM-333 and CM-336 battery powered models are supplied with (2) AA alkaline batteries. Lithium batteries recommended for environments below 0°C (32°F). To order, select option below. CM-324 Series (original) single relay wired hands-free switches features an operating range of 1-30", adjustable time delay of 1-5 seconds, and provides superior performance in all ambient lighting conditions.
CM-325 Series hands-free switches are specifically designed for use in healthcare and facilities where highly reflective surfaces (chrome or polished stainless steel) cause standard touchless switches to false activate.
Add 'F' to graphic option for French language.
Camden has introduced a new 6" surface mount round mounting box as well as a complete range of conversion kits for mounting SureWave™ switches on existing square and round push plate switch boxes.
|
|
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
NTS-1
|
CM-331/41S-SGLR
|
|
|
NTS-2
|
CM-331/41SN-SGLR
|
|
|
NTS-3
|
CM-331/41SW-SGLR
|
|
BEA
|
10MS11D
|
CM-331, /41, CM-xxxS, CM-xxx/W
|
|
|
10MS11J
|
CM-331, /41, CM-xxxS, CM-xxx/N
|
|
|
10MS11S
|
CM-331, /41, CM-xxxS
|
|
|
70.5226
|
CM-331, /41
|
|
|
70.5227
|
CM-331, /41, CM-xxx/W
|
|
|
70.5272
|
CM-331
|
|
|
70.5273
|
CM-331, CM-xxx/W
|
|
Dormakaba (RCI)
|
910TC
|
CM-330, /41
|
|
|
912
|
CM-330, /41
|
|
MS Sedco
|
216
|
CM-331, /41, CM-xxxS, CM-xxx/W
|
|
|
216-L
|
CM-331, /41, CM-xxxS
|
|
|
216-N
|
CM-331, /41, CM-xxxS, CM-xxx/N
|
|
|
216TX-HT
|
CM-330, /41, CM-xxxS
CM-330, /42, CM-xxxS
|
|
|
NGS-IR-A
|
CM-331, /41
|
|
Securitron
|
WSSW1
|
CM-331, /41, CM-xxxS
|
|
|
WSSW2
|
CM-331, /41, CM-xxxS, CM-xxx/W
|
|
Wikk
|
4X4NOTOUCH32D
|
CM-331-SW-SGLR
|
|
|
SFANOTOUCH32D
|
CM-331-S-SGLR
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
- Wired, wireless and hybrid (wirless/wired) models
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package
- CM-333 Series: Hybrid battery powered models offer 2 year battery life using standard 'AA' alkaline batteries
- CM-336 Series: battery powered wireless models offer industry-leading 4 year battery life using standard 'AA' alkaline batteries
- Line powered models offer 12/24V AC/DC operation
- 1 and 2 relay wired models, SPDT, Form 'C'
- Narrow (jamb), single and and double gang faceplates
- Polycarbonate (black) and stainless steel faceplates
- Advanced active infra-red technology with fast response
- Heavy duty 3 or 5 Amp rated relay
- Adjustable operating range up to 28", refer to model specification
- CM-331/332 Series: Selectable auto range (operation) mode of up to 6"
- Adjustable time delay, refer to model specifcation
- Selectable fail safe/fail secure operation
- CM-331/332 Series: Active output for external alrm, LED or annunciator
- CM-332/333/336 Series: 'Request to exit' and external door contact inputs
- CM-331/332 Series: Optional red/blue/green LED light ring with single gang stainless steel faceplate, indicates switch or door status
| Technology: |
Active Infra-red, utilizing microburst sensing technology |
| Voltage: |
12-24V AC/DC |
| Contact Type: |
CM-331/333/324/325: (1) SPDT Form 'C'
CM-332: (2) SPDT Form 'C' |
| Contact Rating: |
CM-331/332/333: 3 Amps @ 30 V
CM-324/325: 5 Amps @ 30 V |
| Current Draw: |
CM-331/332: 40 mA
CM-324/325: 60 mA |
| Wireless: |
CM-336: Built-In
CM-331/332: Optional Plug-In |
| Wireless Frequency: |
CM-336 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless |
| Battery: |
CM-333/336:
(2) 'AA' alkaline
32ºF to +122º F (0ºC to +50º C)
(2) 'AA' Lithium Batteries (optional)
-40ºF to +122º F (-40ºC to +50º C) |
| Battery Life: |
CM-336: Lithium: 4 years with 100 activations per day Alkaline: 2 years with 100 activations per day |
| Adjustable Operating Range: |
CM-331/332: 1"- 28" (25mm-711mm)
CM-333/336: 1"-12" (25mm-304mm)
CM-324: 1"-30" (25.4mm-762mm)
CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror |
| Time Delay: |
CM-331/332/333/336: 3-30 Seconds
CM-324/325: 1-5 Seconds |
| Operation: |
Selectable Fail Safe/Fail Secure |
| Motion Sensing Modes: |
CM-331/332/333/336: Momentary, Momentary with Alarm, Maintained
CM-324/325: Momentary |
| Relay Operating Modes: |
CM-332: Event, Sequence, Security, Toggle
CM-331: Event, Toggle
CM-333/336/324/325: Event |
| Input: |
CM-331/332/333/336: REX, Door Contact |
| Blue/Green/Red Light Ring: |
CM-331/332: Optional |
|
Spec Sheets
|
| CM-331_Spec Sheet_R1 |
pdf |
1.57 |
DOWNLOAD
|
| CM-332_Spec Sheet_R1 |
pdf |
1.52 |
DOWNLOAD
|
| CM-333_Spec Sheet_R4 |
pdf |
1.92 |
DOWNLOAD
|
| CM-324 & 325_Spec Sheet_R1 |
pdf |
2.02 |
DOWNLOAD
|
| CM-336_Spec Sheet_R1 |
pdf |
2.05 |
DOWNLOAD
|
|
Reference Guides
|
| SureWave™ Model Selection Guide 2022 |
pdf |
0.65 |
DOWNLOAD
|
| SureWave™ Touchless Switch Presentation - 2022 |
pdf |
3.52 |
DOWNLOAD
|
| SureWave™ Application Guide 2022 |
pdf |
6.01 |
DOWNLOAD
|
|
Manuals
|
| CM-324_Manual_R4 |
pdf |
0.45 |
DOWNLOAD
|
| CM-325_Manual_R2 |
pdf |
0.41 |
DOWNLOAD
|
| CM-325_Manual_French_R2 |
pdf |
0.44 |
DOWNLOAD
|
| CM-331_CM-332_Manual_R3 |
pdf |
0.93 |
DOWNLOAD
|
| CM-331_CM-332_Manual_French_R2 |
pdf |
0.90 |
DOWNLOAD
|
| CM-333_Manual_R2 |
pdf |
0.67 |
DOWNLOAD
|
| CM-333_Manual_French_R2 |
pdf |
0.68 |
DOWNLOAD
|
| CM-336_Manual |
pdf |
0.62 |
DOWNLOAD
|
|
Promotion
|
| Touchless Wave Article |
pdf |
0.67 |
DOWNLOAD
|
|
High Resolution Images
|

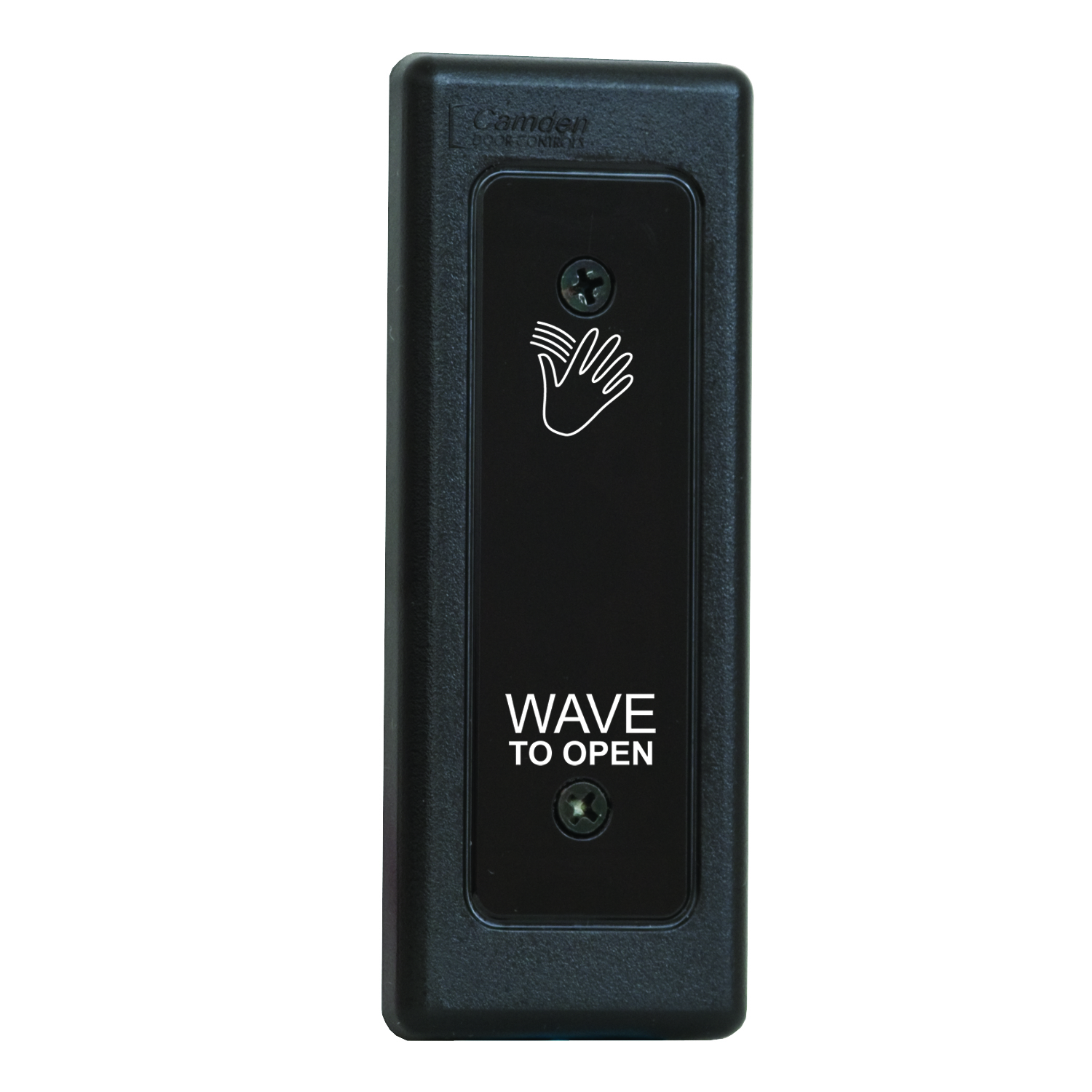

| CM-331/41N |
jpeg |
1.54 |
DOWNLOAD
|

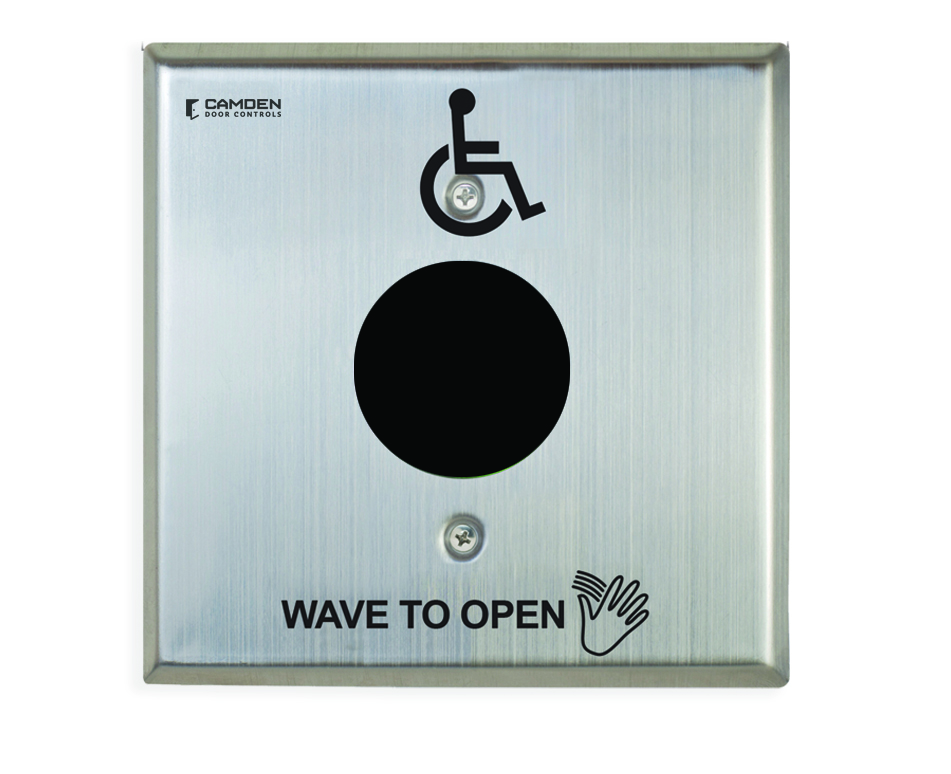

| CM-325/42SW |
jpeg |
0.92 |
DOWNLOAD
|

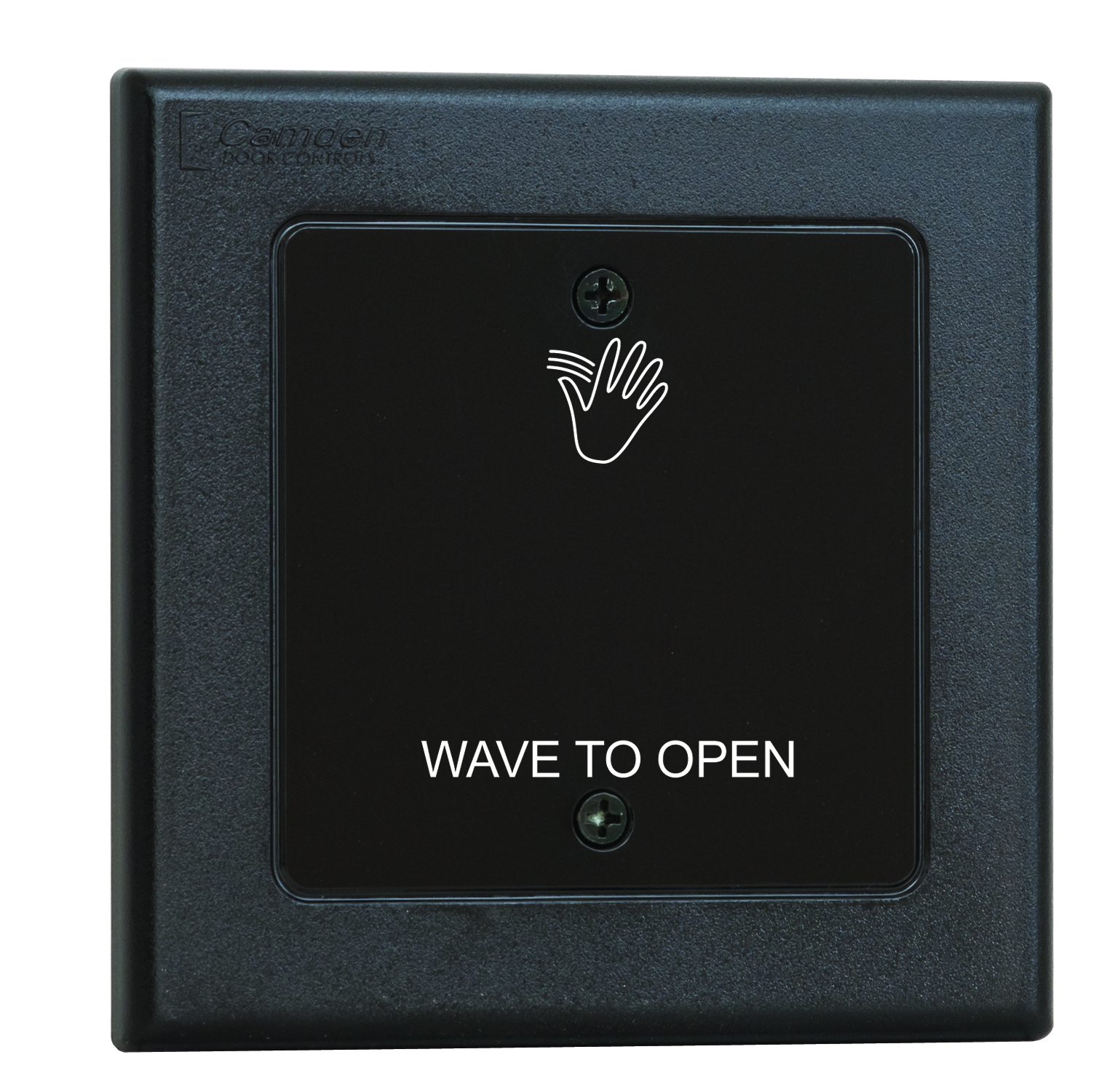

| CM-331/41W |
jpeg |
2.73 |
DOWNLOAD
|

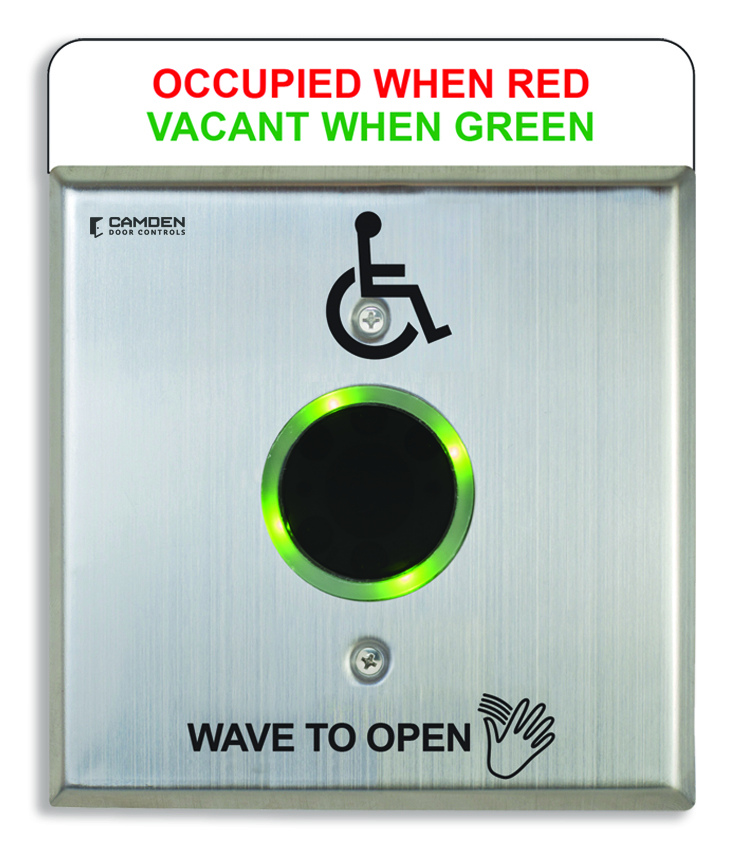

| CM-331/42SW-SGLR |
jpeg |
1.01 |
DOWNLOAD
|

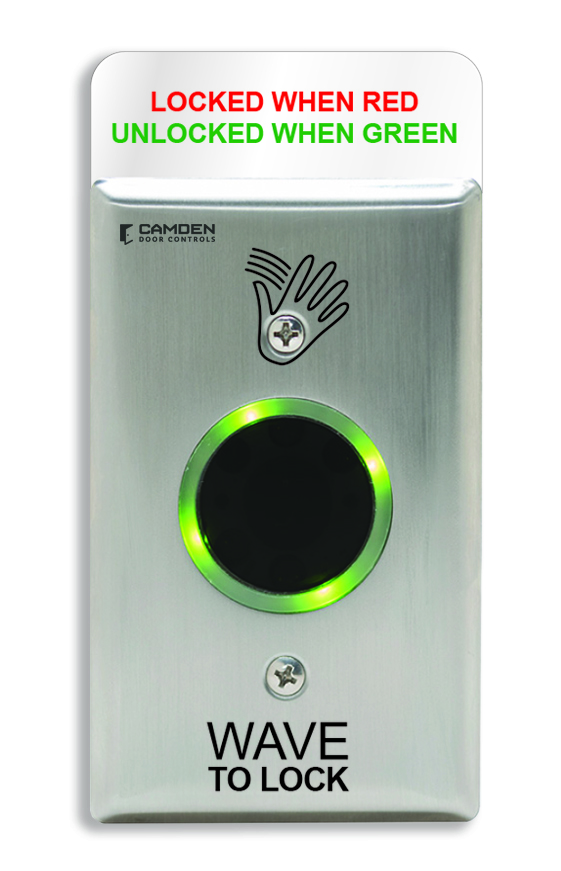

| CM-331/43S-SGLR |
jpeg |
0.85 |
DOWNLOAD
|

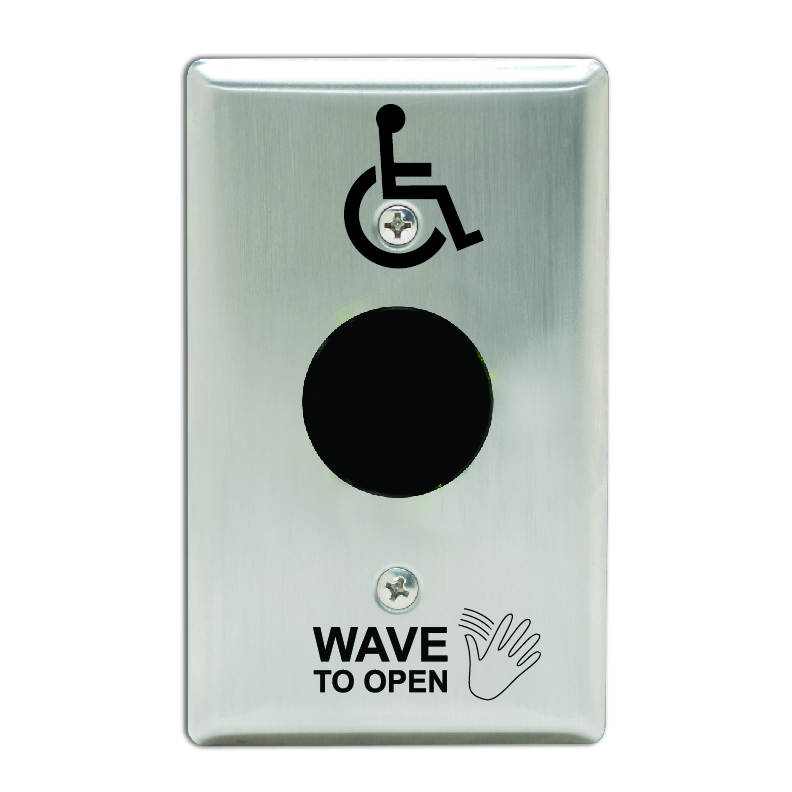

| CM-336/42S |
jpeg |
0.96 |
DOWNLOAD
|
Touchless WaveProduct Line Overview
5 Things you NEED to know aboutCM-336 Series
SureWave IntroductionDiscover our range of Touchless Switches
CM-3311 Relay Touchless Switches
CM-3322 Relay Touchless Switches
CM-333Hybrid Battery Powered Switch - 1 Relay
6" Round FaceplateNew SureWave Switch Option
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Touchless Switch, 1 Relay
click to expand section
|
|
Net Cost
|
|
|
CM-331
Wired Touchless switch, w/ built-in door control, 1 Relay, option for CM-TX99 wireless transmitter and light ring
EDI DATA, APPROVALS
|
|
Wired Touchless switch, w/ built-in door control, 1 Relay, option for CM-TX99 wireless transmitter and light ring
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.25"L x 5.5"W x 2"H
Weight: 0.4lbs.
UPC:670454180988
|
|
|
CM-324
Wired Touchless Switch, economical, 1 Relay, no inputs, wireless or light ring
EDI DATA, APPROVALS
|
|
Wired Touchless Switch, economical, 1 Relay, no inputs, wireless or light ring
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 1"W x 1.5"H
Weight: 0.4lbs.
UPC:670454160935
|
|
|
CM-325
Wired 'Short Range' Touchless Switch, 1 Relay, no inputs, wireless or light ring
EDI DATA, APPROVALS
|
|
Wired 'Short Range' Touchless Switch, 1 Relay, no inputs, wireless or light ring
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.25"L x 5.5"W x 2"H
Weight: 0.4lbs.
UPC:670454178565
|
| |
|
Touchless Switch, 2 Relays
click to expand section
|
|
Net Cost
|
|
|
CM-332
Wired Touchless Switch, w/ built-in door control, 2 Relays, option for CM-TX99 wireless transmitter and light ring
EDI DATA, APPROVALS
|
|
Wired Touchless Switch, w/ built-in door control, 2 Relays, option for CM-TX99 wireless transmitter and light ring
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.25"L x 5.5"W x 2"H
Weight: 0.4lbs.
UPC:670454180995
|
| |
|
Touchless Switch, Battery Powered
click to expand section
|
|
Net Cost
|
|
|
CM-333
Hybrid Battery Powered Touchless Switch, 1 wired Relay. Option for plug-in wireless module discontinued May 2022
EDI DATA, APPROVALS
|
|
Hybrid Battery Powered Touchless Switch, 1 wired Relay. Option for plug-in wireless module discontinued May 2022
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.25"L x 5.5"W x 2"H
Weight: 0.4lbs.
UPC:670454181008
|
|
|
CM-336
Battery Powered Touchless Switch, Wireless. Narrow version requires 1-5/8" deep surface mount box.
EDI DATA, APPROVALS
|
|
Battery Powered Touchless Switch, Wireless. Narrow version requires 1-5/8" deep surface mount box.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.25""L x 5""W x 2""H
Weight: 0.4lbs.
UPC:670454214010
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT FACEPLACE GRAPHIC
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| FACEPLATE OPTIONS |
 |
| FACEPLATE GRAPHIC OPTIONS |
 |
| LED OPTIONS |
 |
| LITHIUM BATTERY OPTION |
|
| Faceplate Material |
|
Net Cost |
|
|
S
Stainless Steel Faceplate without Illumination. Do not select when ordering light ring.
|
Stainless Steel Faceplate without Illumination. Do not select when ordering light ring.
|
|
|
| Faceplate Size |
|
Net Cost |
|
|
/N
Narrow Faceplate. Rubber gasket supplied. CM-324, 325, 331 & 332 Series narrow switches are compatible with CM-23D narrow jamb surface box. CM-336 Series narrow switches and CM-331, 332 & 336 Series narrow switches with optional CM-TX99 plug-in wireless transmitter require CM023DSER 1-7/8" deep surface box.
|
Narrow Faceplate. Rubber gasket supplied. CM-324, 325, 331 & 332 Series narrow switches are compatible with CM-23D narrow jamb surface box. CM-336 Series narrow switches and CM-331, 332 & 336 Series narrow switches with optional CM-TX99 plug-in wireless transmitter require CM023DSER 1-7/8" deep surface box.
|
|
|
|
|
/W
Double Gang Faceplate without Illumination. Do not select when ordering light ring. . Rubber gasket supplied for weather/water resistant applications. Compatible surface mounting box CM-43CBLA
|
Double Gang Faceplate without Illumination. Do not select when ordering light ring. . Rubber gasket supplied for weather/water resistant applications. Compatible surface mounting box CM-43CBLA
|
|
|
|
|
/R
6" Round Stainless Steel Faceplate without Illumination. Do not select when ordering light ring. Mounts on single gang in-wall box, CM-69SER surface round box or CM-79A semi-flush escutcheon. Not water resistant.
|
6" Round Stainless Steel Faceplate without Illumination. Do not select when ordering light ring. Mounts on single gang in-wall box, CM-69SER surface round box or CM-79A semi-flush escutcheon. Not water resistant.
|
|
|
| Faceplate Graphic Options |
|
Net Cost |
|
/40
Hand Icon
|
Hand Icon
|
|
|
|
/41
Hand Icon and 'Wave to Open' text
|
Hand Icon and 'Wave to Open' text
|
|
|
|
/42
Hand Icon, 'Wave to Open' text and Wheelchair Symbol
|
Hand Icon, 'Wave to Open' text and Wheelchair Symbol
|
|
|
|
/43
Hand Icon and 'Wave To Lock'. Option for stainless steel face plate only. Door locked status indicator recommended when using this graphic option.
|
Hand Icon and 'Wave To Lock'. Option for stainless steel face plate only. Door locked status indicator recommended when using this graphic option.
|
|
|
|
/44
Hand Icon and Wheelchair Symbol
|
Hand Icon and Wheelchair Symbol
|
|
|
| Light Ring |
|
Net Cost |
|
-SSGLR
Single Gang Stainless Steel Faceplate w/ Green/Red/Blue LED light ring. Not weather/water resistant.
|
Single Gang Stainless Steel Faceplate w/ Green/Red/Blue LED light ring. Not weather/water resistant.
|
|
|
|
-SWSGLR
Double Gang Stainless Steel Faceplate w/ Green/Red/Blue LED light ring. Not weather/water resistant.
|
Double Gang Stainless Steel Faceplate w/ Green/Red/Blue LED light ring. Not weather/water resistant.
|
|
|
|
-RSGLR
6" Round Stainless Steel Faceplate w/ Green/Red/Blue LED light ring. Not weather/water resistant.
|
6" Round Stainless Steel Faceplate w/ Green/Red/Blue LED light ring. Not weather/water resistant.
|
|
|
| Lithium Batteries |
|
Net Cost |
|
|
-L1
Add suffix '-L1' for (2) 'AA' Lithium Batteries in place of (2) Alkaline. CM-336 and CM-333 models only.
|
Add suffix '-L1' for (2) 'AA' Lithium Batteries in place of (2) Alkaline. CM-336 and CM-333 models only.
|
|
|
|
|
CM-LP1
(2) AA lithium battery pack
|
(2) AA lithium battery pack
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE WIRELESS
|
|
|
Click to expand section
|
|
|
|
| |
|
Net Cost |
|
CM-TX99
915Mhz. plug-in transmitter for SureWave(tm) CM-331 and 332 series touchless switches and CM-120 Series Keypads.
|
915Mhz. plug-in transmitter for SureWave(tm) CM-331 and 332 series touchless switches and CM-120 Series Keypads.
|
|
|
|
CM-RX-90
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver
|
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver
|
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories |
|
Net Cost |
|

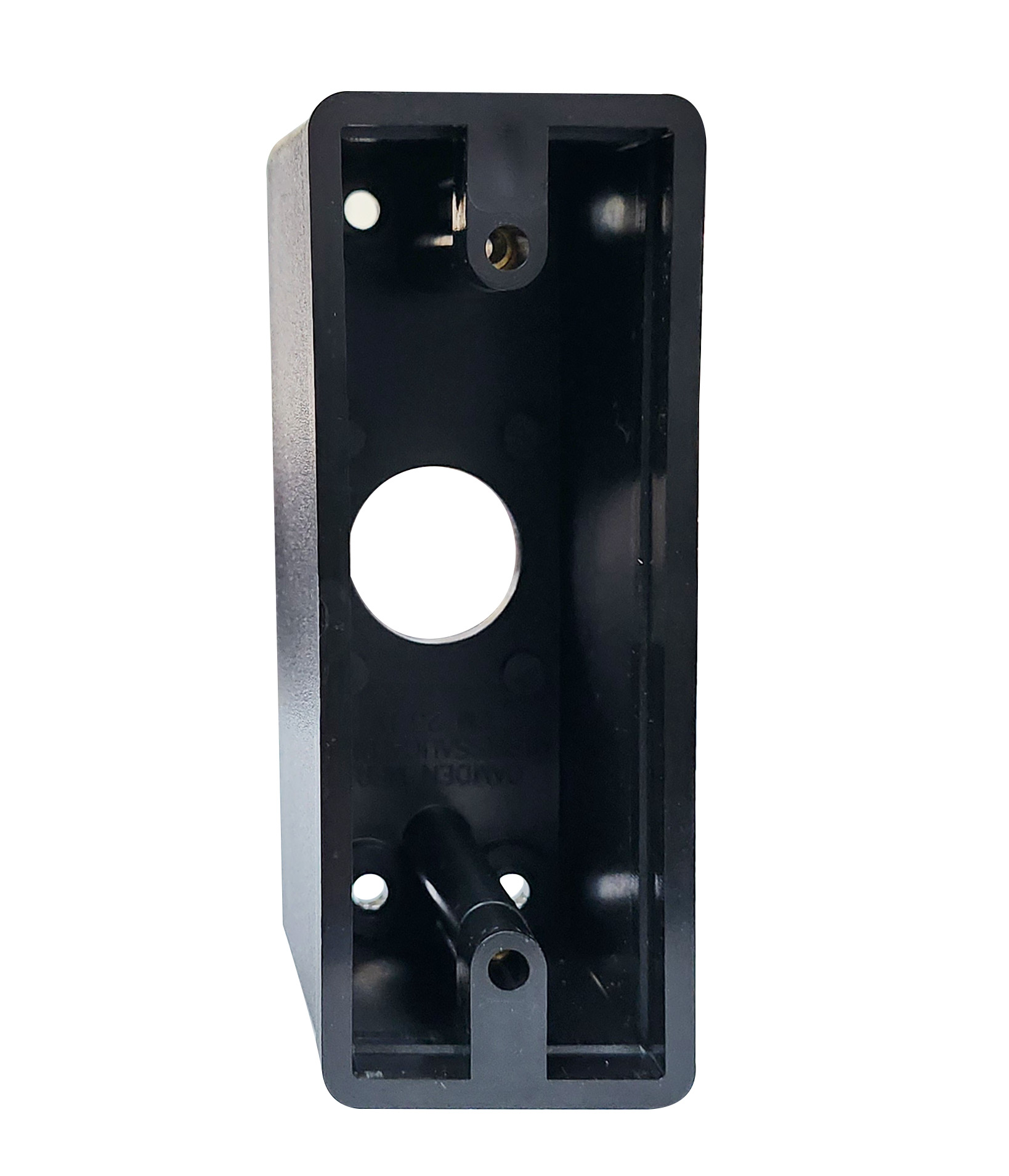

CM-23D
Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
|
Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
|
|
|
|
CM-23DSER
Surface Box, Extra Deep Flame and Impact resistant black polymer (ABS) with extension ring 1-3/4"W x 4-5/8"H X 1-7/8"D
|
Surface Box, Extra Deep Flame and Impact resistant black polymer (ABS) with extension ring 1-3/4"W x 4-5/8"H X 1-7/8"D
|
|
|
|
CM-34BL
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-43CBLA
Surface mounting box Flame/Impact resistant, 4-1/2"W x 4-1/2"H x 2"D. For used with CM-324/325/330 Series double gang Hands Free Switches
|
Surface mounting box Flame/Impact resistant, 4-1/2"W x 4-1/2"H x 2"D. For used with CM-324/325/330 Series double gang Hands Free Switches
|
|
|
|
CM-69SER
Surface, Round, Extra Deep, for Kinetic(tm) CM-60K Series Push Plate Switches and SureWave(tm) switches w/ 'R' option faceplates
|
Surface, Round, Extra Deep, for Kinetic(tm) CM-60K Series Push Plate Switches and SureWave(tm) switches w/ 'R' option faceplates
|
|
|
|
CM-79A
Flush enclosure only (fits single gang box) 8' x 3/4"
|
Flush enclosure only (fits single gang box) 8' x 3/4"
|
|
|
|
|
CM-43CBL-ADP1
Adaptor kit to mount SUREWAVE(tm) double gang switch on CM-43CBL surface mount box
|
Adaptor kit to mount SUREWAVE(tm) double gang switch on CM-43CBL surface mount box
|
|
|
|
|
CM-54i-ADP1
Adaptor kit to mount SUREWAVE(tm) double gang switch on Aura(tm) Illuminated CM-54i (Surface) or CM-55i (flush) mount box
|
Adaptor kit to mount SUREWAVE(tm) double gang switch on Aura(tm) Illuminated CM-54i (Surface) or CM-55i (flush) mount box
|
|
|
|
CM-RH-SG
Stainless Steel, Single Gang Rain Hood. Compatible with any Camden flush mount single gang switch.
|
Stainless Steel, Single Gang Rain Hood. Compatible with any Camden flush mount single gang switch.
|
|
|
|
CM-RH-DG
Stainless Steel, Double Gang Rain Hood. Compatible with any Camden flush mount double gang switch.
|
Stainless Steel, Double Gang Rain Hood. Compatible with any Camden flush mount double gang switch.
|
|
|
|
|
|
|
CM-336 Series Battery Powered Wireless Kits
click to expand section
|
|
Net Cost
|
|
|

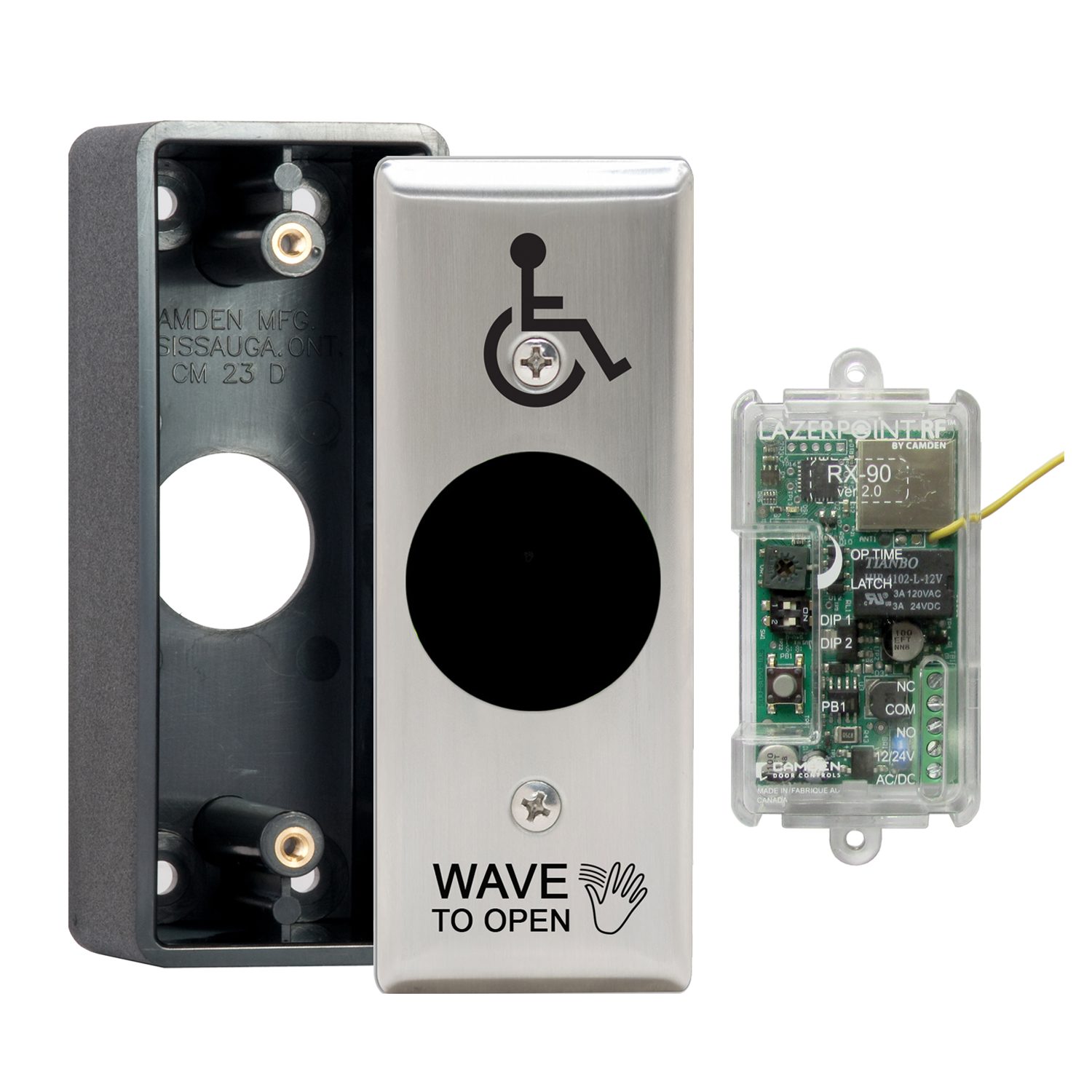

CM-SK336/42SN
EDI DATA, APPROVALS
|
|
CM-SK336/42SN
(2)
SureWave(tm) wireless no-touch switch, narrow, stainless steel faceplate, 'Wave to Open' graphics, black;
Narrow Faceplate. Rubber gasket supplied. CM-324, 325, 331 & 332 Series narrow switches are compatible with CM-23D narrow jamb surface box.;
(2)
Surface Box, Extra Deep;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454214690
|
|
|

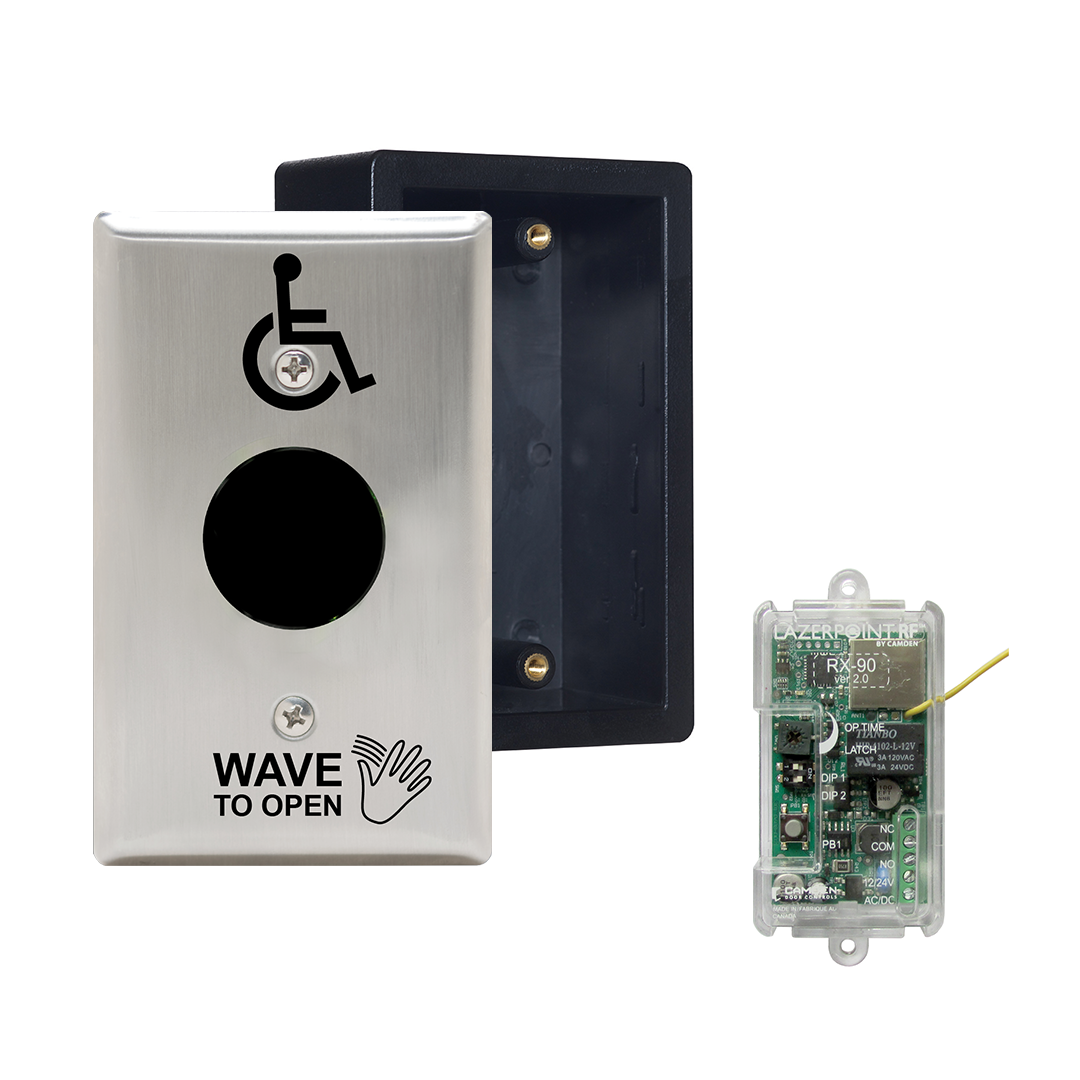

CM-SK336/42S
EDI DATA, APPROVALS
|
|
CM-SK336/42S
(2)
SureWave(tm) wireless no-touch switch, single gang, stainless steel faceplate, 'Wave to Open' graphics, black;
(2)
Surface Box, Standard Depth. Double wall;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454214683
|
|
|

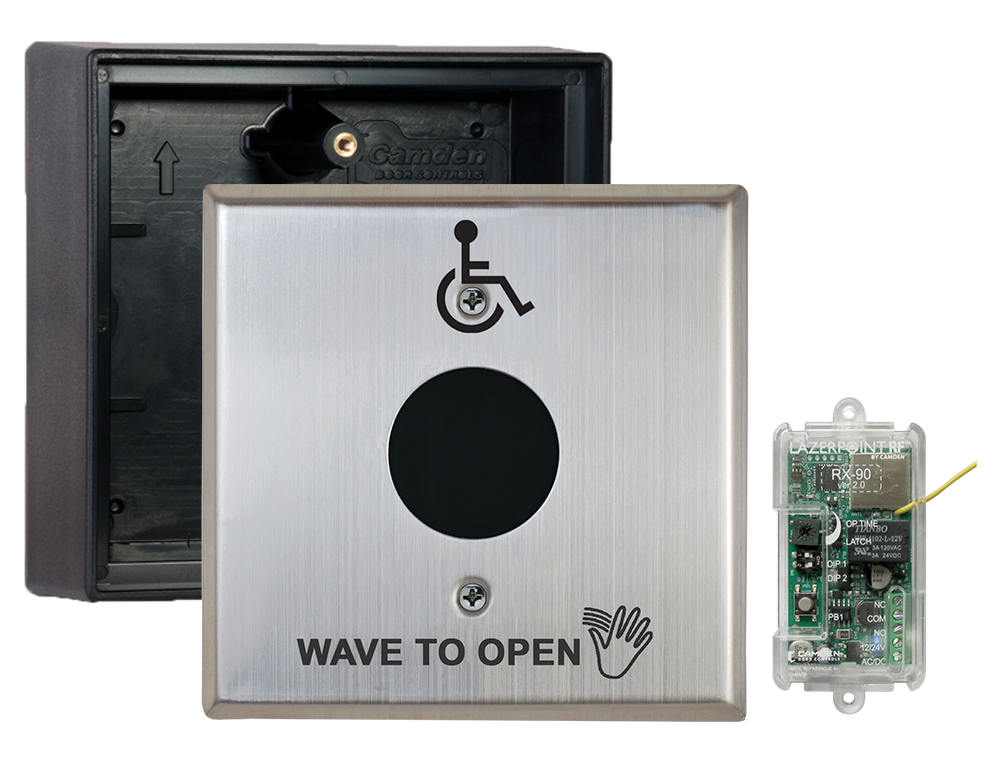

CM-SK336/42SW
EDI DATA, APPROVALS
|
|
CM-SK336/42SW
(2)
SureWave(tm) wireless no-touch switch, double gang, stainless steel faceplate, 'Wave to Open' graphics, black;
Stainless Steel Faceplate without Illumination. Do not select when ordering light ring.;
Double Gang Faceplate without Illumination. Do not select when ordering light ring. . Rubber gasket supplied for weather/water resistant applications. Compatible surface mounting box CM-43CBLA;
(2)
Surface mounting box;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454214706
|
|
|
CM-SK336/42R
EDI DATA, APPROVALS
|
|
CM-SK336/42R
(2)
SureWave(tm) wireless no-touch switch, 6" Round, stainless steel faceplate, 'Wave to Open' graphics, black;
(1)
V2 Lazerpoint RF(tm) & Kinetic(tm) Compatible Single Relay Receiver;
(2)
Surface, Round, Extra Deep, for Kinetic(tm) CM-60K Series Push Plate Switches and SureWave(tm) switches w/ 'R' option faceplates.
EDI DATA, APPROVALS
| 2x |
|
| 1x |
|
| 2x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454214676
|
| |
|
|
Lazerpoint RF
This product series is designed for use with the industry's most reliable and easy to install wireless system!
|
|
|
