CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card security FOB, or smartphone credential they want. The intuitive programming app is Apple® and Android® Protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.
The CV-603 controller provides control for two doors including inputs for readers, door position switch and REX device and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.
|
|
CV-TXM-2 Two Button Wiegand Fob |
|
|
MProx-BLE : 5 Things You Need to Know |
|
|
MProx-BLE System Overview |
|
|
|
CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card security FOB, or smartphone credential they want. The intuitive programming app is Apple® and Android® Protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.
The CV-603 controller provides control for two doors including inputs for readers, door position switch and REX device and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.
|
|
CONTROLLERS
click to expand section
|
|
Net Cost
|
|

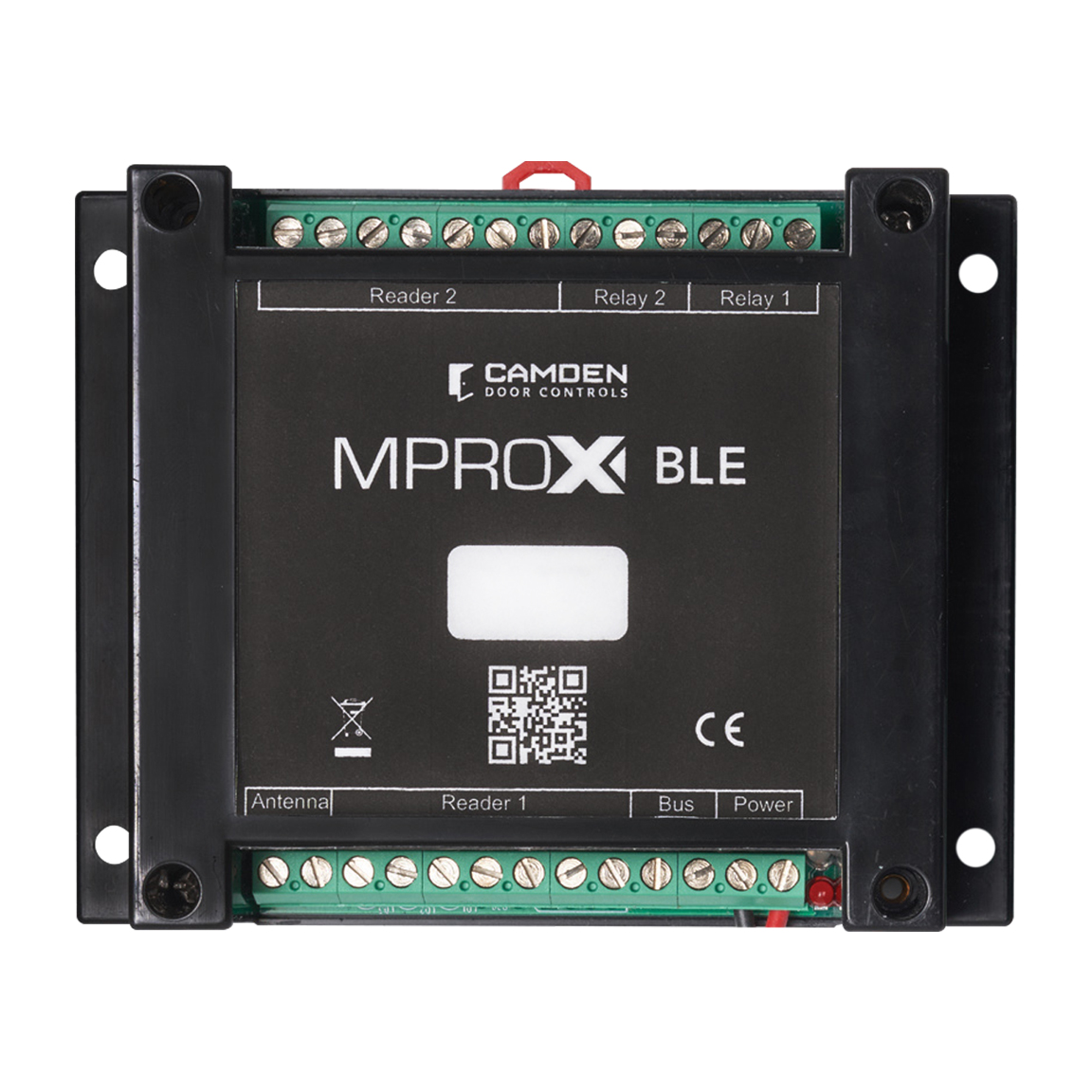

CV-603
2 Door MProx-BLE controller with 433 Mhz. receiver
EDI DATA, APPROVALS
|
|
2 Door MProx-BLE controller with 433 Mhz. receiver
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 4.5""L x 3.5""W x 4.5""H
Weight: 0.45lbs.
UPC:670454209146
|
|

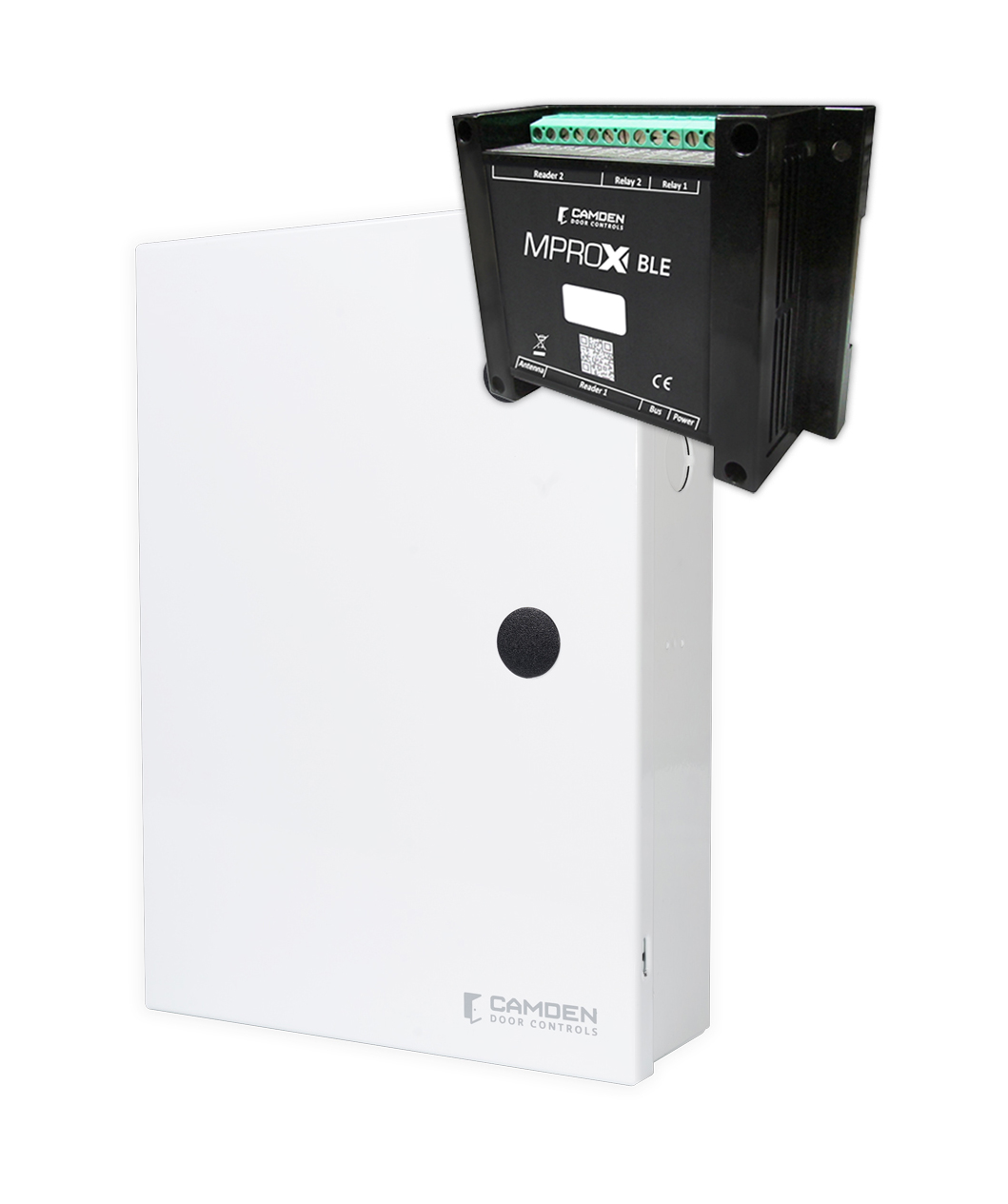

CV-603PS
Cabinet with MProx-BLE controller, 12 VDC, 1.5 amp power supply (without battery) and 16 VAC, 40 VA transformer
EDI DATA, APPROVALS
|
|
Cabinet with MProx-BLE controller, 12 VDC, 1.5 amp power supply (without battery) and 16 VAC, 40 VA transformer
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 14"L x 12"W x 4"H
Weight: 4lbs.
UPC:670454209160
|
|
EXTENSION ANTENNA
click to expand section
|
|
Net Cost
|
|

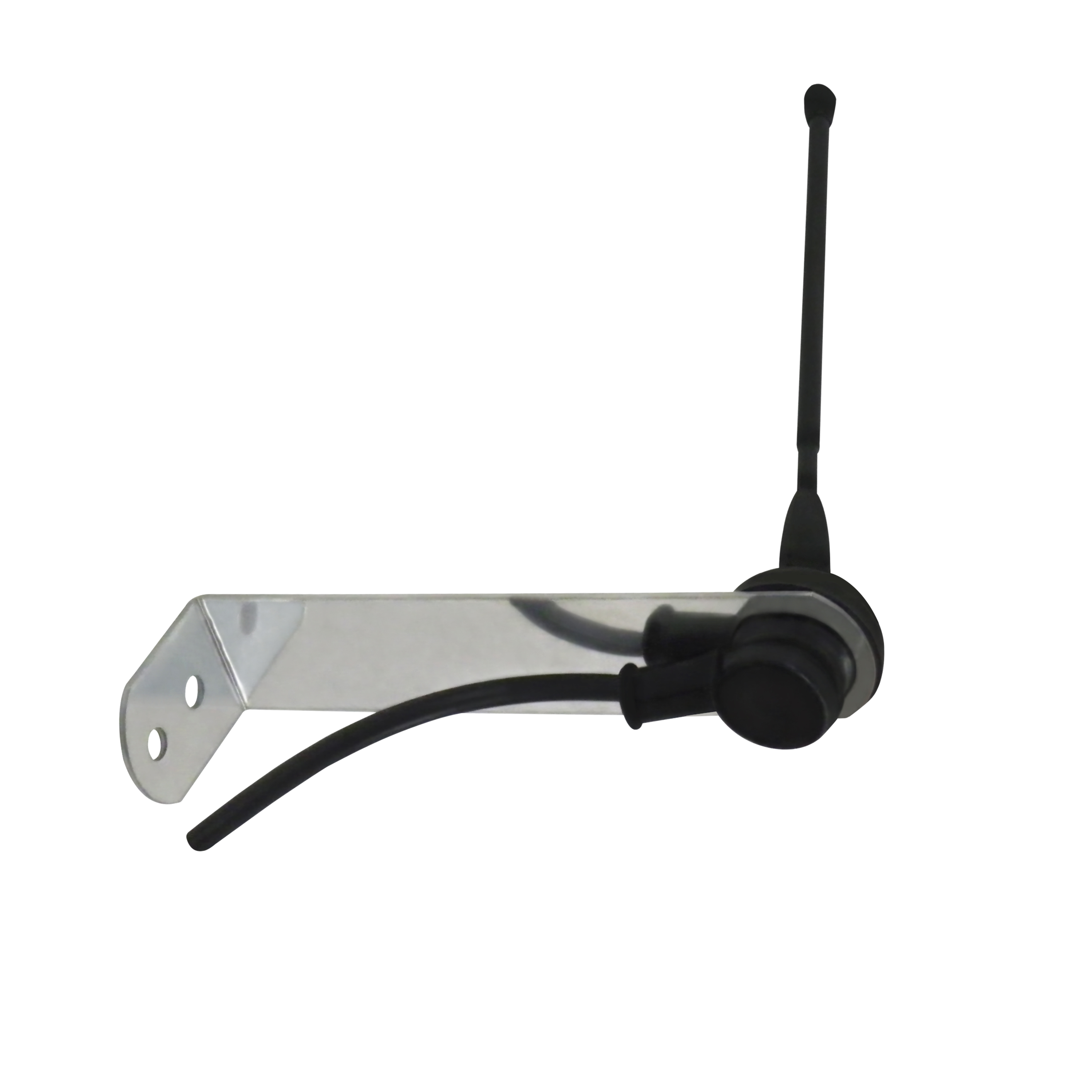

CV-603EA
433 Mhz. extension antenna for MProx-BLE Controller, 8 feet (2 meter) coaxial cable, 50 Ohm impedence, used to get beyond metal RF obstructions
EDI DATA, APPROVALS
|
|
433 Mhz. extension antenna for MProx-BLE Controller, 8 feet (2 meter) coaxial cable, 50 Ohm impedence, used to get beyond metal RF obstructions
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 5.9"L x 1.2"W x "H
Weight: 220glbs.
UPC:670454210784
|
|
CONTROLLER & READER KIT
click to expand section
|
|
Net Cost
|
|

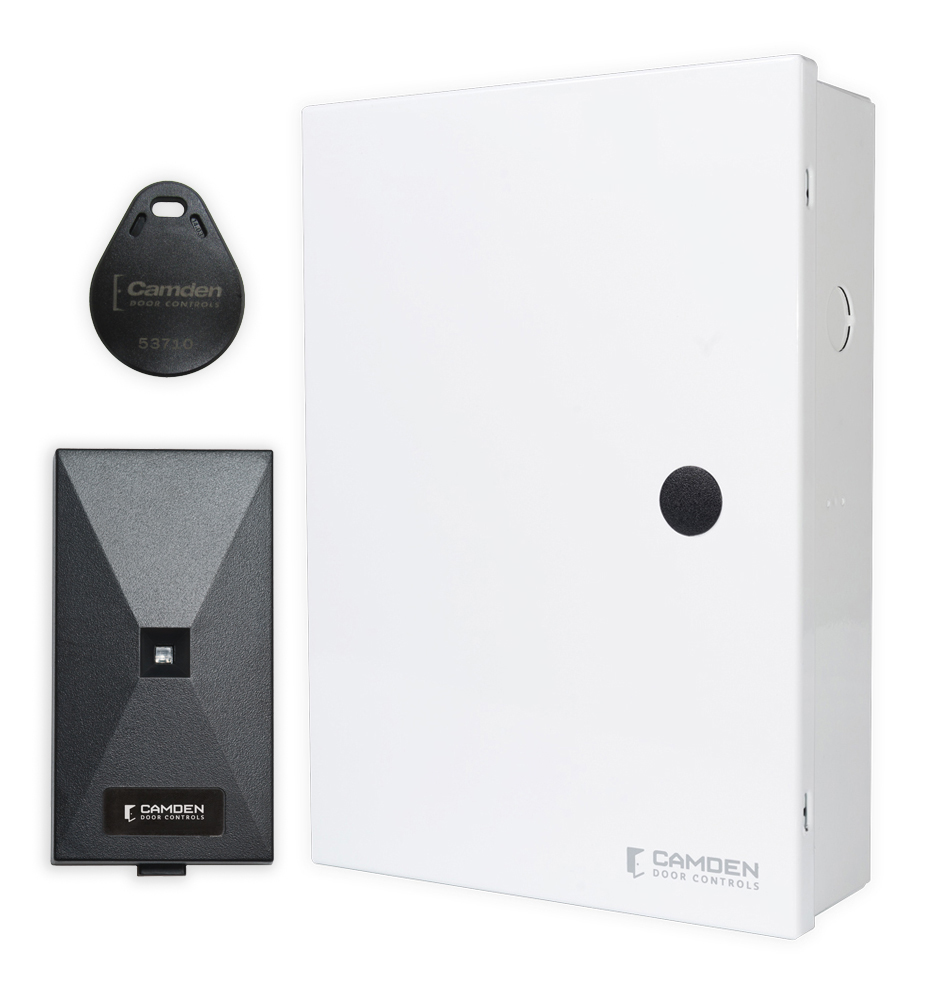

CV-603PS-K1
Cabinet with MProx-BLE controller, 12 VDC power supply, transformer, (1) CV-7400 AWID/HID protocol reader and (1) 60-21C003 HID protocol proximity tag
EDI DATA, APPROVALS
|
|
Cabinet with MProx-BLE controller, 12 VDC power supply, transformer, (1) CV-7400 AWID/HID protocol reader and (1) 60-21C003 HID protocol proximity tag
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 14"L x 12"W x 4"H
Weight: 4.35lbs.
UPC:670454209184
|
|
WIRELESS KEY FOB
click to expand section
|
|
Net Cost
|
|

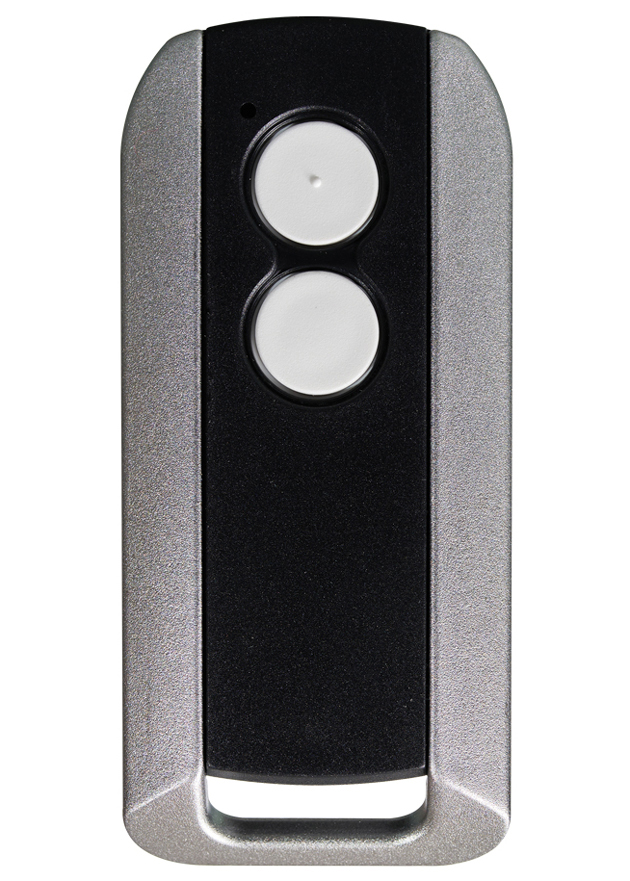

CV-TXM-2
2 Button, 433 Mhz. key fob for MProx-BLE Controller
EDI DATA, APPROVALS
|
|
2 Button, 433 Mhz. key fob for MProx-BLE Controller
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 4.0"L x 2.75"W x 0.50"H
Weight: 1.0lbs.
UPC:670454209191
|
|
CV-TXM-2B
2 Button, 433 Mhz. key fobs for MProx-BLE Controller Package of 10
EDI DATA, APPROVALS
|
|
2 Button, 433 Mhz. key fobs for MProx-BLE Controller Package of 10
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 6.0"L x 4.0"W x 3.0"H
Weight: 0.05lbs.
UPC:670454209917
|
|
PROTOCOL READERS & CREDENTIALS
click to expand section
|
|
Net Cost
|
|
CV-603VR10
10 Virtual Remote Licence Key
EDI DATA, APPROVALS
|
|
10 Virtual Remote Licence Key
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454212979
|
|
CV-603VR50
50 Virtual Remote Licence Key
EDI DATA, APPROVALS
|
|
50 Virtual Remote Licence Key
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454212986
|
|
CV-7400
Narrow compact HID/AWID protocol proximity reader, 4" - 5" range
EDI DATA, APPROVALS
|
|
Narrow compact HID/AWID protocol proximity reader, 4" - 5" range
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 3.25"L x 5.75"W x 1.75"H
Weight: lbs.
UPC:670454156723
|
|
|
COMPATIBLE PROX. CARDS & KEY TAGS
|
|
|
Click to expand section
|
|
|
|
CV-7400 Options |
|
Net Cost |
|

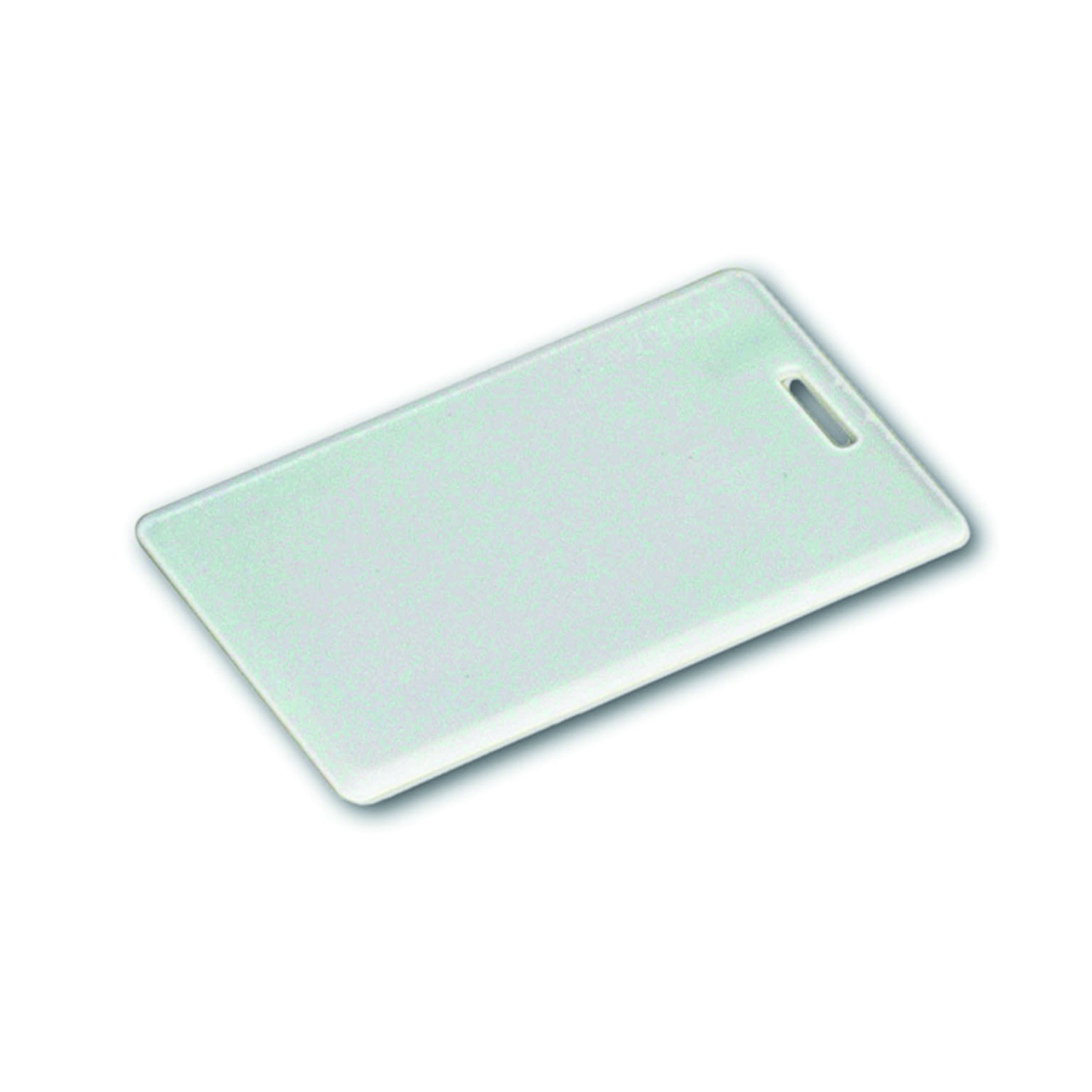

CV-CSA
AWID format prox. cards, clam shell style, package of 10
|
AWID format prox. cards, clam shell style, package of 10
|
|
|
|
CV-CSH
HID Format clam shell prox. card, package of 10
|
HID Format clam shell prox. card, package of 10
|
|
|
|
CV-ISA
AWID format ISO prox. card, package of 10
|
AWID format ISO prox. card, package of 10
|
|
|
|
CV-ISH
HID Format ISO prox. card, package of 10
|
HID Format ISO prox. card, package of 10
|
|
|
|
CV-KTA
AWID format prox. key tag, package of 25
|
AWID format prox. key tag, package of 25
|
|
|
|

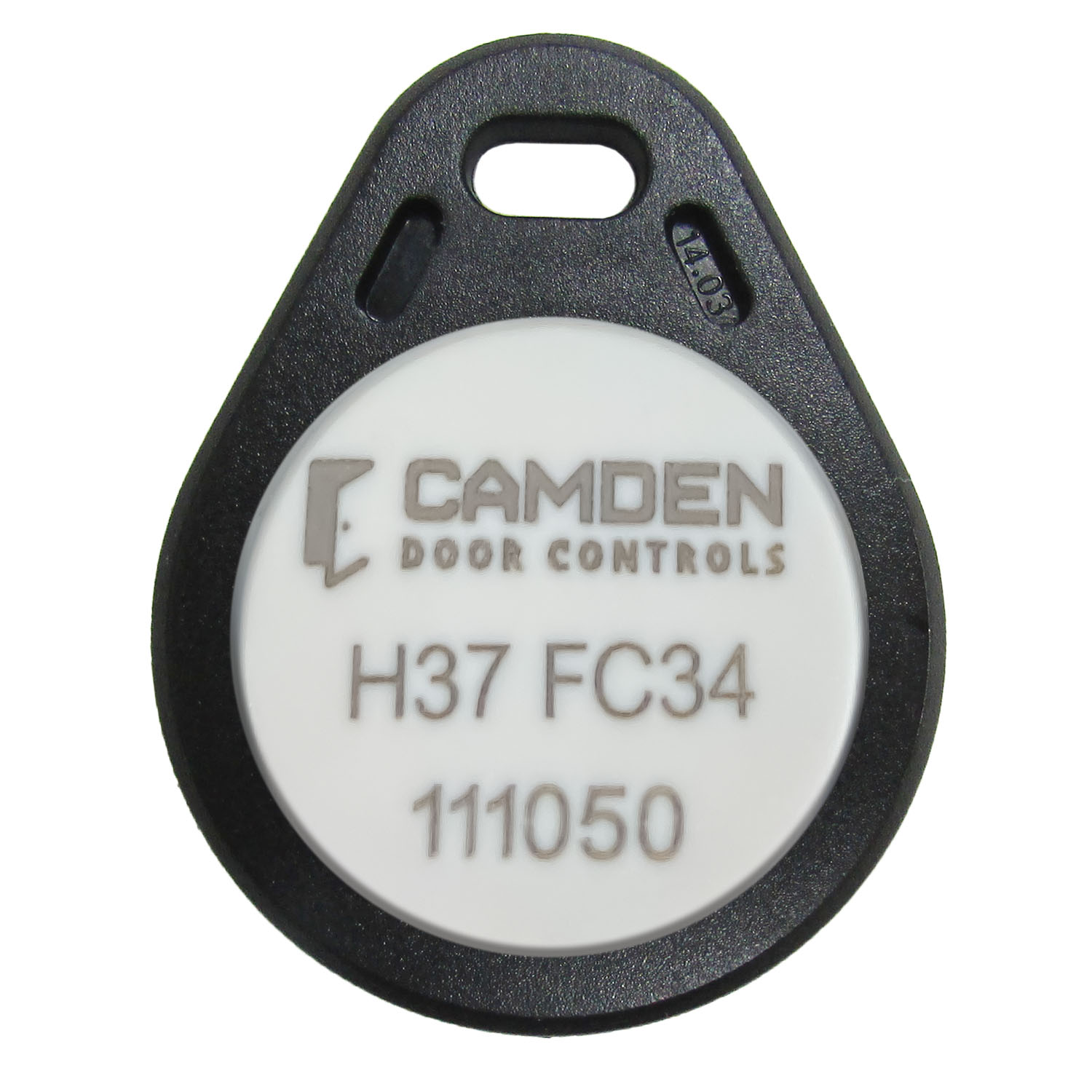

CV-KTH
HID Format prox. key tag, package of 25
|
HID Format prox. key tag, package of 25
|
|
|
|
|
 |
