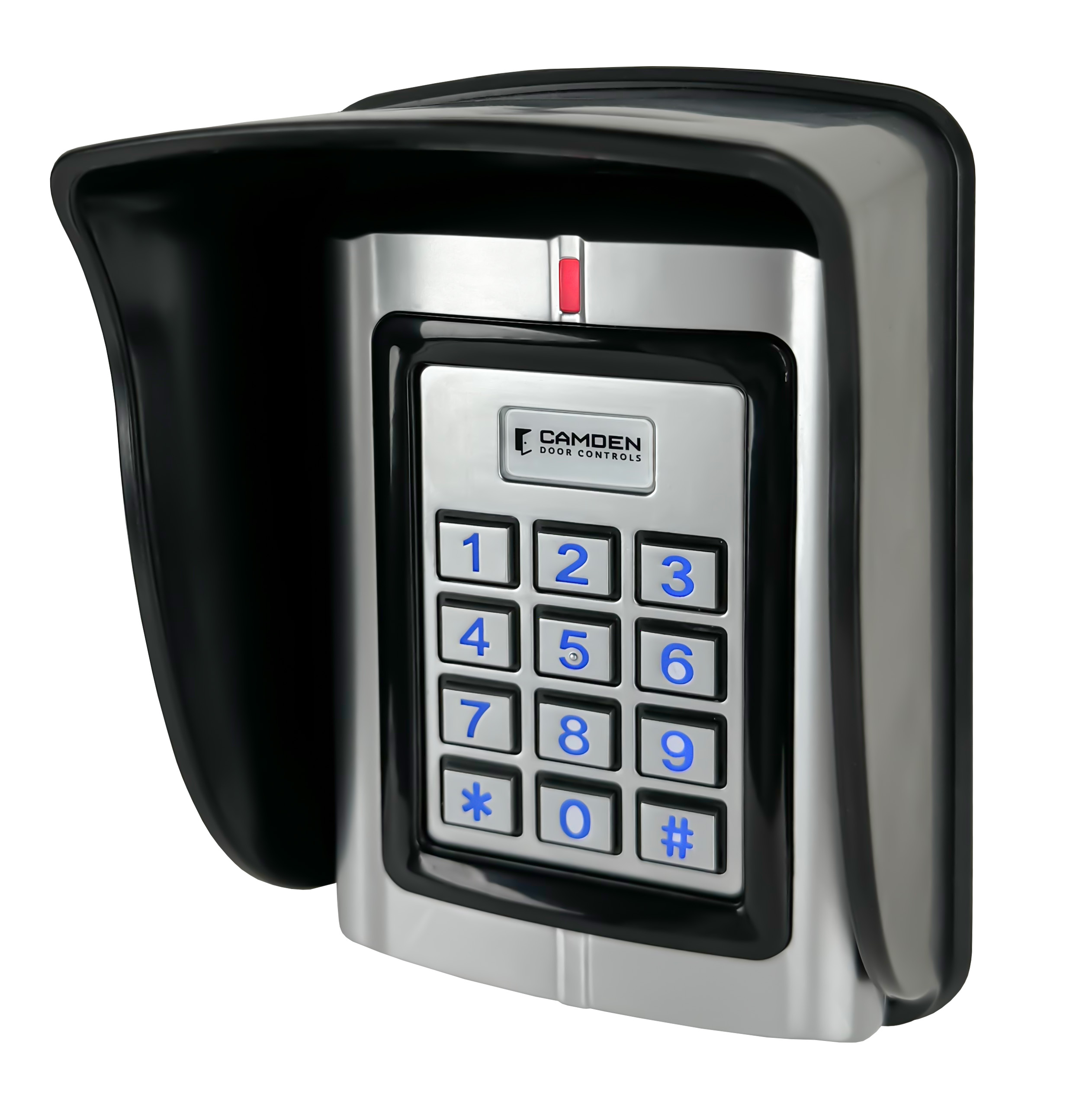

CV-550SPKV3 Stand Alone Prox. Reader & Keypad
|
|
Camden's Next Generation CV-550SPK offers a complete single-door access control solution for high-traffic applications that demand weather and vandal resistant performance over years of operation. The sturdy, cast metal housing and illuminated keypad with proximity reader supports up to 20,000 users, making it ideal for professional offices, schools, commercial and industrial applications. The 26-bit Wiegand input and output allows the CV550SPK to also operate as a single or dual credential device, while the variety of configuration options make it compatible with most access systems.
|
|
|
| Camden Keypad Product Line Video |
|
| CV-550SPKV3 Stand Alone Prox. Reader & Keypad |
CV-550SPKV3 Stand Alone Prox. Reader & Keypad
|
Camden's Next Generation CV-550SPK offers a complete single-door access control solution for high-traffic applications that demand weather and vandal resistant performance over years of operation. The sturdy, cast metal housing and illuminated keypad with proximity reader supports up to 20,000 users, making it ideal for professional offices, schools, commercial and industrial applications. The 26-bit Wiegand input and output allows the CV550SPK to also operate as a single or dual credential device, while the variety of configuration options make it compatible with most access systems. |
|
|
|
|
|
|
| Camden Keypad Product Line Video |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
Batch card/tag enrollment
-
Cast metal, heavy duty construction
-
Backlit vandal resistant keypad
-
Weather resistant IP68 rated
-
Up to 20,000 users - Supports card, PIN, card + PIN (HID 26, 34 and 37 bit, HID and EM format)
-
4 to 6 digit PIN code length
-
(1) Form 'C' relay output
-
Tamper alarm output
-
Request to exit device input
-
Door contact input
-
Adjustable door alarm time and door open time
-
Wiegand output for integration with access control systems
-
External 26 to 66-bit Wiegand card reader input
-
3 year warranty
| Voltage: |
12 VDC +/- 10%
|
| User Codes: |
20,000
|
| IP Rating: |
68
|
| Idle Current: |
25 mA
|
| Contact Type: |
(1) Form 'C'
|
| Contact Rating: |
1 Amp @ 30 VDC
|
| Alarm Output Load: |
1 Amp @ 30 VDC
|
| Ring Bell Load: |
1 Amp @ 30 VDC
|
| Card Read Distance: |
2" (50mm) max.
|
| Card Frequency: |
125KHZ, EM and HID
|
| Card Format: |
22 to 66 Bit Wiegand
|
| Keypad Format: |
4 Bit, 8 Bit and Virtual Card Number
|
| Temp Range: |
-49°F to 113°F (-45°C to 55°C)
|
| Dimensions: |
5-7/8"H x 4-1/8"W x 3-1/2"D
(150mm x 104mm x 90mm - with weather shield)
|
Camden CV-550SPK Keypad - Adding and Deleting CardsFor the CV-550SPKv3 Model
Camden Keypad Product Line
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CV-550SPK
Stand-alone prox. reader & keypad, 1 relay, 20,000 users
EDI DATA, APPROVALS
|
|
Stand-alone prox. reader & keypad, 1 relay, 20,000 users
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.75"L x 2.75"W x 2.75"H
Weight: 1.5lbs.
UPC:670454151865
Country of Origin:IT
|
| |
Compatible Readers & Cards
click to expand section
|
|
Net Cost
|
|
CV-7400
HID (dual) format Reader
EDI DATA, APPROVALS
|
|
HID (dual) format Reader
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454156723
Country of Origin:US
|
| |
|
COMPATIBLE PROX. CARDS & KEY TAGS
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CV-CSH
HID Format clam shell prox. card, package of 10
EDI DATA, APPROVALS
|
|
HID Format clam shell prox. card, package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454152985
Country of Origin:CN
|
|
CV-CSH-B
HID Format clam shell prox. card, package of 100
EDI DATA, APPROVALS
|
|
HID Format clam shell prox. card, package of 100
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454177964
Country of Origin:CN
|
|
|
CV-ISH
HID Format ISO prox. card, package of 10
EDI DATA, APPROVALS
|
|
HID Format ISO prox. card, package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:67045418093
Country of Origin:CN
|
|
|
CV-ISH-B
HID Format ISO prox. card, package of 100
EDI DATA, APPROVALS
|
|
HID Format ISO prox. card, package of 100
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:67045418094
Country of Origin:CN
|
|

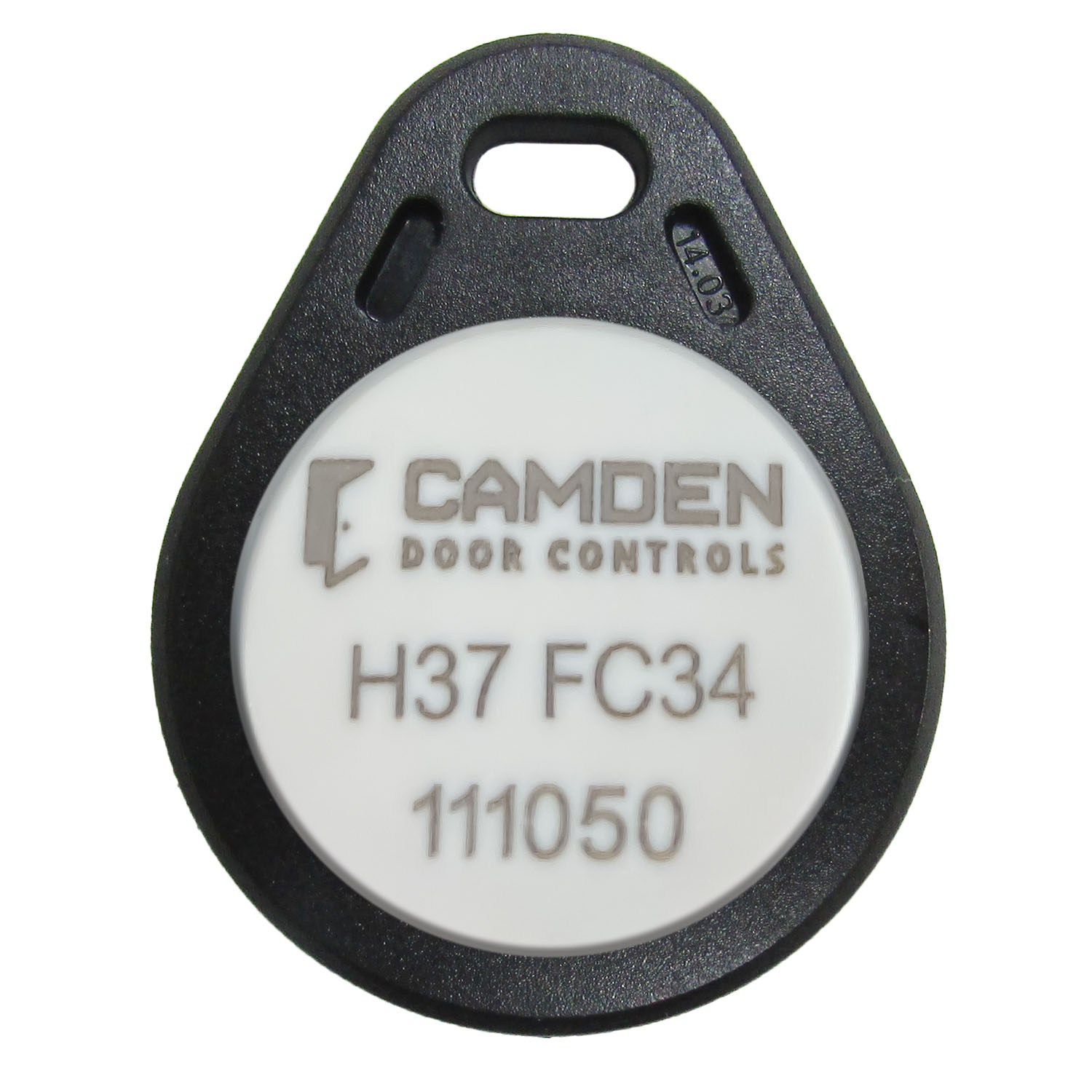

CV-KTH
HID Format prox. tag, package of 25
EDI DATA, APPROVALS
|
|
HID Format prox. tag, package of 25
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454152749
Country of Origin:CN
|
|
|
CV-CSE
EM Format clam shell Prox. Card, Package of 10
EDI DATA, APPROVALS
|
|
EM Format clam shell Prox. Card, Package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180681
Country of Origin:CN
|
|
|
CV-CSE-B
EM Format clam shell Prox. Card, package of 100
EDI DATA, APPROVALS
|
|
EM Format clam shell Prox. Card, package of 100
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454181923
Country of Origin:CN
|
|

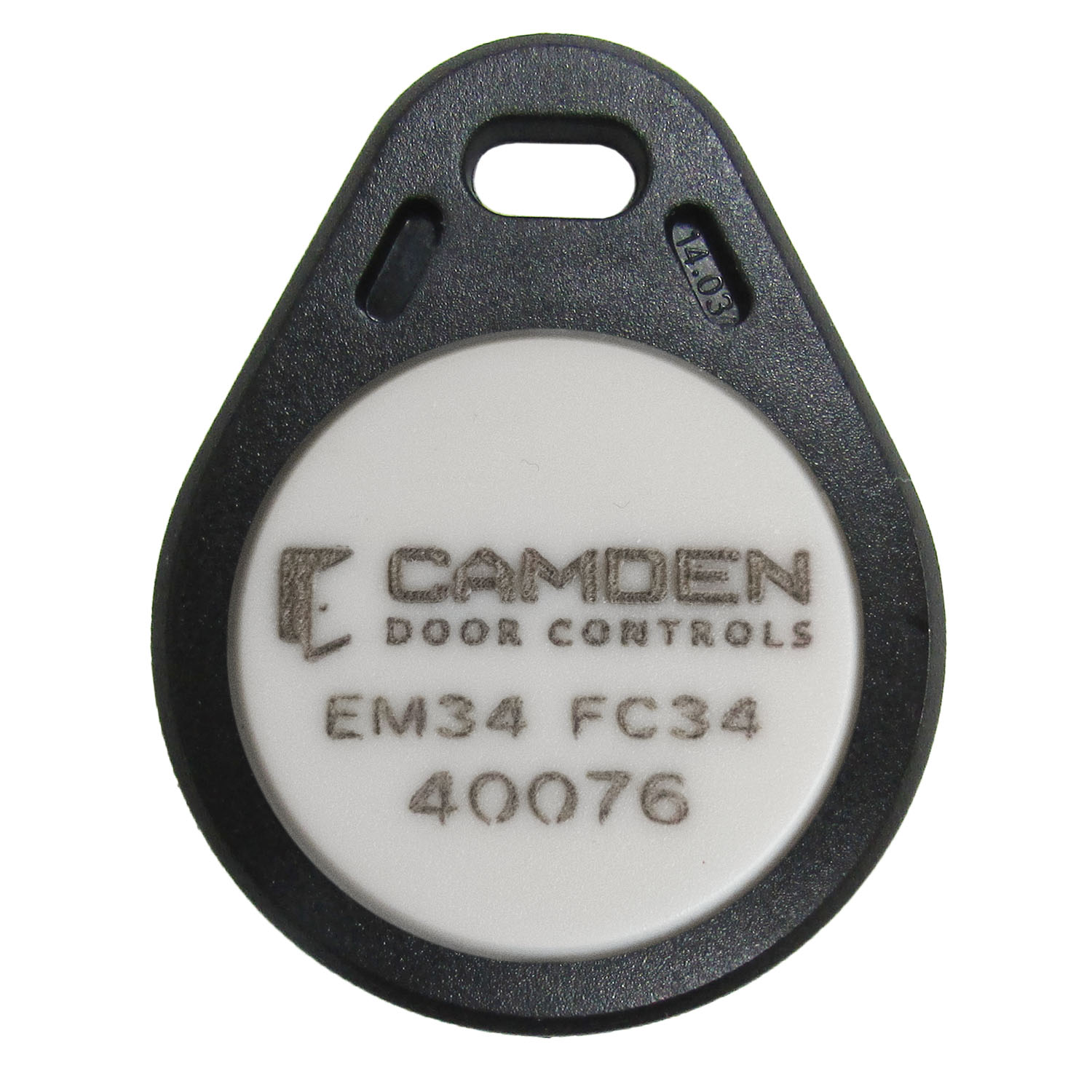

CV-KTE
EM Format Prox. Tag, package of 25
EDI DATA, APPROVALS
|
|
EM Format Prox. Tag, package of 25
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180421
Country of Origin:CN
|
| |
|
