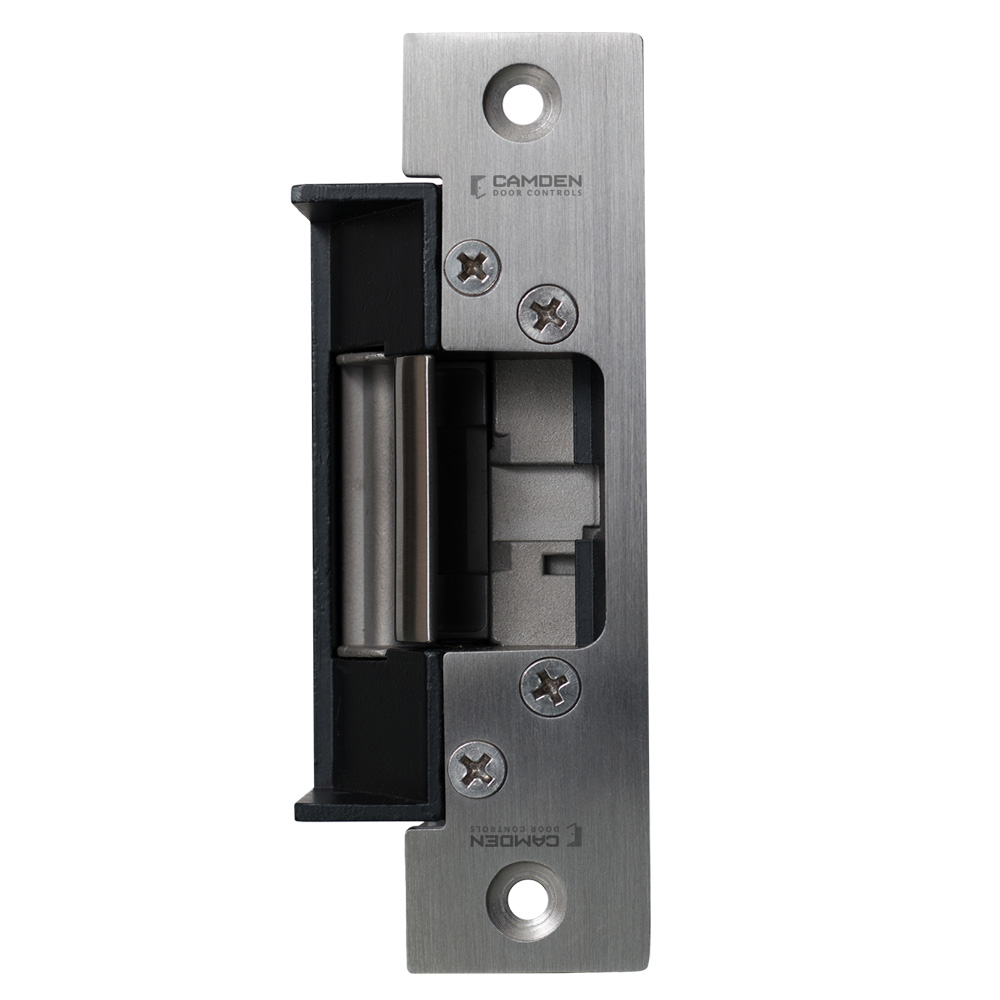

Camden CX-ED1410 standard depth and CX-ED1420 low profile Grade 1 ANSI fire rated strikes are designed to provide affordable code compliance to UL fire rated doors/frames with cylindrical locksets. These fire rated strikes are designed to deliver unparalleled application flexibility, with field selectable voltage and fail safe/fail secure operation. |
|
|
|
|
|
| Product Line Overview Presentation |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Adams Rite
|
7240
|
|
|
Dormakaba (RCI)
|
F4114
|
|
|
HES
|
7501
|
|
|
Von Duprin
|
6200
|
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Centerline latch entry for cylindrical locksets, with ANSI square faceplate
-
UL 90 minute fire and UL 1034 burglary listed
-
Dual voltage 12/24V AC/DC
-
ANSI square faceplate included, 4-7/8" x 1-1/4"
(124mm x 32mm)
-
Field selectable fail safe / fail secure operation
-
Trim plate included
-
5 year warranty
-
CX-ED1420:
1/2" - 5/8" (12mm - 16mm) latch projection
-
CX-ED1410:
5/8" - 3/4" (16mm - 19mm) latch projection
| Voltage: |
12 or 24V AC/DC
|
| Current Draw: |
260 mA @ 12 VDC
150 mA @ 24 VDC
|
| Static Hold Force: |
1,500 Lbs.
|
| Dynamic Strength: |
70 Ft-Lbs.
|
| Endurance: |
1,000,000 cycles (factory tested), 250,00 cycles (UL verified)
|
| Fire Rating: |
90 minutes (UL verified)
|
| Operation: |
AC - Buzz
DC- Silent
|
| Latch Projection: |
CX-ED1410: 5/8" - 3/4" (16mm - 19mm)
CX-ED1420: 1/2" - 5/8" (12mm - 16mm)
|
| Mode: |
Field selectable fail safe / fail secure (Fire rated in fail secure mode only)
|
| Duty: |
Continuous
|
| Dimensions: |
CX-ED1410:
3-3/8" L x 1-7/8" W x 1-3/8" D (86mm x 47mm x 35mm)
CX-ED1420:
3-3/8" L x 1-7/8" W x 1-3/16" D (86mm x 47mm x 31mm)
|
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CX-ED1410
‘Universal’ Grade 1 ANSI Fire Rated Electric Strike
EDI DATA, APPROVALS
|
|
‘Universal’ Grade 1 ANSI Fire Rated Electric Strike
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.15lbs.
UPC:670454191083
Country of Origin:Taiwan
|
|
|
CX-ED1410-BK
‘Universal’ Grade 1 ANSI Fire Rated Electric Strike, with an all-black finish faceplate
EDI DATA, APPROVALS
|
|
‘Universal’ Grade 1 ANSI Fire Rated Electric Strike, with an all-black finish faceplate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.15lbs.
Country of Origin:Taiwan
|
|

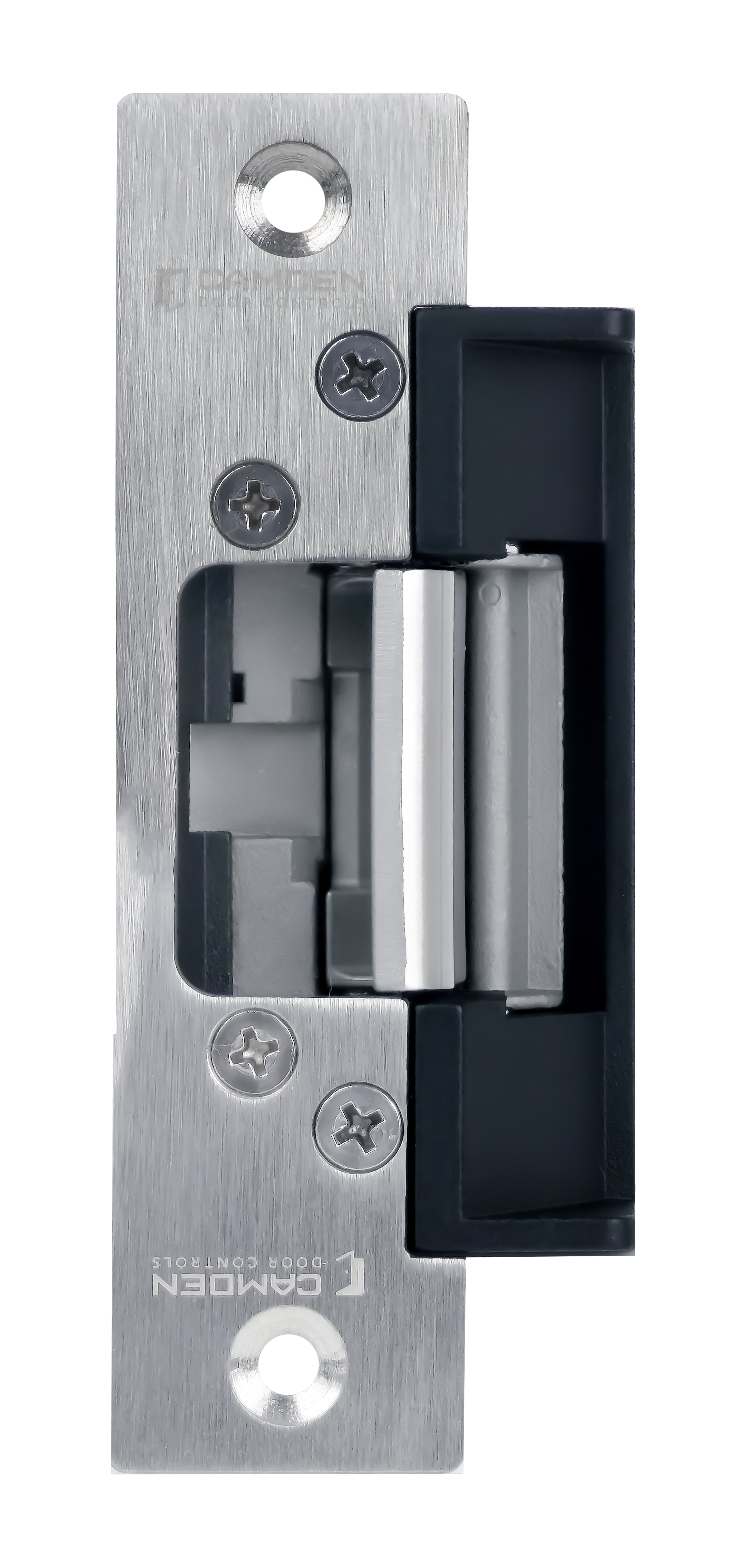

CX-ED1420
‘Universal’ Low Profile Grade 1 ANSI Fire Rated Electric Strike
EDI DATA, APPROVALS
|
|
‘Universal’ Low Profile Grade 1 ANSI Fire Rated Electric Strike
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1.875"H
Weight: 1.5lbs.
UPC:670454225436
Country of Origin:Taiwan
|
|
|
CX-ED1420-BK
‘Universal’ Low Profile Grade 1 ANSI Fire Rated Electric Strike, with an all-black finish faceplate
EDI DATA, APPROVALS
|
|
‘Universal’ Low Profile Grade 1 ANSI Fire Rated Electric Strike, with an all-black finish faceplate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1.875"H
Weight: 1.5lbs.
UPC:670454225436
Country of Origin:Taiwan
|
| |
Marking Templates
click to expand section
|
|
Net Cost
|
|
CX-STR-TMPKIT
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
EDI DATA, APPROVALS
|
|
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 4.5"W x 1.5"H
Weight: .85lbs.
UPC:670454222039
Country of Origin:Taiwan
|
| |
|
