The new range of Camden door alarms feature a rugged design with heavy duty stainless steel faceplates, and provide an easy to implement solution to the common issue of doors being used, propped or held open without alerting facility or security staff. CX-DA100, CX-DA200 and CX-DA300 models are designed to offer an affordable solution for stand alone applications. |
|
|
|
|
|

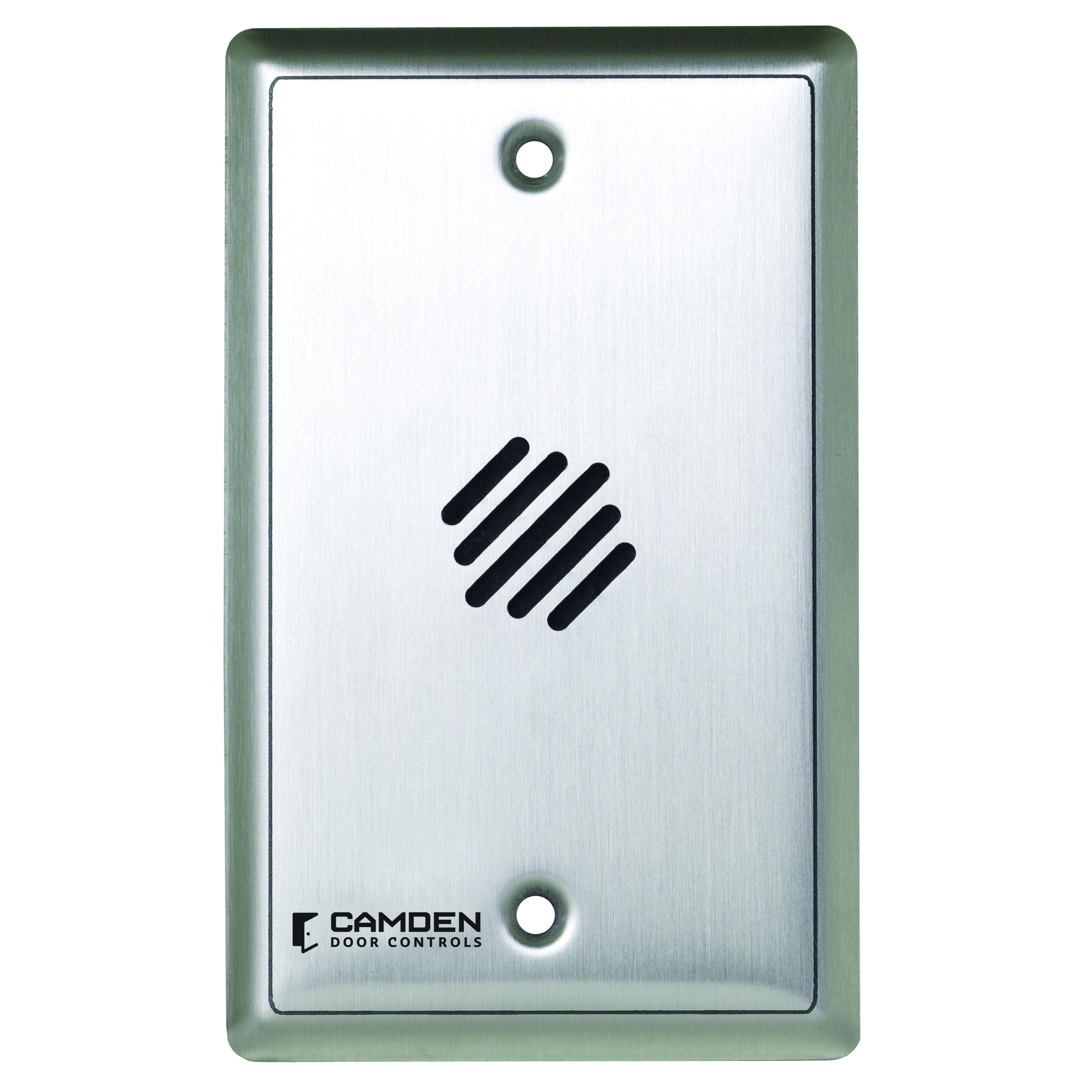

| CX-DA-200 |
|
|
|

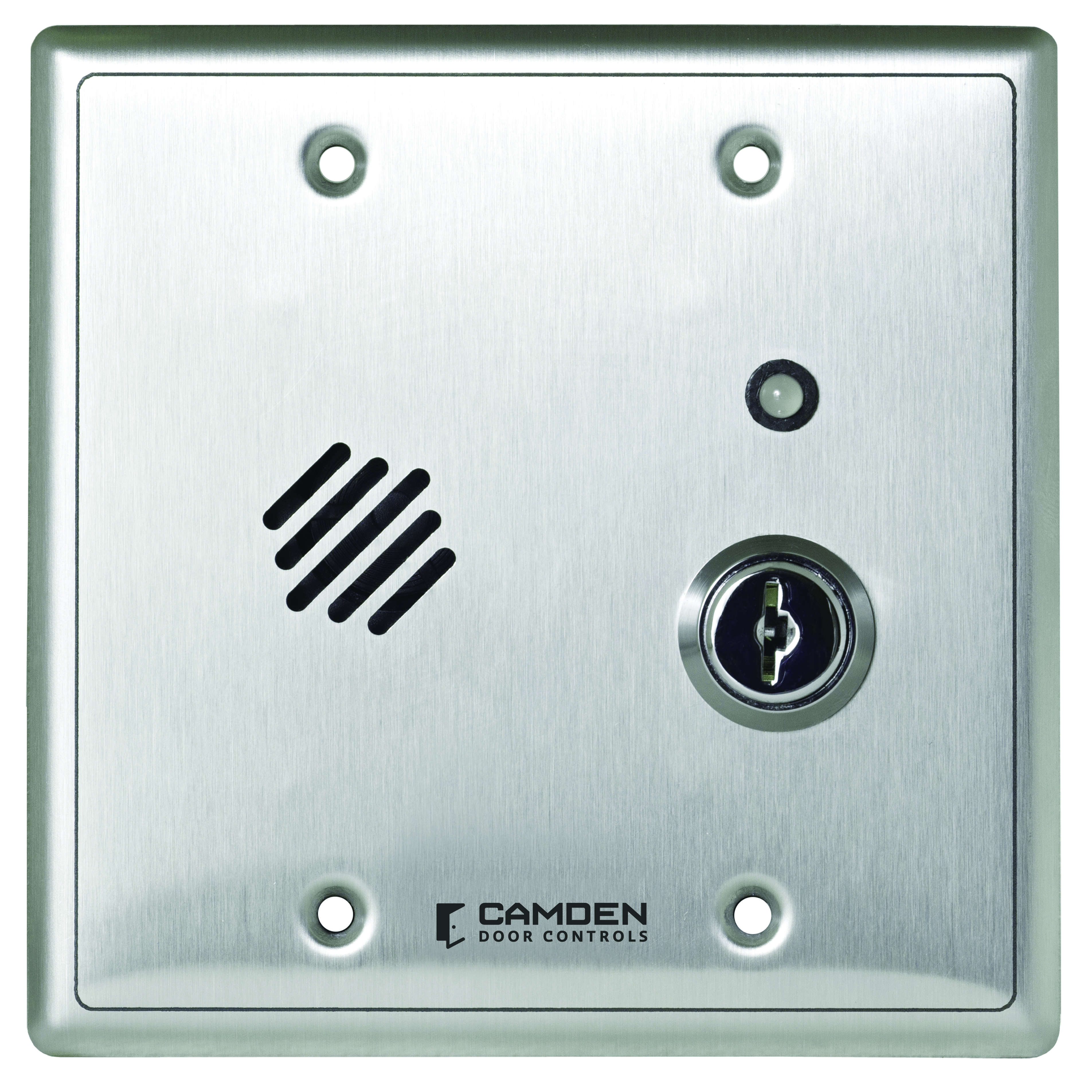

| CX-DA-300 |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Local audible alarm of door open status
-
Heavy duty stainless steel faceplate
-
12-24 VDC and AC/DC models
-
Single and double gang models
-

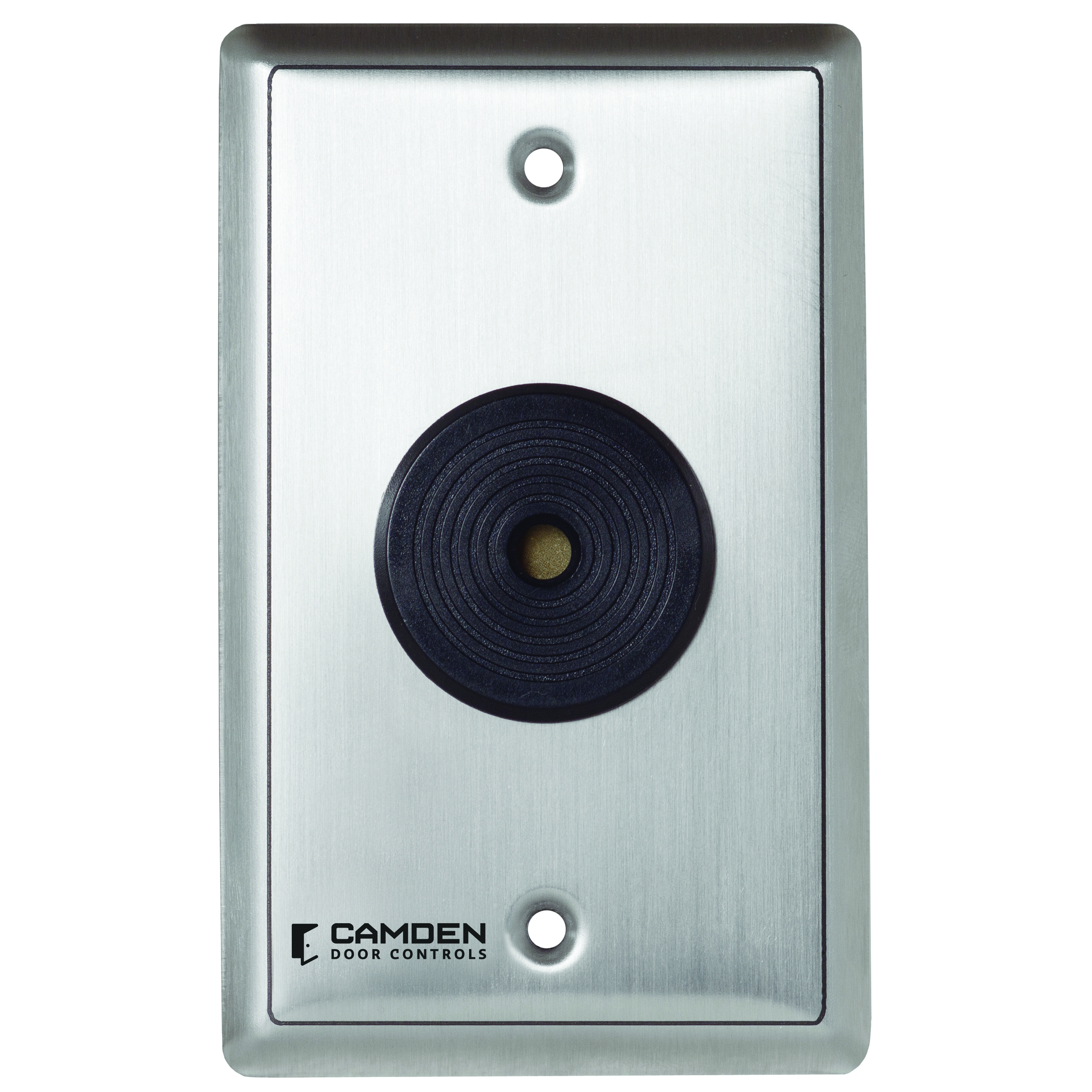

CX-DA100:
Single gang sounder ideal for wide range of alarm applications
-
CX-DA200, CX-DA300:
Feature adjustable 0 - 60 second alarm time delay and relay output
-
CX-DA300:
Double gang door alarm features key switch for local reset or bypass
| CX-DA100 |
| Voltage: |
12 - 24 VDC
|
| Current Draw: |
18 mA
|
| Sounder: |
95 db.
|
| |
| CX-DA200, CX-DA300 |
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
70mA
|
| Input: |
(1) N/C
|
| Output: |
(1) N/C SPST
|
| Contact Rating: |
500 mA @ 30 VDC
|
| Sounder: |
80 db.
|
| |
| Dimensions: |
|
CX-DA100,
CX-DA200:
|
2-3/4" x 4-5/8" x 1-1/2" (70mm x 117mm x 38mm)
|
|
CX-DA300:
|
4-5/8" x 4-5/8" x 1-1/2" (117mm x 117mm x 38mm)
|
| |
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CX-DA100
Door alarm, sounder, single gang, 3-24 VDC
EDI DATA, APPROVALS
|
|
Door alarm, sounder, single gang, 3-24 VDC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2"L x 3"W x 5"H
Weight: 0.3lbs.
UPC:670454172273
Country of Origin:CA
|
|
CX-DA200
Door alarm, with relay, single gang, 12/24V AC/DC
EDI DATA, APPROVALS
|
|
Door alarm, with relay, single gang, 12/24V AC/DC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.75"L x 3.75"W x 6.14"H
Weight: 0.48lbs.
UPC:670454172969
Country of Origin:US
|
|
CX-DA300
Door alarm, with relay and reset key, double gang, 12/24V AC/DC
EDI DATA, APPROVALS
|
|
Door alarm, with relay and reset key, double gang, 12/24V AC/DC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.75"L x 3.75"W x 6.14"H
Weight: 0.79lbs.
UPC:670454172976
Country of Origin:US
|
| |
|
