CM-1100 & CM-2000 Series

Cast Aluminum, Flush Mount

UL Listed Switch Components RoHS Compliant
< Key Switches

CM-1100 & CM-2000 Series

Cast Aluminum, Flush Mount

Catalog Menu BROWSE

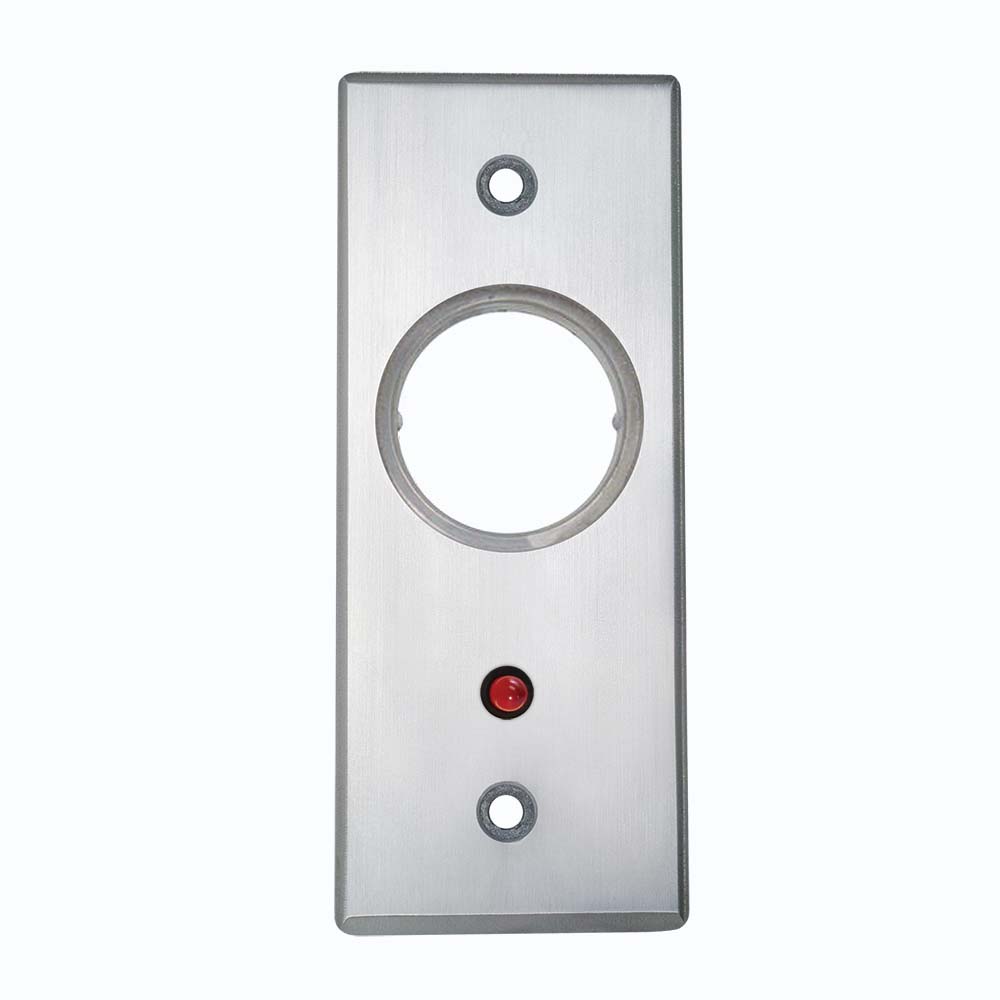

CM-2000
Narrow Key Switch
Cast Aluminum
CM-2000
Narrow Key Switch
Cast Aluminum

Camden vandal resistant key switches feature a 1/4" thick faceplate, with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted. Camden key switches offer the widest range of stock switch configurations in the industry. They accept virtually any 1" - 1-1/4" mortise cylinder and cam (sold separately) .

Note: Mortise cylinder sold separately. Scroll down and 'Click for More' Options/Finishes for the complete cylinder listing.

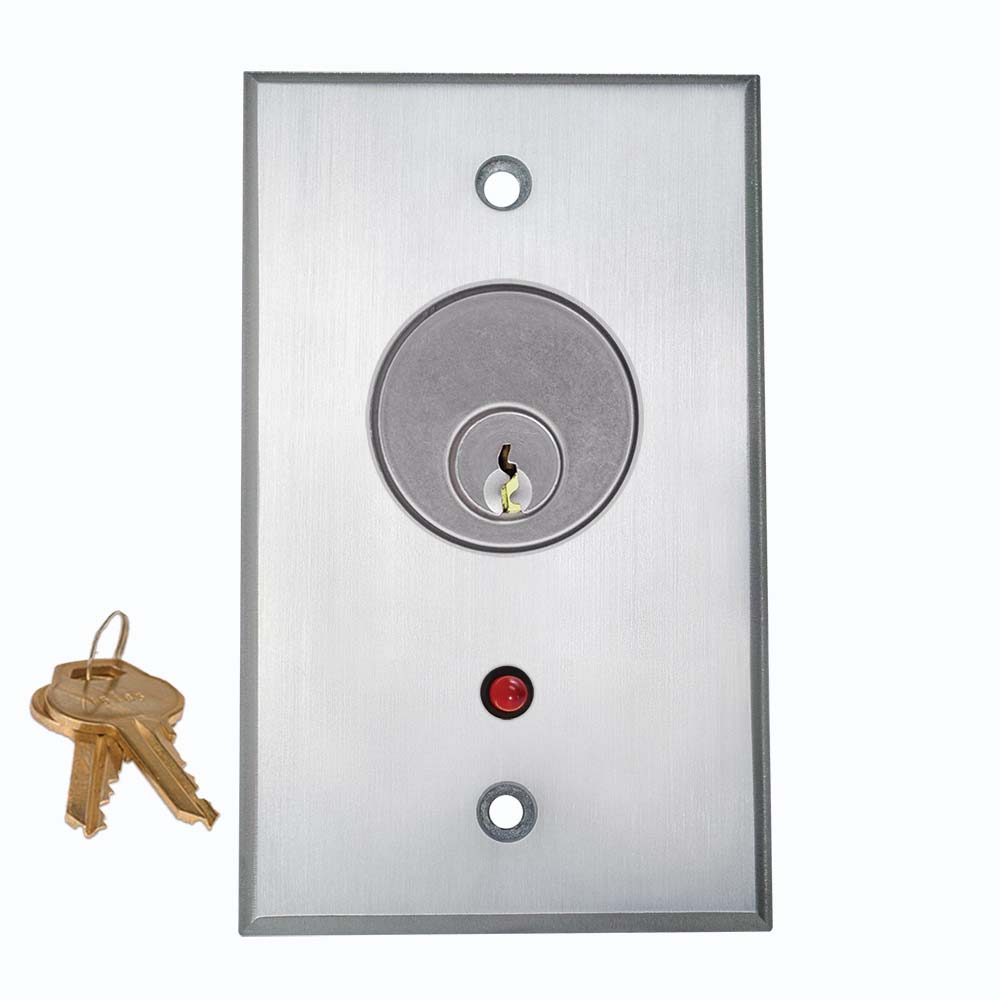

CM-1100: Key Switch - Cast Aluminum Faceplate, w/ optional cylinder & LEDs:
CM-1100: Key Switch - Cast Aluminum Faceplate, w/ optional cylinder & LEDs
CM-CPC1 Flush mount weather and vandal resistant cover available for this product:
CM-CPC1 Flush mount weather and vandal resistant cover available for this product

CM-2000
Narrow Key Switch
Cast Aluminum
CM-2000
Narrow Key Switch
Cast Aluminum

Camden vandal resistant key switches feature a 1/4" thick faceplate, with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted. Camden key switches offer the widest range of stock switch configurations in the industry. They accept virtually any 1" - 1-1/4" mortise cylinder and cam (sold separately) .

Note: Mortise cylinder sold separately. Scroll down and 'Click for More' Options/Finishes for the complete cylinder listing.
CM-1100: Key Switch - Cast Aluminum Faceplate, w/ optional cylinder & LEDs:
CM-1100: Key Switch - Cast Aluminum Faceplate, w/ optional cylinder & LEDs
CM-CPC1 Flush mount weather and vandal resistant cover available for this product:
CM-CPC1 Flush mount weather and vandal resistant cover available for this product

FEATURES SPECIFICATIONS RESOURCES
MODELS
Click to configure switch model Pricing Wizard
Single Gang Faceplate
CM-1100: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches CM-1100: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches
CM-1100
Key Switch, SPST Momentary N/O
EDI DATA, APPROVALS
Key Switch, SPST Momentary N/O
EDI DATA
APPROVALS


CM-1105: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches CM-1105: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches
CM-1105
Key Switch, SPST Momentary N/C CM-1105
EDI DATA, APPROVALS
Key Switch, SPST Momentary N/C CM-1105
EDI DATA
APPROVALS


CM-1110
Key Switch, SPST Maintained
EDI DATA, APPROVALS
Key Switch, SPST Maintained
EDI DATA
APPROVALS


CM-1120
Key Switch, SPDT N/O & N/C Momentary
EDI DATA, APPROVALS
Key Switch, SPDT N/O & N/C Momentary
EDI DATA
APPROVALS


CM-1130
Key Switch, SPDT N/O & N/C Maintained
EDI DATA, APPROVALS
Key Switch, SPDT N/O & N/C Maintained
EDI DATA
APPROVALS


CM-1150
Key Switch (2) SPDT Momentary
EDI DATA, APPROVALS
Key Switch (2) SPDT Momentary
EDI DATA
APPROVALS


CM-1160: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches CM-1160: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches
CM-1160
Key Switch (2) SPDT Maintained
EDI DATA, APPROVALS
Key Switch (2) SPDT Maintained
EDI DATA
APPROVALS


CM-1170
Key Switch, SPDT (1) Momentary & (1) Maintained
EDI DATA, APPROVALS
Key Switch, SPDT (1) Momentary & (1) Maintained
EDI DATA
APPROVALS


CM-1180
Key Switch, DPDT Momentary
EDI DATA, APPROVALS
Key Switch, DPDT Momentary
EDI DATA
APPROVALS


CM-1182
Key Switch, (2) DPDT Momentary
EDI DATA, APPROVALS
Key Switch, (2) DPDT Momentary
EDI DATA
APPROVALS


CM-1190
Key Switch, DPDT Maintained
EDI DATA, APPROVALS
Key Switch, DPDT Maintained
EDI DATA
APPROVALS


CM-1192
Key Switch, (2) DPDT Maintained
EDI DATA, APPROVALS
Key Switch, (2) DPDT Maintained
EDI DATA
APPROVALS



Narrow Faceplate
CM-2000: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches CM-2000: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches
CM-2000
Key Switch, SPST Momentary, N/O
EDI DATA, APPROVALS
Key Switch, SPST Momentary, N/O
EDI DATA
APPROVALS


CM-2005
Key Switch, SPST Momentary, N/C
EDI DATA, APPROVALS
Key Switch, SPST Momentary, N/C
EDI DATA
APPROVALS


CM-2010
Key Switch, SPST Maintained
EDI DATA, APPROVALS
Key Switch, SPST Maintained
EDI DATA
APPROVALS


CM-2020
Key Switch, SPDT Momentary
EDI DATA, APPROVALS
Key Switch, SPDT Momentary
EDI DATA
APPROVALS


CM-2030
Key Switch, SPDT Maintained
EDI DATA, APPROVALS
Key Switch, SPDT Maintained
EDI DATA
APPROVALS


CM-2050
Key Switch, (2) SPDT Momentary
EDI DATA, APPROVALS
Key Switch, (2) SPDT Momentary
EDI DATA
APPROVALS


CM-2060
Key Switch, (2) SPDT Maintained
EDI DATA, APPROVALS
Key Switch, (2) SPDT Maintained
EDI DATA
APPROVALS


CM-2070
Key Switch, SPDT (1) Momentary & (1) Maintained
EDI DATA, APPROVALS
Key Switch, SPDT (1) Momentary & (1) Maintained
EDI DATA
APPROVALS


CM-2080
Key Switch, DPDT Momentary
EDI DATA, APPROVALS
Key Switch, DPDT Momentary
EDI DATA
APPROVALS


CM-2082
Key Switch, (2) DPDT Momentary
EDI DATA, APPROVALS
Key Switch, (2) DPDT Momentary
EDI DATA
APPROVALS


CM-2090
Key Switch, DPDT Maintained
EDI DATA, APPROVALS
Key Switch, DPDT Maintained
EDI DATA
APPROVALS


CM-2092
Key Switch, (2) DPDT Maintained
EDI DATA, APPROVALS
Key Switch, (2) DPDT Maintained
EDI DATA
APPROVALS



Heavy Duty Contacts (Sold Separately)
CM-1000/31: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches CM-1000/31: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches
CM-1000/31
SPST momentary contact switch, N/O, 15 A @ 30 VDC
EDI DATA, APPROVALS
SPST momentary contact switch, N/O, 15 A @ 30 VDC
EDI DATA
APPROVALS


CM-1000/37
SPST maintained contact switch, 15 A @ 30 VDC
EDI DATA, APPROVALS
SPST maintained contact switch, 15 A @ 30 VDC
EDI DATA
APPROVALS



Mortise Cylinders (Sold Separately)
CM-CYL60-KA: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches CM-CYL60-KA: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches
CM-CYL60-KA
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
EDI DATA, APPROVALS
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
EDI DATA
APPROVALS


CM-CYL60-KD: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches CM-CYL60-KD: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches
CM-CYL60-KD
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
EDI DATA, APPROVALS
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
EDI DATA
APPROVALS


CM-307: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches CM-307: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches
CM-307
Mortise cylinder housing for Best(tm) style IC core
EDI DATA, APPROVALS
Mortise cylinder housing for Best(tm) style IC core
EDI DATA
APPROVALS


CM-308: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches CM-308: CM-1100 & CM-2000 Series:Cast Aluminum, Flush Mount - Key Switches
CM-308
Best(tm) style IC core, keyed different
EDI DATA, APPROVALS
Best(tm) style IC core, keyed different
EDI DATA
APPROVALS
