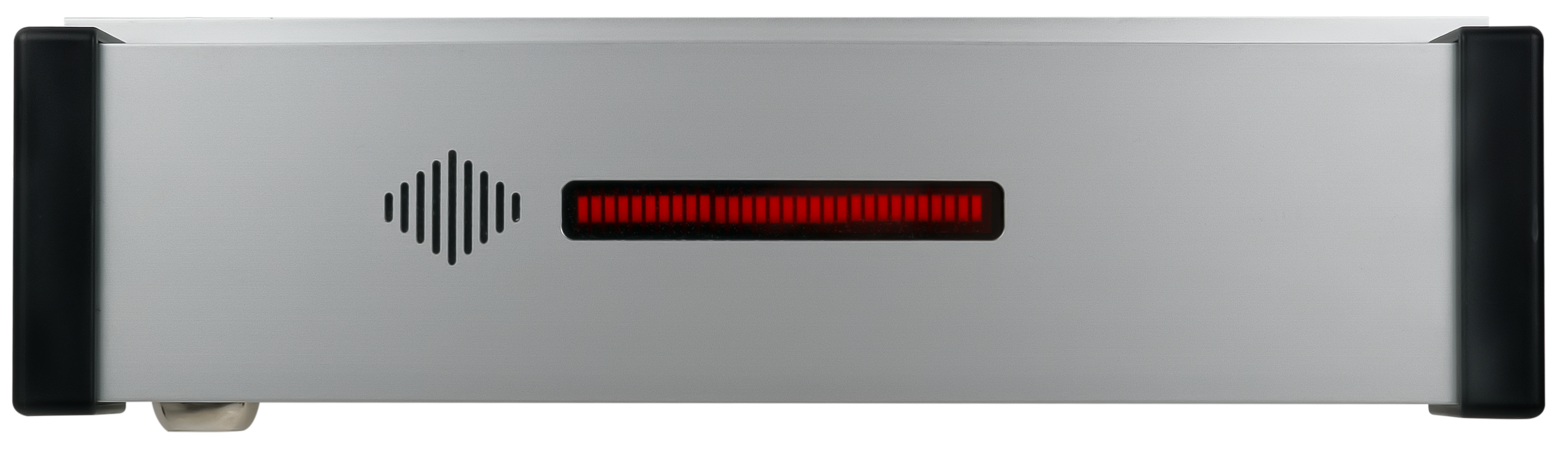

| CX-DE1200-N1Single Door Delayed Egress Maglock |
|
|

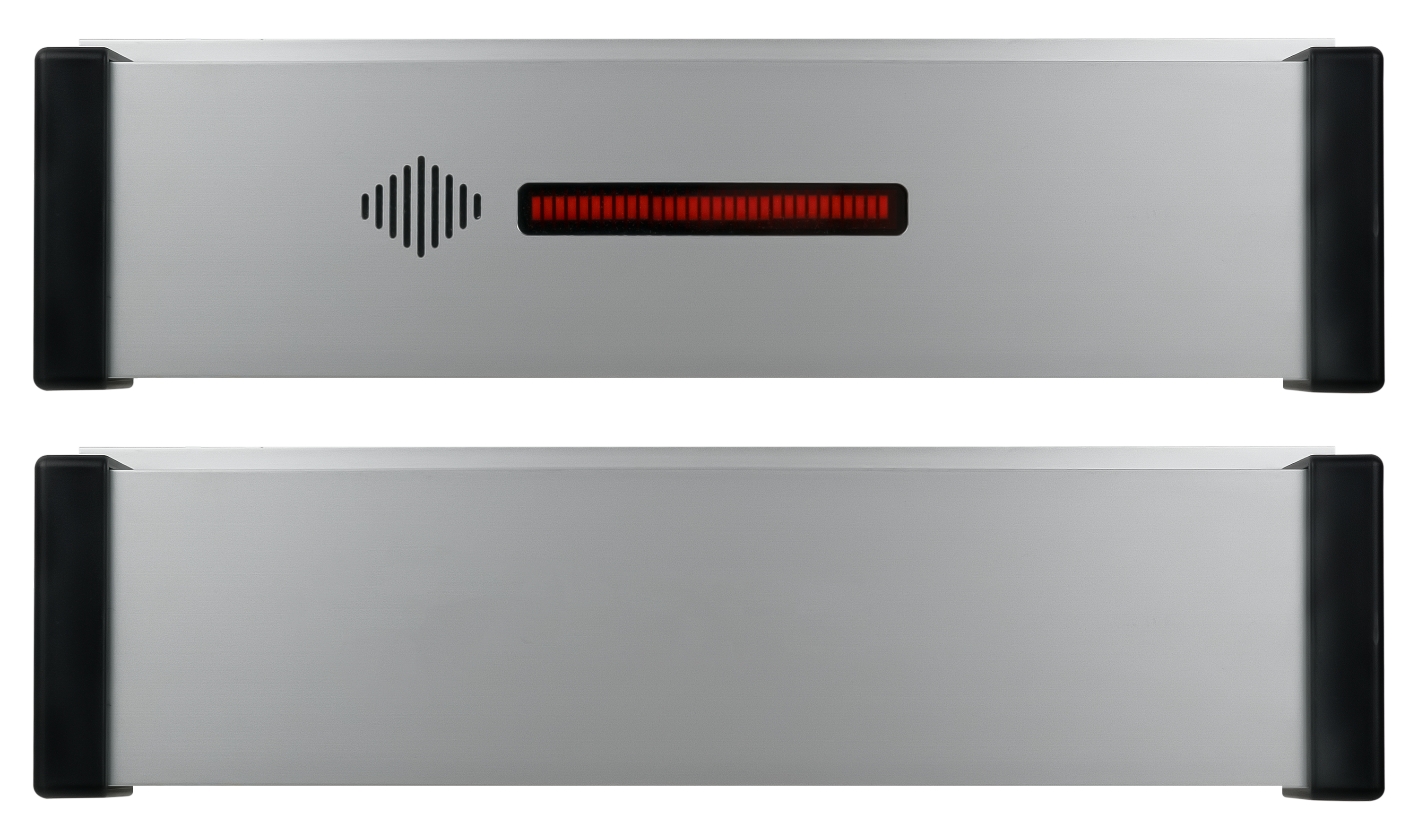

CX-DE1200 Series delayed egress magnetic locks feature heavy-duty construction, 1,200 lbs. holding force and a range of models and field selectable operation for varied applications, including retail, institutional or healthcare buildings. Delayed egress magnetic locks are UL and ULC listed with a selection of models factory configured to meet North American code requirements. The innovative human voice and LED count down timer offers immediate comprehension of status for building occupants.
View our Retail and Healthcare (Assisted Living) Application Guides in our resources section below.
|
|
|
| CX-DE1220 Double Door Maglock (Single & Tandem) |
|
|
|
Accessories:
Remote Key Switches, Sounders & Speakers |
|
|
|
Included with
CX-DE1200/1220: 4 signs
with delay options |
|
| CX-DE1200-N1Single Door Delayed Egress Maglock |
|
CX-DE1200 Series delayed egress magnetic locks feature heavy-duty construction, 1,200 lbs. holding force and a range of models and field selectable operation for varied applications, including retail, institutional or healthcare buildings. Delayed egress magnetic locks are UL and ULC listed with a selection of models factory configured to meet North American code requirements. The innovative human voice and LED count down timer offers immediate comprehension of status for building occupants.
View our Retail and Healthcare (Assisted Living) Application Guides in our resources section below. |
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
Single and double door models
-
Nuisance delay period 0, 1 or 3 seconds
-
Voice annunciator & LED count-down timer
-
Auto/manual start-up on power restore
-
Vandal resistant proximity trigger sensor
-
Auto sensing power input with polarity protection
-
Anti-Pass back/Auto Re-Lock
-
Accessories: sounder, speaker and reset station
Choice of sensor activation:
-
Door Motion
-
Door Exit Device with momentary N/O contact
-
Push Bar with momentary N/O contact
| Voltage: |
12/24 VDC +/- 10% (Auto-Sensing)
|
| Current Draw: |
600mA / 350mA
|
| DPS Rating: |
30 VDC, 0.1A (max.)
|
| ATS Rating: |
30 VAC / 42.4 VDC, 5A (max.)
|
| Lock Status Relay Rating: |
30 VDC, 2A (max.)
|
| Alarm Output Rating: |
30 VDC, 2A (max.)
|
| Bond Sensor Rating: |
CX-DE1200: 30 VDC, 2A (max.)
|
| Holding Force: |
Up to 1,200 lbs. (544 kg.)
|
| Temperature Range: |
32°F - 131°F (0°C to 55°C)
|
| Dimensions - Armature Plate: |
2-5/8"H x 11"W x 1"D (68mm x 280mm x 25mm)
|
| Dimensions - Lock: |
3"H x 11"W x 3"D (76mm x 280mm x 76mm)
|
|
Installation Manuals
|
| CX-DE1200_Manual_R7 |
pdf |
1.42 |
DOWNLOAD
|
| CX-DE1200_Manual_FR |
pdf |
1.42 |
DOWNLOAD
|
| CX-DE502S0_Annunciator_Manual_R1 |
pdf |
0.29 |
DOWNLOAD
|
| CX-DE502S0_Annunciator_Manual_R1_FR |
pdf |
0.29 |
DOWNLOAD
|
| CX-DESPK_Speaker_Manual_Rev1 |
pdf |
0.34 |
DOWNLOAD
|
| CX-DESPK_Speaker_Manual_Rev1_FR |
pdf |
0.38 |
DOWNLOAD
|
| CX-DESPK15 - FM-SM Manual |
pdf |
0.46 |
DOWNLOAD
|
| CX-DESPK15 - FM/SM Manual_FR |
pdf |
0.47 |
DOWNLOAD
|
| CX-DESPK15-54-55I_Manual |
pdf |
0.56 |
DOWNLOAD
|
| CX-DESPK15-54-55I_Manual_FR |
pdf |
0.60 |
DOWNLOAD
|
| CX-DE1220_Double Door (Main and Tandem Lock)_Manual_FR |
pdf |
1.38 |
DOWNLOAD
|
| CX-DE1220_Double Door (Main and Tandem Lock)_Manual |
pdf |
1.34 |
DOWNLOAD
|
|
Spec Sheets
|
| CX-DE1200 Series Spec Sheet R3 |
pdf |
2.26 |
DOWNLOAD
|
| CX-DE1200_R3 Spec Sheet (FR) |
pdf |
2.26 |
DOWNLOAD
|
|
Cross Reference Guides
|
| CX-DE1200 Cross Reference Chart |
pdf |
0.12 |
DOWNLOAD
|
| CX-DE1200 Product Comparison Chart |
pdf |
0.15 |
DOWNLOAD
|
|
Application Spec Guide
|
| Delayed Egress Application Guide - Assisted Living - File #2.2.4.1A1 |
pdf |
1.62 |
DOWNLOAD
|
| Delayed Egress Application Guide - Small Retail - File #2.1.4.1.A2 |
pdf |
1.51 |
DOWNLOAD
|
|
High Resolution Images
|
| CX-DE1200 |
png |
11.11 |
DOWNLOAD
|
| CX-DE1220 |
jpeg |
1.35 |
DOWNLOAD
|
| CX-DESPK |
png |
5.36 |
DOWNLOAD
|
| CX-DE-502S0 |
png |
4.73 |
DOWNLOAD
|
| CX-DESPK15-55i |
jpeg |
0.32 |
DOWNLOAD
|
| CX-DESPK15-55i Angled |
jpeg |
0.30 |
DOWNLOAD
|
| CX-DESPK15-54i |
png |
1.74 |
DOWNLOAD
|
| CX-DESPK15-54i-Angled |
png |
1.52 |
DOWNLOAD
|
| CX-DESPK15FM |
png |
2.21 |
DOWNLOAD
|
| CX-DESPK15FM Angle |
png |
2.46 |
DOWNLOAD
|
| CX-DESPK15SM |
png |
1.44 |
DOWNLOAD
|
| CX-DESPK15SM Angle |
png |
1.58 |
DOWNLOAD
|
| CX-DE1214-38 |
png |
1.02 |
DOWNLOAD
|
| CX-DE1214-58 |
png |
1.06 |
DOWNLOAD
|
| CX-DE1215 |
png |
0.68 |
DOWNLOAD
|
| CX-DE1215 Angled |
png |
0.47 |
DOWNLOAD
|
| CX-DE1216 |
png |
0.92 |
DOWNLOAD
|
| CX-DE1216 Angled |
png |
0.48 |
DOWNLOAD
|
| CX-DE1217 |
png |
0.94 |
DOWNLOAD
|
| CX-DE1217 Angled |
png |
0.42 |
DOWNLOAD
|
5 Things you NEED to knowCX-DE1200
|
|
|
Single Door
 click to expand section
|
|
Net Cost
|
|
CX-DE1200-N1
15/30 Selectable Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
15/30 Selectable Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454206947
|
|
|
CX-DE1200-N2
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC, CBC (OSHPD) Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC, CBC (OSHPD) Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207265
|
|
|
CX-DE1200-N3
30 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
30 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207289
|
|
|
CX-DE1200-N4
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207296
|
|
|
CX-DE1200-B1
15 Second Fixed Exit Delay
BOCA Building Code Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
BOCA Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207302
|
|
|
CX-DE1200-B2
30 Second Fixed Exit Delay
BOCA Building Code Compliant
EDI DATA, APPROVALS
|
|
30 Second Fixed Exit Delay
BOCA Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207319
|
|
|
CX-DE1200-B3
15 Second Fixed Exit Delay
City of Chicago Building Code Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
City of Chicago Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14.6"L x 5"W x 5"H
Weight: 9.5lbs.
UPC:670454207326
|
| |
|
Double Door (Single & Tandem)
click to expand section
|
|
Net Cost
|
|
CX-DE1220-N1
15/30 Selectable Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
15/30 Selectable Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207197
|
|
|
CX-DE1220-N2
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC, CBC (OSHPD) Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC, CBC (OSHPD) Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207203
|
|
|
CX-DE1220-N3
30 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
30 Second Fixed Exit Delay
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207210
|
|
|
CX-DE1220-N4
15 Second Fixed Exit Device
NFPA 101, IBC, IFC, UBC Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Device
NFPA 101, IBC, IFC, UBC Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207227
|
|
|
CX-DE1220-B1
15 Second Fixed Exit Delay
BOCA Building Code Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
BOCA Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207234
|
|
|
CX-DE1220-B2
30 Second Fixed Exit Delay
BOCA Building Code Compliant
EDI DATA, APPROVALS
|
|
30 Second Fixed Exit Delay
BOCA Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207241
|
|
|
CX-DE1220-B3
15 Second Fixed Exit Delay
City of Chicago Building Code Compliant
EDI DATA, APPROVALS
|
|
15 Second Fixed Exit Delay
City of Chicago Building Code Compliant
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 22"L x 12"W x 6"H
Weight: 27lbs.
UPC:670454207258
|
| |
|
Mounting Accessories
click to expand section
|
|
Net Cost
|
|

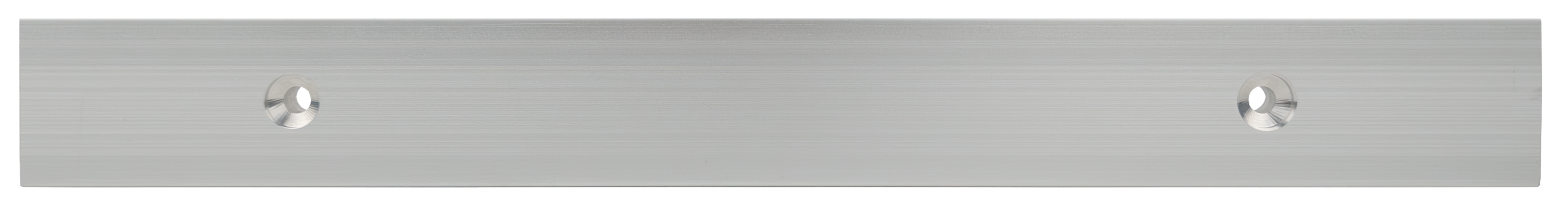

CX-DE1214-38

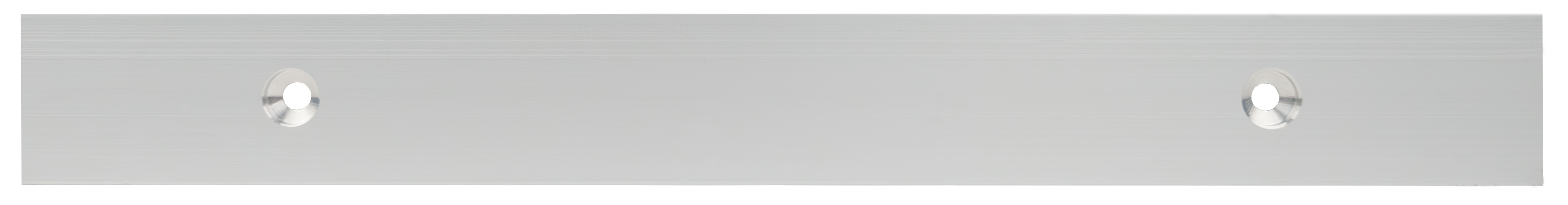

3/8" Filler Plate
EDI DATA, APPROVALS
|
|
3/8" Filler Plate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 0.5lbs.
UPC:670454207333
|
|
CX-DE1214-58
5/8" Filler Plate
EDI DATA, APPROVALS
|
|
5/8" Filler Plate
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 0.6lbs.
UPC:670454207340
|
|

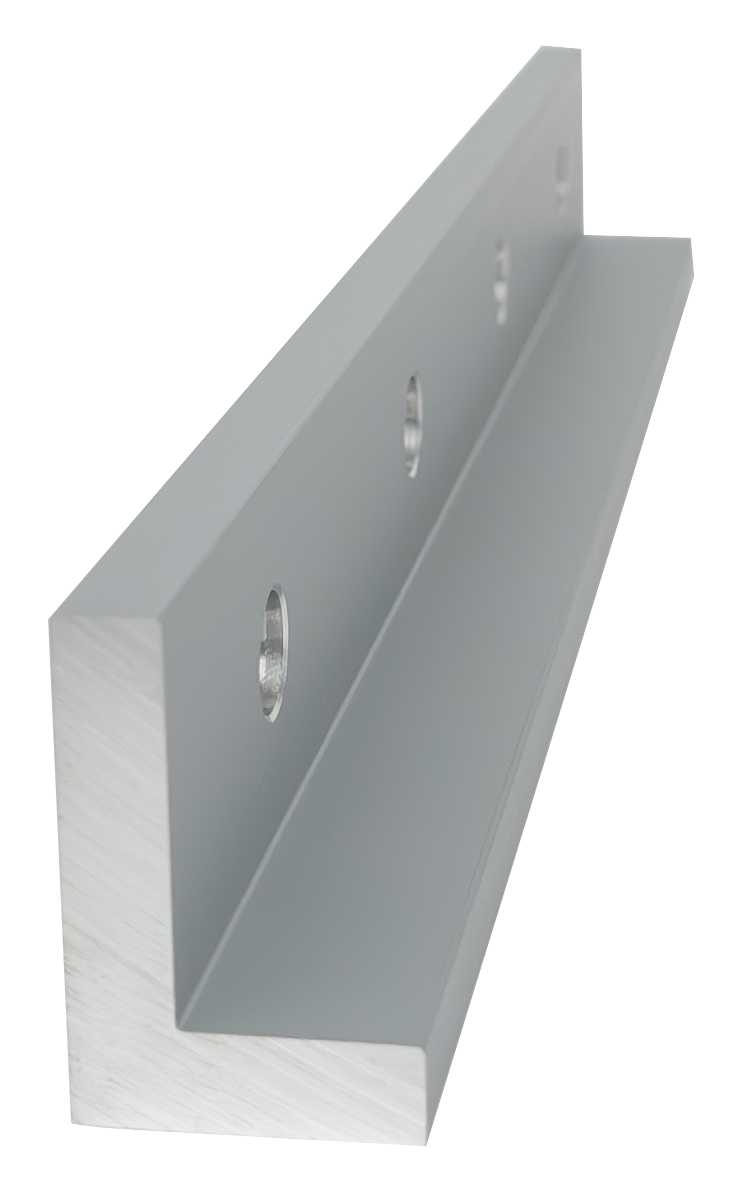

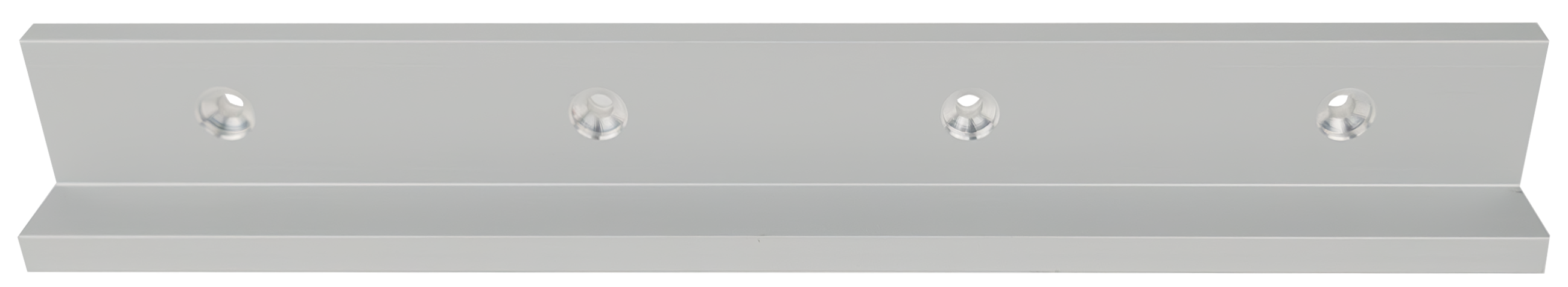

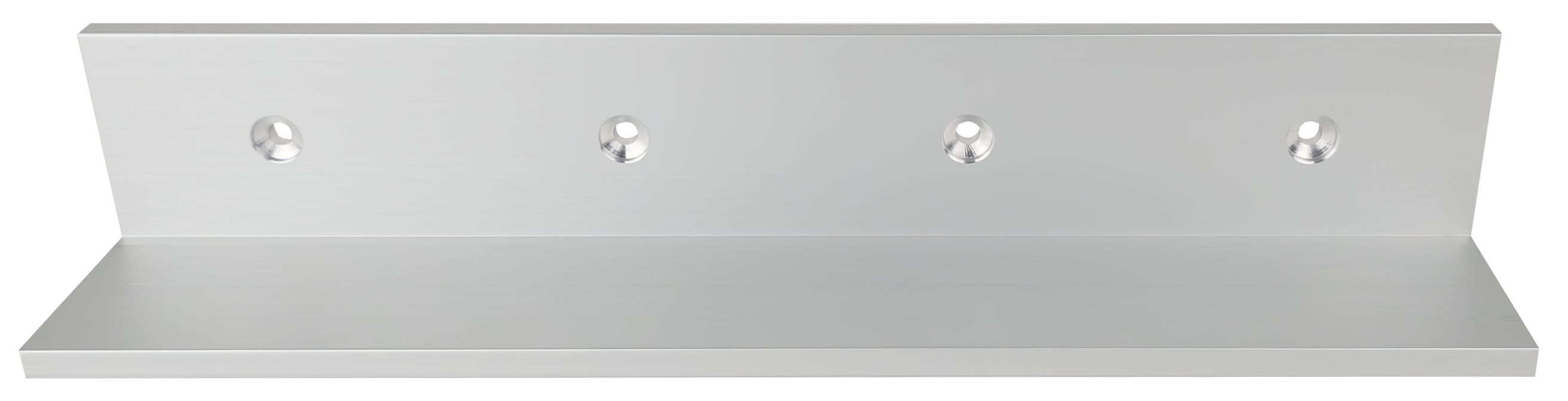

CX-DE1215
1 x 1.5" Angle Bracket
EDI DATA, APPROVALS
|
|
1 x 1.5" Angle Bracket
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 0.7lbs.
UPC:670454207357
|
|

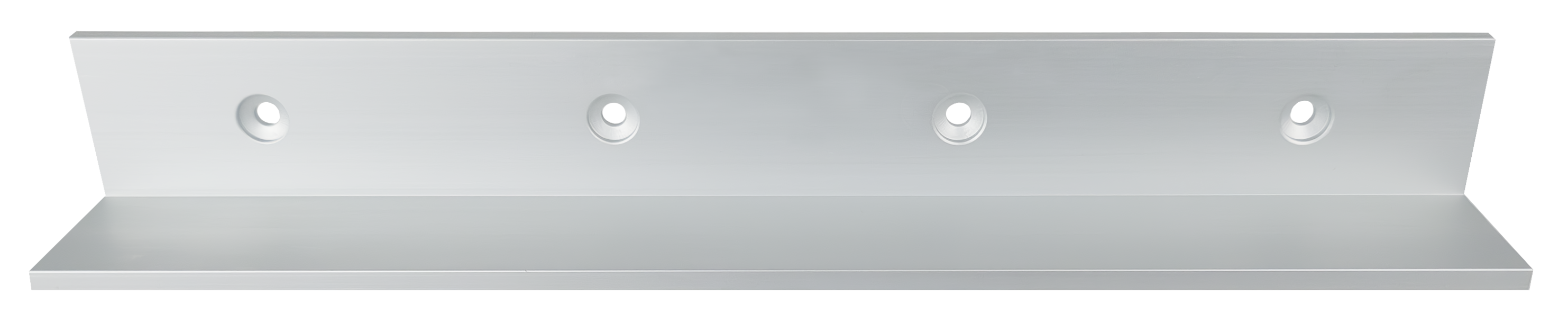

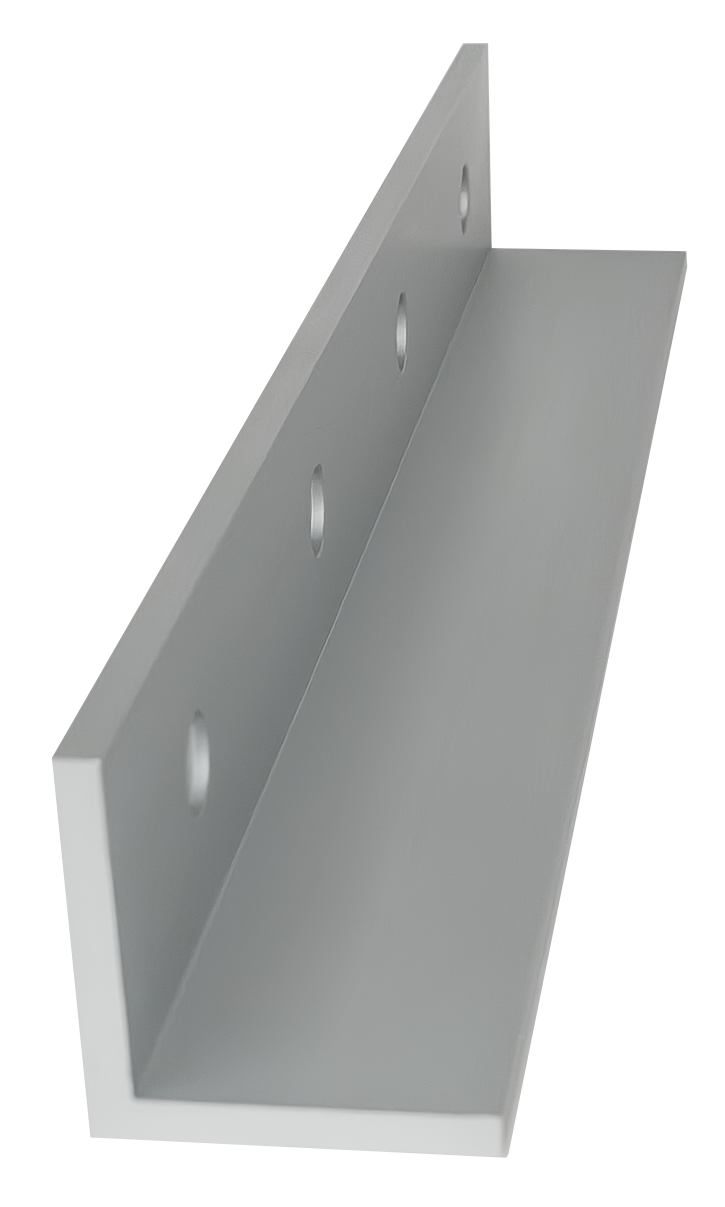

CX-DE1216

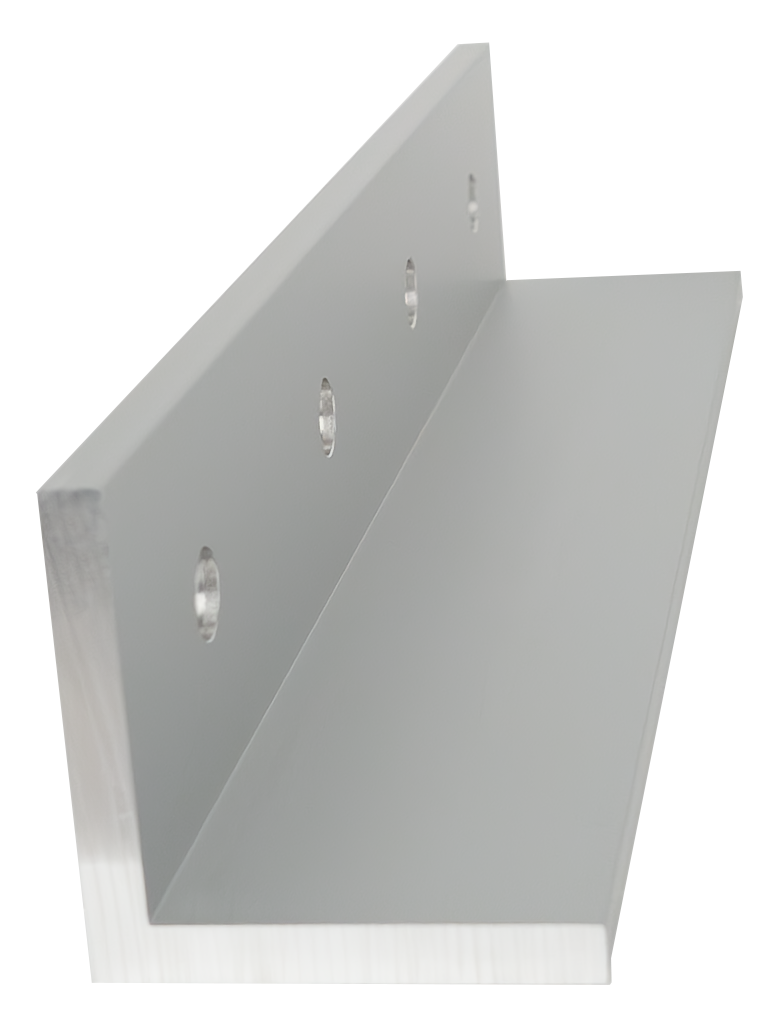

1.5" x 1.5" Angle Bracket
EDI DATA, APPROVALS
|
|
1.5" x 1.5" Angle Bracket
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 0.7lbs.
UPC:670454207364
|
|
CX-DE1217
2" Angle Bracket
EDI DATA, APPROVALS
|
|
2" Angle Bracket
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 0.75lbs.
UPC:670454207371
|
| |
|
System Accessories
click to expand section
|
|
Net Cost
|
|

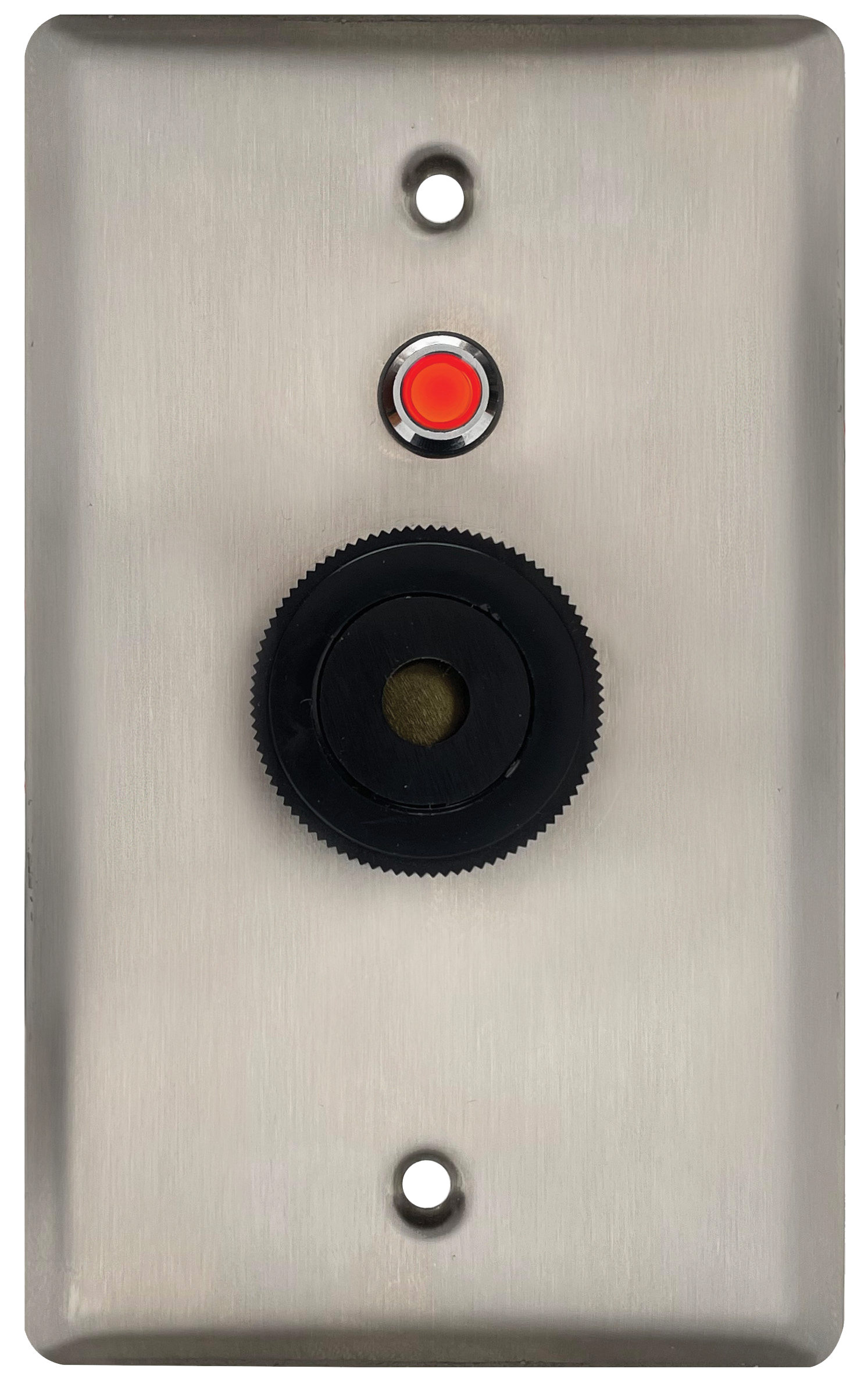

CX-DE502SO
Remote Annunciator for both audible and visual distinction. Stainless steel faceplate with a piezo and tri-color LED.
EDI DATA, APPROVALS
|
|
Remote Annunciator for both audible and visual distinction. Stainless steel faceplate with a piezo and tri-color LED.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: 0.35lbs.
UPC:670454210944
|
|
CX-DESPK

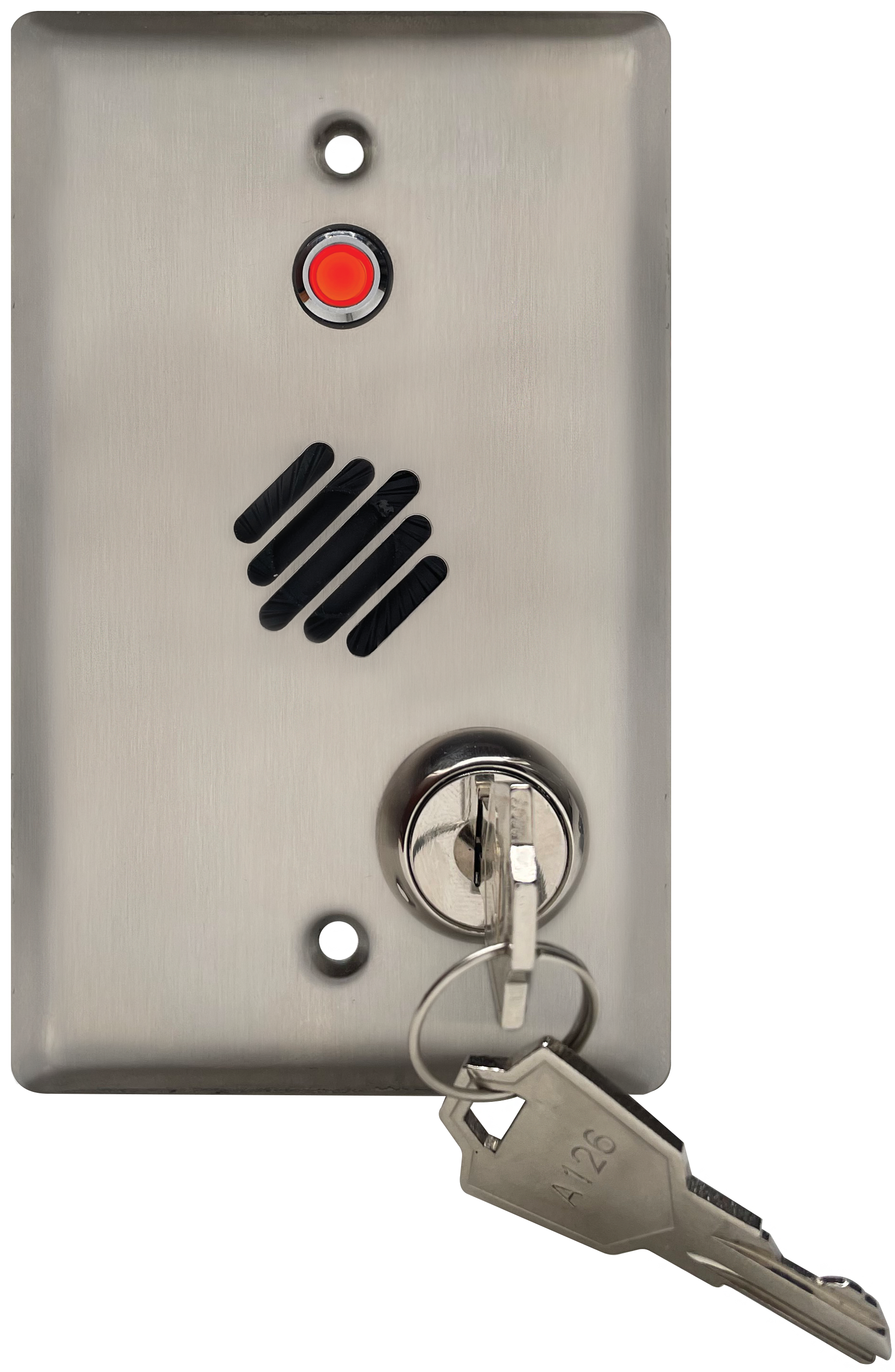

Remote Speaker Station with key for both audio and visual distinction. 3 LED color states and 8-ohm speaker for remote messaging.
EDI DATA, APPROVALS
|
|
Remote Speaker Station with key for both audio and visual distinction. 3 LED color states and 8-ohm speaker for remote messaging.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: 0.75lbs.
UPC:670454207388
|
|

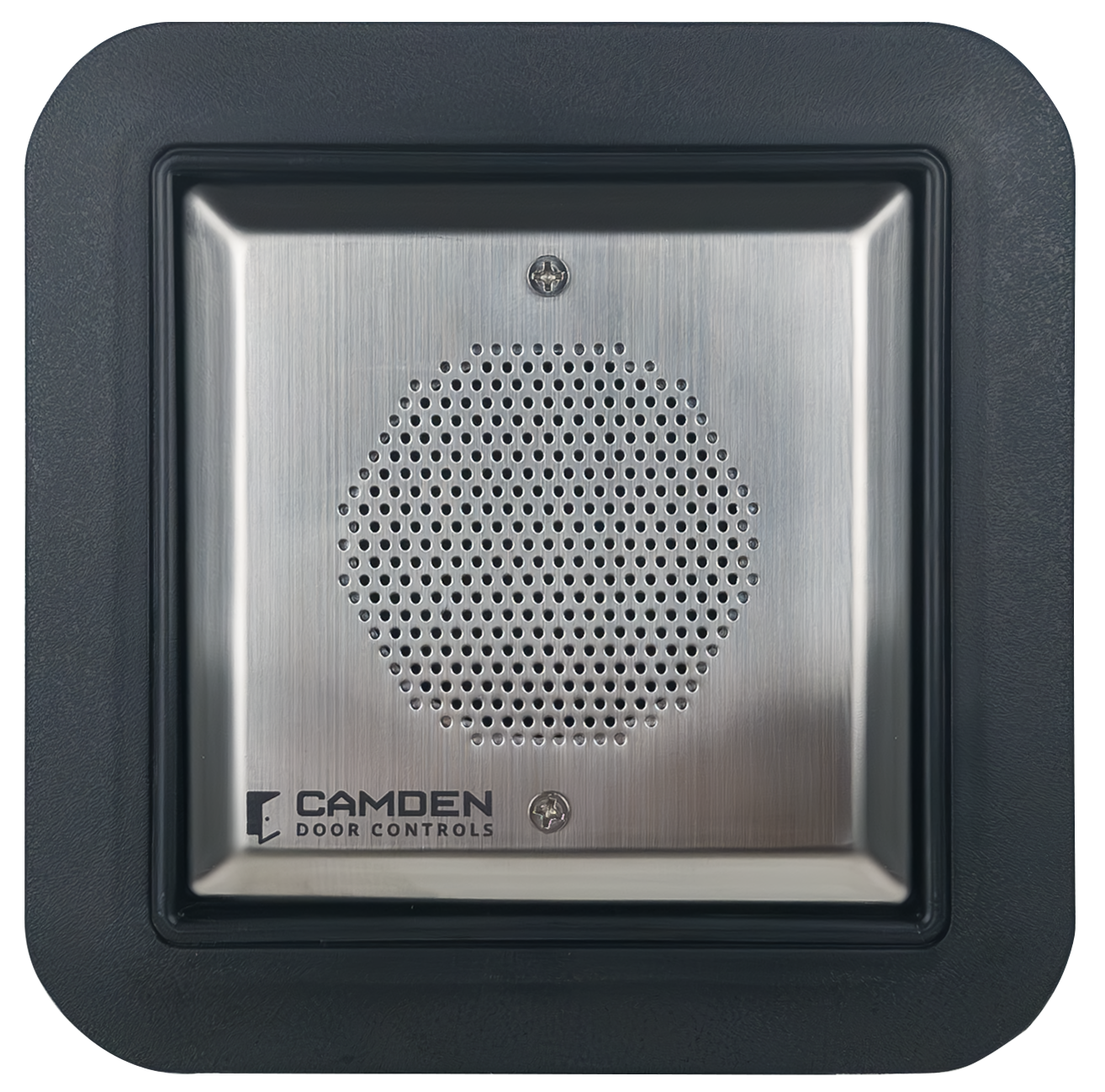

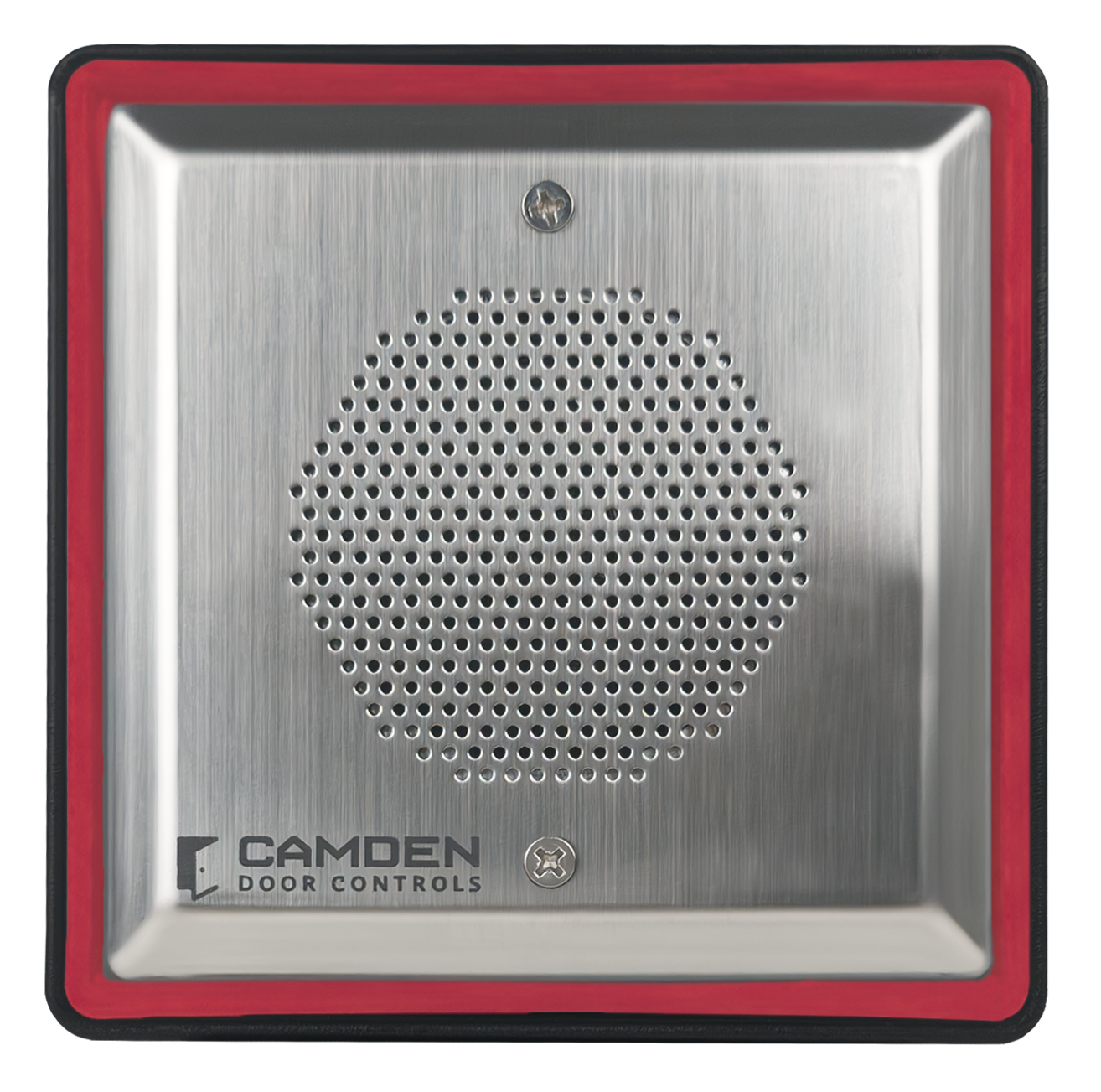

CX-DESPK15-54i

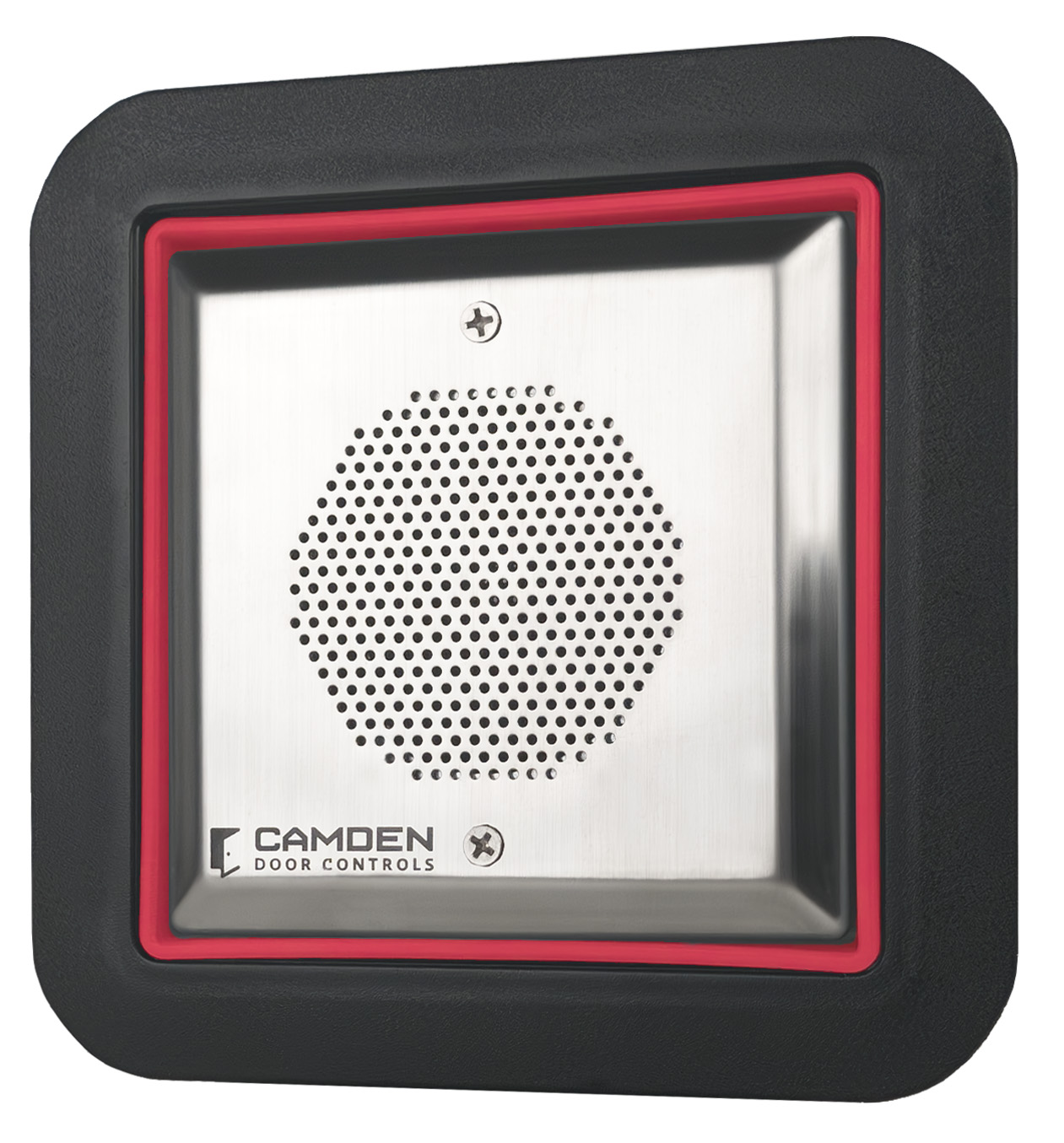

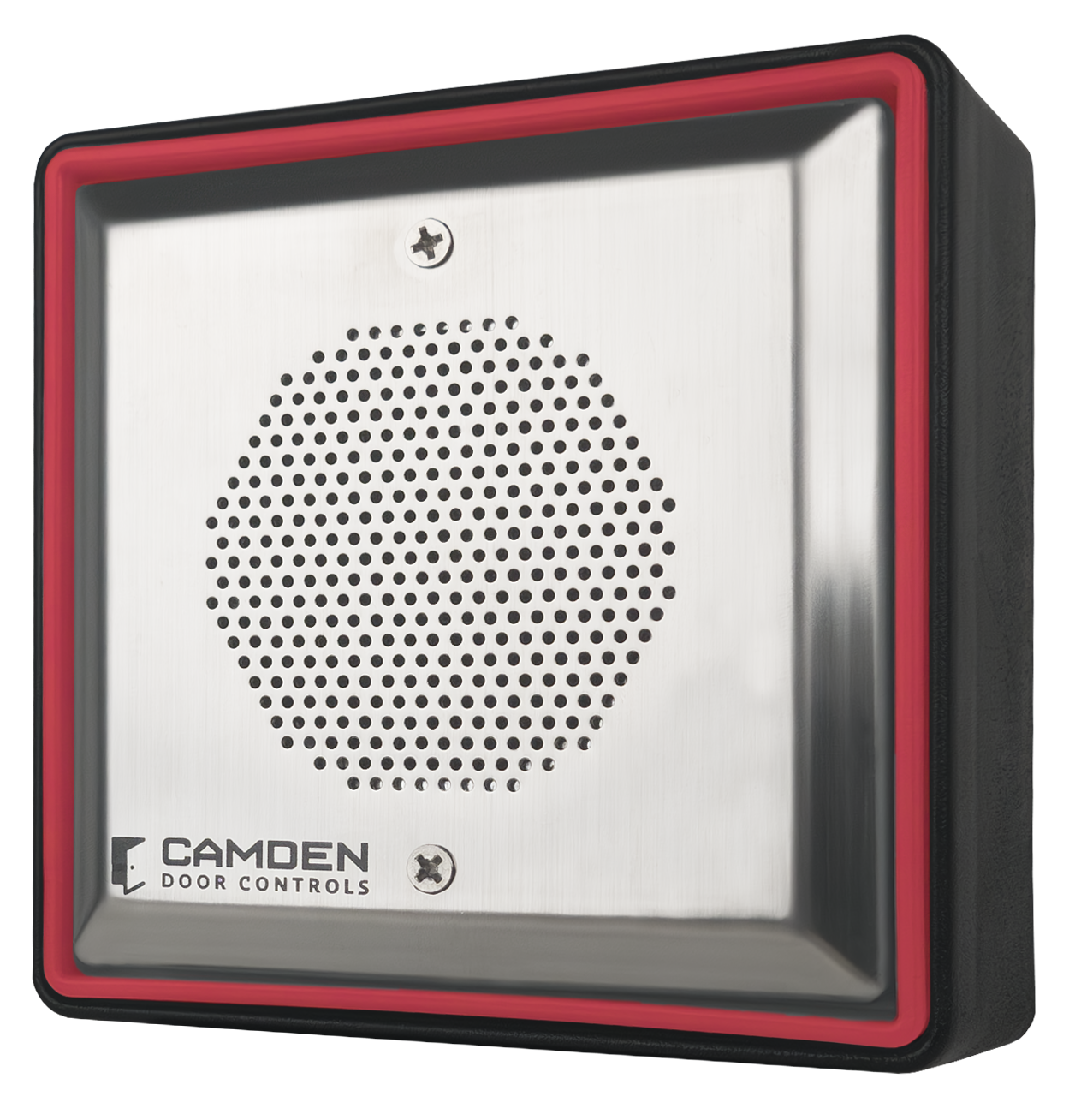

External 15-watt Audio Speaker Station - Surface Mount. Optional Aura PCB feature displays 3 colors for designated states.
EDI DATA, APPROVALS
|
|
External 15-watt Audio Speaker Station - Surface Mount. Optional Aura PCB feature displays 3 colors for designated states.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: lbs.
UPC:670454212016
|
|

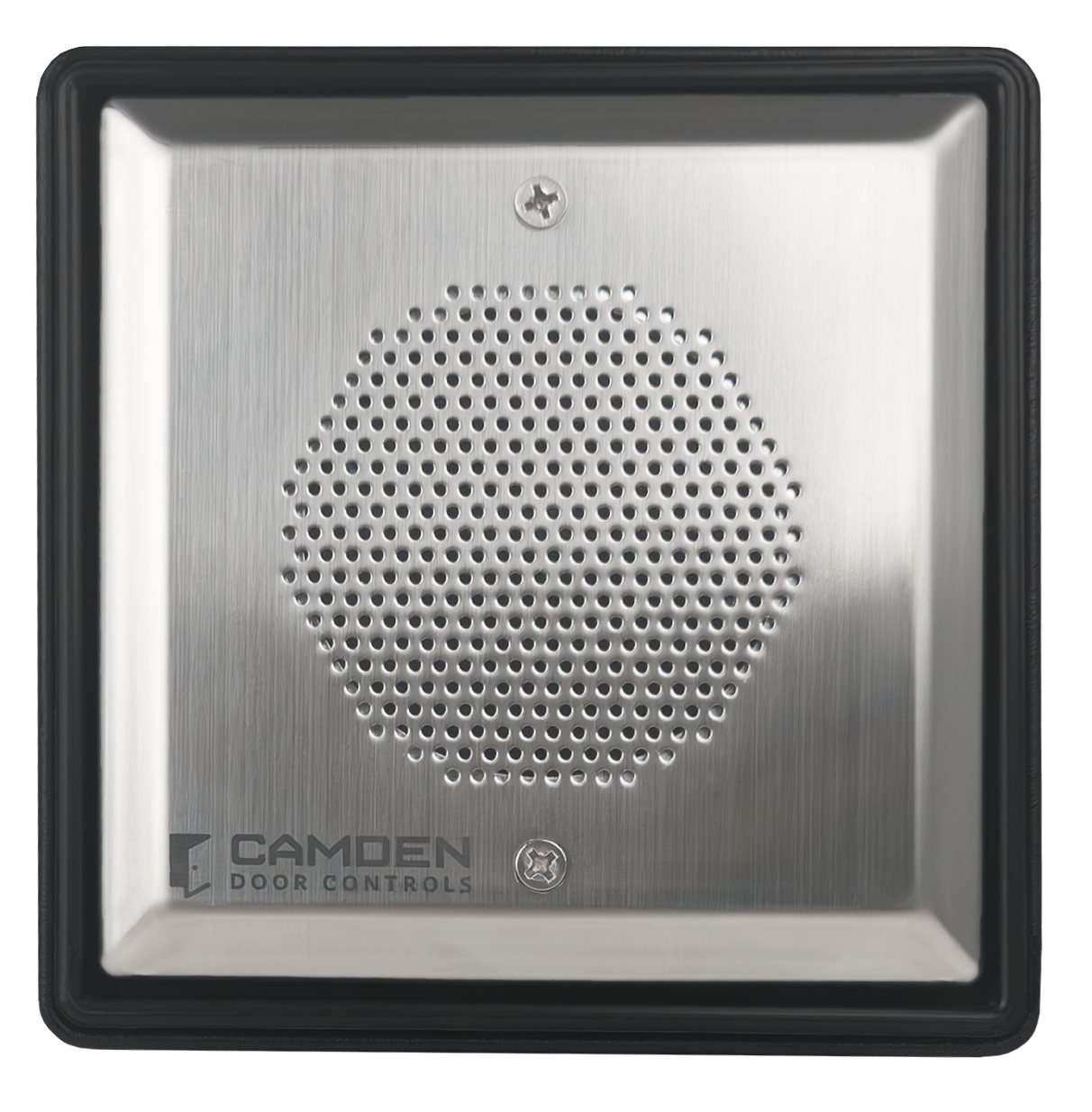

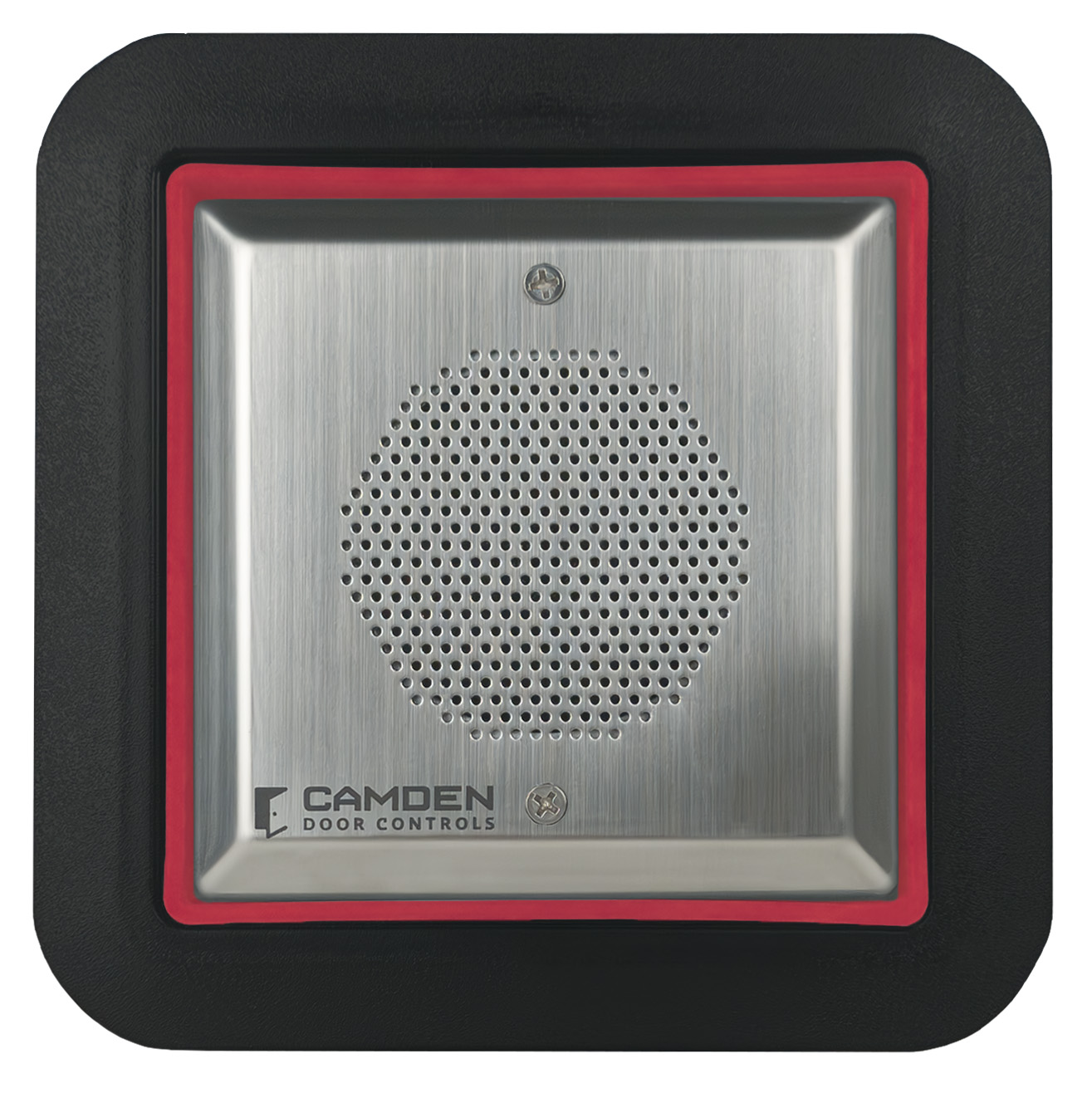

CX-DESPK15-55i
External 15-watt Audio Speaker Station - Flush Mount. Optional Aura PCB feature displays 3 colors for designated states.
EDI DATA, APPROVALS
|
|
External 15-watt Audio Speaker Station - Flush Mount. Optional Aura PCB feature displays 3 colors for designated states.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: lbs.
UPC:670454212023
|
|

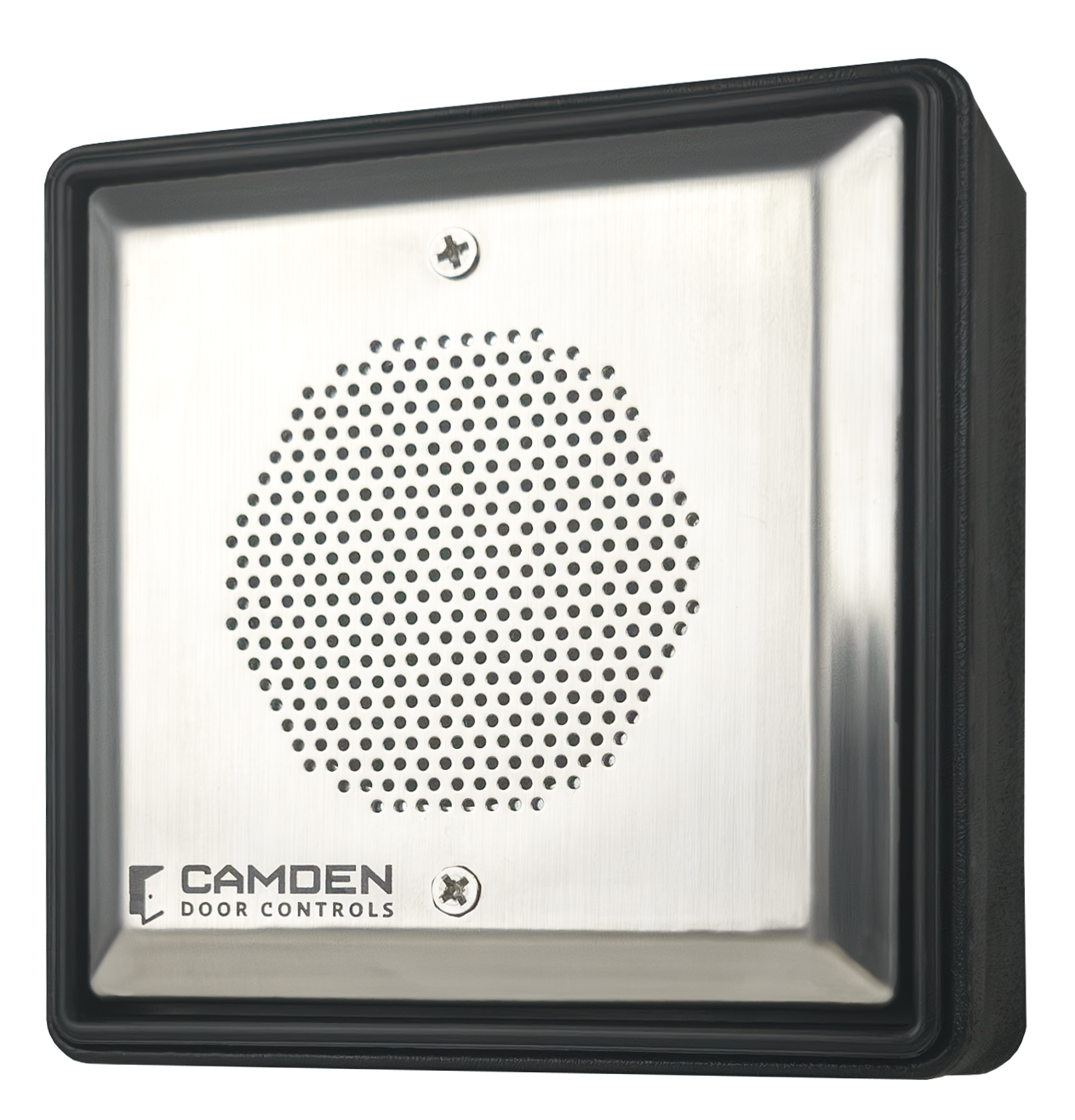

CX-DESPK15SM
External 15-watt Audio Speaker Station
Surface Mount
EDI DATA, APPROVALS
|
|
External 15-watt Audio Speaker Station
Surface Mount
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: lbs.
UPC:670454212009
|
|

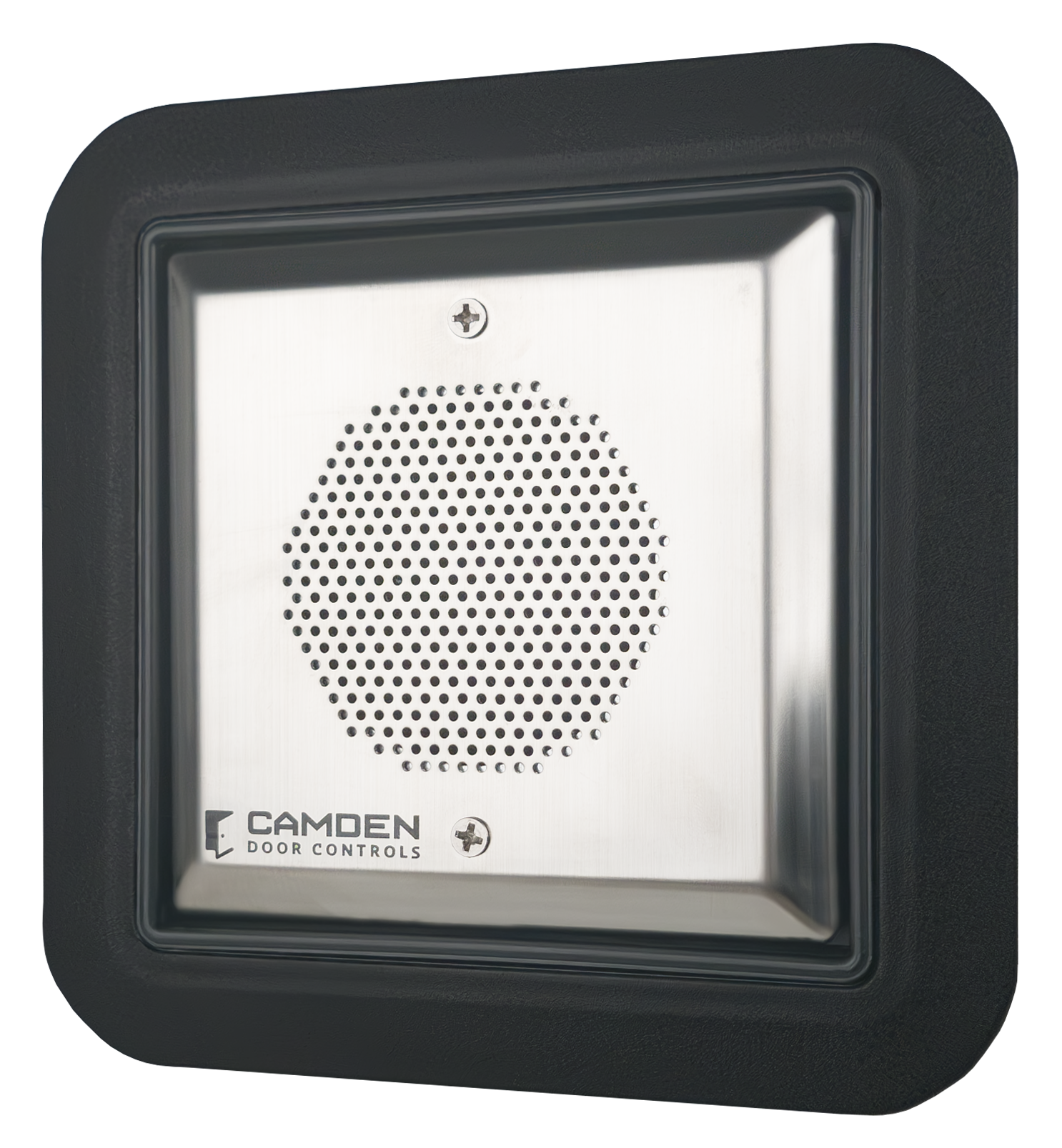

CX-DESPK15FM
External 15-watt Audio Speaker Station
Flush Mount
EDI DATA, APPROVALS
|
|
External 15-watt Audio Speaker Station
Flush Mount
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: lbs.
UPC:670454211996
|
|
60-57A027
Red 12" x 12" Delayed Egress Sign
Raised lettering and braille written language for the visually impaired.
EDI DATA, APPROVALS
|
|
Red 12" x 12" Delayed Egress Sign
Raised lettering and braille written language for the visually impaired.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x 12"W x 12"H
Weight: lbs.
UPC:670456232678
|
| |
|
