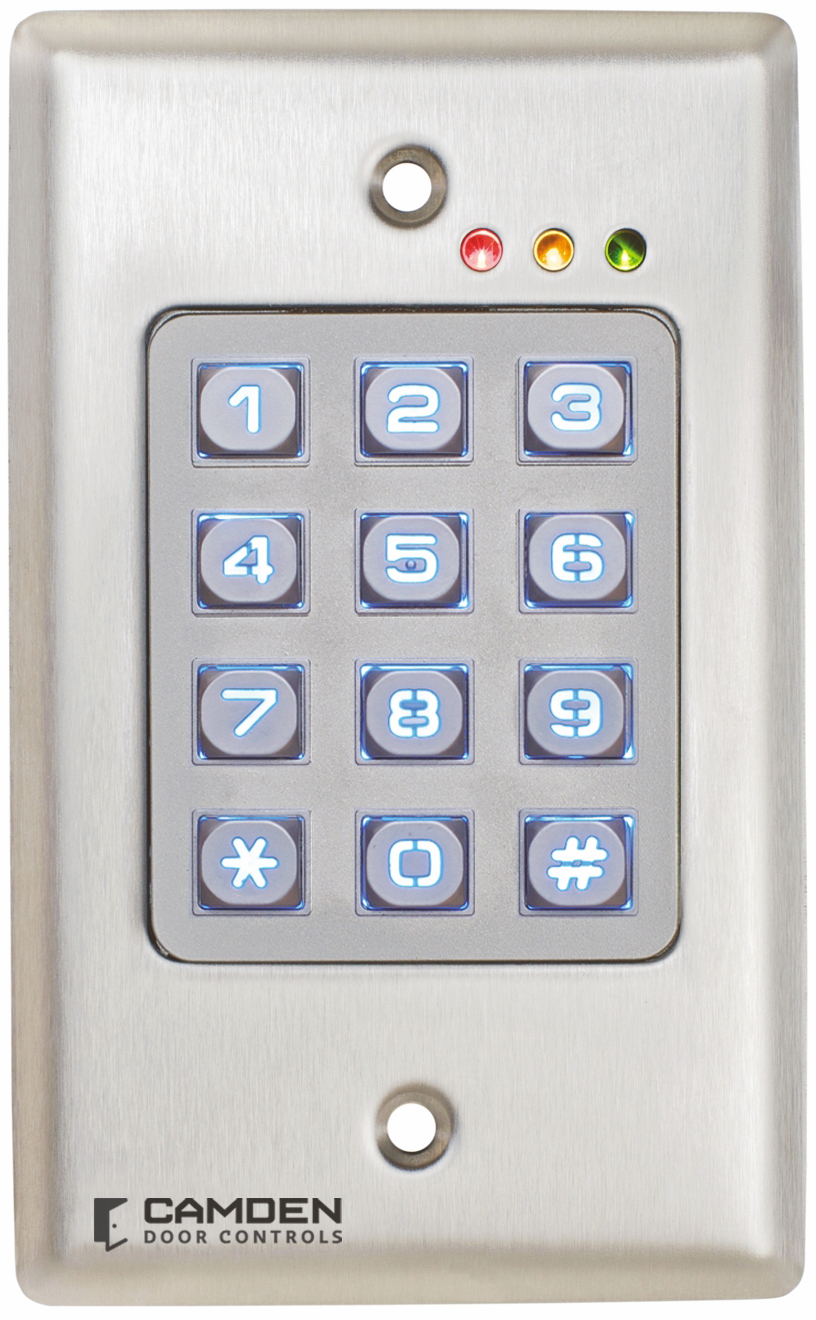

| CM-120wV2 / CM-120TX, Outdoor Metal Keypad |
|
|
CM-120 Series keypads are North American built and provide Tri-Brid™ stand alone, Wiegand and optional wireless operation! CM120i offers the best performance and value for indoor applications. CM-120wV2 is a vandal and weather resistant model with a metal back-lit keypad.
CM-120 Series hardwired keypads have added wireless functions by plugging in a CM-TX99 wireless transmitter module. CM-120TX keypads are fully wireless with battery power. A CM-RX 91/92 Series receiver is required, sold separately. Lithium batteries recommended for CM-120TX for environments below 0°C (32°F). To order, select option below.
|
|
|

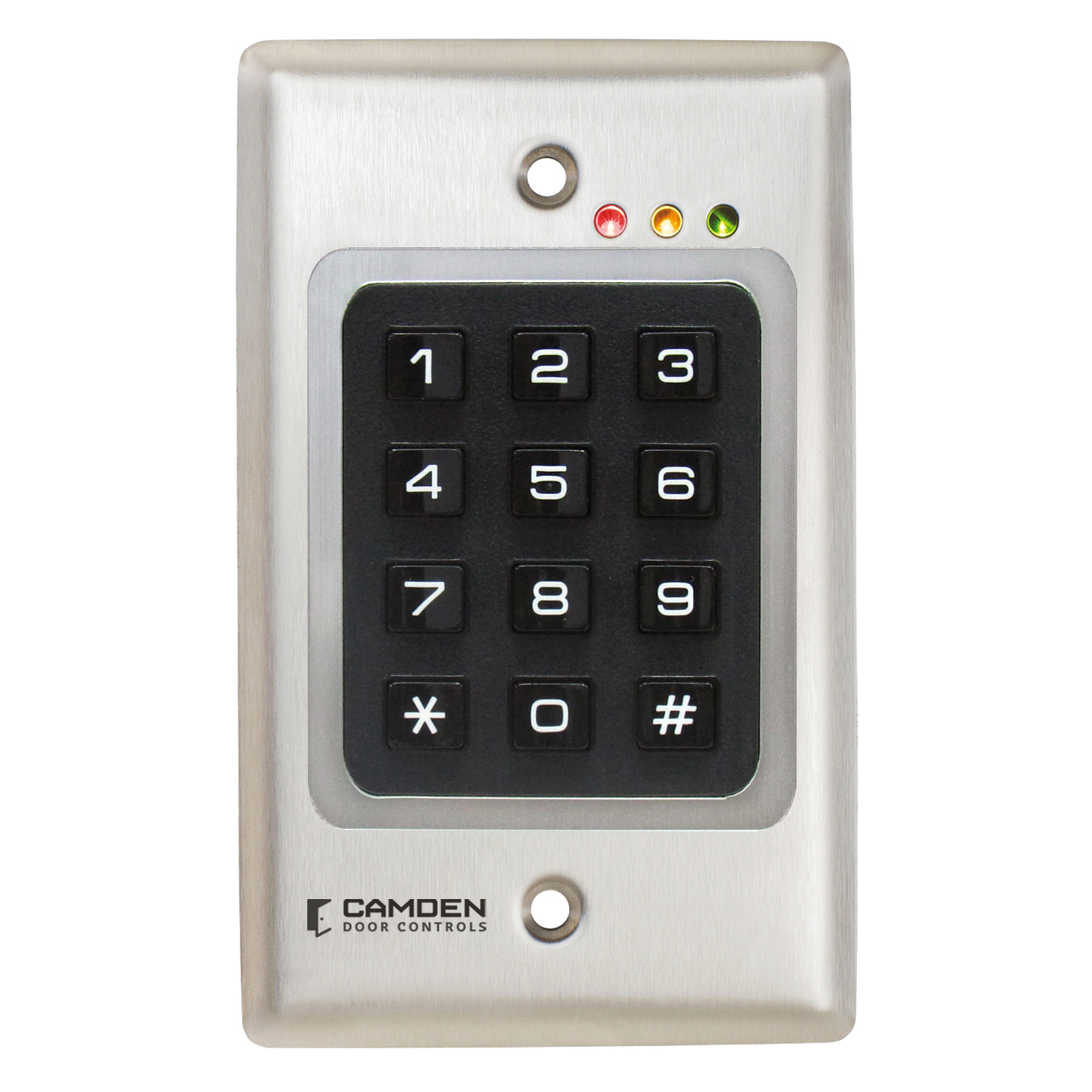

| CM-120i, Indoor Keypad |
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
|
|
Keypad Product Line Overview
|
[ X ] |
|
|
|
|
| Keypad Product Line Overview |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
KP-100
|
CM-120i
|
|
|
KP-200
|
CM-120wV2
|
|
Securitron
|
DK-12
|
CM-120wV2
|
|
|
DK-16
|
CM-120i
|
|
|
| CM-120wV2 / CM-120TX, Outdoor Metal Keypad |
|
CM-120 Series keypads are North American built and provide Tri-Brid™ stand alone, Wiegand and optional wireless operation! CM120i offers the best performance and value for indoor applications. CM-120wV2 is a vandal and weather resistant model with a metal back-lit keypad.
CM-120 Series hardwired keypads have added wireless functions by plugging in a CM-TX99 wireless transmitter module. CM-120TX keypads are fully wireless with battery power. A CM-RX 91/92 Series receiver is required, sold separately. Lithium batteries recommended for CM-120TX for environments below 0°C (32°F). To order, select option below. |
|
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
KP-100
|
CM-120i
|
|
|
KP-200
|
CM-120wV2
|
|
Securitron
|
DK-12
|
CM-120wV2
|
|
|
DK-16
|
CM-120i
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
- CM-120i keypad for indoor use, features stainless steel faceplate and polycarbonate keys

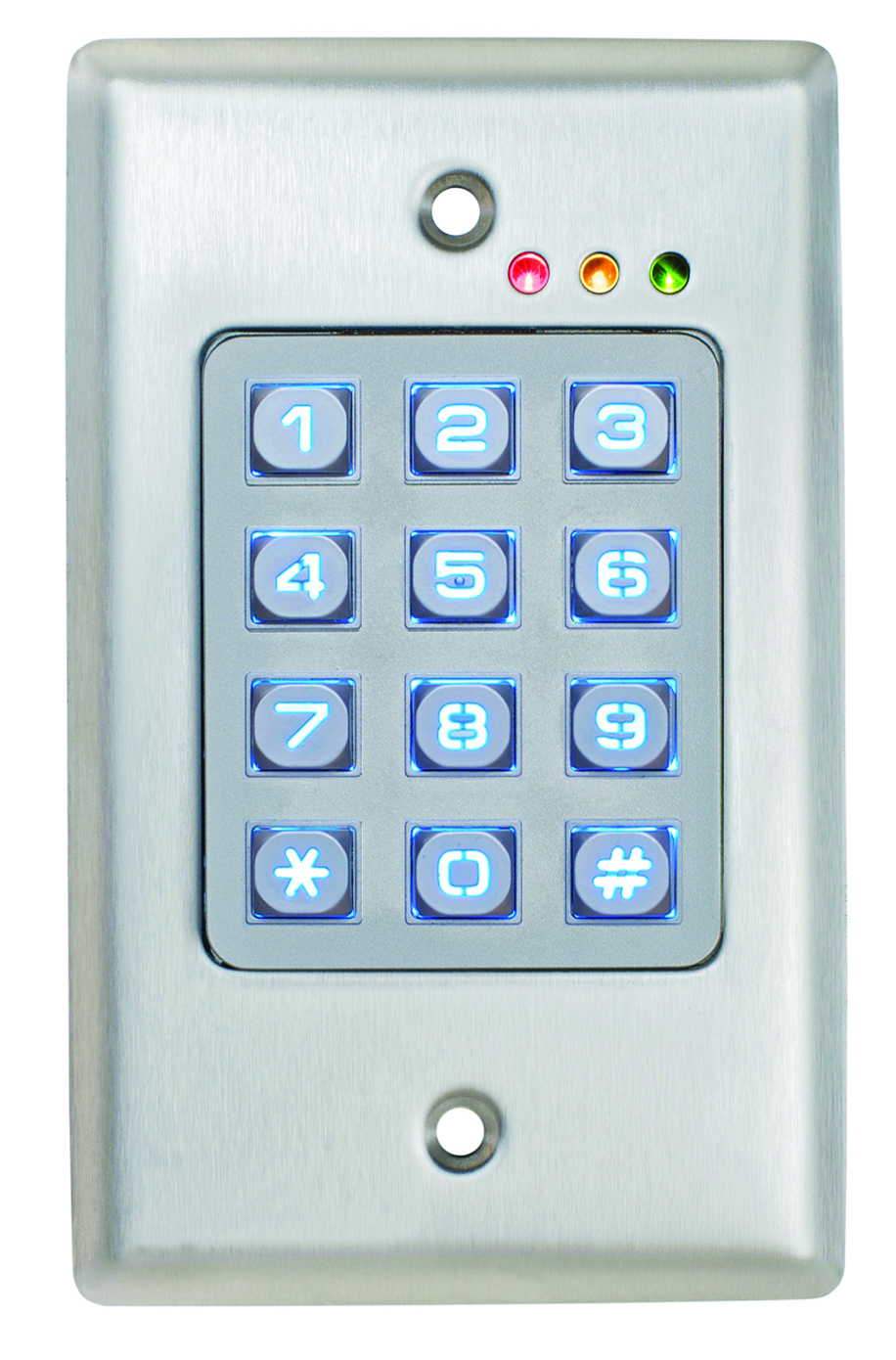

- CM-120wV2 features backlit, weatherproof & vandal resistant metal keypad
- Flush mount single gang stainless steel faceplate
- 3 LED's + Piezo Buzzer
- Request-to-Exit Input
- Door contact input for anti-tailgating & door open alarm
- Global lock-out feature
- Includes tamperproof screws & driver
- Option for plug-in TX-99 wireless transmitter, 2 channel
CM-120i
CM-120wV2 |
| Voltage: |
12/24V AC/DC |
| Mounting: |
Single gang, flush
(2) #6 machine and tamper proof screws |
| Current Draw: |
30 mA Standby, 90 mA Max |
| Input: |
1 x Rex Input / 1 x Door Contact Input |
| Output Contact: |
2 x Form 'C' rated 3 A @ 24VDC (disabled when Wiegand output selected) |
| Weigand Output: |
26 Bit |
| Capacity: |
999 User Codes |
| Length: |
Variable, Up to 8 Digits (10 Million Possible Codes) |
| Response Time: |
0.3 Seconds |
| Time Delay: |
1 to 255 Seconds, or Latched |
| Temp Range: |
-40°F to + 122°F (-40°C to +50°C) |
| Dimensions: |
4-1/2" x 2-3/4" x 3/4"
(114mm x 70mm x 19mm) |
| RF Output: |
Optional Plug-In Transmitter, 2 Channel |
| CM-120TX |
| Power: |
2 AA Alkaline Batteries (supplied)
2 AA Lithium Batteries (optional) |
| Battery Life: |
90,000 Operations (Buzzer disabled)
Based on a 4 digit user code |
| Output: |
RF Only, 2 channels
Channel 1 assigned to users 1 - 499
Channel 2 assigned to users 500 - 999 |
|
Spec Sheets
|
| CM-120TX_Spec Sheet_R3 |
pdf |
0.48 |
DOWNLOAD
|
| CM-120_Spec Sheet_R2 |
pdf |
0.45 |
DOWNLOAD
|
|
Manuals
|
| CM-120 V3 Series Keypads Manual-R6 |
pdf |
0.56 |
DOWNLOAD
|
| CM-120 V3 Series Keypads Manual-R5 FR |
pdf |
0.62 |
DOWNLOAD
|
| CM-120 Series Keypads_Programming Guide_R3 |
pdf |
0.61 |
DOWNLOAD
|
| CM-120 Series Keypads_Programming Guide_French_R3 |
pdf |
0.76 |
DOWNLOAD
|
| CM-120TX_Manual_R1 |
pdf |
0.96 |
DOWNLOAD
|
| CM-120TX_Manual_French_R1 |
pdf |
0.44 |
DOWNLOAD
|
|
Reference Guides
|
| CM-120_Product Comparison |
pdf |
0.87 |
DOWNLOAD
|
|
High Resolution Images
|
| CM-120TX |
jpeg |
1.48 |
DOWNLOAD
|
| CM-120i |
jpeg |
0.77 |
DOWNLOAD
|
| CM-120wV2 |
jpeg |
0.73 |
DOWNLOAD
|
|
Promotion
|
| CM-120_Presentation |
pdf |
0.93 |
DOWNLOAD
|
CM-120 Programming Guide Video
Industry Leading Line of Keypads
|
|
|
Stand Alone/Wiegand Keypads
click to expand section
|
|
Net Cost
|
|
CM-120i
Stand alone or Wiegand, flush mount, 999 users, 12/24V AC/DC
EDI DATA, APPROVALS
|
|
Stand alone or Wiegand, flush mount, 999 users, 12/24V AC/DC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.4lbs.
UPC:670454121073
|
|
CM-120wV2
Outdoor, vandal resistant, metal backlit keypad, 999 users, 12/24V AC/DC
EDI DATA, APPROVALS
|
|
Outdoor, vandal resistant, metal backlit keypad, 999 users, 12/24V AC/DC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3.2"W x 4.75"H
Weight: 0.6lbs.
UPC:670454166296
|
| |
|
Battery Operated Wireless Keypad
click to expand section
|
|
Net Cost
|
|
CM-120TX
Outdoor, vandal resistant, metal backlit keypad, 999 users. battery operated, built-in wireless transmitter
EDI DATA, APPROVALS
|
|
Outdoor, vandal resistant, metal backlit keypad, 999 users. battery operated, built-in wireless transmitter
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4"L x 3"W x 4.75"H
Weight: 0.6lbs.
UPC:670454173683
|
| |
|
Compatible Lazerpoint RF(tm) Wireless Receivers
click to expand section
|
|
Net Cost
|
|
CM-RX-90
V2 Kinetic/Lazerpoint RF Single Relay Receiver
EDI DATA, APPROVALS
|
|
V2 Kinetic/Lazerpoint RF Single Relay Receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.2lbs.
UPC:670454188847
|
|
CM-RX-92
Full function, dual relay receiver, 12/24V AC/DC
EDI DATA, APPROVALS
|
|
Full function, dual relay receiver, 12/24V AC/DC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.27lbs.
UPC:670454161994
|
| |
|
Optional Lazerpoint RF(tm) Wireless Transmitter
click to expand section
|
|
Net Cost
|
|
CM-TX-99
915Mhz. plug-in 2 channel transmitter for keypad
EDI DATA, APPROVALS
|
|
915Mhz. plug-in 2 channel transmitter for keypad
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: lbs.
UPC:670454167996
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
 |
| LITHIUM BATTERY OPTION |
|
| Lithium Batteries |
|
Net Cost |
|
|
L1
Add suffix 'L1" for (2) 'AA' Lithium Batteries in place of (2) Alkaline
|
Add suffix 'L1" for (2) 'AA' Lithium Batteries in place of (2) Alkaline
|
|
|
|
|
CM-LP1
(2) AA lithium battery pack
|
(2) AA lithium battery pack
|
|
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
|
|
|
|
Lazerpoint RF
This product series is designed for use with the industry's most reliable and easy to install wireless system!
|
|
|
