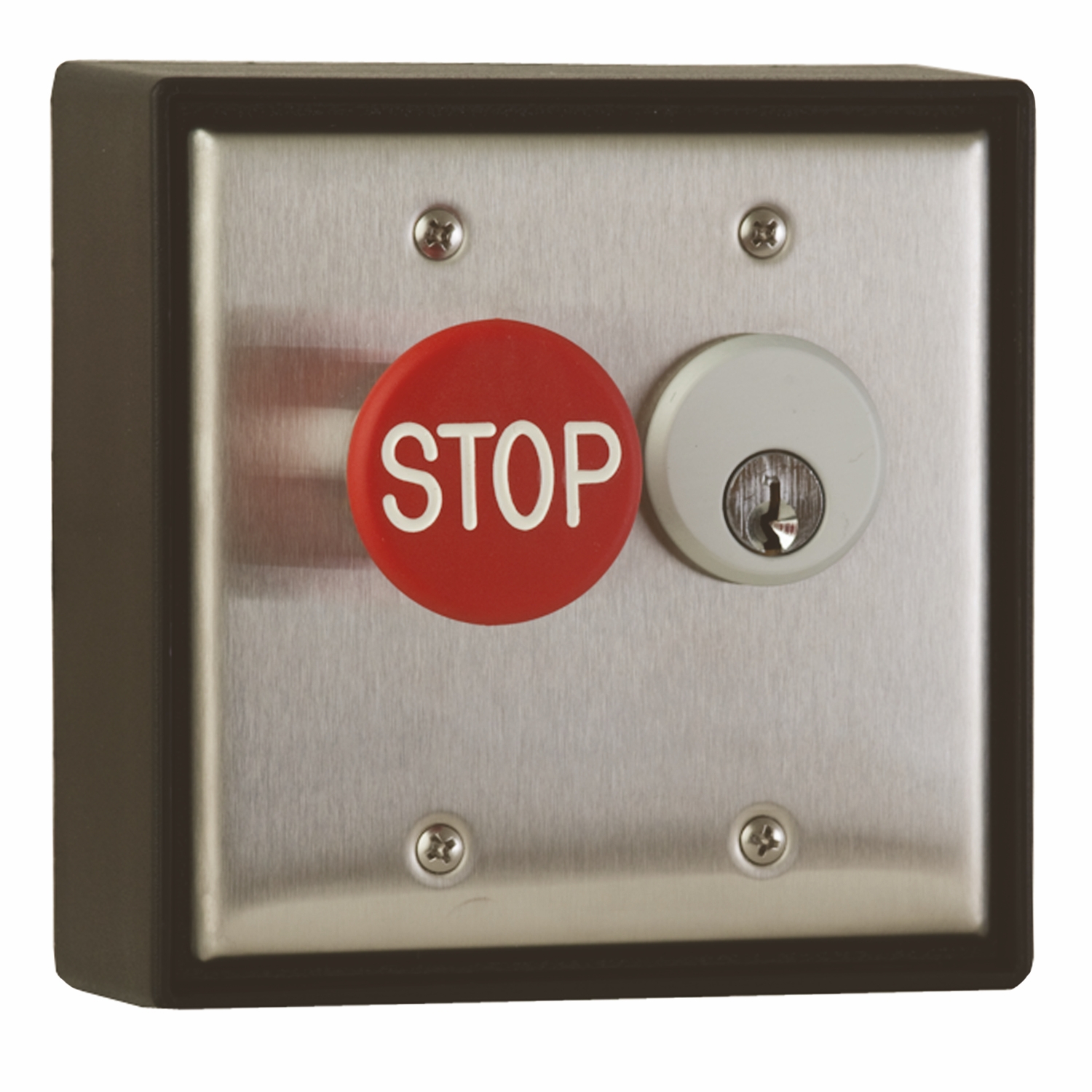

Camden's mortise cylinder key switch is designed to control grilles or gates where high security key access is required. Includes double gang SS faceplate, (2) SPST N/O contacts for key switch. (1) SPST N/C contact for red emergency stop button. Surface ABS box and weather resistant gasket included. Mortise cylinder (1-1/8"), keyed different & (2) keys included.
|
|
|
|
Camden's mortise cylinder key switch is designed to control grilles or gates where high security key access is required. Includes double gang SS faceplate, (2) SPST N/O contacts for key switch. (1) SPST N/C contact for red emergency stop button. Surface ABS box and weather resistant gasket included. Mortise cylinder (1-1/8"), keyed different & (2) keys included.
|
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Double Action switch for grille, gate and industrial applications
-
Double gang emergency STOP button (w/ 1 x SPST N/C contact) and key switch (w/ 2 x SPST N/O contacts) and surface mount box
-
Mortise cylinder (1-1/8"), solid brass, chrome finish, keyed different & (2) keys included
-
Surface mounting box included
| Contact Type: |
2 x N/O SPST (Key Switch). 1 x N/C SPST (Emergency STOP Pushbutton)
|
| Contact Rating: |
6 A @ 125 VAC
|
| Enclosure: |
NEMA 1 Surface Mount
|
| Endurance: |
100,000 cycles
|
| Mortise Cylinder: |
1-1/8", keyed different, (2) keys
|
| Dimensions: |
5-1/8" x 5-1/8" x 2"
(130mm x 130mm x 51mm)
|
|
Installation Manuals
|
| CI-3502 Switches_Manual_R2 |
pdf |
0.65 |
DOWNLOAD
OPEN
|
| CI-3502 Switches_Manual_French_R2 |
pdf |
0.66 |
DOWNLOAD
OPEN
|
|
High Resolution Images
|
| CI-3502 |
jpeg |
1.49 |
DOWNLOAD
OPEN
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CI-3502
Mortise Cylinder Industrial Key Switch
EDI DATA, APPROVALS
|
|
Mortise Cylinder Industrial Key Switch
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.5"L x 6.5"W x 4.25"H
Weight: 1.16lbs.
UPC:670454156327
Country of Origin:CA
|
| |
|
new option
|
|
|
Packaging Weights & Dimensions:
|
|
|
|
