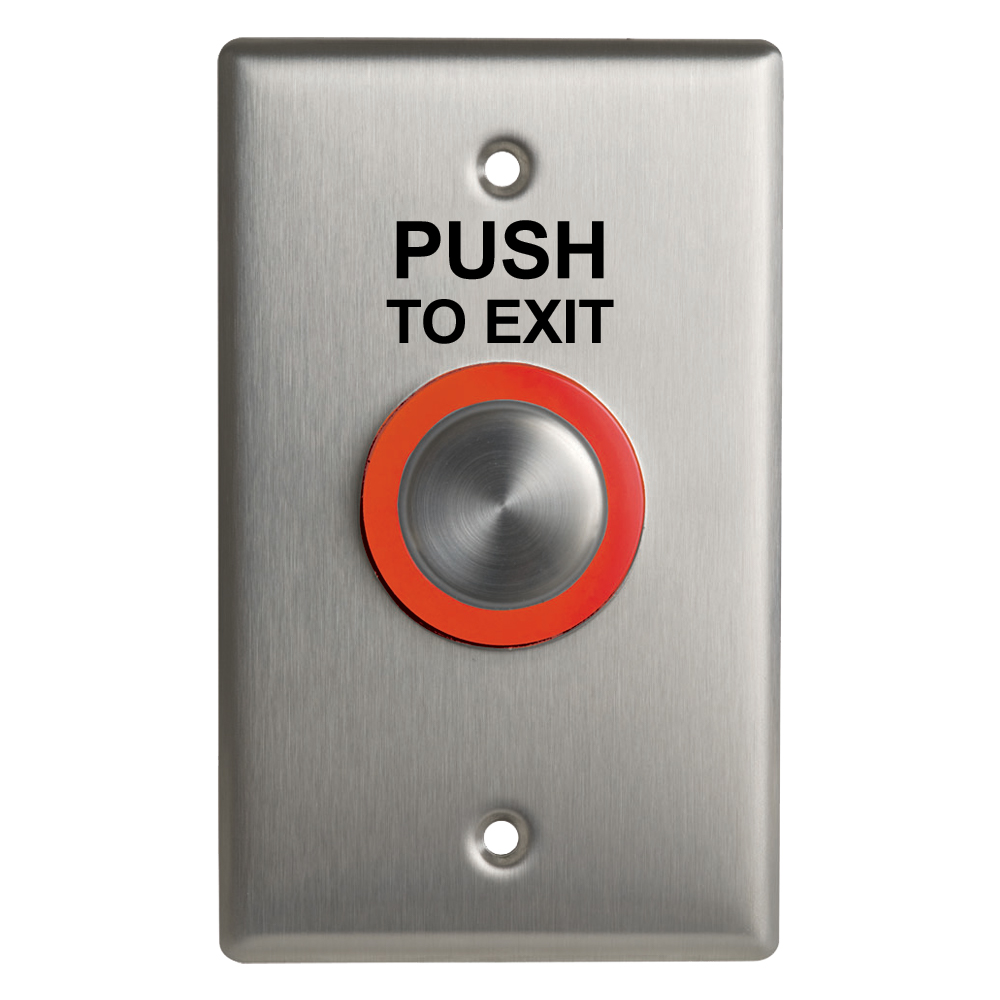

CM-9600 and CM-9610 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer.
CM-9600 is single gang width (2-3/4") and the CM-9610 is only 1" & 3/4" wide, perfect for door frames or narrow areas. The large 1" round diameter button is easy to activate. Illumination and power relay is 12 to 24 VDC. Switch illumination is jumper selectable and may be set for On, Off, Green to Red, Red to Green or non-lit operation. Field selectable for N/O or N/C contact output and fail safe/fail secure operation. Note: Not recommended for control of automatic doors.
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dynalock
|
9300
|
|
|
Locknetics
|
TS-100
|
|
|
SDC
|
463U
|
|
|
|
|
|
CM-9600 and CM-9610 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer.
CM-9600 is single gang width (2-3/4") and the CM-9610 is only 1" & 3/4" wide, perfect for door frames or narrow areas. The large 1" round diameter button is easy to activate. Illumination and power relay is 12 to 24 VDC. Switch illumination is jumper selectable and may be set for On, Off, Green to Red, Red to Green or non-lit operation. Field selectable for N/O or N/C contact output and fail safe/fail secure operation. Note: Not recommended for control of automatic doors.
|
|
|
|
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dynalock
|
9300
|
|
|
Locknetics
|
TS-100
|
|
|
SDC
|
463U
|
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Rugged stainless steel face plate
-
Red and/or green illumination
-
Fail safe / non fail safe selectable
-
N/O & N/C outputs
-
Integrated adjustable 40 second timer
-
Lifetime warranty
| Voltage: |
12/24 VDC
|
| Contact Rating: |
2 A @ 30 VDC
|
| Contact Type: |
1 x N/C, 1 x N/O
|
| Time Delay: |
1-40 seconds
|
| Temp Range: |
-40°F to +180°F
(-40°C to +82°C)
|
| Dimensions: |
|
Single Gang Faceplate:
|
4-1/2” x 2-3/4” x 1-1/2”
(114mm x 70mm x 38mm)
|
|
Narrow Faceplate:
|
4-1/2” x 1-3/4” x 1-1/2”
(114mm x 45mm x 38mm)
|
| |
| Std. Finish: |
US32 / C32D
|
|
Spec Sheets
|
| CM-9600-9610_Spec Sheet_R1 |
pdf |
0.45 |
DOWNLOAD
OPEN
|
|
Addendum
|
| US CM-9600 Series Addendum 2024 - Page 54 |
pdf |
0.23 |
DOWNLOAD
OPEN
|
|
Cross Reference Guides
|
| Push Button Switch Cross Reference |
pdf |
0.15 |
DOWNLOAD
OPEN
|
|
Installation Manuals
|
| CM-9600 Series_Instructions |
pdf |
0.31 |
DOWNLOAD
OPEN
|
| CM-9600C Remote LED Control_Wiring Diagram |
pdf |
0.02 |
DOWNLOAD
OPEN
|
|
High Resolution Images
|
| CM-9600 |
jpeg |
0.26 |
DOWNLOAD
OPEN
|
| CM-9610 |
jpeg |
1.07 |
DOWNLOAD
OPEN
|
|
|
MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Single Gang Faceplate
click to expand section
|
|
Net Cost
|
|
CM-9600
Illuminated piezoelectric push button, blank
EDI DATA, APPROVALS
|
|
Illuminated piezoelectric push button, blank
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.45lbs.
UPC:670454156938
|
| |
|

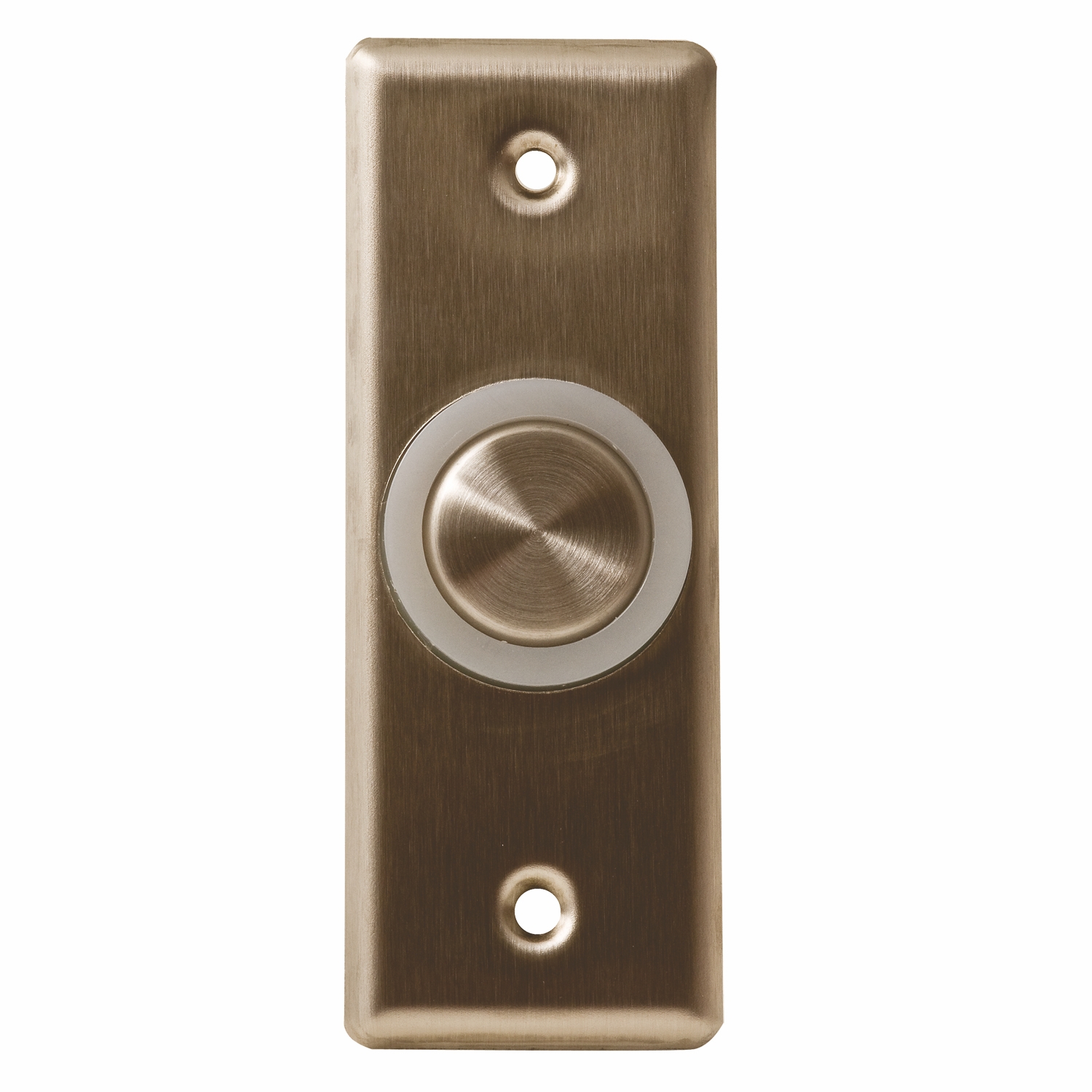

Narrow Faceplate
click to expand section
|
|
Net Cost
|
|
CM-9610
Illuminated piezoelectric push button, blank
EDI DATA, APPROVALS
|
|
Illuminated piezoelectric push button, blank
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 4.75"H
Weight: 0.4lbs.
UPC:670454158574
|
| |
|
Remote Activation/Control
click to expand section
|
|
Net Cost
|
|
|
CM-9600/C
Cable for remote activation/control of switch LED
EDI DATA, APPROVALS
|
|
Cable for remote activation/control of switch LED
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454165947
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT OPTIONS
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| FACEPLATE GRAPHIC OPTIONS |
|
| Faceplate Graphic Options |
|
Net Cost |
|
|
CM-xxx/3
Add /3 to model # for 'PUSH TO OPEN', black graphics
|
Add /3 to model # for 'PUSH TO OPEN', black graphics
|
|
|
|
|
CM-xxx/3F
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black graphics
|
Add /3F to model # for 'POUSSEZ POUR OUVRIR', black graphics
|
|
|
|
|
CM-xxx/3S
Add /3S to model # for 'EMPUJE PARA ABRIR', black
|
Add /3S to model # for 'EMPUJE PARA ABRIR', black
|
|
|
|
|
CM-xxx/7
Add /7 to model # for 'PUSH TO EXIT'
|
Add /7 to model # for 'PUSH TO EXIT'
|
|
|
|
|
CM-xxx/7F
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
Add /7F to model # for 'POUSSEZ POUR SORTIR', black
|
|
|
|
|
CM-xxx/8
Add /8 to model # for 'PUSH TO LOCK', black
|
Add /8 to model # for 'PUSH TO LOCK', black
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Narrow/Jamb |
|
Net Cost |
|
CM-23
Surface Box, Standard Depth Narrow/Jamb boxes for 9610 series switches
|
Surface Box, Standard Depth Narrow/Jamb boxes for 9610 series switches
|
|
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall Single Gang boxes for 9600 series switches
|
Surface Box, Standard Depth. Double wall Single Gang boxes for 9600 series switches
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 9600 series switches
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 9600 series switches
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover Single Gang boxes for 9600 series switches
|
Vandal and weather resistant clear lift cover Single Gang boxes for 9600 series switches
|
|
|
|
|
|
