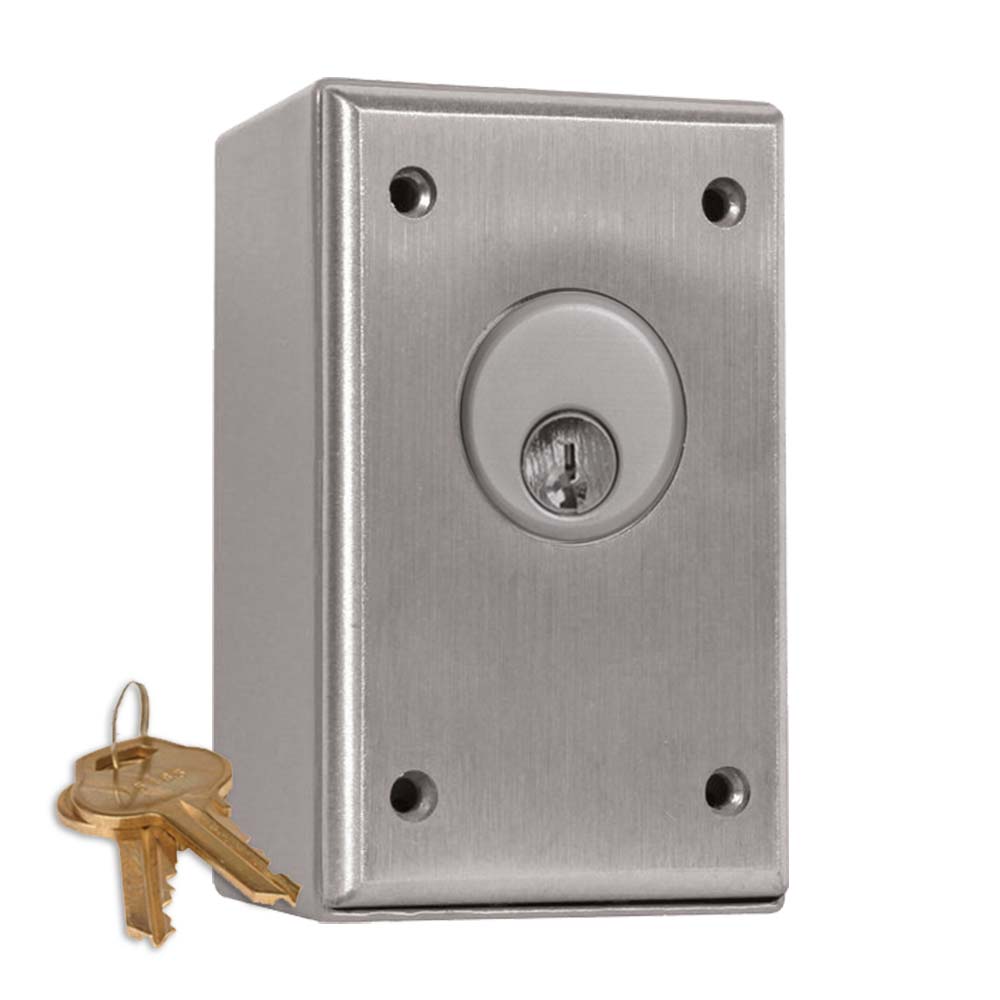

Key Switch Surface Box - Cast Aluminum Faceplate and Housing |
Key Switch Surface Box - Cast Aluminum Faceplate and Housing
|
|
Camden CM-1000 key switches offer a vandal resistant 1/4" thick aluminum faceplate and are designed for high traffic outdoor or indoor use. They are supplied with a weatherproof gasket and cast aluminum surface mount box, with a 1/2" threaded conduit opening for wall, pipe, or pedestal mounting.
NEW - DOUBLE LED OPTIONS
* Mortise cylinder sold separately.
|
Key Switch Surface Box - Cast Aluminum Faceplate and Housing |
Key Switch Surface Box - Cast Aluminum Faceplate and Housing
|
Camden CM-1000 key switches offer a vandal resistant 1/4" thick aluminum faceplate and are designed for high traffic outdoor or indoor use. They are supplied with a weatherproof gasket and cast aluminum surface mount box, with a 1/2" threaded conduit opening for wall, pipe, or pedestal mounting.
NEW - DOUBLE LED OPTIONS
|
* Mortise cylinder sold separately.
|
|
FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Supplied with heavy duty diecast surface box
-
Accepts standard mortise cylinders (1" - 1-1/4")
-
Heavy duty 1/4" thick aluminum plate
-
Cylinder sits flush to faceplate
-
Tamper proof screws and driver provided
-
No set screws required
-
Color coded 18 AWG soldered leads
-
Heat shrink protective sleeve over contacts
-
3 year warranty
Voltage: |
12/24V AC/DC
|
Contact Rating: |
6 A @ 30 VDC
|
Switch Life: |
100,000 cycles
|
Temp Range: |
32°F to 85°F (0°C to +85°C)
|
Std. Finish: |
Brushed aluminum
|
Dimensions: |
4-1/2" x 2-3/4" x 2" (114mm x 70mm x 51mm)
|
|
MODELS
|
Click to configure switch model
|
|
|
|
WIZARD
|
SELECT MODEL |
|
|
|
|
WIZARD
|
SELECT MODEL |
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CM-1000
Surface Mount Key Switch, SPST Momentary, N/O
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPST Momentary, N/O
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120014
|
|
CM-1005
Surface Mount Key Switch, SPST Momentary, N/C
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPST Momentary, N/C
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454151094
|
|
CM-1010
Surface Mount Key Switch, SPST Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPST Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120519
|
|
CM-1020
Surface Mount Key Switch, SPDT N/O & N/C Momentary
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPDT N/O & N/C Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120526
|
|
CM-1030
Surface Mount Key Switch, SPDT N/O & N/C Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPDT N/O & N/C Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120533
|
|
CM-1050
Surface Mount Key Switch, (2) SPDT Momentary
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, (2) SPDT Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120540
|
|
CM-1060
Surface Mount Key Switch, (2) SPDT Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, (2) SPDT Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120557
|
|
CM-1070
Surface Mount Key Switch, SPDT Momentary & Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPDT Momentary & Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120567
|
|
CM-1080
Surface Mount Key Switch, DPDT Momentary
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, DPDT Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120571
|
|
CM-1082
Surface Mount Key Switch, (2) DPDT Momentary
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, (2) DPDT Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454197573
|
|
CM-1090
Surface Mount Key Switch, DPDT Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, DPDT Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120595
|
|
CM-1092
Surface Mount Key Switch, (2) DPDT Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, (2) DPDT Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454197580
|
|
Surface Key Switch w/ Cover
click to expand section
|
|
Net Cost
|
|
CI-1050CP
Surface, single gang mortise key switch, enclosure and cover. Weather resistant, (2) SPDT momentary switches. Mortise cylinder and 2 keys, keyed alike included.
EDI DATA, APPROVALS
|
|
Surface, single gang mortise key switch, enclosure and cover. Weather resistant, (2) SPDT momentary switches. Mortise cylinder and 2 keys, keyed alike included.
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.36lbs.
UPC:670454177643
|
|
Mortise Cylinders (Sold Separately)
click to expand section
|
|
Net Cost
|
|
CM-CYL60-KA
Mortise cylinder 1-1/8", solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
EDI DATA, APPROVALS
|
|
Mortise cylinder 1-1/8", solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454120243
|
|
CM-CYL60-KD
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
EDI DATA, APPROVALS
|
|
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454120250
|
|
CM-307
Mortise cylinder housing for Best(tm) style IC core
EDI DATA, APPROVALS
|
|
Mortise cylinder housing for Best(tm) style IC core
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454156280
|
|
CM-308
Best(tm) style IC core, keyed different
EDI DATA, APPROVALS
|
|
Best(tm) style IC core, keyed different
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454157966
|
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
WIZARD
|
SELECT OPTIONS |
|
|
|
|
WIZARD
|
SELECT OPTIONS
|
|
|
|
|
WIZARD
|
SELECT MODEL ABOVE |
|
|
|
|
WIZARD
|
SELECT OPTIONS |
|
|
|
|
|
MORTISE CYLINDERS |
|
LED OPTIONS |
|
FACEPLATE OPTIONS |
|
Mortise Cylinder Options |
|
Net Cost |
|
-60KA
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed alike (keyed alike cylinders only available when ordered at same time)
|
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed alike (keyed alike cylinders only available when ordered at same time)
|
|
|
|
-60KD
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different
|
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different
|
|
|
|
-307
Mortise cylinder housing for Best(tm) style IC core, mounted in key switch
|
Mortise cylinder housing for Best(tm) style IC core, mounted in key switch
|
|
|
|
-309
Mortise cylinder housing and Best(tm) IC core, keyed different, mounted in key switch
|
Mortise cylinder housing and Best(tm) IC core, keyed different, mounted in key switch
|
|
|
LED Options |
|
Net Cost |
|
-7012
Red 12V LED mounted on faceplate
|
Red 12V LED mounted on faceplate
|
|
|
|
-70122
(2) Red 12V LED mounted on faceplate
|
(2) Red 12V LED mounted on faceplate
|
|
|
|
-7024
Red 24V LED mounted on faceplate
|
Red 24V LED mounted on faceplate
|
|
|
|
-70242
(2) Red 24V LED mounted on faceplate
|
(2) Red 24V LED mounted on faceplate
|
|
|
|
-7112
Green 12V LED mounted on faceplate
|
Green 12V LED mounted on faceplate
|
|
|
|
-71122
(2) Green 12V LED mounted on faceplate
|
(2) Green 12V LED mounted on faceplate
|
|
|
|
-7124
Green 24V LED mounted on faceplate
|
Green 24V LED mounted on faceplate
|
|
|
|
-71242
(2) Green 24V LED mounted on faceplate
|
(2) Green 24V LED mounted on faceplate
|
|
|
|
-7212
Red and Green 12V LEDs mounted on faceplate
|
Red and Green 12V LEDs mounted on faceplate
|
|
|
|
-72122
(2) Red and Green 12V LEDs mounted on faceplate
|
(2) Red and Green 12V LEDs mounted on faceplate
|
|
|
|
-7224
Red and Green 24V LEDs mounted on faceplate
|
Red and Green 24V LEDs mounted on faceplate
|
|
|
|
-72242
(2) Red and Green 24V LEDs mounted on faceplate
|
(2) Red and Green 24V LEDs mounted on faceplate
|
|
|
|
-7412
Amber 12V LED mounted on faceplate
|
Amber 12V LED mounted on faceplate
|
|
|
|
-74122
(2) Amber 12V LED mounted on faceplate
|
(2) Amber 12V LED mounted on faceplate
|
|
|
|
-7424
Amber 24V LED mounted on faceplate
|
Amber 24V LED mounted on faceplate
|
|
|
|
-74242
(2) Amber 24V (3 Wire) LED mounted on faceplate
|
(2) Amber 24V (3 Wire) LED mounted on faceplate
|
|
|
|
-7612
Bi-Color 12V (3 Wire) LED mounted on faceplate
|
Bi-Color 12V (3 Wire) LED mounted on faceplate
|
|
|
|
-76122
(2) Bi-Color 12V (3 Wire) LED mounted on faceplate
|
(2) Bi-Color 12V (3 Wire) LED mounted on faceplate
|
|
|
|
-7624
Bi-Color 24V (3 Wire) LED mounted on faceplate
|
Bi-Color 24V (3 Wire) LED mounted on faceplate
|
|
|
|
-76242
(2) Bi-Color 24V (3 Wire) LED mounted on faceplate
|
(2) Bi-Color 24V (3 Wire) LED mounted on faceplate
|
|
|
Faceplate Finishes |
|
Net Cost |
|
CM-xxx-BZ
Dark Bronze (Duranotic) finish (BHMA 710 / 313AN)
|
Dark Bronze (Duranotic) finish (BHMA 710 / 313AN)
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
|
