CI-1KX Series

Exterior Use Industrial Key Switches

UL Listed Switch Components
< Key / Gate Switches

CI-1KX Series

Exterior Use Industrial Key Switches

Catalog Menu BROWSE
CI-1KX Series:Exterior Use Industrial Key Switches - Key / Gate Switches
CI-1K Exterior Use - Key Switches Industrial

The CI-1KX series of key switches feature heavy-duty faceplates with die-cast aluminum enclosures and rubber gaskets for exterior use. They have 2 SPST momentary switches rated 3A @240 VAC and a mortise cylinder  with 2 keys. These tamper proof switches are UL listed and CSA certified. Designed for activating overhead doors, storefront grilles and shutters.

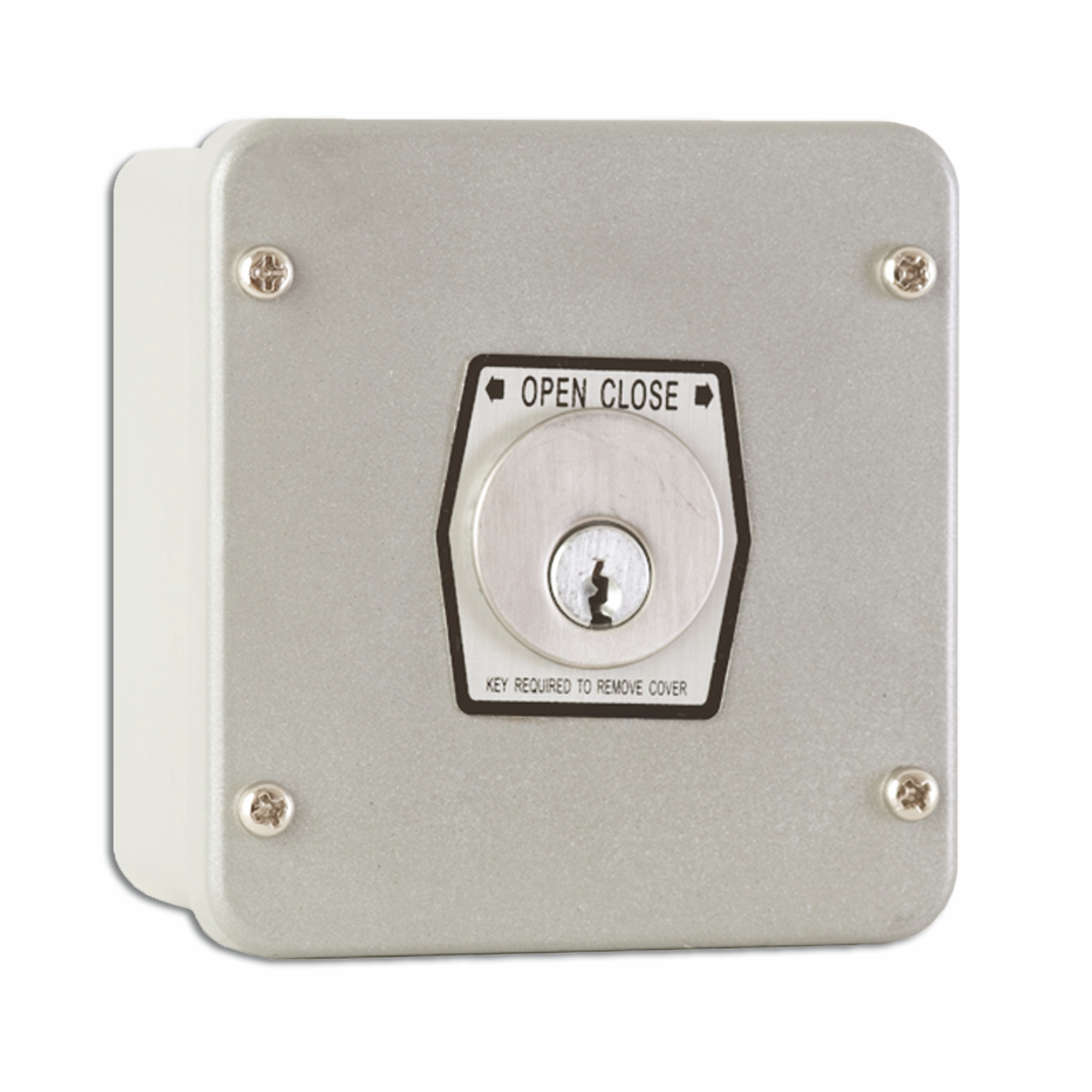

* Model CI-1KX shown

New Inset

CI-1KX Series:Exterior Use Industrial Key Switches - Key / Gate Switches
CI-1K Exterior Use - Key Switches Industrial

The CI-1KX series of key switches feature heavy-duty faceplates with die-cast aluminum enclosures and rubber gaskets for exterior use. They have 2 SPST momentary switches rated 3A @240 VAC and a mortise cylinder  with 2 keys. These tamper proof switches are UL listed and CSA certified. Designed for activating overhead doors, storefront grilles and shutters.

* Model CI-1KX shown

FEATURES SPECIFICATIONS RESOURCES
Login For Pricing
MODELS
  Model Description

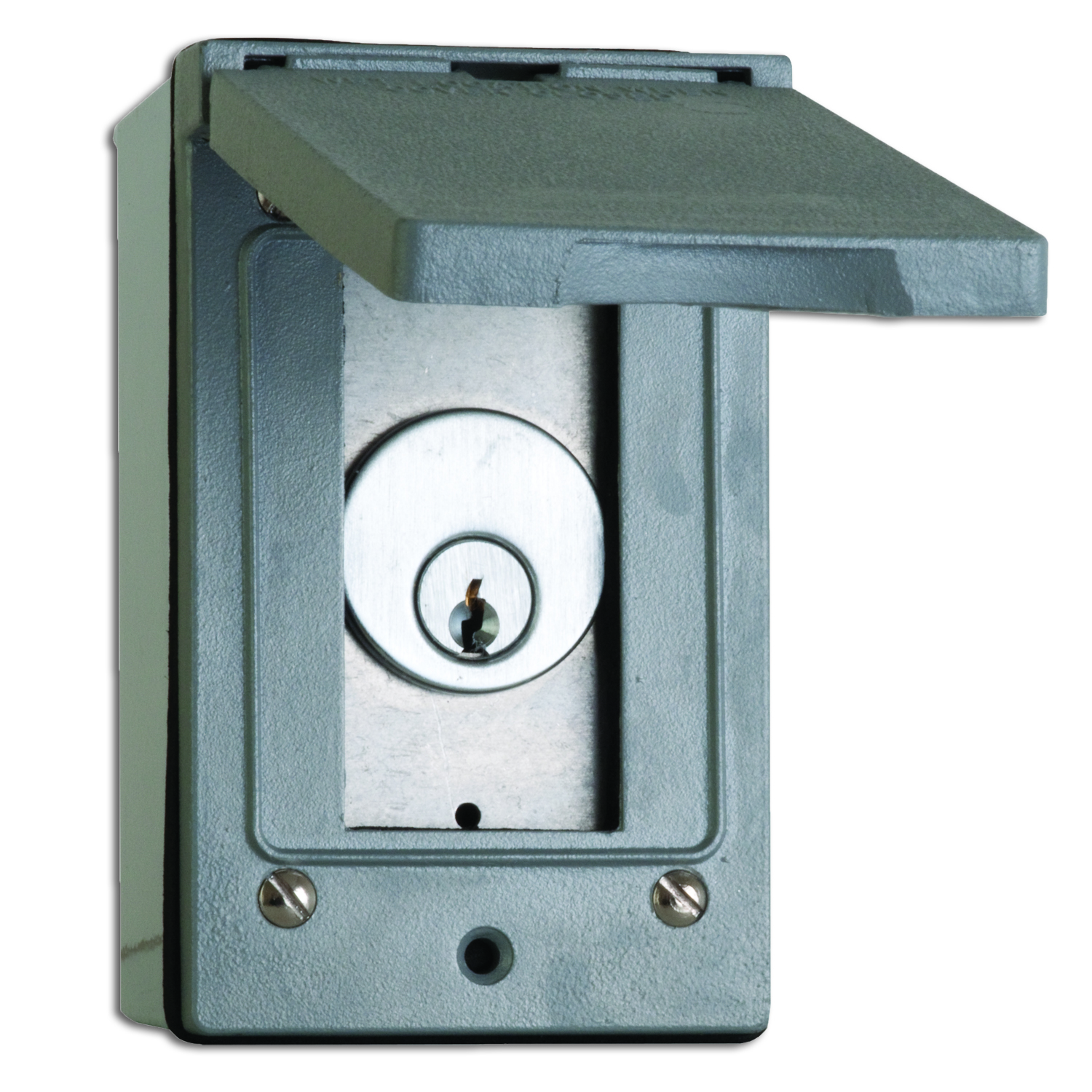

CI-1050CP: CI-1KX Series:Exterior Use Industrial Key Switches - Key / Gate Switches CI-1050CP
SURFACE, SINGLE GANG ENCLOSURE, WEATHER RESISTANT COVER, (2) SPDT MOMENTARY SWITCHES, MORTISE CYLINDER, KEYED ALIKE
EDI DATA, APPROVALS
SURFACE, SINGLE GANG ENCLOSURE, WEATHER RESISTANT COVER, (2) SPDT MOMENTARY SWITCHES, MORTISE CYLINDER, KEYED ALIKE EDI DATA
APPROVALS

CI-1KSMX
REPLACED BY CI-1050CP
EDI DATA, APPROVALS
REPLACED BY CI-1050CP EDI DATA
APPROVALS

CI-1KX: CI-1KX Series:Exterior Use Industrial Key Switches - Key / Gate Switches CI-1KX
DIECAST ALUMINUM ENCLOSURE, PAINTED GRAY ENAMEL, NEMA 1, 2, 3R, 4, 6, 12, 13, AND ICS
EDI DATA, APPROVALS
DIECAST ALUMINUM ENCLOSURE, PAINTED GRAY ENAMEL, NEMA 1, 2, 3R, 4, 6, 12, 13, AND ICS EDI DATA
APPROVALS

CI-1KXS
AS ABOVE, WITH WEATHERIZED STOP BUTTON,, NEMA 1, 2, 3R, 4, 6, 12, 13, AND ICS
EDI DATA, APPROVALS
AS ABOVE, WITH WEATHERIZED STOP BUTTON,, NEMA 1, 2, 3R, 4, 6, 12, 13, AND ICS EDI DATA
APPROVALS
