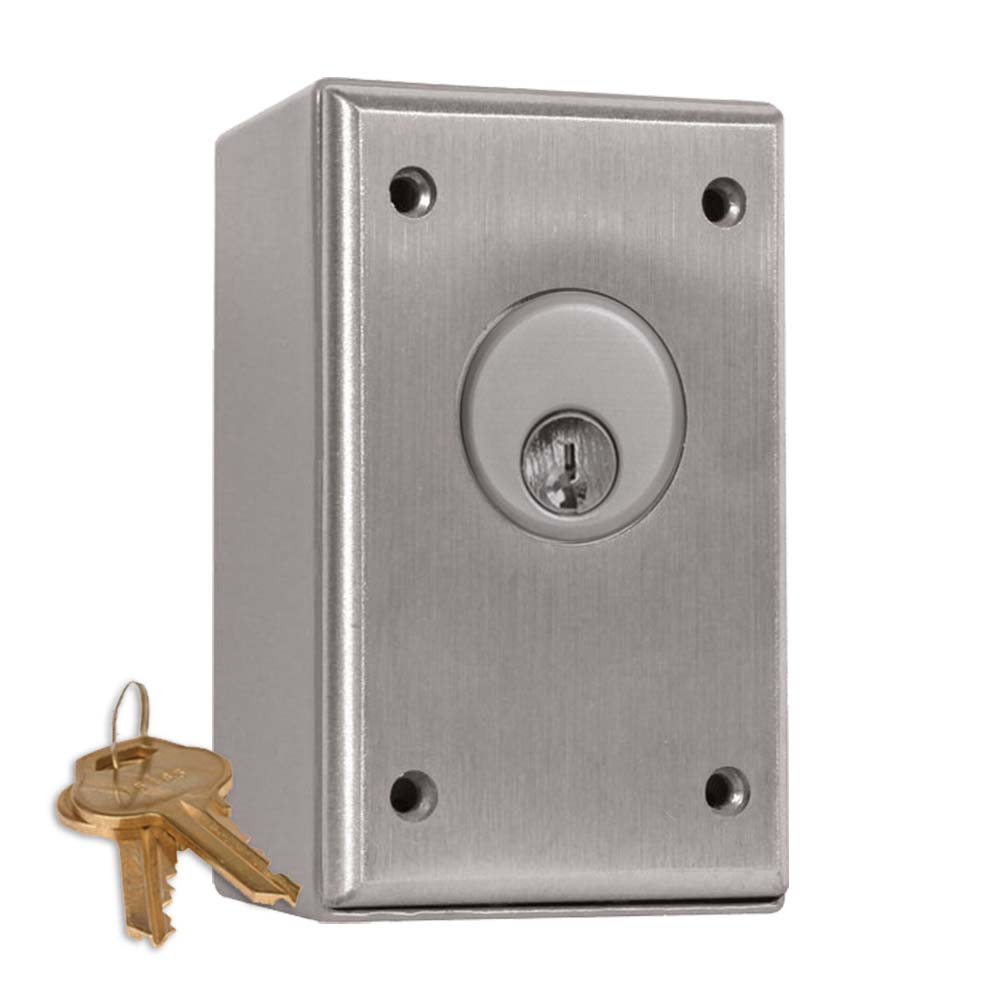

Key Switch Surface Box - Cast Aluminum Faceplate and Housing
|
|
Camden CM-1000 key switches offer a vandal resistant 1/4" thick aluminum faceplate and are designed for high traffic outdoor or indoor use. They are supplied with a weatherproof gasket and cast aluminum surface mount box, with a 1/2" threaded conduit opening for wall, pipe, or pedestal mounting. NEW - DOUBLE LED OPTIONS
* Mortise cylinder sold separately.
|
| Key Switch Surface Box - Cast Aluminum Faceplate and Housing |
Key Switch Surface Box - Cast Aluminum Faceplate and Housing
|
Camden CM-1000 key switches offer a vandal resistant 1/4" thick aluminum faceplate and are designed for high traffic outdoor or indoor use. They are supplied with a weatherproof gasket and cast aluminum surface mount box, with a 1/2" threaded conduit opening for wall, pipe, or pedestal mounting. NEW - DOUBLE LED OPTIONS
|
* Mortise cylinder sold separately. |
|
| Features |
|
Specifications |
|
Resources |
|
|
-
Supplied with heavy duty diecast surface box.
-
Accepts standard mortise cylinders ( 1" - 1-1/4" )
-
Heavy duty 1/4" thick aluminum plate.
-
Cylinder sits flush to faceplate.
-
Tamper proof screws and driver provided.
-
No set screws required.
-
Color coded 18 AWG soldered leads.
-
Heat shrink protective sleeve over contacts.
-
3 year warranty
| Contact Rating: |
6 A @ 30 VDC
|
| Switch Life: |
100,000 cycles
|
| Temp Range: |
32°F to 85°F (0°C to +85°C)
|
| Std. Finish: |
Brushed aluminum
|
| Dimensions: |
4-1/2" x 2-3/4" x 2"
(114mm x 70mm x 51mm)
|
|
|
Models
|
|
Click to Select Configuration Options to Customize Switch Model
|
|
|
|
|
PRODUCT SELECTION TOOL
|
| SELECT MODEL |
 |
|
|
|
|
PRODUCT SELECTION TOOL
|
| SELECT MODEL |
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
 |
CM-1000 |
Surface Mount Key Switch, SPST Momentary, N/O
EDI Data, Approvals
|
|
Surface Mount Key Switch, SPST Momentary, N/O
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454120014
Country of Origin: CA
|
|
|
|
CM-1005 |
Surface Mount Key Switch, SPST Momentary, N/C
EDI Data, Approvals
|
|
Surface Mount Key Switch, SPST Momentary, N/C
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454151094
Country of Origin: CA
|
|
|
CM-1010 |
Surface Mount Key Switch, SPST Maintained
EDI Data, Approvals
|
|
Surface Mount Key Switch, SPST Maintained
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454120519
Country of Origin: CA
|
|
|
|
CM-1020 |
Surface Mount Key Switch, SPDT N/O & N/C Momentary
EDI Data, Approvals
|
|
Surface Mount Key Switch, SPDT N/O & N/C Momentary
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454120526
Country of Origin: CA
|
|
|
|
CM-1030 |
Surface Mount Key Switch, SPDT N/O & N/C Maintained
EDI Data, Approvals
|
|
Surface Mount Key Switch, SPDT N/O & N/C Maintained
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454120533
Country of Origin: CA
|
|
|
|
CM-1050 |
Surface Mount Key Switch, (2) SPDT Momentary
EDI Data, Approvals
|
|
Surface Mount Key Switch, (2) SPDT Momentary
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454120540
Country of Origin: CA
|
|
|
|
CM-1060 |
Surface Mount Key Switch, (2) SPDT Maintained
EDI Data, Approvals
|
|
Surface Mount Key Switch, (2) SPDT Maintained
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454120557
Country of Origin: CA
|
|
|
|
CM-1070 |
Surface Mount Key Switch, SPDT Momentary & Maintained
EDI Data, Approvals
|
|
Surface Mount Key Switch, SPDT Momentary & Maintained
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454120567
Country of Origin: CA
|
|
|
|
CM-1080 |
Surface Mount Key Switch, DPDT Momentary
EDI Data, Approvals
|
|
Surface Mount Key Switch, DPDT Momentary
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454120571
Country of Origin: CA
|
|
|
|
CM-1082 |
Surface Mount Key Switch, (2) DPDT Momentary
EDI Data, Approvals
|
|
Surface Mount Key Switch, (2) DPDT Momentary
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454197573
Country of Origin: CA
|
|
|
|
CM-1090 |
Surface Mount Key Switch, DPDT Maintained
EDI Data, Approvals
|
|
Surface Mount Key Switch, DPDT Maintained
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454120595
Country of Origin: CA
|
|
|
|
CM-1092 |
Surface Mount Key Switch, (2) DPDT Maintained
EDI Data, Approvals
|
|
Surface Mount Key Switch, (2) DPDT Maintained
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC: 670454197580
Country of Origin: CA
|
| |
Surface Key Switch w/ Cover
click to expand section
|
|
Net Cost
|
|
Surface, single gang mortise key switch, enclosure and cover. Weather resistant, (2) SPDT momentary switches. Mortise cylinder and 2 keys, keyed alike included.
EDI Data, Approvals
|
|
Surface, single gang mortise key switch, enclosure and cover. Weather resistant, (2) SPDT momentary switches. Mortise cylinder and 2 keys, keyed alike included.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.36lbs.
UPC: 670454177643
Country of Origin: CA
|
| |
|
Mortise Cylinders (Sold Separately)
click to expand section
|
|
Net Cost
|
|
Mortise cylinder 1-1/8", solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
EDI Data, Approvals
|
|
Mortise cylinder 1-1/8", solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454120243
Country of Origin: CN
|
|
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
EDI Data, Approvals
|
|
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454120250
Country of Origin: CN
|
|
Mortise cylinder housing for Best(tm) style IC core
EDI Data, Approvals
|
|
Mortise cylinder housing for Best(tm) style IC core
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454156280
Country of Origin: US
|
|
Best(tm) style IC core, keyed different
EDI Data, Approvals
|
|
Best(tm) style IC core, keyed different
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454157966
Country of Origin: US
|
| |
|
|
Options & Finishes
|
|
|
click to expand section
|
|
|
|
|
PRODUCT SELECTION TOOL
|
| SELECT OPTIONS |
|
|
|
|
|
PRODUCT SELECTION TOOL
|
|
SELECT OPTIONS
|
|
|
|
|
|
PRODUCT SELECTION TOOL
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
PRODUCT SELECTION TOOL
|
| SELECT OPTIONS |
|
|
|
|
 |
| MORTISE CYLINDERS |
 |
| LED OPTIONS |
 |
| FACEPLATE OPTIONS |
|
| Mortise Cylinder Options |
|
Net Cost |
|
|
-60KA |
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed alike (keyed alike cylinders only available when ordered at same time)
|
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed alike (keyed alike cylinders only available when ordered at same time)
|
|
|
|
|
-60KD |
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different
|
Mortise cylinder mounted in key switch, 1-1/8", solid brass, chrome finish, keyed different
|
|
|
|
|
-307 |
Mortise cylinder housing for Best(tm) style IC core, mounted in key switch
|
Mortise cylinder housing for Best(tm) style IC core, mounted in key switch
|
|
|
|
|
-309 |
Mortise cylinder housing and Best(tm) IC core, keyed different, mounted in key switch
|
Mortise cylinder housing and Best(tm) IC core, keyed different, mounted in key switch
|
|
|
| LED Options |
|
Net Cost |
|
|
-7012 |
Red 12V LED mounted on faceplate
|
Red 12V LED mounted on faceplate
|
|
|
|
|
|
-70122 |
(2) Red 12V LED mounted on faceplate
|
(2) Red 12V LED mounted on faceplate
|
|
|
|
|
|
-7024 |
Red 24V LED mounted on faceplate
|
Red 24V LED mounted on faceplate
|
|
|
|
|
|
-70242 |
(2) Red 24V LED mounted on faceplate
|
(2) Red 24V LED mounted on faceplate
|
|
|
|
|
|
-7112 |
Green 12V LED mounted on faceplate
|
Green 12V LED mounted on faceplate
|
|
|
|
|
|
-71122 |
(2) Green 12V LED mounted on faceplate
|
(2) Green 12V LED mounted on faceplate
|
|
|
|
|
|
-7124 |
Green 24V LED mounted on faceplate
|
Green 24V LED mounted on faceplate
|
|
|
|
|
|
-71242 |
(2) Green 24V LED mounted on faceplate
|
(2) Green 24V LED mounted on faceplate
|
|
|
|
|
|
-7212 |
Red and Green 12V LEDs mounted on faceplate
|
Red and Green 12V LEDs mounted on faceplate
|
|
|
|
|
|
-72122 |
(2) Red and Green 12V LEDs mounted on faceplate
|
(2) Red and Green 12V LEDs mounted on faceplate
|
|
|
|
|
|
-7224 |
Red and Green 24V LEDs mounted on faceplate
|
Red and Green 24V LEDs mounted on faceplate
|
|
|
|
|
|
-72242 |
(2) Red and Green 24V LEDs mounted on faceplate
|
(2) Red and Green 24V LEDs mounted on faceplate
|
|
|
|
|
|
-7412 |
Amber 12V LED mounted on faceplate
|
Amber 12V LED mounted on faceplate
|
|
|
|
|
|
-74122 |
(2) Amber 12V LED mounted on faceplate
|
(2) Amber 12V LED mounted on faceplate
|
|
|
|
|
|
-7424 |
Amber 24V LED mounted on faceplate
|
Amber 24V LED mounted on faceplate
|
|
|
|
|
|
-74242 |
(2) Amber 24V (3 Wire) LED mounted on faceplate
|
(2) Amber 24V (3 Wire) LED mounted on faceplate
|
|
|
|
|
|
-7612 |
Bi-Color 12V (3 Wire) LED mounted on faceplate
|
Bi-Color 12V (3 Wire) LED mounted on faceplate
|
|
|
|
|
|
-76122 |
(2) Bi-Color 12V (3 Wire) LED mounted on faceplate
|
(2) Bi-Color 12V (3 Wire) LED mounted on faceplate
|
|
|
|
|
|
-7624 |
Bi-Color 24V (3 Wire) LED mounted on faceplate
|
Bi-Color 24V (3 Wire) LED mounted on faceplate
|
|
|
|
|
|
-76242 |
(2) Bi-Color 24V (3 Wire) LED mounted on faceplate
|
(2) Bi-Color 24V (3 Wire) LED mounted on faceplate
|
|
|
| Faceplate Finishes |
|
Net Cost |
|
|
|
CM-xxx-BZ |
Dark Bronze (Duranotic) finish (BHMA 710 / 313AN)
|
Dark Bronze (Duranotic) finish (BHMA 710 / 313AN)
|
|
|
|
|
|
|
