Camden's Wiegand receivers are designed to interface with existing access control systems for both long and short access applications.
Pressing one of two buttons, users can control a barrier gate or overhead door up to 300ft. (100m) away. The same transmitter can be presented in front of a card reader, and operate as a conventional access credential.
Identical 26-bit Wiegand ID numbers will be sent for both buttons and for the reader to manage multiple users in the access control database.
|
|
|
| CV-WTX2Wiegand Key FobCV-WTX2-H26Wiegand Key Fob with Proximity Tag |
|
|
|
CV-WR Series Tech Talk
Wiegand Receiver |
|
|
|
Camden's Wiegand receivers are designed to interface with existing access control systems for both long and short access applications.
Pressing one of two buttons, users can control a barrier gate or overhead door up to 300ft. (100m) away. The same transmitter can be presented in front of a card reader, and operate as a conventional access credential.
Identical 26-bit Wiegand ID numbers will be sent for both buttons and for the reader to manage multiple users in the access control database. |
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
CV-WRX4
-
Common 26-bit Wiegand output for all outputs
Field selectable facility codes, 1 to 255
-
High security rolling code, 19 trillion combinations
-
Weather and vandal resistant enclosure
-
4 channel receiver facilitates in/out control
CV-WTX2H-H26SE; CV-WTX4H-H26SE
-
Battery saving feature stops transmitting if pressed over 10 seconds
-
Solid metal exterior frame designed to last for years
-
High encrypted dual technology 13.56Mhz.
All Transmitters
-
LED indicator for low battery and signal transmission
-
2 year battery life
-
Laser etched ID numbers
CV-WTX2
-
Ultra compact
Up to 300ft (100m) wireless range
CV-WTX2-H26
-
Ultra compact dual technology design
Up to 300ft. (100m) wireless range
| Input Voltage: |
|
CV-WRX4:
|
12 VDC
|
|
All Transmitters:
|
3 VDC CR 2032 Type Battery
|
| |
| Operating Temp.: |
|
All Transmitters:
|
-4°F to 131°F (-20°C to 55°C)
|
|
CV-WRX4:
|
-4°F to 185°F (-20°C to 85°C)
|
| |
| Current: |
|
CV-WRX4:
|
14mA typical / 36mA peak
|
|
All Transmitters:
|
12mA
|
| |
| Frequency: |
868.35 Mhz.
|
| IP Rating: |
CV: IP54 (IP65 with cable plug installed)
|
| Dimensions: |
|
CV-WRX4:
|
3-1/4"W x 7-3/8"H x 1-5/8"D (82mm x 187mm x 42mm)
|
|
CV-WTX2:
|
1-3/16"W x 2-1/8"H x 3/8"D (30mm x 57mm x 10mm)
|
|
CV-WTX2H:
|
1-1/2"W x 2-1/2"H x 1/2"D (36mm x 68mm x 14mm)
|
|
CV-WTX4H:
|
1-1/2"W x 2-1/2"H x 1/2"D (36mm x 68mm x 14mm)
|
|
CV-WTX2H-H26:
|
1-1/2"W x 2-1/2"H x 1/2"D (36mm x 68mm x 14mm)
|
|
CV-WTX2H-H26SE:
|
1-1/2"W x 2-1/2"H x 1/2"D (36mm x 68mm x 14mm)
|
|
CV-WTX4H-H26SE:
|
1-1/2"W x 2-1/2"H x 1/2"D (36mm x 68mm x 14mm)
|
| |
|
Installation Manuals
|
| CV-WRX4_Manual_R1 |
pdf |
0.38 |
DOWNLOAD
|
|
Spec Sheets
|
| CV-WR Series_Spec Sheet_R3 |
pdf |
1.67 |
DOWNLOAD
|
|
Technical Guide
|
| Access Control Technical Guide |
pdf |
0.59 |
DOWNLOAD
|
|
High Resolution Images
|
| CV-WRX4 |
jpeg |
1.09 |
DOWNLOAD
|
| CV-WTX2-H26 |
jpeg |
1.08 |
DOWNLOAD
|
| CV-WTX2H-H26SE |
jpeg |
0.66 |
DOWNLOAD
|
| CV-WTX4H-H26SE |
jpeg |
0.62 |
DOWNLOAD
|
|
Promotion
|
| CV-WR Series System Overview |
pdf |
1.03 |
DOWNLOAD
|
CV-WR Series Tech Talk
Wiegand Receiver
|
|
|
Receiver
 click to expand section
|
|
Net Cost
|
|

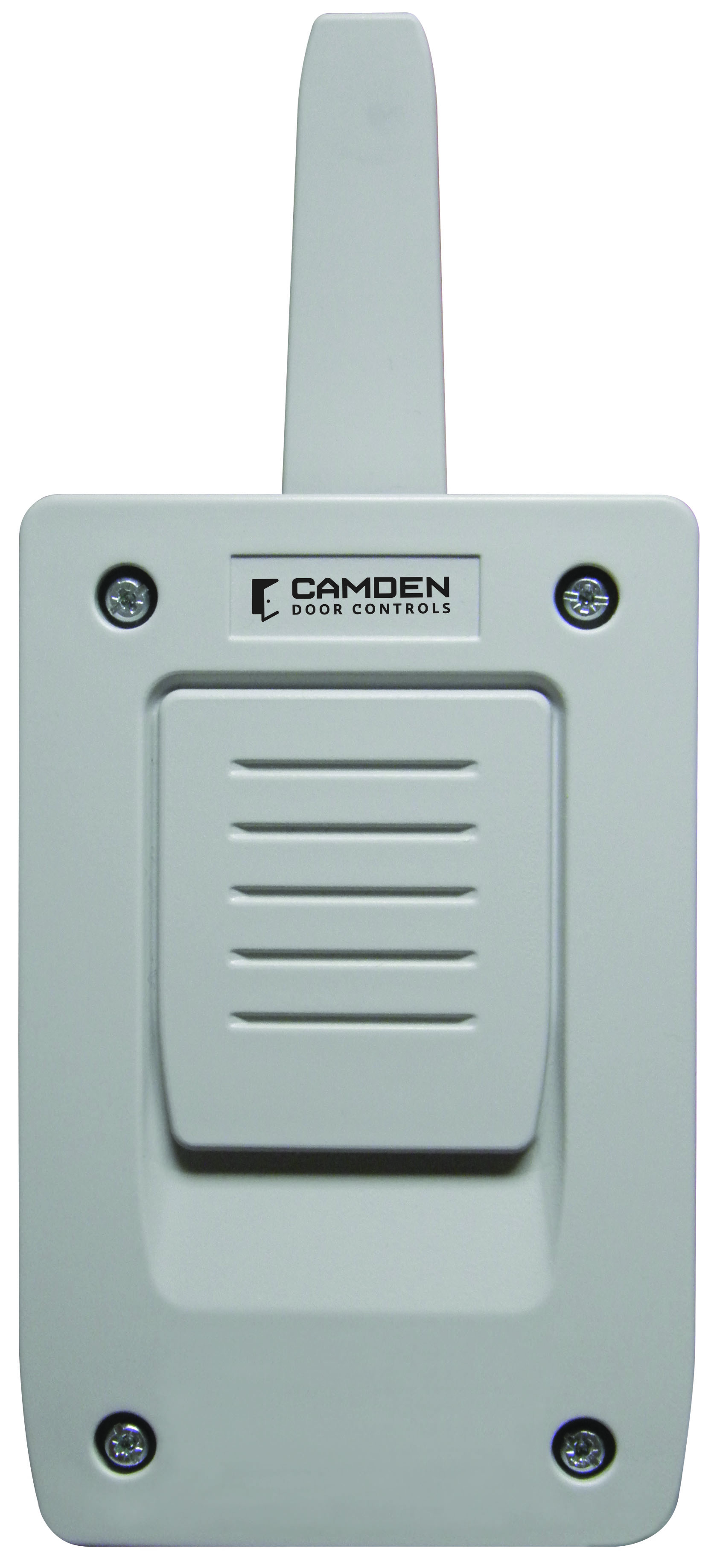

CV-WRX4
Four Channel Wiegand Receiver
EDI DATA, APPROVALS
|
|
Four Channel Wiegand Receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 7.5"L x 1.75"W x 3.5"H
Weight: 0.45lbs.
UPC:670454209993
|
| |
|
Key Fobs
click to expand section
|
|
Net Cost
|
|

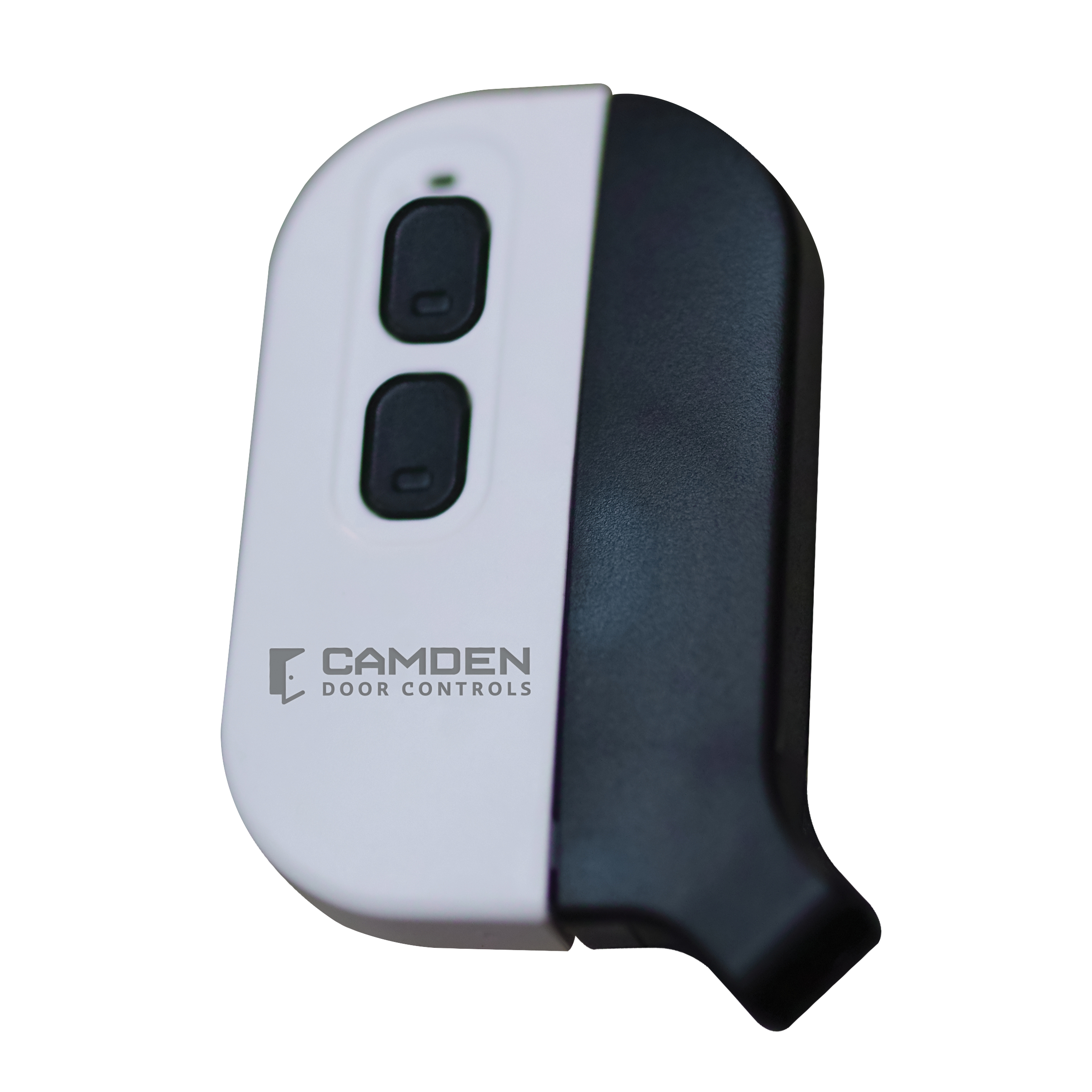

CV-WTX2-H26
Two Channel Wiegand Key Fob + HID Prox.
EDI DATA, APPROVALS
|
|
Two Channel Wiegand Key Fob + HID Prox.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 3"W x 1.5"H
Weight: 0.05lbs.
UPC:670454210005
|
|
|
CV-WTX2-H26-B
Two Channel Wiegand Key Fobs + HID Prox. Package of 10
EDI DATA, APPROVALS
|
|
Two Channel Wiegand Key Fobs + HID Prox. Package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 2"W x 2.5"H
Weight: 0.4lbs.
UPC:670454210012
|
|
CV-WTX2H
Two Channel Wiegand Key Fob
EDI DATA, APPROVALS
|
|
Two Channel Wiegand Key Fob
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.3lbs.
UPC:670454216595
|
|
CV-WTX4H
Four Channel Wiegand Key Fob
EDI DATA, APPROVALS
|
|
Four Channel Wiegand Key Fob
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5"L x 3"W x 1.5"H
Weight: 0.05lbs.
UPC:670454216601
|
|

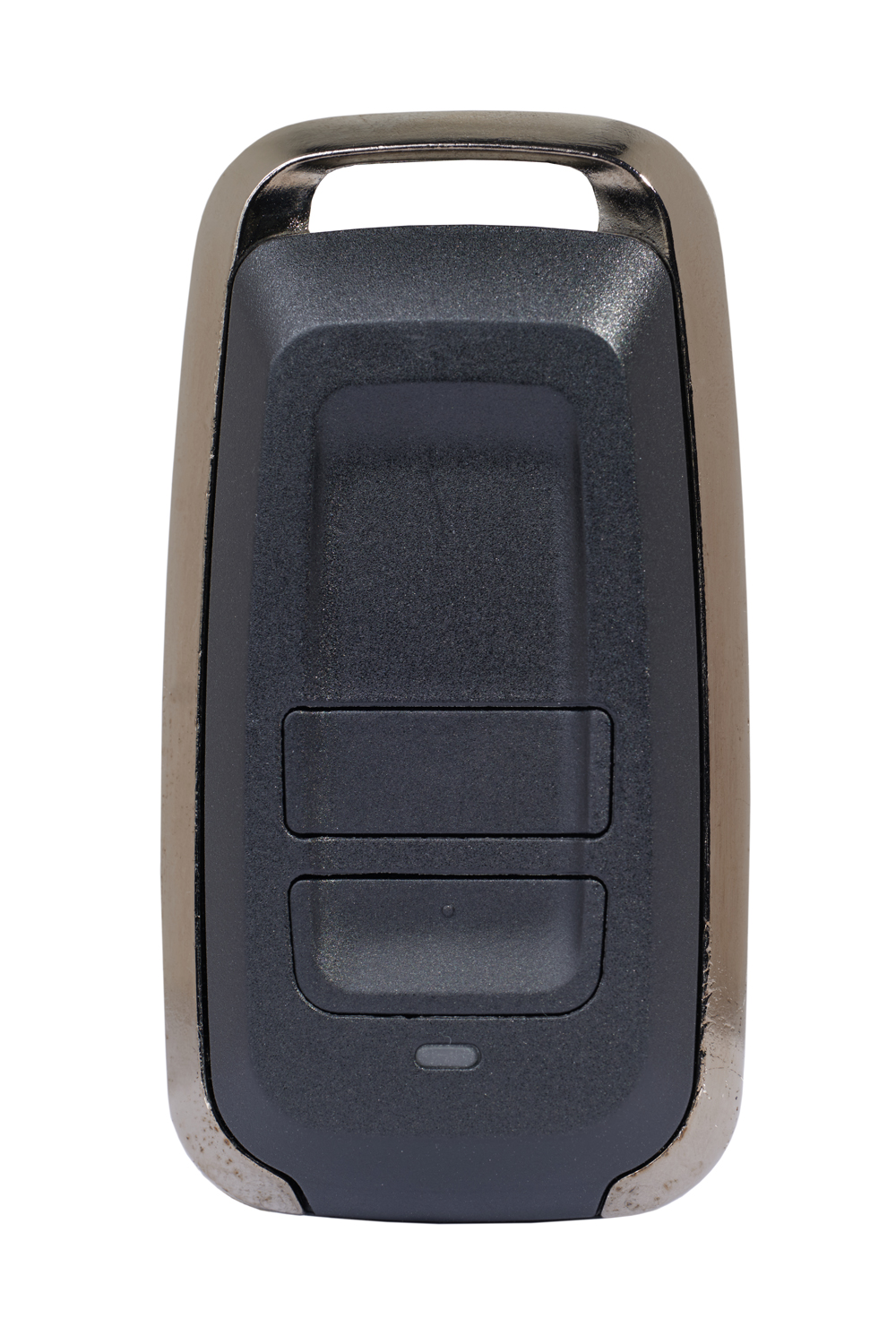

CV-WTX2H-H26SE
Two Channel Wiegand Key Fob + HID iCLASS SE
EDI DATA, APPROVALS
|
|
Two Channel Wiegand Key Fob + HID iCLASS SE
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.5"L x 0.5"W x 2.5"H
Weight: 0.40lbs.
UPC:670454212634
|
|
|
CV-WTX2H-H26SE-B
Two Channel Wiegand Key Fob + HID iCLASS SE
Package of 10
EDI DATA, APPROVALS
|
|
Two Channel Wiegand Key Fob + HID iCLASS SE
Package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.5"L x 0.5"W x 2.5"H
Weight: 0.40lbs.
UPC:670454212658
|
|

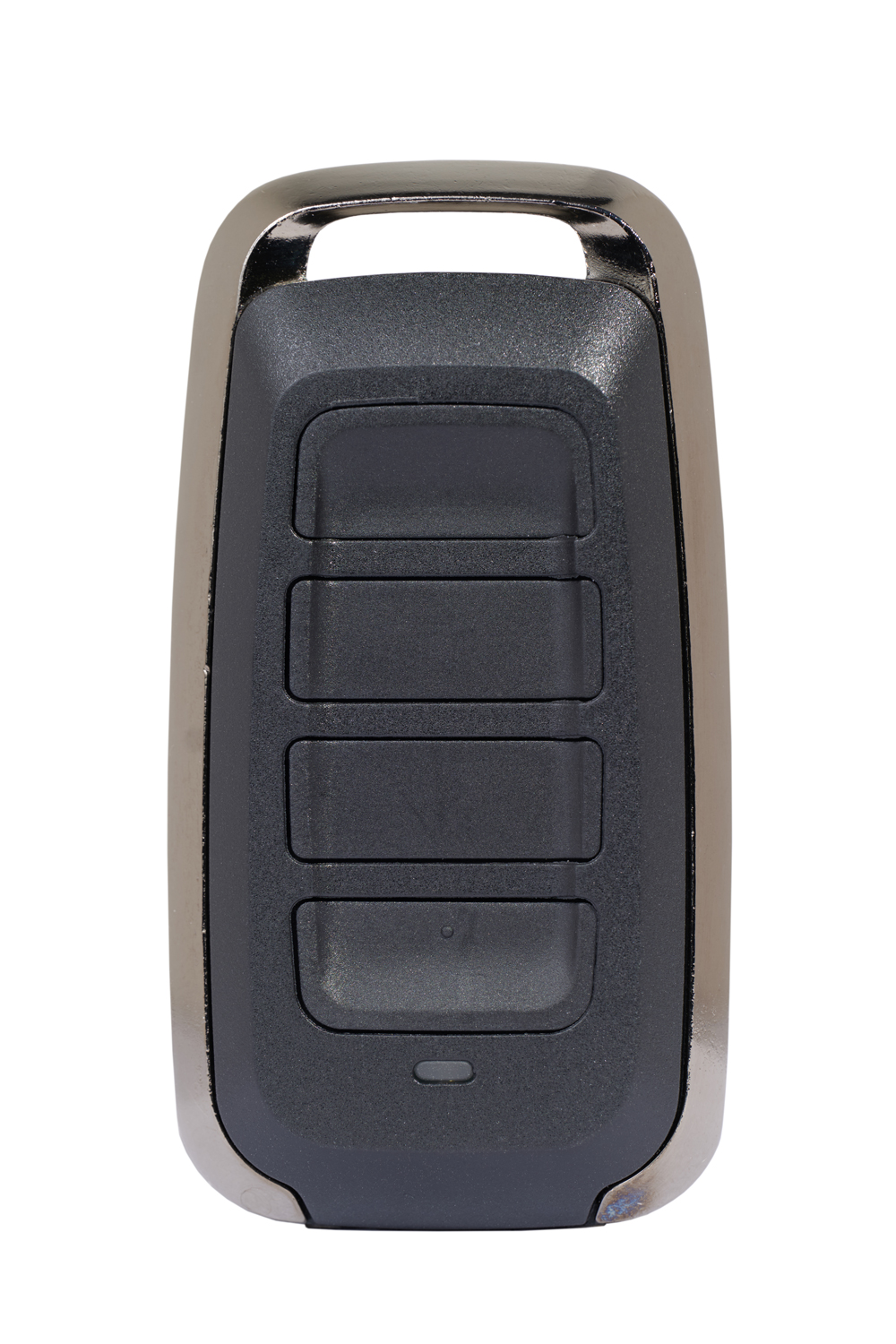

CV-WTX4H-H26SE
Four Channel Wiegand Key Fob + HID iCLASS SE
EDI DATA, APPROVALS
|
|
Four Channel Wiegand Key Fob + HID iCLASS SE
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 1.5"L x 0.5"W x 2.5"H
Weight: 0.40lbs.
UPC:670454212641
|
| |
|
