Camden CX-ED1689L and CX-ED1799L Grade 1 electric strikes for mortise and cylindrical locksets offer the very best strike quality and features, with the added value of built-in single or dual latch monitoring, 4 or 8 stainless steel faceplates and 'Universal' performance, including field selectable voltage and fail safe/fail secure operation.
These strikes also include a 3-hour fire rating, and also have the option of ordering strike bodies and individual faceplates separately.
|
|
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
HES
|
1500
|
CX-ED1689L-4
|
|
|
1600
|
CX-ED1799L-8
|
|
Trine
|
4100
|
CX-ED1689L-4
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
- For mortise and cylindrical locksets
- A range of strike and faceplate packages for latchbolts and deadbolts
- Faceplates also available in black architectural finish (BHMA 622, US19)
- Selectable fail safe / fail secure
- Selectable 12/24V AC/DC
- 1 or 2 latch and deadbolt monitoring switches
- Magnetic door position switch
- Strike power monitor
- Easy fit connectors
- 5 year warranty
| Voltage: |
12/24V AC/DC |
| Current Draw: |
300mA @ 12V AC/DC
150mA @ 24V AC/DC |
| Static Strength: |
1,500 lbs |
| Dynamic Strength: |
70 ft-lbs |
| Endurance: |
1,500,000 Cycles (Factory Tested)
250,000 Cycles (UL Verified) |
| Mode: |
Field Selectable Fail Safe/Fail Secure |
| Operation: |
AC-Buzz, DC-Silent |
| Duty: |
Continuous |
| Lock Monitor Status: |
2 x SPST, 100mA @ 24V DC, Resistive |
| Strike Monitor Status: |
SPDT, 100mA @ 24V DC, Resistive |
| Dimensions (body): |
CX-ED1689L: 4-7/8''H x 1-5/8''W x 1-3/8''D (124mm x 41mm x 36mm) CX-ED1799L-8: 4-7/8''H x 1-5/8''W x 1-21/32''D (124mm x 41mm x 42mm) |
|
Reference Guides
|
| Electric Strike Cross Reference Chart |
pdf |
0.23 |
DOWNLOAD
|
| Electric Strike Selection Guide |
pdf |
4.65 |
DOWNLOAD
|
|
Addendum
|
| CX-ED1689L-4 & CX-ED1799L-8 US Addendum |
pdf |
0.42 |
DOWNLOAD
|
| CX-ED1689L-4 & CX-ED1799L-8 CDN Addendum |
pdf |
0.42 |
DOWNLOAD
|
|
Spec Sheets
|
| CX-ED1689L-4 & CX-ED1799L-8 Spec Sheet |
pdf |
2.29 |
DOWNLOAD
|
|
Manuals
|
| CX-ED1689L Manual |
pdf |
0.85 |
DOWNLOAD
|
| CX-ED1689L Manual FR |
pdf |
0.90 |
DOWNLOAD
|
| CX-ED1799L Manual |
pdf |
1.05 |
DOWNLOAD
|
| CX-ED1799L Manual FR |
pdf |
1.14 |
DOWNLOAD
|
|
High Resolution Images
|

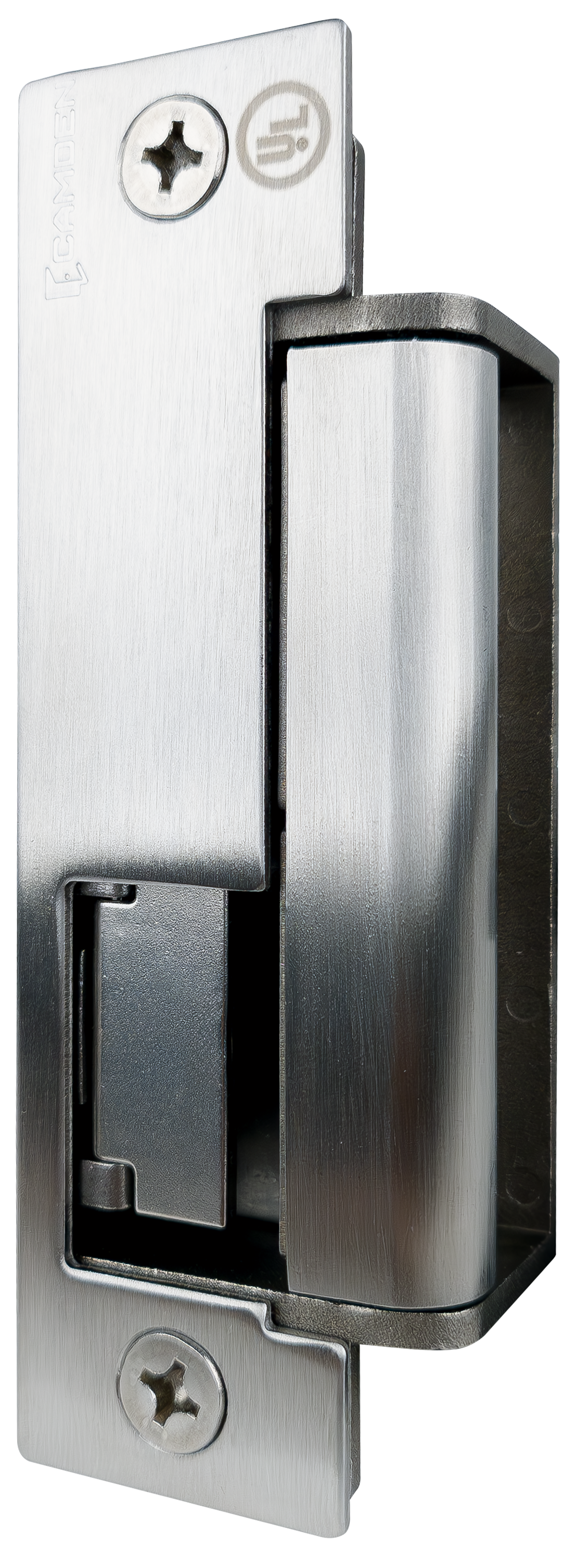

| CX-ED1689L |
png |
3.76 |
DOWNLOAD
|
| CX-ED1689L - Angled |
png |
4.17 |
DOWNLOAD
|

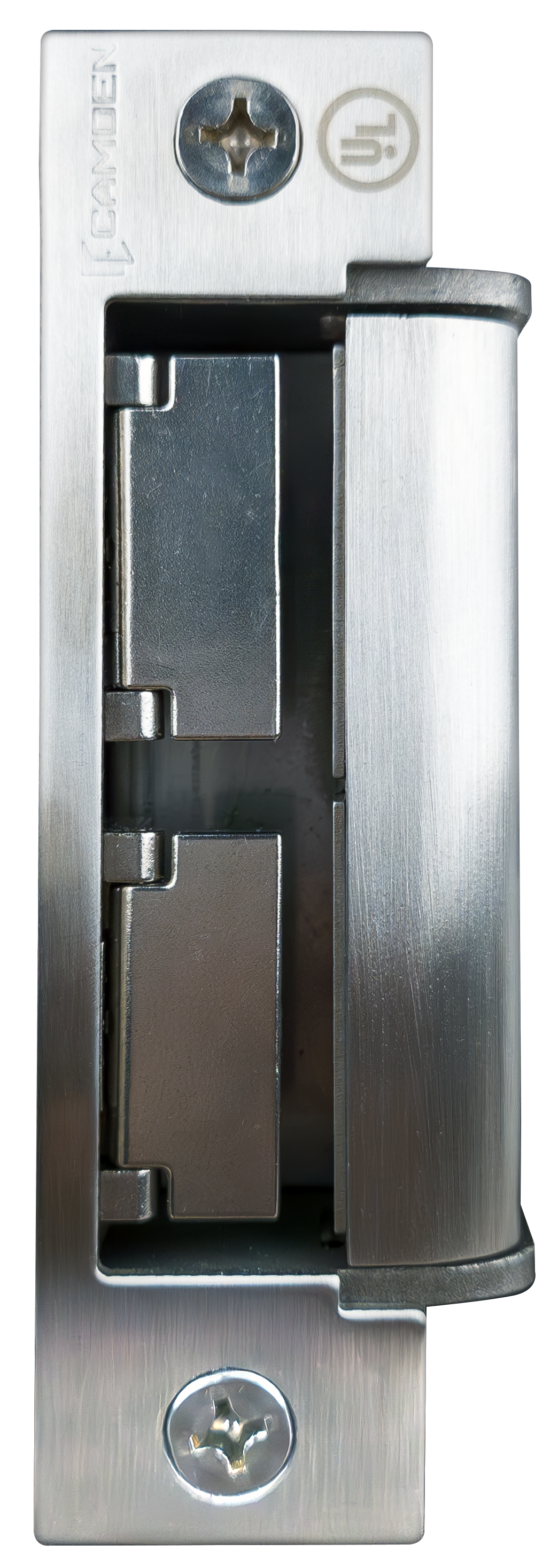

| CX-ED1799L |
png |
3.53 |
DOWNLOAD
|
| CX-ED1799L - Angled |
png |
3.54 |
DOWNLOAD
|
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|

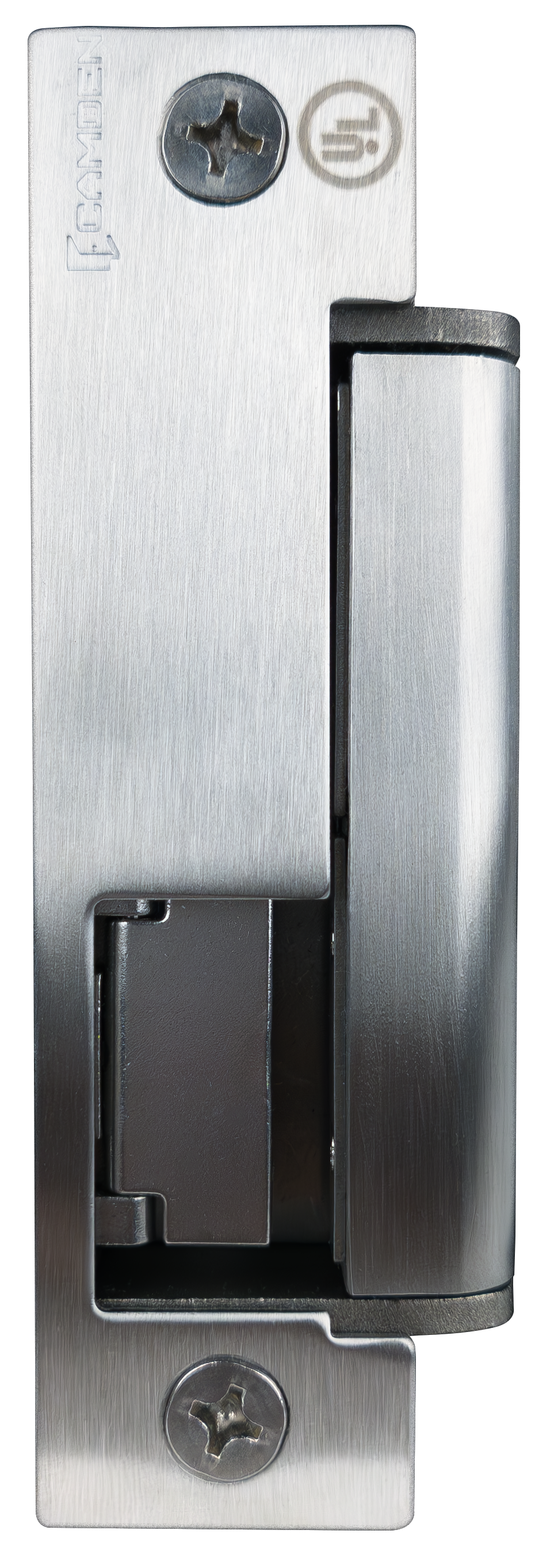

CX-ED1689L
Low profile strike body with (1) latch monitor switch Mortise strike low profile body only
EDI DATA, APPROVALS
|
|
Low profile strike body with (1) latch monitor switch Mortise strike low profile body only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10.5"L x 3.25"W x 2.25"H
Weight: 1.9lbs.
UPC:670454219602
|
|

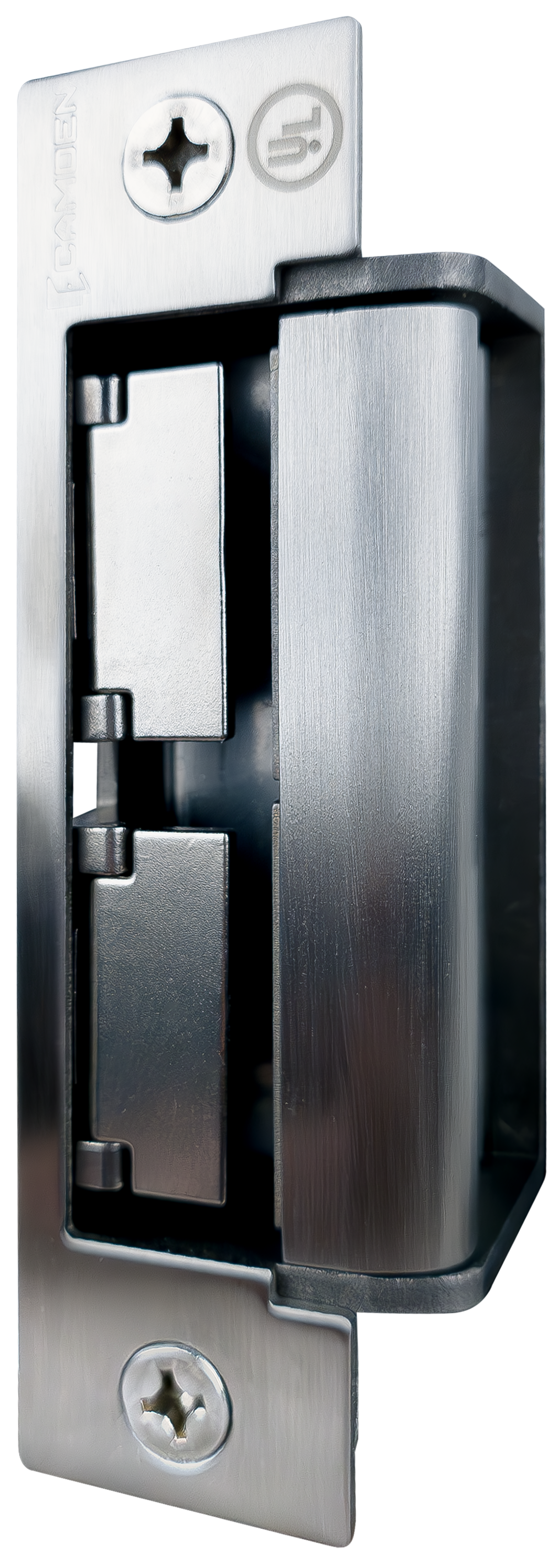

CX-ED1799L
Dual monitor strike body with (2) monitor switches mortise strike body only
EDI DATA, APPROVALS
|
|
Dual monitor strike body with (2) monitor switches mortise strike body only
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10.5"L x 3.25"W x 2.25"H
Weight: 1.9lbs.
UPC:670454219619
|
| |
Faceplate Packs
click to expand section
|
|
Net Cost
|
|
|

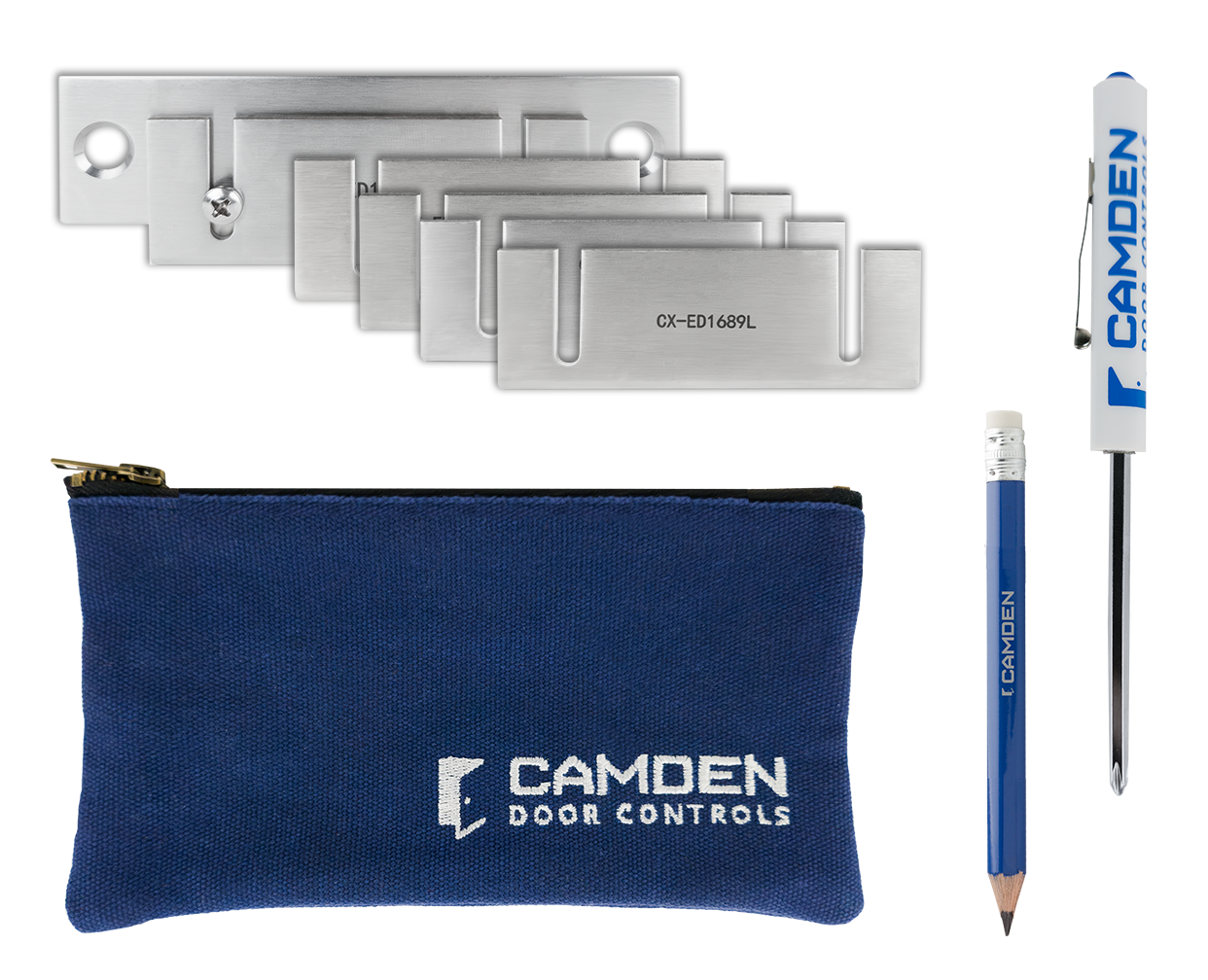

CX-ED1689L-4
Low profile strike body with (1) latch monitor switch comes with 4 faceplates for latch bolts Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400
EDI DATA, APPROVALS
|
|
Low profile strike body with (1) latch monitor switch comes with 4 faceplates for latch bolts Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10.5"L x 3.25"W x 2.25"H
Weight: 1.9lbs.
UPC:670454219626
|
|
|
CX-ED1799L-8
Dual monitor strike body with (2) monitor switches comes with 8 faceplates. Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400, CX-EMP110, CX-EMP210, CX-EMP310, CX-EMP410
EDI DATA, APPROVALS
|
|
Dual monitor strike body with (2) monitor switches comes with 8 faceplates. Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400, CX-EMP110, CX-EMP210, CX-EMP310, CX-EMP410
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10.5"L x 3.25"W x 2.25"H
Weight: 1.9lbs.
UPC:670454219633
|
| |
|
|
FACEPLATE OPTIONS
|
|
|
Click to expand section
|
|
|
 |
| ELECTRIC STRIKE OPTIONS |
|
| Metal Door Frame Stainless Steel Faceplates |
|
Net Cost |
|
|

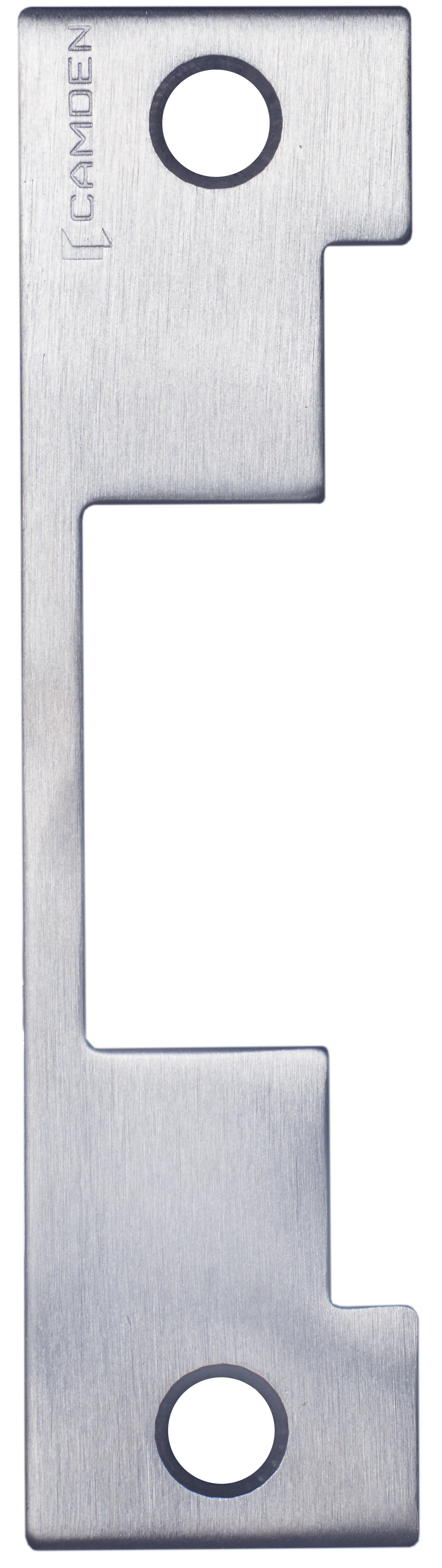

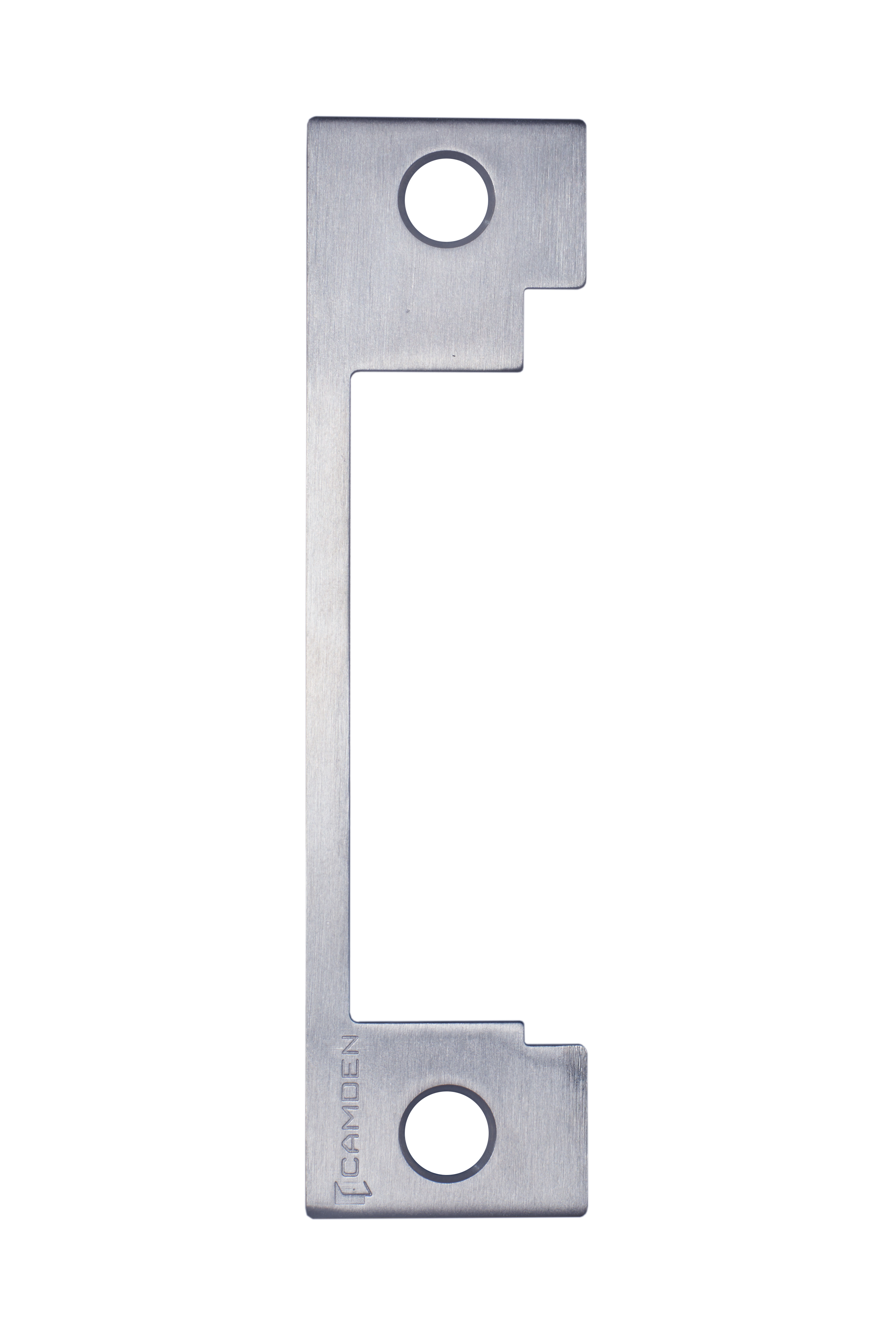

CX-EMP100
'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
|
'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
|
|
|
|
|
CX-EMP110
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
|
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
|
|
|
|
|

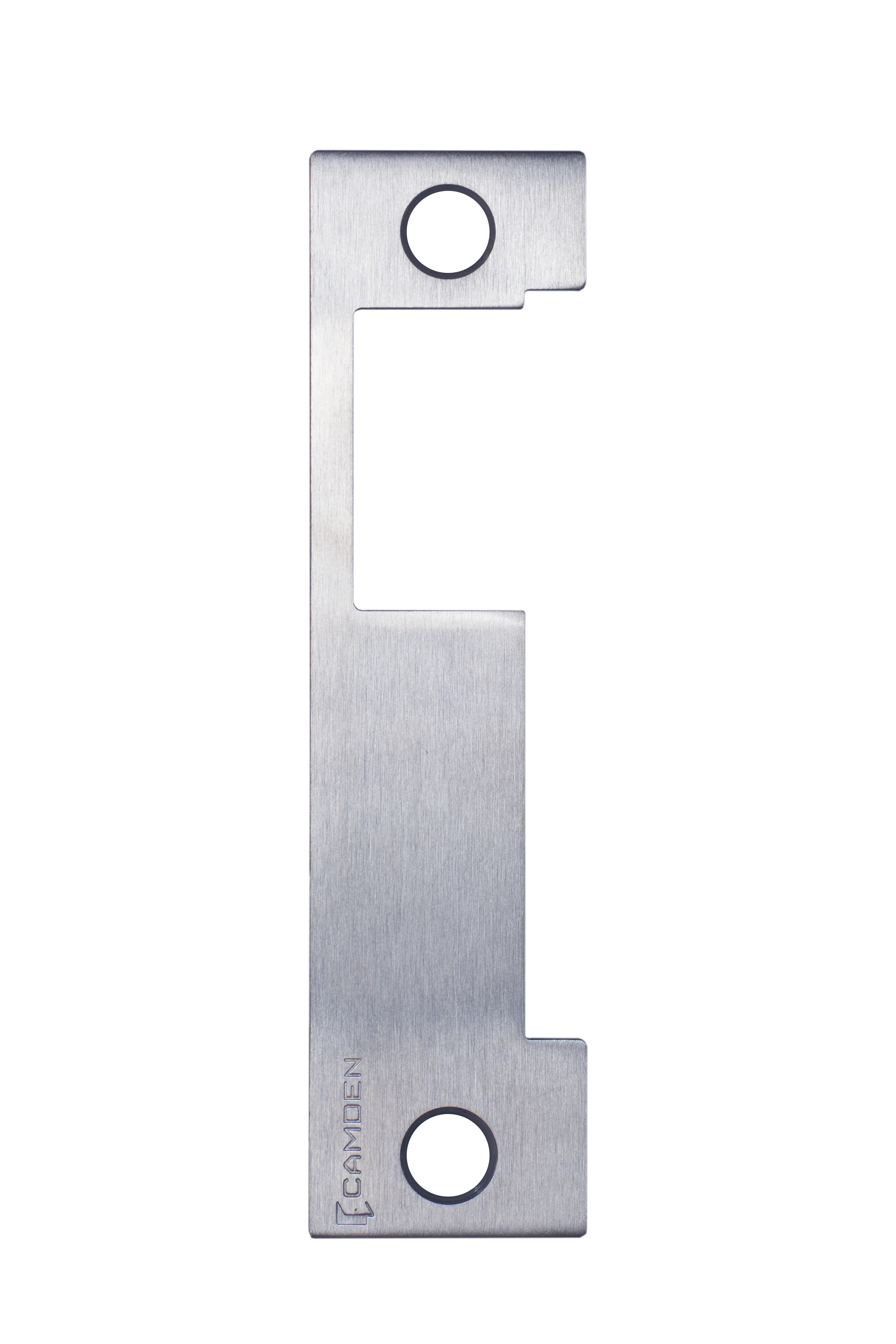

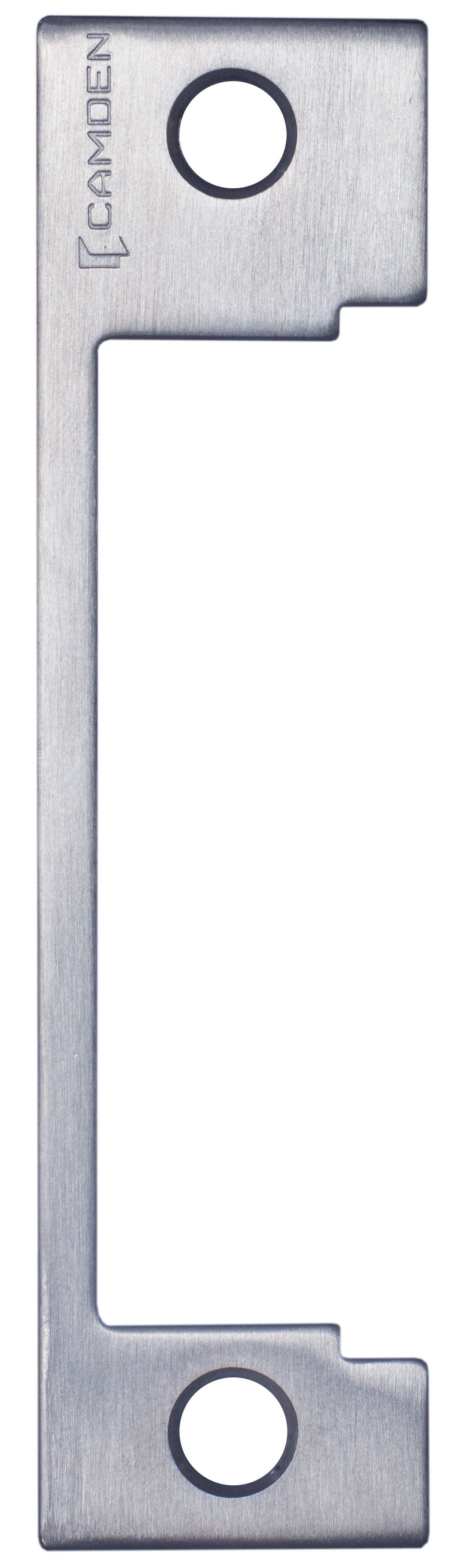

CX-EMP200
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
|
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
|
|
|
|
|
CX-EMP210
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
|
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
|
|
|
|
|
CX-EMP300
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
|
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
|
|
|
|
|
CX-EMP310
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
|
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
|
|
|
|
|
CX-EMP400
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
|
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
|
|
|
|
|

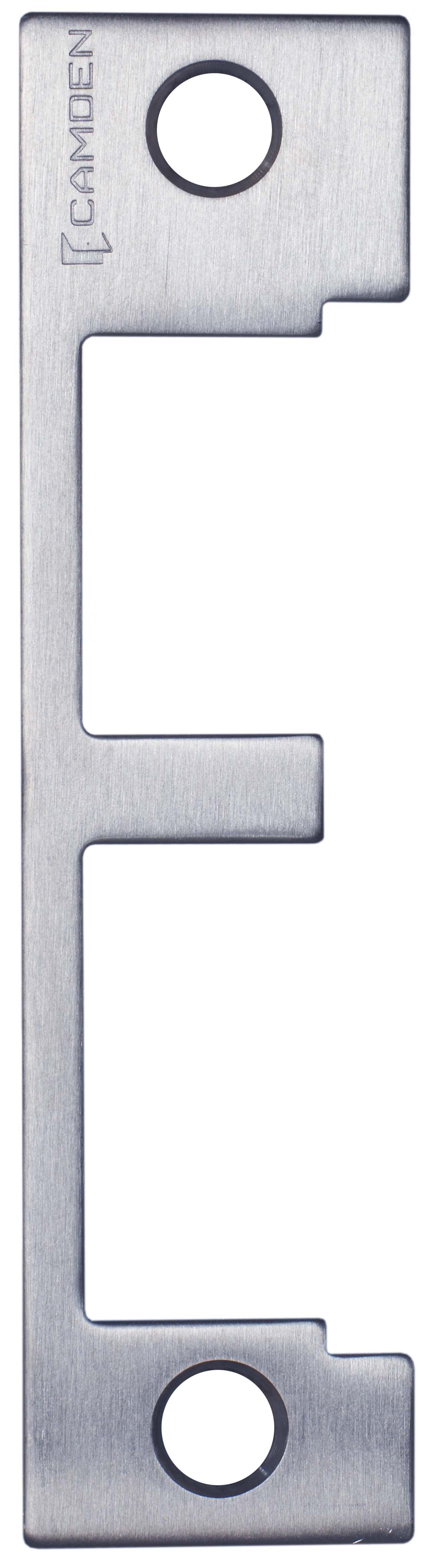

CX-EMP410
'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
|
'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
|
|
|
| Metal Door Frame All-Black Faceplates (BHMA 622, US19) |
|
Net Cost |
|
|
CX-EMP100-BK
'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
|
'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
|
|
|
|
|
CX-EMP110-BK
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
|
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
|
|
|
|
|
CX-EMP200-BK
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
|
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
|
|
|
|
|
CX-EMP210-BK
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
|
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
|
|
|
|
|
CX-EMP300-BK
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
|
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
|
|
|
|
|
CX-EMP310-BK
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
|
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
|
|
|
|
|
CX-EMP400-BK
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
|
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
|
|
|
|
|
CX-EMP410-BK
'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
|
'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
|
|
|
| Wood Door Frame Stainless Steel Faceplates |
|
Net Cost |
|
|
CX-EMP100W
Wood frames, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
|
Wood frames, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
|
|
|
|
|
CX-EMP110W
Wood frames, center line applications. Compatible with all cylindrical locksets
|
Wood frames, center line applications. Compatible with all cylindrical locksets
|
|
|
|
|

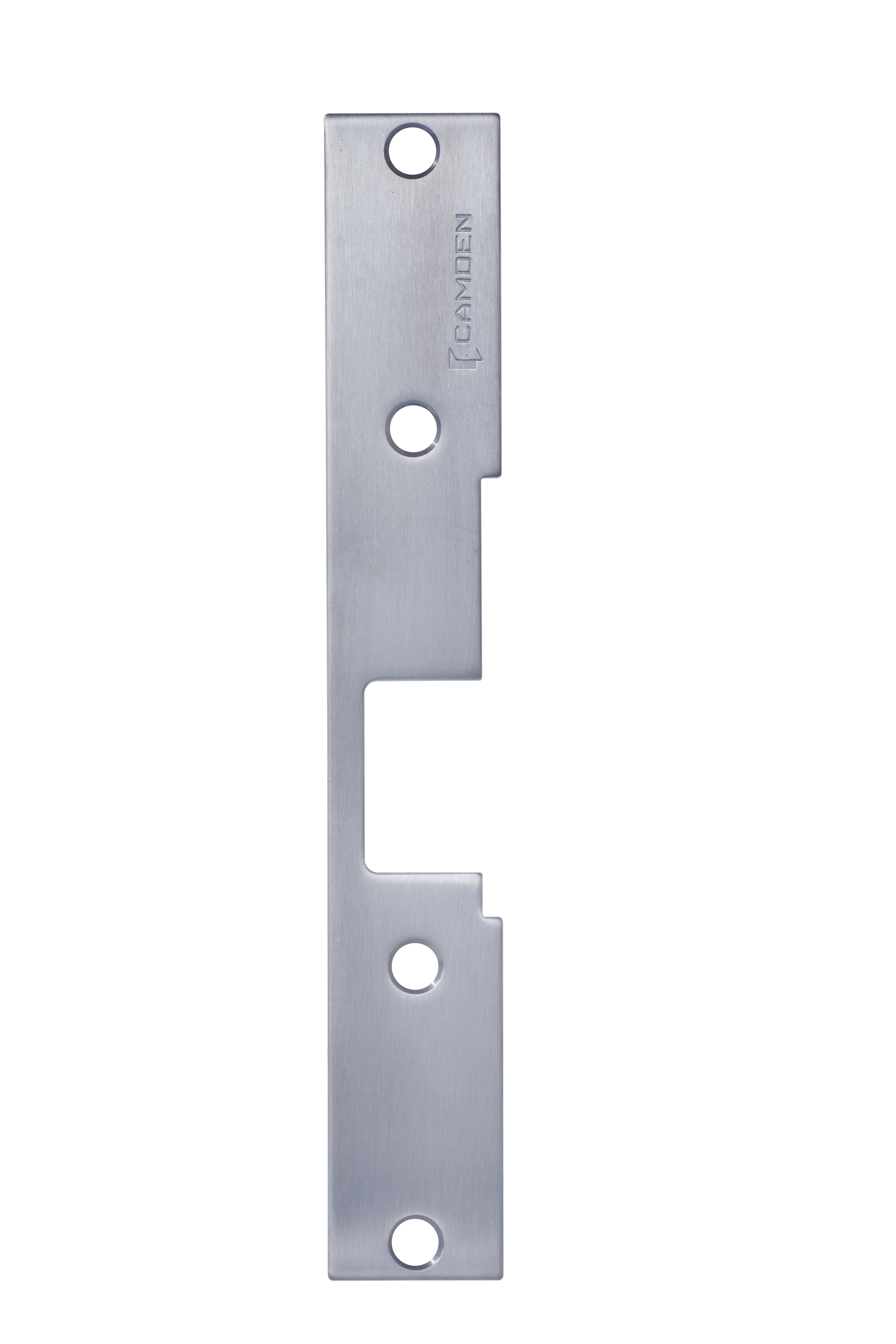

CX-EMP400W
