CM-4000/4100

1-5/8" Pushbutton, Aluminum Faceplate

ADA Compliant UL 294 Compliant
< Mushroom Push Buttons

CM-4000/4100

1-5/8" Pushbutton, Aluminum Faceplate

Catalog Menu BROWSE

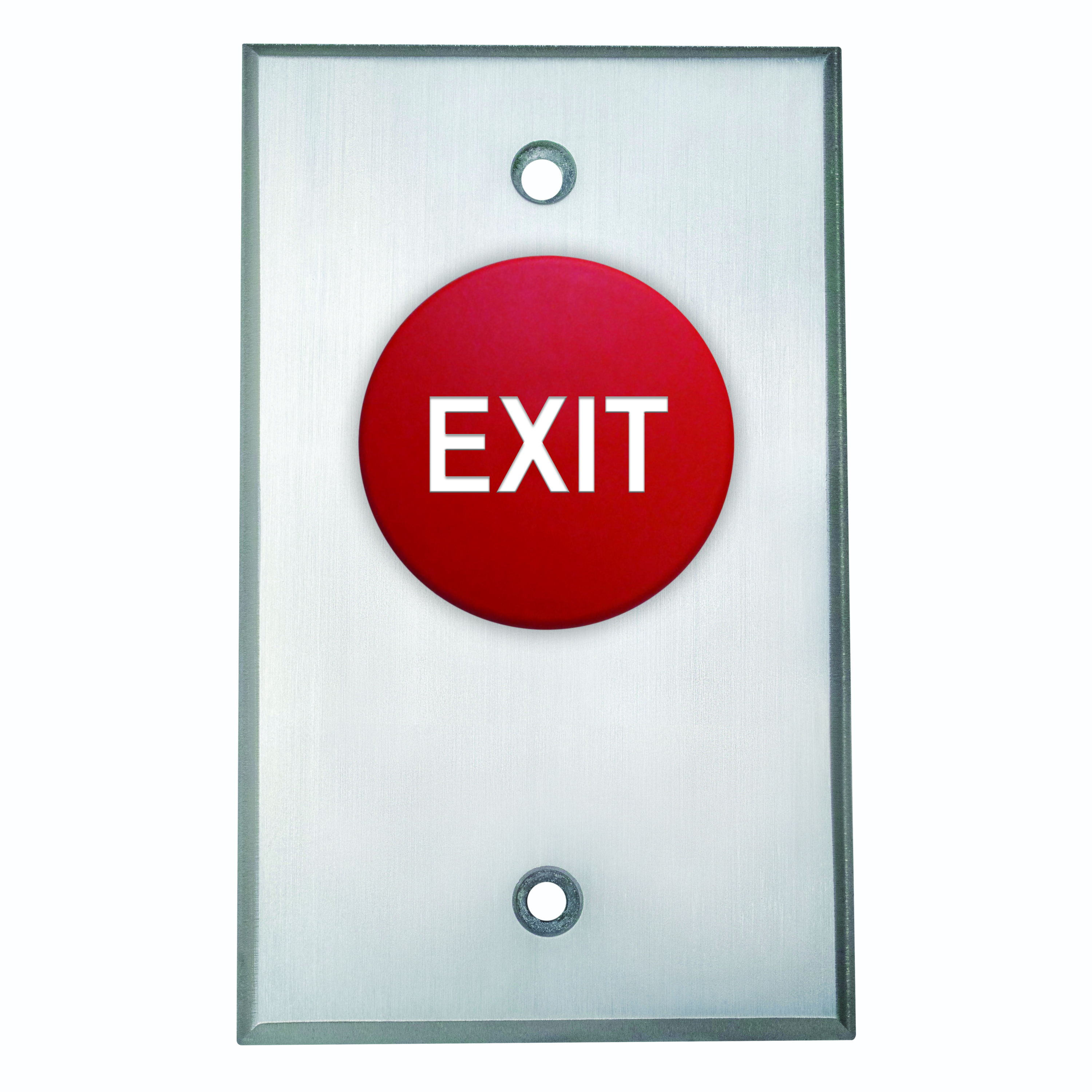

CM-4000RE, Single Gang
1-5/8" Mushroom Pushbutton with
Aluminum Faceplate
CM-4000RE, Single Gang
1-5/8" Mushroom Pushbutton with
Aluminum Faceplate

CM-4000 series mushroom push buttons feature large 1-5/8" (40mm), free-spinning buttons that are easy-to-activate. Available in red, blue, or green (black, yellow on request) and with various logos or words engraved on the button.

Faceplates are cast with heavy duty aluminum and available in single gang or narrow widths. Push button options are spring return, push/pull, and push/turn to release operation. May also be ordered with integrated pneumatic time delay. If no color is indicated, RED will be supplied.

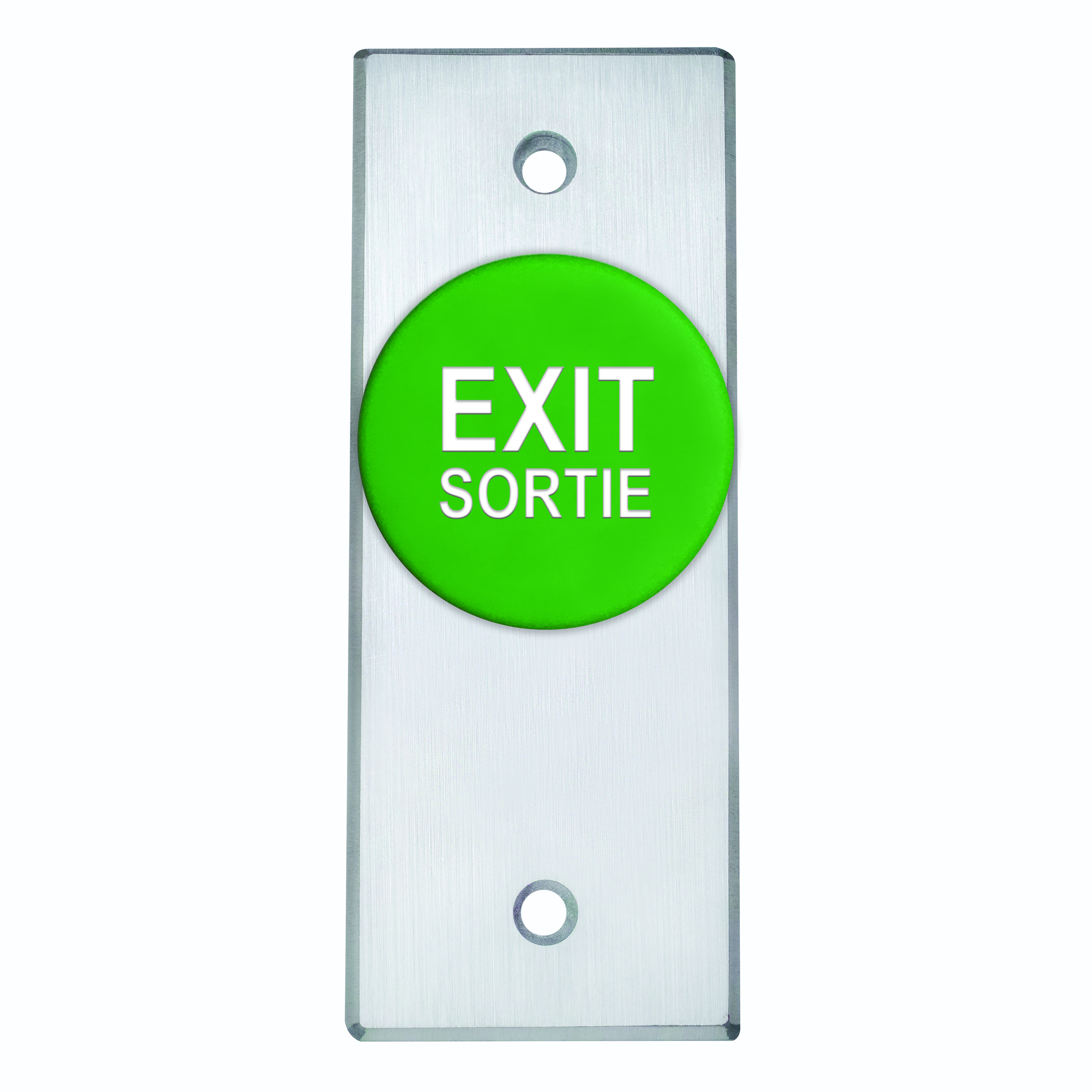

CM-4100GESA, Narrow 1 5/8" Mushroom Pushbutton w/ Aluminum Faceplate:
CM-4100GESA, Narrow 1 5/8" Mushroom Pushbutton w/ Aluminum Faceplate
CM-CPC1 Flush mount weather and vandal resistant cover available for single gang models:
CM-CPC1 Flush mount weather and vandal resistant cover available for single gang models

COMPETITIVE MODELS
CM-4000RE, Single Gang
1-5/8" Mushroom Pushbutton with
Aluminum Faceplate
CM-4000RE, Single Gang
1-5/8" Mushroom Pushbutton with
Aluminum Faceplate

CM-4000 series mushroom push buttons feature large 1-5/8" (40mm), free-spinning buttons that are easy-to-activate. Available in red, blue, or green (black, yellow on request) and with various logos or words engraved on the button.

Faceplates are cast with heavy duty aluminum and available in single gang or narrow widths. Push button options are spring return, push/pull, and push/turn to release operation. May also be ordered with integrated pneumatic time delay. If no color is indicated, RED will be supplied.
CM-4100GESA, Narrow 1 5/8" Mushroom Pushbutton w/ Aluminum Faceplate:
CM-4100GESA, Narrow 1 5/8" Mushroom Pushbutton w/ Aluminum Faceplate
CM-CPC1 Flush mount weather and vandal resistant cover available for single gang models:
CM-CPC1 Flush mount weather and vandal resistant cover available for single gang models

COMPETITIVE MODELS
FEATURES SPECIFICATIONS RESOURCES
MODELS
Click to configure switch model Pricing Wizard
Single Gang Faceplate
CM-4000: CM-4000/4100:1-5/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons CM-4000: CM-4000/4100:1-5/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons
CM-4000
Spring Return, N/O, Momentary (ADA)
EDI DATA, APPROVALS
Spring Return, N/O, Momentary (ADA)
EDI DATA
APPROVALS


CM-4010
Spring Return, N/C, Momentary (ADA)
EDI DATA, APPROVALS
Spring Return, N/C, Momentary (ADA)
EDI DATA
APPROVALS


CM-4020
Spring Return, N/O & N/C, Momentary (ADA)
EDI DATA, APPROVALS
Spring Return, N/O & N/C, Momentary (ADA)
EDI DATA
APPROVALS


CM-4085
Spring Return, DPST 1-60 sec Pneumatic Timer (ADA)
EDI DATA, APPROVALS
Spring Return, DPST 1-60 sec Pneumatic Timer (ADA)
EDI DATA
APPROVALS


CM-4085RPTE: CM-4000/4100:1-5/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons CM-4085RPTE: CM-4000/4100:1-5/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons

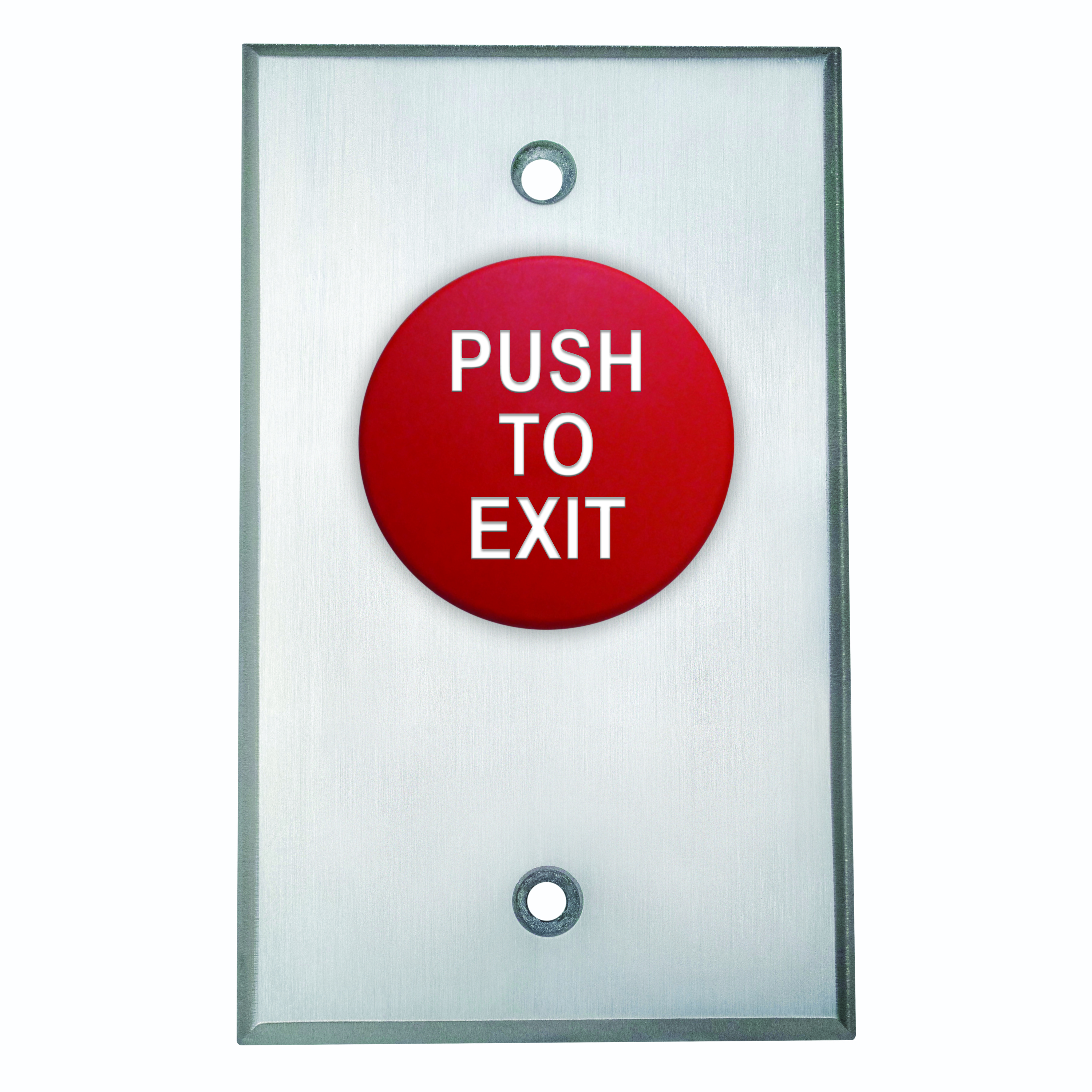

CM-4085RPTE
Spring Return, DPST 1-60 sec Pneumatic Timer, Red Button, 'PUSH TO EXIT' Engraved on button. Complete model. No 'Options or Finishes' available for this model.
EDI DATA, APPROVALS
Spring Return, DPST 1-60 sec Pneumatic Timer, Red Button, 'PUSH TO EXIT' Engraved on button. Complete model. No 'Options or Finishes' available for this model.
EDI DATA
APPROVALS


CM-4030
Push/Pull, N/O, Maintained, Red Only
EDI DATA, APPROVALS
Push/Pull, N/O, Maintained, Red Only
EDI DATA
APPROVALS


CM-4040
Push/Pull, N/C, Maintained, Red Only
EDI DATA, APPROVALS
Push/Pull, N/C, Maintained, Red Only
EDI DATA
APPROVALS


CM-4050
Push/Pull, N/O & N/C, Maintained, Red Only
EDI DATA, APPROVALS
Push/Pull, N/O & N/C, Maintained, Red Only
EDI DATA
APPROVALS



Narrow Faceplate
CM-4100: CM-4000/4100:1-5/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons CM-4100: CM-4000/4100:1-5/8" Pushbutton, Aluminum Faceplate - Mushroom Push Buttons
CM-4100
Spring Return, N/O, Momentary
EDI DATA, APPROVALS
Spring Return, N/O, Momentary
EDI DATA
APPROVALS


CM-4110
Spring Return, N/C, Momentary
EDI DATA, APPROVALS
Spring Return, N/C, Momentary
EDI DATA
APPROVALS


CM-4120
Spring Return, N/O & N/C, Momentary
EDI DATA, APPROVALS
Spring Return, N/O & N/C, Momentary
EDI DATA
APPROVALS


CM-4185
Spring Return, DPST 1-60 sec Pneumatic Time Delay
EDI DATA, APPROVALS
Spring Return, DPST 1-60 sec Pneumatic Time Delay
EDI DATA
APPROVALS


CM-4130
Push/Pull, N/O, Maintained, Red Only
EDI DATA, APPROVALS
Push/Pull, N/O, Maintained, Red Only
EDI DATA
APPROVALS


CM-4140
Push/Pull, N/C, Maintained, Red Only
EDI DATA, APPROVALS
Push/Pull, N/C, Maintained, Red Only
EDI DATA
APPROVALS


CM-4150
Push/Pull, N/O & N/C, Maintained, Red Only
EDI DATA, APPROVALS
Push/Pull, N/O & N/C, Maintained, Red Only
EDI DATA
APPROVALS
