| CX-ED1079 with 3 Faceplates (CX-ESP1B, CX-ESP3B, & CX-ESP4B) |
CX-ED1079 with 3 Faceplates (CX-ESP1B, CX-ESP3B, & CX-ESP4B)
|

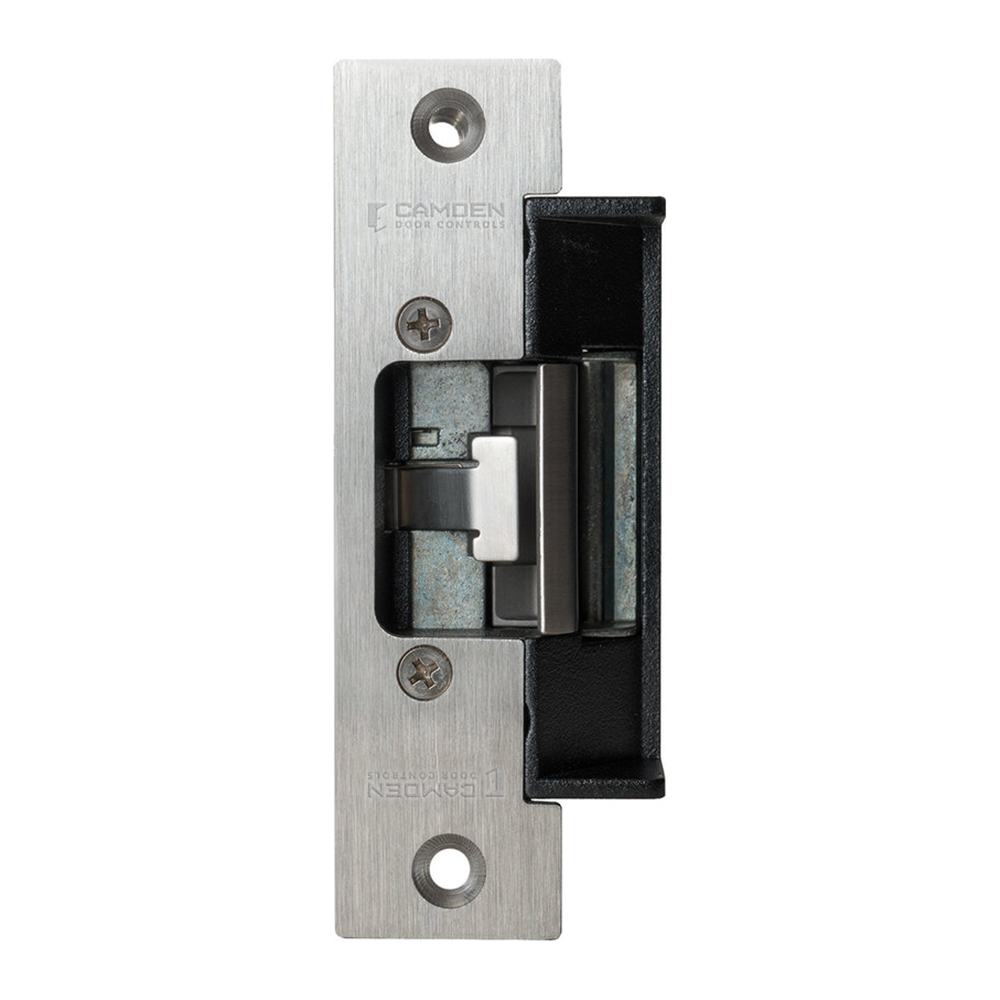

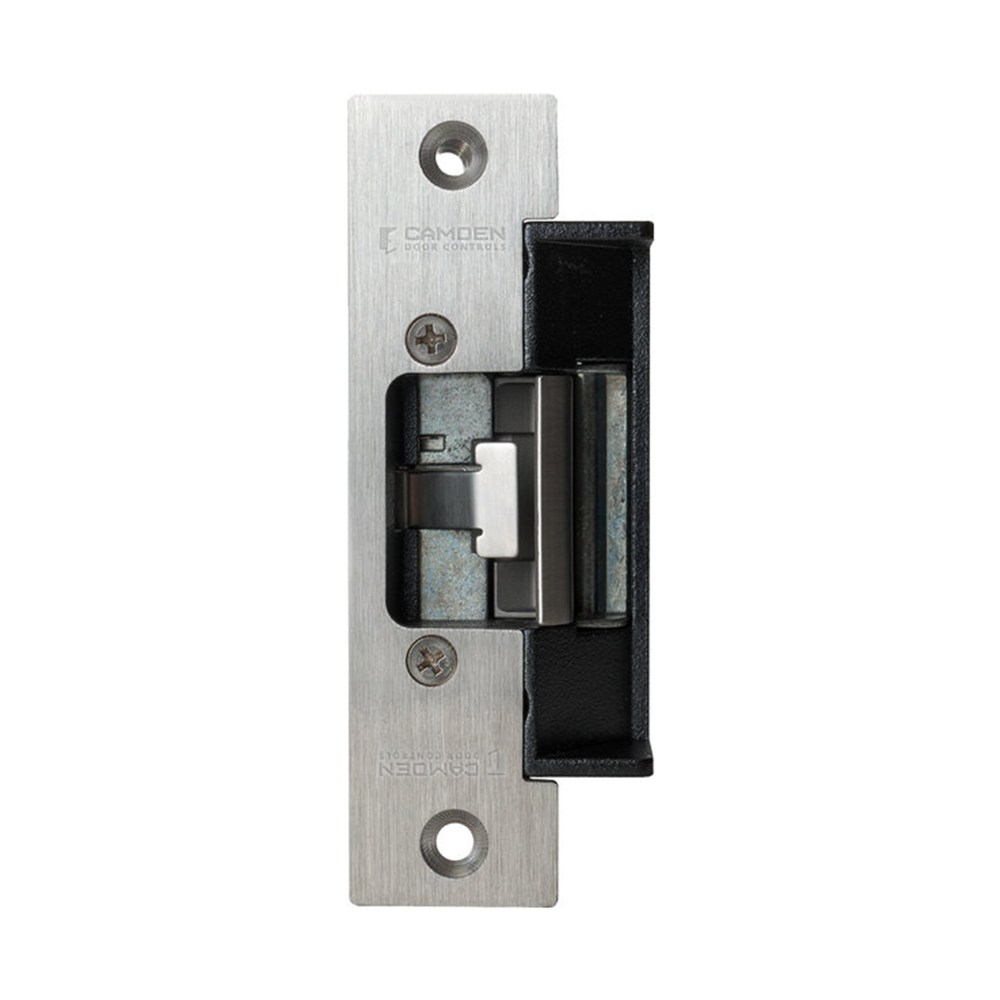

The CX-ED1079 (low profile, for 5/8" latch projection) and CX-ED1079D (standard depth, for 3/4" latch projection) 'Universal' grade 1 ANSI strikes offer 'Universal' performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and have horizontal faceplate/body adjustment. |
|
|
|
|
|
CX-ED1079 Installation Video
|
[ X ] |
|
|
|
|
| CX-ED1079 Installation Video |
|
|
|
| Product Line Overview Presentation |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
L65U
|
CX-ED1079
|
|
|
S65U
|
CX-ED1079D
|
|
HES
|
5000
|
CX-ED1079
|
|
|
5200
|
CX-ED1079D
|
|
Locknetics
|
CS-750
|
CX-ED1079D
|
|
|
CS450-LBM-32D
|
CX-ED1079
|
|
Trine
|
4200
|
CX-ED1079D
|
|
Von Duprin
|
4200
|
CX-ED1079
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
Grade 1 ANSI Strike
-
Centerline latch entry for cylindrical and mortise locksets.
-
Selectable 12/24V AC/DC
-
Selectable fail safe/fail secure operation
-
Horizontal adjustability of strike faceplate/body
-

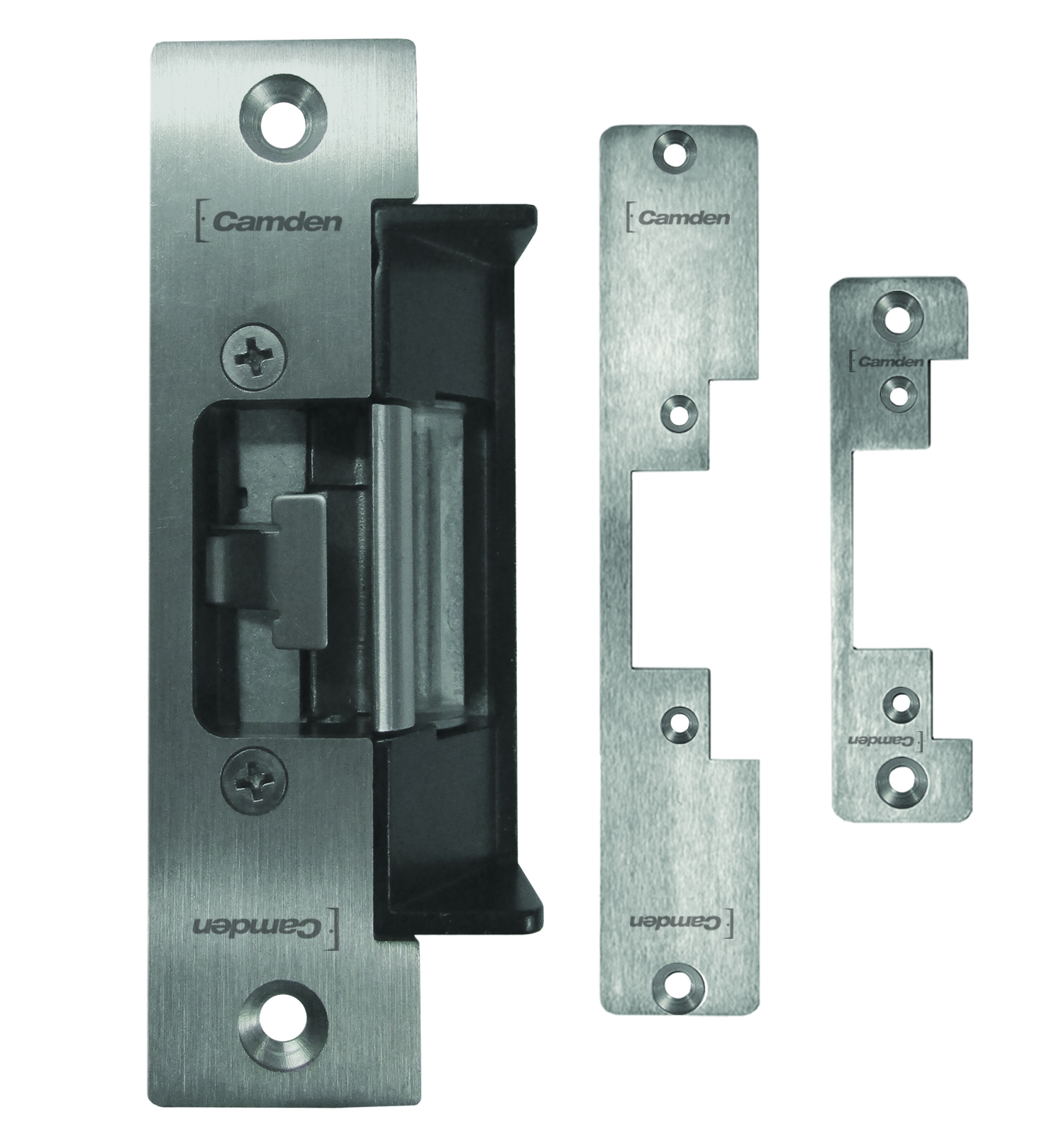

3 stainless steel faceplates included: ANSI square, hollow metal and wood door frame
-
Continuous duty operation
-
Non-handed
-
5 year warranty
-
CX-ED1079:
Low profile. 1/2" to 5/8" latch projection (throw)
-
CX-ED1079L:
Low Profile strike with latch monitoring
-
CX-ED1079D:
Std. Depth. 5/8" to 3/4" latch projection (throw)
-
CX-ED1079DL:
Standard depth strike with latch monitoring
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
260 mA @ 12 VDC
150 mA @ 24 VDC
|
| Static Strength: |
1,500 Lbs.
|
| Dynamic Strength: |
70 Ft-Lbs.
|
| Endurance: |
1,000,000 cycles (Factory Tested)
250,000 cycles (UL Verified)
|
| Mode: |
Selectable fail safe
fail secure
|
| Operation: |
AC - Buzz
DC- Silent
|
| Duty: |
Continuous
|
| Latch Monitor: |
Yes
|
| Dimensions: |
|
CX-ED1079:
|
3-3/8"H x 1-3/4"W x 1-7/32"D
(86mm x 44mm x 31mm)
|
|
CX-ED1079D:
|
3-3/8"H x 1-3/4"W x 1-3/8"D
(86mm x 44mm x 35mm)
|
| |
CX-ED1079 - ANSI Electric Strike Installation Video
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CX-ED1079
Low Profile Grade 1 'Universal' electric strike, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
EDI DATA, APPROVALS
|
|
Low Profile Grade 1 'Universal' electric strike, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC:670454193445
Country of Origin:Taiwan
|
|
CX-ED1079L
Low Profile Grade 1 'Universal' electric strike with latch monitoring, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
EDI DATA, APPROVALS
|
|
Low Profile Grade 1 'Universal' electric strike with latch monitoring, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC:670454179913
Country of Origin:Taiwan
|
|
CX-ED1079D
Standard Depth Grade 1 'Universal' electric strike, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
EDI DATA, APPROVALS
|
|
Standard Depth Grade 1 'Universal' electric strike, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC:670454193452
Country of Origin:Taiwan
|
|

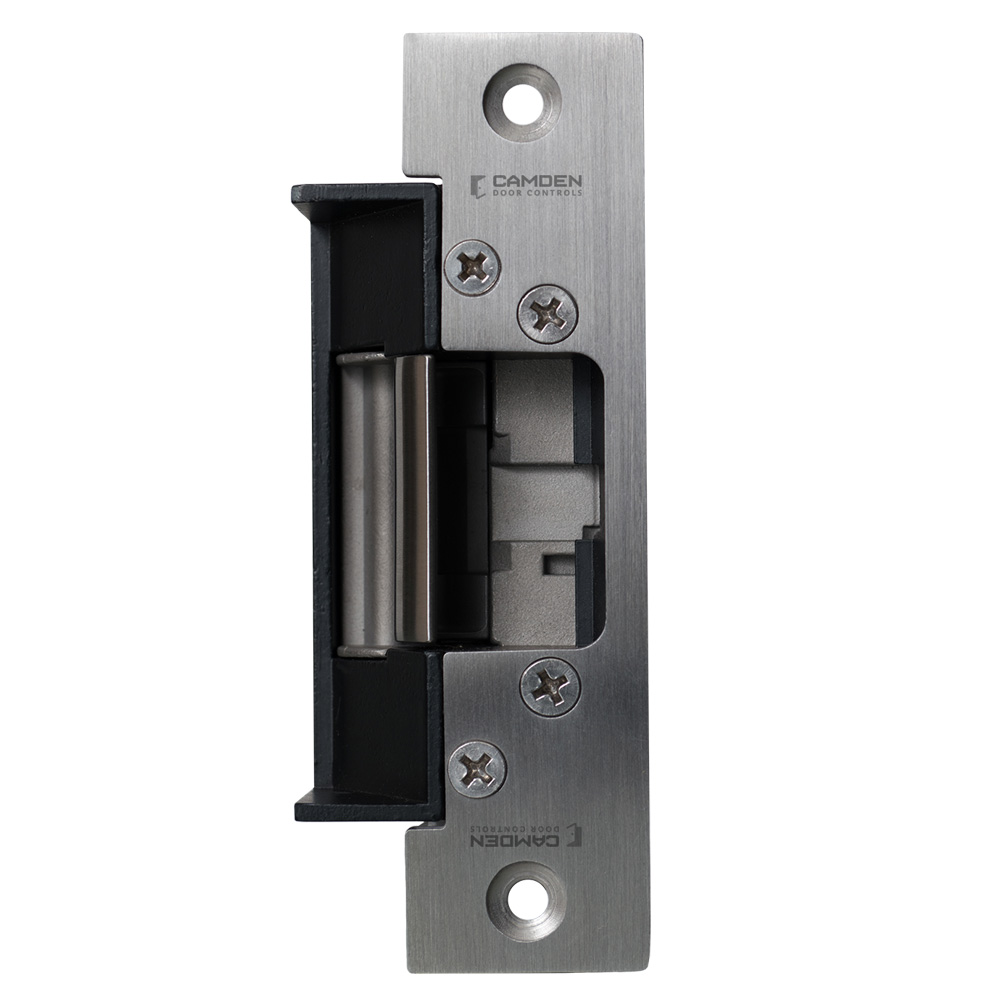

CX-ED1079DL
Standard Depth Grade 1 'Universal' electric strike with latch monitoring, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
EDI DATA, APPROVALS
|
|
Standard Depth Grade 1 'Universal' electric strike with latch monitoring, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC:670454179920
Country of Origin:Taiwan
|
| |
FACE PLATES FOR STRIKES: Included
click to expand section
|
|
Net Cost
|
|
CX-ESP1B
ANSI Square, 4 7/8" x 1 1/4", stainless steel
EDI DATA, APPROVALS
|
|
ANSI Square, 4 7/8" x 1 1/4", stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180155
Country of Origin:Taiwan
|
|
CX-ESP3B
Hollow Metal Door, 6 7/8" x 1 1/4", stainless steel
EDI DATA, APPROVALS
|
|
Hollow Metal Door, 6 7/8" x 1 1/4", stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180179
Country of Origin:Taiwan
|
|
CX-ESP4B
Wood Door, 7 15/16" x 1 7/16" , stainless steel
EDI DATA, APPROVALS
|
|
Wood Door, 7 15/16" x 1 7/16" , stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180186
Country of Origin:Taiwan
|
| |
|
Faceplate: Additional
click to expand section
|
|
Net Cost
|
|
|
CX-ESP2B
ANSI Round, 4 7/8" x 1 1/4" , stainless steel
EDI DATA, APPROVALS
|
|
ANSI Round, 4 7/8" x 1 1/4" , stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180162
Country of Origin:Taiwan
|
|
CX-ESP1B-BK
ANSI Square, 4 7/8" x 1 1/4", all-black finish
EDI DATA, APPROVALS
|
|
ANSI Square, 4 7/8" x 1 1/4", all-black finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454216755
Country of Origin:CN
|
|
CX-ESP2B-BK
ANSI Round, 4 7/8" x 1 1/4" , all-black finish
EDI DATA, APPROVALS
|
|
ANSI Round, 4 7/8" x 1 1/4" , all-black finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454216762
Country of Origin:CN
|
|
CX-ESP3B-BK
Hollow Metal Door, 6 7/8" x 1 1/4", all-black finish
EDI DATA, APPROVALS
|
|
Hollow Metal Door, 6 7/8" x 1 1/4", all-black finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454216779
Country of Origin:CN
|
|
CX-ESP4B-BK
Wood Door, 7 15/16" x 1 7/16" , all-black finish
EDI DATA, APPROVALS
|
|
Wood Door, 7 15/16" x 1 7/16" , all-black finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454216786
Country of Origin:CN
|
| |
|
Lip Extension Brackets
click to expand section
|
|
Net Cost
|
|
|
CX-ED-LIP1
1" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
EDI DATA, APPROVALS
|
|
1" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454182432
Country of Origin:Taiwan
|
|
|
CX-ED-LIP2
2" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
EDI DATA, APPROVALS
|
|
2" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454182449
Country of Origin:Taiwan
|
| |
|
Marking Templates
click to expand section
|
|
Net Cost
|
|

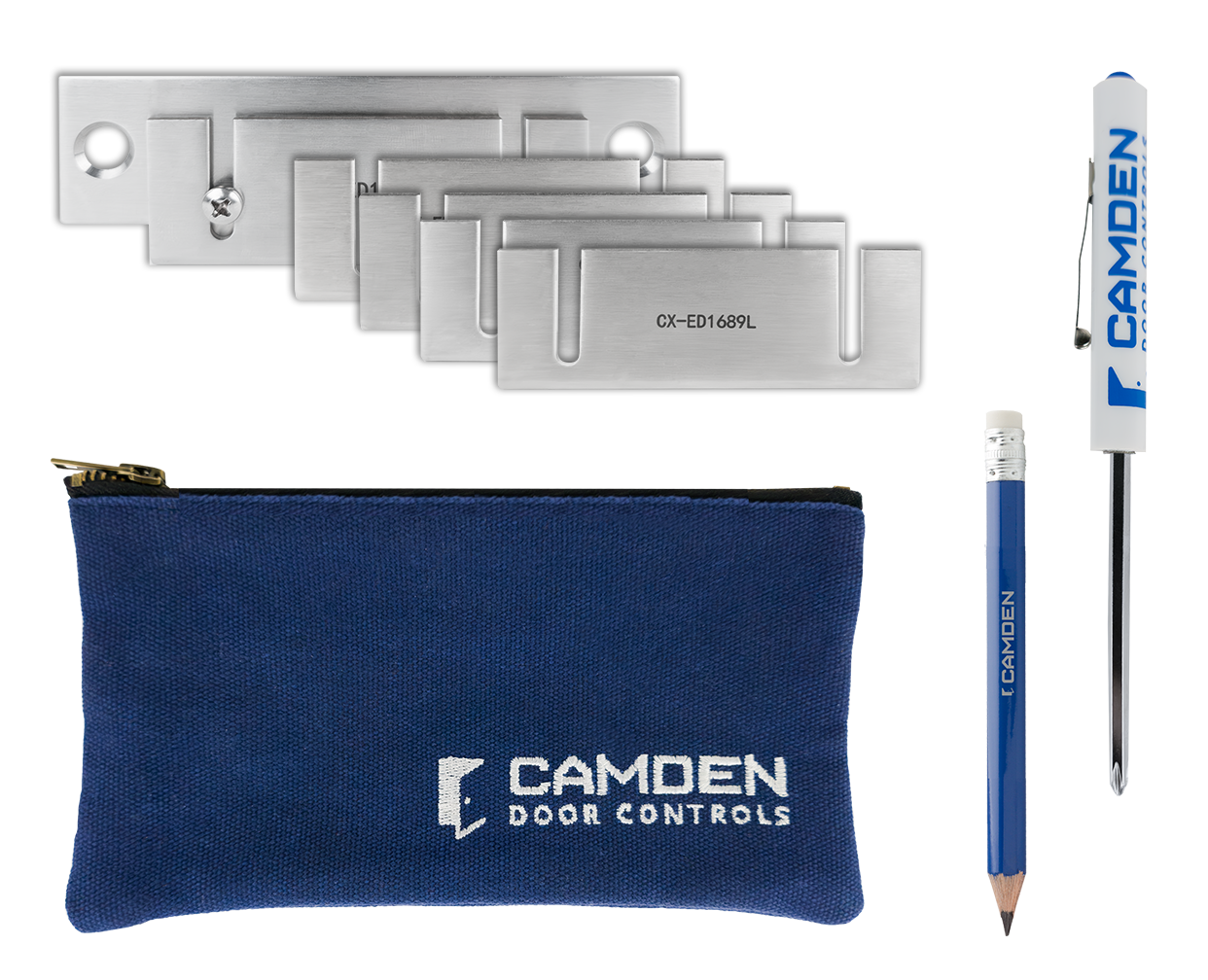

CX-STR-TMPKIT
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
EDI DATA, APPROVALS
|
|
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 4.5"W x 1.5"H
Weight: .85lbs.
UPC:670454222039
Country of Origin:Taiwan
|
| |
|
