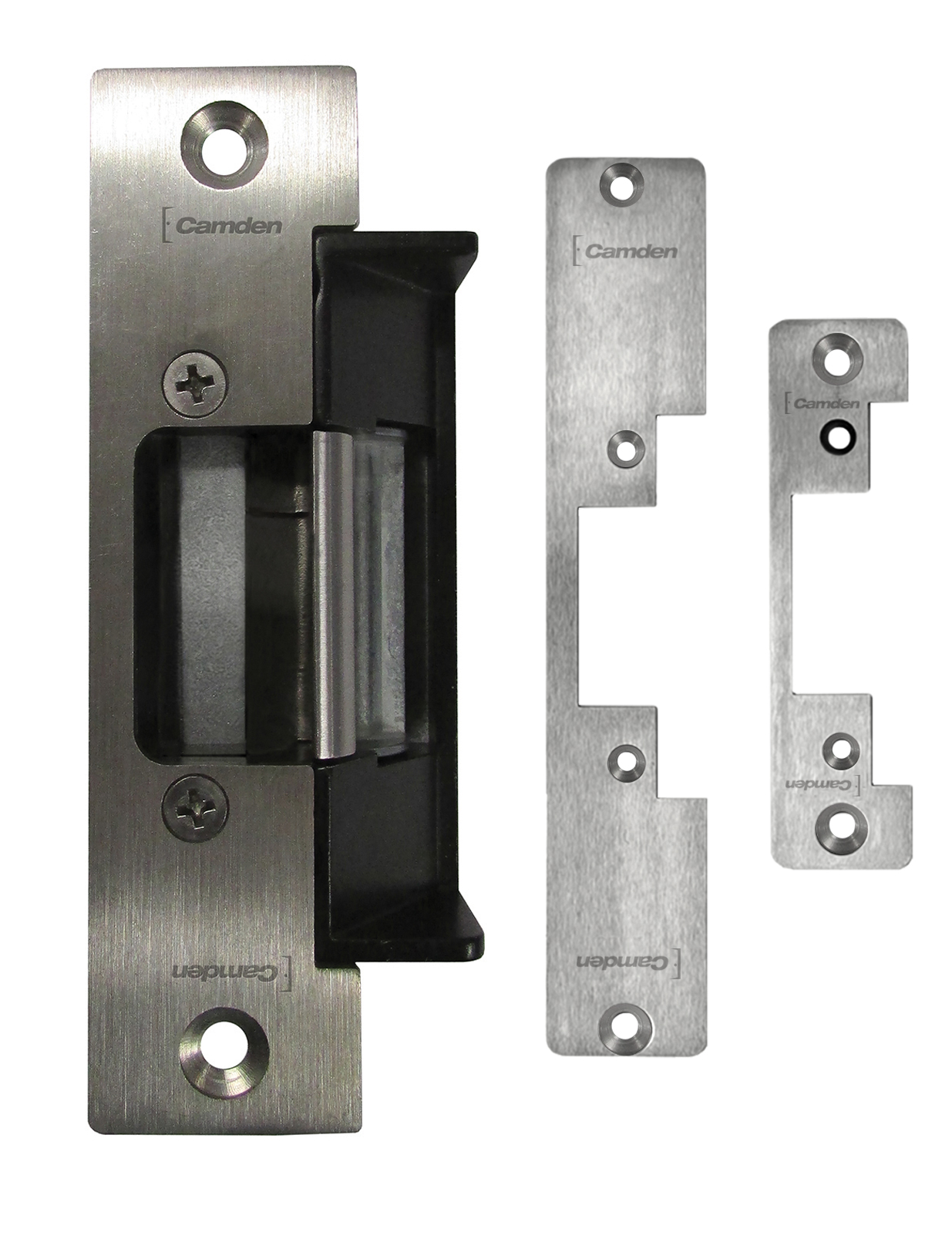

| CX-ED2079 with 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B) |
CX-ED2079 with 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B)
|
|
Camden's new CX-ED2079 low profile 'Universal' grade 2 ANSI electric strike for cylindrical locksets provides exceptional value with 3 faceplates, and selectable 12/24V AC/DC voltage, fail safe/fail secure operation and horizontal adjustment of the strike body. Camden's new CX-ED2071 low profile grade 2 ANSI electric strike for cylindrical locksets provides exceptional value for installations that require 8-16V AC/DC operation. CX-ED2071 includes 3 faceplates, selectable fail safe/fail secure operation and horizontal adjustment of the strike body.
|
|
|
| Product Line Overview Presentation |
|
|
|
CX-ED2079 Installation Video
|
[ X ] |
|
|
|
|
| CX-ED2079 Installation Video |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
L65U
|
|
|
Locknetics
|
CS-450
|
|
|
Trine
|
4200
|
|
|
Von Duprin
|
5100
|
|
|
|
| CX-ED2079 with 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B) |
CX-ED2079 with 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B)
|
Camden's new CX-ED2079 low profile 'Universal' grade 2 ANSI electric strike for cylindrical locksets provides exceptional value with 3 faceplates, and selectable 12/24V AC/DC voltage, fail safe/fail secure operation and horizontal adjustment of the strike body. Camden's new CX-ED2071 low profile grade 2 ANSI electric strike for cylindrical locksets provides exceptional value for installations that require 8-16V AC/DC operation. CX-ED2071 includes 3 faceplates, selectable fail safe/fail secure operation and horizontal adjustment of the strike body. |
|
|
|
|
|
|
| Product Line Overview Presentation |
|
|
|
CX-ED2079 Installation Video
|
[ X ] |
|
|
|
|
| CX-ED2079 Installation Video |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
L65U
|
|
|
Locknetics
|
CS-450
|
|
|
Trine
|
4200
|
|
|
Von Duprin
|
5100
|
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
Centerline latch entry for cylindrical locksets, 1/2" to 5/8" latch projection
-
Selectable fail safe/fail secure operation
-
Horizontal adjustibility of strike body
-
Low profile strike body
-
5 year warranty
-
CX-ED2079:
(3) Stainless steel faceplates included
-
CX-ED2079-1:
(1) ANSI Square faceplate included
-
CX-ED2071:
8-16V AC/DC
| Voltage: |
|
CX-ED2079:
|
12/24V AC/DC
|
|
CX-ED2071:
|
8-16V AC/DC
|
| |
| Current Draw: |
|
CX-ED2079:
|
300 mA @ 12 VDC,150 mA @ 24 VDC
|
|
CX-ED2071:
|
305 mA @ 8 VDC, 625 mA @ 16 VDC
190 mA @ 8 VAC, 460 mA @ 16 VAC
|
| |
| Static Strength: |
1000 Lbs.
|
| Dynamic Strength: |
50 Ft. Lbs.
|
| Endurance: |
|
CX-ED2071,
CX-ED2079:
|
700,000 cycles
|
|
CX-ED2079:
|
250,000 cycles (UL Verified)
|
| |
| Mode: |
Selectable fail safe
fail secure
|
| Operation: |
AC - Buzz
DC- Silent
|
| Duty: |
|
CX-ED2079:
|
Continuous
|
|
CX-ED2071:
|
Intermittent
|
| |
| Mounting: |
Non-handed
|
| Dimensions: |
3-3/8"H x 1-7/8"W x 1-7/32"D
(86mm x 47mm x 31mm)
|
CX-ED2079 Installation Video
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CX-ED2079
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B)
EDI DATA, APPROVALS
|
|
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC:670454179395
|
|
CX-ED2079-1
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 1 stainless steel ANSI square faceplate (CX-ESP1B)
EDI DATA, APPROVALS
|
|
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 1 stainless steel ANSI square faceplate (CX-ESP1B)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.5"W x 2.25"H
Weight: 1.25lbs.
UPC:670454191052
|
|
CX-ED2071
'Universal' electric strike, 8-16V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B)
EDI DATA, APPROVALS
|
|
'Universal' electric strike, 8-16V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.5"W x 2.25"H
Weight: 1.25lbs.
UPC:670454184092
|
| |
Faceplates: Included
click to expand section
|
|
Net Cost
|
|
CX-ESP1B
ANSI Square, 4 7/8" x 1 1/4", stainless steel
EDI DATA, APPROVALS
|
|
ANSI Square, 4 7/8" x 1 1/4", stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180155
|
|
CX-ESP3B
Hollow Metal Door, 6 7/8" x 1 1/4", stainless steel
EDI DATA, APPROVALS
|
|
Hollow Metal Door, 6 7/8" x 1 1/4", stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180179
|
|
CX-ESP4B
Wood Door, 7 15/16" x 1 7/16" , stainless steel
EDI DATA, APPROVALS
|
|
Wood Door, 7 15/16" x 1 7/16" , stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180186
|
| |
|
Faceplate: Additional
click to expand section
|
|
Net Cost
|
|
|
CX-ESP2B
ANSI Round, 4 7/8" x 1 1/4", stainless steel
EDI DATA, APPROVALS
|
|
ANSI Round, 4 7/8" x 1 1/4", stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454180162
|
|
CX-ESP1B-BK
ANSI Square, 4 7/8" x 1 1/4", all-black finish (BHMA 622, US19)
EDI DATA, APPROVALS
|
|
ANSI Square, 4 7/8" x 1 1/4", all-black finish (BHMA 622, US19)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454216755
|
|
CX-ESP2B-BK
ANSI Round, 4 7/8" x 1 1/4", all-black finish (BHMA 622, US19)
EDI DATA, APPROVALS
|
|
ANSI Round, 4 7/8" x 1 1/4", all-black finish (BHMA 622, US19)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454216762
|
|
CX-ESP3B-BK
Hollow Metal Door, 6 7/8" x 1 1/4", all-black finish (BHMA 622, US19)
EDI DATA, APPROVALS
|
|
Hollow Metal Door, 6 7/8" x 1 1/4", all-black finish (BHMA 622, US19)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454216779
|
|
CX-ESP4B-BK
Wood Door, 7 15/16" x 1 7/16" , all-black finish (BHMA 622, US19)
EDI DATA, APPROVALS
|
|
Wood Door, 7 15/16" x 1 7/16" , all-black finish (BHMA 622, US19)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454216786
|
| |
|
Lip Extension Brackets
click to expand section
|
|
Net Cost
|
|
|
CX-ED-LIP1
1" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
EDI DATA, APPROVALS
|
|
1" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454182432
|
|
|
CX-ED-LIP2
2" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
EDI DATA, APPROVALS
|
|
2" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454182449
|
| |
|
Cutting Jigs
click to expand section
|
|
Net Cost
|
|
CX-JIG1
Router Cutting Jig For CX-ED2079 Strike, ANSI Round faceplate (CX-ESP2B), 1/4"” Collet and a 1/8” Router bit
EDI DATA, APPROVALS
|
|
Router Cutting Jig For CX-ED2079 Strike, ANSI Round faceplate (CX-ESP2B), 1/4"” Collet and a 1/8” Router bit
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454187963
|
|
CX-JIG2
Router Cutting Jig For CX-ED2079 and CX-ED2071 Strike, Hollow metal door faceplates (CX-ESP3B), 1/4"” Collet and a 1/8” Router bit
EDI DATA, APPROVALS
|
|
Router Cutting Jig For CX-ED2079 and CX-ED2071 Strike, Hollow metal door faceplates (CX-ESP3B), 1/4"” Collet and a 1/8” Router bit
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:670454187970
|
| |
|
Marking Templates
click to expand section
|
|
Net Cost
|
|

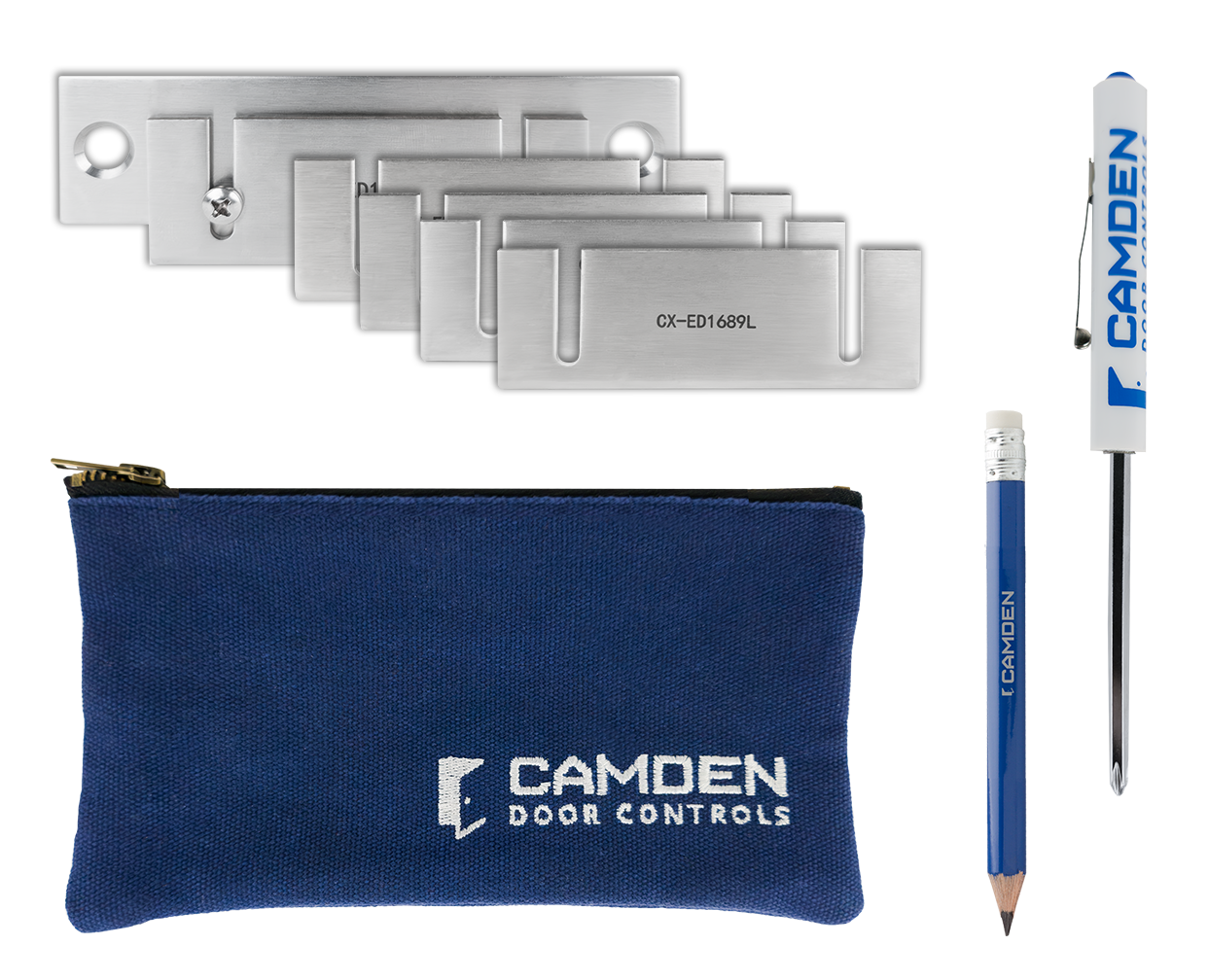

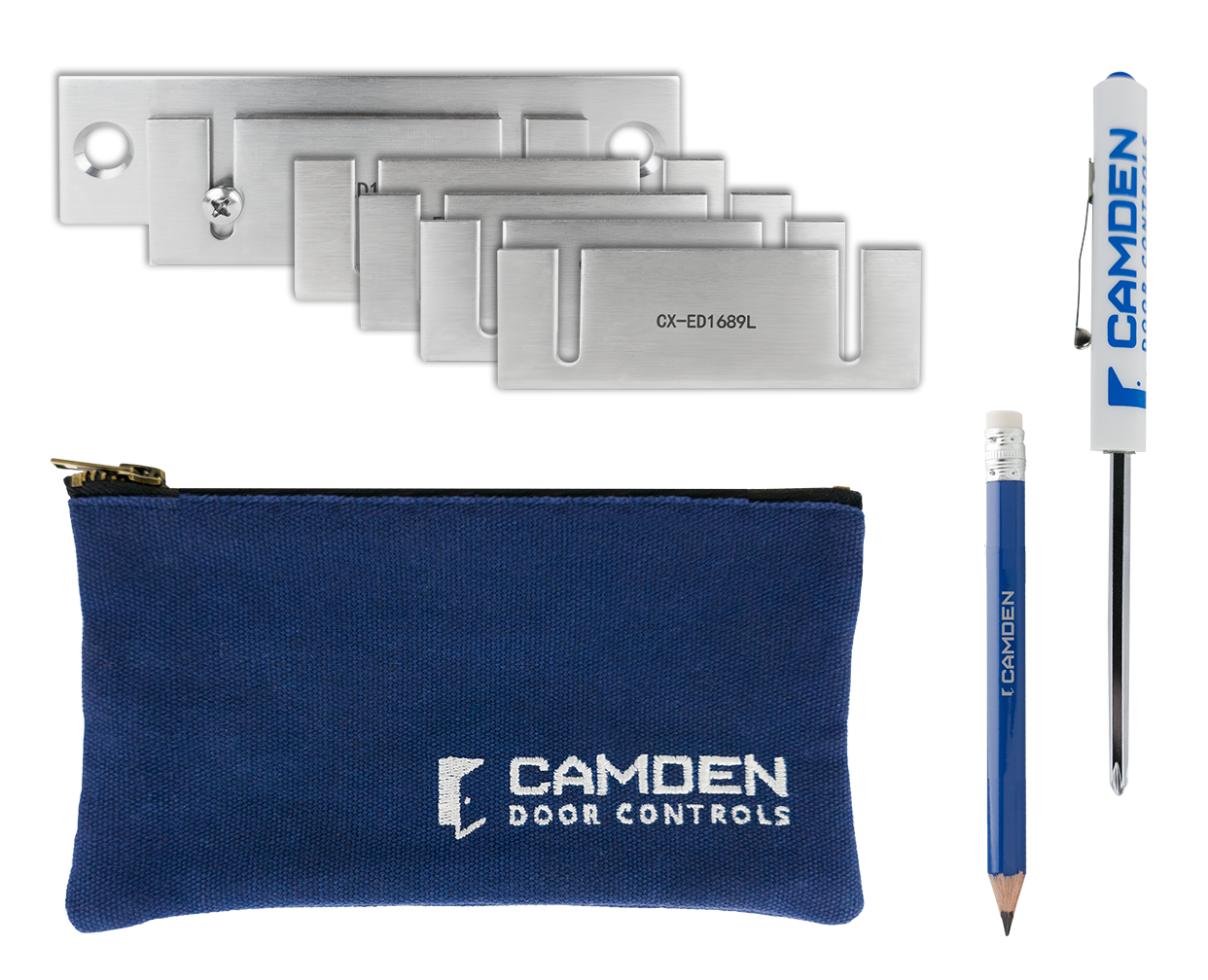

CX-STR-TMPKIT
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
EDI DATA, APPROVALS
|
|
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 4.5"W x 1.5"H
Weight: .85lbs.
UPC:670454222039
|
| |
|
