CM-RQE70A - 2018 New Product of the Year Winner
|
|
Camden's CM-RQE70A PIR 'REQUEST TO EXIT' Detectors provide the latest word in design, with a complete list of "high performance" features, including secondary activation device input, door monitoring, two relay outputs, and tamper alarm. Many new programming, installation, and set-up features that have never previously been available.
Camden started by making the CM-RQE70A smaller, so it can easily fit on door frames, and then made installing the detector faster and easier. CM-RQE70A comes with 4 factory default operating modes that can be selected with simple push buttons on the circuit board.
Have an unusual installation and need custom settings? No problem. You can use the on-board push buttons to customize the default operating modes or program your own custom operating mode. CM-RQE70A isn't just a new REX detector, it's a whole new approach to REX detector design!
|
|
|
| Programming Buttons w/ Factory Default Modes |
|
|
|
| On-Board Wiring Terminal |
|
|
|
| Sized To Fit Door Frames |
|
|
|
Market leading REX detector design makes installation easier than ever!
|
[ X ] |
|
|
|
|
| Camden’s New CM-RQE70 |
|
|
|
| Part of Our Touchless Wave Product Family |
|
| CM-RQE70A - 2018 New Product of the Year Winner |
CM-RQE70A - 2018 New Product of the Year Winner
|
Camden's CM-RQE70A PIR 'REQUEST TO EXIT' Detectors provide the latest word in design, with a complete list of "high performance" features, including secondary activation device input, door monitoring, two relay outputs, and tamper alarm. Many new programming, installation, and set-up features that have never previously been available.
Camden started by making the CM-RQE70A smaller, so it can easily fit on door frames, and then made installing the detector faster and easier. CM-RQE70A comes with 4 factory default operating modes that can be selected with simple push buttons on the circuit board.
Have an unusual installation and need custom settings? No problem. You can use the on-board push buttons to customize the default operating modes or program your own custom operating mode. CM-RQE70A isn't just a new REX detector, it's a whole new approach to REX detector design! |
|
|
|
|
|
|
| Programming Buttons w/ Factory Default Modes |
|
|
|
|
| On-Board Wiring Terminal |
|
|
|
|
| Sized To Fit Door Frames |
|
|
|
Market leading REX detector design makes installation easier than ever!
|
[ X ] |
|
|
|
|
| Camden’s New CM-RQE70 |
|
|
|
|
| Part of Our Touchless Wave Product Family |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
Compact size, designed to mount on door frames
-
Easy to use on-board programming buttons. No dip switches
-
(4) Factory default operating modes, with the ability to customize mode attributes
-
Selectable fail safe/fail secure
-
(2) Form ‘C’ contacts
-
Momentary and latching relay modes
-
Secondary activation device input
-
Card/keypad input
-
Door position switch input
-
Request to Exit input
-
Built-in sounder (adjustable)
-
Tamper switch
| Voltage: |
12/24 VDC Operation
|
| Current Draw: |
50 mA (Max)
|
| Relays: |
(2) Form ‘C’ (DPDT)
|
| Contact Rating: |
3 A @ 30 VDC
|
| Programming: |
On-board push buttons and status LED
|
| Modes: |
(4) Factory Default
(1) Fully Custom
Selectable Fail Safe/Fail Secure
|
| Coverage: |
Max. 10’W x 10’H
Horizontal and Vertical Adjustment (Mechanical)
Sensor Sensitivity/Range (Electronic)
|
| Time Delay: |
Adjustable, 5, 15, 30, 45 & 60 second
|
| Sounder: |
ON/OFF, with Adjustable Volume
|
| Piezo Buzzer: |
92 db. @ 10cm
|
| Indicator: |
Activation LED
|
| Card or Keypad Input: |
(1) N/O
|
| Door Position Switch Input: |
(1) N/O
|
| Request to Exit Input: |
(1) N/O
|
| Tamper Switch Contact Rating: |
50 mA 12 VDC
|
| Temp Operating Range: |
32°F-120°F (0-50°C)
|
| Humidity Range: |
0- 93% Non-Condensing
|
| Dimensions: |
1-3/4"H x 7"W X 1-3/4"D
(43mm x 176mm x 43mm)
|
| Weight: |
0.25 Lbs. (0.12 Kg.)
|
| Colors: |
White or Black Models
|
Touchless WaveProduct Line Overview
Camden's New CM-RQE70High performance features packed into a smaller design
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|

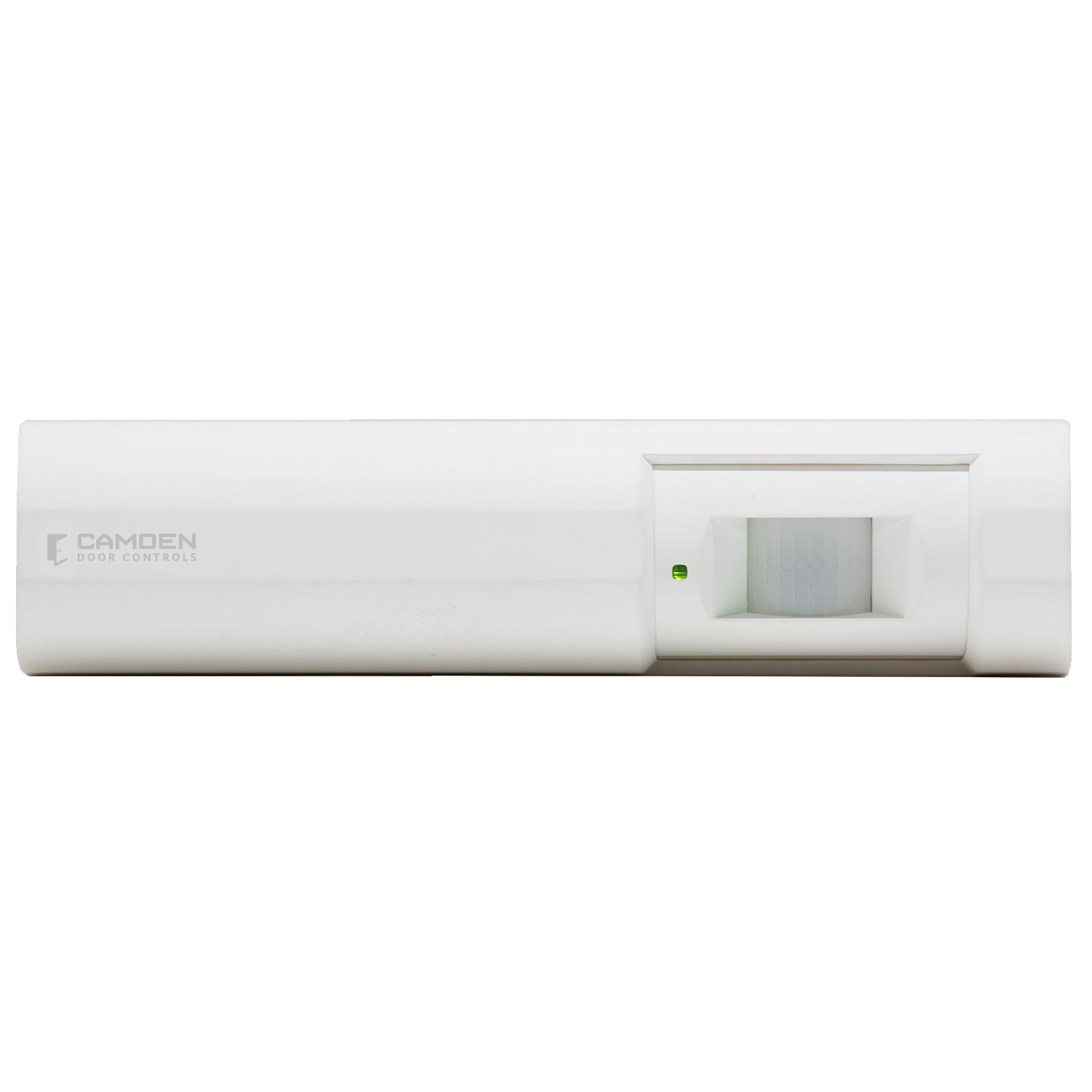

CM-RQE70A
PIR ‘REQUEST TO EXIT’ Detector , white, w/ wiring terminal, C/W (2) Form ‘C’ (DPDT) Contacts, 12/24 VDC
EDI DATA, APPROVALS
|
|
PIR ‘REQUEST TO EXIT’ Detector , white, w/ wiring terminal, C/W (2) Form ‘C’ (DPDT) Contacts, 12/24 VDC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 7.25"L x 2.5"W x 1.87"H
Weight: .25 Lbs. (0.12kg.)lbs.
UPC:670454195760
Country of Origin:CA
|
|

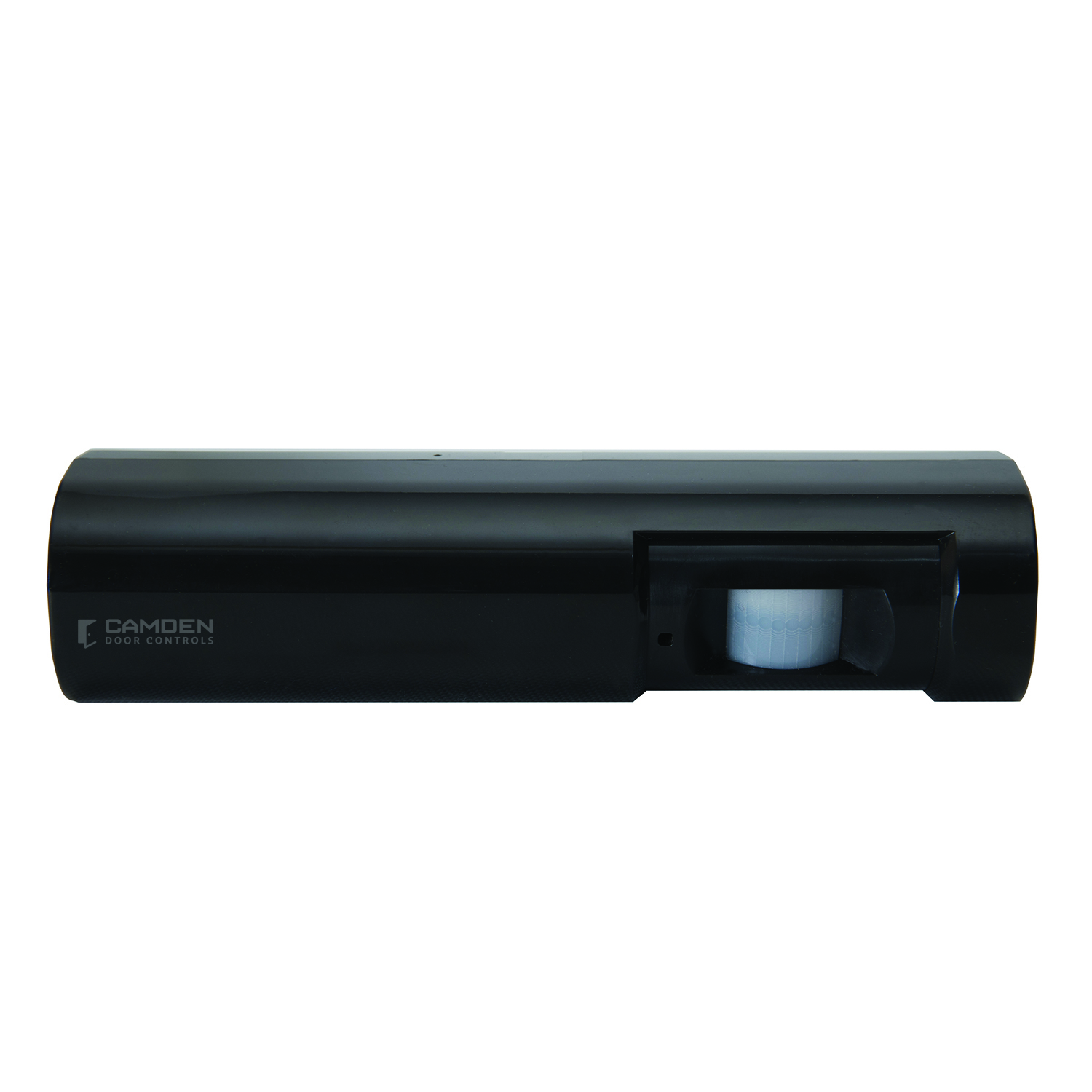

CM-RQE70ABK
PIR ‘REQUEST TO EXIT’ Detector , black, w/ wiring terminal, C/W (2) Form ‘C’ (DPDT) Contacts, 12/24 VDC
EDI DATA, APPROVALS
|
|
PIR ‘REQUEST TO EXIT’ Detector , black, w/ wiring terminal, C/W (2) Form ‘C’ (DPDT) Contacts, 12/24 VDC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 7.25"L x 2.5"W x 1.87"H
Weight: .25 Lbs. (0.12kg.)lbs.
UPC:670454196194
Country of Origin:CA
|
|

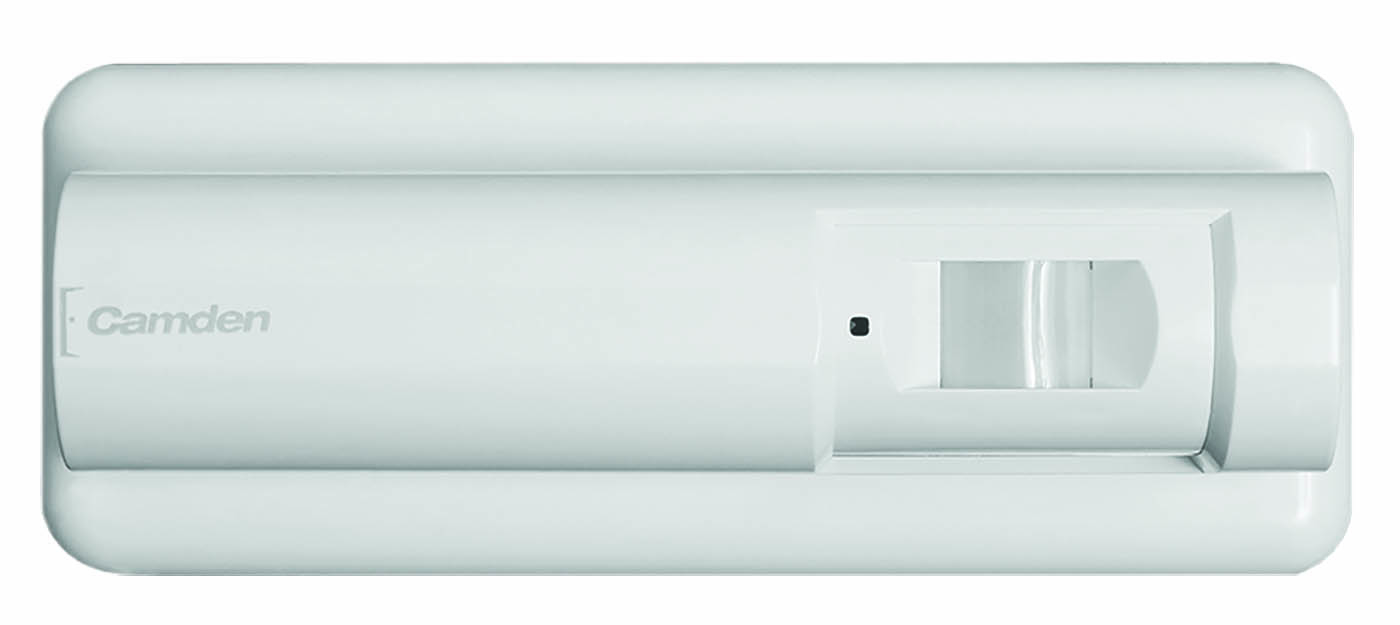

CM-RQEPW
Single Gang Adaptor Plate (White)
EDI DATA, APPROVALS
|
|
Single Gang Adaptor Plate (White)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 3"W x 2"H
Weight: 0.02lbs.
UPC:670454191687
Country of Origin:CA
|
|
CM-RQEPK
Single Gang Adaptor Plate (Black)
EDI DATA, APPROVALS
|
|
Single Gang Adaptor Plate (Black)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 3"W x 2"H
Weight: 0.02lbs.
UPC:670454191694
Country of Origin:CA
|
| |
|
