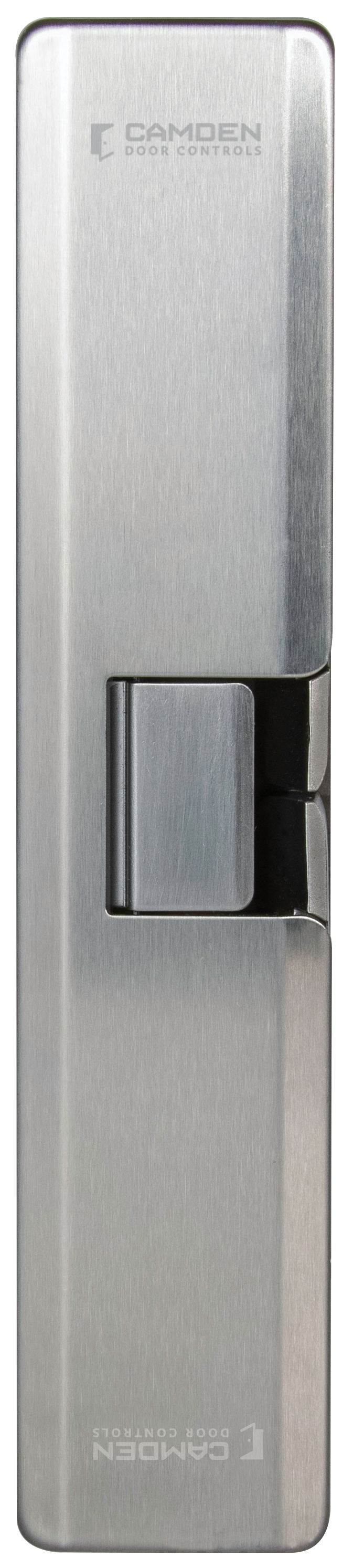

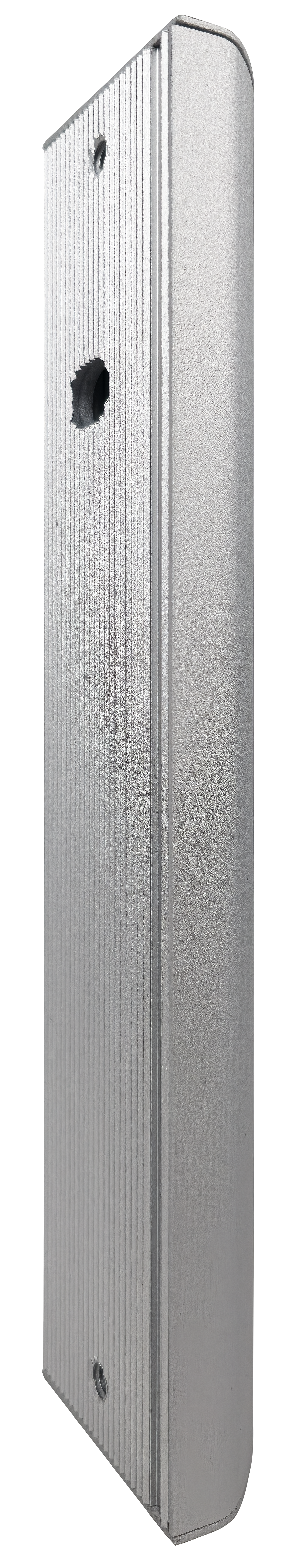

Camden introduces the first surface mount RIM strike with preload in the security industry. CX-EPD1289L (3/4") grade 1 surface mount RIM strike, with latch monitoring, also offers a 'Universal' strike design that delivers unparalleled application flexibility, with both UL security and fire listings.

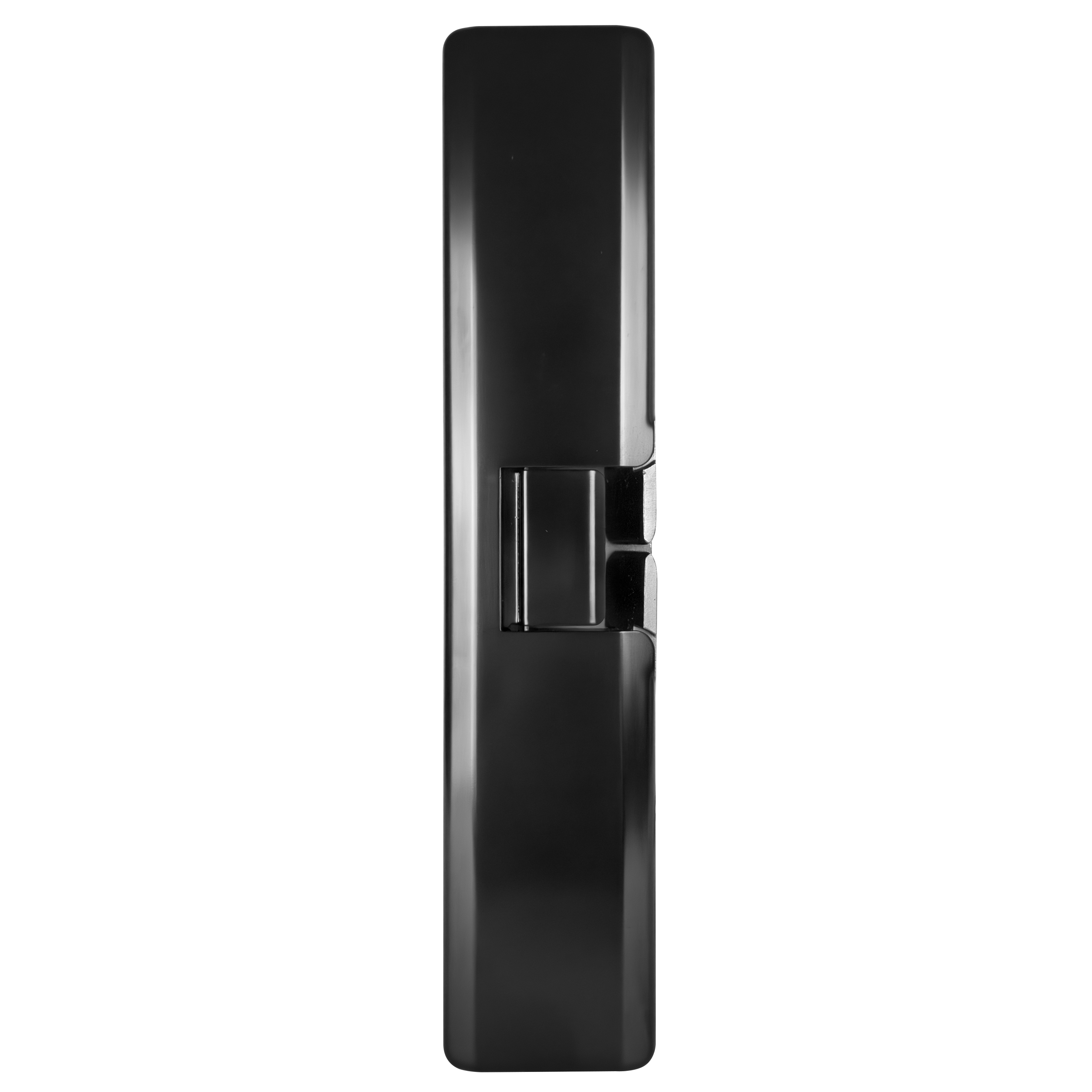

This award-winning strike is now available in stainless steel and has an exclusive, all-black finish.
Preload is pressure exerted on the keeper of a strike that causes the mechanism to fail to release. Whether caused by air pressure, a misaligned door, or inexact installation, CX-EPD1289L RIM strikes are designed to operate where other strikes fail! |
|
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Adams Rite
|
74R1
|
CX-EPD1289L
|
|
Dormakaba
|
563
|
CX-EPD1289L
|
|
HES
|
9600
|
CX-EPD1289L
|
|
Lockinetics
|
RS200
|
CX-EPD1289L
|
|
Locknetics
|
FS300
|
CX-EPD1289L
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
- ‘No Cut’ surface mount RIM strike for Pullman latches
- Operates with up to 15 lbs. of preload pressure
- 'Universal' design with selectable: 12/24V, AC/DC operation & Fail Safe/Fail Secure operation
- 3/4" latch projection
- Latches operate independently of each other
- Metal mounting jig included for easy installation
- Patented design
- Heavy duty stainless steel construction
- Horizontal adjustment, spacer plate available
- Removable latch monitoring switch included
- Non-handed, left or right
- 5 year warranty
| Latch Projection: |
3/4" |
| Voltage: |
12/24V AC/DC |
| Current Draw: |
560mA @12V DC 280mA @24V DC |
| Static Strength: |
1,500 lbs. (UL Verified) |
| Preload: |
15 lbs. |
| Dynamic Strength: |
70 ft-lbs. |
| Endurance: |
1,000,000 Cycles (Factory Tested) 250,000 Cycles (UL Verified) |
| Fire Rating: |
UL10C/CAN4-S104 3hrs. (Fail Secure Mode Only) |
| Mode: |
Field Selectable Fail Safe or Fail Secure |
| Operation: |
AC Buzz, DC Silent |
| Duty: |
Continuous |
| Latch Monitor: |
SPDT, 100mA @24V DC, Resistive |
| Dimensions: |
9-1/8"L x 1-7/8"W x 3/4"D (231.6mm x 48mm x 19.8mm) |
|
Reference Guides
|
| CX-EPD1289L Product Comparison |
pdf |
0.09 |
DOWNLOAD
|
|
Spec Sheets
|
| CX-EPD1289L Spec Sheet R3 |
pdf |
1.82 |
DOWNLOAD
|
|
Manuals
|
| CX-EPD1289L Manual |
pdf |
2.15 |
DOWNLOAD
|
| CX-EPD1289L Mounting Template |
pdf |
0.33 |
DOWNLOAD
|
|
High Resolution Images
|
| CX-EPD1289L |
png |
2.49 |
DOWNLOAD
|
| CX-EPD1289L-BK |
jpeg |
0.68 |
DOWNLOAD
|
CX-EPD1289L : 5 Things You Need to Know
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CX-EPD1289L
3/4" Surface mount Grade 1 RIM strike with preload, 12/24V, AC/DC, fail safe/fail secure, c/w ‘plug-in’ latch monitor assembly and metal mounting jig
EDI DATA, APPROVALS
|
|
3/4" Surface mount Grade 1 RIM strike with preload, 12/24V, AC/DC, fail safe/fail secure, c/w ‘plug-in’ latch monitor assembly and metal mounting jig
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1.875"H
Weight: 2.75lbs.
UPC:670454208385
|
|
CX-EPD1289L-BK
All-black finish, 3/4" surface mount Grade 1 RIM strike with preload, 12/24V, AC/DC, fail safe/fail secure, c/w ‘plug-in’ latch monitor assembly and metal mounting jig
EDI DATA, APPROVALS
|
|
All-black finish, 3/4" surface mount Grade 1 RIM strike with preload, 12/24V, AC/DC, fail safe/fail secure, c/w ‘plug-in’ latch monitor assembly and metal mounting jig
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1.875"H
Weight: 2.75lbs.
UPC:670454216359
|
| |

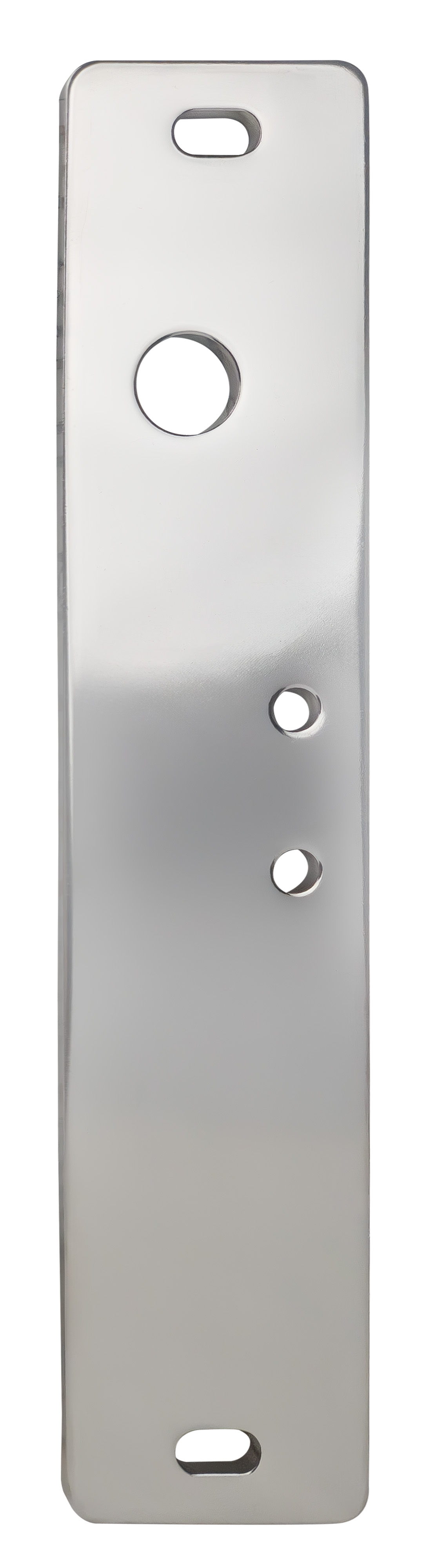

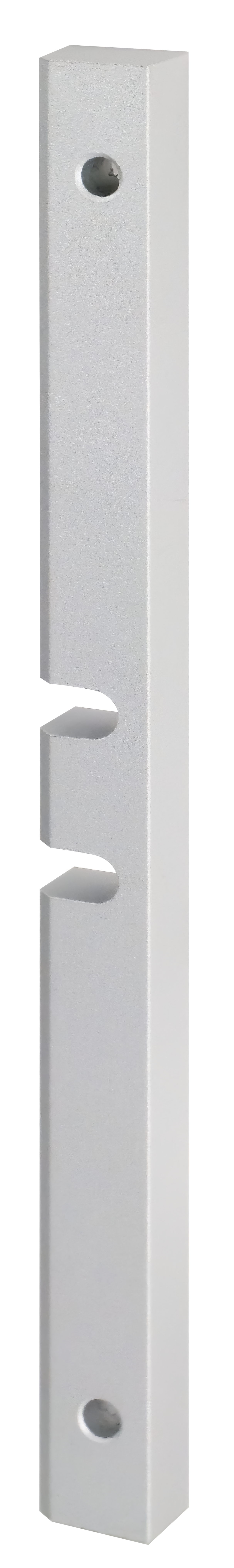

Spacer Plate
