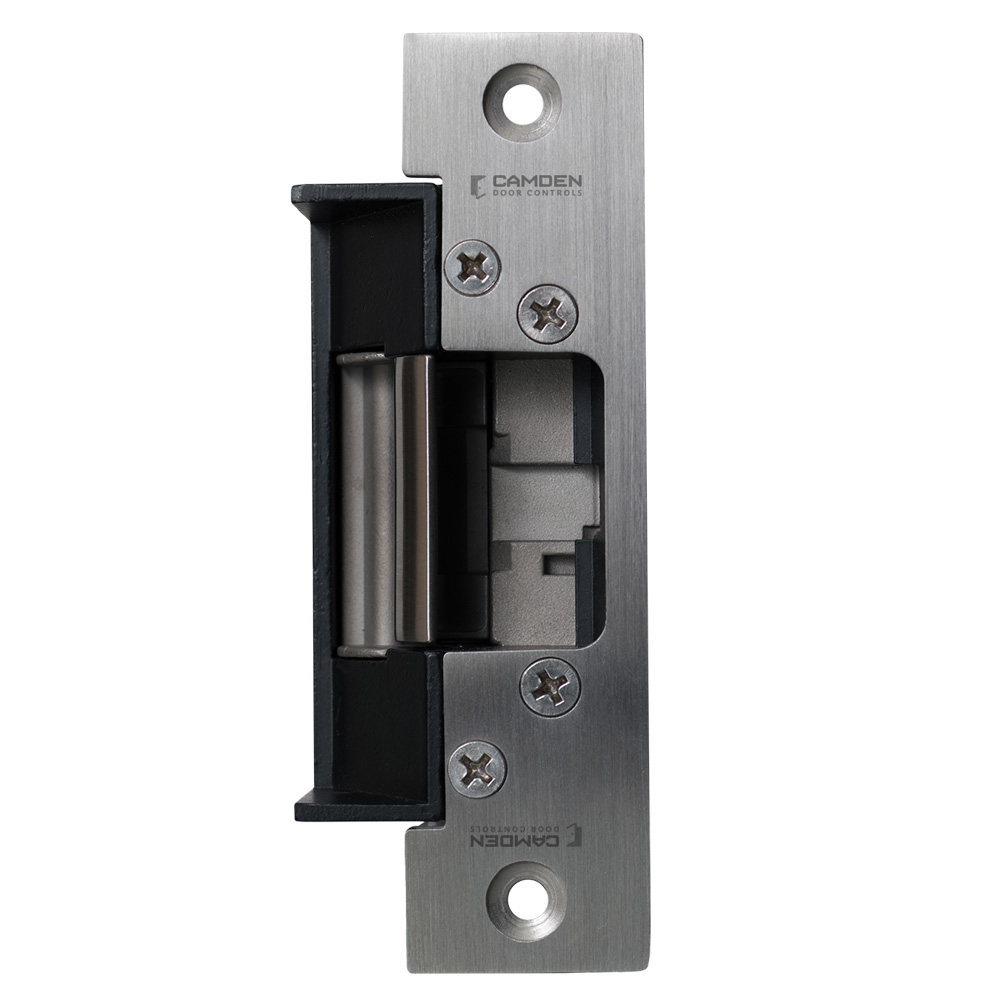

Camden CX-ED1410 Grade 1 ANSI fire rated strike for cylindrical locksets offer the very best strike quality and performance, with a stainless steel faceplate provided. The 'ANSI' fire strike design delivers unparalleled application flexibility, with field selectable voltage and fail safe/fail secure operation. Note: Fire rating applicable only while in fail secure mode.
|
|
|
| Product Line Overview Presentation |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Adams Rite
|
7240
|
|
|
Dormakaba (RCI)
|
F4114
|
|
|
HES
|
7501
|
|
|
Von Duprin
|
6200
|
|
|
|
|
|
Camden CX-ED1410 Grade 1 ANSI fire rated strike for cylindrical locksets offer the very best strike quality and performance, with a stainless steel faceplate provided. The 'ANSI' fire strike design delivers unparalleled application flexibility, with field selectable voltage and fail safe/fail secure operation. Note: Fire rating applicable only while in fail secure mode.
|
|
|
|
|
|
|
| Product Line Overview Presentation |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Adams Rite
|
7240
|
|
|
Dormakaba (RCI)
|
F4114
|
|
|
HES
|
7501
|
|
|
Von Duprin
|
6200
|
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Centerline latch entry for cylindrical locksets, with ANSI square faceplate
-
UL/ULC 90 minute fire rated, UL 1034 Burglary listed
-
5/8" to 3/4" latch projection (throw)
-
Selectable 12/24V AC/DC
-
Selectable fail safe/fail secure. Fire rating voided in fail safe mode
-
Continuous duty operation
-
Non-handed
-
5 year warranty
| Voltage: |
12 or 24V AC/DC
|
| Current Draw: |
260 mA @ 12 VDC
150 mA @ 24 VDC
|
| Static Strength: |
1,500 Lbs.
|
| Dynamic Strength: |
70 Ft-Lbs.
|
| Endurance: |
1,000,000 cycles (factory tested), 250,00 cycles (UL verified)
|
| Mode: |
Selectable fail safe/fail secure
|
| Operation: |
AC - Buzz
DC- Silent
|
| Duty: |
Continuous
|
| Dimensions: |
3-3/8"H x 1-7/8"W x 1-3/8"D
(86mm x 47mm x 35mm)
|
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CX-ED1410
‘Universal’’ Grade 1 ANSI Fire Rated Electric Strike
EDI DATA, APPROVALS
|
|
‘Universal’’ Grade 1 ANSI Fire Rated Electric Strike
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.15lbs.
UPC:670454191083
|
|
|
CX-ED1410-BK
‘Universal’’ Grade 1 ANSI Fire Rated Electric Strike, with an all-black finish faceplate (BHMA 622, US19)
EDI DATA, APPROVALS
|
|
‘Universal’’ Grade 1 ANSI Fire Rated Electric Strike, with an all-black finish faceplate (BHMA 622, US19)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.15lbs.
|
| |
Marking Templates
click to expand section
|
|
Net Cost
|
|
CX-STR-TMPKIT
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
EDI DATA, APPROVALS
|
|
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 4.5"W x 1.5"H
Weight: .85lbs.
UPC:670454222039
|
| |
|
