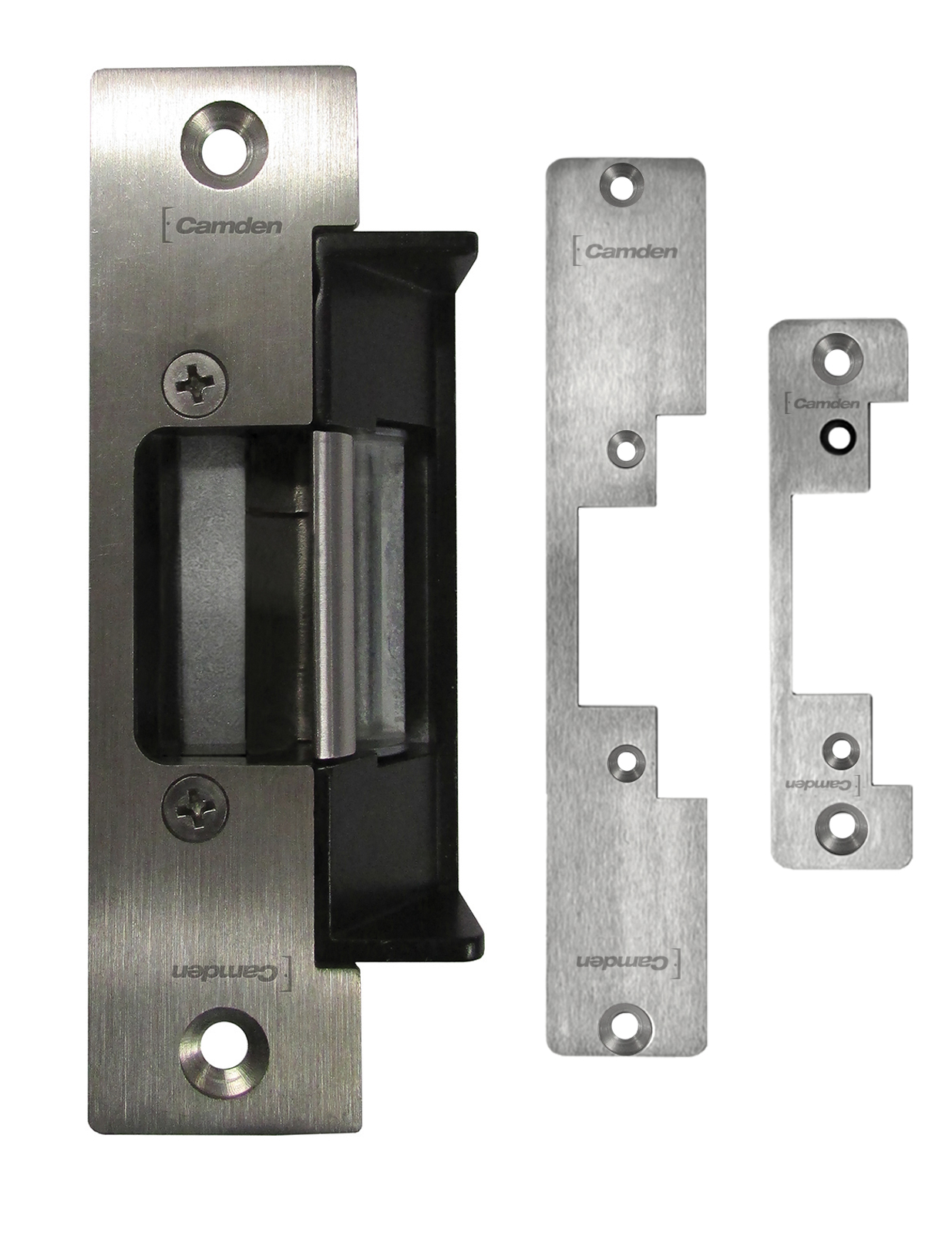

| CX-ED2079 with 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B) |
CX-ED2079 with 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B)
|
Camden's new CX-ED2079 low profile 'Universal' grade 2 ANSI electric strike for cylindrical locksets provides exceptional value with 3 faceplates, and selectable 12/24V AC/DC voltage, fail safe/fail secure operation and horizontal adjustment of the strike body. Camden's new CX-ED2071 low profile grade 2 ANSI electric strike for cylindrical locksets provides exceptional value for installations that require 8-16V AC/DC operation. CX-ED2071 includes 3 faceplates, selectable fail safe/fail secure operation and horizontal adjustment of the strike body. |
|
|
|
|
|
| Product Line Overview Presentation |
|
|
|
CX-ED2079 Installation Video
|
[ X ] |
|
|
|
|
| CX-ED2079 Installation Video |
|
|
Competitive Models
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
L65U
|
|
|
Locknetics
|
CS-450
|
|
|
Trine
|
4200
|
|
|
Von Duprin
|
5100
|
|
| |
|
|
Compatible Models.
|
|
|
|
This product series generally works with the following compatible models:
|
| |
| Arrow Locksets |
click to expand 4 models |
|
|
MLX Series
-
Cylindrical Locksets
|
|
CX-ED2079
|
MLX72 •
MLX81 •
MLX82 •
MLX87
|
| |
| |
| |
| Best Access Locksets |
click to expand 12 models |
|
|
6K Series
-
Cylindrical Locksets
|
|
CX-ED2079
|
AB •
D •
L •
N •
R •
Y
|
| |
|
7K Series
-
Cylindrical Locksets
|
|
CX-ED2079
|
AB •
D •
L •
N •
R •
Y
|
| |
| |
| |
| Corbwin Russwin Locksets |
click to expand 8 models |
|
|
CL 3800 Series
-
Cylindrical Locksets
|
|
CX-ED2079
|
CL3810 •
CL3820 •
CL3851 •
CL3855 •
CL3857 •
CL3861 •
CL3870 •
CL3880
|
| |
| |
| |
| Hager |
click to expand 13 models |
|
|
Model 2500
-
Cylindrical Locksets
|
|
CX-ED2079
|
2540 •
2550 •
2553 •
2570 •
2580
|
| |
|
Model 3500
-
Cylindrical Locksets
|
|
CX-ED2079
|
3525 •
3540 •
3550 •
3553 •
3570 •
3573 •
3579 •
3580
|
| |
| |
| |
| PDQ Locksets |
click to expand 13 models |
|
|
GP Series
-
Cylindrical Locksets
|
|
CX-ED2079
|
GP125 •
GP115 •
GP116 •
GP148 •
GP150 •
GP182
|
| |
|
SD Series
-
Cylindrical Locksets
|
|
CX-ED2079
|
SD125 •
SD115 •
SD116 •
SD148 •
SD182
|
| |
|
SF Series
-
Cylindrical Locksets
|
|
CX-ED2079
|
SF115 •
SF116
|
| |
| |
| |
| Sargent |
click to expand 6 models |
|
|
7 Line
-
Cylindrical Locksets
|
|
CX-ED2079
|
7G04 •
7G05 •
7G37 •
7U68 •
7G15-3 •
7U65
|
| |
| |
| |
| Schlage |
click to expand 12 models |
|
|
Cylindrical Lock Sets
|
|
CX-ED2079
|
ALX44 •
ALXV44 •
ALX50 •
ALX53 •
ALX70 •
ALX80 •
A43 •
A53 •
A70 •
A79 •
A80 •
A85
|
| |
| |
| |
| Yale-Accentra |
click to expand 16 models |
|
|
5300LN Series
-
Cylindrical Locksets
|
|
CX-ED2079
|
5302LN •
5303LN •
5304LN •
5305LN •
5306LN •
5307LN •
5308LN •
5309LN •
5318LN •
5321LN •
5322LN •
5325LN •
5328LN •
5329LN •
5330LN •
5339LN
|
| |
| |
|
|
| Features |
|
Specifications |
|
Resources |
|
Videos |
|
|
-
Centerline latch entry for cylindrical locksets, 1/2" to 5/8" latch projection
-
Selectable fail safe/fail secure operation
-
Horizontal adjustibility of strike body
-
Low profile strike body
-
5 year warranty
-
CX-ED2079:
(3) Stainless steel faceplates included
-
CX-ED2079-1:
(1) ANSI Square faceplate included
-
CX-ED2071:
8-16V AC/DC
| Voltage: |
|
CX-ED2079:
|
12/24V AC/DC
|
|
CX-ED2071:
|
8-16V AC/DC
|
| |
| Current Draw: |
|
CX-ED2079:
|
300 mA @ 12 VDC,150 mA @ 24 VDC
|
|
CX-ED2071:
|
305 mA @ 8 VDC, 625 mA @ 16 VDC
190 mA @ 8 VAC, 460 mA @ 16 VAC
|
| |
| Static Strength: |
1000 Lbs.
|
| Dynamic Strength: |
50 Ft. Lbs.
|
| Endurance: |
|
CX-ED2071,
CX-ED2079:
|
700,000 cycles
|
|
CX-ED2079:
|
250,000 cycles (UL Verified)
|
| |
| Mode: |
Selectable fail safe
fail secure
|
| Operation: |
AC - Buzz
DC- Silent
|
| Duty: |
|
CX-ED2079:
|
Continuous
|
|
CX-ED2071:
|
Intermittent
|
| |
| Mounting: |
Non-handed
|
| Dimensions: |
3-3/8"H x 1-7/8"W x 1-7/32"D
(86mm x 47mm x 31mm)
|
CX-ED2079 Installation Video
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
 |
CX-ED2079 |
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B)
EDI Data, Approvals
|
|
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454179395
Country of Origin: TW
|
|
|
|
CX-ED2079-BK |
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 black faceplates (CX-ESP1B-BK, ESP3B-BK & ESP4B-BK)
EDI Data, Approvals
|
|
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 black faceplates (CX-ESP1B-BK, ESP3B-BK & ESP4B-BK)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454230874
Country of Origin: TW
|
|
|
CX-ED2071 |
'Universal' electric strike, 8-16V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B)
EDI Data, Approvals
|
|
'Universal' electric strike, 8-16V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 stainless steel faceplates (CX-ESP1B, ESP3B & ESP4B)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.5"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454184092
Country of Origin: TW
|
|
|
|
CX-ED2071-BK |
'Universal' electric strike, 8-16V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 black faceplates (CX-ESP1B-BK, ESP3B-BK & ESP4B-BK)
EDI Data, Approvals
|
|
'Universal' electric strike, 8-16V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 3 black faceplates (CX-ESP1B-BK, ESP3B-BK & ESP4B-BK)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454231291
Country of Origin: TW
|
|
|
CX-ED2079-1 |
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 1 stainless steel ANSI square faceplate (CX-ESP1B)
EDI Data, Approvals
|
|
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 1 stainless steel ANSI square faceplate (CX-ESP1B)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.5"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454191052
Country of Origin: TW
|
|
|
|
CX-ED2079-1-BK |
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 1 black ANSI square faceplate (CX-ESP1B-BK)
EDI Data, Approvals
|
|
'Universal' electric strike, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, c/w 1 black ANSI square faceplate (CX-ESP1B-BK)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454231277
Country of Origin: TW
|
| |
Faceplates: Included
click to expand section
|
|
Net Cost
|
|
|
CX-ESP1B |
ANSI Square, 4 7/8" x 1 1/4", stainless steel
EDI Data, Approvals
|
|
ANSI Square, 4 7/8" x 1 1/4", stainless steel
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454180155
Country of Origin: TW
|
|
|
CX-ESP3B |
Hollow Metal Door, 6 7/8" x 1 1/4", stainless steel
EDI Data, Approvals
|
|
Hollow Metal Door, 6 7/8" x 1 1/4", stainless steel
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454180179
Country of Origin: TW
|
|
|
CX-ESP4B |
Wood Door, 7 15/16" x 1 7/16" , stainless steel
EDI Data, Approvals
|
|
Wood Door, 7 15/16" x 1 7/16" , stainless steel
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454180186
Country of Origin: TW
|
| |
|
Faceplate: Additional
click to expand section
|
|
Net Cost
|
|
|
|
CX-ESP2B |
ANSI Round, 4 7/8" x 1 1/4", stainless steel
EDI Data, Approvals
|
|
ANSI Round, 4 7/8" x 1 1/4", stainless steel
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454180162
Country of Origin: TW
|
|
|
CX-ESP1B-BK |
ANSI Square, 4 7/8" x 1 1/4", all-black finish
EDI Data, Approvals
|
|
ANSI Square, 4 7/8" x 1 1/4", all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454216755
Country of Origin: CN
|
|
|
CX-ESP2B-BK |
ANSI Round, 4 7/8" x 1 1/4", all-black finish
EDI Data, Approvals
|
|
ANSI Round, 4 7/8" x 1 1/4", all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454216762
Country of Origin: CN
|
|
|
CX-ESP3B-BK |
Hollow Metal Door, 6 7/8" x 1 1/4", all-black finish
EDI Data, Approvals
|
|
Hollow Metal Door, 6 7/8" x 1 1/4", all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454216779
Country of Origin: CN
|
|
|
CX-ESP4B-BK |
Wood Door, 7 15/16" x 1 7/16" , all-black finish
EDI Data, Approvals
|
|
Wood Door, 7 15/16" x 1 7/16" , all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454216786
Country of Origin: CN
|
| |
|
Lip Extension Brackets
click to expand section
|
|
Net Cost
|
|
|
CX-ED-LIP1 |
1" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
EDI Data, Approvals
|
|
1" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454182432
Country of Origin: TW
|
|
|
|
CX-ED-LIP2 |
2" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
EDI Data, Approvals
|
|
2" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454182449
Country of Origin: TW
|
| |
|
Marking Templates
click to expand section
|
|
Net Cost
|
|
|

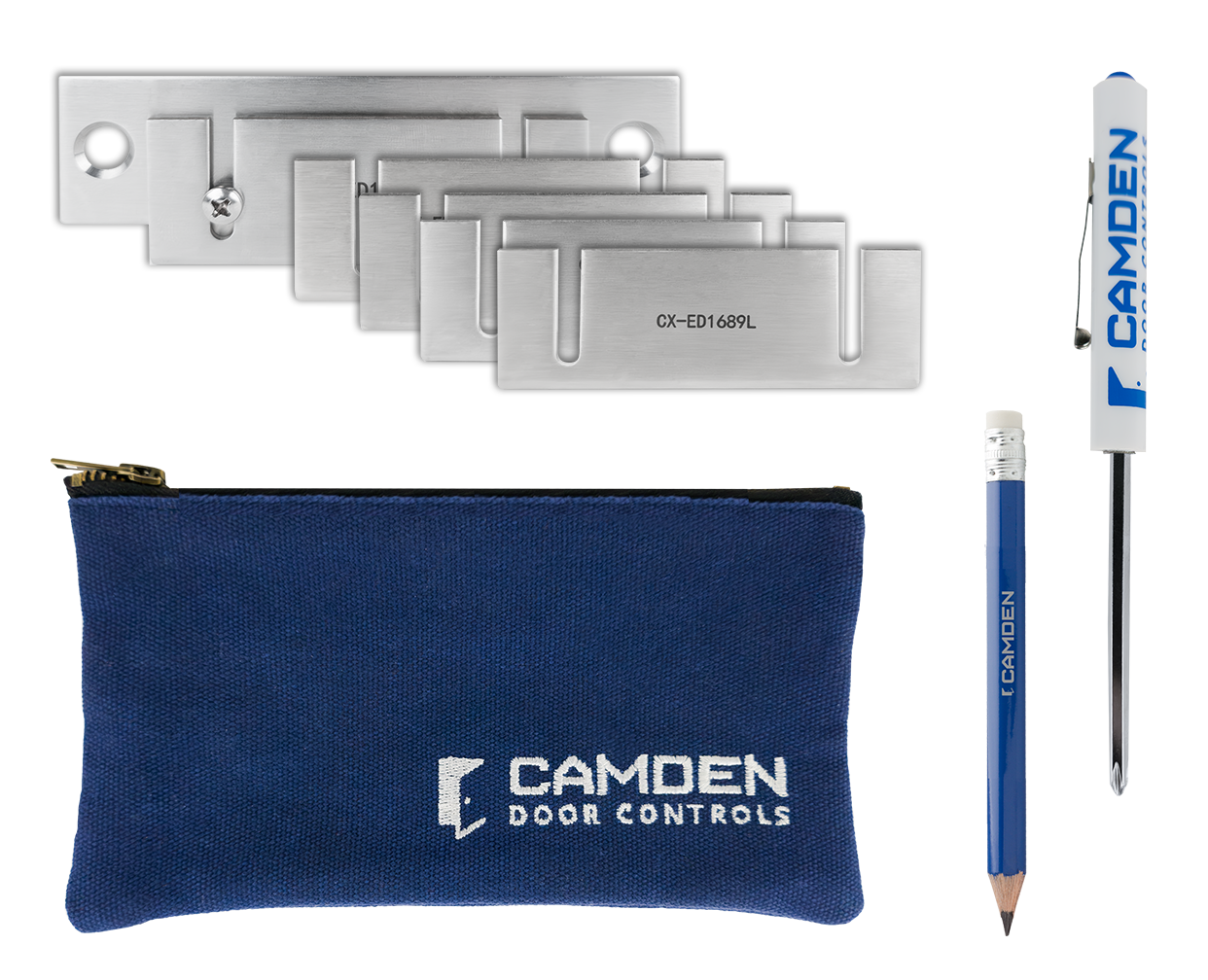

CX-STR-TMPKIT |
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
EDI Data, Approvals
|
|
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 8"L x 4.5"W x 1.5"H
Weight: .85lbs.
UPC: 670454222039
Country of Origin: TW
|
| |
|
