| CI-3BXL Exterior Use - with Key Lockout |
CI-3BXL Exterior Use - with Key Lockout
CI-3B Exterior Use - Push Button Control Stations
|
|
Camden industrial push button control stations for exterior use are designed to control shipping doors in harsh environments. CI-BX Series stations are supplied complete with NEMA rated enclosures and heavy duty 240 VAC rated contacts. These control switches are UL listed and CSA certified. BY SPECIAL ORDER ONLY. PLEASE CONTACT CUSTOMER SERVICE FOR FURTHER ASSISTANCE.
|
| CI-3BXL Exterior Use - with Key Lockout |
CI-3BXL Exterior Use - with Key Lockout
CI-3B Exterior Use - Push Button Control Stations
|
Camden industrial push button control stations for exterior use are designed to control shipping doors in harsh environments. CI-BX Series stations are supplied complete with NEMA rated enclosures and heavy duty 240 VAC rated contacts. These control switches are UL listed and CSA certified. BY SPECIAL ORDER ONLY. PLEASE CONTACT CUSTOMER SERVICE FOR FURTHER ASSISTANCE. |
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
3 Buttons for OPEN, CLOSE and STOP
-
Key Lockout Available
-
NEMA 4 Enclosure for Outdoor Use
| Contact Type: |
3 Single Pole Momentary Contacts
2 x N/O, 1 x N/C
|
| Contact Rating: |
3 A @ 240 VAC
|
| Enclosure: |
NEMA 4
|
| Key Lockout: |
CI-3BXL
|
| Dimensions: |
3-7/8" x 4-9/64" x 2-3/4"
(98mm x 105mm x 70mm)
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|

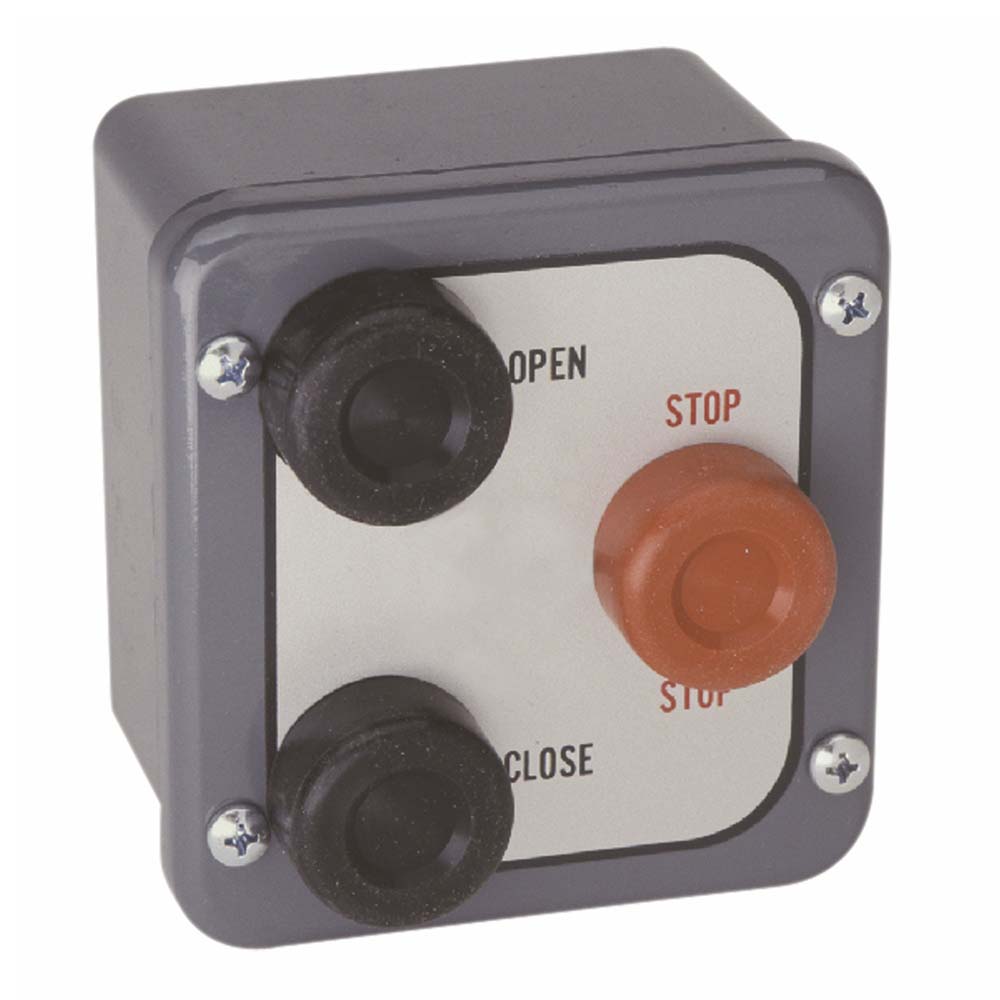

CI-3BX
3 button, OPEN/CLOSE/STOP, NEMA 4, UL/CSA Rated, 3 A @ 240 VAC
EDI DATA, APPROVALS
|
|
3 button, OPEN/CLOSE/STOP, NEMA 4, UL/CSA Rated, 3 A @ 240 VAC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.25"L x 4.25"W x 4.75"H
Weight: 1.62lbs.
UPC:670454110084
|
|

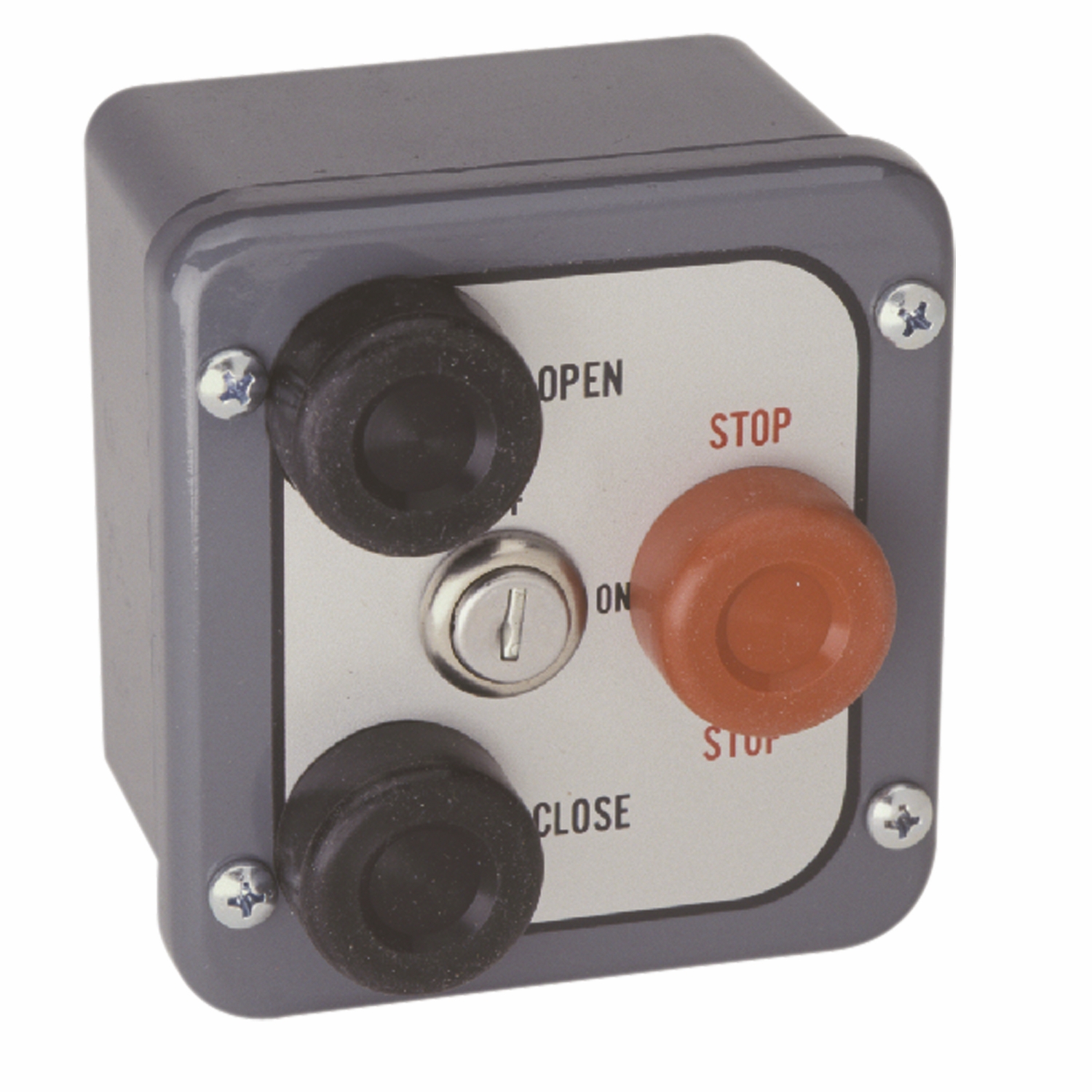

CI-3BXL
As above with key lockout
EDI DATA, APPROVALS
|
|
As above with key lockout
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.5"L x 6.5"W x 4.25"H
Weight: 1.82lbs.
UPC:670454110091
|
| |
|
