| CM-30C 'Universal' LED Illuminated Switch with 13 Message Labels (Eng., Fr. & Bilingual) |
|
|
CM-30 Series UL compliant LED illuminated 'request to exit' (REX) switches conform to NFPA code requirements and are ADA compliant. They are designed to control electric locks, electromagnetic locks, electric strikes and low energy door operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions and many other applications.
Where electronic time delay is required (i.e. door held open), Camden offers model CM-30EE with double break circuitry.
|
|
| [ X ] |
|
|
|
|
| Product Comparison |
|
|
|
| CM-30E LED Illuminated Economy Switch with 'PUSH TO EXIT' |
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
|
Alarm Controls
|
TS-2, TS-3, TS-4, TS-5
|
|
RCI
|
972-EFMOX32D, 972-ESMOX32D
|
|
Securitron
|
EEB3
|
|
|
| CM-30C 'Universal' LED Illuminated Switch with 13 Message Labels (Eng., Fr. & Bilingual) |
|
CM-30 Series UL compliant LED illuminated 'request to exit' (REX) switches conform to NFPA code requirements and are ADA compliant. They are designed to control electric locks, electromagnetic locks, electric strikes and low energy door operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions and many other applications.
Where electronic time delay is required (i.e. door held open), Camden offers model CM-30EE with double break circuitry.
|
|
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
|
Alarm Controls
|
TS-2, TS-3, TS-4, TS-5
|
|
RCI
|
972-EFMOX32D, 972-ESMOX32D
|
|
Securitron
|
EEB3
|
| |
|
|
MODELS
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
'UNIVERSAL' MULTI LABEL SWITCHES
click to expand section
|
|
Net Cost
|
|

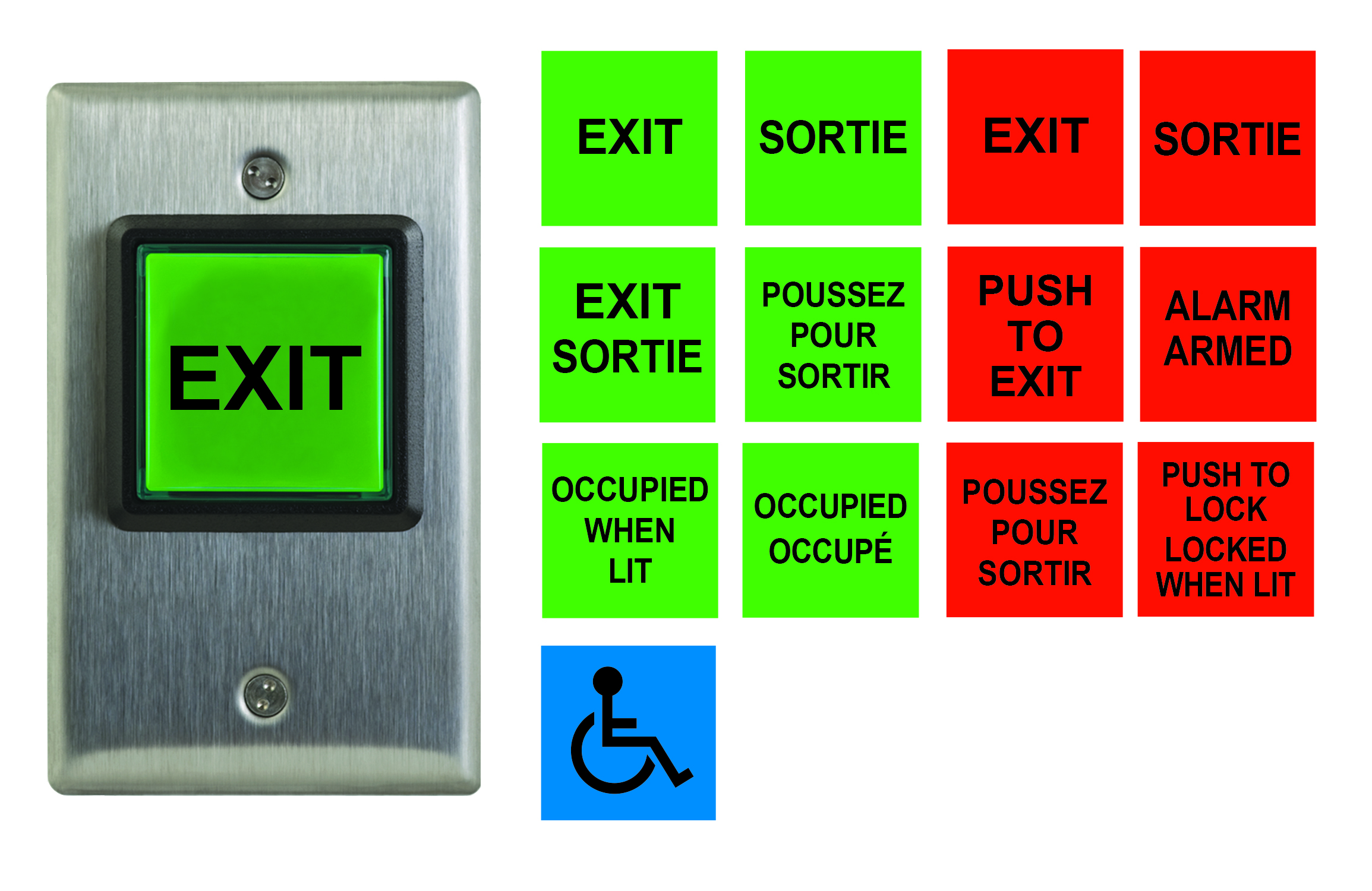

CM-30C
(13) English and French insert labels, 12V - 28V LED Illuminated (Red and Green): 'Push to Exit', 'Exit', 'Occupied When Lit', bilingual versions and wheelchair symbol.
EDI DATA, APPROVALS
|
|
(13) English and French insert labels, 12V - 28V LED Illuminated (Red and Green): 'Push to Exit', 'Exit', 'Occupied When Lit', bilingual versions and wheelchair symbol.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.45lbs.
UPC:670454162908
|
|

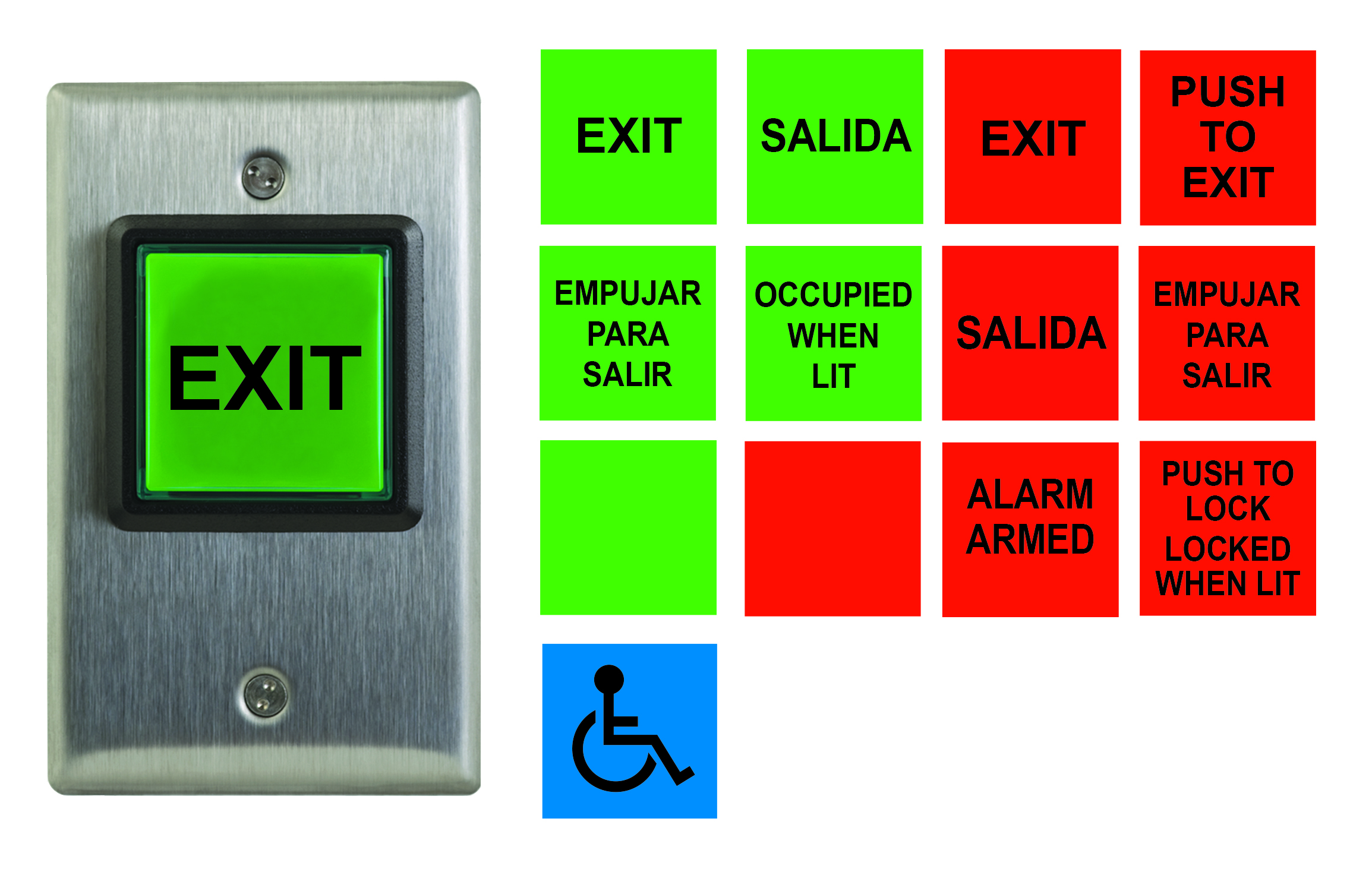

CM-30U
(13) English and Spanish insert labels, 12V - 28V LED Illuminated (Red and Green): 'Push to Exit', 'Exit', 'Occupied When Lit' and wheelchair symbol.
EDI DATA, APPROVALS
|
|
(13) English and Spanish insert labels, 12V - 28V LED Illuminated (Red and Green): 'Push to Exit', 'Exit', 'Occupied When Lit' and wheelchair symbol.
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.45lbs.
UPC:670454162915
|
| |
|
'ECONOMICAL' SINGLE LABEL SWITCHES
click to expand section
|
|
Net Cost
|
|
CM-30E
(1) English 'Push to Exit', 12-28V LED Illuminated Green, 'Push to Exit'
EDI DATA, APPROVALS
|
|
(1) English 'Push to Exit', 12-28V LED Illuminated Green, 'Push to Exit'
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.00"L x 3.00"W x 4.75"H
Weight: 0.45lbs.
UPC:670454153012
|
| |
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34D
SURFACE BOX, Extra Deep - For wireless. Heavy duty grey polymer 2 3/4" W X 4 1/2"H x 3"D
|
SURFACE BOX, Extra Deep - For wireless. Heavy duty grey polymer 2 3/4" W X 4 1/2"H x 3"D
|
|
|
|
CM-66
FLUSH BOX & DRESS PLATE Standard Depth box with 7" x 7" dress plate. Heavy gauge stainless steel
|
FLUSH BOX & DRESS PLATE Standard Depth box with 7" x 7" dress plate. Heavy gauge stainless steel
|
|
|
|
CM-31
SLEEVE, Cover for standard 2" x 4" surface electrical box. Heavy gauge stainless steel
|
SLEEVE, Cover for standard 2" x 4" surface electrical box. Heavy gauge stainless steel
|
|
|
|
CM-34AL
SURFACE BOX, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2 3/4"W X 4 1/2"H X 1 3/4"D
|
SURFACE BOX, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2 3/4"W X 4 1/2"H X 1 3/4"D
|
|
|
|
CM-34BL
SURFACE BOX, Standard Depth. Double wall, flame/Impact resistant black ABS, 2 3/4"W x 4 1/2"H x 1 3/4"D
|
SURFACE BOX, Standard Depth. Double wall, flame/Impact resistant black ABS, 2 3/4"W x 4 1/2"H x 1 3/4"D
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
Vandal and weather resistant clear lift cover for any Camden single gang flush push button or key switch
|
|
|
|
|
|
