CX-ED1689L-4 & CX-ED1799L-8

'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes

UL 3 Hour Fire ETL 3 Hour Fire ULC Canada
< Electric Strikes

CX-ED1689L-4 & CX-ED1799L-8

'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes

Catalog Menu BROWSE

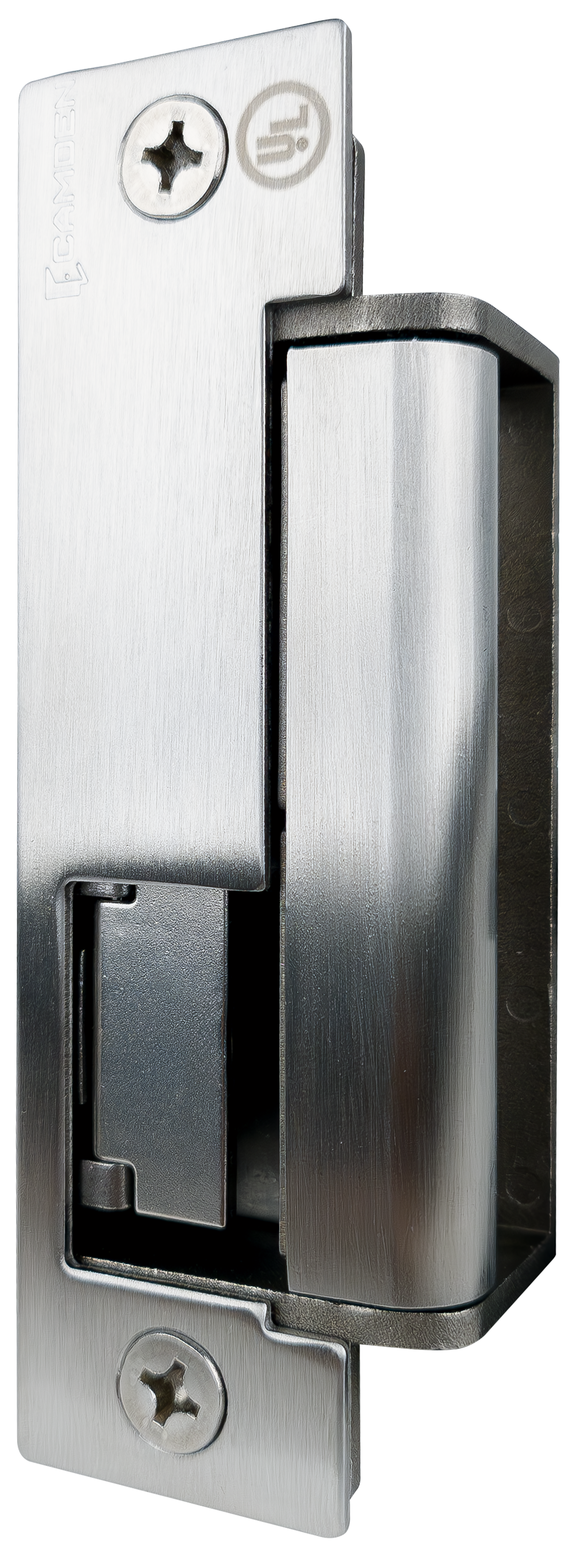

CX-ED1689L & CX-ED1799L
Camden CX-ED1689L and CX-ED1799L Grade 1 electric strikes for mortise and cylindrical locksets offer the very best strike quality and features, with the added value of built-in single or dual latch monitoring, 4 or 8 stainless steel faceplates and 'Universal' performance, including field selectable voltage and fail safe/fail secure operation.

These strikes also include a 3-hour fire rating, and also have the option of ordering strike bodies and individual faceplates separately.
Strike Selection Wizard
Strike Selection
Wizard
CX-ED1689L-4:
CX-ED1689L-4
CX-ED11799L-8:
CX-ED11799L-8

COMPETITIVE MODELS
CX-ED1689L & CX-ED1799L
Camden CX-ED1689L and CX-ED1799L Grade 1 electric strikes for mortise and cylindrical locksets offer the very best strike quality and features, with the added value of built-in single or dual latch monitoring, 4 or 8 stainless steel faceplates and 'Universal' performance, including field selectable voltage and fail safe/fail secure operation.

These strikes also include a 3-hour fire rating, and also have the option of ordering strike bodies and individual faceplates separately.
Strike Selection Wizard
Strike Selection
Wizard
CX-ED1689L-4:
CX-ED1689L-4
CX-ED11799L-8:
CX-ED11799L-8

COMPETITIVE MODELS
FEATURES SPECIFICATIONS RESOURCES
MODELS
Model Description
CX-ED1689L: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-ED1689L: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes

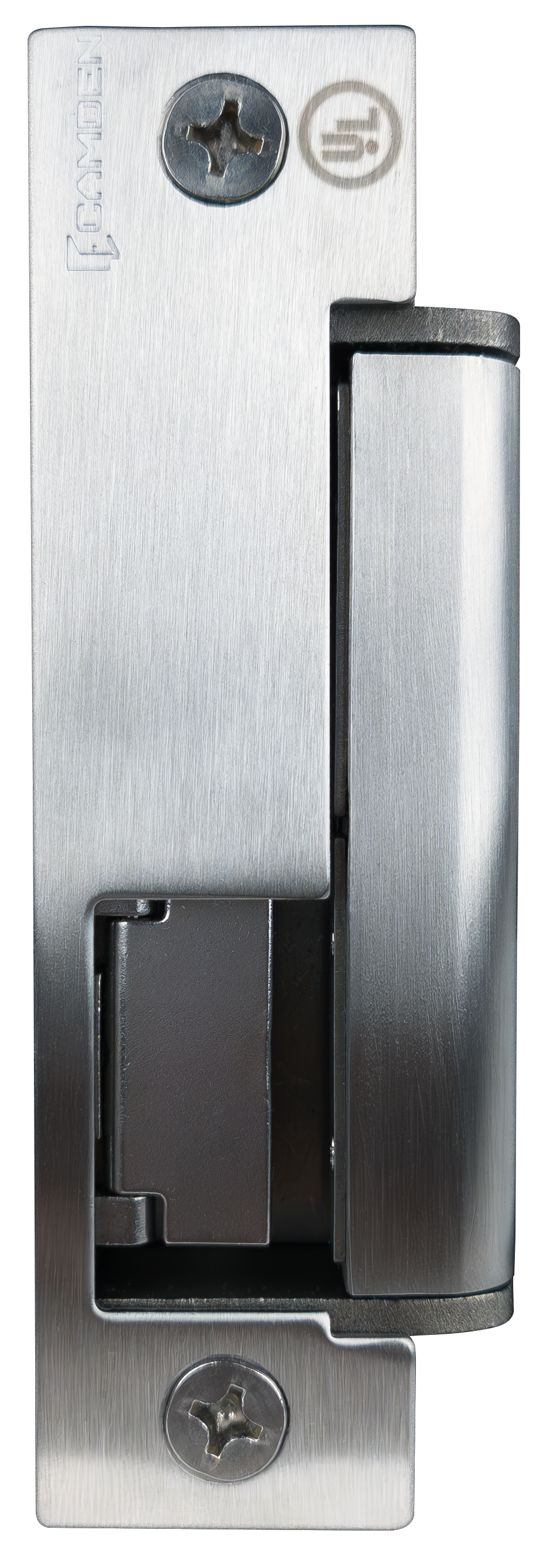

CX-ED1689L
Low profile strike body with (1) latch monitor switch Mortise strike low profile body only
EDI DATA, APPROVALS
Low profile strike body with (1) latch monitor switch Mortise strike low profile body only
EDI DATA
APPROVALS


CX-ED1799L: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-ED1799L: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes

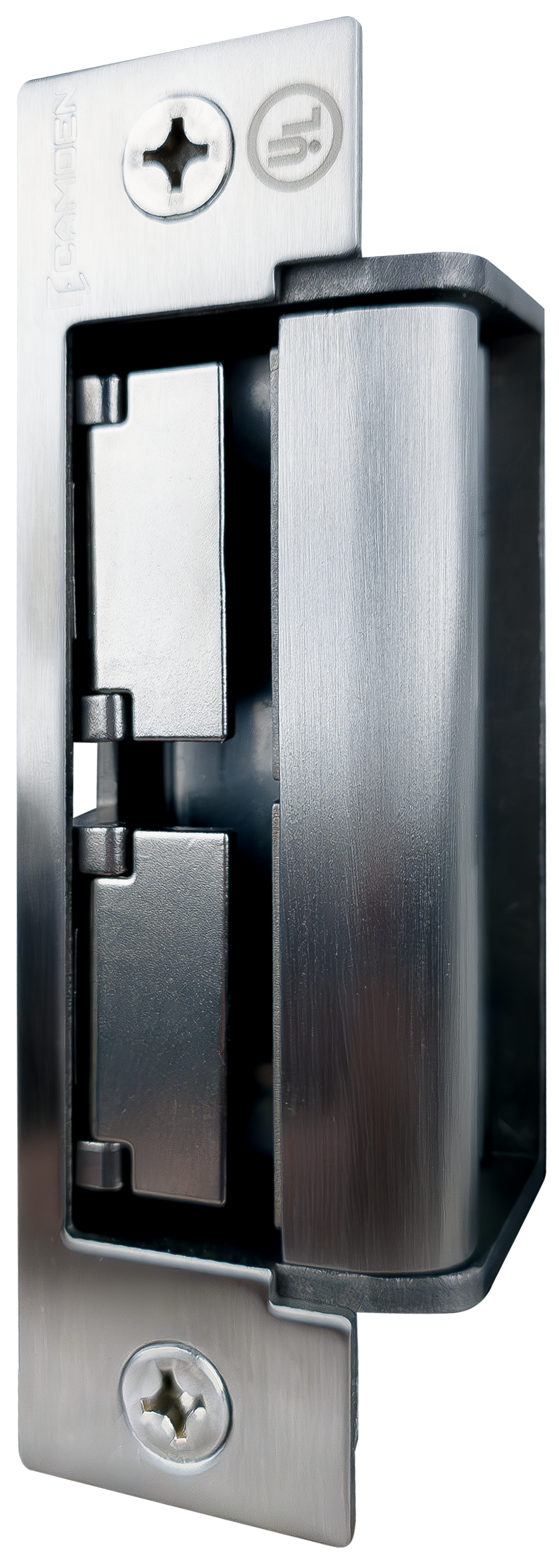

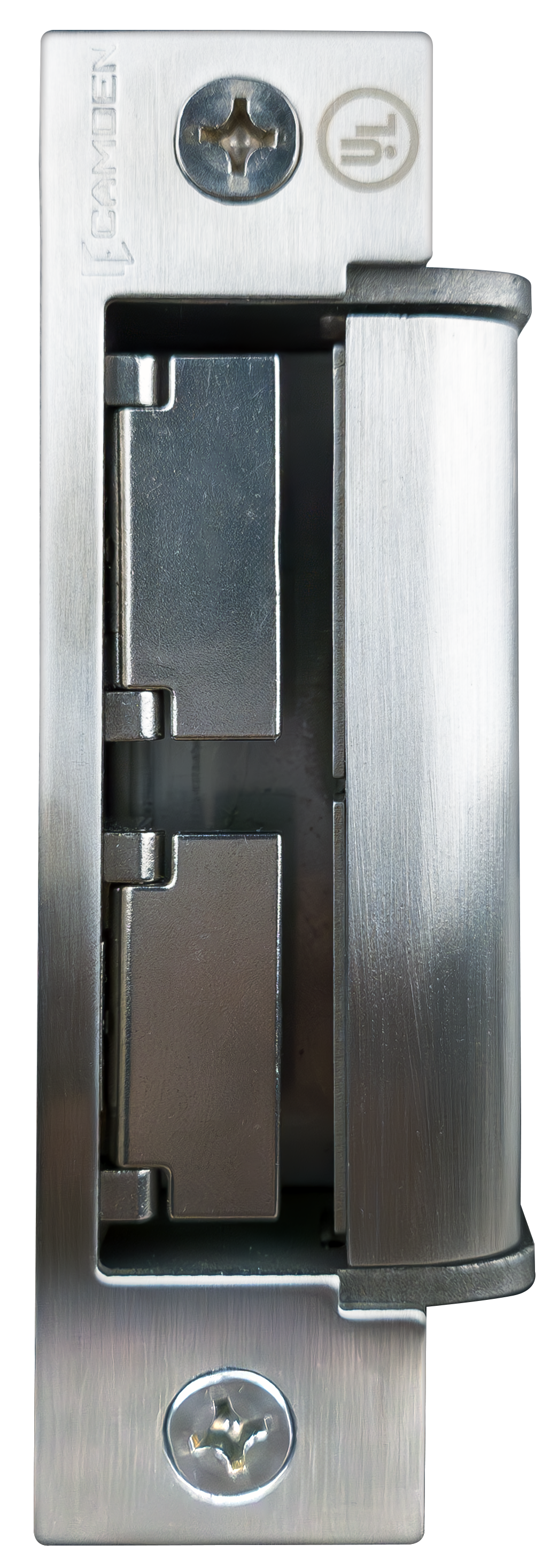

CX-ED1799L
Dual monitor strike body with (2) monitor switches mortise strike body only
EDI DATA, APPROVALS
Dual monitor strike body with (2) monitor switches mortise strike body only
EDI DATA
APPROVALS



Faceplate Packs
CX-ED1689L-4: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-ED1689L-4: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes
CX-ED1689L-4
Low profile strike body with (1) latch monitor switch comes with 4 faceplates for latch bolts Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400
EDI DATA, APPROVALS
Low profile strike body with (1) latch monitor switch comes with 4 faceplates for latch bolts Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400
EDI DATA
APPROVALS


CX-ED1799L-8: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-ED1799L-8: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes
CX-ED1799L-8
Dual monitor strike body with (2) monitor switches comes with 8 faceplates. Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400, CX-EMP110, CX-EMP210, CX-EMP310, CX-EMP410
EDI DATA, APPROVALS
Dual monitor strike body with (2) monitor switches comes with 8 faceplates. Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400, CX-EMP110, CX-EMP210, CX-EMP310, CX-EMP410
EDI DATA
APPROVALS



FACEPLATE OPTIONS
Metal Door Frame Stainless Steel Faceplates
CX-EMP100: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-EMP100: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes

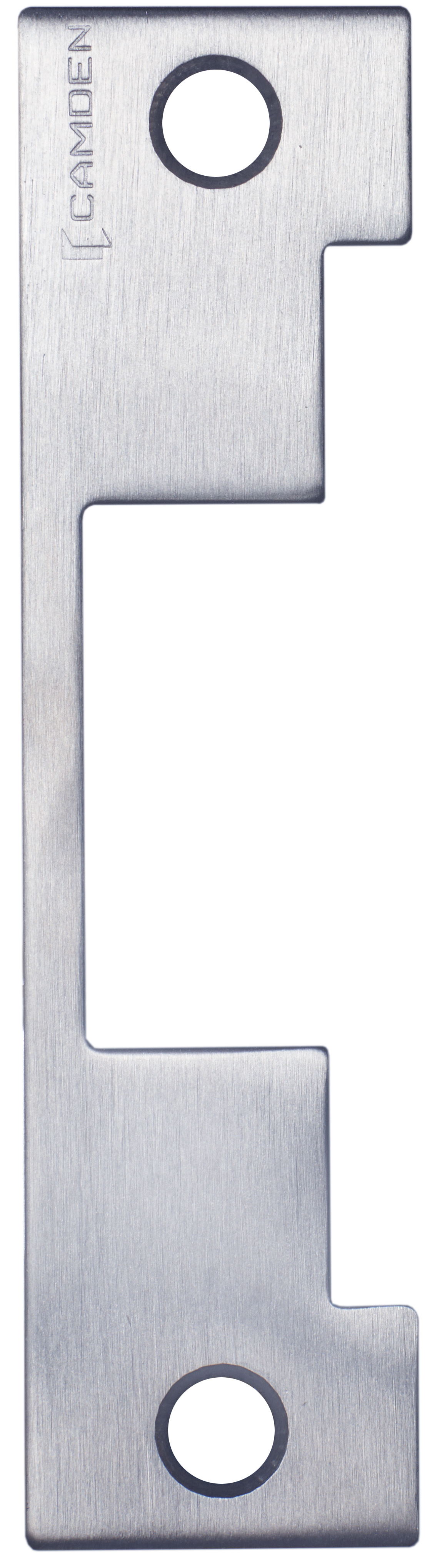

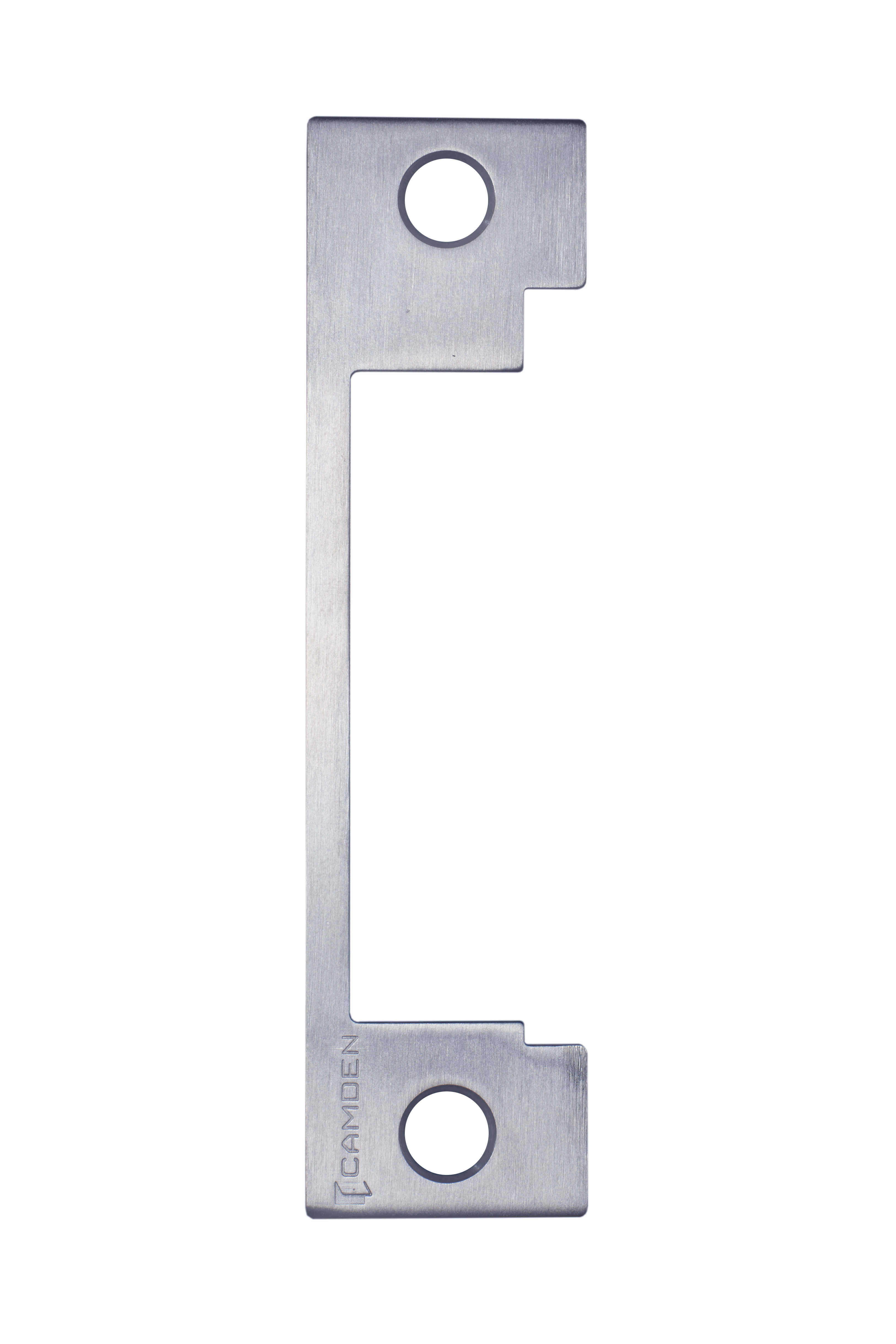

CX-EMP100
'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
EDI DATA, APPROVALS
'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
EDI DATA
APPROVALS


CX-EMP110: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-EMP110: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes
CX-EMP110
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
EDI DATA
APPROVALS


CX-EMP200: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-EMP200: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes

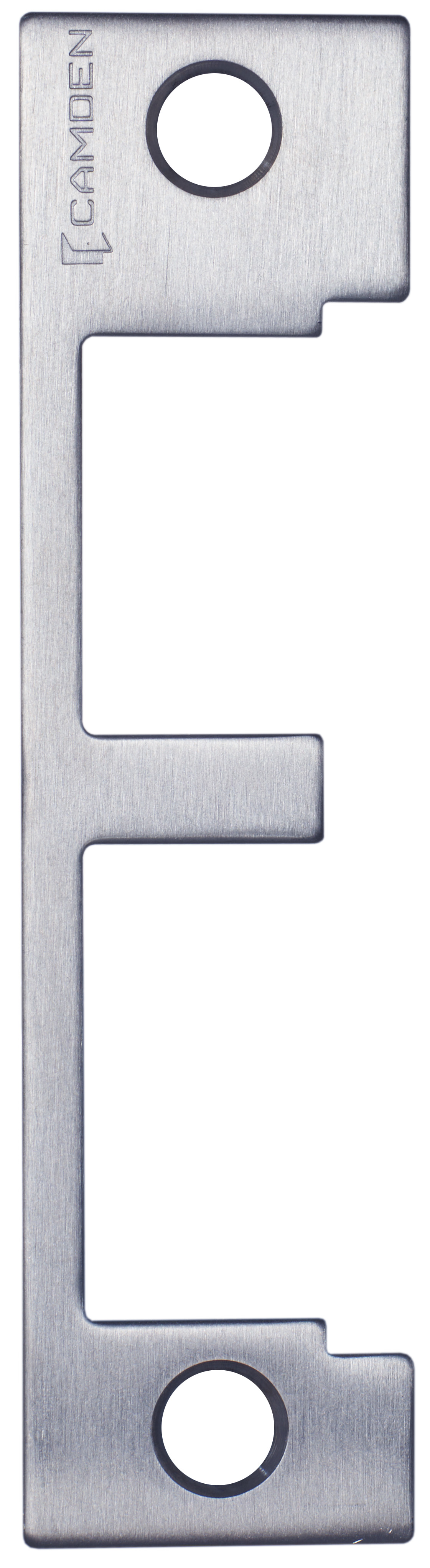

CX-EMP200
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
EDI DATA, APPROVALS
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
EDI DATA
APPROVALS


CX-EMP210: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-EMP210: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes
CX-EMP210
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
EDI DATA
APPROVALS


CX-EMP300: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-EMP300: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes
CX-EMP300
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
EDI DATA
APPROVALS


CX-EMP310: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-EMP310: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes
CX-EMP310
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
EDI DATA
APPROVALS


CX-EMP400
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
EDI DATA
APPROVALS


CX-EMP410: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-EMP410: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes
CX-EMP410
'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
EDI DATA
APPROVALS



Metal Door Frame All-Black Faceplates (BHMA 622, US19)
CX-EMP100-BK
'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
EDI DATA, APPROVALS
'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
EDI DATA
APPROVALS


CX-EMP110-BK
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
EDI DATA
APPROVALS


CX-EMP200-BK
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
EDI DATA, APPROVALS
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
EDI DATA
APPROVALS


CX-EMP210-BK
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
EDI DATA
APPROVALS


CX-EMP300-BK
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
EDI DATA
APPROVALS


CX-EMP310-BK
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
EDI DATA
APPROVALS


CX-EMP400-BK
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
EDI DATA
APPROVALS


CX-EMP410-BK
'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
EDI DATA, APPROVALS
'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
EDI DATA
APPROVALS



Wood Door Frame Stainless Steel Faceplates
CX-EMP100W: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-EMP100W: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes
CX-EMP100W
Wood frames, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
EDI DATA, APPROVALS
Wood frames, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
EDI DATA
APPROVALS


CX-EMP110W: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-EMP110W: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes
CX-EMP110W
Wood frames, center line applications. Compatible with all cylindrical locksets
EDI DATA, APPROVALS
Wood frames, center line applications. Compatible with all cylindrical locksets
EDI DATA
APPROVALS


CX-EMP400W: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes CX-EMP400W: CX-ED1689L-4 & CX-ED1799L-8:'Universal' Low Profile & Dual Monitor Grade 1 Electric Strikes - Electric Strikes
CX-EMP400W
Wood frames, dead latch positioned above the latch bolt. Compatible with all cylindrical locksets
EDI DATA, APPROVALS
Wood frames, dead latch positioned above the latch bolt. Compatible with all cylindrical locksets
EDI DATA
APPROVALS
