| 2" Piezoelectric Push/Exit Switch |
2" Piezoelectric Push/Exit Switch
|
|
CM-9700 and CM-9710 Series surface mount piezoelectric push/exit
switches are virtually impervious to weather and vandalism due to their
unique one-piece aluminum construction and non-moving part design. The
switches do not require power to operate.
* CM-9700 product image shown This switch is intended for connection to 'low load' access control systems. An external relay is typically required for connection to 'high loads', such as electric strikes and magnetic locks. CM-9700, CM-9710, 'SP', 'F' and 'H' models discontinued, as new 'U' and 'C' version include those message labels. Note: Not recommended for control of automatic doors.
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
917
|
CM-9700U/C
|
|
|
| 2" Piezoelectric Push/Exit Switch |
2" Piezoelectric Push/Exit Switch
|
CM-9700 and CM-9710 Series surface mount piezoelectric push/exit
switches are virtually impervious to weather and vandalism due to their
unique one-piece aluminum construction and non-moving part design. The
switches do not require power to operate.
* CM-9700 product image shown |
This switch is intended for connection to 'low load' access control systems. An external relay is typically required for connection to 'high loads', such as electric strikes and magnetic locks. CM-9700, CM-9710, 'SP', 'F' and 'H' models discontinued, as new 'U' and 'C' version include those message labels. Note: Not recommended for control of automatic doors. |
|
|
|
|
| CM-CPC1 Flush mount weather and vandal resistant cover available for this product |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Dormakaba (RCI)
|
917
|
CM-9700U/C
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
One piece aluminum construction
-
No moving parts, virtually impervious to vandalism
-
No power required to operate
-
3 bilingual labels included
-
Lifetime warranty
| Voltage: |
0 to 40 VDC
|
| Current Rating: |
200 mA Typical
400 mA Maximum
|
| Output: |
Solid State N/O
|
| Resistance: |
"ON" Less Than 50 Ohms
"OFF" Greater Than 5 MOhms
|
| Switch Type: |
Momentary
|
| Temp Range: |
-40°F to +180°F
(-40°C to +82°C)
|
| Dimensions: |
|
Single Gang Faceplate:
|
4-1/2" x 2-3/4" x 7/8"
(114mm x 70mm x 22mm)
|
|
Narrow Faceplace:
|
4-1/2" x 1-3/8" x 7/8"
(114mm x 35mm x 22mm)
|
| |
| Protection: |
IP68
|
| Std. Finish: |
Brushed Aluminum
|
|
|
|
Single Gang Faceplate
click to expand section
|
|
Net Cost
|
|

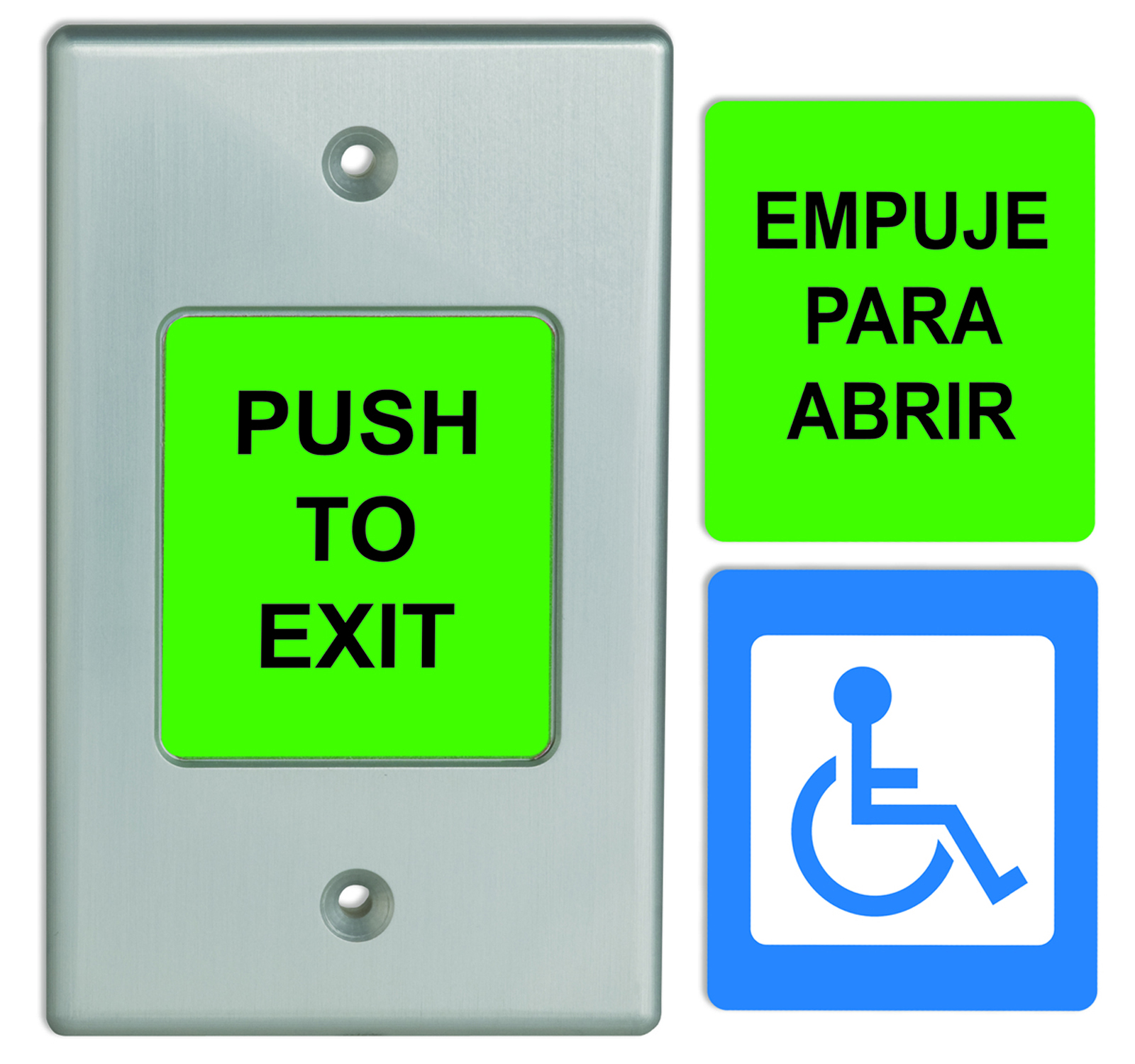

CM-9700U
Switch with 3 English and Spanish labels (‘PUSH TO EXIT’, EMPUJE PARA ABRIR, WHEELCHAIR symbol)
EDI DATA, APPROVALS
|
|
Switch with 3 English and Spanish labels (‘PUSH TO EXIT’, EMPUJE PARA ABRIR, WHEELCHAIR symbol)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3"L x 5"W x 2"H
Weight: 0.54lbs.
UPC:670454171962
|
|
CM-9700C
Switch with 3 English and French labels (‘PUSH TO EXIT’, POUSSEZ POUR SORTIR, WHEELCHAIR symbol)
EDI DATA, APPROVALS
|
|
Switch with 3 English and French labels (‘PUSH TO EXIT’, POUSSEZ POUR SORTIR, WHEELCHAIR symbol)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3"L x 5"W x 2"H
Weight: 0.54lbs.
UPC:670454171955
|
| |
|
Narrow Faceplate
click to expand section
|
|
Net Cost
|
|

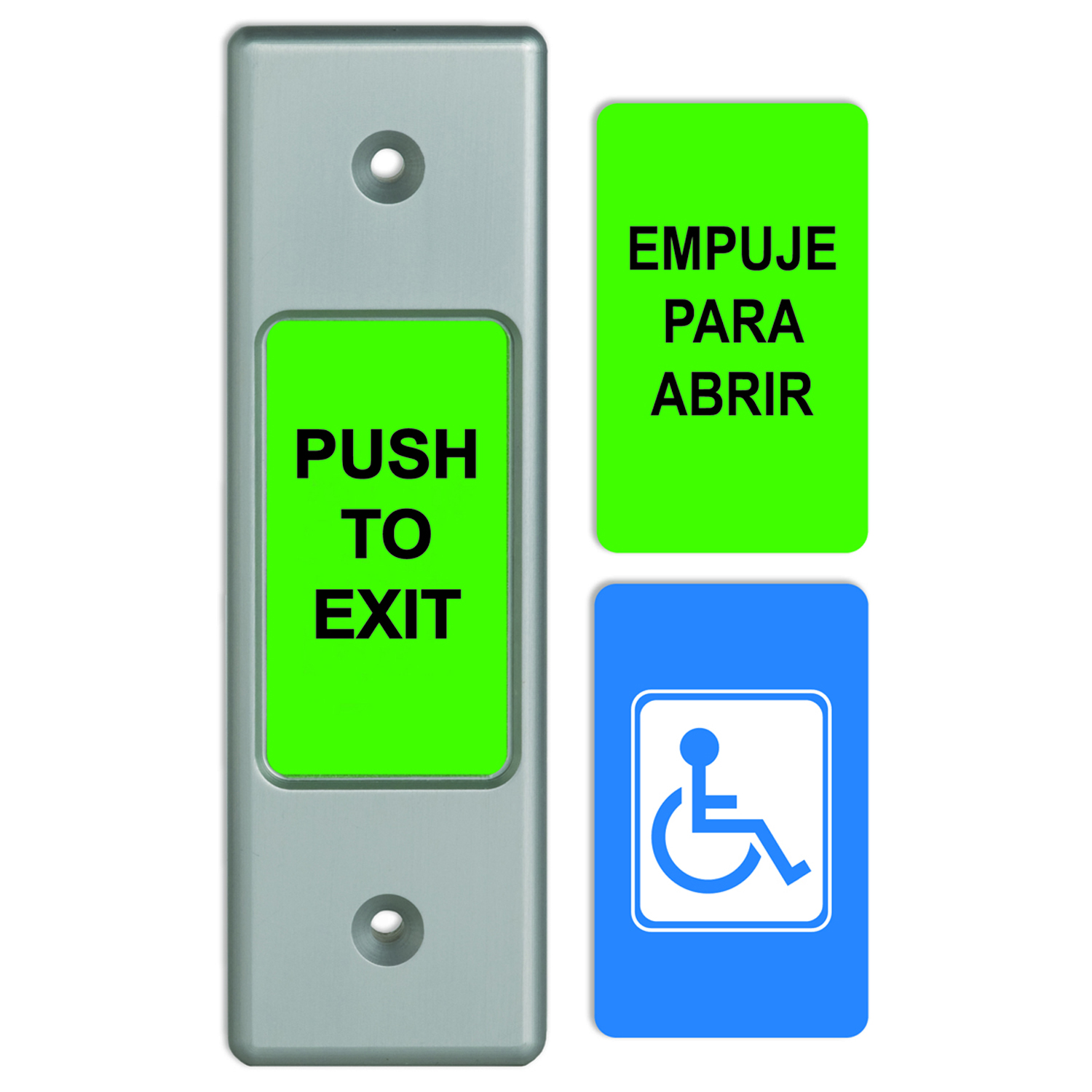

CM-9710U
Switch with 3 English and Spanish labels (‘PUSH TO EXIT’, EMPUJE PARA ABRIR, WHEELCHAIR symbol)
EDI DATA, APPROVALS
|
|
Switch with 3 English and Spanish labels (‘PUSH TO EXIT’, EMPUJE PARA ABRIR, WHEELCHAIR symbol)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3"L x 5"W x 2"H
Weight: 0.3lbs.
UPC:670454171986
|
|
CM-9710C
Switch with 3 English and French labels (‘PUSH TO EXIT’, POUSSEZ POUR SORTIR, WHEELCHAIR symbol)
EDI DATA, APPROVALS
|
|
Switch with 3 English and French labels (‘PUSH TO EXIT’, POUSSEZ POUR SORTIR, WHEELCHAIR symbol)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3"L x 5"W x 2"H
Weight: 0.3lbs.
UPC:670454171979
|
| |
|
new option
|
|
|
Packaging Weights & Dimensions:
|
|
|
COMPATIBLE MOUNTING BOXES
|
|
|
Click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Narrow/Jamb |
|
Net Cost |
|
CM-23
Surface Box, Standard Depth Narrow/Jamb boxes for 9710 series switches
|
Surface Box, Standard Depth Narrow/Jamb boxes for 9710 series switches
|
|
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall Single Gang boxes for 9700 series switches
|
Surface Box, Standard Depth. Double wall Single Gang boxes for 9700 series switches
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 9700 series switches
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum Single Gang boxes for 9700 series switches
|
|
|
|
CM-CPC1
Vandal and weather resistant clear lift cover Single Gang boxes for 9700 series switches
|
Vandal and weather resistant clear lift cover Single Gang boxes for 9700 series switches
|
|
|
|
|
|
