CM-9600/9610

Illuminated Piezoelectric Push/Exit Switch

RoHS Compliant
< Push / Exit Buttons

CM-9600/9610

Illuminated Piezoelectric Push/Exit Switch

Catalog Menu BROWSE
CM-9600/9610:Illuminated Piezoelectric Push/Exit Switch - Push / Exit Buttons
CM-9600/7

CM-9600 and CM-9610 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer.


CM-9600 is single gang width (2-3/4") and the CM-9610 is only 1" & 3/4" wide, perfect for door frames or narrow areas. The large 1" round diameter button is easy to activate. Illumination and power relay is 12 to 24 VDC. Switch illumination is jumper selectable and may be set for On, Off, Green to Red, Red to Green or non-lit operation. Field selectable for N/O or N/C contact output and fail safe/fail secure operation.

Note: Not recommended for control of automatic doors.
CM-CPC1 Flush mount weather and vandal resistant cover available for this product:
CM-CPC1 Flush mount weather and vandal resistant cover available for this product

COMPETITIVE MODELS
CM-9600/9610:Illuminated Piezoelectric Push/Exit Switch - Push / Exit Buttons
CM-9600/7

CM-9600 and CM-9610 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer.


CM-9600 is single gang width (2-3/4") and the CM-9610 is only 1" & 3/4" wide, perfect for door frames or narrow areas. The large 1" round diameter button is easy to activate. Illumination and power relay is 12 to 24 VDC. Switch illumination is jumper selectable and may be set for On, Off, Green to Red, Red to Green or non-lit operation. Field selectable for N/O or N/C contact output and fail safe/fail secure operation.

Note: Not recommended for control of automatic doors.
COMPETITIVE MODELS
FEATURES SPECIFICATIONS RESOURCES
MODELS
Click to configure switch model Pricing Wizard

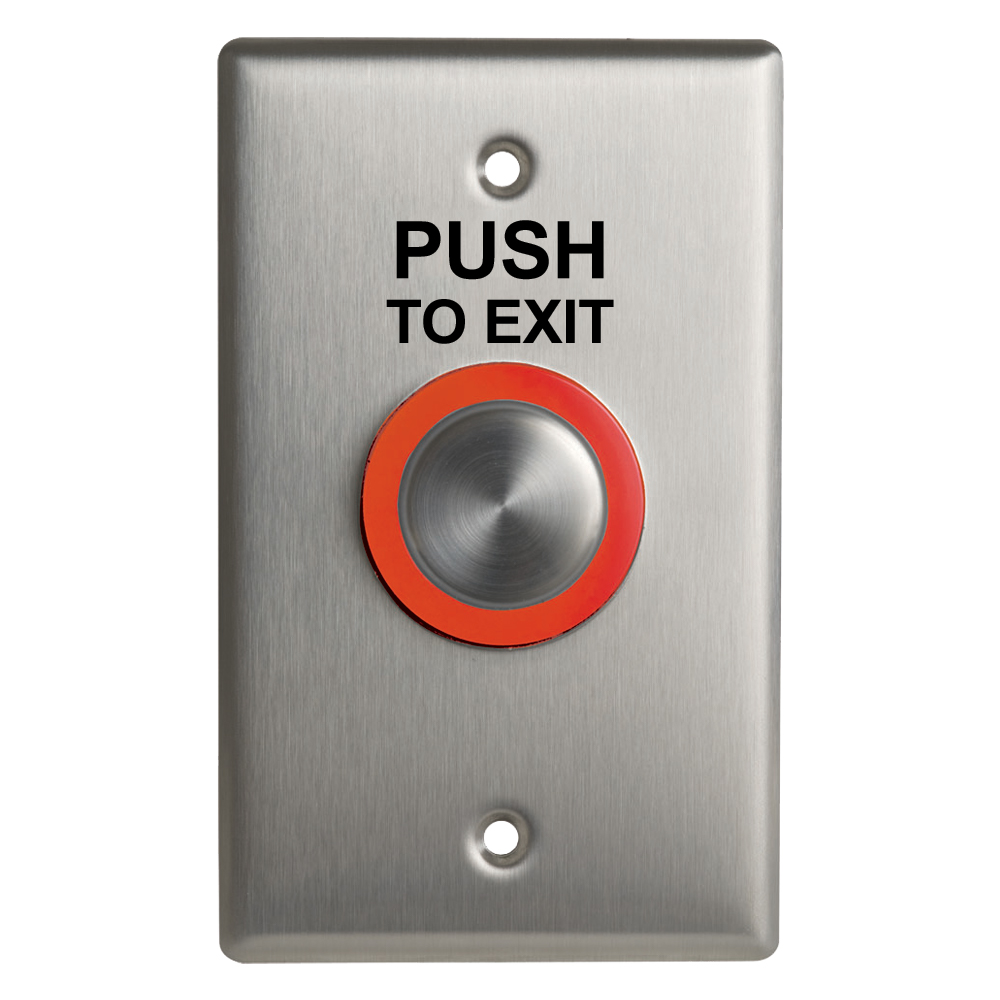

Single Gang Faceplate
CM-9600: CM-9600/9610:Illuminated Piezoelectric Push/Exit Switch - Push / Exit Buttons CM-9600: CM-9600/9610:Illuminated Piezoelectric Push/Exit Switch - Push / Exit Buttons
CM-9600
Illuminated piezoelectric push button, blank
EDI DATA, APPROVALS
Illuminated piezoelectric push button, blank
EDI DATA
APPROVALS

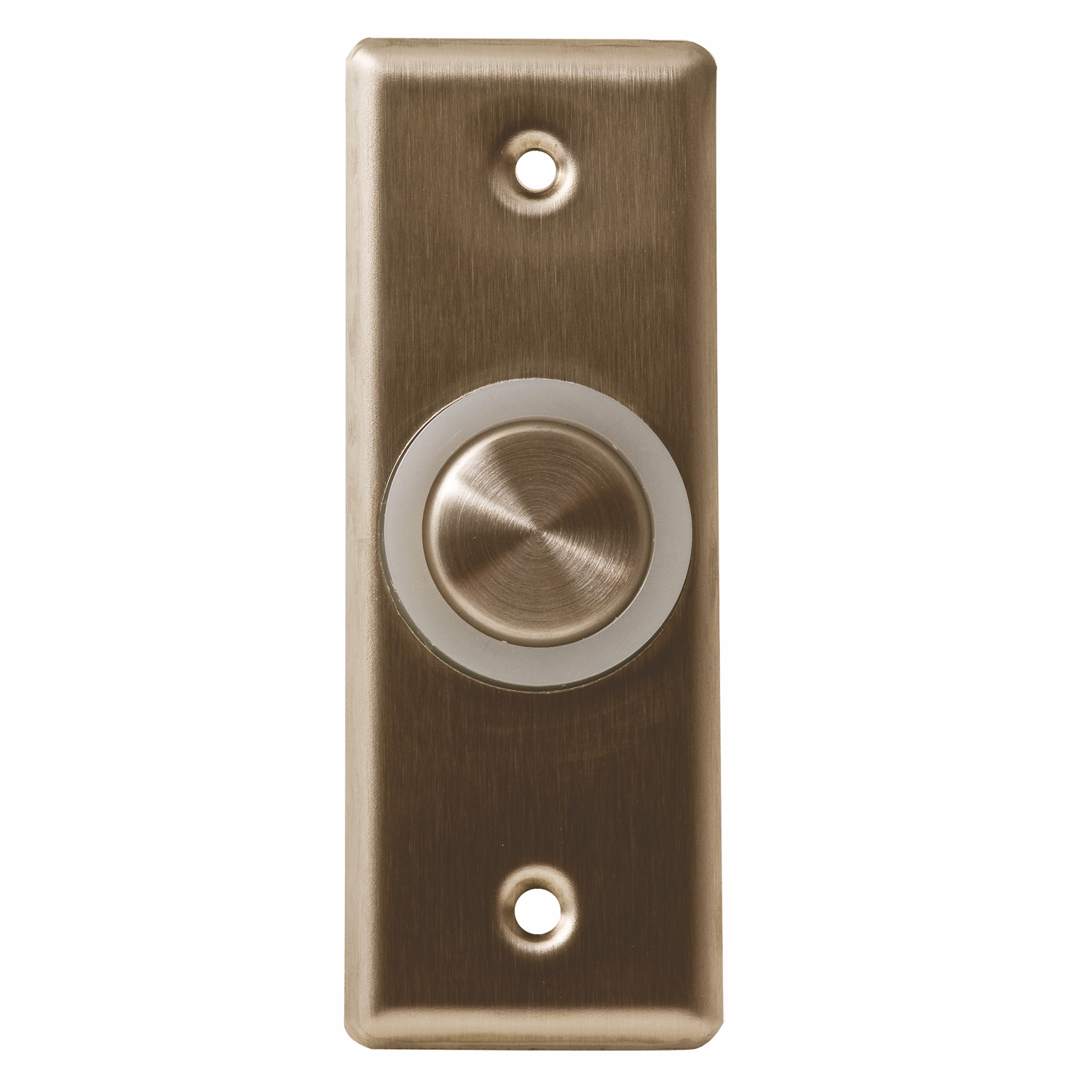

Narrow Faceplate
CM-9610: CM-9600/9610:Illuminated Piezoelectric Push/Exit Switch - Push / Exit Buttons CM-9610: CM-9600/9610:Illuminated Piezoelectric Push/Exit Switch - Push / Exit Buttons
CM-9610
Illuminated piezoelectric push button, blank
EDI DATA, APPROVALS
Illuminated piezoelectric push button, blank
EDI DATA
APPROVALS



Remote Activation/Control
CM-9600/C
Cable for remote activation/control of switch LED
EDI DATA, APPROVALS
Cable for remote activation/control of switch LED
EDI DATA
APPROVALS



OPTIONS & FINISHES
Click to expand section
Faceplate Graphic Options
FACEPLATE GRAPHIC OPTIONS
new kit
COMPATIBLE MOUNTING BOXES
Click to expand section
Mounting Boxes & Accessories
MOUNTING BOXES & ACCESSORIES
