No Cut surface mount RIM strike for Pullman latches
-
Operates with up to 15 lbs. of preload pressure
-
Universal design with selectable:
12/24V, AC/DC operation & Fail Safe/Fail Secure operation
-
3/4" latch projection
-
Latches operate independently of each other
-
Metal mounting jig included for easy installation
-
Patented design
-
Heavy duty stainless steel construction
-
Horizontal adjustment, spacer plate available
-
Removable latch monitoring switch included
-
Non-handed, left or right
-
5 year warranty
Latch Projection: |
3/4"
|
Voltage: |
12/24V AC/DC
|
Current Draw: |
560mA @12V DC 280mA @24V DC
|
Static Strength: |
1,500 lbs. (UL Verified)
|
Preload: |
15 lbs.
|
Dynamic Strength: |
70 ft-lbs.
|
Endurance: |
1,000,000 Cycles (Factory Tested) 250,000 Cycles (UL Verified)
|
Fire Rating: |
UL10C/CAN4-S104 3hrs. (Fail Secure Mode Only)
|
Mode: |
Field Selectable Fail Safe or Fail Secure
|
Operation: |
AC Buzz, DC Silent
|
Duty: |
Continuous
|
Latch Monitor: |
SPDT, 100mA @24V DC, Resistive
|
Dimensions: |
9-1/8"L x 1-7/8"W x 3/4"D (231.6mm x 48mm x 19.8mm)
|
CX-EPD1289L : 5 Things You Need to Know
CX-EPD1289L RIM Strike Installation Video
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
 |

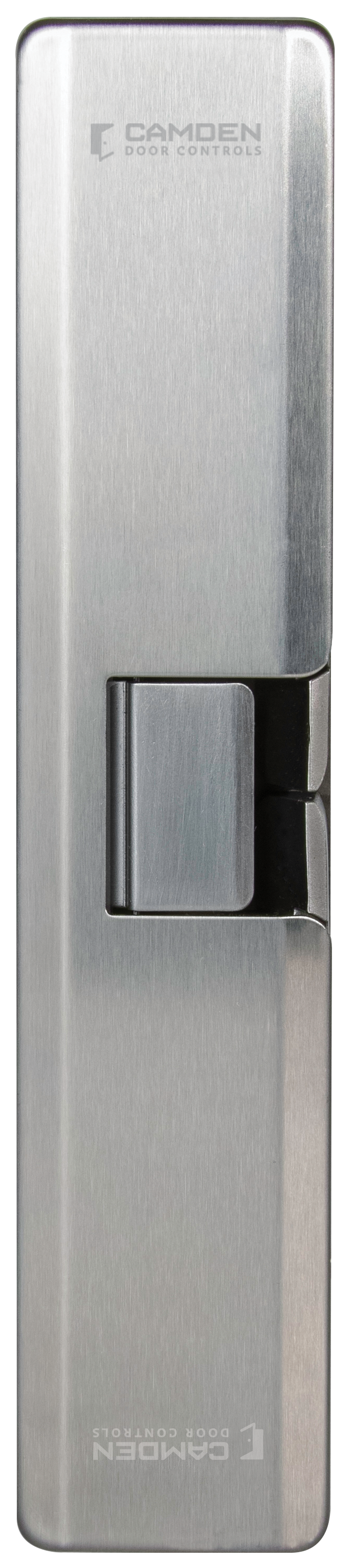

CX-EPD1289L |
3/4" Surface mount Grade 1 RIM strike with preload, 12/24V, AC/DC, fail safe/fail secure, c/w ‘plug-in’ latch monitor assembly and metal mounting jig
EDI Data, Approvals
|
|
3/4" Surface mount Grade 1 RIM strike with preload, 12/24V, AC/DC, fail safe/fail secure, c/w ‘plug-in’ latch monitor assembly and metal mounting jig
|
EDI Data, Approvals
|
|
|
|
|
Dimensions: 10"L x 2"W x 1.875"H
Weight: 2.75lbs.
UPC: 670454208385
Country of Origin: TW
|
|
 |

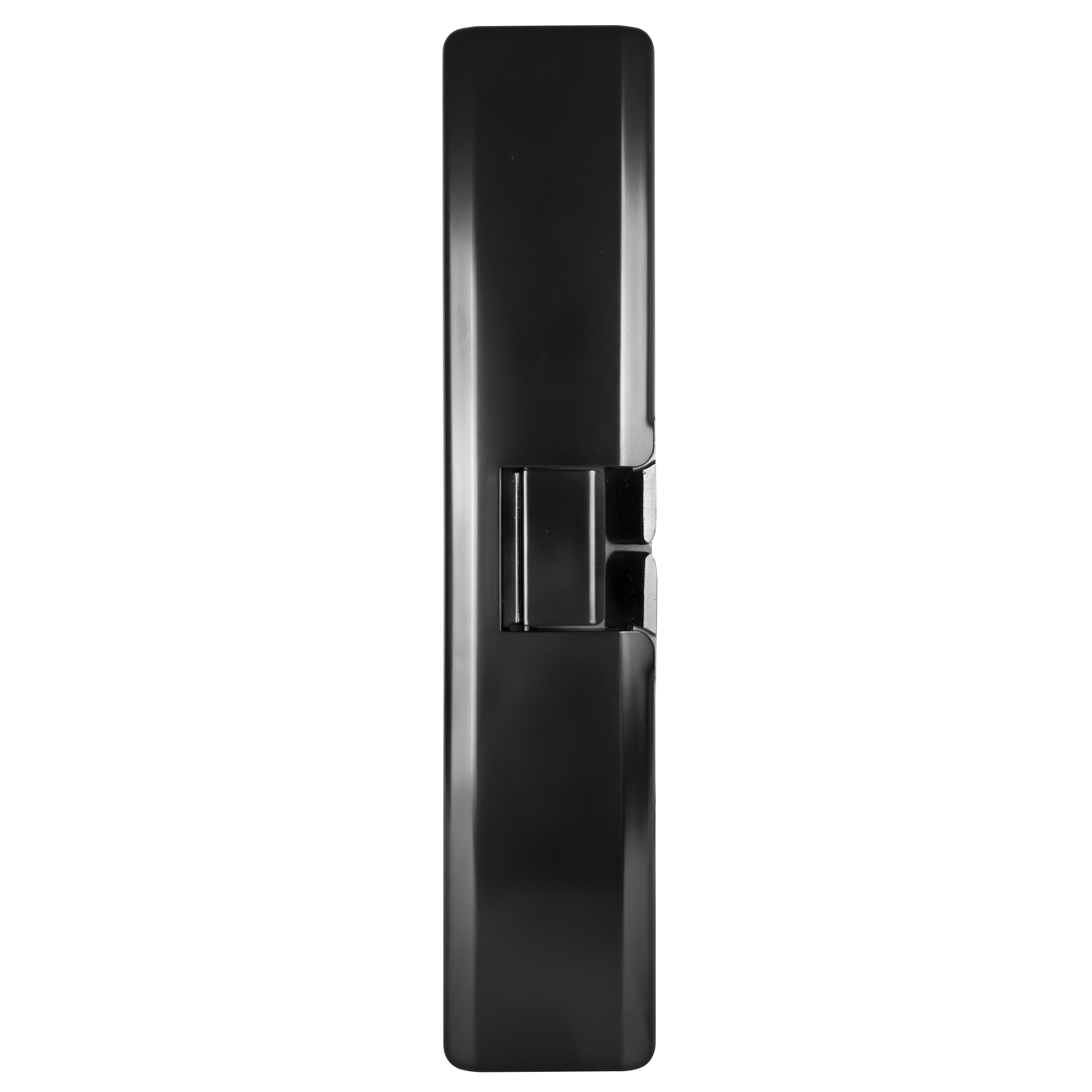

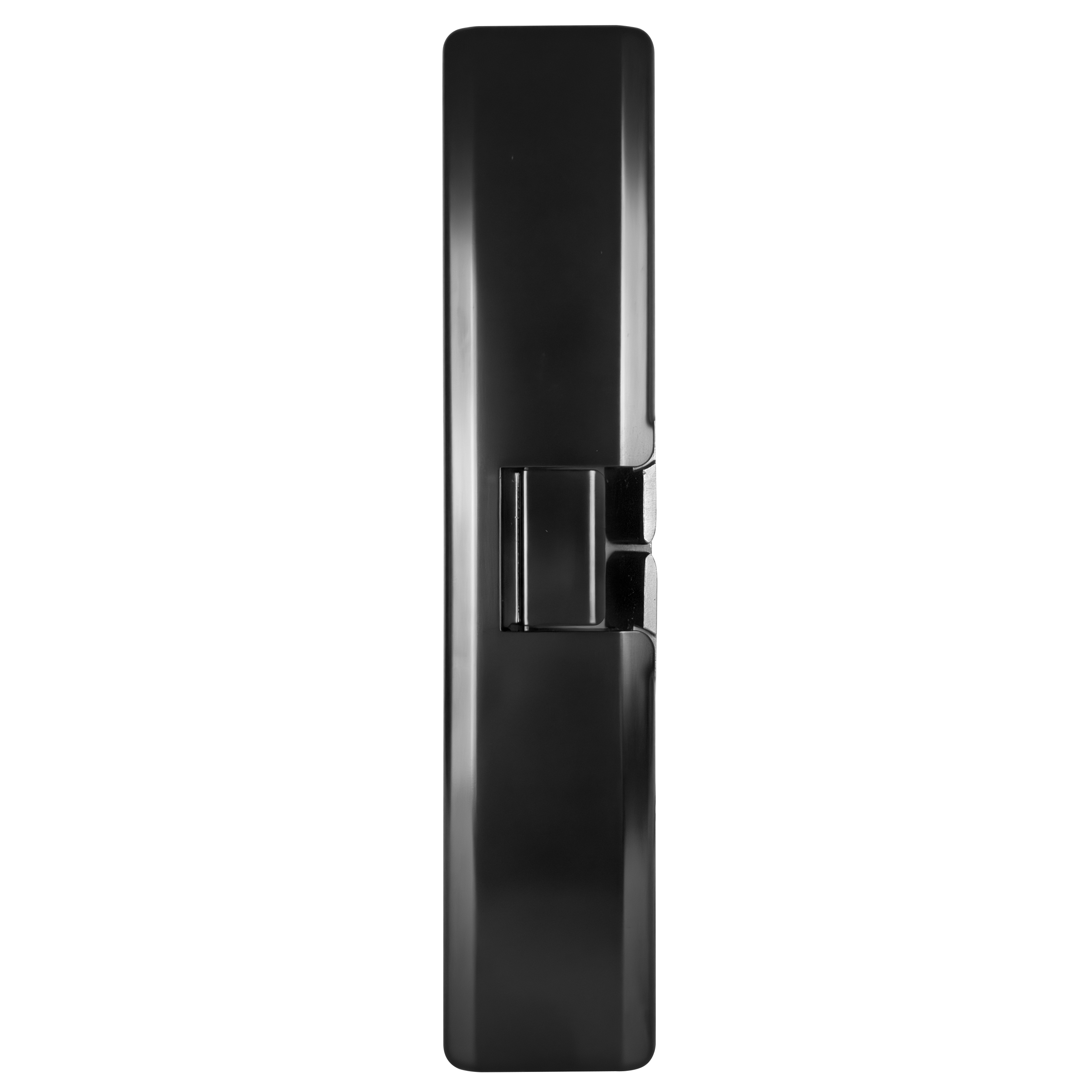

CX-EPD1289L-BK |
All-black finish, 3/4" surface mount Grade 1 RIM strike with preload, 12/24V, AC/DC, fail safe/fail secure, c/w ‘plug-in’ latch monitor assembly and metal mounting jig
EDI Data, Approvals
|
|
All-black finish, 3/4" surface mount Grade 1 RIM strike with preload, 12/24V, AC/DC, fail safe/fail secure, c/w ‘plug-in’ latch monitor assembly and metal mounting jig
|
EDI Data, Approvals
|
|
|
|
|
Dimensions: 10"L x 2"W x 1.875"H
Weight: 2.75lbs.
UPC: 670454216359
Country of Origin: TW
|
|
Spacer Plate
click to expand section
|
|
Net Cost
|
|
 |

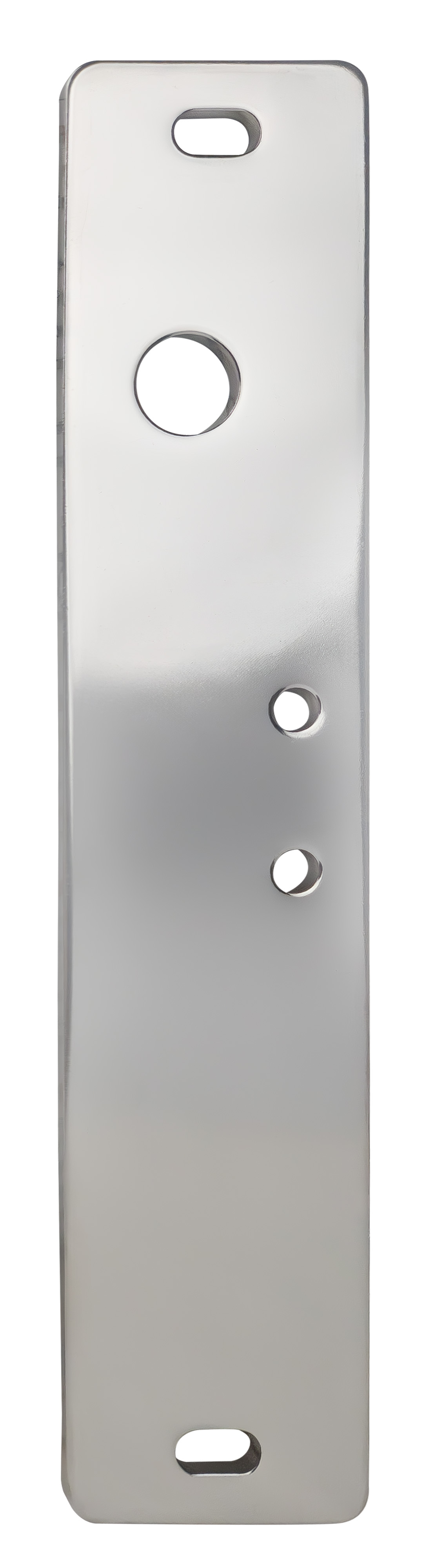

CX-EPD1289-SPC |
1/8" Spacer plate for CX-EPD1289L surface mount RIM strike
EDI Data, Approvals
|
|
1/8" Spacer plate for CX-EPD1289L surface mount RIM strike
|
EDI Data, Approvals
|
|
|
|
|
Dimensions: "L x "W x "H
Weight:
Country of Origin: TW
|
|
Filler Plate
click to expand section
|
|
Net Cost
|
|
 |

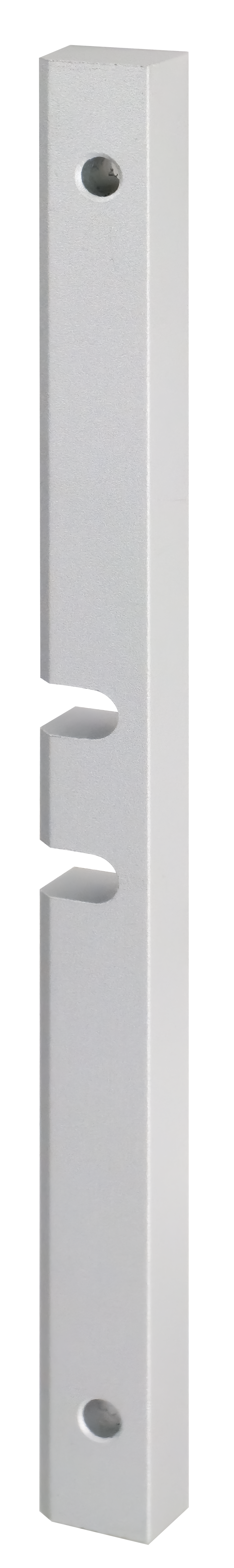

60-35E014 |
RIM Strike Filler Plate
EDI Data, Approvals
|
|
RIM Strike Filler Plate
|
EDI Data, Approvals
|
|
|
|
|
Dimensions: "L x "W x "H
Weight:
|
|
Surface Box
click to expand section
|
|
Net Cost
|
|
 |

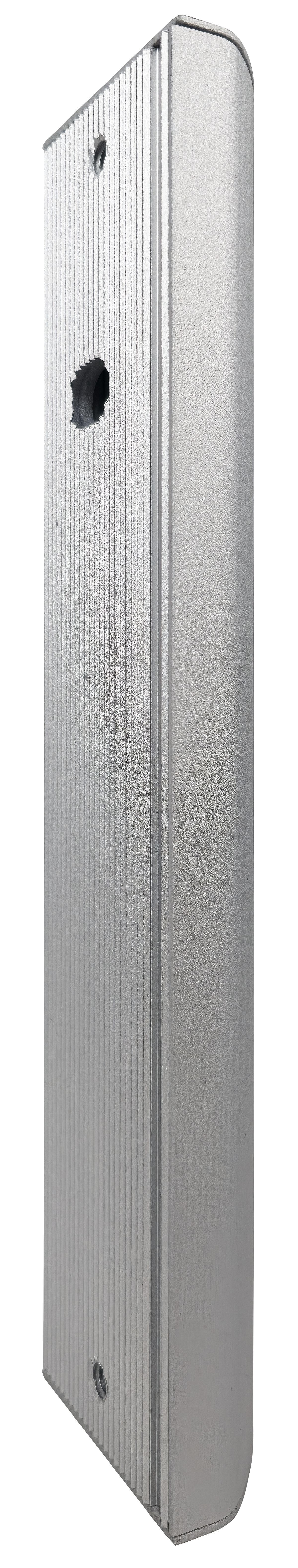

CX-RIM-SB |
Aluminum surface mounted adapter box for mounting EPD-1289L (or 1299L) on a double door
EDI Data, Approvals
|
|
Aluminum surface mounted adapter box for mounting EPD-1289L (or 1299L) on a double door
|
EDI Data, Approvals
|
|
|
|
|
Dimensions: 1.25"L x 1.96875"W x 9.1875"H
Weight: 1lbs.
UPC: 670454228758
Country of Origin: TW
|
|
|
