Centerline latch entry for cylindrical locksets
-
Adjustable strike body
-
Selectable 12/24V AC/DC
-
Selectable fail safe/fail secure operation
-

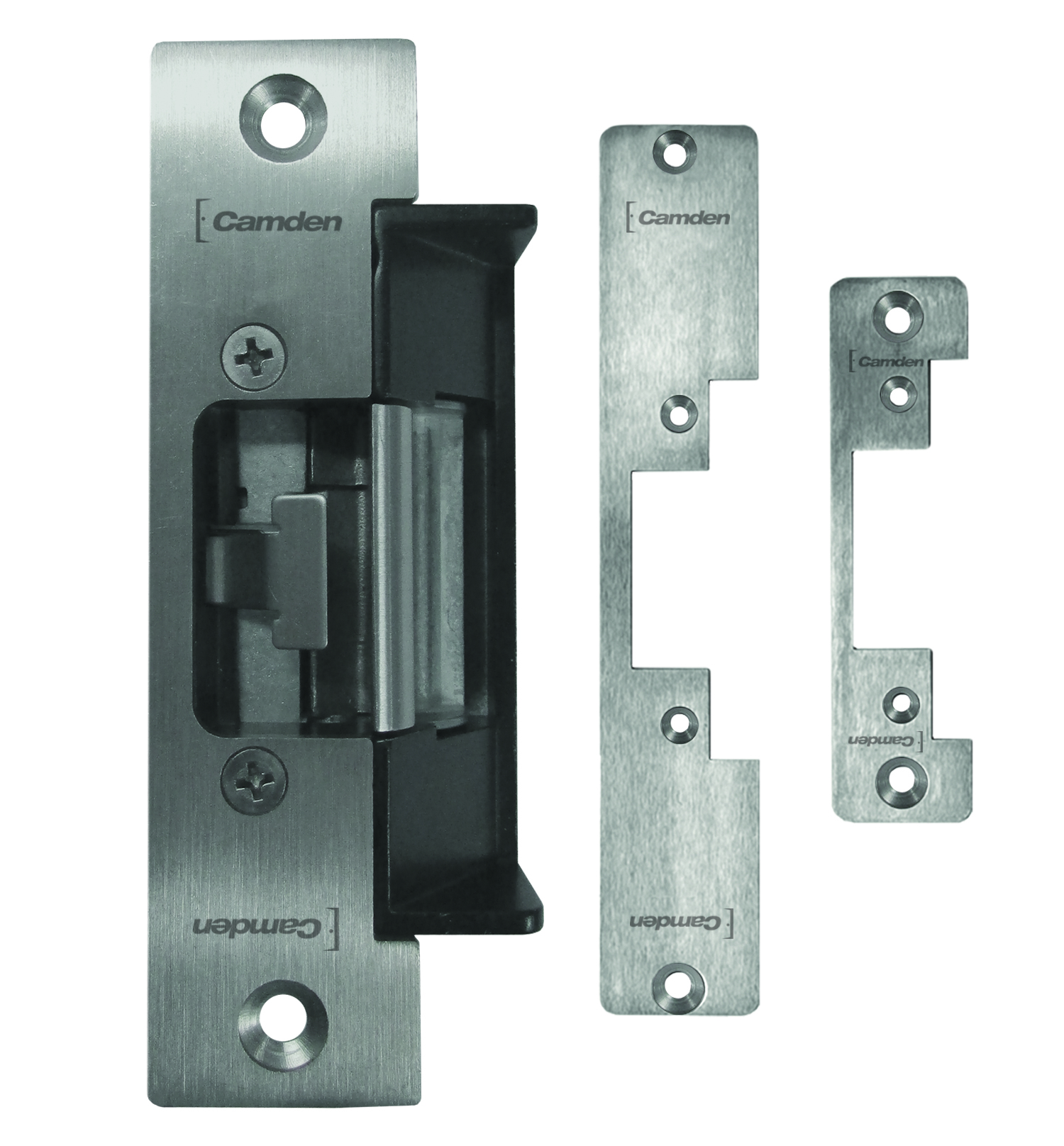

3 stainless steel faceplates included
-
Horizontal adjustability of strike faceplate/body
-
Non-handed
-
Easy fit connectors for power & monitoring wires
-
Trim plate included
-
Continuous duty operation
-
5 year warranty
-

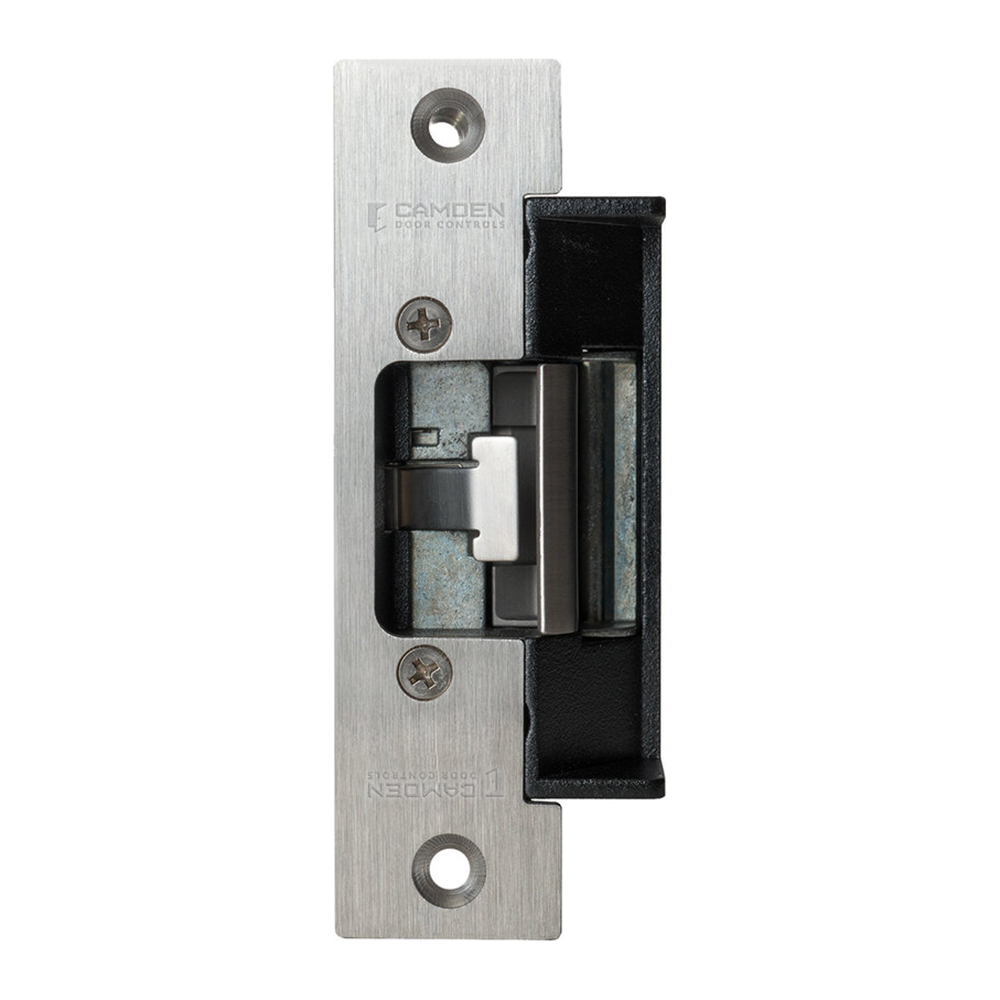

CX-ED1079:
Low profile. 1/2" to 5/8" latch projection (throw)
-
CX-ED1079L:
Low Profile strike with latch monitoring
-

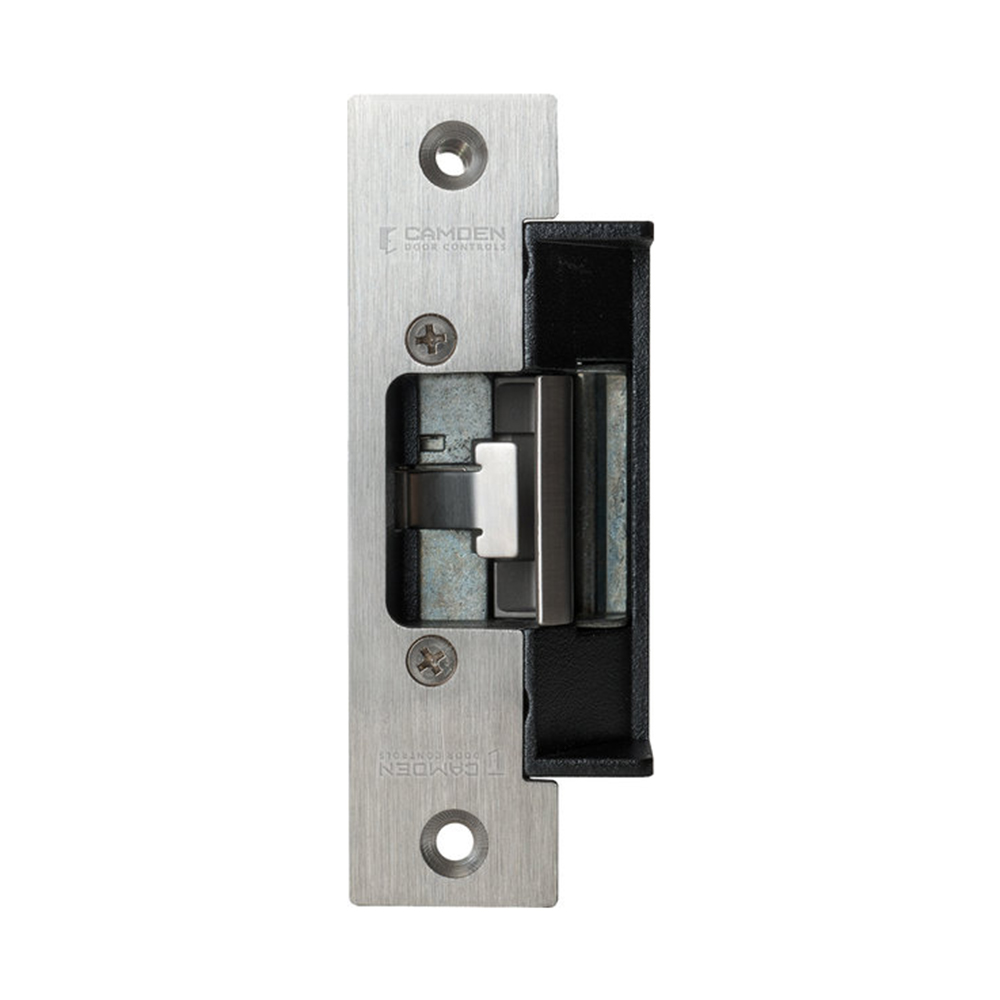

CX-ED1079D:
Std. Depth. 5/8" to 3/4" latch projection (throw)
-
CX-ED1079DL:
Standard depth strike with latch monitoring
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
260 mA @ 12 VDC
150 mA @ 24 VDC
|
| Static Strength: |
1,500 Lbs.
|
| Dynamic Strength: |
70 Ft-Lbs.
|
| Endurance: |
1,000,000 cycles (Factory Tested)
250,000 cycles (UL Verified)
|
| Mode: |
Selectable fail safe
fail secure
|
| Operation: |
AC - Buzz
DC- Silent
|
| Duty: |
Continuous
|
| Latch Monitor: |
Yes
|
| Dimensions: |
|
CX-ED1079:
|
3-3/8"H x 1-3/4"W x 1-7/32"D
(86mm x 44mm x 31mm)
|
|
CX-ED1079D:
|
3-3/8"H x 1-3/4"W x 1-3/8"D
(86mm x 44mm x 35mm)
|
| |
CX-ED1079 - ANSI Electric Strike Installation Video
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
 |
CX-ED1079 |
Low Profile Grade 1 'Universal' electric strike, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
EDI Data, Approvals
|
|
Low Profile Grade 1 'Universal' electric strike, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454193445
Country of Origin: TW
|
|
|
CX-ED1079L |
Low Profile Grade 1 'Universal' electric strike with latch monitoring, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
EDI Data, Approvals
|
|
Low Profile Grade 1 'Universal' electric strike with latch monitoring, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454179913
Country of Origin: TW
|
|
|
CX-ED1079D |
Standard Depth Grade 1 'Universal' electric strike, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
EDI Data, Approvals
|
|
Standard Depth Grade 1 'Universal' electric strike, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454193452
Country of Origin: TW
|
|
|
CX-ED1079DL |
Standard Depth Grade 1 'Universal' electric strike with latch monitoring, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
EDI Data, Approvals
|
|
Standard Depth Grade 1 'Universal' electric strike with latch monitoring, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454179920
Country of Origin: TW
|
|
|
CX-ED1079-BK |
Low Profile Grade 1 'Universal' electric strike, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B-BK, CX-ESP3B-BK & CX-ESP4B-BK)
EDI Data, Approvals
|
|
Low Profile Grade 1 'Universal' electric strike, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B-BK, CX-ESP3B-BK & CX-ESP4B-BK)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454221100
Country of Origin: TW
|
|
|
CX-ED1079L-BK |
Low Profile Grade 1 'Universal' electric strike with latch monitoring, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B-BK, CX-ESP3B-BK & CX-ESP4B-BK)
EDI Data, Approvals
|
|
Low Profile Grade 1 'Universal' electric strike with latch monitoring, 'Univ' Strike, 1/2" to 5/8" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B-BK, CX-ESP3B-BK & CX-ESP4B-BK)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454230799
Country of Origin: TW
|
|
|
|
CX-ED1079D-BK |
Standard Depth Grade 1 'Universal' electric strike, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B-BK, CX-ESP3B-BK & CX-ESP4B-BK)
EDI Data, Approvals
|
|
Standard Depth Grade 1 'Universal' electric strike, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B-BK, CX-ESP3B-BK & CX-ESP4B-BK)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454221117
Country of Origin: TW
|
|
|
|
CX-ED1079DL-BK |
Standard Depth Grade 1 'Universal' electric strike with latch monitoring, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B-BK, CX-ESP3B-BK & CX-ESP4B-BK)
EDI Data, Approvals
|
|
Standard Depth Grade 1 'Universal' electric strike with latch monitoring, 5/8" to 3/4" throw, 12/24V AC/DC, fail safe/fail secure operation, horizontal adjustment, and 3 stainless steel faceplates (CX-ESP1B-BK, CX-ESP3B-BK & CX-ESP4B-BK)
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3.25"L x 10.51"W x 2.25"H
Weight: 1.25lbs.
UPC: 670454231239
Country of Origin: TW
|
| |
Stainless Steel Faceplates
click to expand section
|
|
Net Cost
|
|
|
CX-ESP1B |
ANSI Square, 4 7/8" x 1 1/4", stainless steel
EDI Data, Approvals
|
|
ANSI Square, 4 7/8" x 1 1/4", stainless steel
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454180155
Country of Origin: TW
|
|
|
CX-ESP3B |
Hollow Metal Door, 6 7/8" x 1 1/4", stainless steel
EDI Data, Approvals
|
|
Hollow Metal Door, 6 7/8" x 1 1/4", stainless steel
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454180179
Country of Origin: TW
|
|
|
CX-ESP4B |
Wood Door, 7 15/16" x 1 7/16" , stainless steel
EDI Data, Approvals
|
|
Wood Door, 7 15/16" x 1 7/16" , stainless steel
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454180186
Country of Origin: TW
|
|
|
CX-ESP2B |
ANSI Round, 4 7/8" x 1 1/4" , stainless steel
EDI Data, Approvals
|
|
ANSI Round, 4 7/8" x 1 1/4" , stainless steel
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454180162
Country of Origin: TW
|
| |
|
All-black Stainless Steel Faceplates
click to expand section
|
|
Net Cost
|
|
|
CX-ESP1B-BK |
ANSI Square, 4 7/8" x 1 1/4", all-black finish
EDI Data, Approvals
|
|
ANSI Square, 4 7/8" x 1 1/4", all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454216755
Country of Origin: CN
|
|
|
CX-ESP2B-BK |
ANSI Round, 4 7/8" x 1 1/4" , all-black finish
EDI Data, Approvals
|
|
ANSI Round, 4 7/8" x 1 1/4" , all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454216762
Country of Origin: CN
|
|
|
CX-ESP3B-BK |
Hollow Metal Door, 6 7/8" x 1 1/4", all-black finish
EDI Data, Approvals
|
|
Hollow Metal Door, 6 7/8" x 1 1/4", all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454216779
Country of Origin: CN
|
|
|
CX-ESP4B-BK |
Wood Door, 7 15/16" x 1 7/16" , all-black finish
EDI Data, Approvals
|
|
Wood Door, 7 15/16" x 1 7/16" , all-black finish
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454216786
Country of Origin: CN
|
| |
|
Lip Extension Brackets
click to expand section
|
|
Net Cost
|
|
|
|
CX-ED-LIP1 |
1" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
EDI Data, Approvals
|
|
1" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454182432
Country of Origin: TW
|
|
|
|
CX-ED-LIP2 |
2" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
EDI Data, Approvals
|
|
2" Lip Extension for CX-ED1079 and CX-ED-2079 Series Strikes
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
UPC: 670454182449
Country of Origin: TW
|
| |
|
Marking Templates
click to expand section
|
|
Net Cost
|
|
|
CX-STR-TMPKIT |

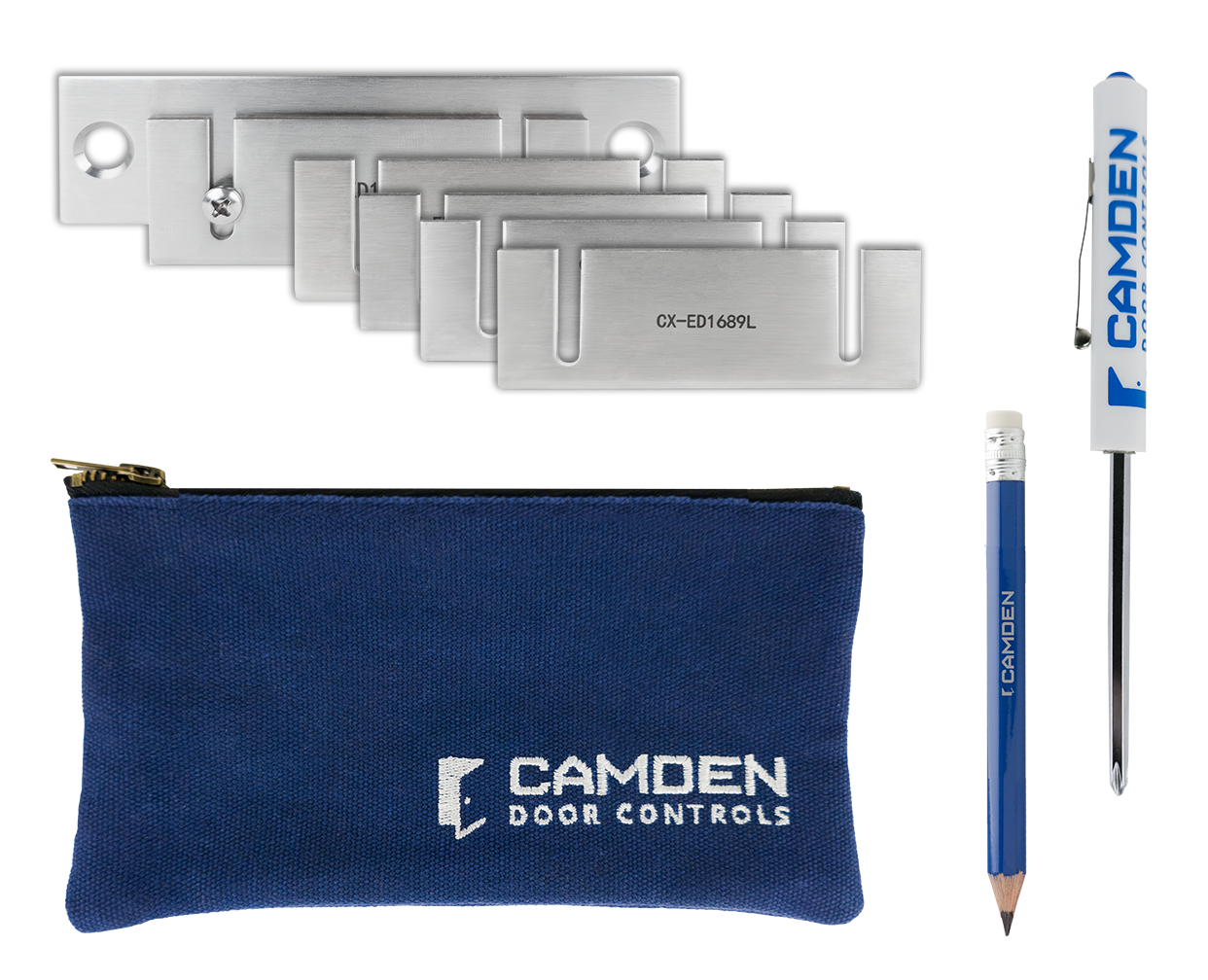

Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
EDI Data, Approvals
|
|
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 8"L x 4.5"W x 1.5"H
Weight: .85lbs.
UPC: 670454222039
Country of Origin: TW
|
| |
|
