CM-221/A42 Single Gang Touchless Switch
|
|
Camden ValueWave™ 12/24 VDC touchless switches with 1 relay are IP 65 rated for indoor/outdoor use, ideal for use in automatic door/access control systems.
These no-touch switches are designed for easy installation and trouble-free service in high traffic applications. They are available in single, narrow and double gang stainless steel faceplates and a selection of faceplate graphics.
ValueWave™ hands free switches are both water resistant and offer a built-in light ring standard - CM-221 for red/green or CM-222 for blue/green illumination.
NEW CM-221 SWITCHES WITH OVERRIDE BUTTON NOW IN STOCK AND READY FOR ORDER!
|
|
|

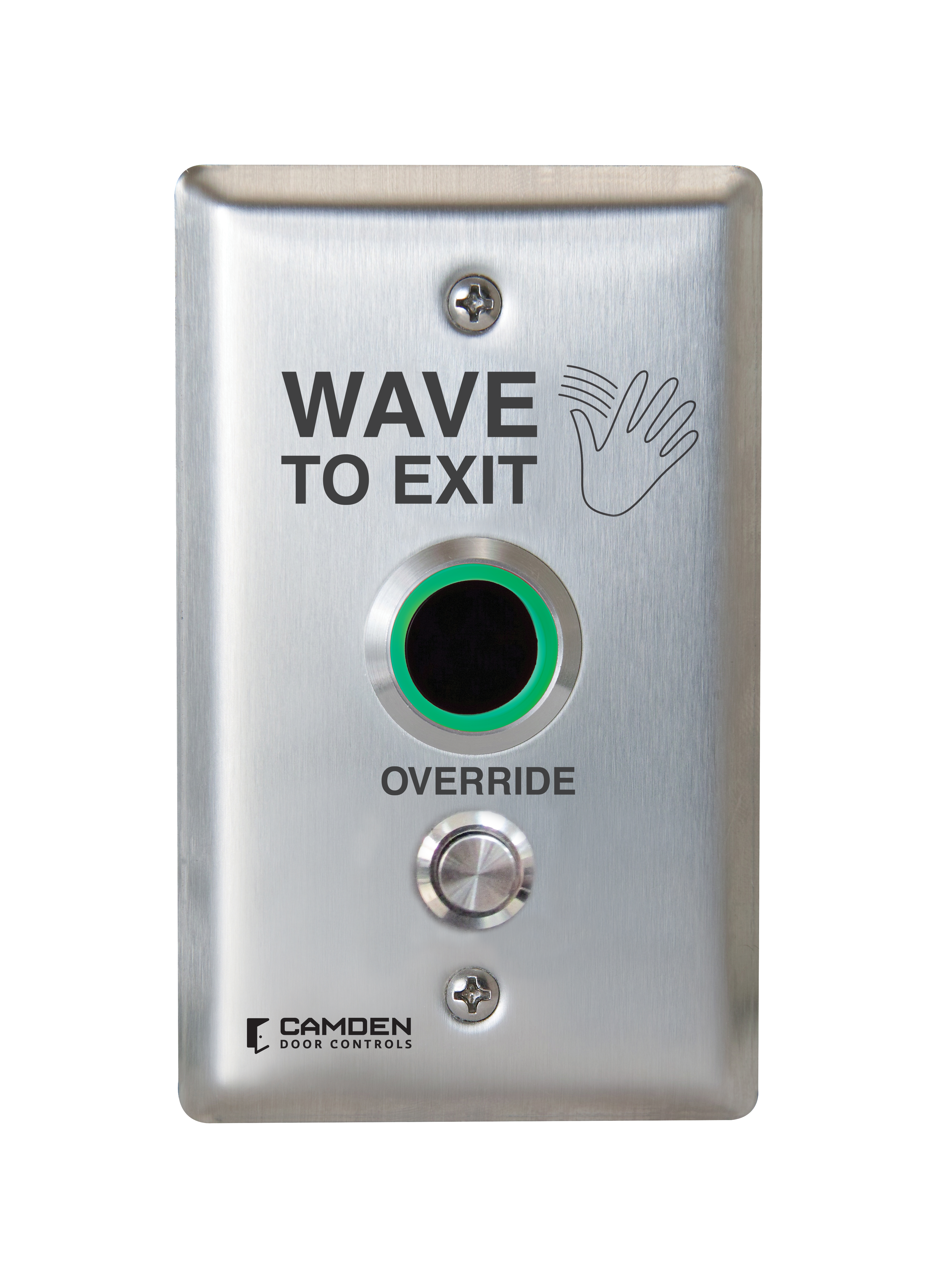

| NEW! CM-221M/46 Single Gang Switch with Override button |
|
|
|

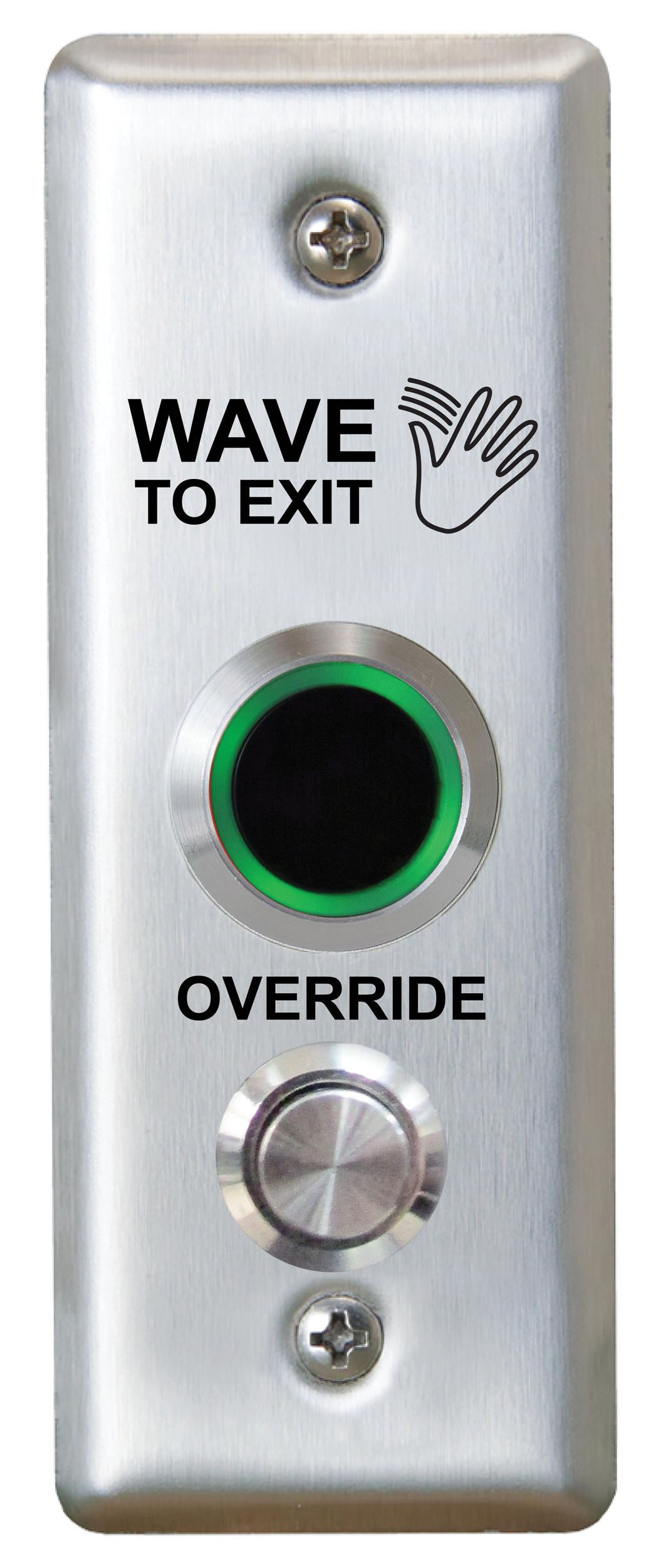

| CM-221M/46N Narrow Touchless Switch with Override Button |
|
|
|
| CM-222/46N Narrow Touchless Switch |
|
|
|
| Part of Our Touchless Wave Product Family |
|
| CM-221/A42 Single Gang Touchless Switch |
CM-221/A42 Single Gang Touchless Switch
|
Camden ValueWave™ 12/24 VDC touchless switches with 1 relay are IP 65 rated for indoor/outdoor use, ideal for use in automatic door/access control systems.
These no-touch switches are designed for easy installation and trouble-free service in high traffic applications. They are available in single, narrow and double gang stainless steel faceplates and a selection of faceplate graphics.
ValueWave™ hands free switches are both water resistant and offer a built-in light ring standard - CM-221 for red/green or CM-222 for blue/green illumination.
NEW CM-221 SWITCHES WITH OVERRIDE BUTTON NOW IN STOCK AND READY FOR ORDER! |
|
|
|
|
|
|
| NEW! CM-221M/46 Single Gang Switch with Override button |
|
|
|
|
| CM-221M/46N Narrow Touchless Switch with Override Button |
|
|
|
|
| CM-222/46N Narrow Touchless Switch |
|
|
|
|
| Part of Our Touchless Wave Product Family |
|
| Features |
|
Specifications |
|
Resources |
|
Videos |
|
|
-
CM-221M/46, CM-221M/46N:
Includes a manual 'override' switch
-
Adjustable sensor range 2" to 8" (5 to 20 cm)
-
Adjustable time delay (0.5 to 20 sec.) and toggle operation
-
Red/green OR blue/green light ring with switch or remote activation
-
Weather/water resistant, IP 65 rated
-
Single, narrow and double gang stainless steel faceplates
-
Selection of faceplate laser etched graphics, resistant to cleaners
-
(1) Form 'C' contact, 1A @ 30 VDC
-
3 year warranty
| Voltage: |
12 - 24 VDC ± 10%
Regulated power supply required.
|
| Current Draw: |
45 mA (PEAK)
|
| Response Time: |
10ms
|
| Temp Range: |
14ºF TO 122ºF
(-10ºC TO +50ºC)
|
| Contact Rating: |
1 AMP @ 30 VDC
|
| Contact Type: |
COMMON / N.O. / N.C.
|
Touchless WaveProduct Line Overview
|
|
CM-221 models - red/green illumination
|
|
Click to Select Configuration Options to Customize Switch Model
|
|
|
|
|
PRODUCT SELECTION TOOL
|
| SELECT MODEL |
 |
|
|
|
|
PRODUCT SELECTION TOOL
|
| SELECT MODEL |
|
|
|
|
Wave To Open
 click to expand section
|
|
Net Cost
|
|
 |

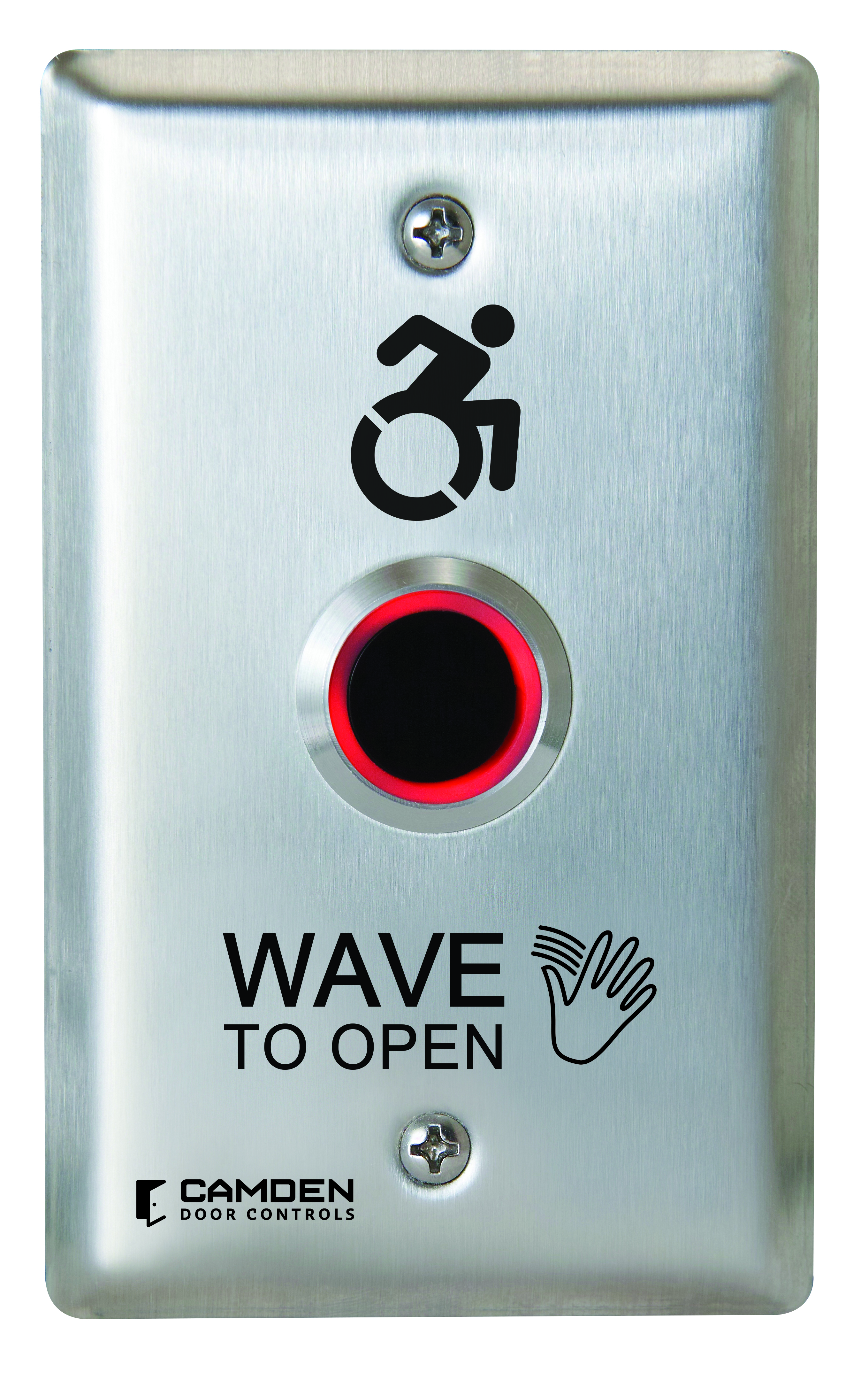

CM-221/A42 |
ValueWave™ Touchless Switch, Single Gang, 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-34BL. Red/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Single Gang, 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-34BL. Red/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3"L x 2.75"W x 5"H
Weight: 0.35lbs.
UPC: 670454205735
Country of Origin: CN
|
|
|
CM-221/A42N |
ValueWave™ Touchless Switch, Narrow (Jamb), 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-23D. Red/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Narrow (Jamb), 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-23D. Red/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3"L x 2.75"W x 5"H
Weight: 0.35lbs.
UPC: 670454205742
Country of Origin: CN
|
|
|
CM-221/A42W |
ValueWave™ Touchless Switch, Double Gang, 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-53. Red/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Double Gang, 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-53. Red/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3"L x 2.75"W x 5"H
Weight: 0.35lbs.
UPC: 670454205759
Country of Origin: CN
|
| |
|
Wave To Exit
click to expand section
|
|
Net Cost
|
|
|

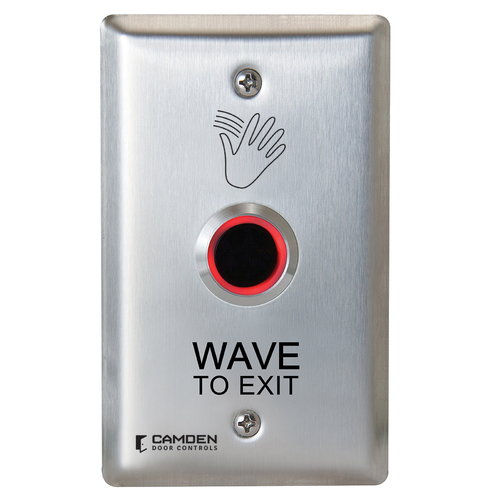

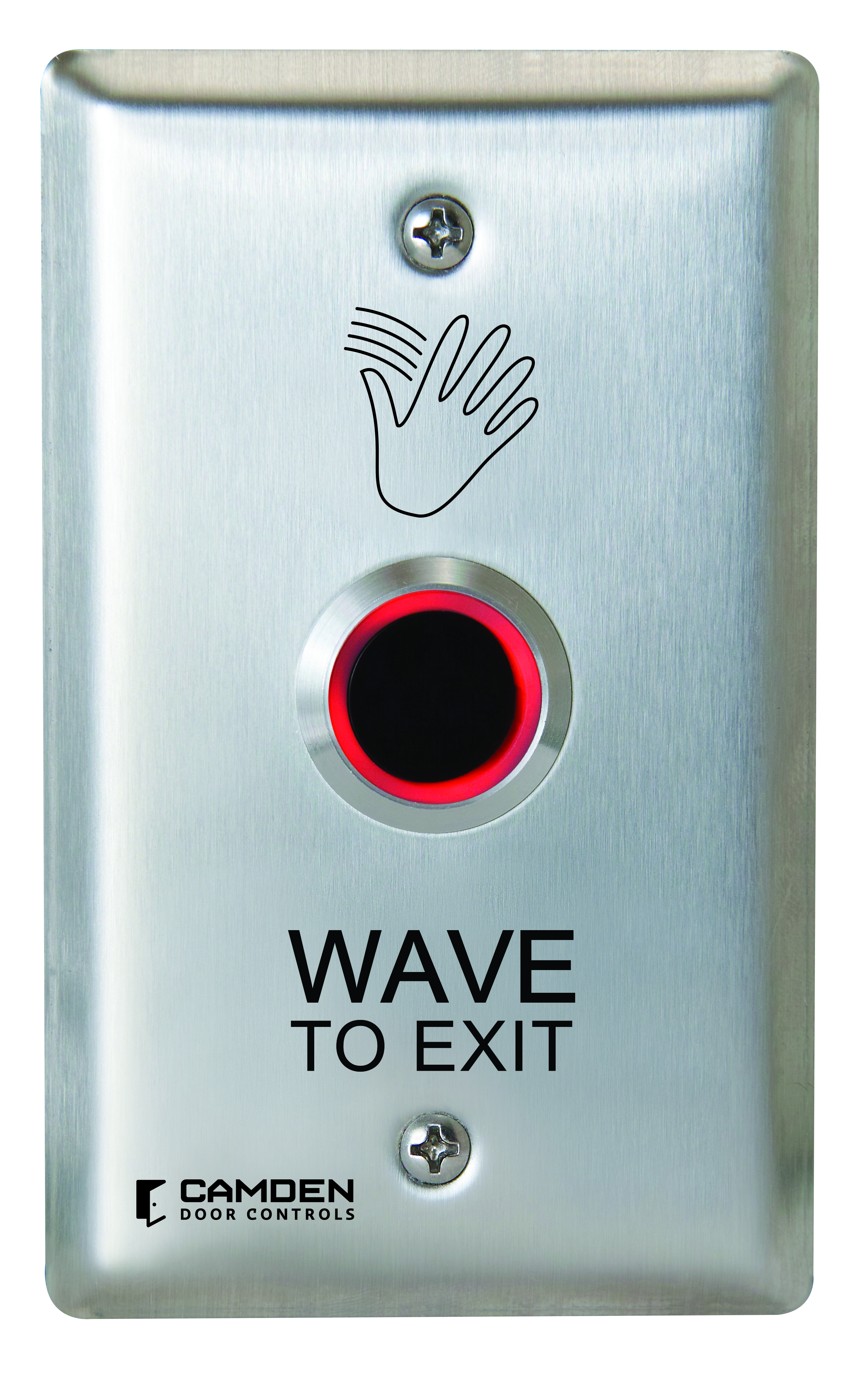

CM-221/46 |
ValueWave™ Touchless Switch, Single Gang, 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-34BL. Red/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Single Gang, 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-34BL. Red/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3"L x 2.75"W x 5"H
Weight: 0.35lbs.
UPC: 670454205452
Country of Origin: CN
|
|
|
CM-221M/46 |
ValueWave™, SS 1 Gg faceplate 12/24VDC, 1 Relay, with Override
EDI Data, Approvals
|
|
ValueWave™, SS 1 Gg faceplate 12/24VDC, 1 Relay, with Override
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3""L x 2.75""W x 5""H
Weight: 0.35lbs.
UPC: 670454213556
Country of Origin: CA
|
|
|
CM-221/46N |
ValueWave™ Touchless Switch, Narrow (Jamb), 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-23D. Red/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Narrow (Jamb), 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-23D. Red/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3"L x 2.75"W x 5"H
Weight: 0.35lbs.
UPC: 670454205469
Country of Origin: CN
|
|
|
CM-221M/46N |
ValueWave™, SS Narrow faceplate 12/24VDC, 1 Relay, with Override
EDI Data, Approvals
|
|
ValueWave™, SS Narrow faceplate 12/24VDC, 1 Relay, with Override
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 5"L x 3"W x 2.75"H
Weight: .35lbs.
UPC: 670454219176
Country of Origin: CA
|
|
|
CM-221/46W |
ValueWave™ Touchless Switch, Double Gang, 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-53. Red/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Double Gang, 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-53. Red/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 0.35lbs.
UPC: 670454205476
Country of Origin: CN
|
| |
|
CM-222 models - blue/green illumination
|
|
|
Wave to Open
click to expand section
|
|
Net Cost
|
|
|

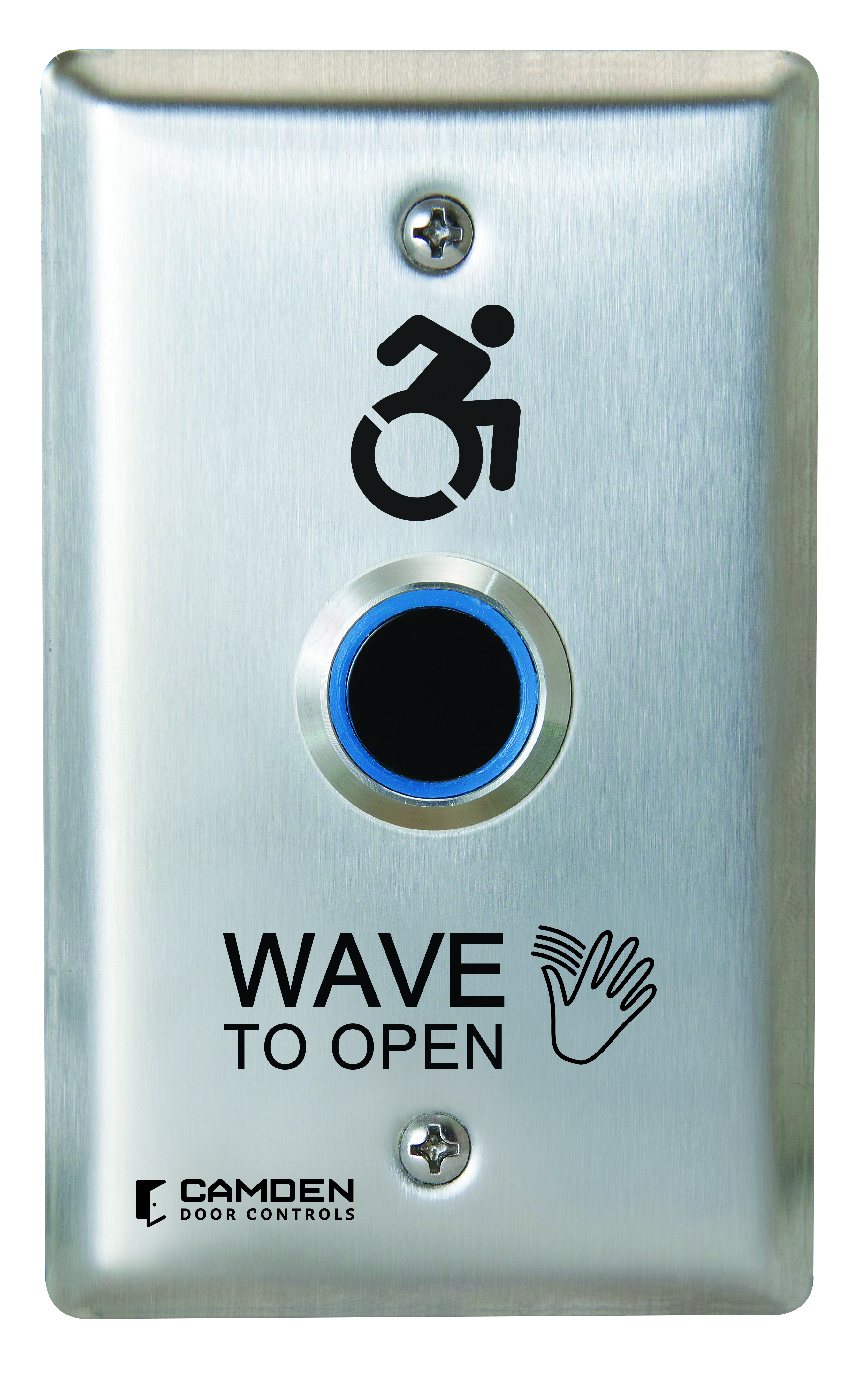

CM-222/A42 |
ValueWave™ Touchless Switch, Single Gang, 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-34BL. Blue/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Single Gang, 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-34BL. Blue/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 3"L x 2"W x 5"H
Weight: 0.35lbs.
UPC: 670454209597
Country of Origin: CN
|
|
|
CM-222/A42N |
ValueWave™ Touchless Switch, Narrow (Jamb), 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-23D. Blue/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Narrow (Jamb), 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-23D. Blue/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 5"L x 3"W x 2"H
Weight: 0.3lbs.
UPC: 670454209603
Country of Origin: CN
|
|
|
CM-222/A42W |
ValueWave™ Touchless Switch, Double Gang, 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-53. Blue/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Double Gang, 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-53. Blue/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: 0.55lbs.
UPC: 670454209610
Country of Origin: CN
|
| |
|
Wave To Exit
click to expand section
|
|
Net Cost
|
|
|

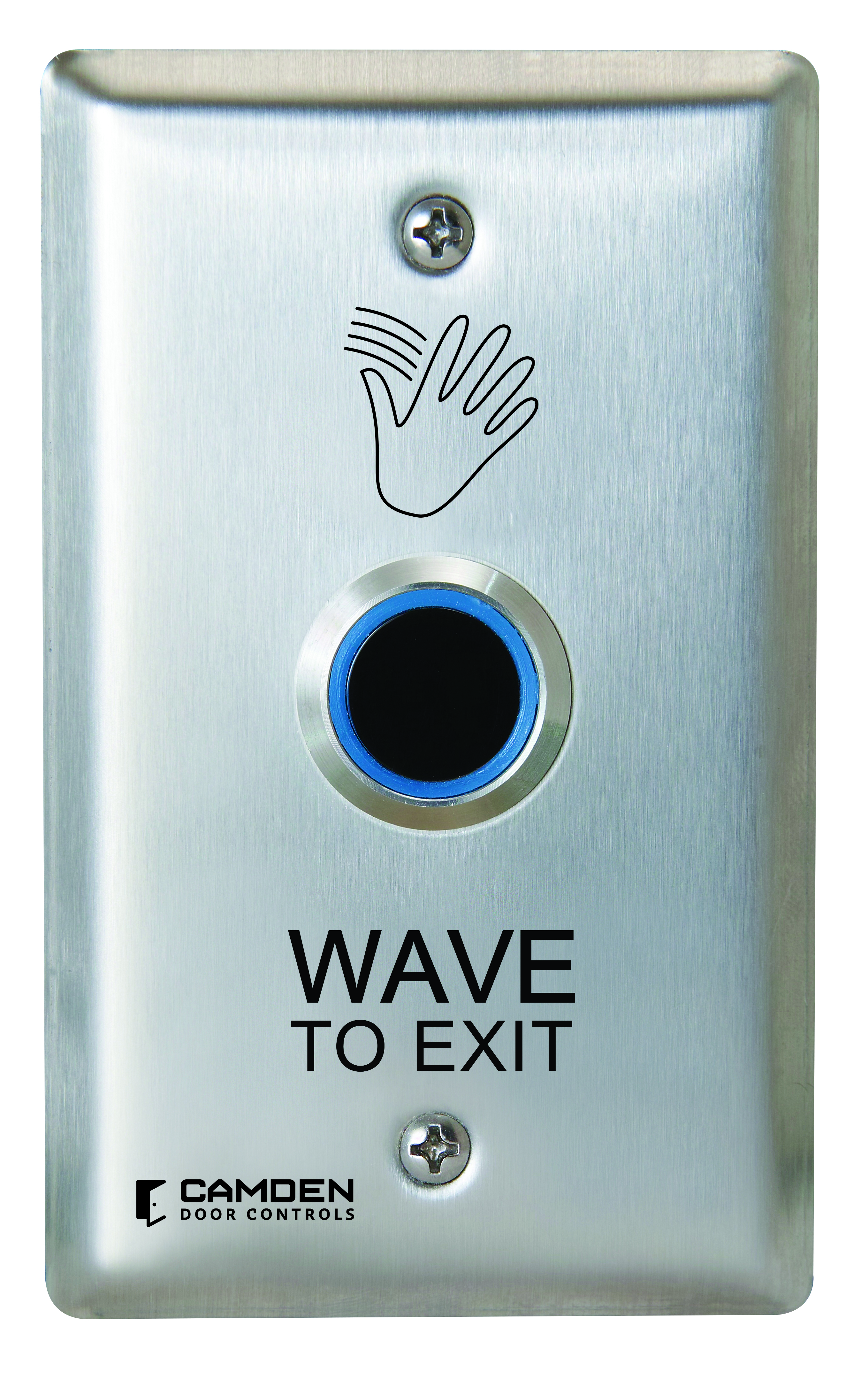

CM-222/46 |
ValueWave™ Touchless Switch, Single Gang, 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-34BL. Blue/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Single Gang, 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-34BL. Blue/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 5"L x 3"W x 2"H
Weight: 0.35lbs.
UPC: 670454209689
Country of Origin: CN
|
|
|
CM-222/46N |
ValueWave™ Touchless Switch, Narrow (Jamb), 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-23D. Blue/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Narrow (Jamb), 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-23D. Blue/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 5"L x 3"W x 2"H
Weight: 0.3lbs.
UPC: 670454209696
Country of Origin: CN
|
|
|
CM-222/46W |
ValueWave™ Touchless Switch, Double Gang, 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-53. Blue/Green Illumination.
EDI Data, Approvals
|
|
ValueWave™ Touchless Switch, Double Gang, 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-53. Blue/Green Illumination.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: 0.55lbs.
UPC: 670454209702
Country of Origin: CN
|
| |
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
Compatible Mounting Boxes
|
|
|
click to expand section
|
|
|
|
| |
|
Net Cost |
|
CM-23D
Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
|
Surface Box, Deep - For wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
|
|
|
|
CM-34BL
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-53
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS) flame/Impact resistant, 4-1/2"W x 4-1/2"H X 2"D. For use with CM-2510 and CM-2520 vestibule switches
|
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS) flame/Impact resistant, 4-1/2"W x 4-1/2"H X 2"D. For use with CM-2510 and CM-2520 vestibule switches
|
|
|
|
|
CM-43CBL-ADP2
Adaptor kit to mount VALUEWAVE(tm) double gang switch on CM-43CBL surface mount box
|
Adaptor kit to mount VALUEWAVE(tm) double gang switch on CM-43CBL surface mount box
|
|
|
|
|
CM-43LP-ADP1
Adaptor kit to mount VALUEWAVE(tm) double gang switch on CM-43LP (Low Profile) surface mount box
|
Adaptor kit to mount VALUEWAVE(tm) double gang switch on CM-43LP (Low Profile) surface mount box
|
|
|
|
|
|
