CV-603 series (MProx-BLE) is an app-based wireless Bluetooth® managed access control system designed to provide 'best in class' security of doors and gates, with up to 2,000 users. The intuitive programming app is Apple® and Android® protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up. The CV-603 controller provides control for two doors, including inputs for readers, door position switch and REX device, and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications. |
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
- No PC required. Programmed via smartphone Bluetooth(R) App
- 2,000 User Capacity
- Wiegand Reader protocol – 26, 30, 34 and 37 bits
- Range of credentials including proximity cards, key fobs and smartphone (using MProx-BT app)
- Anti-pass back – Higher level of security
- Sensor Input – For door position switch or vehicle loop detector
- Form C relays – Fail-safe or Fail-secure electric locks
- Built-in 433 Mhz. key fob receiver – used with CX-TXM-2 two button transmitters
- Encrypted rolling code and protected AES128 transmission of transmitters
- Operator Security Levels – 5, configurable
- 3 year warranty
| Voltage: |
12 VDC |
| Current Draw: |
< 100 mA |
| Contact Rating: |
1A @ 30 VDC |
| Users: |
2000 |
| Reader Inputs: |
2 |
| Reader Outputs: |
2 |
| Reader Input Types: |
Wiegand 26, 30, 34, 37 Bit |
| Receiver Frequency: |
433 Mhz. |
| DIN Rail Mount: |
Yes |
| Temperature Range: |
-4°F to 131°F (-20°C to +55°C) |
| Relay Output Types: |
Timed 1 - 180 seconds, Momentary, bi-stable / latch |
| CV-603 Dimensions: |
4-1/2" H x 3-1/2" W x 1-3/4" D (115mm x 90mm x 44mm) |
| CX-TXM-2 Dimensions: |
2-5/8" H x 1-1/4" W x 1/2" D (66mm x 30mm x 11mm) |
|
Spec Sheets
|
| CV-603 Spec Sheet_R4 |
pdf |
10.98 |
DOWNLOAD
|
|
Manuals
|
| CV-603 Manual_R1 |
pdf |
3.24 |
DOWNLOAD
|
| CV-603 Reference Manual_R1 |
pdf |
4.55 |
DOWNLOAD
|
| CV-603EA_External Antenna_Manual |
pdf |
0.40 |
DOWNLOAD
|
| MProx-BT App Set-up |
pdf |
1.66 |
DOWNLOAD
|
| CV-TXM-2 Manual |
pdf |
0.36 |
DOWNLOAD
|
|
Application Spec Guide
|
| Access Control (Security)_1 Door w/ Alarm_Wired_Ref 2111A |
pdf |
1.29 |
DOWNLOAD
|
| Access Control (Security)_1 Door w/ Alarm_No Touch_Ref 2111C |
pdf |
1.39 |
DOWNLOAD
|
| Access Control (Security)_Vehicle Gate Control_Wired_Ref 2221D |
pdf |
1.14 |
DOWNLOAD
|
|
Support
|
| CV-603 Powerpoint Overview |
presentation |
26.87 |
DOWNLOAD
|
|
High Resolution Images
|
| CV-603 |
jpeg |
0.45 |
DOWNLOAD
|
| CV-603PS |
jpeg |
0.21 |
DOWNLOAD
|
| CV-603PS-K1 |
jpeg |
0.27 |
DOWNLOAD
|
| CV-603EA |
jpeg |
0.31 |
DOWNLOAD
|
| CV-TXM-2 |
jpeg |
0.39 |
DOWNLOAD
|
5 Things you NEED to knowMProx-BLE
MProx-BLE System OverviewPresented by Kenneth Chong
|
|
|
CONTROLLERS
 click to expand section
|
|
Net Cost
|
|
CV-603

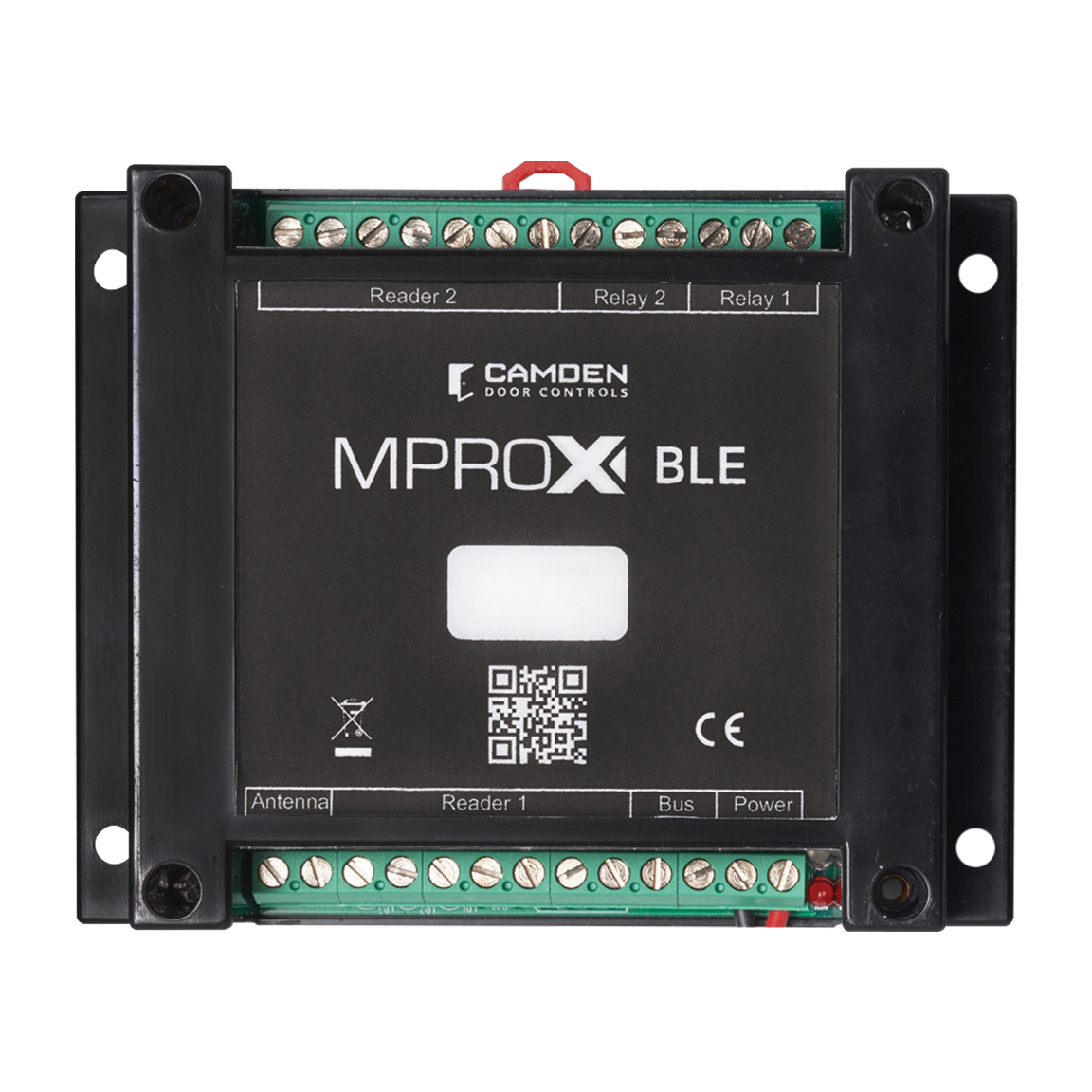

2 Door MProx-BLE controller with 433 Mhz. receiver
EDI DATA, APPROVALS
|
|
2 Door MProx-BLE controller with 433 Mhz. receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.5""L x 3.5""W x 4.5""H
Weight: 0.45lbs.
UPC:670454209146
|
|
CV-603PS

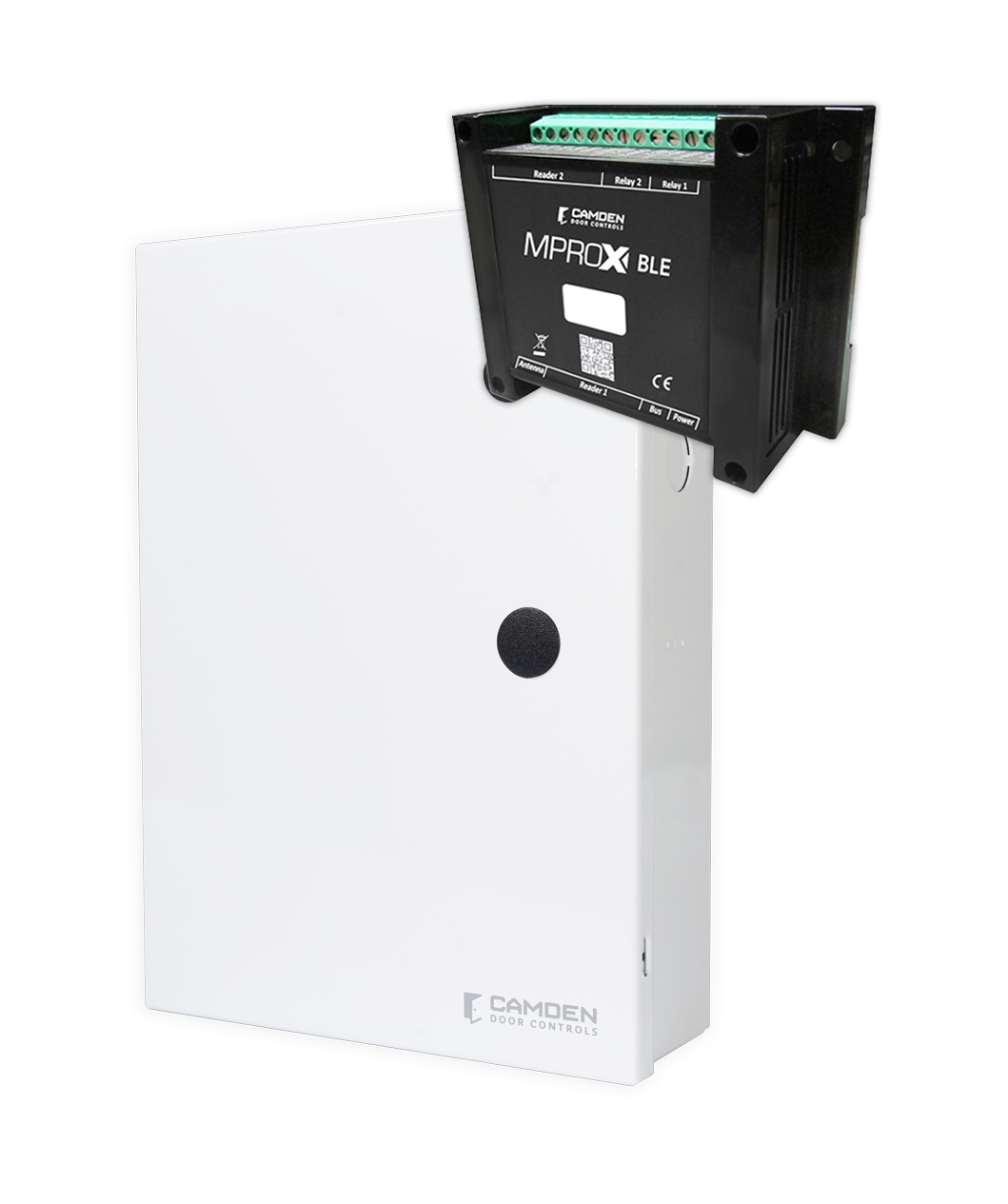

Cabinet with MProx-BLE controller, 12 VDC, 1.5 amp power supply (without battery) and 16 VAC, 40 VA transformer
EDI DATA, APPROVALS
|
|
Cabinet with MProx-BLE controller, 12 VDC, 1.5 amp power supply (without battery) and 16 VAC, 40 VA transformer
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14"L x 12"W x 4"H
Weight: 4lbs.
UPC:670454209160
|
| |
|
EXTENSION ANTENNA
click to expand section
|
|
Net Cost
|
|
CV-603EA

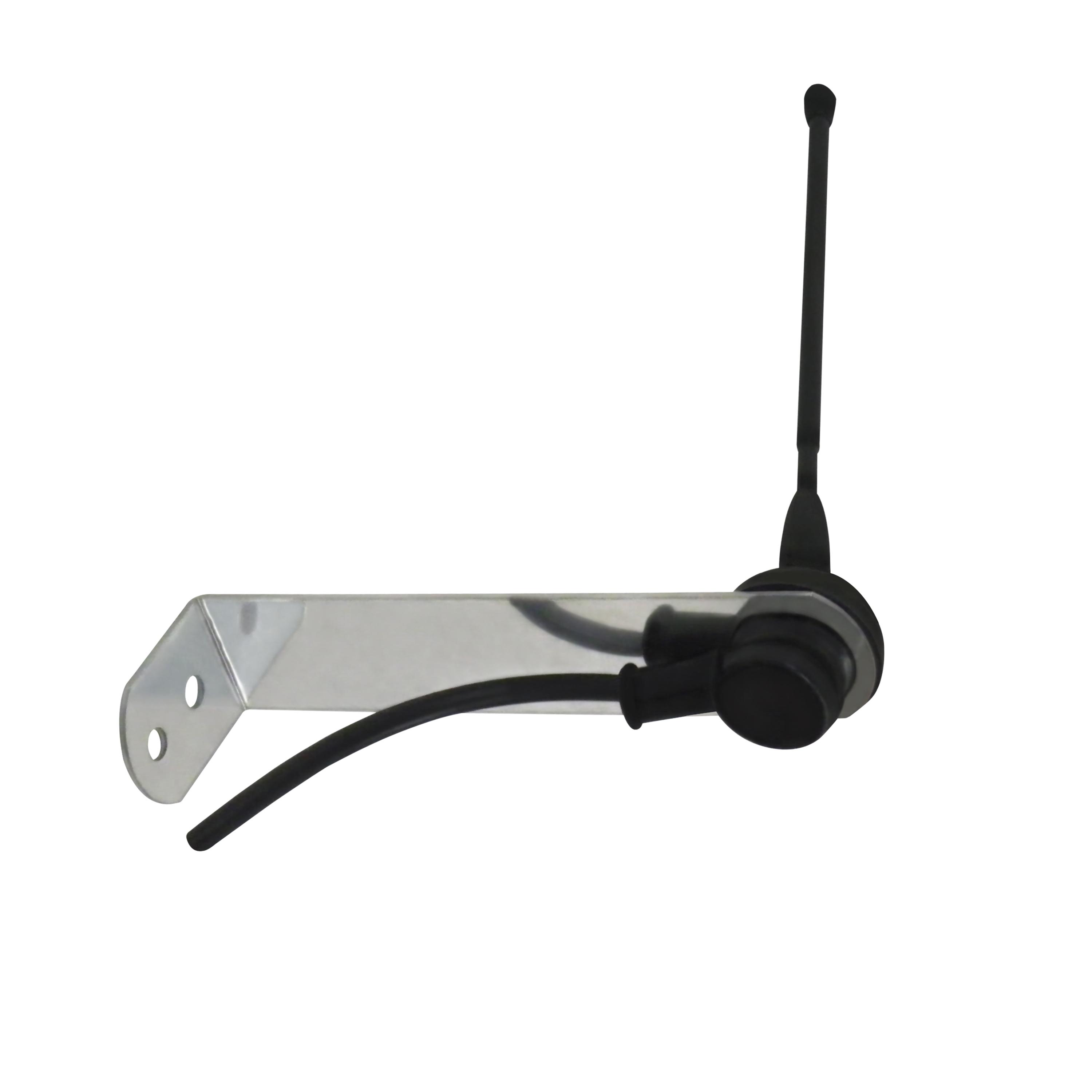

433 Mhz. extension antenna for MProx-BLE Controller, 8 feet (2 meter) coaxial cable, 50 Ohm impedence, used to get beyond metal RF obstructions
EDI DATA, APPROVALS
|
|
433 Mhz. extension antenna for MProx-BLE Controller, 8 feet (2 meter) coaxial cable, 50 Ohm impedence, used to get beyond metal RF obstructions
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.9"L x 1.2"W x "H
Weight: 220glbs.
|
| |
|
CONTROLLER & READER KIT
click to expand section
|
|
Net Cost
|
|
CV-603PS-K1

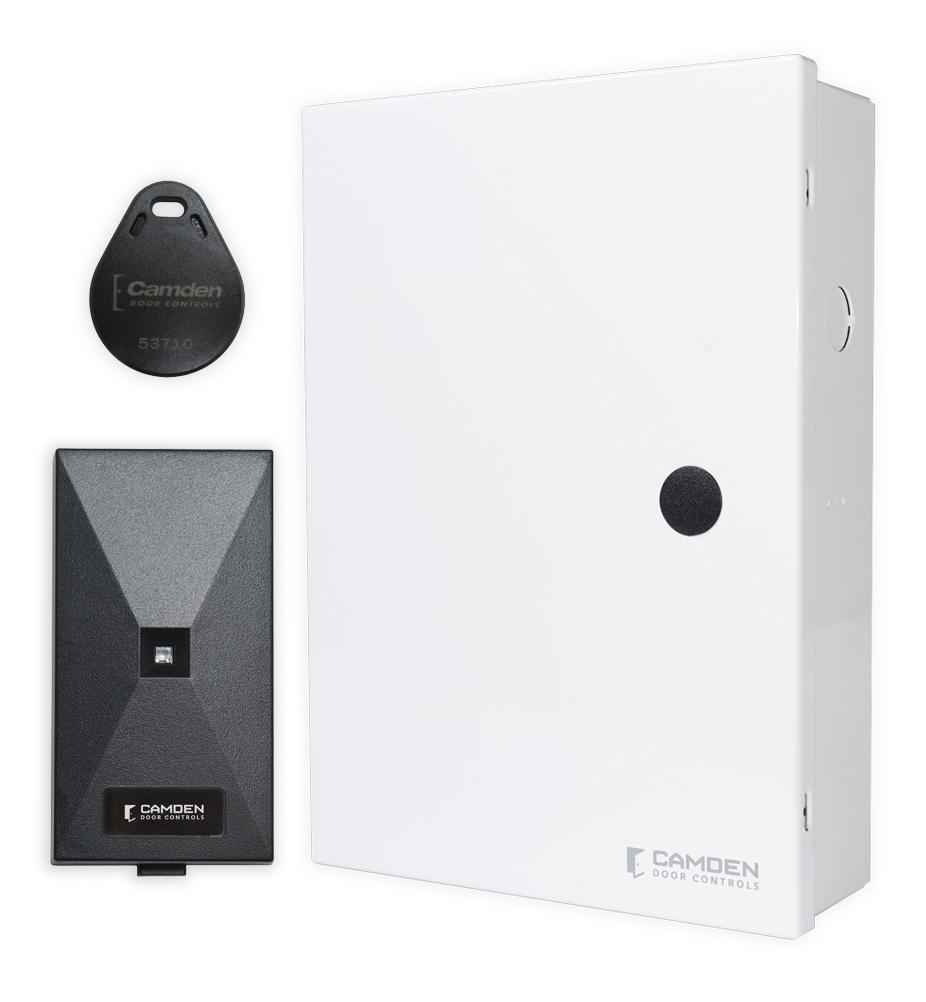

Cabinet with MProx-BLE controller, 12 VDC power supply, transformer, (1) CV-7400 AWID/HID protocol reader and (1) CV-KTH HID protocol proximity tag
EDI DATA, APPROVALS
|
|
Cabinet with MProx-BLE controller, 12 VDC power supply, transformer, (1) CV-7400 AWID/HID protocol reader and (1) CV-KTH HID protocol proximity tag
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 14"L x 12"W x 4"H
Weight: 4.35lbs.
UPC:670454209184
|
| |
|
WIRELESS KEY FOB
click to expand section
|
|
Net Cost
|
|
CV-TXM-2

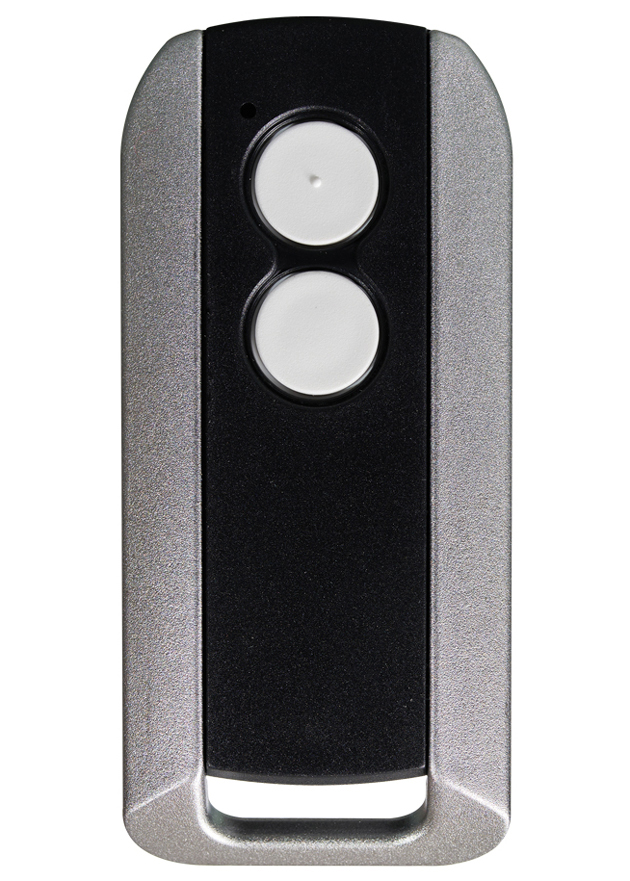

2 Button, 433 Mhz. key fob for MProx-BLE Controller
EDI DATA, APPROVALS
|
|
2 Button, 433 Mhz. key fob for MProx-BLE Controller
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.0"L x 2.75"W x 0.50"H
Weight: 1.0lbs.
UPC:670454209191
|
|
CV-TXM-2B
2 Button, 433 Mhz. key fobs for MProx-BLE Controller Package of 10
EDI DATA, APPROVALS
|
|
2 Button, 433 Mhz. key fobs for MProx-BLE Controller Package of 10
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 6.0"L x 4.0"W x 3.0"H
Weight: 0.05lbs.
UPC:670454209917
|
| |
|
PROTOCOL READERS & CREDENTIALS
click to expand section
|
|
Net Cost
|
|
|
CV-603VR10
10 Virtual Remote Licence Key
EDI DATA, APPROVALS
|
|
10 Virtual Remote Licence Key
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
|
|
CV-603VR50
50 Virtual Remote Licence Key
EDI DATA, APPROVALS
|
|
50 Virtual Remote Licence Key
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
|
|
CV-7400
Narrow compact HID/AWID protocol proximity reader, 4" - 5" range
EDI DATA, APPROVALS
|
|
Narrow compact HID/AWID protocol proximity reader, 4" - 5" range
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5.75"W x 1.75"H
Weight: lbs.
UPC:670454156723
|
|
CV-7600
Bluetooth Reader, up to 1 ft. range
EDI DATA, APPROVALS
|
|
Bluetooth Reader, up to 1 ft. range
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5.13"L x 3"W x 1.19"H
Weight: lbs.
UPC:670454203519
|
| |
|
|
COMPATIBLE PROX. CARDS & KEY TAGS
|
|
|
Click to expand section
|
|
|
|
|
| CV-7400 Options |
|
Net Cost |
|
|
CV-CSA
AWID format prox. cards, clam shell style, package of 10
|
AWID format prox. cards, clam shell style, package of 10
|
|
|
|
|
CV-CSH

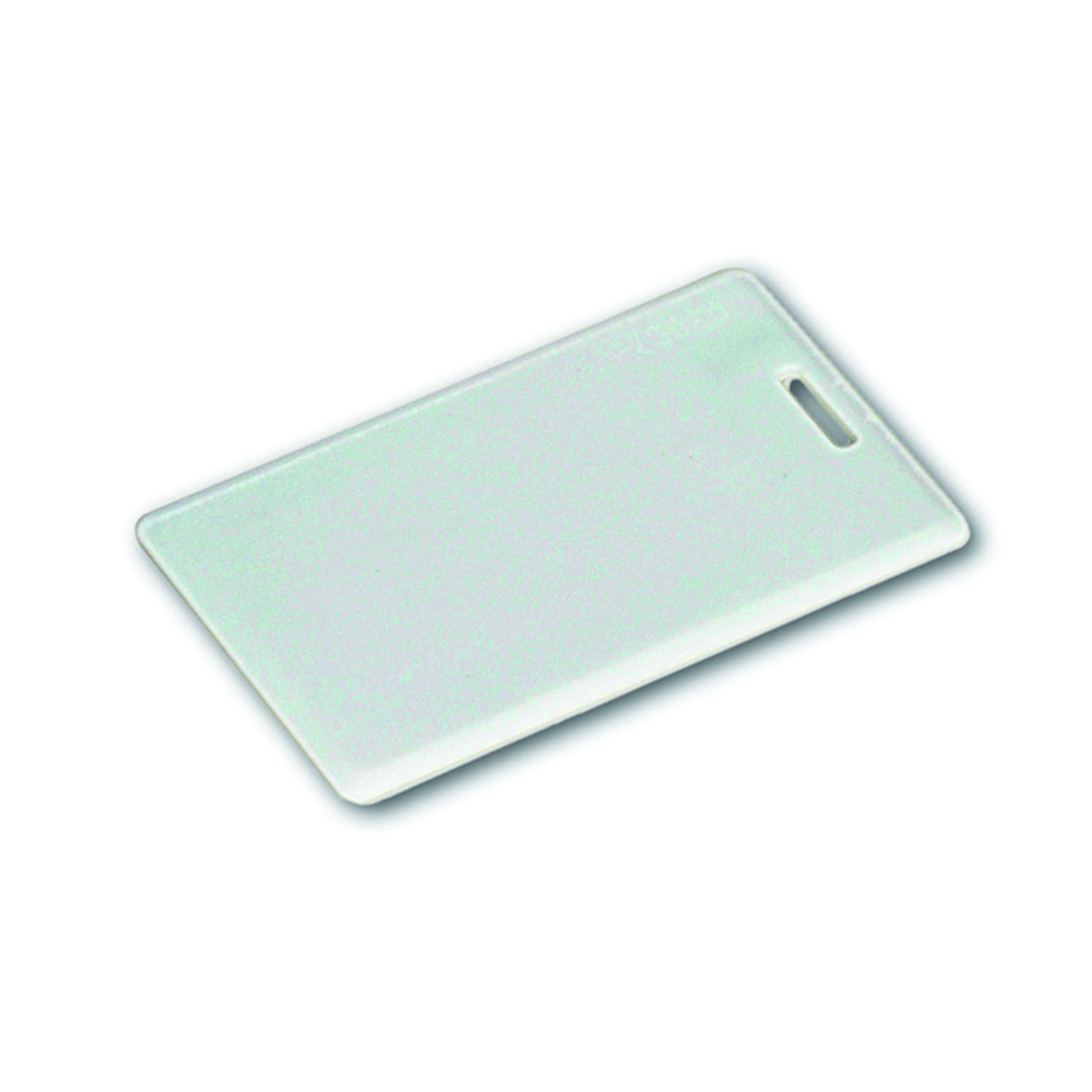

HID Format clam shell prox. card, package of 10
|
HID Format clam shell prox. card, package of 10
|
|
|
|
|
CV-ISA
AWID format ISO prox. card, package of 10
|
AWID format ISO prox. card, package of 10
|
|
|
|
|
CV-ISH
HID Format ISO prox. card, package of 10
|
HID Format ISO prox. card, package of 10
|
|
|
|
|
CV-KTA
AWID format prox. key tag, package of 25
|
AWID format prox. key tag, package of 25
|
|
|
|
|

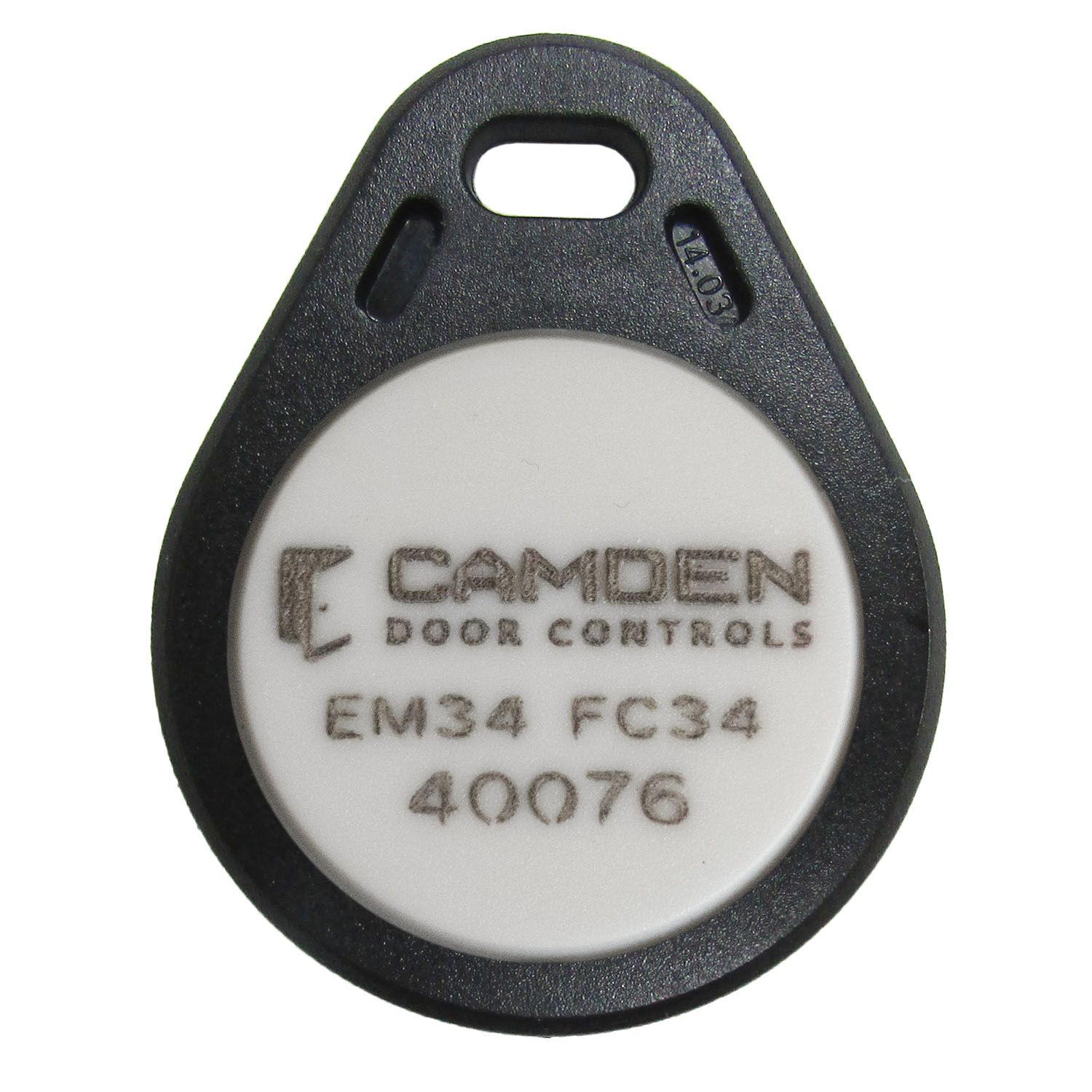

CV-KTH

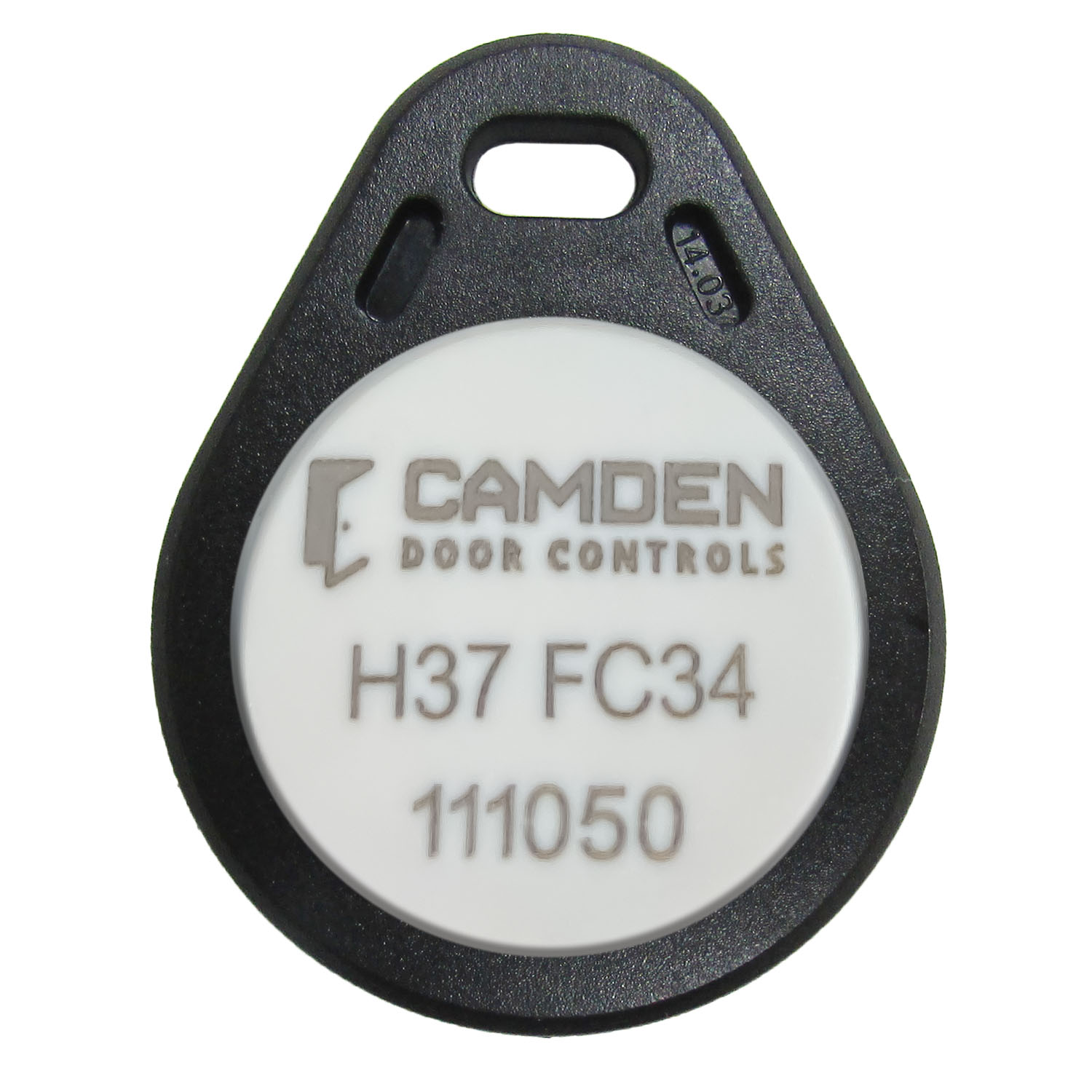

HID Format prox. key tag, package of 25
|
