Camden surface mount keypads are rugged, weather and vandal-resistant standalone devices for control of electrically locked doors. Camden surface mount keypads feature cast metal housings with metal backlit keypads, 'Request to Exit' inputs, tamper alarm, and support of up to 20,000 users. They may also be used for activating or deactivating machinery, equipment, overhead doors, automatic doors, or other electrical devices.
New 'V3' model includes rain/privacy shield at no extra charge!
|
|
|
| CM-110SK Slim Line Surface Mount Keypad |
|
|
|
Keypad Product Line
|
[ X ] |
|
|
|
|
| Keypad Product Line |
|
|
|
Camden surface mount keypads are rugged, weather and vandal-resistant standalone devices for control of electrically locked doors. Camden surface mount keypads feature cast metal housings with metal backlit keypads, 'Request to Exit' inputs, tamper alarm, and support of up to 20,000 users. They may also be used for activating or deactivating machinery, equipment, overhead doors, automatic doors, or other electrical devices.
New 'V3' model includes rain/privacy shield at no extra charge! |
|
|
|
|
|
|
| CM-110SK Slim Line Surface Mount Keypad |
|
|
|
Keypad Product Line
|
[ X ] |
|
|
|
|
| Keypad Product Line |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
-
Up to 20,000 users
-
Backlit vandal resistant keypad
-
All metal construction
-
Weather resistant IP68 rated
-
Adjustable door delay time
-
Adjustable door open time
-
Tamper alarm output
-
Request to Exit device input
-
Alarm condition for door forced open and door ajar
-
3 year warranty
-

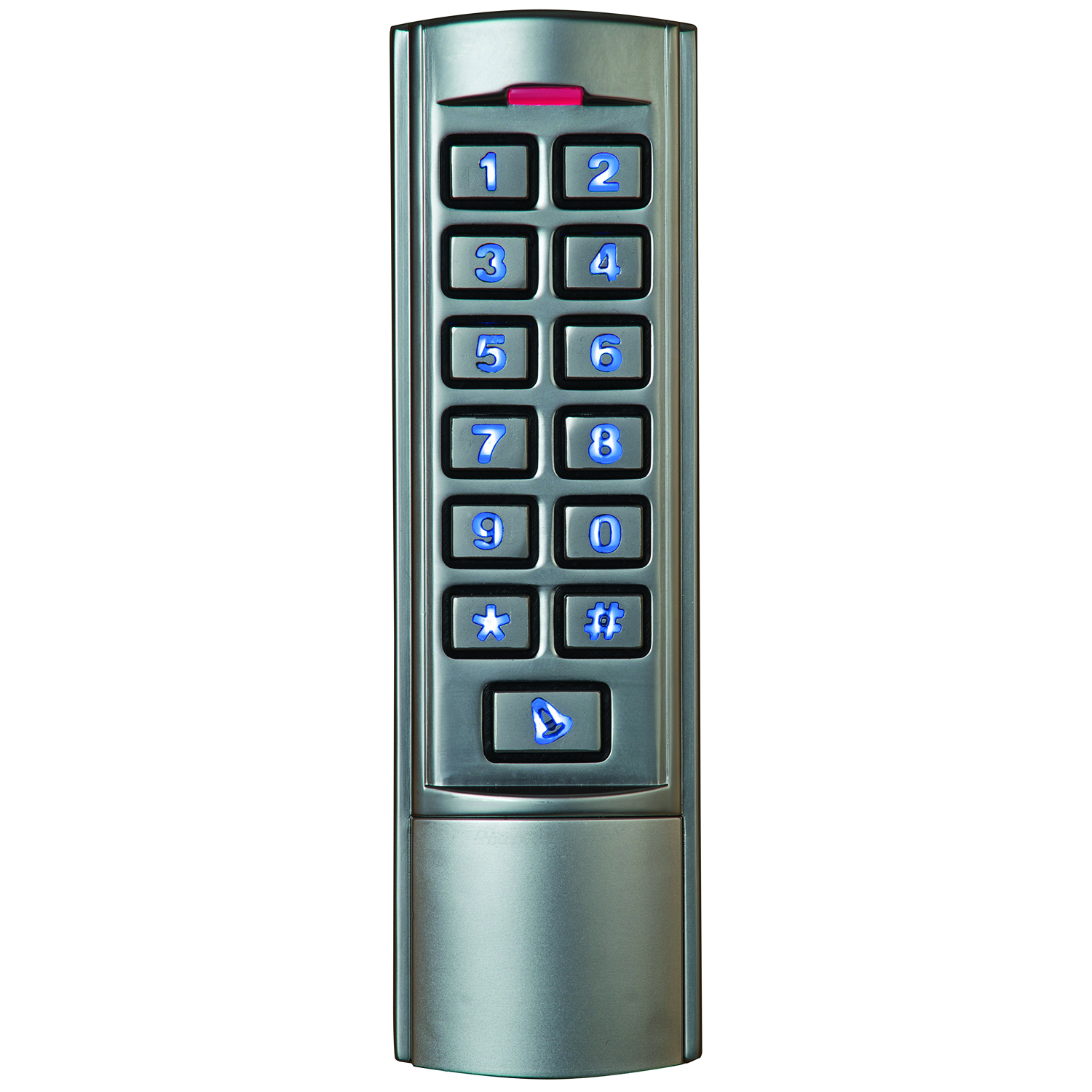

CM-110SK:
-
Narrow (Jamb) width
-
8 bit burst Wiegand Output
-

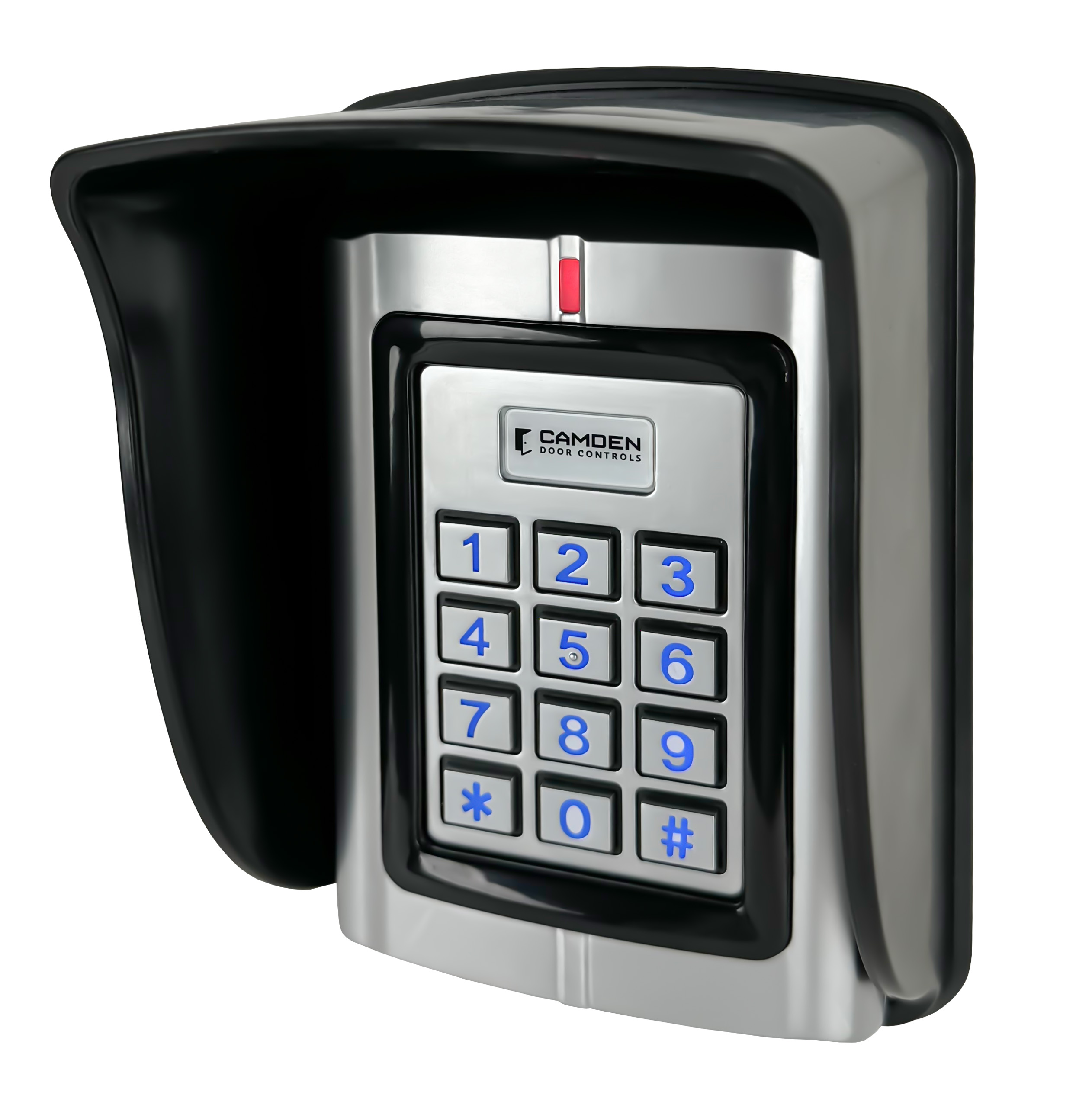

CM-550SK:
Surface Mount
| CM-550SK |
| Voltage: |
10 - 28V AC/DC
|
| Current Draw: |
100mA @ 12V
|
| Contact Type: |
(2) Form 'C'
|
| Contact Rating: |
1 A @ 30 VDC
|
| Temp Range: |
-40Ā°F/+140Ā°F
(-40Ā°C/+60Ā°C)
|
| Dimensions: |
5"H x 3-1/4"W x 1-1/8"D
(127mm x 82mm x 29mm)
|
| |
| CM-110SK |
| Voltage: |
12 VDC
|
| Current Draw: |
60 mA
|
| Contact Type: |
(1) Form āCā
|
| Contact Rating: |
3 A @ 30 VDC
|
| Wiegand Interface: |
8 bit burst
|
| Temp Range: |
-49Ā°F/+140Ā°F
(-45Ā°C/+60Ā°C)
|
| Dimensions: |
6"H x 1-3/4"W x 1"D
(152mm x 45mm x 25mm)
|
| |
| Protection: |
IP68
|
| Time Delay: |
0 ā 99 seconds
|
| Alarm Time: |
0 ā 3 minutes
|
Industry Leading Line of Keypads
|
|
|
Vandal Resistant Keypads
 click to expand section
|
|
Net Cost
|
|
CM-550SK
20,000 Users, Surface Mount, (1) Form āCā Relays, 12 VDC
EDI DATA, APPROVALS
|
|
20,000 Users, Surface Mount, (1) Form āCā Relays, 12 VDC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 5"L x 4"W x 3"H
Weight: 5.5lbs.
UPC:670454179401
|
|
CM-110SK
2,000 Users, Slim Line, Surface Mount, (1) Form āCā Relay, 12 VDC
EDI DATA, APPROVALS
|
|
2,000 Users, Slim Line, Surface Mount, (1) Form āCā Relay, 12 VDC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 9"L x 3.5"W x 2.5"H
Weight: 1.2lbs.
UPC:670454181275
|
| |
|
