CM-120

Flush Mount Wired and Wireless Keypads

FCC RoHS Compliant
< Keypads

CM-120

Flush Mount Wired and Wireless Keypads

Catalog Menu BROWSE
CM-120:Flush Mount Wired and Wireless Keypads - Keypads

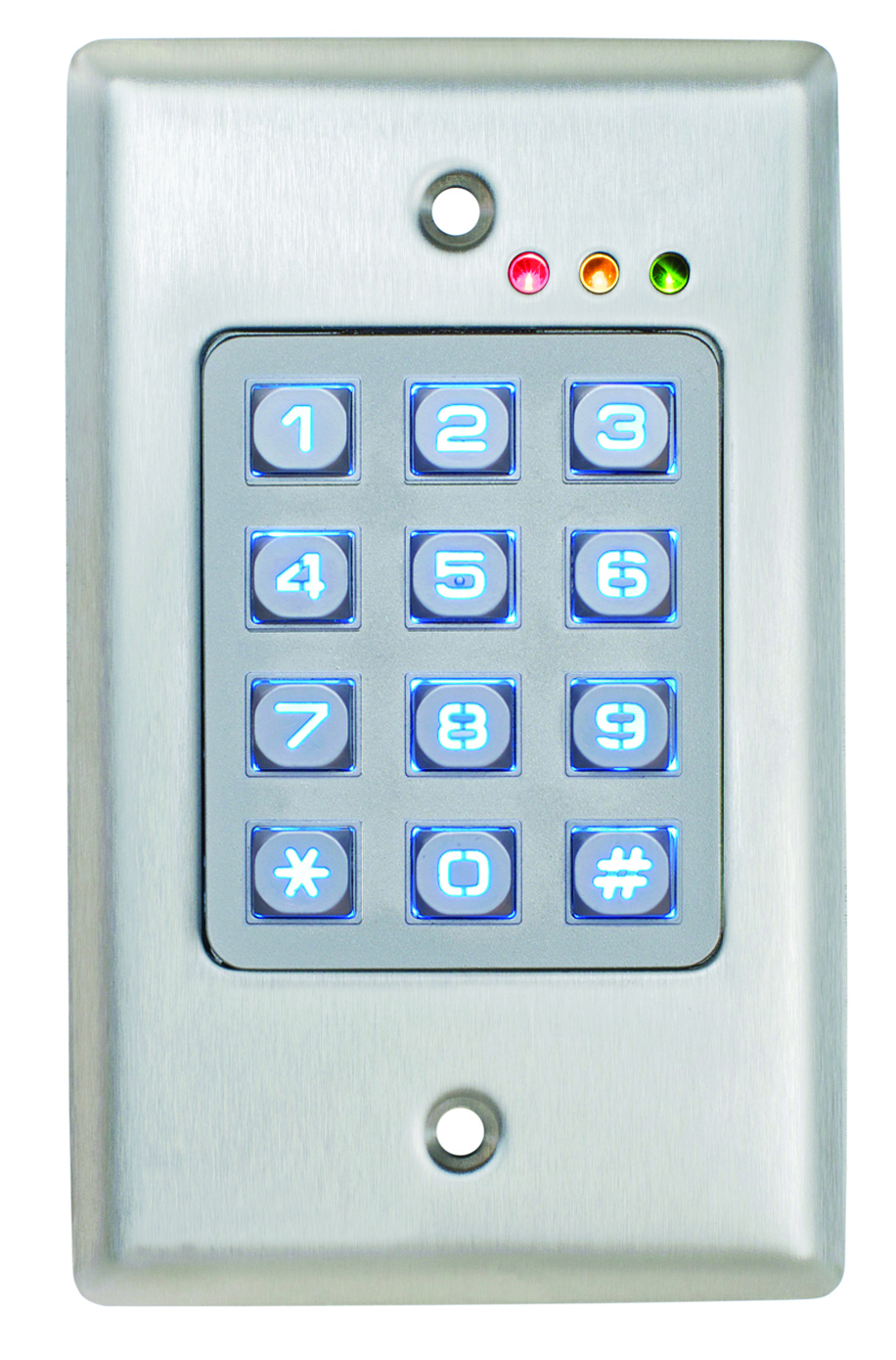

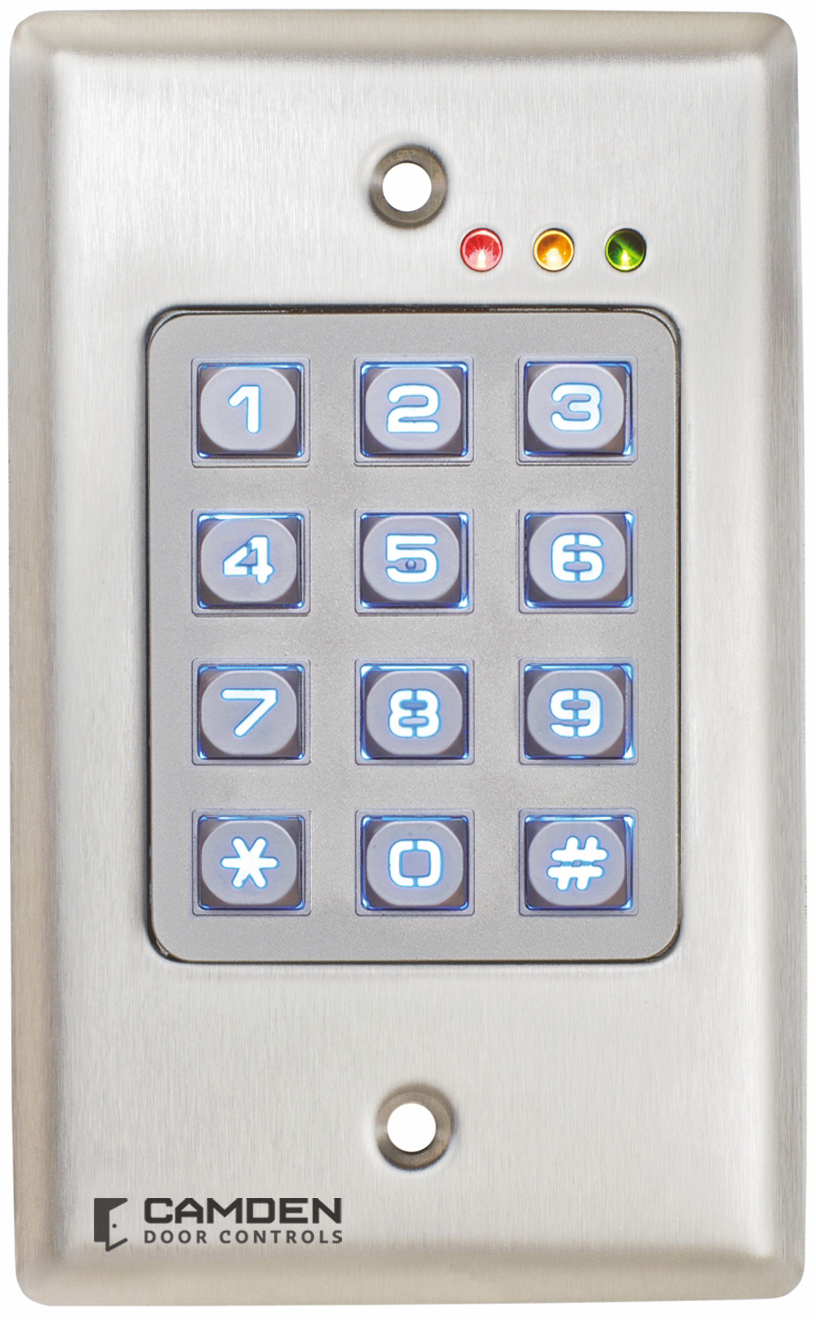

CM-120wV2 / CM-120TX, Outdoor Metal Keypad

CM-120 Series keypads are North American built and provide Tri-Brid (TM) stand alone, Wiegand and optional wireless operation! CM120i offers the best performance and value for indoor applications. CM-120wV2 is a vandal and weather resistant model with a metal back-lit keypad.

CM-120 Series hardwired keypads have added wireless functions by plugging in a CM-TX99 wireless transmitter module.

CM-120TX keypads are fully wireless with battery power. A CM-RX 91/92 Series receiver is required, sold separately. Lithium batteries recommended for CM-120TX for environments below 0C (32F). To order, select option below.

Camden Keypad Product Line Overview Video: Keypads
Camden Keypad Product Line Overview Video

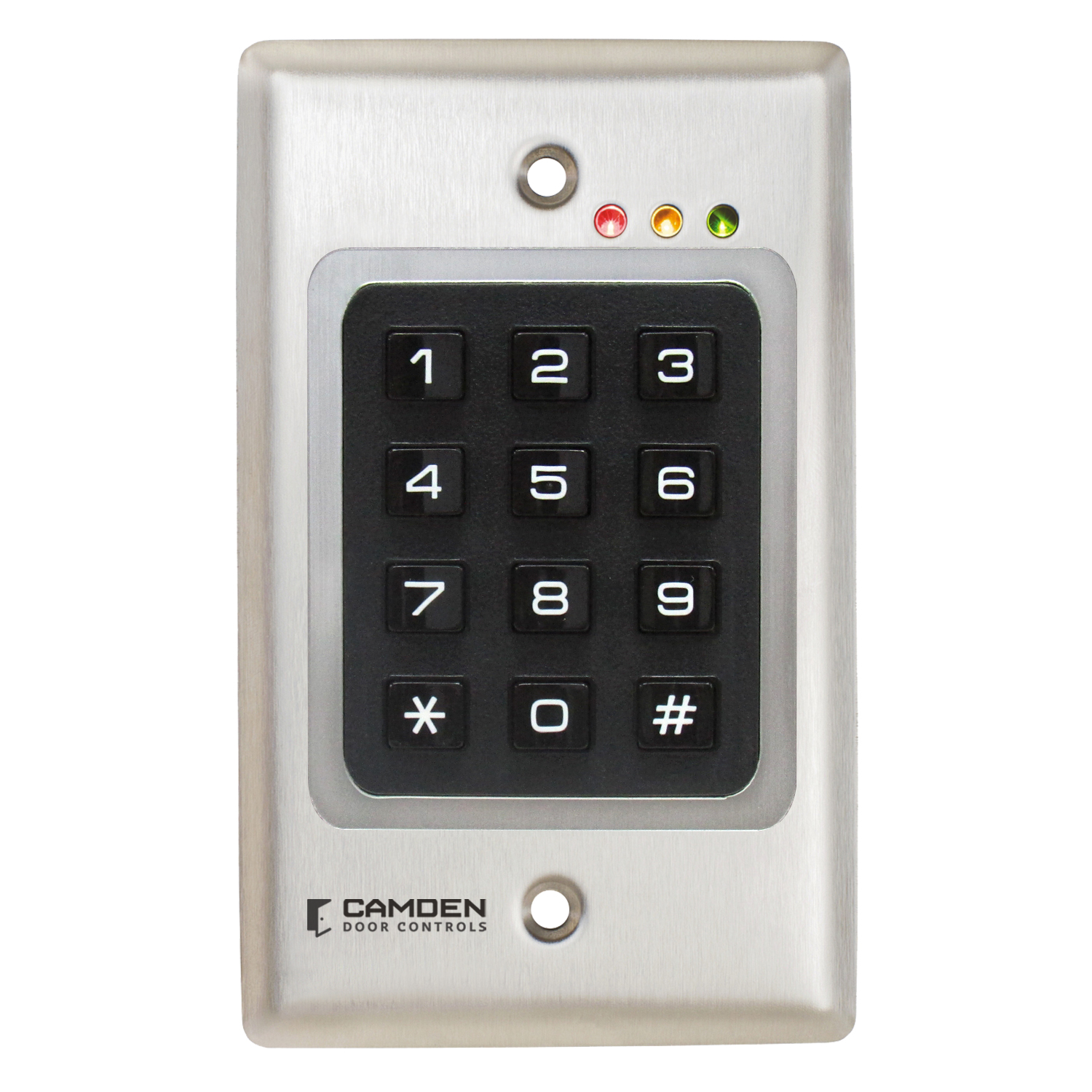

CM-120i, Indoor Keypad:
CM-120i, Indoor Keypad
CM-CPC1 Flush mount weather and vandal resistant cover available for this product:
CM-CPC1 Flush mount weather and vandal resistant cover available for this product

COMPETITIVE MODELS
CM-120:Flush Mount Wired and Wireless Keypads - Keypads
CM-120wV2 / CM-120TX, Outdoor Metal Keypad

CM-120 Series keypads are North American built and provide Tri-Brid (TM) stand alone, Wiegand and optional wireless operation! CM120i offers the best performance and value for indoor applications. CM-120wV2 is a vandal and weather resistant model with a metal back-lit keypad.

CM-120 Series hardwired keypads have added wireless functions by plugging in a CM-TX99 wireless transmitter module.

CM-120TX keypads are fully wireless with battery power. A CM-RX 91/92 Series receiver is required, sold separately. Lithium batteries recommended for CM-120TX for environments below 0C (32F). To order, select option below.

COMPETITIVE MODELS
FEATURES SPECIFICATIONS RESOURCES VIDEOS
Login For Pricing
MODELS
Stand Alone/Wiegand Keypads
CM-120i: CM-120:Flush Mount Wired and Wireless Keypads - Keypads CM-120i: CM-120:Flush Mount Wired and Wireless Keypads - Keypads
CM-120i
Stand alone or Wiegand, flush mount, 999 users, 12/24V AC/DC
EDI DATA, APPROVALS
Stand alone or Wiegand, flush mount, 999 users, 12/24V AC/DC EDI DATA
APPROVALS


CM-120wV2: CM-120:Flush Mount Wired and Wireless Keypads - Keypads CM-120wV2: CM-120:Flush Mount Wired and Wireless Keypads - Keypads
CM-120wV2
Outdoor, vandal resistant, metal backlit keypad, 999 users, 12/24V AC/DC
EDI DATA, APPROVALS
Outdoor, vandal resistant, metal backlit keypad, 999 users, 12/24V AC/DC EDI DATA
APPROVALS



Battery Operated Wireless Keypad
CM-120TX: CM-120:Flush Mount Wired and Wireless Keypads - Keypads CM-120TX: CM-120:Flush Mount Wired and Wireless Keypads - Keypads
CM-120TX
Outdoor, vandal resistant, metal backlit keypad, 999 users. battery operated, built-in wireless transmitter
EDI DATA, APPROVALS
Outdoor, vandal resistant, metal backlit keypad, 999 users. battery operated, built-in wireless transmitter EDI DATA
APPROVALS



Compatible Lazerpoint RF(tm) Wireless Receivers
CM-RX-90: CM-120:Flush Mount Wired and Wireless Keypads - Keypads CM-RX-90: CM-120:Flush Mount Wired and Wireless Keypads - Keypads
CM-RX-90
Advanced, Compact Single Relay Receiver
EDI DATA, APPROVALS
Advanced, Compact Single Relay Receiver EDI DATA
APPROVALS


CM-RX-92
Full function, dual relay receiver, 12/24V AC/DC
EDI DATA, APPROVALS
Full function, dual relay receiver, 12/24V AC/DC EDI DATA
APPROVALS



Optional Lazerpoint RF(tm) Wireless Transmitter
CM-TX-99
915Mhz. plug-in 2 channel transmitter for CM-120 Series keypads
EDI DATA, APPROVALS
915Mhz. plug-in 2 channel transmitter for CM-120 Series keypads EDI DATA
APPROVALS



OPTIONS & FINISHES
Lithium Battery Option
LITHIUM BATTERY OPTION
COMPATIBLE MOUNTING BOXES
Mounting Boxes & Accessories
MOUNTING BOXES & ACCESSORIES
Lazerpoint RF
This product series is designed for use with the industry's most reliable and easy to install wireless system!
