Competitive Models
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
HES
|
1500C
|
CX-ED1689L-4
|
|
|
1600CS
|
CX-ED1799L-8
|
|
Trine
|
4100
|
CX-ED1689L-4
|
| |
|
|
Compatible Models.
|
|
|
|
This product series generally works with the following compatible models:
|
| |
| Arrow Locksets |
click to expand 43 models |
|
|
AM Series
-
Mortise Locksets
|
|
CX-ED1689-4
|
AM01 •
AM07 •
AM12 •
AM17 •
AM23 •
AM24 •
AM26 •
AM27 •
AM32 •
AM33 •
AM34 •
AM37
|
|
CX-ED1799-8
|
AM02 •
AM11 •
AM13 •
AM19 •
AM20 •
AM21 •
AM22 •
AM31
|
| |
|
BM Series
-
Mortise Locksets
|
|
CX-ED1689-4
|
BM01 •
BM07 •
BM12 •
BM17 •
BM23 •
BM24 •
BM26 •
BM27 •
BM32 •
BM33 •
BM34 •
BM37 •
AM38
|
|
CX-ED1799-8
|
BM02 •
BM11 •
BM13 •
BM19 •
BM20 •
BM21 •
BM22 •
BM31
|
| |
|
3000 Series
-
Rim Exit Devices
|
|
CX-ED1689-4
|
3900 •
4900
|
| |
| |
| |
| Best Access Locksets |
click to expand 25 models |
|
|
40H Series
-
Mortise Locksets
|
|
CX-ED1689-4
|
A •
AT •
D •
R •
RHB •
LT •
C •
CHB •
NL •
W •
XR •
XRHB
|
|
CX-ED1799-8
|
AB •
H •
HJ •
T •
TA •
TD •
L •
G •
IND •
INA •
S
|
| |
|
Rim Exit Devices
|
|
CX-ED1689-4
|
2300 •
300
|
| |
| |
| |
| Cal Royal |
click to expand 49 models |
|
|
NM Series
-
Mortise Locksets
|
|
CX-ED1689-4
|
NM8050 •
NM8056 •
NM8070 •
NM8071 •
NM8080 •
NM8082 •
NM8040 •
NM8044
|
|
CX-ED1799-8
|
NM8457 •
NM8458 •
NM8480 •
NM8453 •
NM8456 •
NM8473 •
NM8465 •
NM8440 •
NM8444 •
NM8445
|
| |
|
SC Series
-
Mortise Locksets
|
|
CX-ED1689-4
|
SC8050 •
SC8056 •
SC8070 •
SC8071 •
SC8076 •
SC8077 •
SC8080 •
SC8082 •
SC8040 •
SC8026LG •
SC8031LG •
SC8032LG •
SC8033LG •
SC8055LG •
SC8056LG
|
|
CX-ED1799-8
|
SC8457 •
SC8458 •
SC8453 •
SC8456 •
SC8473 •
SC8060 •
SC8466 •
SC8465 •
SC8440 •
SC8444 •
SC8445 •
SC8495 •
SC8485 •
SC8411HL •
SC8468LG •
SC8469LG
|
| |
| |
| |
| Corbwin Russwin Locksets |
click to expand 36 models |
|
|
5300LN Series
-
Mortise Locksets
|
|
CX-ED1689-4
|
ML2002 •
ML2003 •
Ml2004 •
ML2020 •
ML2051 •
ML2052 •
ML2053 •
ML2054 •
ML2055 •
ML2056 •
ML2057 •
ML2058 •
ML2060 •
Ml2068 •
ML2069
|
|
CX-ED1799-8
|
ML2022 •
ML2032 •
ML2042 •
ML2048 •
ML2049 •
ML2059 •
ML2062 •
Ml2065 •
ML2067 •
ML2072 •
ML2073 •
ML2075 •
Ml2082 •
ML2087 •
ML2092
|
| |
|
PED400 Series
-
RIM Exit Devices
|
|
CX-ED1689-4
|
PED4600
|
| |
|
PED500 Series
-
RIM Exit Devices
|
|
CX-ED1689-4
|
PED5600
|
| |
|
ED5000 Series
-
RIM Exit Devices
|
|
CX-ED1689-4
|
ED5600 •
ED5600A •
ED5602L •
ED5602AL
|
| |
| |
| |
| Hager |
click to expand 14 models |
|
|
Model 3800
-
Mortise Locksets
|
|
CX-ED1689L
|
3840E •
3844E •
3850E •
3861E •
3870E •
3880E •
3882E •
3896E
|
|
CX-ED1799L
|
3853E •
3865E •
3857E •
3881E
|
| |
|
4500 Series
-
Rim Exit Devices
|
|
CX-ED1799L
|
4500-Mortise •
4500 Night Latch
|
| |
| |
| |
| PDQ Locksets |
click to expand 32 models |
|
|
MR Series
-
Mortise Locksets
|
|
CX-ED1689-4
|
MR174 •
MR176 •
MR113 •
MR114 •
MR115 •
MR116 •
MR148 •
MR149 •
MR158 •
MR181 •
MR186
|
|
CX-ED1799-8
|
MR178 •
MR179 •
MR117 •
MR128 •
MR135 •
MR136 •
MR137 •
MR138 •
MR139 •
MR141 •
MR154 •
MR157 •
MR158 •
MR162 •
MR236 •
MR241 •
MR257 •
MR259 •
Mr260 •
MR269
|
| |
|
6300 Series
-
Rim Exit Devices
|
|
CX-ED1689-4
|
6300M
|
| |
| |
| |
| Sargent |
click to expand 107 models |
|
|
8200 Model
-
Mortise Locksets
|
|
CX-ED1689-4
|
8204 •
8205 •
8206 •
8231 •
8236 •
8237 •
8255 •
8256 •
8257 •
8258 •
8289 •
8291 •
8216 •
8217 •
8238 •
8242 •
8259 •
8290 •
8292 •
8213
|
|
CX-ED1799-8
|
8224 •
8225 •
8227 •
8235 •
8243 •
8245 •
8247 •
8250 •
8251 •
8226 •
8229 •
8239 •
8240 •
8241 •
8246 •
8248 •
8249 •
8252
|
| |
|
7800 Model
-
Mortise Locksets
|
|
CX-ED1689-4
|
7804 •
7816 •
7817 •
7838 •
7892 •
7813 •
7865 •
7866 •
7868
|
|
CX-ED1799-8
|
7805 •
7806 •
7831 •
7836 •
7837 •
7855 •
7856 •
7857 •
7858 •
7867 •
7824 •
7825 •
7827 •
7835 •
7845 •
7847 •
7850 •
7851 •
7826 •
7839 •
7840 •
7841 •
7846 •
7848 •
7849 •
7852
|
| |
|
7900 Model
-
Mortise Locksets
|
|
CX-ED1689-4
|
7904 •
7937 •
7955 •
7916 •
7938
|
|
CX-ED1799-8
|
7924 •
7945 •
7925 •
7950 •
7943 •
7926
|
| |
|
9200 Model
-
Mortise Locksets
|
|
CX-ED1689-4
|
9204 •
9205 •
9206 •
9237 •
9255 •
9216 •
9217 •
9238 •
9259
|
|
CX-ED1799-8
|
9224 •
9225 •
9235 •
9243 •
9245 •
9250 •
9226 •
9239 •
9240 •
9241 •
9249
|
| |
|
80 Series
-
Exit Devices
|
|
CX-ED1799-8
|
8900
|
| |
|
PE80 Series
-
Exit Devices
|
|
CX-ED1799-8
|
PE8300 •
PE8900
|
| |
| |
| |
| Schlage |
click to expand 45 models |
|
|
Mortise Locks
|
|
CX-ED1689L-4
|
L9050 •
LV9050 •
L9026 •
L9056 •
LV9056 •
L9070 •
LV9070 •
L9076 •
LV9076 •
L9080 •
LV9080 •
L9081 •
LV9081 •
L9060 •
LV9060 •
L9066 •
LV9066 •
L9071 •
LV9071 •
L9077 •
LV9077 •
L9082 •
LV9082
|
|
CX-ED1799L-8
|
L9453 •
LV9453 •
L9456 •
LV9456 •
L9456 •
L9473 •
L9480 •
LV9480 •
L9485 •
LV9485 •
L945-XLT1-557 •
L9486 •
LV9486 •
L9496 •
LV9456 •
L9457 •
LV9457 •
L9458 •
LV9458 •
L9466 •
L9482 •
LV9482
|
| |
| |
| |
| Town Steel |
click to expand 31 models |
|
|
MS Series
-
Mortise Locksets
|
|
CX-ED1799-8
|
MSS02 •
MSS08 •
MSS11 •
MSS12 •
MSS13 •
MSS14 •
MSS15 •
MSS19 •
MSS20 •
MSS21 •
MSS33 •
MSS34 •
MSS35 •
MSS05B •
MSS20T •
MSS13R
|
|
CX-ED1689-4
|
MSS04 •
MSS05 •
MSS06 •
MSS07 •
MSS09 •
MSS22 •
MSS26 •
MSS30 •
MSS31 •
MSS32 •
MSS82 •
MSS05A
|
| |
|
Rim Exit Devices
|
|
CX-ED1689-4
|
ED1400 •
ED1400F •
ED8975
|
| |
| |
| |
| Yale-Accentra |
click to expand 32 models |
|
|
8800 Series
-
Mortise Locksets
|
|
CX-ED1689-4
|
8808 •
8808-2 •
8805 •
8809 •
8807 •
8817-2 •
8828 •
8823 •
8829 •
8824 •
8830-2 •
8834 •
8834-2 •
8833 •
8835 •
8833 •
8862 •
8864
|
|
CX-ED1799-8
|
8802 •
8811-2 •
8818-2 •
8820 •
8827 •
8822 •
8831 •
8832 •
8840 •
8847 •
8860 •
8860-2 •
8861 •
8867
|
| |
| |
|
|
| Features |
|
Specifications |
|
Resources |
|
Videos |
|
|
-
For mortise and cylindrical locksets
-
Selectable fail safe / fail secure
-
Selectable 12/24V AC/DC
-
1 or 2 latch and deadbolt monitoring switches
-
Magnetic door position switch
-
Strike power monitor
-
Easy fit connectors
-
5 year warranty
-
CX-ED1689L:

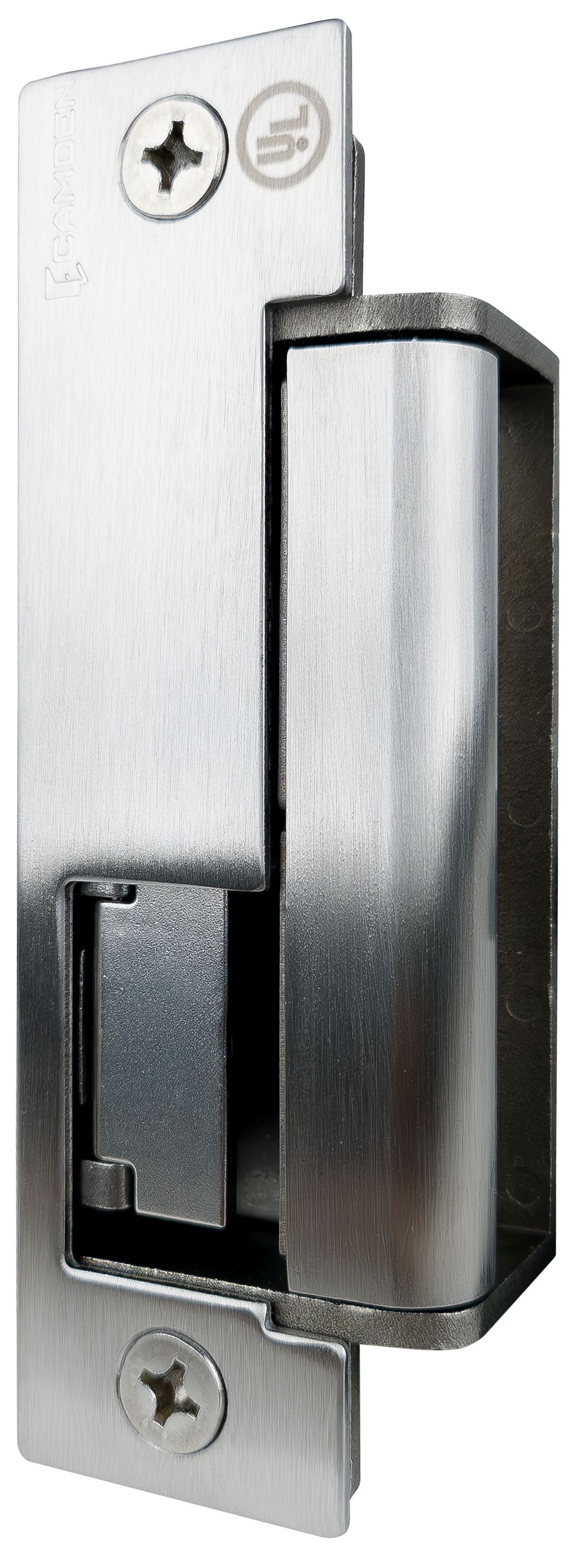

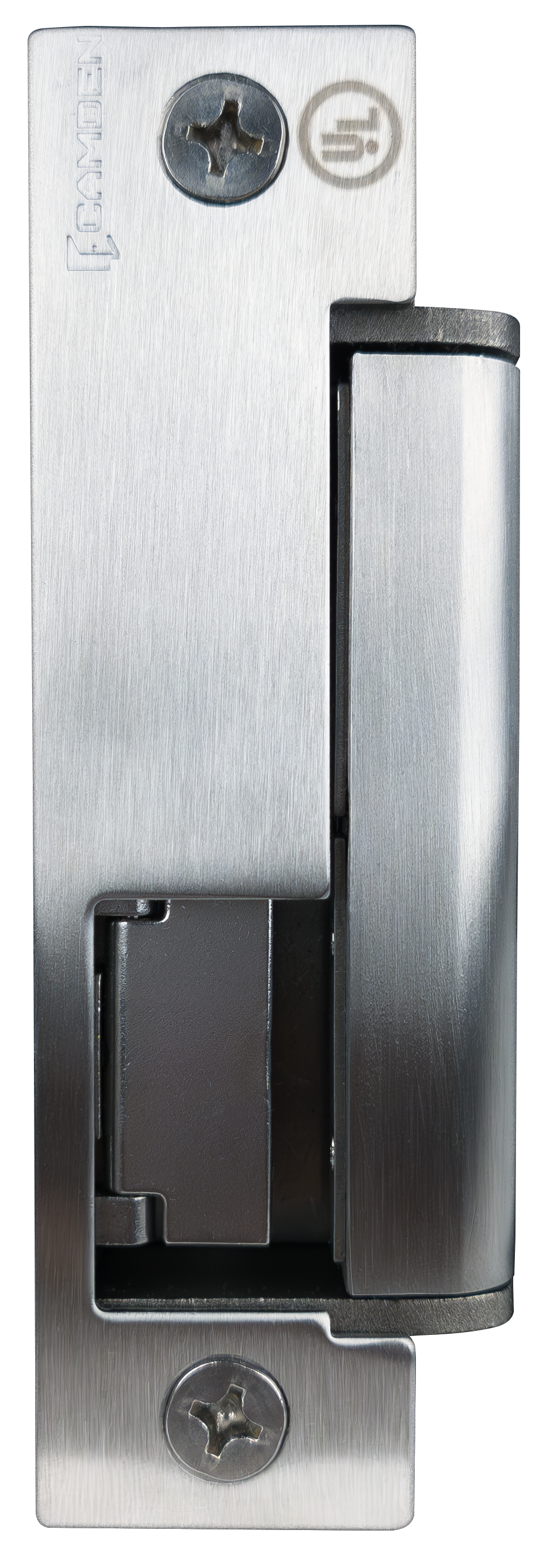

Low Profile, with latch monitoring
-
CX-ED1689L-4:
Low Profile strike w/ latch monitoring package includes 4 faceplates for latch bolts
-

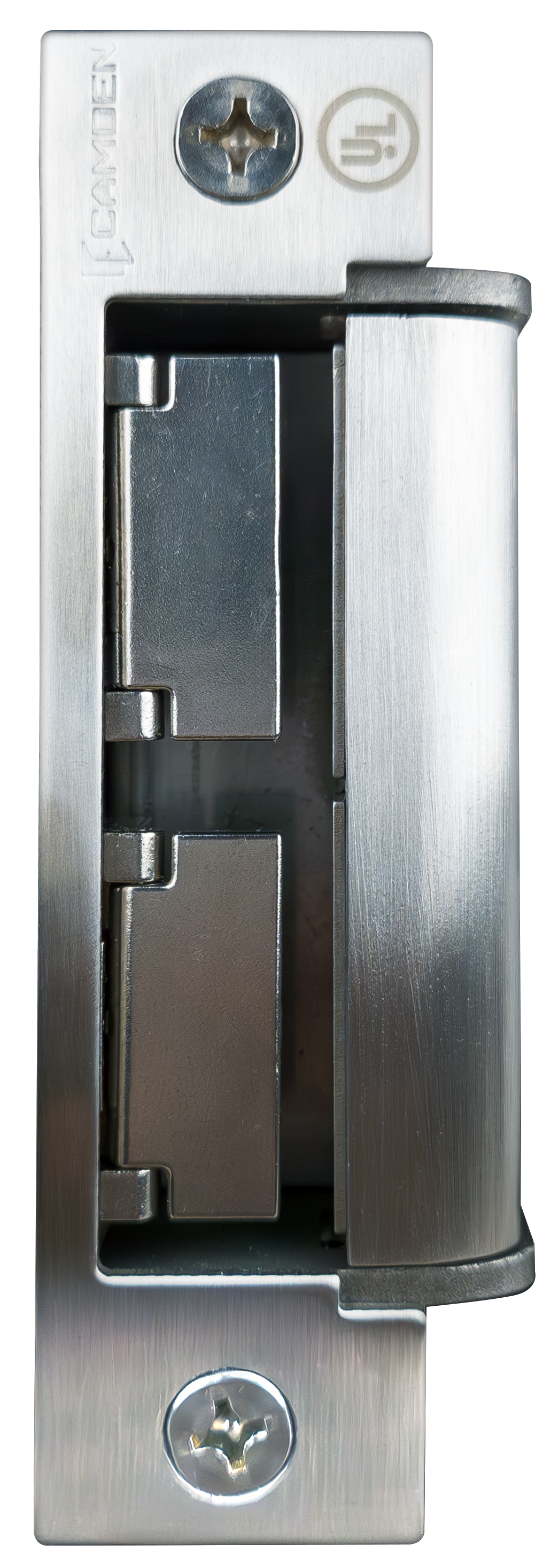

CX-ED1799L:

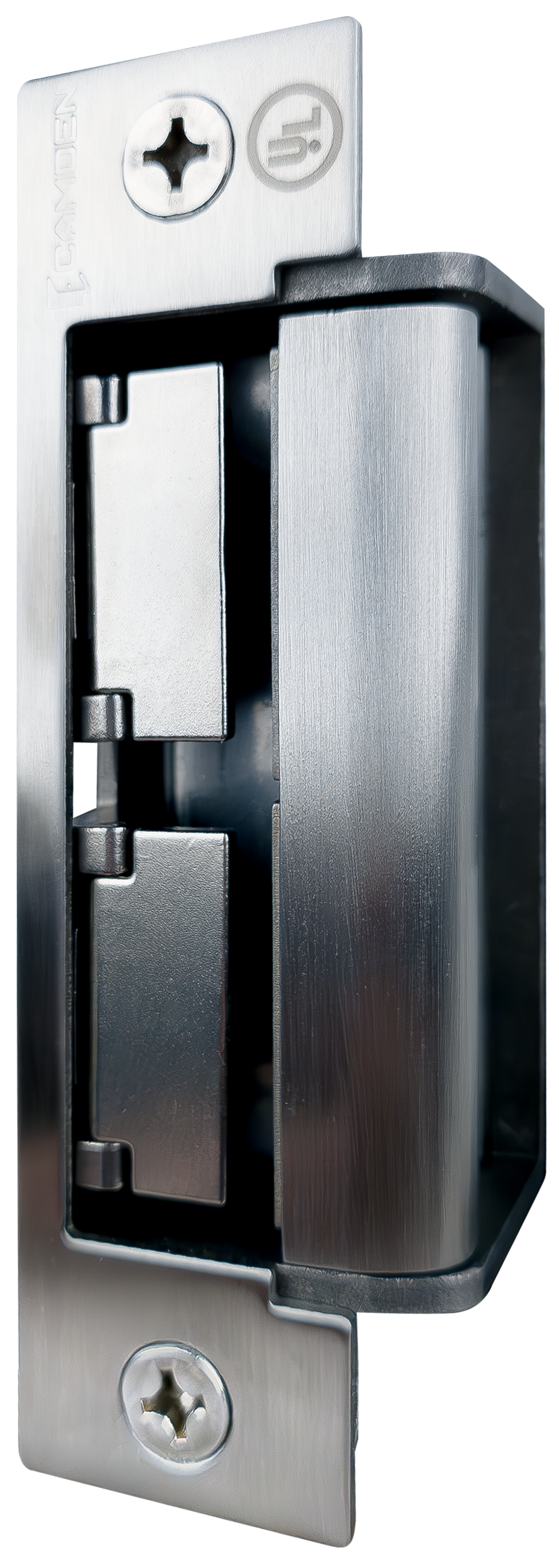

Dual Monitor strike, with Latch monitoring
-
CX-ED1799L-8:
Dual monitor strike w/ latch monitoring package includes 8 faceplates for latch bolts and dead bolts
| Voltage: |
12/24V AC/DC
|
| Current Draw: |
300mA @ 12V AC/DC
150mA @ 24V AC/DC
|
| Static Strength: |
1,500 lbs
|
| Dynamic Strength: |
70 ft-lbs
|
| Endurance: |
1,500,000 Cycles (Factory Tested)
250,000 Cycles (UL Verified)
|
| Mode: |
Field Selectable Fail Safe / Fail Secure
|
| Operation: |
AC-Buzz, DC-Silent
|
| Duty: |
Continuous
|
| Lock Monitor Status: |
2 x SPST, 100mA @ 24V DC, Resistive
|
| Strike Monitor Status: |
SPDT, 100mA @ 24V DC, Resistive
|
| Dimensions (body): |
|
CX-ED1689L:
|
4-7/8''H x 1-5/8''W x 1-3/8''D
(124mm x 41mm x 36mm)
|
|
CX-ED1799L-8:
|
4-7/8''H x 1-5/8''W x 1-21/32''D
(124mm x 41mm x 42mm)
|
| |
CX-ED1689L & CX-ED1799L 5 Things You Need To Know
CX-ED1799L Mortise Strikes Installation Video
|
|
|

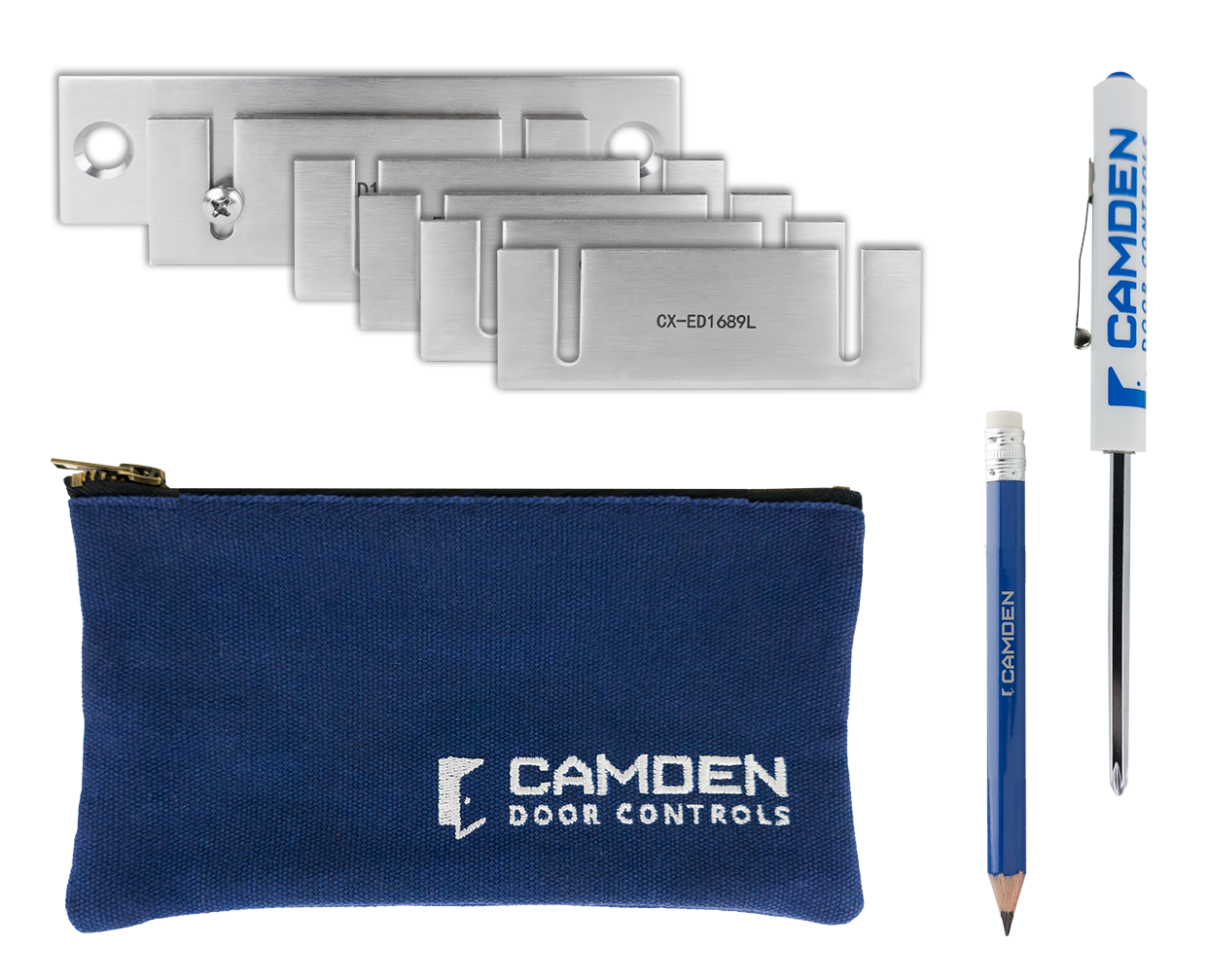

Strike with Faceplate Packs
click to expand section
|
|
Net Cost
|
|
 |
CX-ED1689L-4 |
Low profile strike body with (1) latch monitor switch comes with 4 faceplates for latch bolts, 3-hour fire rating. Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400
EDI Data, Approvals
|
|
Low profile strike body with (1) latch monitor switch comes with 4 faceplates for latch bolts, 3-hour fire rating. Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 10.5"L x 3.25"W x 2.25"H
Weight: 1.9lbs.
UPC: 670454219626
Country of Origin: CN
|
|
|
CX-ED1799L-8 |
Dual monitor strike body with (2) monitor switches comes with 8 faceplates, 3-hour fire rating. Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400, CX-EMP110, CX-EMP210, CX-EMP310, CX-EMP410
EDI Data, Approvals
|
|
Dual monitor strike body with (2) monitor switches comes with 8 faceplates, 3-hour fire rating. Includes: CX-EMP100, CX-EMP200, CX-EMP300, CX-EMP400, CX-EMP110, CX-EMP210, CX-EMP310, CX-EMP410
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 10.5"L x 3.25"W x 2.25"H
Weight: 1.9lbs.
UPC: 670454219633
Country of Origin: CN
|
| |
|
Strike Body Only
click to expand section
|
|
Net Cost
|
|
|
CX-ED1689L |
Low profile strike body with (1) latch monitor switch Mortise strike low profile body only, 3-hour fire rating.
EDI Data, Approvals
|
|
Low profile strike body with (1) latch monitor switch Mortise strike low profile body only, 3-hour fire rating.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 10.5"L x 3.25"W x 2.25"H
Weight: 1.9lbs.
UPC: 670454219602
Country of Origin: CN
|
|
|
CX-ED1799L |
Dual monitor strike body with (2) monitor switches mortise strike body only, 3-hour fire rating.
EDI Data, Approvals
|
|
Dual monitor strike body with (2) monitor switches mortise strike body only, 3-hour fire rating.
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 10.5"L x 3.25"W x 2.25"H
Weight: 1.9lbs.
UPC: 670454219619
Country of Origin: CN
|
| |
|
|
|
Metal Door Frame Stainless Steel Faceplates
click to expand section
|
|
Net Cost
|
|
|

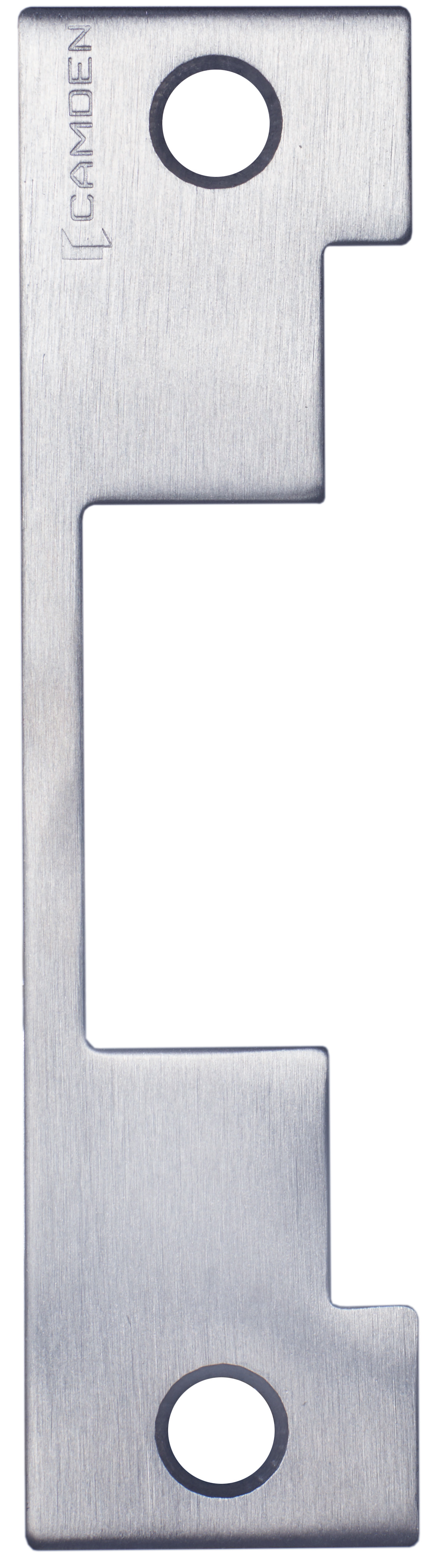

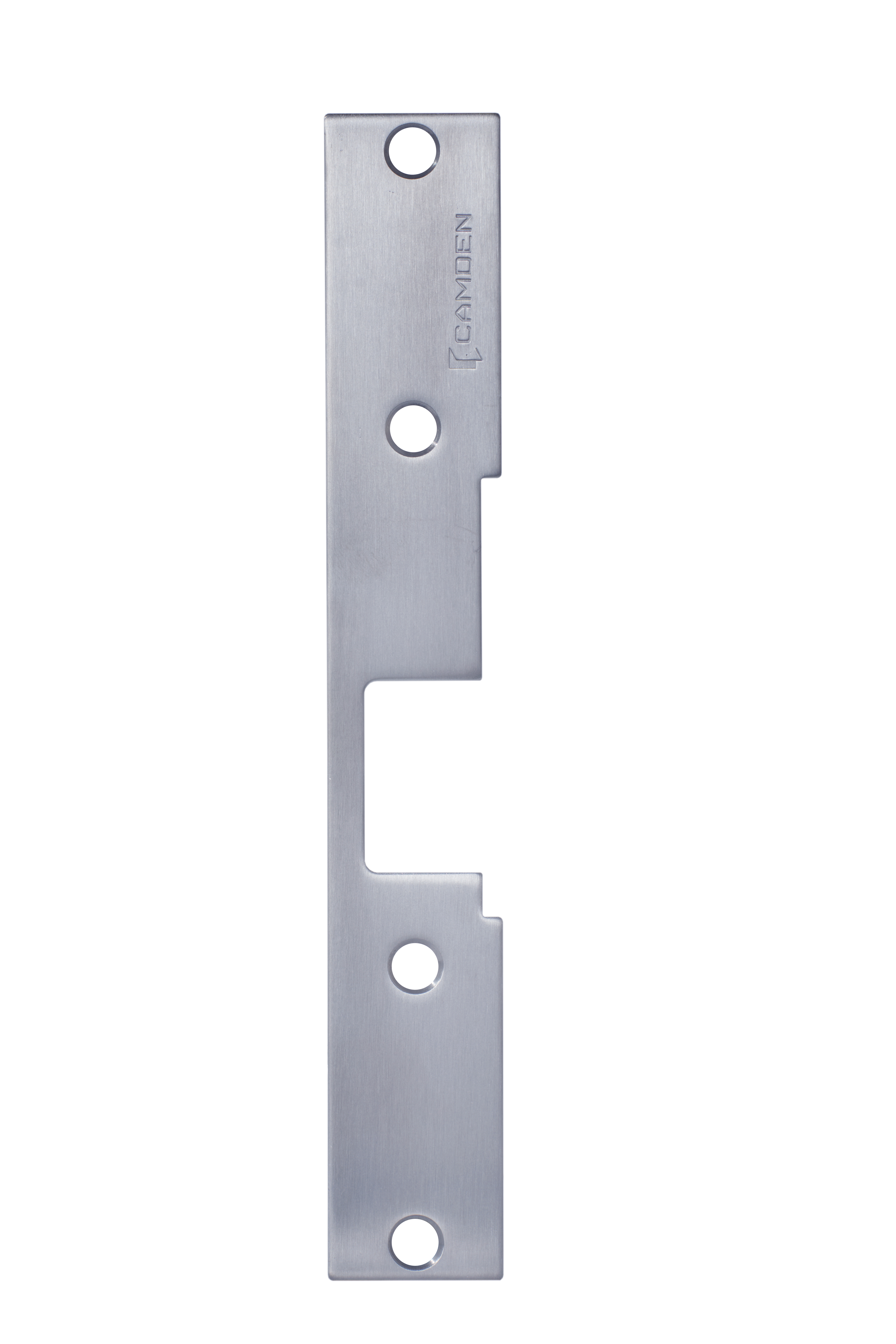

CX-EMP-100 |

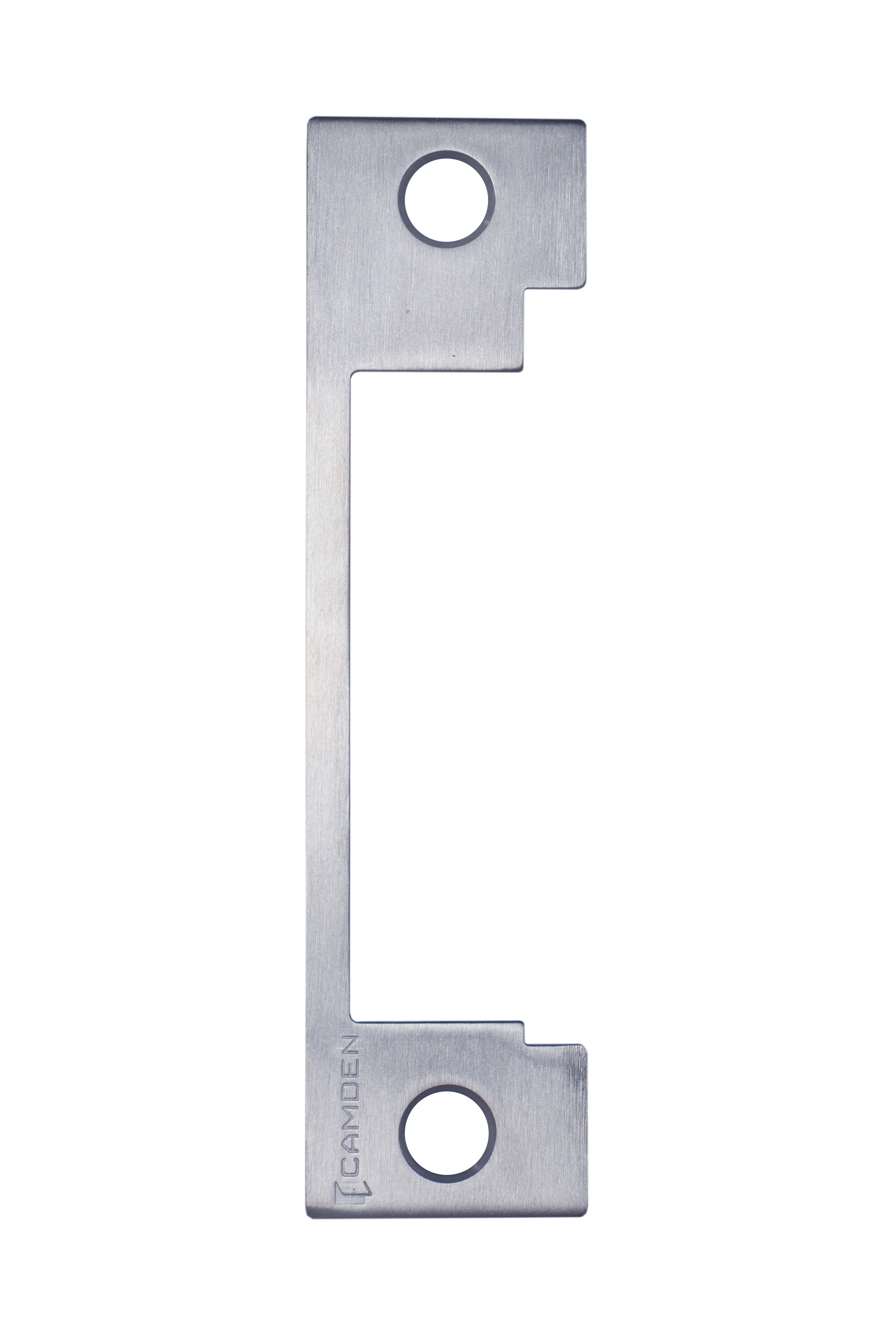

'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
EDI Data, Approvals
|
|
'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
CX-EMP-110 |
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|

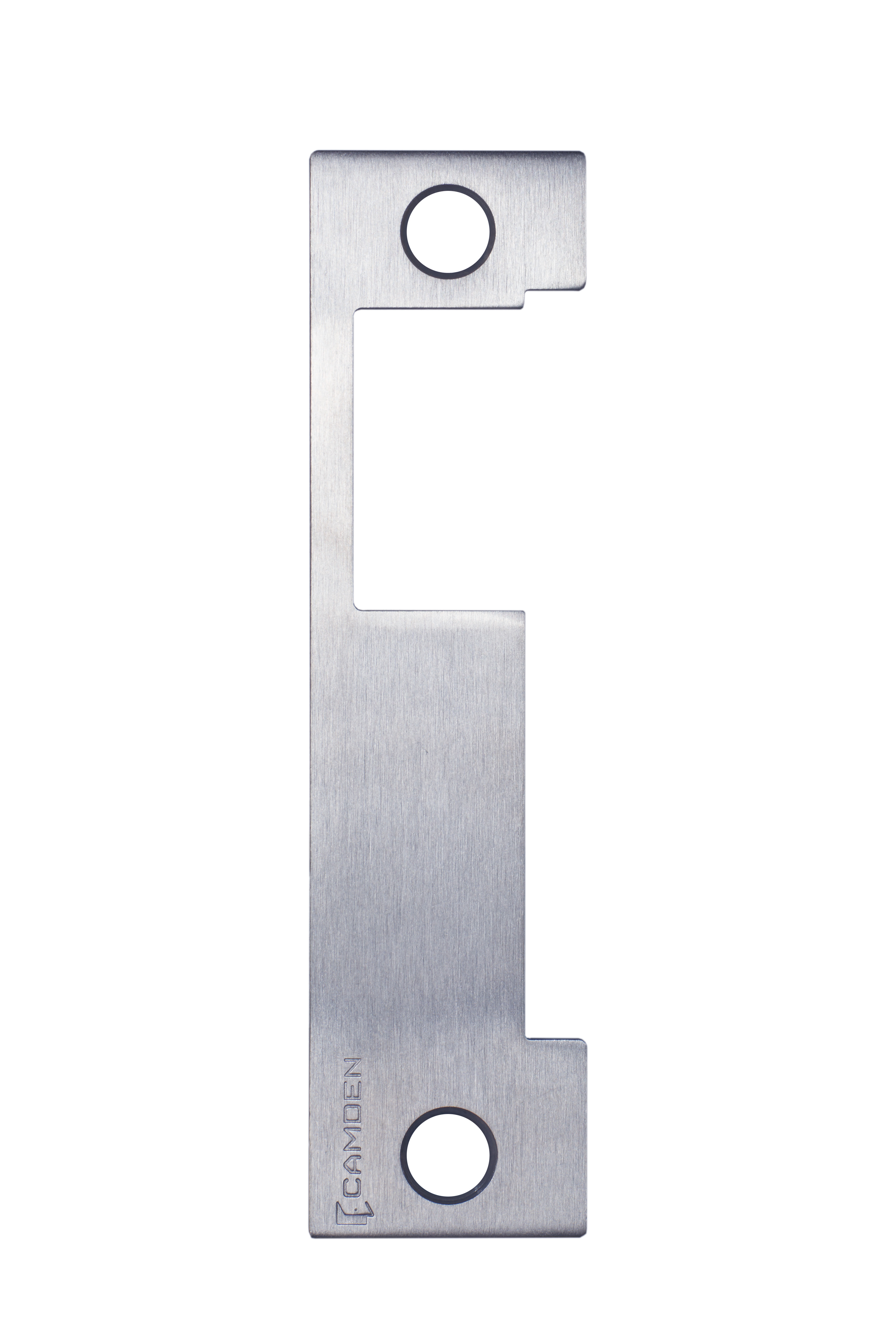

CX-EMP-200 |
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
EDI Data, Approvals
|
|
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|

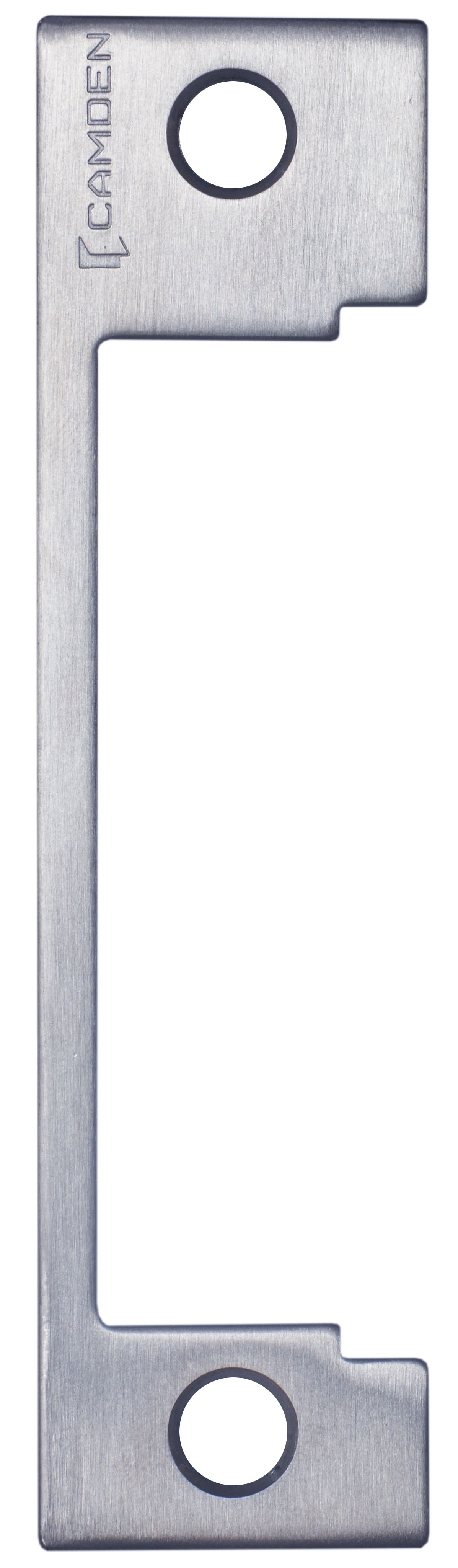

CX-EMP-210 |
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
CX-EMP-300 |
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
CX-EMP-310 |
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
|
CX-EMP-400 |
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
CX-EMP-410 |

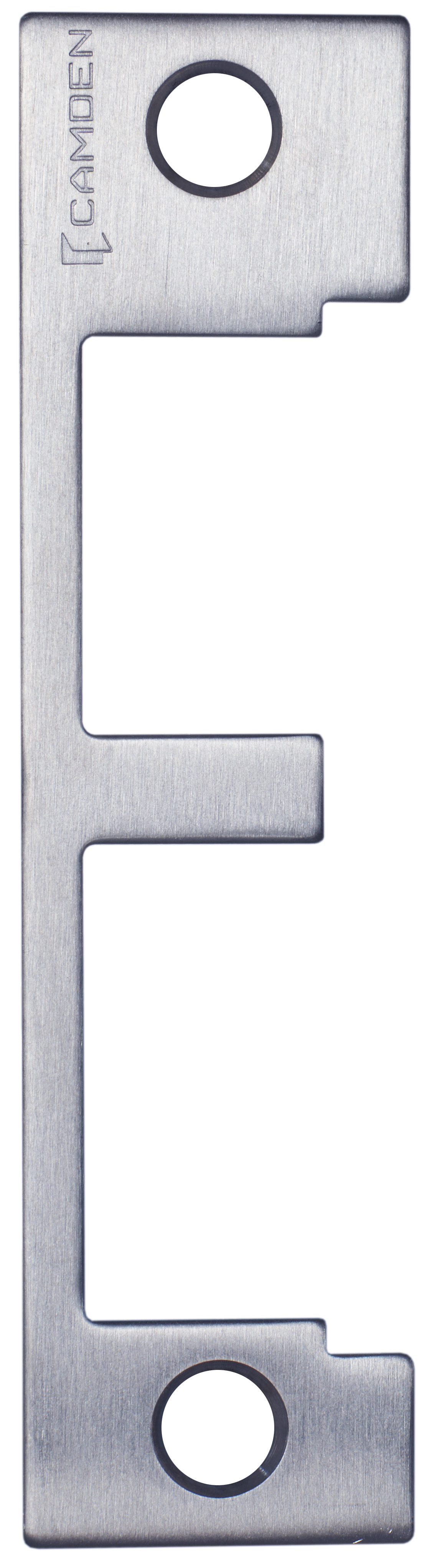

'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
| |
|
Wood Door Frame Stainless Steel Faceplates
click to expand section
|
|
Net Cost
|
|
|
CX-EMP-100W |
Wood frames, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
EDI Data, Approvals
|
|
Wood frames, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
CX-EMP-110W |
Wood frames, center line applications. Compatible with all cylindrical locksets
EDI Data, Approvals
|
|
Wood frames, center line applications. Compatible with all cylindrical locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
CX-EMP-400W |
Wood frames, dead latch positioned above the latch bolt. Compatible with all cylindrical locksets
EDI Data, Approvals
|
|
Wood frames, dead latch positioned above the latch bolt. Compatible with all cylindrical locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
| |
|
Metal Door Frame All-Black Faceplates
click to expand section
|
|
Net Cost
|
|
|
|
CX-EMP-100-BK |
'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
EDI Data, Approvals
|
|
'ANSI' square-metal door frame, center line applications. Compatible with all cylindrical locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
|
CX-EMP-110-BK |
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Marks, Omnia, PDQ, Arrow, Accurate locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
|
CX-EMP-200-BK |
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
EDI Data, Approvals
|
|
'ANSI' square-metal door frame, Deadlatch positioned above latchbolt. Compatible with Baldwin, PDQ, Marks locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
|
CX-EMP-210-BK |
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Best-45/47, Falcon, Sargent-7800/ 8200/ 9200 locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
|
CX-EMP-300-BK |
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, deadlatch positioned above latch. Compatible with Sargent-8100/7700, Schlage, Yale 8700 locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
|
CX-EMP-310-BK |
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, deadbolt used for night latch function only. Compatible with Sargent-7700/ 8100, Yale 8700 locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
|
CX-EMP-400-BK |
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, deadlatch positioned below the latchbolt. Compatible with Corbin Russwin, Falcon, Sargent/7800 locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
|
|
|
CX-EMP-410-BK |
'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
EDI Data, Approvals
|
|
'ANSI' square-metal frame, used for 1" deadbolt and no latch. Compatible with Marks, Baldwin, Arrow, PDQ, Omnia locksets
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight:
|
| |
|
|
|
Strike Marking Template Kit
click to expand section
|
|
Net Cost
|
|
|
CX-STR-TMPKIT |
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
EDI Data, Approvals
|
|
Electric Strike Marking Template Kit 5 heavy-duty metal templates for strike installation with a marking pencil, screwdriver
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 8"L x 4.5"W x 1.5"H
Weight: .85lbs.
UPC: 670454222039
Country of Origin: TW
|
| |
|
new option
|
|
