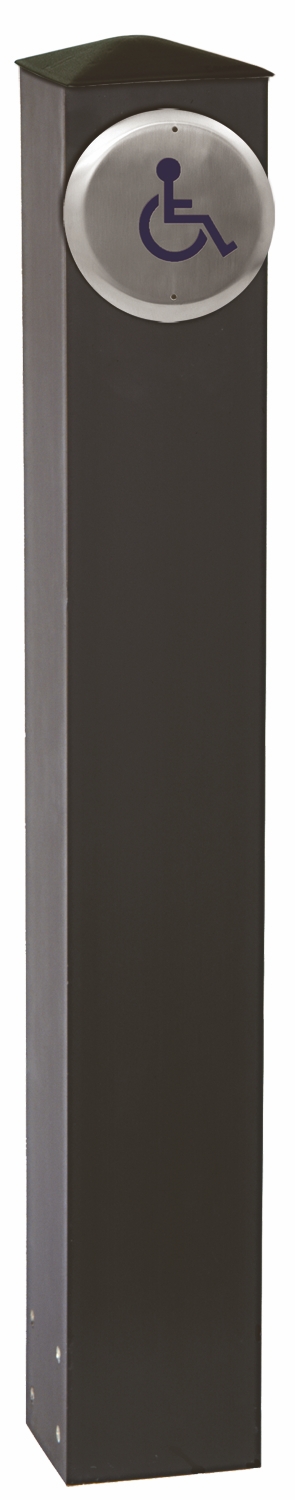

| 42" Post, Aluminum, Bronze Finish w/ CM-60/2 Push Plate Switch |
|
|

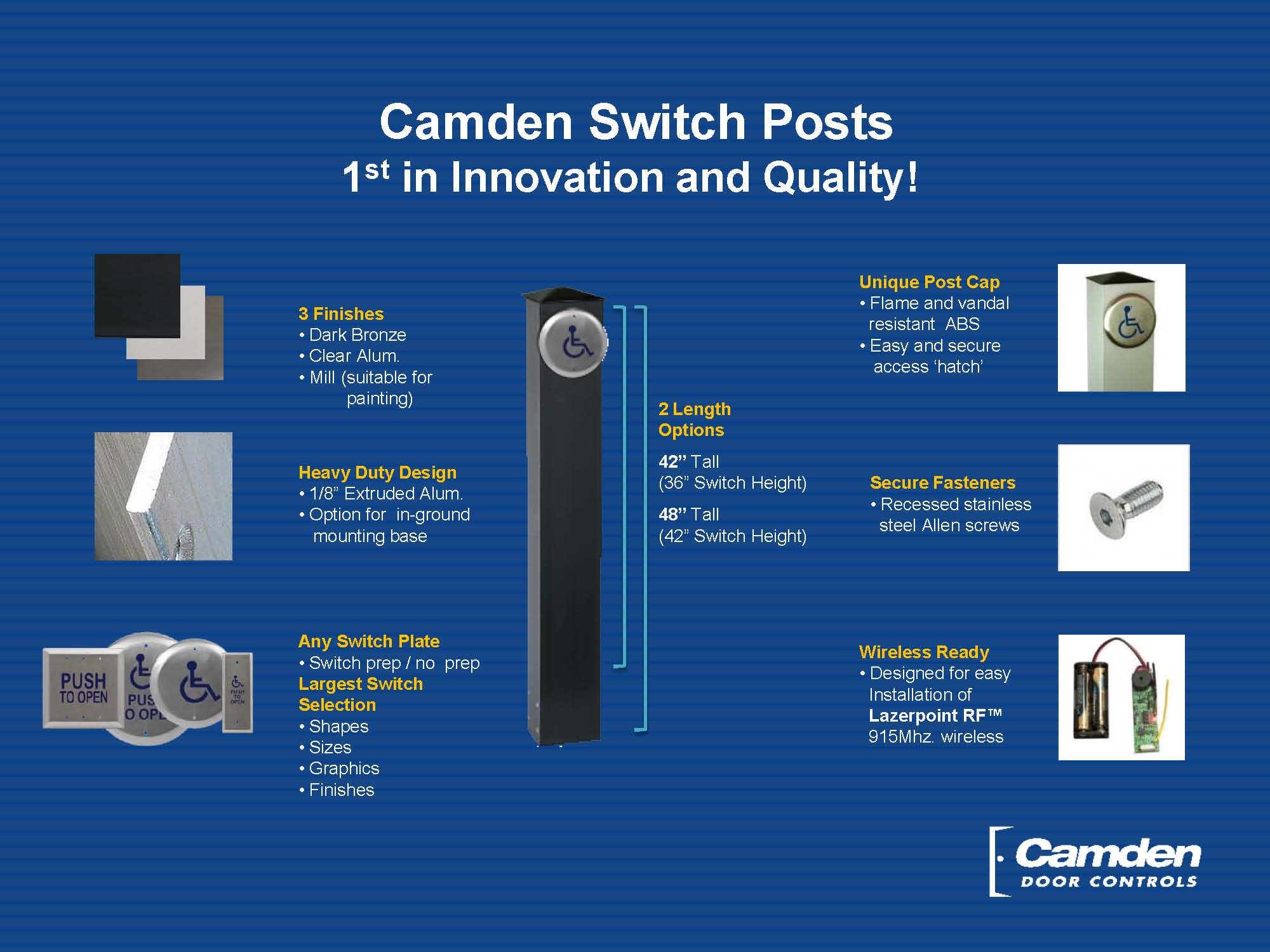

Camden mounting posts are available in 42" (107cm), with 36" (91cm) switch height and 48" (122cm), with 42" (107cm) switch height. There is a choice of extruded aluminum or stainless steel. The posts are supplied with a flame and vandal resistant cap, heavy duty steel mounting base and stainless steel fasteners. Optional in-ground (concrete) mounting base available.
|
|
|
- Choice of aluminum or stainless steel construction
- 42” (107cm), with 36” (91cm) switch height and
48” (122cm), with 42” (107cm) switch height.
- Clear aluminum, dark bronze, or mill (suitable for painting) finish
- Available with or without single gang switch cut-out preparation
- New cap design features peaked 'roof' to shed water and allows for easy removal with Allen key wrench
- Easy installation and service of Lazerpoint RF™ wireless switch transmitter and batteries
|
|
|
Aluminum Posts - Clear Finish
 click to expand section
|
|
Net Cost
|
|
|
CM-42-CSU-CLR
42" Tall, No switch prep, 6" x 6" clear aluminum
EDI DATA, APPROVALS
|
|
42" Tall, No switch prep, 6" x 6" clear aluminum
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454167132
|
|
|
CM-42-BSU-CLR
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" clear aluminum
EDI DATA, APPROVALS
|
|
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" clear aluminum
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454167071
|
|
|

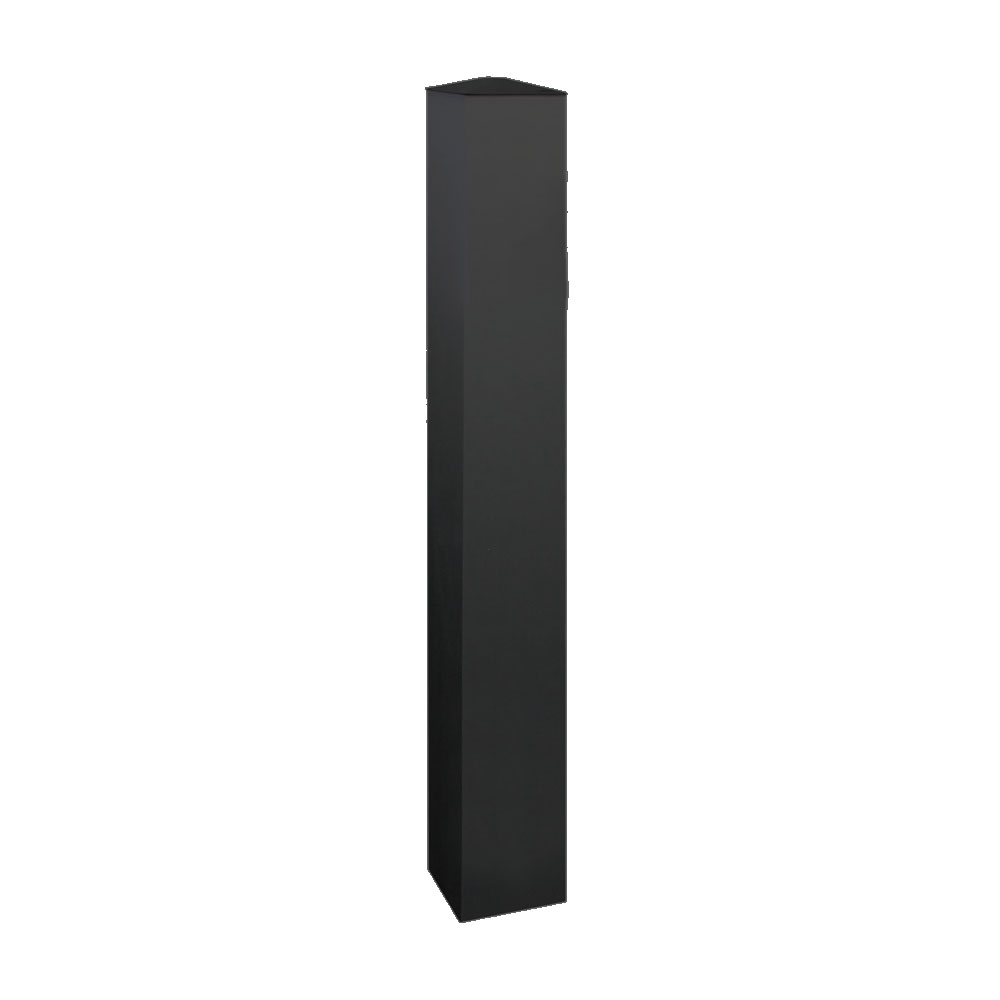

CM-42-DSU-CLR
42" Tall, prep for CM-7536 switch, 6" x 6" clear aluminum
EDI DATA, APPROVALS
|
|
42" Tall, prep for CM-7536 switch, 6" x 6" clear aluminum
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454167514
|
|
|
CM-42-ESU-CLR
42" Tall, Dual switch prep, top & bottom, 6" x 6", clear aluminum finish
EDI DATA, APPROVALS
|
|
42" Tall, Dual switch prep, top & bottom, 6" x 6", clear aluminum finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5""H
Weight: 17.8lbs.
UPC:670454194381
|
|
|
CM-48-CSU-CLR
48" Tall, No switch prep, 6" x 6" clear aluminum
EDI DATA, APPROVALS
|
|
48" Tall, No switch prep, 6" x 6" clear aluminum
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
UPC:670454167958
|
|
|
CM-48-BSU-CLR
48" Tall, (42" Switch Height) Single gang prep, 6" x 6" clear aluminum
EDI DATA, APPROVALS
|
|
48" Tall, (42" Switch Height) Single gang prep, 6" x 6" clear aluminum
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
UPC:670454167088
|
|
|
CM-48-DSU-CLR
48" Tall, prep for CM-7536 switch, 6" x 6" clear aluminum
EDI DATA, APPROVALS
|
|
48" Tall, prep for CM-7536 switch, 6" x 6" clear aluminum
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
UPC:670454171528
|
|
|
CM-48-ESU-CLR
48" Tall, Dual switch prep, top & bottom, 6" x 6", clear aluminum finish
EDI DATA, APPROVALS
|
|
48" Tall, Dual switch prep, top & bottom, 6" x 6", clear aluminum finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5""H
Weight: 19lbs.
UPC:670454194398
|
| |
|
Aluminum Posts - Bronze Finish
click to expand section
|
|
Net Cost
|
|
|
CM-42-CSU-BRZ
42" Tall, No switch prep, 6" x 6" dark bronze finish
EDI DATA, APPROVALS
|
|
42" Tall, No switch prep, 6" x 6" dark bronze finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454167156
|
|
|
CM-42-BSU-BRZ
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" dark bronze finish
EDI DATA, APPROVALS
|
|
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" dark bronze finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454167101
|
|
|
CM-42-DSU-BRZ
42" Tall, prep for CM-7536 switch, 6" x 6" dark bronze
EDI DATA, APPROVALS
|
|
42" Tall, prep for CM-7536 switch, 6" x 6" dark bronze
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454167521
|
|
|

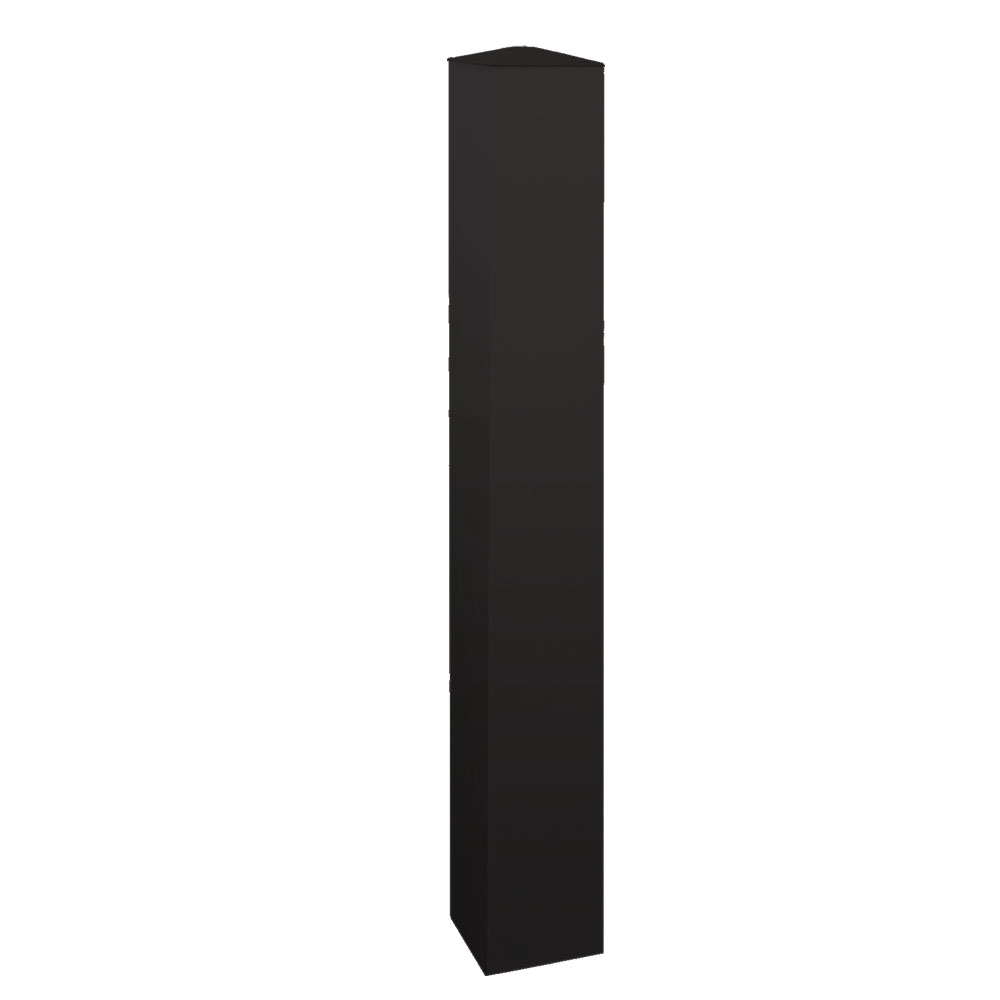

CM-48-CSU-BRZ
48" Bollard w/No Switch Prep, dark bronze
EDI DATA, APPROVALS
|
|
48" Bollard w/No Switch Prep, dark bronze
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
UPC:670454167163
|
|
|
CM-48-BSU-BRZ
48" Tall, (42" Switch Height) Single gang prep, 6" x 6" dark bronze finish
EDI DATA, APPROVALS
|
|
48" Tall, (42" Switch Height) Single gang prep, 6" x 6" dark bronze finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
UPC:670454167125
|
|
|
CM-48-DSU-BRZ
48" Tall, prep for CM-7536 switch, 6" x 6" dark bronze
EDI DATA, APPROVALS
|
|
48" Tall, prep for CM-7536 switch, 6" x 6" dark bronze
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.7"H
Weight: 19lbs.
UPC:670454167507
|
| |
|
Aluminum Posts - Mill Finish
click to expand section
|
|
Net Cost
|
|
|
CM-42-CSU-MIL
42" Tall, No switch prep, 6" x 6" mill finish
EDI DATA, APPROVALS
|
|
42" Tall, No switch prep, 6" x 6" mill finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454170118
|
|
|
CM-42-BSU-MIL
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" mill finish
EDI DATA, APPROVALS
|
|
42" Tall, (36" Switch Height) Single gang prep, 6" x 6" mill finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454167095
|
|
|
CM-48-BSU-MIL
48"Tall, (42" Switch Height) Single gang prep, 6" x 6" mill finish
EDI DATA, APPROVALS
|
|
48"Tall, (42" Switch Height) Single gang prep, 6" x 6" mill finish
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
UPC:670454167118
|
| |
|
Stainless Steel Mounting Posts
click to expand section
|
|
Net Cost
|
|
|

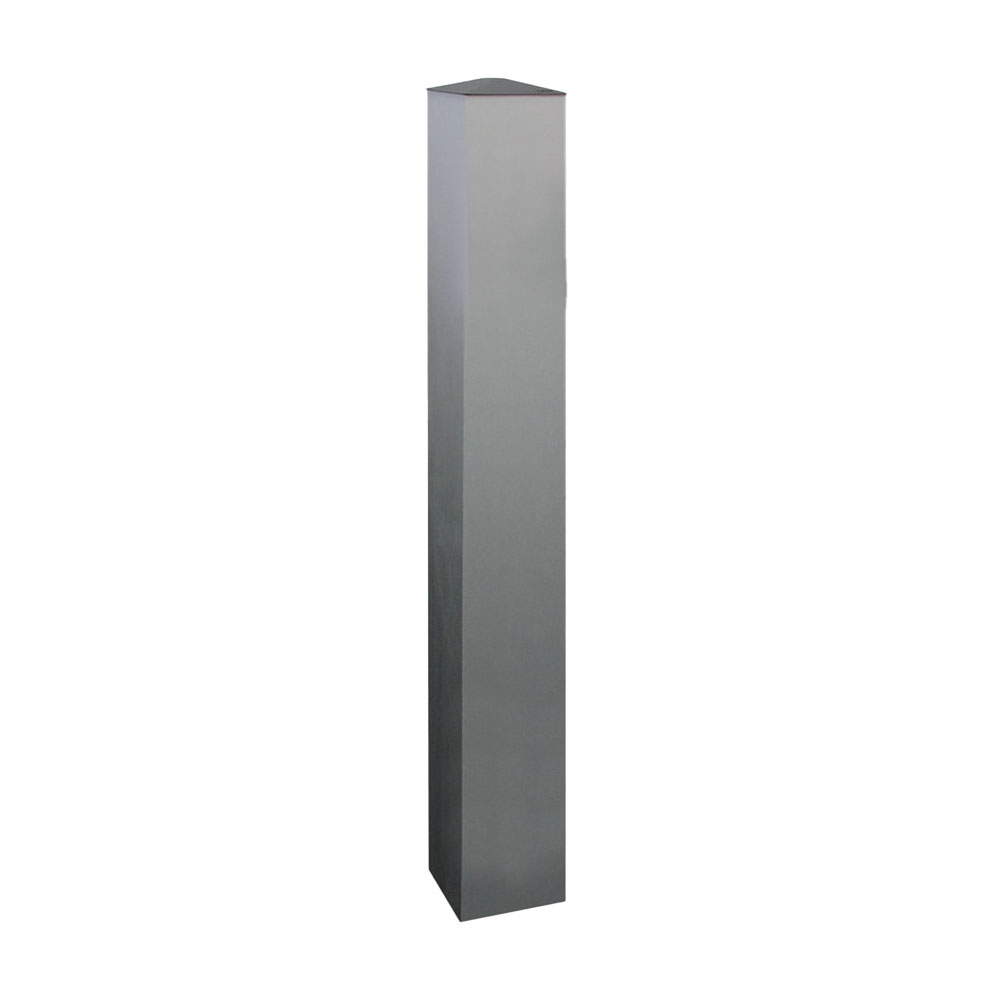

CM-42-BSU-SS
42” Tall, Single Gang Switch Prep, 6” x 6” stainless steel
EDI DATA, APPROVALS
|
|
42” Tall, Single Gang Switch Prep, 6” x 6” stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454181138
|
|
|
CM-42-DSU-SS
42” Tall, prep for CM-7536 switch, 6” x 6” stainless steel
EDI DATA, APPROVALS
|
|
42” Tall, prep for CM-7536 switch, 6” x 6” stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5"H
Weight: 17.8lbs.
UPC:670454194541
|
|
|

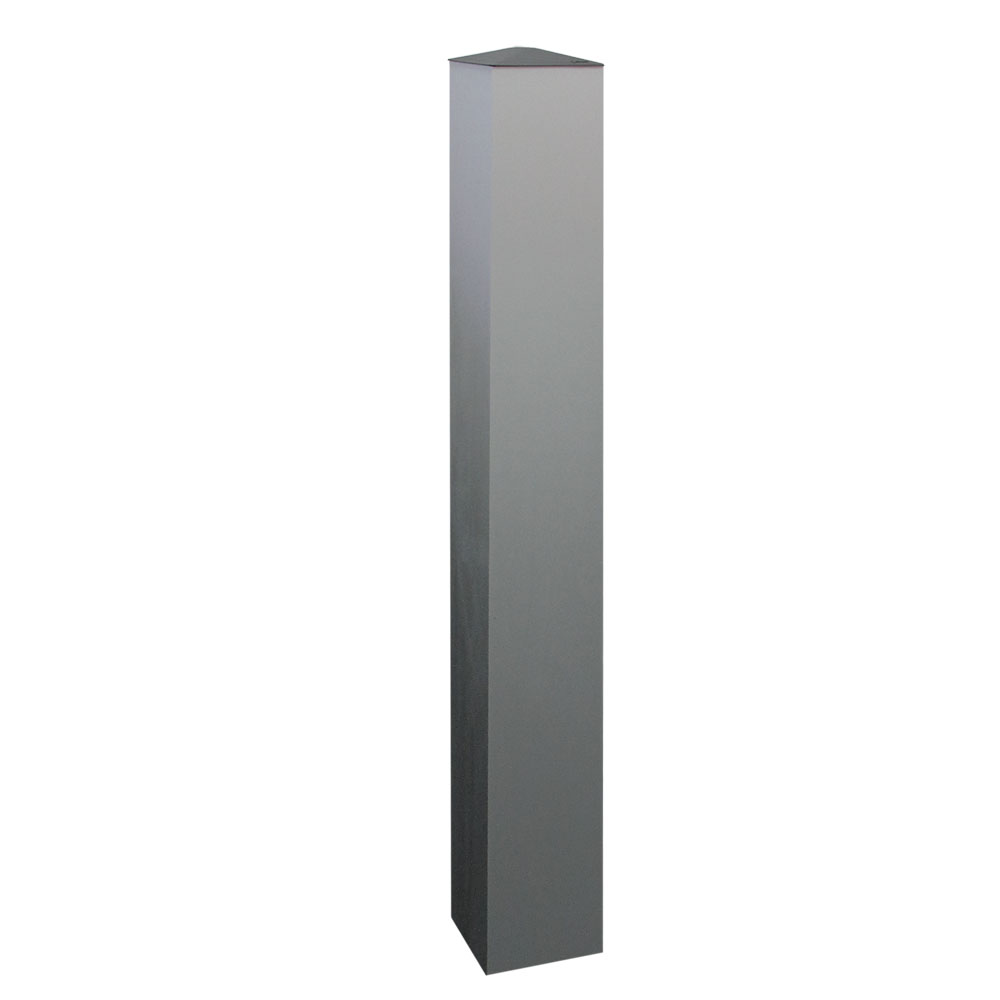

CM-48-BSU-SS
48” Tall, Single Gang Switch Prep, 6” x 6” stainless steel
EDI DATA, APPROVALS
|
|
48” Tall, Single Gang Switch Prep, 6” x 6” stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
UPC:670454181145
|
|
|
CM-48-DSU-SS
48” Tall, prep for CM-7536 switch, 6” x 6” stainless steel
EDI DATA, APPROVALS
|
|
48” Tall, prep for CM-7536 switch, 6” x 6” stainless steel
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 52"L x 7.5"W x 7.5"H
Weight: 19lbs.
UPC:670454192981
|
| |
|
In ground mounting option
click to expand section
|
|
Net Cost
|
|
|
CM-xxx-IG
Add suffix to model # for in-ground mounting base in place of pedestal mount base normally supplied with bollard
EDI DATA, APPROVALS
|
|
Add suffix to model # for in-ground mounting base in place of pedestal mount base normally supplied with bollard
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: lbs.
UPC:NA
|
|
|
CM-42-IG
In-ground base with rebar, separate piece
EDI DATA, APPROVALS
|
|
In-ground base with rebar, separate piece
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 45"L x 7.5"W x 7.5""H
Weight: 22lbs.
UPC:670454161444
|
| |
|
new option
|
Lazerpoint RF
This product series is designed for use with the industry's most reliable and easy to install wireless system!
|
|
|
