CM-700 Series 'Universal' pull stations and pull stations with sounder meet the stringent demands of emergency pull station controls. They are designed for single gang mounting and protrude only 3/4" from the wall. They are easily reset with a small screwdriver. Ideal for door release and emergency exit applications. 'Universal' models are supplied with 4 message labels.
Note: Switch configurations indicated are when the pull station station is closed/reset. When pull stations are released, switch contacts will be the opposite of those indicated. CM-721 yellow pull stations have been discontinued, effective Oct. 20, 2020.
|
|
|
| 'Universal' Labels |
|
Competitive Models..
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
GBS-1
|
CM-701
|
|
Dormakaba (RCI)
|
904-EFB
|
CM-701, CM-xxxBE
|
|
|
904-EFY
|
CM-721, CM-xxxBE
|
|
|
904-ESB
|
CM-701, CM-xxxSP
|
|
|
904-ESY
|
CM-721, CM-xxxSP
|
|
|
904PB
|
CM-701
|
|
|
904PY
|
CM-721
|
|
|
|
|
CM-700 Series 'Universal' pull stations and pull stations with sounder meet the stringent demands of emergency pull station controls. They are designed for single gang mounting and protrude only 3/4" from the wall. They are easily reset with a small screwdriver. Ideal for door release and emergency exit applications. 'Universal' models are supplied with 4 message labels.
Note: Switch configurations indicated are when the pull station station is closed/reset. When pull stations are released, switch contacts will be the opposite of those indicated. |
|
CM-721 yellow pull stations have been discontinued, effective Oct. 20, 2020.
|
|
|
|
|

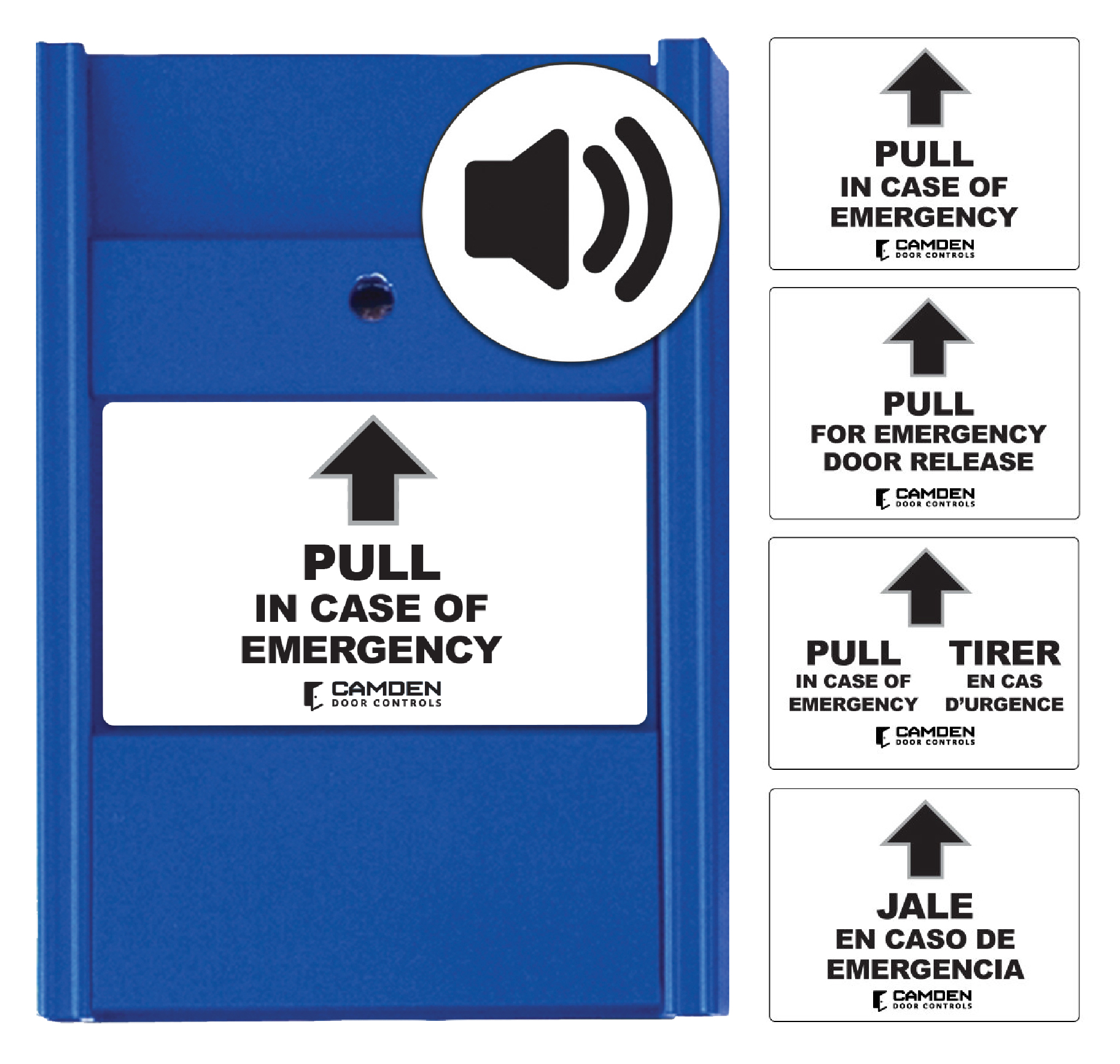

| 'Universal' Labels |
|
|
Competitive Models
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Alarm Controls
|
GBS-1
|
CM-701
|
|
Dormakaba (RCI)
|
904-EFB
|
CM-701, CM-xxxBE
|
|
|
904-EFY
|
CM-721, CM-xxxBE
|
|
|
904-ESB
|
CM-701, CM-xxxSP
|
|
|
904-ESY
|
CM-721, CM-xxxSP
|
|
|
904PB
|
CM-701
|
|
|
904PY
|
CM-721
|
| |
|
| Features |
|
Specifications |
|
Resources |
|
|
-
Ideal for use with magnetic locks in access control applications
-
Heavy duty vandal resistant design
-
Universal design with (5) Eng./Fr. and Sp. insert labels
-
Convenient Wiring Terminal
-
Standard single gang mount
-
Optional built-in sounder
-
3 year warranty
-
CM-701SO:
Built-in 85db alarm sounder
| Contact Type: |
|
CM-701U,
CM-701SO:
|
(1) NC contact, open on release
|
|
CM-702U:
|
(2) NC contact, open on release
|
|
CM-703U:
|
(1) NC and (1) NO, open and close on release
|
| |
| Construction: |
Extruded aluminum
|
| Mounting: |
Single gang electrical box
|
| Contact Rating: |
1 Amp @ 30 VDC
|
| Sounder: |
85dB @ 10cm
40 mA @ 12 VDC
|
| Dimensions: |
4-1/2" x 3-1/2" x 1-3/8"
(114mm x 90mm x 37mm)
|
|
|
Models
|
|
Click to Select Configuration Options to Customize Switch Model
|
|
|
|
|
PRODUCT SELECTION TOOL
|
| SELECT MODEL |
 |
|
|
|
|
PRODUCT SELECTION TOOL
|
| SELECT MODEL |
|
|
|
|
'Universal' Blue Pull Stations
click to expand section
|
|
Net Cost
|
|
 |

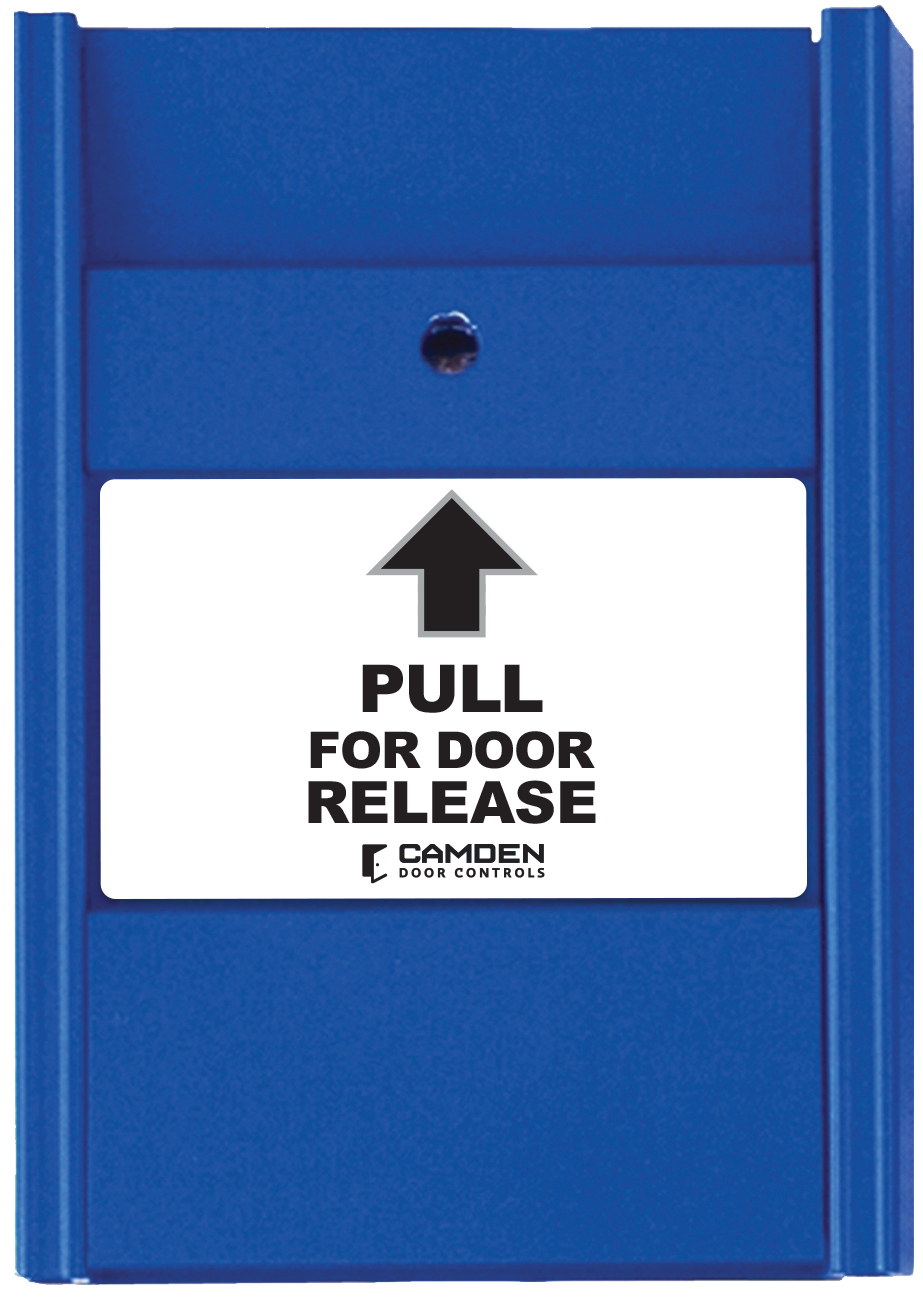

CM-701U |
'Universal' blue pull station, (1) N/C - Labels include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release', (1) Eng. and (1) Fr./Eng. bilingual 'Pull in Case of Emergency' & (1) Sp. 'Jale En Caso De Emergencia'
EDI Data, Approvals
|
|
'Universal' blue pull station, (1) N/C - Labels include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release', (1) Eng. and (1) Fr./Eng. bilingual 'Pull in Case of Emergency' & (1) Sp. 'Jale En Caso De Emergencia'
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.25"L x 3.5"W x 4.75"H
Weight: 0.39lbs.
UPC: 670454199140
Country of Origin: CN
|
|
|
|
CM-702U |
'Universal' blue pull station, (2) N/C - Labels include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release', (1) Eng. and (1) Fr./Eng. bilingual 'Pull in Case of Emergency' & (1) Sp. 'Jale En Caso De Emergencia'
EDI Data, Approvals
|
|
'Universal' blue pull station, (2) N/C - Labels include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release', (1) Eng. and (1) Fr./Eng. bilingual 'Pull in Case of Emergency' & (1) Sp. 'Jale En Caso De Emergencia'
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.25"L x 3.5"W x 4.75"H
Weight: 0.39lbs.
UPC: 670454199164
Country of Origin: CN
|
|
|
|
CM-703U |
'Universal' blue pull station, (1) x N/C + (1) x N/O - Labels include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release', (1) Eng. and (1) Fr./Eng. bilingual 'Pull in Case of Emergency' & (1) Sp. 'Jale En Caso De Emergencia'
EDI Data, Approvals
|
|
'Universal' blue pull station, (1) x N/C + (1) x N/O - Labels include: (1) 'Pull for Door Release', (1) 'Pull for Emergency Door Release', (1) Eng. and (1) Fr./Eng. bilingual 'Pull in Case of Emergency' & (1) Sp. 'Jale En Caso De Emergencia'
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.25"L x 3.5"W x 4.75"H
Weight: 0.39lbs.
UPC: 670454199171
Country of Origin: CN
|
| |
|
Blue Pull Station w/ Alarm
click to expand section
|
|
Net Cost
|
|
|

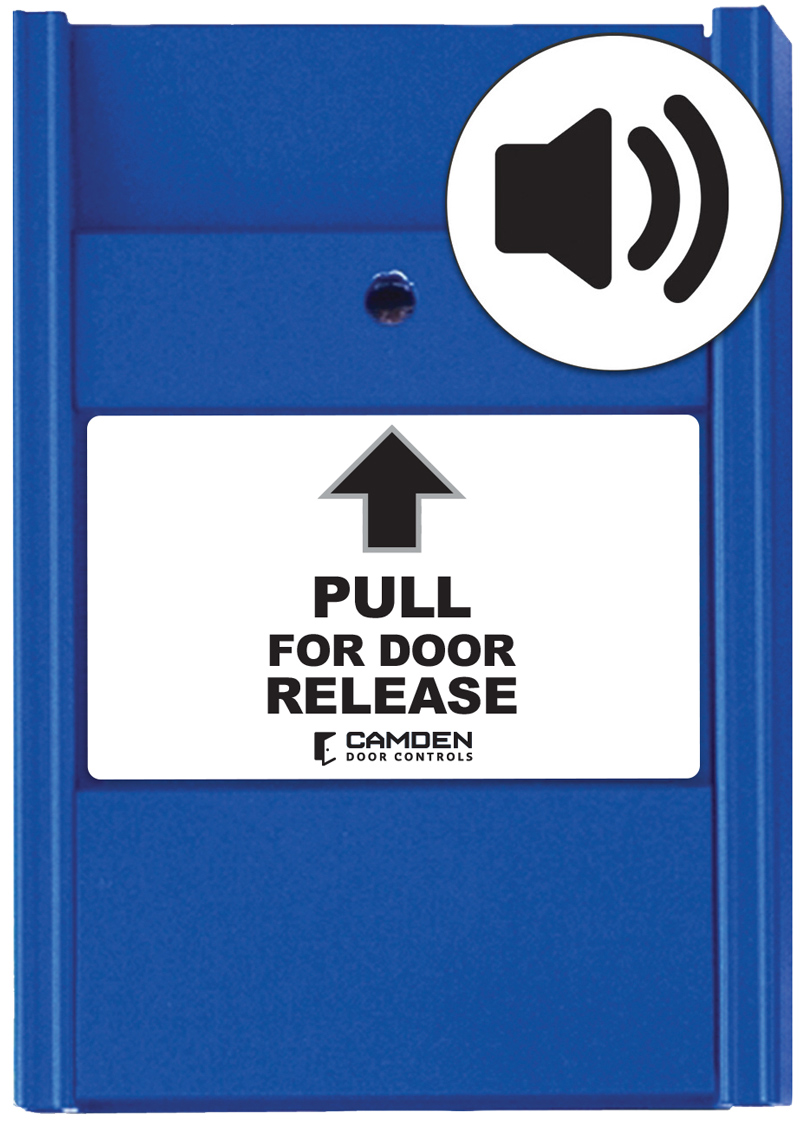

CM-701SO |
1 x N/C switch, 'PULL FOR DOOR RELEASE' , with local alarm sounder
EDI Data, Approvals
|
|
1 x N/C switch, 'PULL FOR DOOR RELEASE' , with local alarm sounder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 2.25"L x 3.5"W x 4.75"H
Weight: 0.39lbs.
UPC: 670454178510
Country of Origin: CA
|
| |
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
Compatible Mounting Boxes
|
|
|
click to expand section
|
|
 |
| MOUNTING BOXES & ACCESSORIES |
|
| Mounting Boxes & Accessories: Single Gang |
|
Net Cost |
|
CM-34BL
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
CM-34AL
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
Surface Box, Standard Depth, threaded conduit entry. Heavy duty cast aluminum 2-3/4"W x 4-1/2"H x 1-3/4"D
|
|
|
|
|
|
