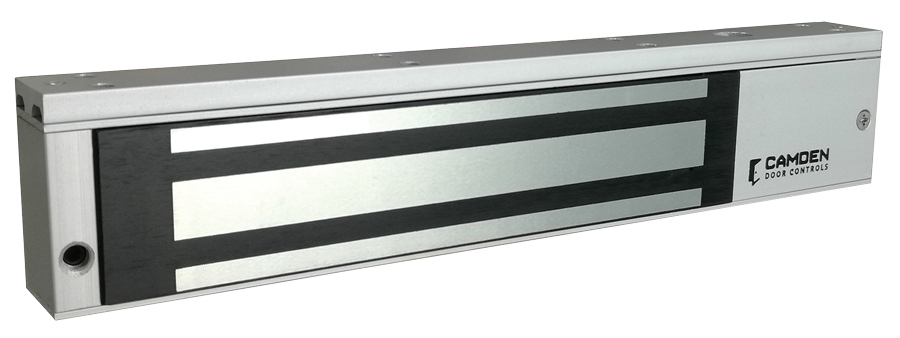

| CX-91S-06, 600 lbs. Surface Mount Single Door - Basic |
|
|
Camden CX-90 and CX-91 Series single door magnetic locks offer the best performance and value! CX-90 Series 300 lbs. mag locks are compact and ideal for securing cabinets, gates and other security applications. CX-91 Series 600 & 1200 lbs. mag locks have a built-in 'TLS' option that provides an adjustable timer, lock sensor, relay and LED. The 'TDS' option includes door status switch.
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Locknetics
|
MG1200
|
|
|
|
MG600
|
|
|
|
| CX-91S-06, 600 lbs. Surface Mount Single Door - Basic |
|
Camden CX-90 and CX-91 Series single door magnetic locks offer the best performance and value! CX-90 Series 300 lbs. mag locks are compact and ideal for securing cabinets, gates and other security applications. CX-91 Series 600 & 1200 lbs. mag locks have a built-in 'TLS' option that provides an adjustable timer, lock sensor, relay and LED. The 'TDS' option includes door status switch. |
|
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Locknetics
|
MG1200
|
|
|
|
MG600
|
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
- Weather and vandal resistant construction proven over thousands of installations
- Surface and mortise mount models
- Compatible with all access/egress systems
- Field selectable 12/24 VDC operation
- On board MOV power surge protection prevents damage to the mag lock
- A range of mounting brackets and spacers available
- Lifetime warranty
| Voltage: |
12/24 VDC |
| Current Draw: |
CX-90 Series: 360 mA @ 12 VDC
180 mA @ 24 VDC
CX-91S-06: 480 mA @ 12 VDC
240 mA @ 24 VDC |
| Temp Range: |
CX-90 & 91 Series: 32°F to 131°F (0°C to 55°C) |
| Contact Rating: |
CX-91 Series TDS/TLS:
Bond Sensor: 2A @ 24 VDC
Door Status Switch: 0.5A @ 28V AC/DC |
| Time Delay: |
CX-91 Series TDS/TLS: 5 to 25 seconds |
| Holding Force: |
CX-90 Series: 300 lbs. (136 kg.)CX-91S-06: 600 lbs. (272 kg.) CX-91M-06: 600 lbs. (272 kg.) CX-91S-12TDS: 1,200 lbs. (544 kg.) |
| Dimensions: |
CX-90S-03: 6-1/2" x 1-3/8" x 13/16"
(165mm x 35mm x 21mm)
CX-90M-03: 8" x 1-3/8" x 13/16"
(203mm x 35mm x 21mm)
CX-91S-06: 9-7/8" x 1-5/8" x 1-1/8"
(250mm x 42mm x 27mm)
CX-91M-06: 9" x 1-1/2" x 1-1/8"
(229mm x 38mm x 28mm)
CX-91S-12: 10-1/2" x 2-5/8" x 1-9/16"
(266mm x 67mm x 40mm)
Armature Plate:
300 Lbs.: 5-1/8" x 1-1/4" x 1/4"
(130mm x 32mm x 6mm)
600 Lbs.: 7-1/4" x 1-1/2" x 15/32"
(185mm x 38mm x 12mm)
1200 Lbs.: 7-9/32" x 2-13/32" x 5/8"
(185mm x 61mm x 16.5mm) |
|
Spec Sheets
|
| CX-90 Series_Spec Sheet_R2 |
pdf |
1.45 |
DOWNLOAD
|
| CX-91 Series_Spec Sheet_R2 |
pdf |
1.54 |
DOWNLOAD
|
|
Reference Guides
|
| Guide To Code Compliant Installation of Magnetic Locks |
pdf |
0.77 |
DOWNLOAD
|
| Magnetic Lock Cross Reference |
pdf |
0.14 |
DOWNLOAD
|
|
Manuals
|
| CX-90S-03_Manual_R1 |
pdf |
0.37 |
DOWNLOAD
|
| CX-90M-03_Manual_R1 |
pdf |
0.53 |
DOWNLOAD
|
| CX-91M-06_Manual |
pdf |
0.59 |
DOWNLOAD
|
| CX-91S Series Manual_R1 |
pdf |
1.13 |
DOWNLOAD
|
| CX-91S TDS Series Manual R5 |
pdf |
1.11 |
DOWNLOAD
|
| CX-91S-06_Mounting Template |
pdf |
0.13 |
DOWNLOAD
|
| CX-91S-12_Mounting Template |
pdf |
0.05 |
DOWNLOAD
|
| CX-MA Series Glass Door Mounting Kits |
pdf |
0.21 |
DOWNLOAD
|
|
High Resolution Images
|
| CX-91S-12 |
jpeg |
0.11 |
DOWNLOAD
|
| CX-90S-03 |
jpeg |
1.16 |
DOWNLOAD
|
| CX-90M-03 |
jpeg |
0.85 |
DOWNLOAD
|
| CX-91S-06 |
jpeg |
0.11 |
DOWNLOAD
|
| CX-91M-06 |
jpeg |
0.10 |
DOWNLOAD
|
|
|
|
1200 lbs.
click to expand section
|
|
Net Cost
|
|

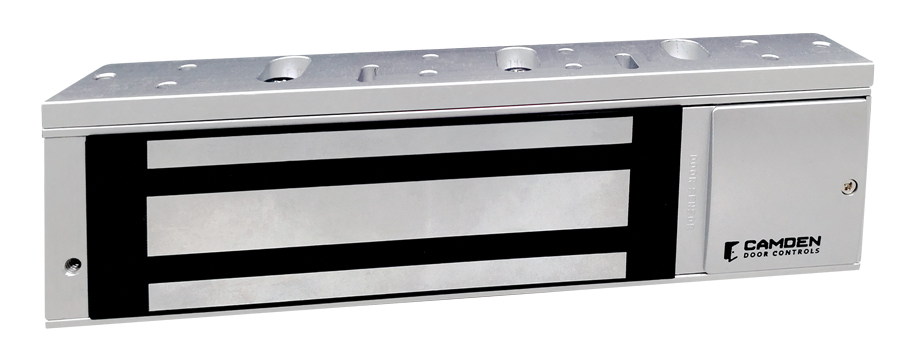

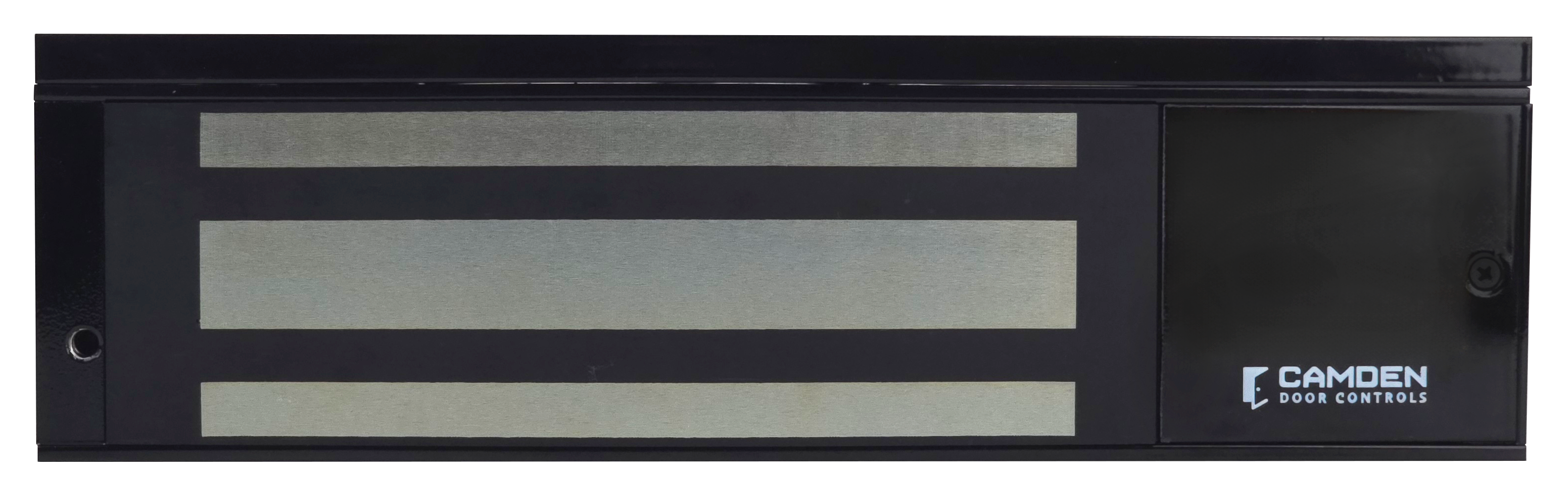

CX-91S-12
1,200 lbs. Surface mount single door - basic
EDI DATA, APPROVALS
|
|
1,200 lbs. Surface mount single door - basic
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.75"L x 11.5"W x 3.5"H
Weight: 10.5lbs.
UPC:670454150349
|
|

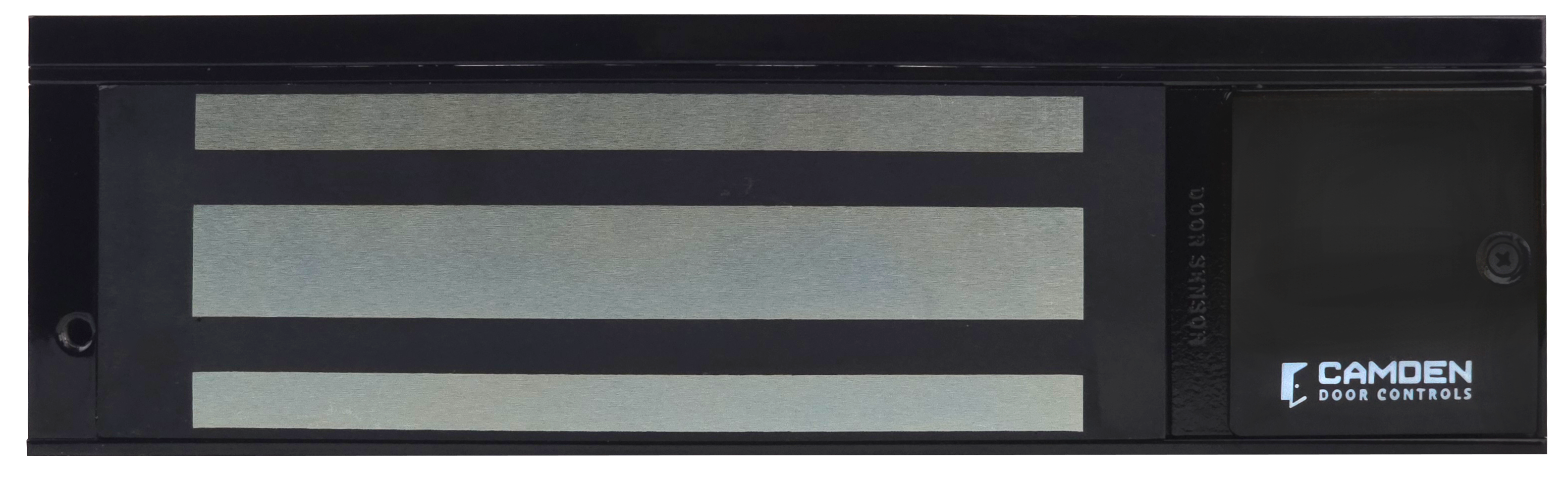

CX-91S-12TDS
1,200 lbs. Surface mount single door - with adjustable timer, door status switch, lock sensor/relay & LED
EDI DATA, APPROVALS
|
|
1,200 lbs. Surface mount single door - with adjustable timer, door status switch, lock sensor/relay & LED
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.75"L x 11.5"W x 3.5"H
Weight: 10.5lbs.
UPC:670454155047
|
| |
|
600 lbs.
click to expand section
|
|
Net Cost
|
|

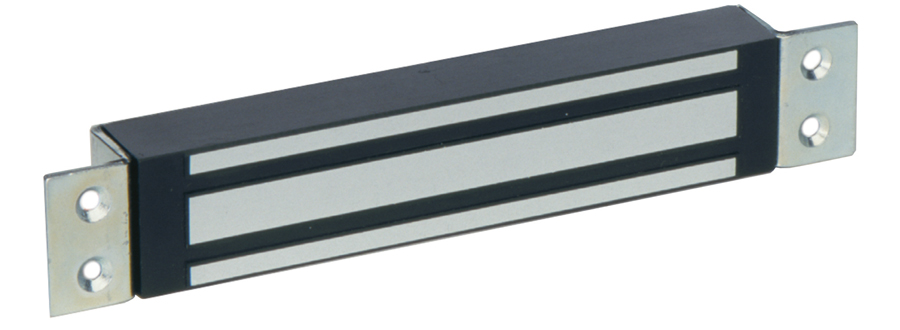

CX-91M-06
600 lbs. Mortise mount single door - basic
EDI DATA, APPROVALS
|
|
600 lbs. Mortise mount single door - basic
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.25"L x 11.5"W x 2"H
Weight: 5.04lbs.
UPC:670454150301
|
|
CX-91M-06TLS
600 lbs. Mortise single mount door - with adjustable timer, lock sensor/relay
EDI DATA, APPROVALS
|
|
600 lbs. Mortise single mount door - with adjustable timer, lock sensor/relay
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.25"L x 11.5"W x 2"H
Weight: 5.04lbs.
UPC:670454150318
|
|

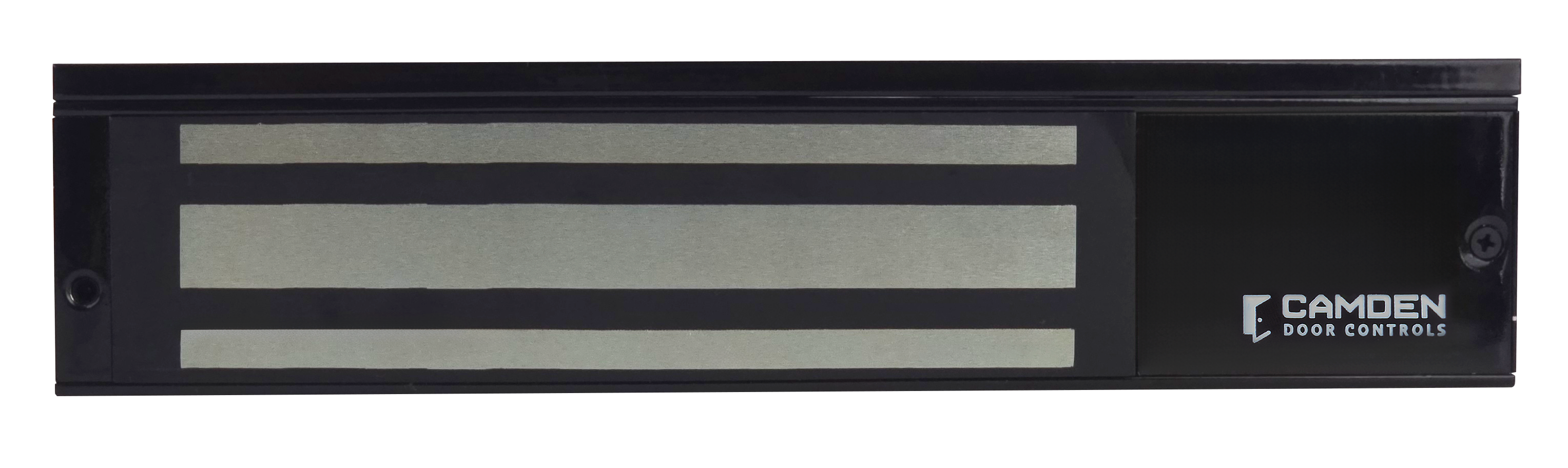

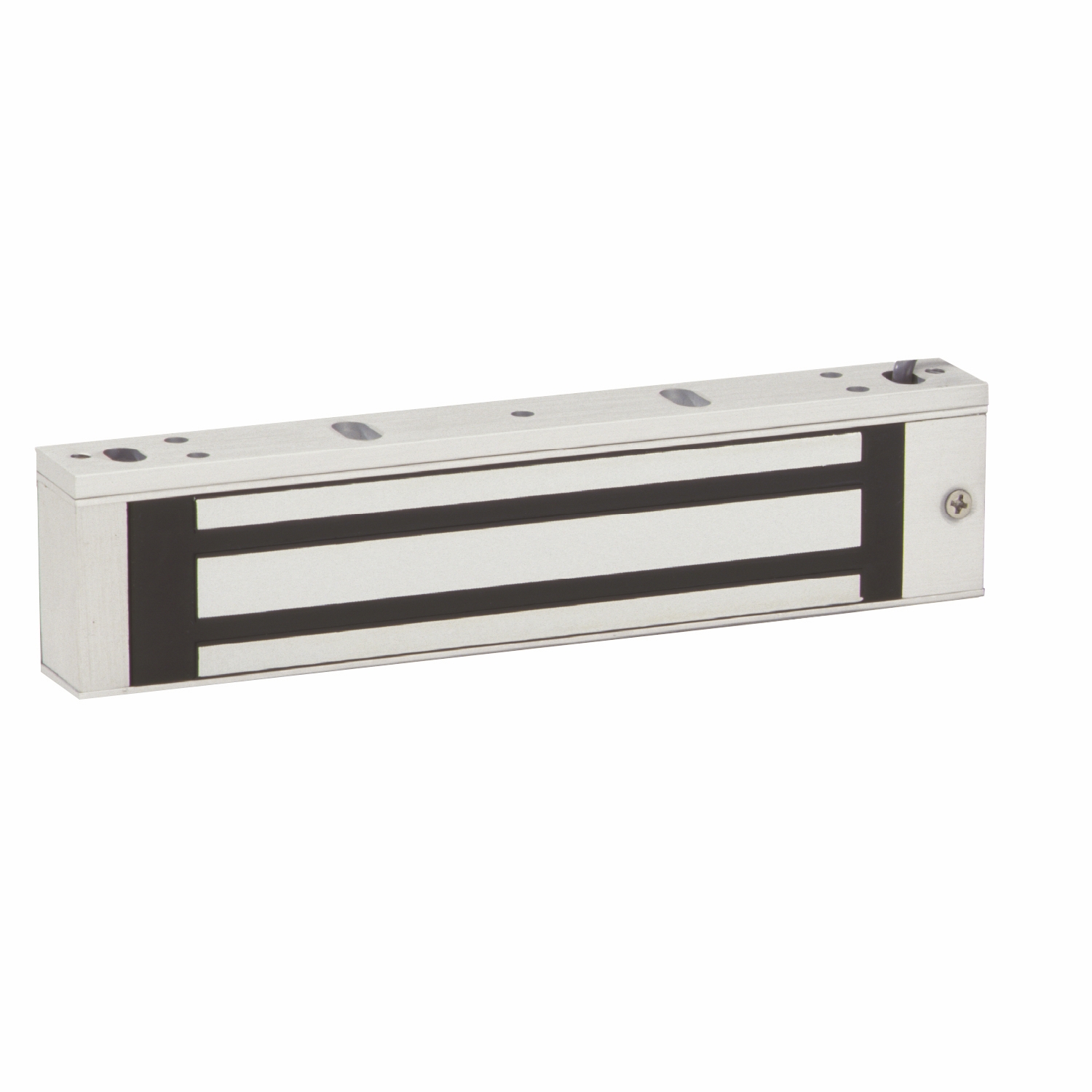

CX-91S-06
600 lbs. Surface mount single door - basic
EDI DATA, APPROVALS
|
|
600 lbs. Surface mount single door - basic
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.25"L x 11.5"W x 2"H
Weight: 5lbs.
UPC:670454150325
|
|
CX-91S-06TDS
600 lbs. Surface mount single door - with adjustable timer, door status switch, lock sensor/relay & LED
EDI DATA, APPROVALS
|
|
600 lbs. Surface mount single door - with adjustable timer, door status switch, lock sensor/relay & LED
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.25"L x 11.5"W x 2"H
Weight: 5lbs.
UPC:670454155603
|
| |
|
300 lbs.
click to expand section
|
|
Net Cost
|
|

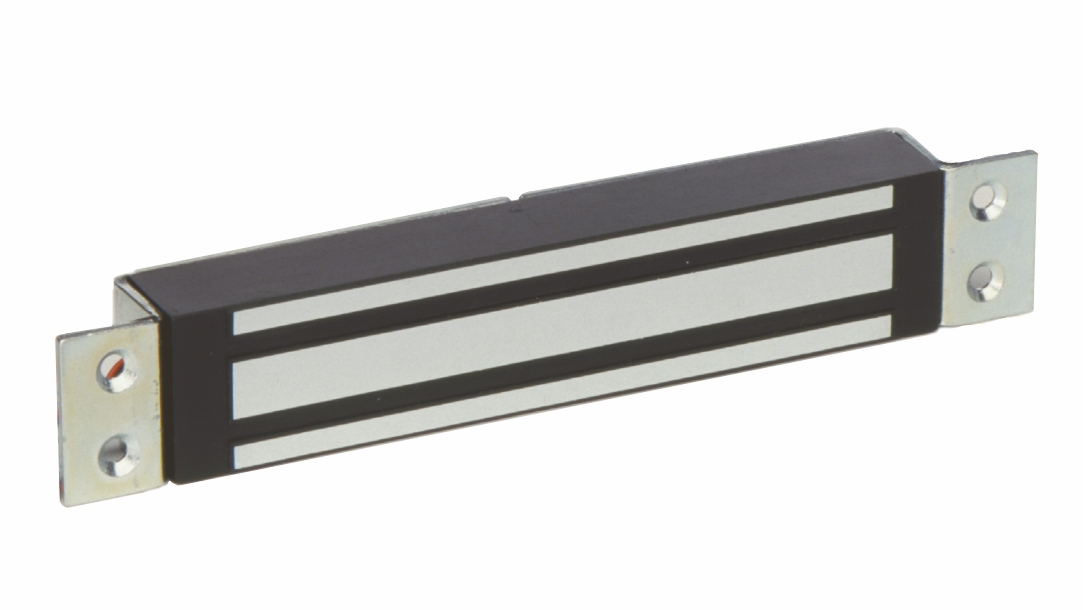

CX-90M-03
300 lbs. Mortise mount single door - basic
EDI DATA, APPROVALS
|
|
300 lbs. Mortise mount single door - basic
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 4.25"L x 11.5"W x 2"H
Weight: 5.04lbs.
UPC:670454150288
|
|

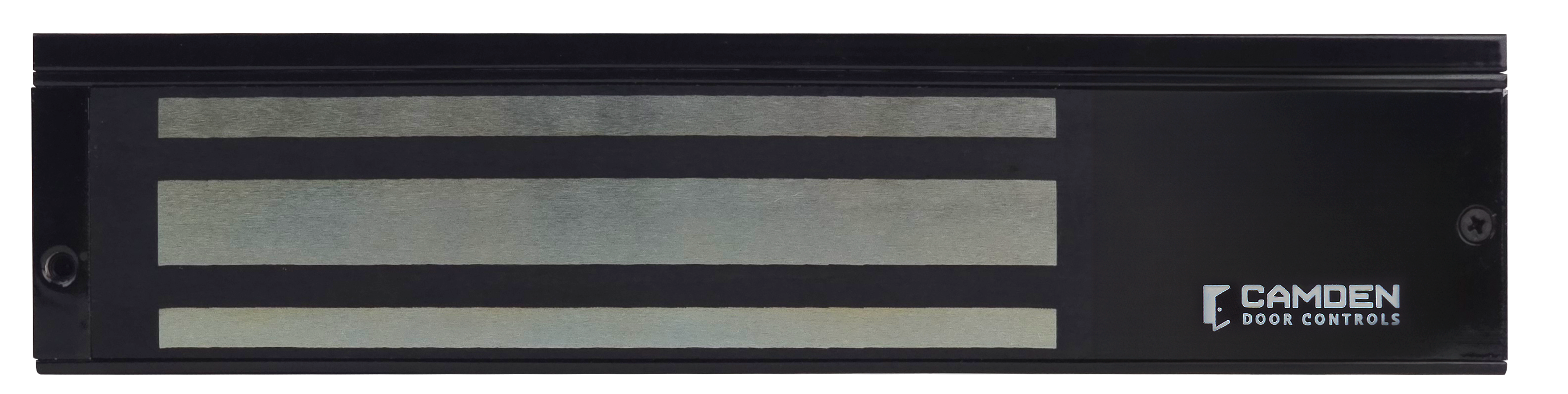

CX-90S-03
300 lbs. Surface mount single door - basic
EDI DATA, APPROVALS
|
|
300 lbs. Surface mount single door - basic
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8.5"L x 3.5"W x 1.5"H
Weight: 2.35lbs.
UPC:670454150295
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
| V1 Replacement PC Boards: |
|
Net Cost |
|
|
CX-91S-06PCB
For 600 lbs. magnet, 1-7/8" x 1-7/16" (47.6mm x 36.5mm)
|
For 600 lbs. magnet, 1-7/8" x 1-7/16" (47.6mm x 36.5mm)
|
|
|
|
|
CX-91S-06TLSPCB
For 600 lbs. magnet, TLS/TDS, 1-7/8" x 1-7/16" (47.6mm x 36.5mm)
|
For 600 lbs. magnet, TLS/TDS, 1-7/8" x 1-7/16" (47.6mm x 36.5mm)
|
|
|
|
|
CX-91S-12PCB
For 1,200 lbs. magnetic locks, V1 (open pin connector), 2-3/8" x 1-3/4" (60mm x 45mm)
|
For 1,200 lbs. magnetic locks, V1 (open pin connector), 2-3/8" x 1-3/4" (60mm x 45mm)
|
|
|
|
|
CX-91S-12TLSPCB
For 1,200 lbs. magnetic locks, TLS and TDS models, 2-3/8" x 1-3/4" (60mm x 45mm)
|
For 1,200 lbs. magnetic locks, TLS and TDS models, 2-3/8" x 1-3/4" (60mm x 45mm)
|
|
|
|
|
CX-91S-12PCBV2
For 1,200 lbs. magnetic locks, Rev 2 of board (locking pin connector), 2-3/8" x 1-3/4" (60mm x 45mm)
|
For 1,200 lbs. magnetic locks, Rev 2 of board (locking pin connector), 2-3/8" x 1-3/4" (60mm x 45mm)
|
|
|
|
|
|
