CM-3200 & CM-3500 Series

Stainless Steel, 2 Gang, Flush Mount

UL Listed Switch Components RoHS Compliant
< Key Switches

CM-3200 & CM-3500 Series

Stainless Steel, 2 Gang, Flush Mount

Catalog Menu BROWSE
CM-3200 & CM-3500 Series:Stainless Steel, 2 Gang, Flush Mount - Key Switches

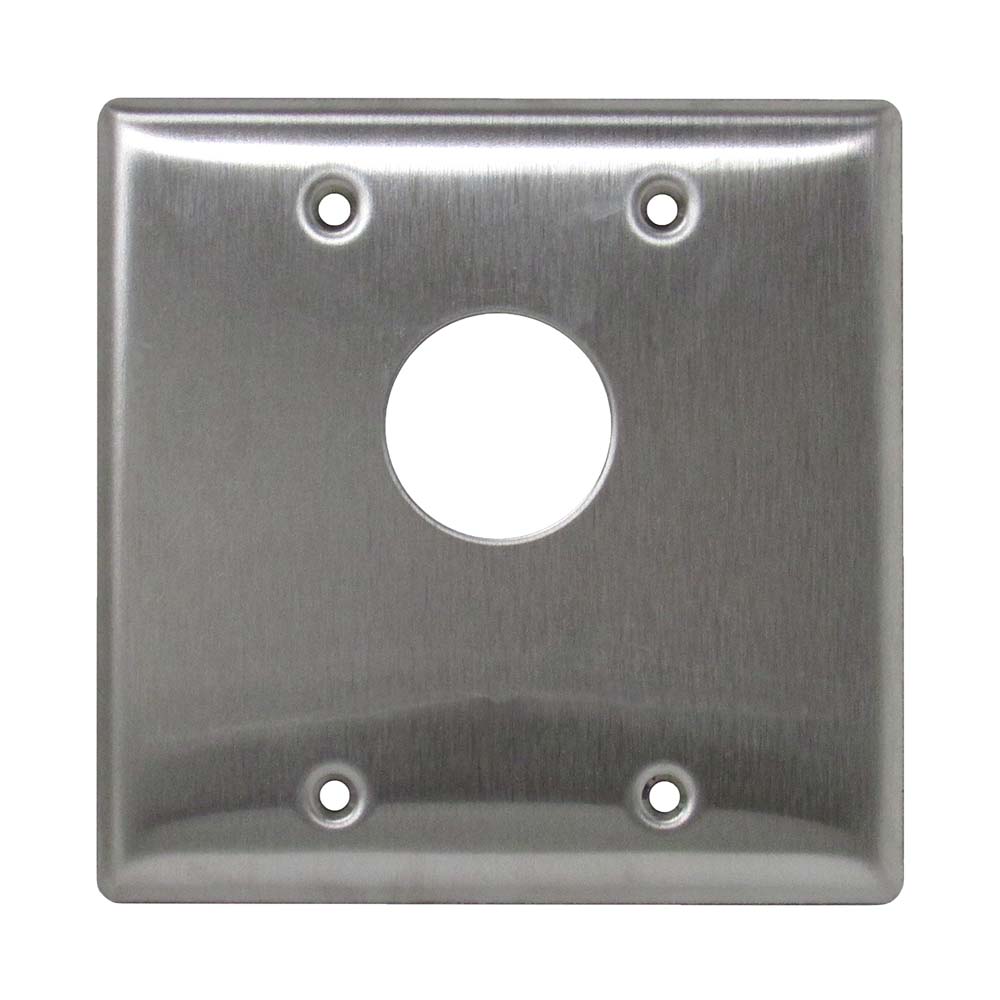

CM-3200 Double Gang
Single Cylinder Key Switch
Optional cylinder & LEDS

'Camden Tough' double gang stainless steel key switches offer thicker faceplate for better vandal resistance, rounded metal edges for safer installation and a pre-assembled switch mounting bracket to reduce installation time. They accept virtually any 1" - 1-1/4" mortise cylinder and cam.

Note: Mortise cylinder sold separately. Scroll down and 'Click for More' Option/Finishes for the complete cylinder listing.

CM-3500 Double Gang<BR>Dual Cylinder Key Switch:

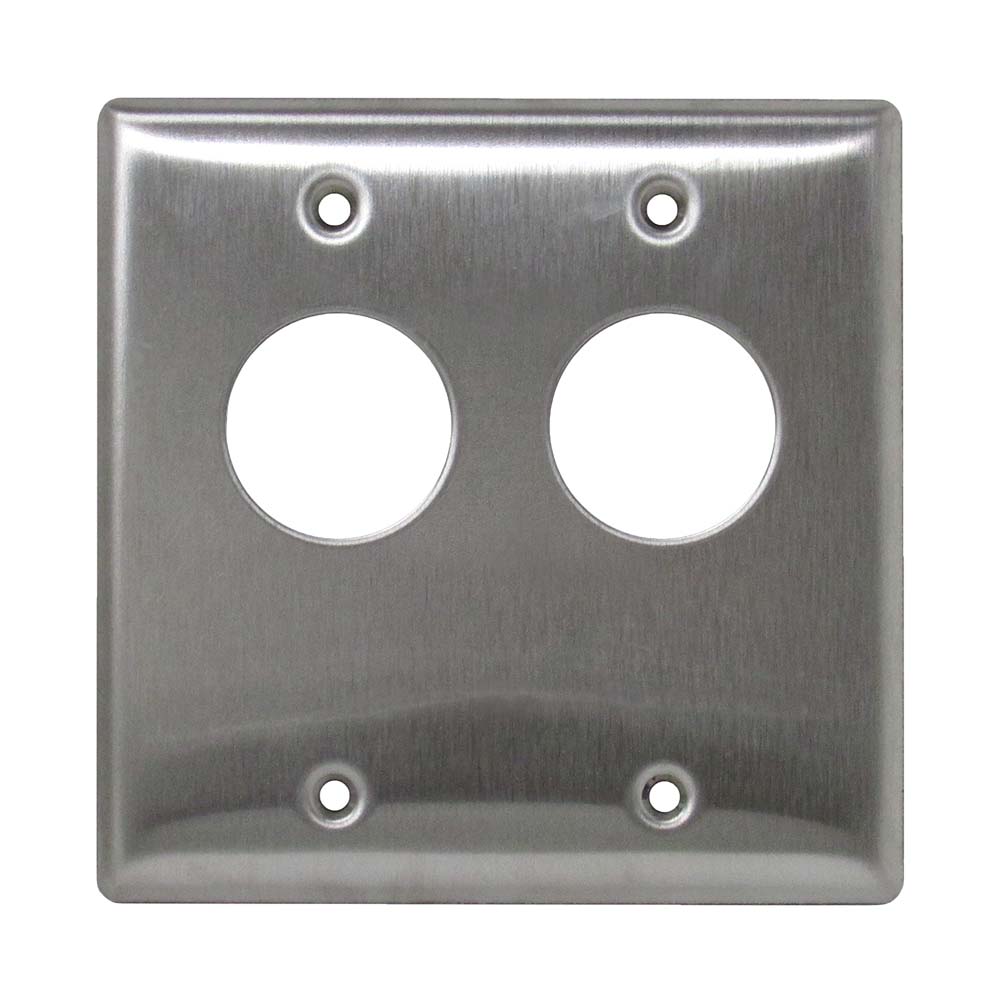

CM-3500 Double Gang
Dual Cylinder Key Switch

CM-3200 & CM-3500 Series:Stainless Steel, 2 Gang, Flush Mount - Key Switches
CM-3200 Double Gang
Single Cylinder Key Switch
Optional cylinder & LEDS

'Camden Tough' double gang stainless steel key switches offer thicker faceplate for better vandal resistance, rounded metal edges for safer installation and a pre-assembled switch mounting bracket to reduce installation time. They accept virtually any 1" - 1-1/4" mortise cylinder and cam.

Note: Mortise cylinder sold separately. Scroll down and 'Click for More' Option/Finishes for the complete cylinder listing.

FEATURES SPECIFICATIONS RESOURCES
MODELS
Click to configure switch model Pricing Wizard
Double Gang One Cylinder Key Switch
CM-3200: CM-3200 & CM-3500 Series:Stainless Steel, 2 Gang, Flush Mount - Key Switches CM-3200: CM-3200 & CM-3500 Series:Stainless Steel, 2 Gang, Flush Mount - Key Switches
CM-3200
Key Switch, (1) SPST Momentary, N/O
EDI DATA, APPROVALS
Key Switch, (1) SPST Momentary, N/O
EDI DATA
APPROVALS


CM-3205
Key Switch, (1) SPST Momentary, N/C
EDI DATA, APPROVALS
Key Switch, (1) SPST Momentary, N/C
EDI DATA
APPROVALS


CM-3210
Key Switch, (1) SPST Maintained
EDI DATA, APPROVALS
Key Switch, (1) SPST Maintained
EDI DATA
APPROVALS


CM-3220
Key Switch, (1) SPDT N/O & N/C Momentary
EDI DATA, APPROVALS
Key Switch, (1) SPDT N/O & N/C Momentary
EDI DATA
APPROVALS


CM-3230
Key Switch, (1) SPDT N/O & N/C Maintained
EDI DATA, APPROVALS
Key Switch, (1) SPDT N/O & N/C Maintained
EDI DATA
APPROVALS


CM-3250
Key Switch, (2) SPDT Momentary
EDI DATA, APPROVALS
Key Switch, (2) SPDT Momentary
EDI DATA
APPROVALS


CM-3260
Key Switch, (2) SPDT Maintained
EDI DATA, APPROVALS
Key Switch, (2) SPDT Maintained
EDI DATA
APPROVALS


CM-3270
Key Switch, (2) SPDT Momentary and SPDT Maintained
EDI DATA, APPROVALS
Key Switch, (2) SPDT Momentary and SPDT Maintained
EDI DATA
APPROVALS


CM-3280
Key Switch, (1) DPDT Momentary
EDI DATA, APPROVALS
Key Switch, (1) DPDT Momentary
EDI DATA
APPROVALS


CM-3282
Key Switch, (2) DPDT Momentary
EDI DATA, APPROVALS
Key Switch, (2) DPDT Momentary
EDI DATA
APPROVALS


CM-3290
Key Switch, (1) DPDT Maintained
EDI DATA, APPROVALS
Key Switch, (1) DPDT Maintained
EDI DATA
APPROVALS


CM-3292
Key Switch, (2) DPDT Maintained
EDI DATA, APPROVALS
Key Switch, (2) DPDT Maintained
EDI DATA
APPROVALS



Double Gang Dual Cylinder Key Switch
CM-3500: CM-3200 & CM-3500 Series:Stainless Steel, 2 Gang, Flush Mount - Key Switches CM-3500: CM-3200 & CM-3500 Series:Stainless Steel, 2 Gang, Flush Mount - Key Switches
CM-3500
Key Switch, (2) SPST Momentary, N/O
EDI DATA, APPROVALS
Key Switch, (2) SPST Momentary, N/O
EDI DATA
APPROVALS


CM-3505
Key Switch, (2) SPST Momentary, N/C
EDI DATA, APPROVALS
Key Switch, (2) SPST Momentary, N/C
EDI DATA
APPROVALS


CM-3510
Key Switch, (2) SPST Maintained
EDI DATA, APPROVALS
Key Switch, (2) SPST Maintained
EDI DATA
APPROVALS


CM-3520
Key Switch, (1) SPDT N/O & N/C Momentary
EDI DATA, APPROVALS
Key Switch, (1) SPDT N/O & N/C Momentary
EDI DATA
APPROVALS


CM-3530
Key Switch, (2) SPDT N/O & N/C Maintained
EDI DATA, APPROVALS
Key Switch, (2) SPDT N/O & N/C Maintained
EDI DATA
APPROVALS


CM-3550
Key Switch, (2) SPDT Momentary
EDI DATA, APPROVALS
Key Switch, (2) SPDT Momentary
EDI DATA
APPROVALS


CM-3560
Key Switch, (2) SPDT Maintained
EDI DATA, APPROVALS
Key Switch, (2) SPDT Maintained
EDI DATA
APPROVALS


CM-3570
Key Switch, (2) SPDT Momentary and Maintained
EDI DATA, APPROVALS
Key Switch, (2) SPDT Momentary and Maintained
EDI DATA
APPROVALS


CM-3580
Key Switch, (2) DPDT Momentary
EDI DATA, APPROVALS
Key Switch, (2) DPDT Momentary
EDI DATA
APPROVALS


CM-3582
Key Switch, (4) DPDT Momentary
EDI DATA, APPROVALS
Key Switch, (4) DPDT Momentary
EDI DATA
APPROVALS


CM-3590
Key Switch, (2) DPDT Maintained
EDI DATA, APPROVALS
Key Switch, (2) DPDT Maintained
EDI DATA
APPROVALS


CM-3592
Key Switch, (4) DPDT Maintained
EDI DATA, APPROVALS
Key Switch, (4) DPDT Maintained
EDI DATA
APPROVALS



Mortise Cylinders
CM-CYL60-KA: CM-3200 & CM-3500 Series:Stainless Steel, 2 Gang, Flush Mount - Key Switches CM-CYL60-KA: CM-3200 & CM-3500 Series:Stainless Steel, 2 Gang, Flush Mount - Key Switches
CM-CYL60-KA
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
EDI DATA, APPROVALS
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
EDI DATA
APPROVALS


CM-CYL60-KD
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed different
EDI DATA, APPROVALS
Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed different
EDI DATA
APPROVALS


CM-307
Mortise cylinder housing for Best™ style IC core
EDI DATA, APPROVALS
Mortise cylinder housing for Best™ style IC core
EDI DATA
APPROVALS


CM-308
Best™ style IC core, keyed different
EDI DATA, APPROVALS
Best™ style IC core, keyed different
EDI DATA
APPROVALS



OPTIONS & FINISHES
Click to expand section
LED Options
LED OPTIONS
new kit
COMPATIBLE MOUNTING BOXES
Click to expand section
Mounting Boxes & Accessories
MOUNTING BOXES & ACCESSORIES
COMPATIBLE MOUNTING POSTS
Click to expand section
Switch Bollards (Posts)
SWITCH BOLLARDS (POSTS)
