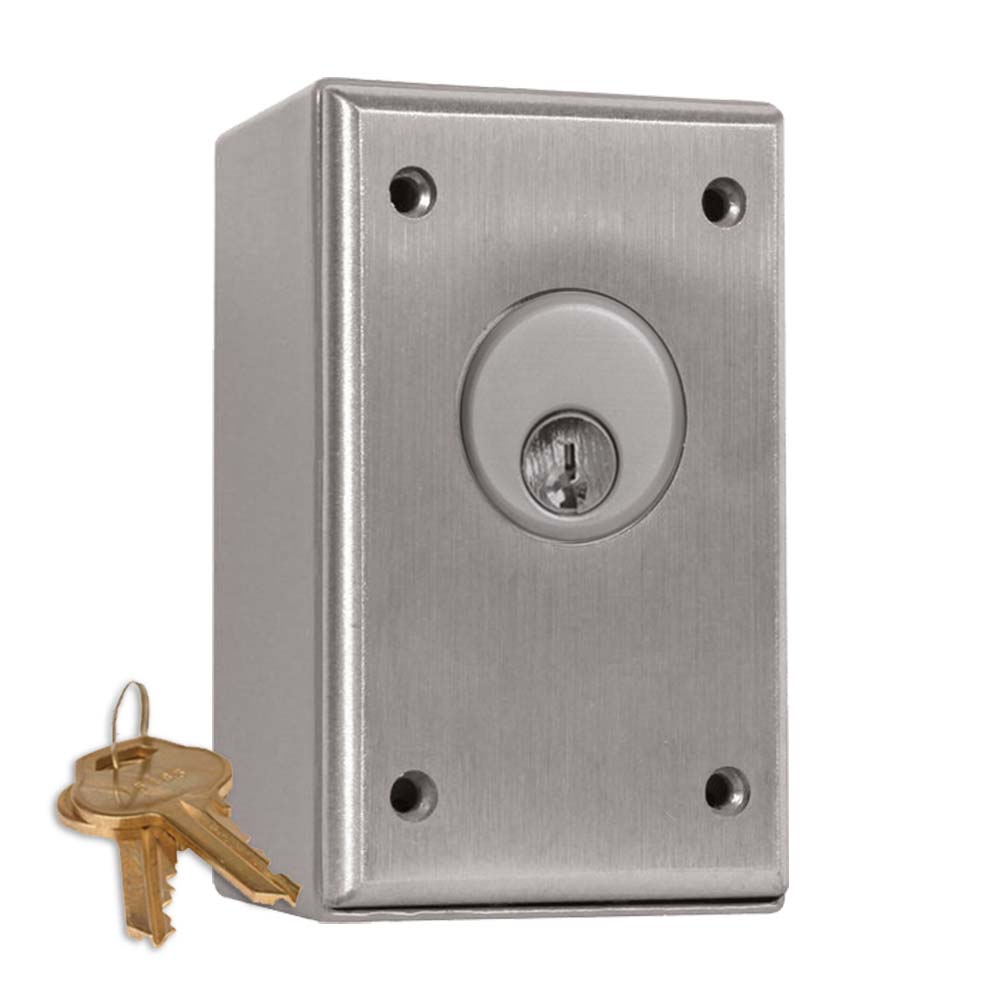

Key Switch Surface Box - Cast Aluminum Faceplate and Housing |
|
|
Camden CM-1000 key switches offer a vandal resistant 1/4" thick aluminum faceplate and are designed for high traffic outdoor or indoor use. They are supplied with a weatherproof gasket and cast aluminum surface mount box, with a 1/2" threaded conduit opening for wall, pipe, or pedestal mounting.
NEW - DOUBLE LED OPTIONS
* Mortise cylinder sold separately.
|
Key Switch Surface Box - Cast Aluminum Faceplate and Housing |
|
Camden CM-1000 key switches offer a vandal resistant 1/4" thick aluminum faceplate and are designed for high traffic outdoor or indoor use. They are supplied with a weatherproof gasket and cast aluminum surface mount box, with a 1/2" threaded conduit opening for wall, pipe, or pedestal mounting.
NEW - DOUBLE LED OPTIONS
|
* Mortise cylinder sold separately.
|
MODELS
|
Click to configure switch model
|
|
|
|
WIZARD
|
SELECT MODEL |
 |
|
|
|
WIZARD
|
SELECT MODEL |
 |
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CM-1000
Surface Mount Key Switch, SPST Momentary, N/O
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPST Momentary, N/O
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120014
|
|
CM-1005
Surface Mount Key Switch, SPST Momentary, N/C
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPST Momentary, N/C
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454151094
|
|
CM-1010
Surface Mount Key Switch, SPST Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPST Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120519
|
|
CM-1020
Surface Mount Key Switch, SPDT N/O & N/C Momentary
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPDT N/O & N/C Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120526
|
|
CM-1030
Surface Mount Key Switch, SPDT N/O & N/C Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPDT N/O & N/C Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120533
|
|
CM-1050
Surface Mount Key Switch, (2) SPDT Momentary
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, (2) SPDT Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120540
|
|
CM-1060
Surface Mount Key Switch, (2) SPDT Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, (2) SPDT Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120557
|
|
CM-1070
Surface Mount Key Switch, SPDT Momentary & Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, SPDT Momentary & Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120567
|
|
CM-1080
Surface Mount Key Switch, DPDT Momentary
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, DPDT Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120571
|
|
CM-1082
Surface Mount Key Switch, (2) DPDT Momentary
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, (2) DPDT Momentary
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454197573
|
|
CM-1090
Surface Mount Key Switch, DPDT Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, DPDT Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454120595
|
|
CM-1092
Surface Mount Key Switch, (2) DPDT Maintained
EDI DATA, APPROVALS
|
|
Surface Mount Key Switch, (2) DPDT Maintained
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.05lbs.
UPC:670454197580
|
|
Surface Key Switch w/ Cover
click to expand section
|
|
Net Cost
|
|
CI-1050CP
Surface, single gang mortise key switch, enclosure and cover. Weather resistant, (2) SPDT momentary switches. Mortise cylinder and 2 keys, keyed alike included.
EDI DATA, APPROVALS
|
|
Surface, single gang mortise key switch, enclosure and cover. Weather resistant, (2) SPDT momentary switches. Mortise cylinder and 2 keys, keyed alike included.
|
EDI DATA APPROVALS
|
|
|
|
|
Dimensions: 2.5"L x 3.25"W x 5.75"H
Weight: 1.36lbs.
UPC:670454177643
|
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
WIZARD
|
SELECT OPTIONS |
 |
|
|
|
WIZARD
|
SELECT OPTIONS
|
 |
|
|
|
WIZARD
|
SELECT MODEL ABOVE |
 |
|
|
|
WIZARD
|
SELECT OPTIONS |
 |
|
|
|
 |
LED OPTIONS |
 |
MORTISE CYLINDER OPTIONS |
 |
FACEPLATE OPTIONS |
|
LED Options |
|
Net Cost |
|
-7012
Red 12V LED mounted on faceplate
|
Red 12V LED mounted on faceplate
|
|
|
|
-70122
(2) Red 12V LED mounted on faceplate
|
(2) Red 12V LED mounted on faceplate
|
|
|
|
-7024
Red 24V LED mounted on faceplate
|
Red 24V LED mounted on faceplate
|
|
|
|
-70242
(2) Red 24V LED mounted on faceplate
|
(2) Red 24V LED mounted on faceplate
|
|
|
|
-7112
Green 12V LED mounted on faceplate
|
Green 12V LED mounted on faceplate
|
|
|
|
-71122
(2) Green 12V LED mounted on faceplate
|
(2) Green 12V LED mounted on faceplate
|
|
|
|
-7124
Green 24V LED mounted on faceplate
|
Green 24V LED mounted on faceplate
|
|
|
|
-71242
(2) Green 24V LED mounted on faceplate
|
(2) Green 24V LED mounted on faceplate
|
|
|
|
-7212
Red and Green 12V LEDs mounted on faceplate
|
Red and Green 12V LEDs mounted on faceplate
|
|
|
|
-72122
(2) Red and Green 12V LEDs mounted on faceplate
|
(2) Red and Green 12V LEDs mounted on faceplate
|
|
|
|
-7224
Red and Green 24V LEDs mounted on faceplate
|
Red and Green 24V LEDs mounted on faceplate
|
|
|
|
-72242
(2) Red and Green 24V LEDs mounted on faceplate
|
(2) Red and Green 24V LEDs mounted on faceplate
|
|
|
|
-7412
Amber 12V LED mounted on faceplate
|
Amber 12V LED mounted on faceplate
|
|
|
|
-74122
(2) Amber 12V LED mounted on faceplate
|
(2) Amber 12V LED mounted on faceplate
|
|
|
|
-7424
Amber 24V LED mounted on faceplate
|
Amber 24V LED mounted on faceplate
|
|
|
|
-74242
(2) Amber 24V (3 Wire) LED mounted on faceplate
|
(2) Amber 24V (3 Wire) LED mounted on faceplate
|
|
|
|
-7612
Bi-Color 12V (3 Wire) LED mounted on faceplate
|
Bi-Color 12V (3 Wire) LED mounted on faceplate
|
|
|
|
-76122
(2) Bi-Color 12V (3 Wire) LED mounted on faceplate
|
(2) Bi-Color 12V (3 Wire) LED mounted on faceplate
|
|
|
|
-7624
Bi-Color 24V (3 Wire) LED mounted on faceplate
|
Bi-Color 24V (3 Wire) LED mounted on faceplate
|
|
|
|
-76242
(2) Bi-Color 24V (3 Wire) LED mounted on faceplate
|
(2) Bi-Color 24V (3 Wire) LED mounted on faceplate
|
|
|
Mortise Cylinders |
|
Net Cost |
|
CM-CYL60-KA
Mortise cylinder 1-1/8", solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
|
Mortise cylinder 1-1/8", solid brass, chrome finish, keyed alike (Keyed Alike Per Lot. See Lot Number On Side Of Package To Confirm Multiple Cylinders Keyed Alike)
|
|
|
|
CM-CYL60-KD
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
|
Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
|
|
|
|
CM-307
Mortise cylinder housing for Best(tm) style IC core
|
Mortise cylinder housing for Best(tm) style IC core
|
|
|
|
CM-308
Best(tm) style IC core, keyed different
|
Best(tm) style IC core, keyed different
|
|
|
Faceplate Finishes |
|
Net Cost |
|
CM-xxx-BZ
Dark Bronze (Duranotic) finish (BHMA 710 / 313AN)
|
Dark Bronze (Duranotic) finish (BHMA 710 / 313AN)
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
 |
