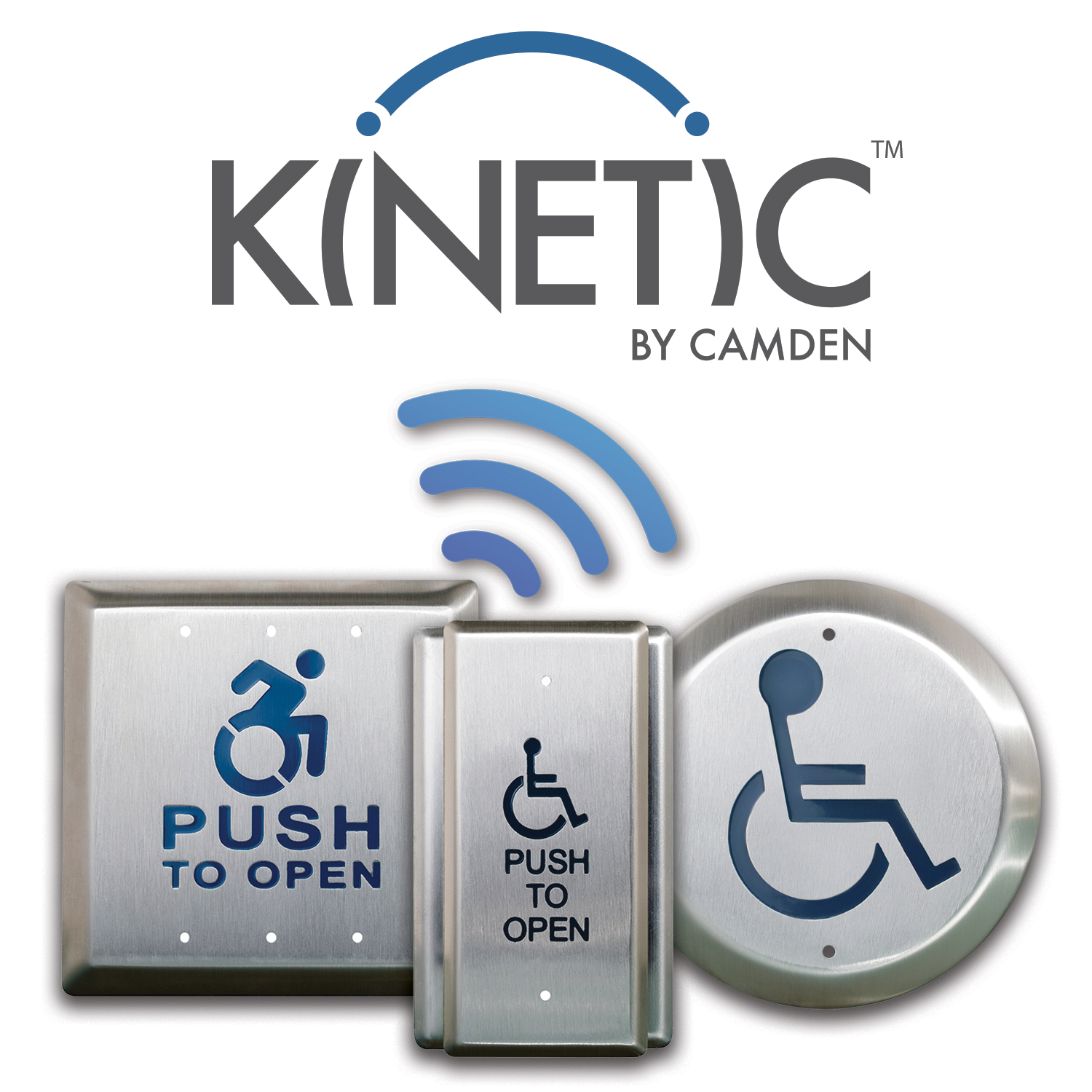

Kinetic by Camden™ is the only 'power harvesting' wireless
system to feature an ultra-compact receiver (easily installed in automatic door
operator cabinets), with field selectable momentary, delayed or latching relay
operation. The wireless system compatible
with all brands of automatic door operators and are designed to provide
reliable door activation in any commercial, industrial and institutional
application. Kinetic by Camden™ no-battery wireless systems are designed for
indoor or outdoor applications. For switches directly exposed to rain or snow,
a water tight switch option is recommended. Please note: Kinetic™ no-battery transmitters cannot be used with Lazerpoint RF™ spread spectrum wall switch, FOB, keypad or hands-free wireless transmitters.
|
|
 ');event.stopPropagation();"
>
|
| Kinetic by Camden™ Won the 2019 New Product Of The Year Award! |
|
|
|
| Kinetic™ System Introduction Video |
|
|
|
Kinetic by Camden™ is the only 'power harvesting' wireless
system to feature an ultra-compact receiver (easily installed in automatic door
operator cabinets), with field selectable momentary, delayed or latching relay
operation. The wireless system compatible
with all brands of automatic door operators and are designed to provide
reliable door activation in any commercial, industrial and institutional
application. Kinetic by Camden™ no-battery wireless systems are designed for
indoor or outdoor applications. For switches directly exposed to rain or snow,
a water tight switch option is recommended. Please note: Kinetic™ no-battery transmitters cannot be used with Lazerpoint RF™ spread spectrum wall switch, FOB, keypad or hands-free wireless transmitters. |
|
|
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
VIDEOS |
|
|
- Wireless range equal to line powered or battery powered wireless systems.
- Battery-less switch operation avoids annual battery maintenance and eliminates the disposal of hazardous waste of batteries in landfill.
- Advance CM-RX90K wireless receiver is compatible with both Lazerpoint RF™ and Kinetic by Camden™ wireless systems, switch selectable.
- Smooth switch operation, ADA compliant activation, using 3.4lbs. force.
- Battery-less wireless transmitter ordered as part of Camden CM-35, CM-40, CM-45, CM-46, & CM-60 Series push plate switches.
- CM-RX90K ultra compact receiver can be mounted in door operator cabinets.
| Push Plate Switch with No-Battery Transmitter |
| Wireless Frequency: |
900Mhz.
fixed frequency |
| Transmitter Range: |
300ft (91.4m) line of sight |
| Temp Rating: |
40F to 185F (-40C to +85C) |
| Water Tight Option: |
Yes |
| Dimensions: |
1-1/2" (38.1mm) Mounting Box Depth Required |
| Kinetic by Camden(tm) Compatible Wireless Receiver |
| Wireless Frequency Selection: |
CX-RX90v2 is field selectable Lazerpoint RF(tm) or Kinetic(tm) wireless |
| Transmitter Capacity: |
40 Transmitters |
| LEDs: |
Relay status, learn/erase mode, & time setting |
| Outputs: |
(1) SPDT Relay, 3 modes |
| Contact Rating: |
3 Amps @ 30 VDC |
| Delay Time: |
1 – 15 seconds |
| Operating Time: |
1 – 30 seconds |
| Temp Rating: |
-40F to 185F (-40C to +85C) |
| Dimensions: |
2-5/8" H x 1-1/2" W x 1" (89mm x 51mm x 25mm) |
|
Spec Sheets
|
| Kinetic By Camden™ Spec Sheet |
pdf |
3.02 |
DOWNLOAD
|
|
High Resolution Images
|
| Kinetic by Camden™ Promotion Image |
jpeg |
0.73 |
DOWNLOAD
|
|
Manuals
|
| CM-RX90v2 Kinetic/Lazerpoint Wireless Receiver_R3 |
pdf |
0.61 |
DOWNLOAD
|
Kinetic™ Switch IntroductionAn overview of this wireless system
Kinetic™ Switch TechnologyLearn about the transmitter & receiver
|
|
SWITCH MODELS
|
|
Click to configure switch model
|
|
|
|
WIZARD
|
| SELECT MODEL |
 |
|
|
|
|
WIZARD
|
| SELECT MODEL |
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
CM-45K
4-1/2" Square Push Plate Switch, Concealed Screws, w/ no-battery Kinetic wireless transmitter
EDI DATA, APPROVALS
|
|
4-1/2" Square Push Plate Switch, Concealed Screws, w/ no-battery Kinetic wireless transmitter
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: NA"L x NA"W x NA"H
Weight: NAlbs.
UPC:NA
|
|
CM-46K
4-1/2" Square Push Plate Switch, Exposed Screws, w/ no-battery Kinetic wireless transmitter
EDI DATA, APPROVALS
|
|
4-1/2" Square Push Plate Switch, Exposed Screws, w/ no-battery Kinetic wireless transmitter
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: NA"L x NA"W x NA"H
Weight: NAlbs.
UPC:NA
|
|
CM-46CBK
4-1/2" Square Push Plate Switch, Exposed Screws, blue paint finish w/ no-battery Kinetic wireless transmitter. /2 and /4 graphic options only,
EDI DATA, APPROVALS
|
|
4-1/2" Square Push Plate Switch, Exposed Screws, blue paint finish w/ no-battery Kinetic wireless transmitter. /2 and /4 graphic options only,
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: NA"L x NA"W x NA"H
Weight: NAlbs.
UPC:NA
|
| |
|
|
OPTIONS & FINISHES
|
|
|
Click to expand section
|
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
|
WIZARD
|
|
SELECT OPTIONS
|
|
|
|
|
|
WIZARD
|
| SELECT MODEL ABOVE |
 |
|
|
|
|
WIZARD
|
| SELECT OPTIONS |
|
|
|
|
 |
| FACEPLATE GRAPHIC OPTIONS |
 |
| WEATHER RESISTANT OPTIONS |
 |
| ARCHITECTURAL FINISH OPTIONS |
|
| Faceplate Graphic Options |
|
Net Cost |
|
CM-xxx/1
'BLANK' faceplate
|
'BLANK' faceplate
|
|
|
|
CM-xxx/2
'WHEELCHAIR' symbol, blue graphic
|
'WHEELCHAIR' symbol, blue graphic
|
|
|
|
CM-xxx/A2
'ACTIVE WHEELCHAIR' symbol, blue (CM-45 series only)
|
'ACTIVE WHEELCHAIR' symbol, blue (CM-45 series only)
|
|
|
|
CM-xxx/2AR
WHEELCHAIR symbol with ARROW right, blue graphics
|
WHEELCHAIR symbol with ARROW right, blue graphics
|
|
|
|
CM-xxx/3
'Push to Open', black graphics
|
'Push to Open', black graphics
|
|
|
|
CM-xxx/3F
'POUSSEZ POUR OUVRIR', black text
|
'POUSSEZ POUR OUVRIR', black text
|
|
|
|
CM-xxx/4
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue
|
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue
|
|
|
|
CM-xxx/4F
'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR', black graphics
|
'WHEELCHAIR' and 'POUSSEZ POUR OUVRIR', black graphics
|
|
|
|
CM-xxx/A4
'ACTIVE WHEELCHAIR' symbol and 'Push to Open' text, blue (CM-45 series only)
|
'ACTIVE WHEELCHAIR' symbol and 'Push to Open' text, blue (CM-45 series only)
|
|
|
|
CM-xxx/4AL
WHEELCHAIR symbol with ARROW left, blue graphics
|
WHEELCHAIR symbol with ARROW left, blue graphics
|
|
|
|
|
CM-xxx/8
'PUSH TO LOCK', black text
|
'PUSH TO LOCK', black text
|
|
|
|
CM-xxx/4AR
'WHEELCHAIR' symbol and 'PUSH TO OPEN' with ARROW right, blue graphics
|
'WHEELCHAIR' symbol and 'PUSH TO OPEN' with ARROW right, blue graphics
|
|
|
|
CM-xxx/8B
'LOCK SYMBOL' and 'PUSH TO LOCK', red graphic
|
'LOCK SYMBOL' and 'PUSH TO LOCK', red graphic
|
|
|
|
CM-xxx/8D
'PUSH TO LOCK DOOR', black
|
'PUSH TO LOCK DOOR', black
|
|
|
|
CM-xxx/8F
'POUSSEZ POUR VERROUILLER', black text
|
'POUSSEZ POUR VERROUILLER', black text
|
|
|
| Weatherproof Options |
|
Net Cost |
|
|
CM-xxx-WT
Add 'WT' to product # for boot and water tight coating
|
Add 'WT' to product # for boot and water tight coating
|
|
|
| Architectural Finishes |
|
Net Cost |
|
|
CM-xxx-SB
Add 'SB' to product # for satin brass finish (US4 / 606)
|
Add 'SB' to product # for satin brass finish (US4 / 606)
|
|
|
|
|
CM-xxx-OB
Add 'OB' to product # for oil rub bronze finish (US10B / 613)
|
Add 'OB' to product # for oil rub bronze finish (US10B / 613)
|
|
|
|
|
CM-xxx-PB
Add 'PB' to product # for polished brass (US3 / 605)
|
Add 'PB' to product # for polished brass (US3 / 605)
|
|
|
|
|
CM-xxx-AB
Add 'AB' to product # for antique brass finish (US5 / 609)
|
Add 'AB' to product # for antique brass finish (US5 / 609)
|
|
|
|
|
|
|
Packaging Weights & Dimensions:
|
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CM-RX-90
V2 Kinetic/Lazerpoint Advanced 1 Relay Receiver
EDI DATA, APPROVALS
|
|
V2 Kinetic/Lazerpoint Advanced 1 Relay Receiver
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 3.25"L x 5"W x 1.75"H
Weight: 0.2lbs.
UPC:670454188847
|
| |
|
|
|
CM-45 4-1/2" Square w/ Concealed Screws
click to expand section
|
|
Net Cost
|
|
|

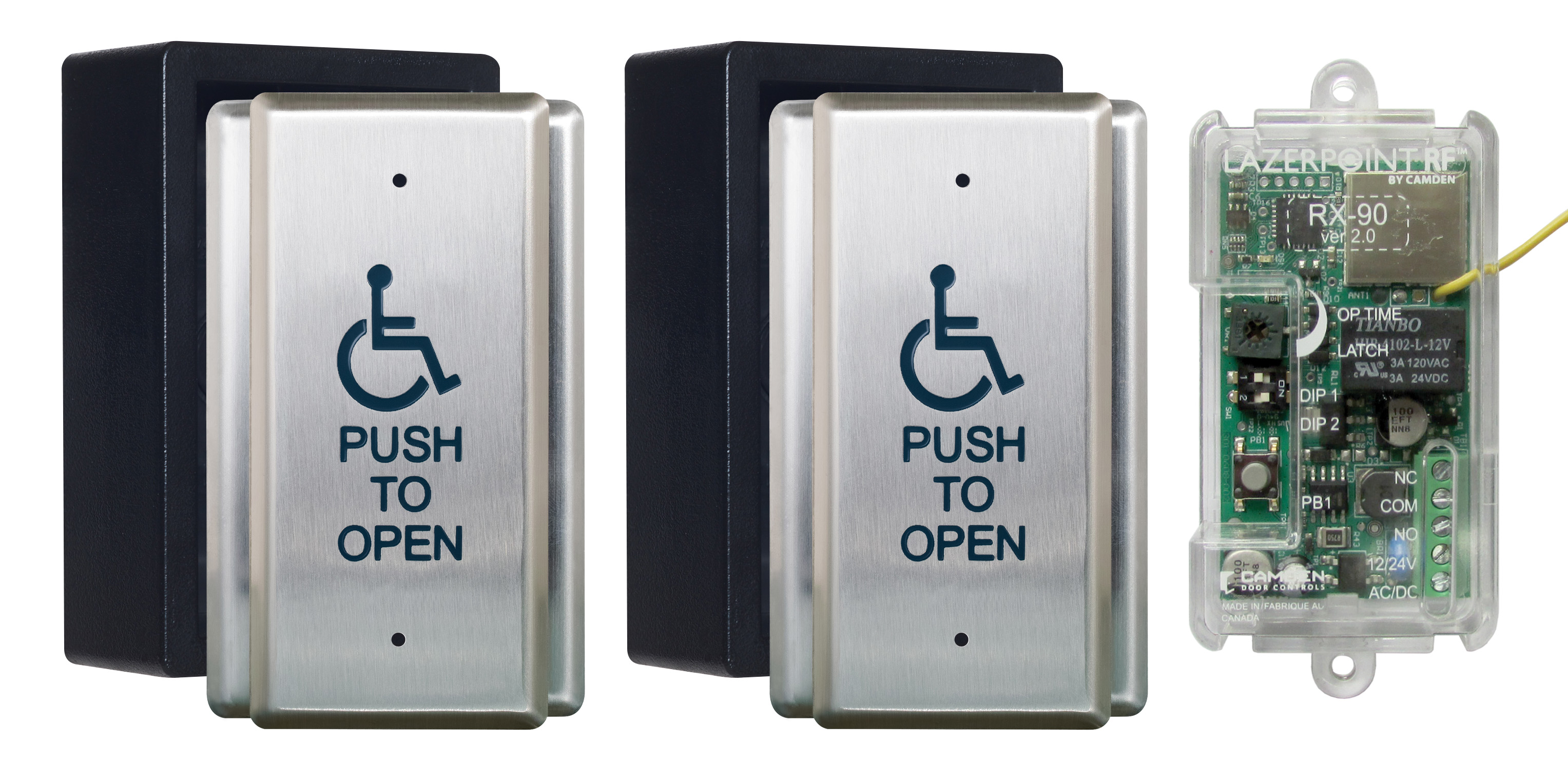

CM-RFK45/4
EDI DATA, APPROVALS
|
|
CM-RFK45/4
(2)
;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS).;
(1)
V2 Kinetic/Lazerpoint Advanced 1 Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 8"W x 7.75"H
Weight: 0.85lbs.
UPC:670454201195
|
| |
|
CM-46 4-1/2" Square w/ Exposed Screws
click to expand section
|
|
Net Cost
|
|
|

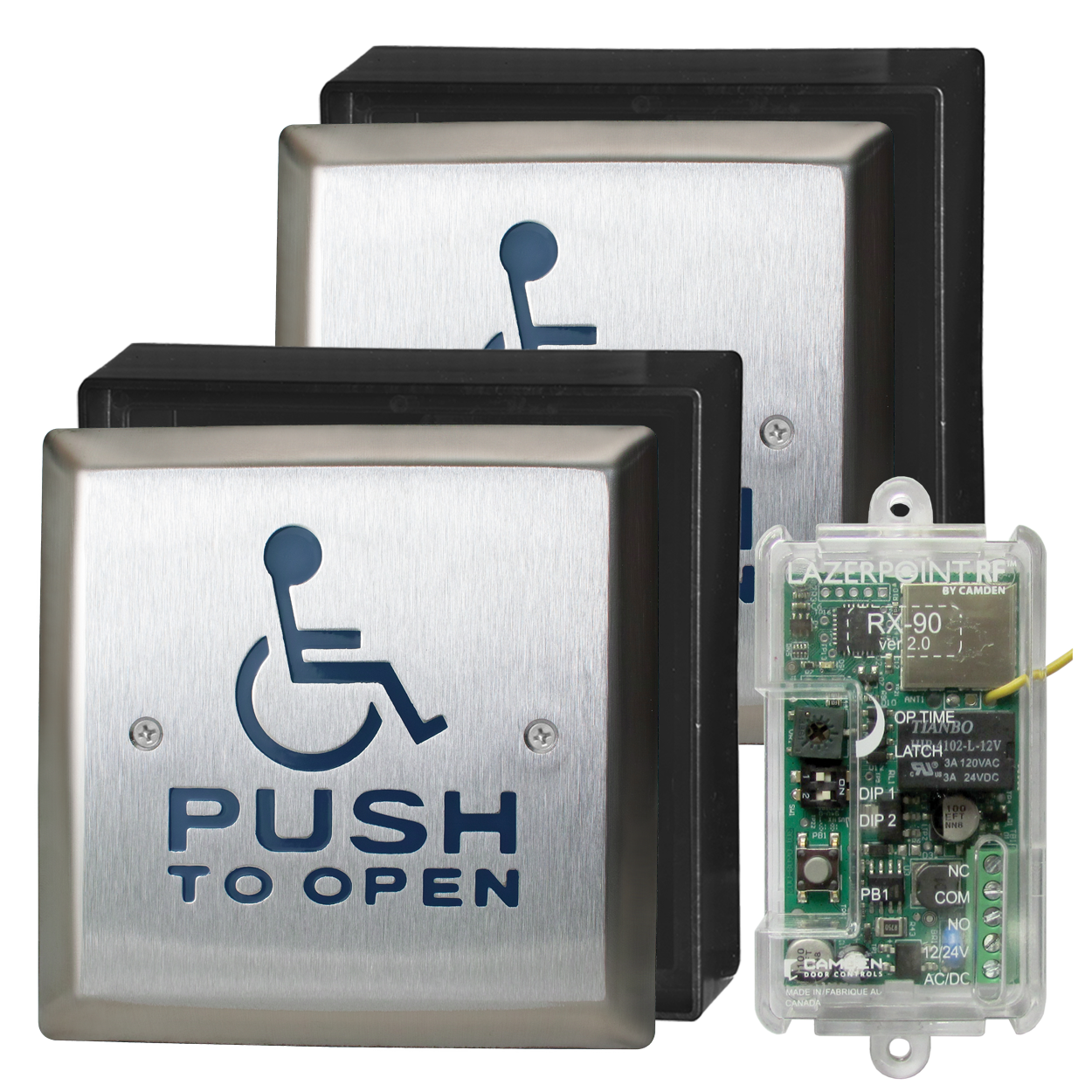

CM-RFK46/4
EDI DATA, APPROVALS
|
|
CM-RFK46/4
(2)
;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS).;
(1)
V2 Kinetic/Lazerpoint Advanced 1 Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 8"W x 7.75"H
Weight: 0.85lbs.
UPC:670454201232
|
| |
|
CM-46CB 4-1/2" Square, Blue, w/ Exposed Screws
click to expand section
|
|
Net Cost
|
|
|
CM-RFK46CB/4
EDI DATA, APPROVALS
|
|
CM-RFK46CB/4
(2)
;
'WHEELCHAIR' symbol and 'PUSH TO OPEN', blue;
(2)
Surface Box, Standard Depth, provision for wireless. Double wall, black polymer (ABS).;
(1)
V2 Kinetic/Lazerpoint Advanced 1 Relay Receiver.
EDI DATA, APPROVALS
| 2x |
|
|
| 2x |
|
| 1x |
|
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 8"L x 8"W x 7.75"H
Weight: 0.85lbs.
UPC:670454201263
|
| |
|
|
|
