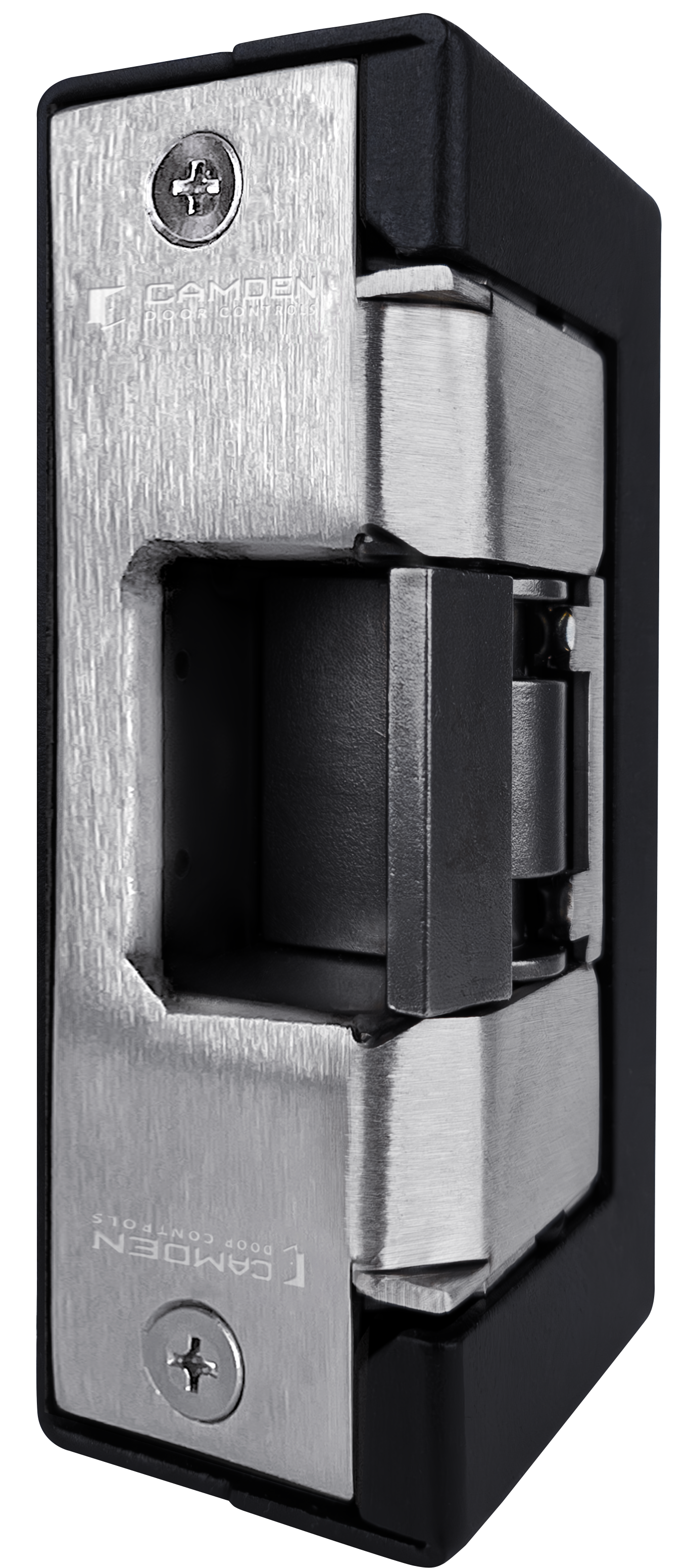

Camden CX-ED1959 Series outdoor-rated strikes feature heavy-duty stainless steel construction with an integrated ANSI square faceplate and Grade 1 performance. Compatible with cylindrical locksets and centreline mortise locksets without deadbolts. The CX-ED1959 Series models include a heavy gauge painted steel mounting box at no additional charge.

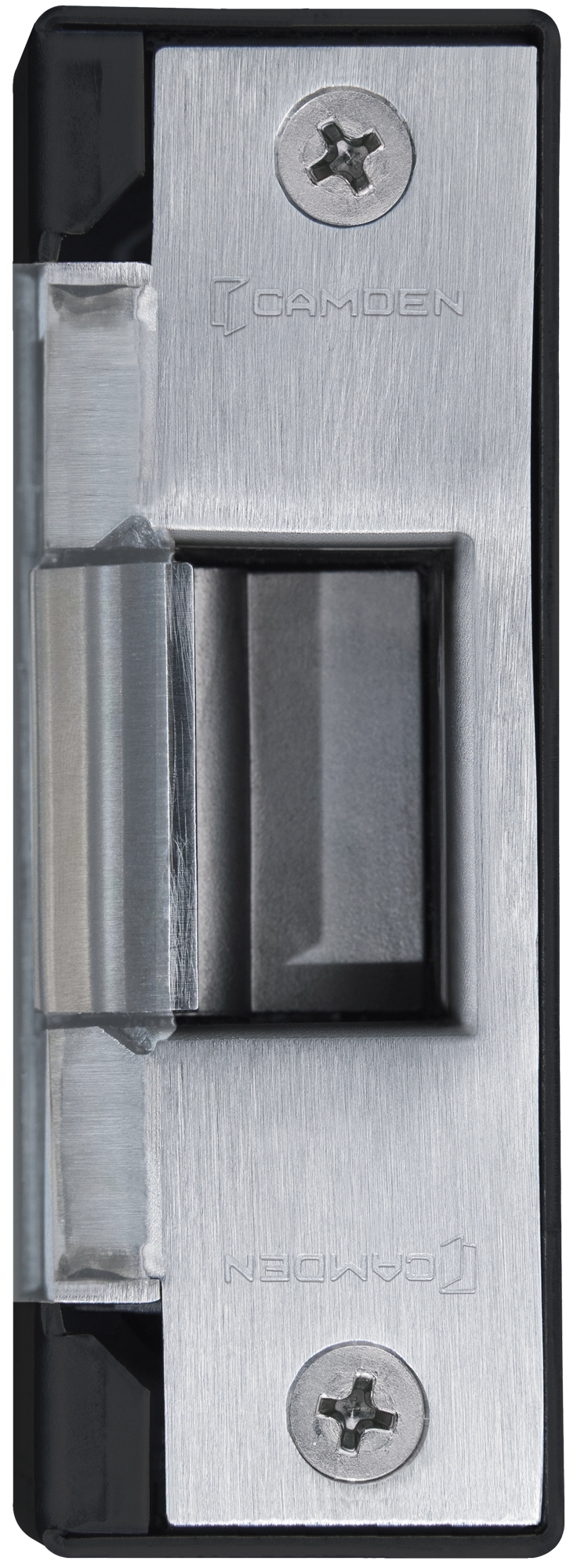

CX-ED1959-MB strikes are specifically designed for exposed perimeter doors and gates. The CX-ED1959RM-MB is a best in class outdoor gate strike, designed for doors equipped with RIM exit devices.
|
|
|
|
|
|

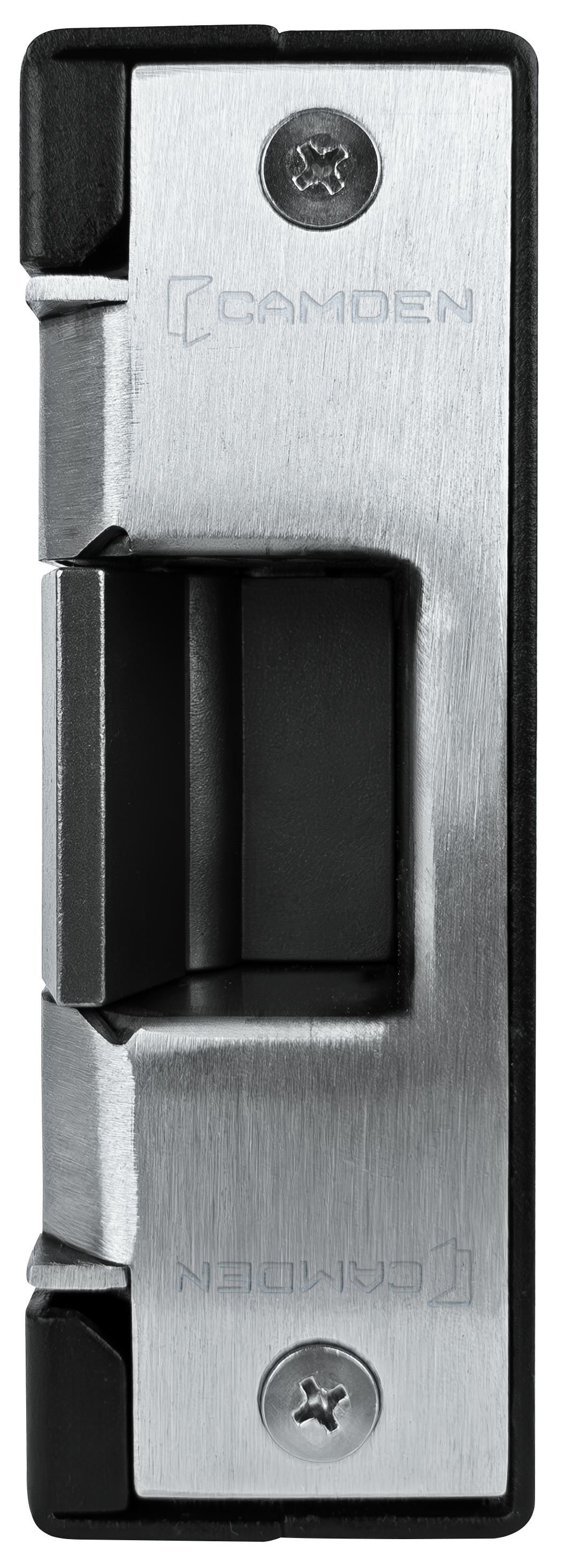

| CX-ED1959RM-MB |
|
|
COMPETITIVE MODELS
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Trine
|
EN400
|
CX-ED1959-MB
CX-ED1959RM-MB
|
| |
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
-
Grade 1 strike for exterior doors and gates
-
7/8" latch projection
-
Selectable 12/24 VDC
-
Selectable fail safe/fail secure operation
-
Integrated ANSI square faceplate
-
Heavy-duty stainless steel construction
-
Metal mounting box included
-
Easy fit connectors
-
5-year warranty
-

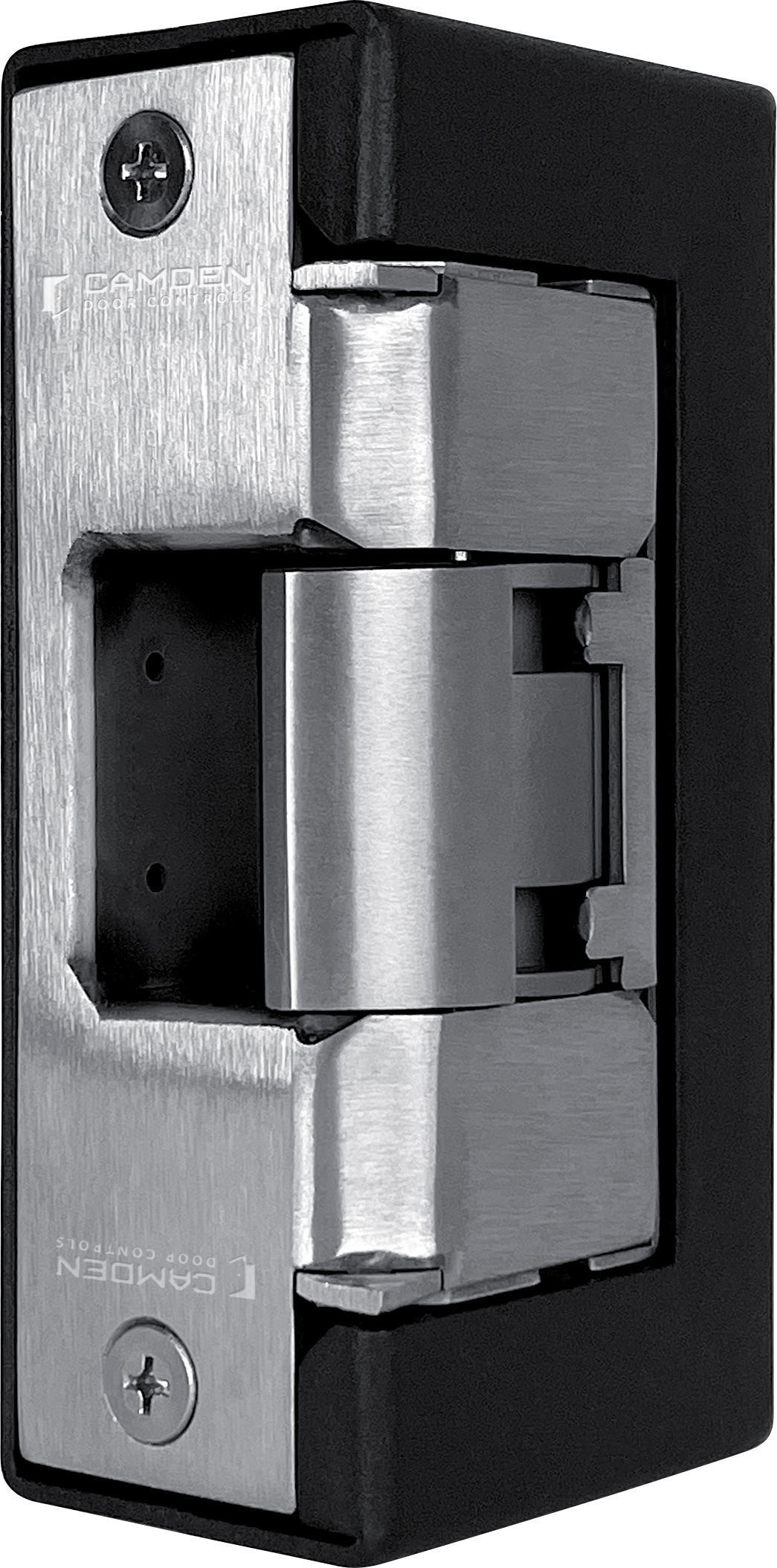

CX-ED1959-MB:
For cylindrical and centreline mortise locksets (without deadbolts)
-
CX-ED1959RM-MB:
Designed for RIM exit devices
| Voltage: |
12/24 VDC
|
| Current Draw: |
280mA / 140mA
|
| Static Strength: |
1,500 lbs.
|
| Dynamic Strength: |
70 ft-lbs
|
| Endurance: |
1,000,000 Cycles (Factory Tested)
250,00 Cycles (UL Certified)
|
| Latch Operating: |
1-9/16" x 7/8"
(40mm x 22mm)
|
| Modes: |
Selectable Fail Safe / Fail Secure
|
| Duty: |
Continuous
|
| Dimensions: |
4-7/8" x 1-5/8" x 1-5/8"
(124mm x 42mm x 42mm)
|
|
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
CX-ED1959-MB
Outdoor rated Grade 1 strike for exterior doors and gates, designed for use with cylindrical & centreline mortise locksets. Supplied with metal mounting box. Selectable fail safe/fail secure operation, 12/24V DC
EDI DATA, APPROVALS
|
|
Outdoor rated Grade 1 strike for exterior doors and gates, designed for use with cylindrical & centreline mortise locksets. Supplied with metal mounting box. Selectable fail safe/fail secure operation, 12/24V DC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1-3/4"H
Weight: 5lbs.
UPC:670454217622
Country of Origin:Taiwan
|
|
CX-ED1959RM-MB
Outdoor rated Grade 1 strike for use with with RIM exit devices, with standard or Pullman latches. Supplied with metal mounting box. Selectable fail safe/fail secure operation, 12/24V DC
EDI DATA, APPROVALS
|
|
Outdoor rated Grade 1 strike for use with with RIM exit devices, with standard or Pullman latches. Supplied with metal mounting box. Selectable fail safe/fail secure operation, 12/24V DC
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: 10"L x 2"W x 1-3/4""H
Weight: 5lbs.
UPC:670454220233
Country of Origin:Taiwan
|
| |
|
