The CXDA800 Exit Alarm provides an immediate audible and visual alarm indication of unauthorized exit or entry of mechanically secured doors. The CX-DA810 Door Prop Alarm delivers an audible and visual alarm when doors are being held open for more than a specified time. Compact and attractive, these UL Listed door alarms are feature-rich and designed for easy installation - with no external wiring required. Features include immediate triggering with LED and buzzer sounds, a loud 105 dB alarm, 9 VDC battery operation, and low-battery alert.
The 'Universal' door alarms can be mounted on a door or frame, and on either in-swinging or out-swinging doors. They are compatible with the widest range of industry-standard mortise cylinders and cams, and can easily integrate with existing master key systems. A mortise cylinder with two keys, either keyed alike or keyed different, and a cylinder installation tool are also included. Both models are offered in grey or black, in either indoor or weatherized outdoor models, and are UL Listed.
|
|
|
The CXDA800 Exit Alarm provides an immediate audible and visual alarm indication of unauthorized exit or entry of mechanically secured doors. The CX-DA810 Door Prop Alarm delivers an audible and visual alarm when doors are being held open for more than a specified time. Compact and attractive, these UL Listed door alarms are feature-rich and designed for easy installation - with no external wiring required. Features include immediate triggering with LED and buzzer sounds, a loud 105 dB alarm, 9 VDC battery operation, and low-battery alert.
The 'Universal' door alarms can be mounted on a door or frame, and on either in-swinging or out-swinging doors. They are compatible with the widest range of industry-standard mortise cylinders and cams, and can easily integrate with existing master key systems. A mortise cylinder with two keys, either keyed alike or keyed different, and a cylinder installation tool are also included. Both models are offered in grey or black, in either indoor or weatherized outdoor models, and are UL Listed. |
|
|
|
| Features |
|
Specifications |
|
Resources |
|
|
CX-DA800 Series Exit Alarms
-
Alarm will sound immediately upon door opening. Automatic silence after 2 minutes or manually with key
CX-DA810 Series Door Prop Alarms
-
Alarm will sound when door is propped open for a selected time. When ′Door Chime Mode′ is activated, door alarm will immediately chirp 4 times when door is opened.
Arming Modes
-
Standard Armed (default) - Key can be removed in armed or disarmed position
-
Always Armed - Key can only be removed in armed position
-
Enhanced security features, including immediate triggering with LED and buzzer sounds
-
Loud 105 dB alarm
-
9 VDC battery operation with low-battery alert
-
Compact and attractive alarm with no external wiring required
-
Mounts on door or frame - magnetic door contact included
-
Easy installation on either in-swinging or out-swinging door
-
Weatherized models designed for outdoor applications
-
Accommodates a wide range of mortise cylinders and cams
-
Mortise cylinder included (Keyed alike or keyed different)
1-1/8", solid brass, aluminum or black finish
-
Cylinder installation tool included
-
UL Listed
| Power Requirements: |
9 VDC Battery (Included)
|
| Alarm Sounder: |
105 dB @ 3 ft. (1m)
|
| Alarm Triggering: |
Built-in Door Contact or NC External Door Contact Input
|
| Alarming Modes: |
Standard/Always
|
| Security Features: |
Enhanced with LED and buzzer for immediate alerts.
|
| IP Rating: |
IP44 (Weatherized Versions Only)
|
| Impact Protection: |
IK04
|
| Temperature: |
32°F to 113°F (O°C to 45°C)
|
| Dimensions: |
8-5/16”H x 2-1/16”W x 2-1/2”D
(211mm x 53mm x 63mm)
|
| Operation Modes: |
|
CX-DA800 Series:
|
Manual Silence Mode / Auto Reset Mode
|
|
CX-DA810 Series:
|
Door Chime Mode / Door Propped Open Mode
|
| |
| Propped Door Time-Delay Alarm: |
|
CX-DA810 Series:
|
1 second - 4 minutes (adjustable)
|
| |
|
Spec Sheets
|
|
CX-DA800 Series Spec Sheet R1
|
pdf
|
1.80 |
DOWNLOAD
OPEN
|
|
Installation Manuals
|
|
CX-DA800/DA800W Battery Powered Exit Alarm Manual
|
pdf
|
2.80 |
DOWNLOAD
OPEN
|
|
CX-DA800/DA800W Battery Powered Exit Alarm Manual (FR)
|
pdf
|
2.81 |
DOWNLOAD
OPEN
|
|
CX-DA810 Door Prop Alarm Manual
|
pdf
|
3.40 |
DOWNLOAD
OPEN
|
|
CX-DA810 Door Prop Alarm Manual (FR)
|
pdf
|
2.84 |
DOWNLOAD
OPEN
|
|
High-Resolution Images
|
|

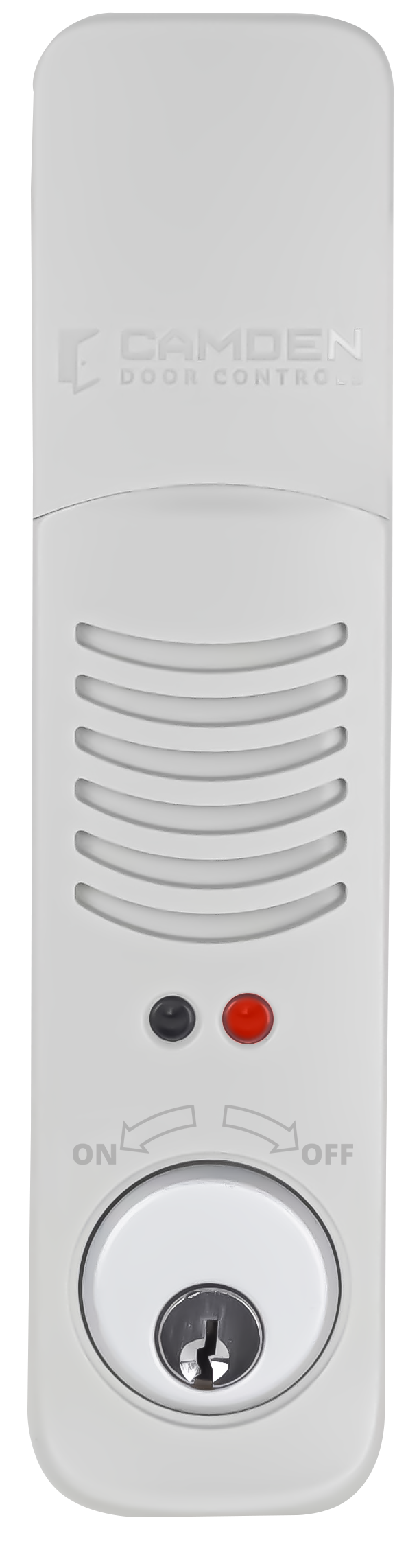

CX-DA800/810 Series_Grey (Red LED)
|
png
|
0.48 |
DOWNLOAD
OPEN
|
|

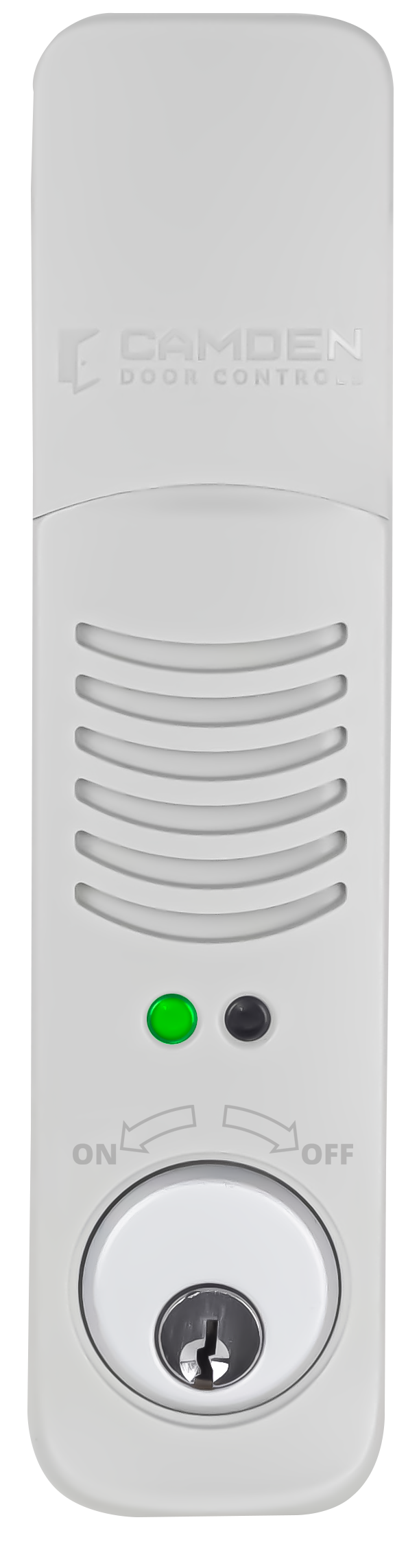

CX-DA800/810 Series_Grey (Green LED)
|
png
|
0.47 |
DOWNLOAD
OPEN
|
|

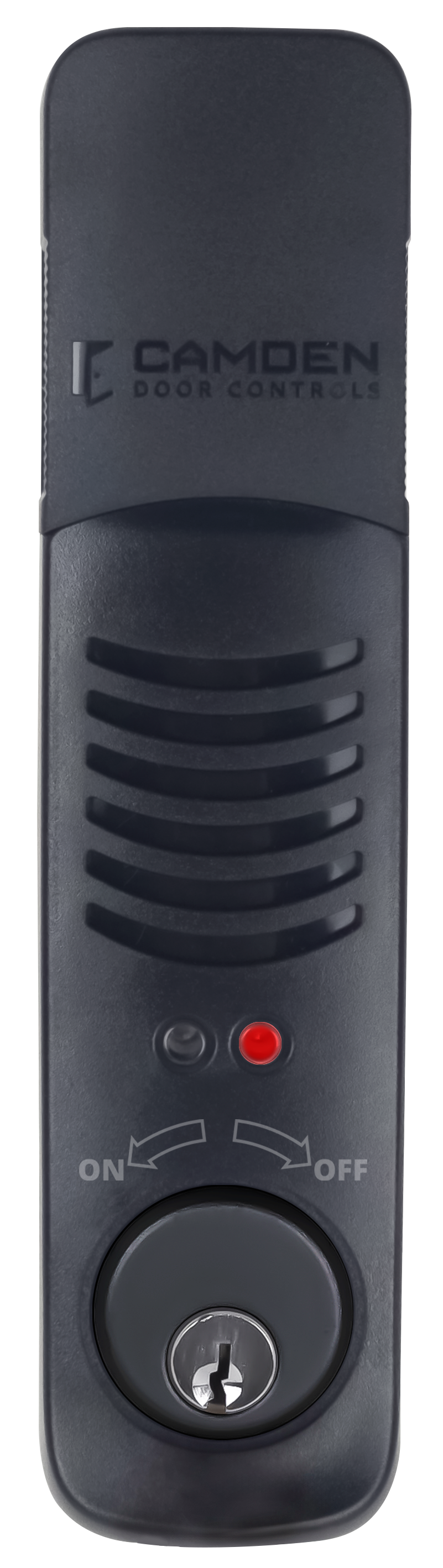

CX-DA800/810 Series_Black (Red LED)
|
png
|
2.25 |
DOWNLOAD
OPEN
|
|

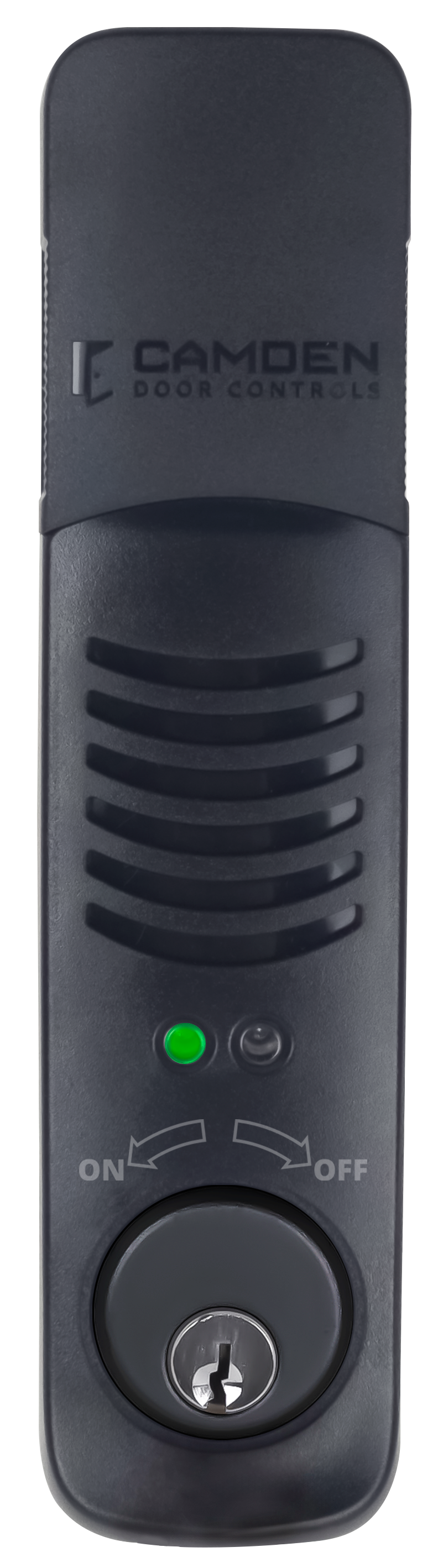

CX-DA800/810 Series_Black (Green LED)
|
png
|
2.24 |
DOWNLOAD
OPEN
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|
 |
CX-DA800KD |
Battery powered door alarm - grey, with keyed different mortise cylinder
EDI Data, Approvals
|
|
Battery powered door alarm - grey, with keyed different mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454225252
Country of Origin: TW
|
|
|
CX-DA800WKD |
Battery powered door alarm weatherized - grey, with keyed different mortise cylinder
EDI Data, Approvals
|
|
Battery powered door alarm weatherized - grey, with keyed different mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454225924
Country of Origin: TW
|
|
|
CX-DA800KA |
Battery powered door alarm - grey, with keyed alike mortise cylinder
EDI Data, Approvals
|
|
Battery powered door alarm - grey, with keyed alike mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454236128
Country of Origin: TW
|
|
|
CX-DA800WKA |
Battery powered door alarm weatherize - grey, with keyed different mortise cylinder
EDI Data, Approvals
|
|
Battery powered door alarm weatherize - grey, with keyed different mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454236135
Country of Origin: TW
|
|
|
CX-DA800KD-BK |
Battery powered door alarm - black, with keyed different mortise cylinder
EDI Data, Approvals
|
|
Battery powered door alarm - black, with keyed different mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454225917
Country of Origin: TW
|
|
|
CX-DA800WKD-BK |
Battery powered door alarm weatherized - black, with keyed different mortise cylinder
EDI Data, Approvals
|
|
Battery powered door alarm weatherized - black, with keyed different mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454225931
Country of Origin: TW
|
|
|
CX-DA800KA-BK |
Battery powered door alarm - black, with keyed alike mortise cylinder
EDI Data, Approvals
|
|
Battery powered door alarm - black, with keyed alike mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454236081
Country of Origin: TW
|
|
|
CX-DA800WKA-BK |
Battery powered door alarm weatherized - black, with keyed alike mortise cylinder
EDI Data, Approvals
|
|
Battery powered door alarm weatherized - black, with keyed alike mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454236142
Country of Origin: TW
|
| |
|
|
|
Model
click to expand section
|
Description |
|
|
Net Cost
|
|
|
CX-DA810KD |
Battery powered door prop alarm - grey, with keyed different mortise cylinder
EDI Data, Approvals
|
|
Battery powered door prop alarm - grey, with keyed different mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454225948
Country of Origin: TW
|
|
|
CX-DA810WKD |
Battery powered door prop weatherized - grey, with keyed different mortise cylinder
EDI Data, Approvals
|
|
Battery powered door prop weatherized - grey, with keyed different mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454225962
Country of Origin: TW
|
|
|
CX-DA810KA |
Battery powered door prop alarm - grey, with keyed alike mortise cylinder
EDI Data, Approvals
|
|
Battery powered door prop alarm - grey, with keyed alike mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454236159
Country of Origin: TW
|
|
|
CX-DA810WKA |
Battery powered door prop weatherized - grey, with keyed alike mortise cylinder
EDI Data, Approvals
|
|
Battery powered door prop weatherized - grey, with keyed alike mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454236173
Country of Origin: TW
|
|
|
CX-DA810KD-BK |
Battery powered door prop alarm - black, with keyed different mortise cylinder
EDI Data, Approvals
|
|
Battery powered door prop alarm - black, with keyed different mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454225955
Country of Origin: TW
|
|
|
CX-DA810WKD-BK |
Battery powered door prop alarm weatherized - black, with keyed different mortise cylinder
EDI Data, Approvals
|
|
Battery powered door prop alarm weatherized - black, with keyed different mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454225979
Country of Origin: TW
|
|
|
CX-DA810KA-BK |
Battery powered door prop alarm - black, with keyed alike mortise cylinder
EDI Data, Approvals
|
|
Battery powered door prop alarm - black, with keyed alike mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454236161
Country of Origin: TW
|
|
|
CX-DA810WKA-BK |
Battery powered door prop weatherized - black, with keyed alike mortise cylinder
EDI Data, Approvals
|
|
Battery powered door prop weatherized - black, with keyed alike mortise cylinder
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 9.50"L x 3.86"W x 2.60"H
Weight: 1.95lbs.
UPC: 670454236180
Country of Origin: TW
|
| |
|
