Camden CX-95S-DH Magnetic Door Holder is designed for virtually any remote door release application. The UL-listed Magnetic Door Holder controls the release and closing of commercial and public area doors, ideal for use in apartment buildings, schools, hotels, hospitals, and offices.
Fail-safe operation, tri-volt coils, and an adjustable armature plate allow for easy and flexible installation. Camden Magnetic Door Holders may be surface or flush mounted, with all mounting hardware included in the kit. Optional extension bars are also available.
|
|
|
Camden CX-95S-DH Magnetic Door Holder is designed for virtually any remote door release application. The UL-listed Magnetic Door Holder controls the release and closing of commercial and public area doors, ideal for use in apartment buildings, schools, hotels, hospitals, and offices.
Fail-safe operation, tri-volt coils, and an adjustable armature plate allow for easy and flexible installation. Camden Magnetic Door Holders may be surface or flush mounted, with all mounting hardware included in the kit. Optional extension bars are also available. |
|
|
| FEATURES |
|
SPECIFICATIONS |
|
RESOURCES |
|
|
- Multiple voltages: 12/24V, AC/DC, 120 VAC

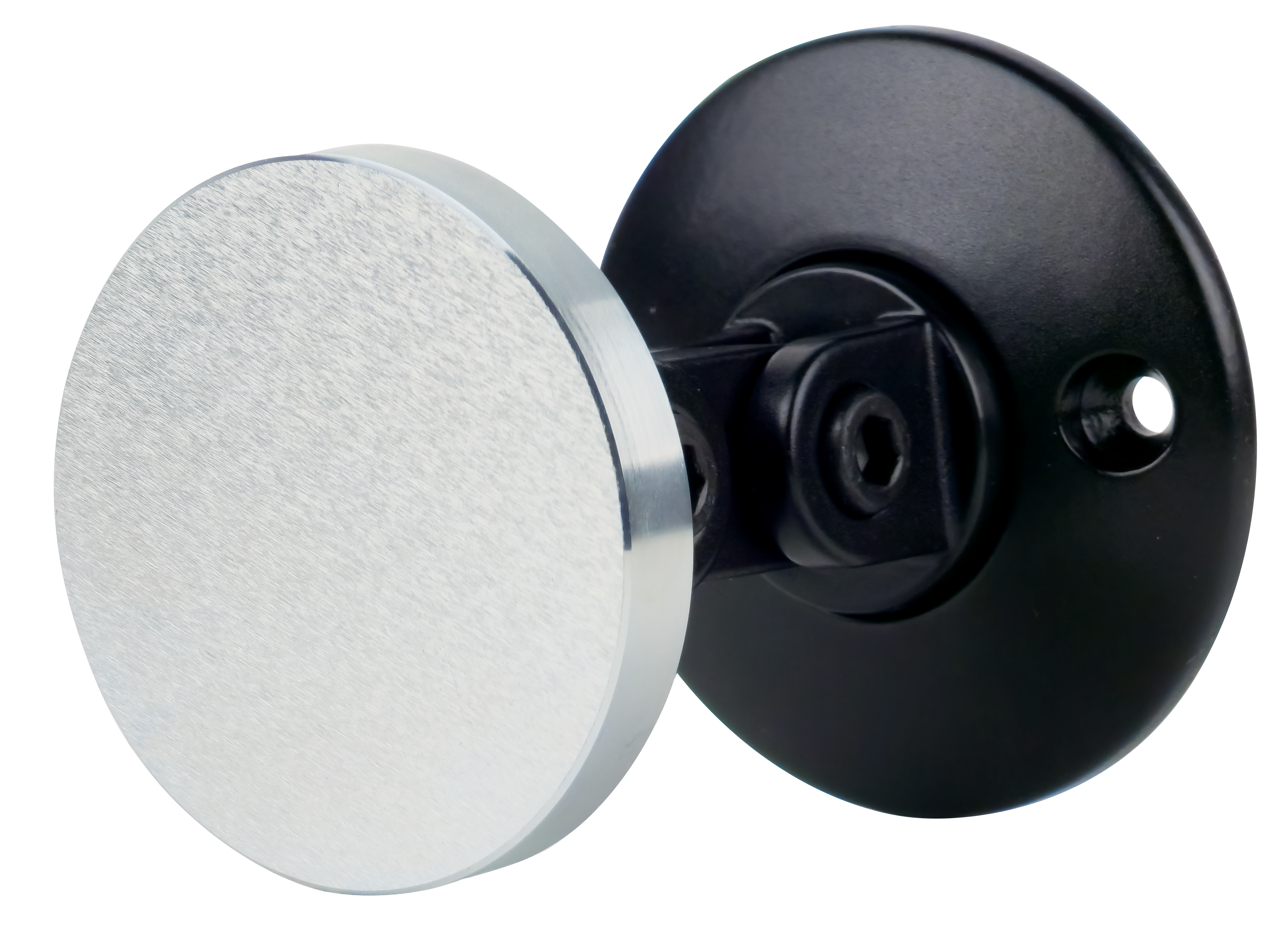

- Armature plate adjusts to door alignment
- Surface or flush mounting options
- Up to 35 lbs (16 kg) holding force
- Used for door release in public, industrial and commercial applications
- 3" & 7" extension bars available
- 2 year warranty
| Voltage: |
12/24V AC/DC, 120V AC |
| Current Draw: |
55mA @ 12V AC 57mA @ 12V DC, 32mA @ 24V AC 34mA @ 24V DC, 30mA @ 120V AC |
| Static Hold Force: |
12V AC/DC: Up to 30 lbs.
24V AC/DC: Up to 35 lbs.
120V AC: Up to 18 lbs. |
| Mount Options: |
Surface or Flush Mount |
| Dimensions: |

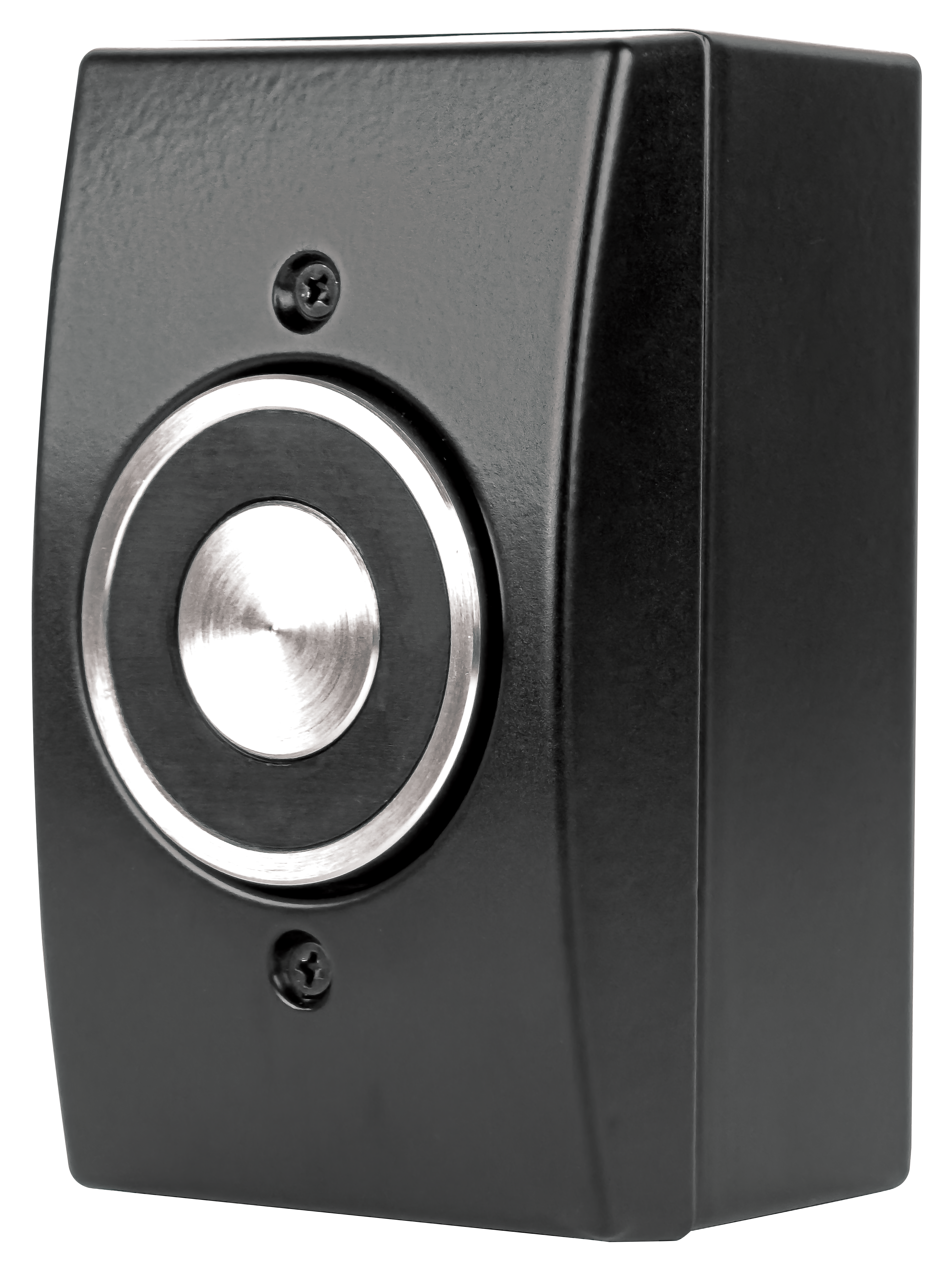

Surface Mount Magnet:
2-3/4" W x 4-5/8" L x 2-1/2" D (70mm x 116mm x 62mm)
Flush Mount Magnet:
2-3/4" W x 4-5/8" L x 1-3/4" D (70mm x 116mm x 44mm)

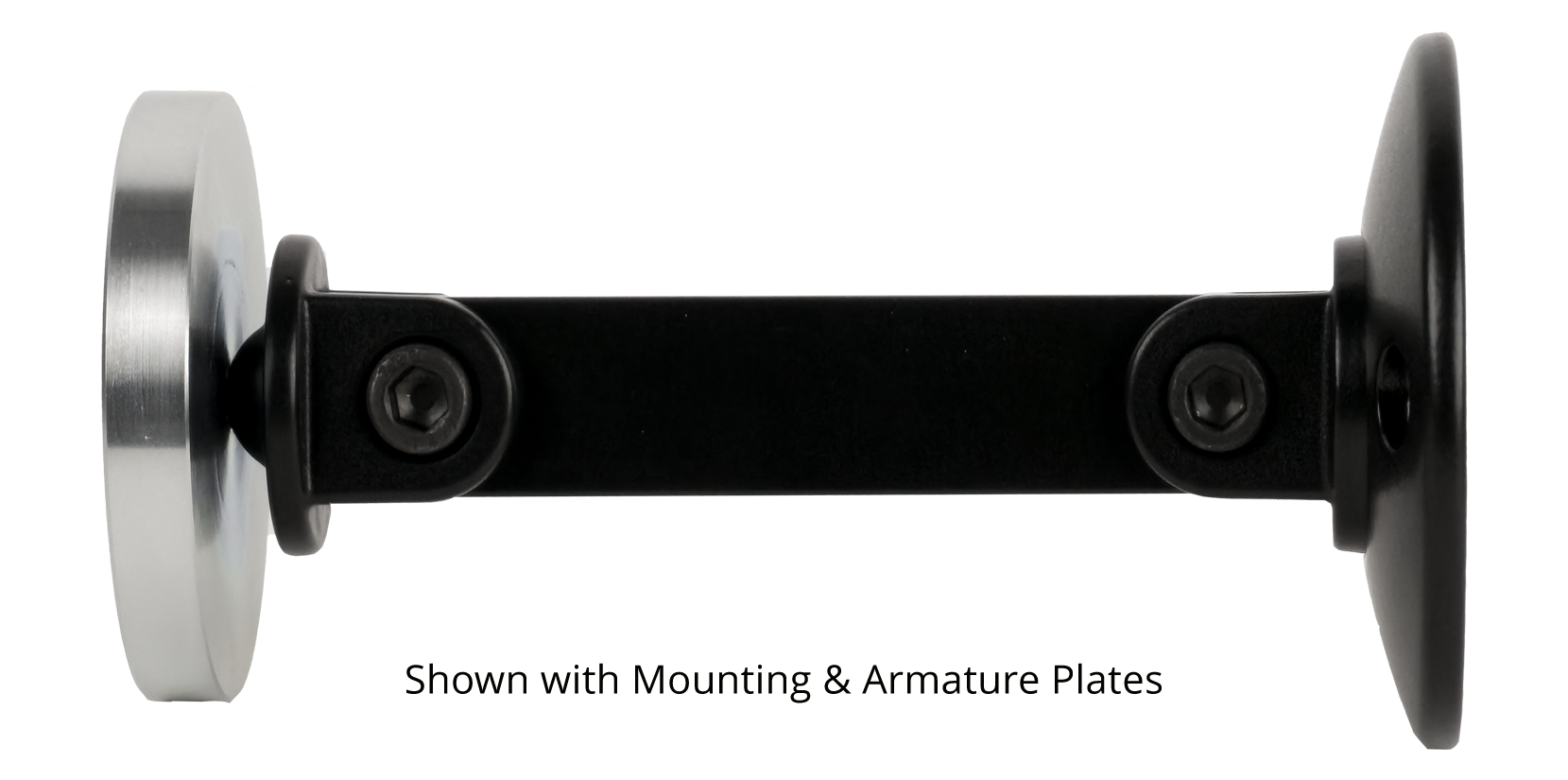

Armature Plate:
2-9/16" W x 2-9/16" L x 2-7/8" D (65mm x 65mm x 74mm)
|
|
Addendum
|
| CDN CX-95S-DH Addendum 2023 |
pdf |
0.45 |
DOWNLOAD
|
| US CX-95S-DH Addendum 2023 |
pdf |
0.45 |
DOWNLOAD
|
|
Manuals
|
| CX-95S-DH_Maglock Door Holder |
pdf |
1.70 |
DOWNLOAD
|
| CX-95S-DH_Maglock Door Holder_FR |
pdf |
1.53 |
DOWNLOAD
|
|
Spec Sheets
|
| CX-95S-DH Spec Sheet |
pdf |
1.70 |
DOWNLOAD
|
|
High Resolution Images
|
| CX-95S-DH |
png |
1.99 |
DOWNLOAD
|
| CX-95S-3E |
jpeg |
0.09 |
DOWNLOAD
|
| CX-95S-7E |
jpeg |
0.09 |
DOWNLOAD
|
|
|
|
Model
 click to expand section
|
Description |
|
|
Net Cost
|
|

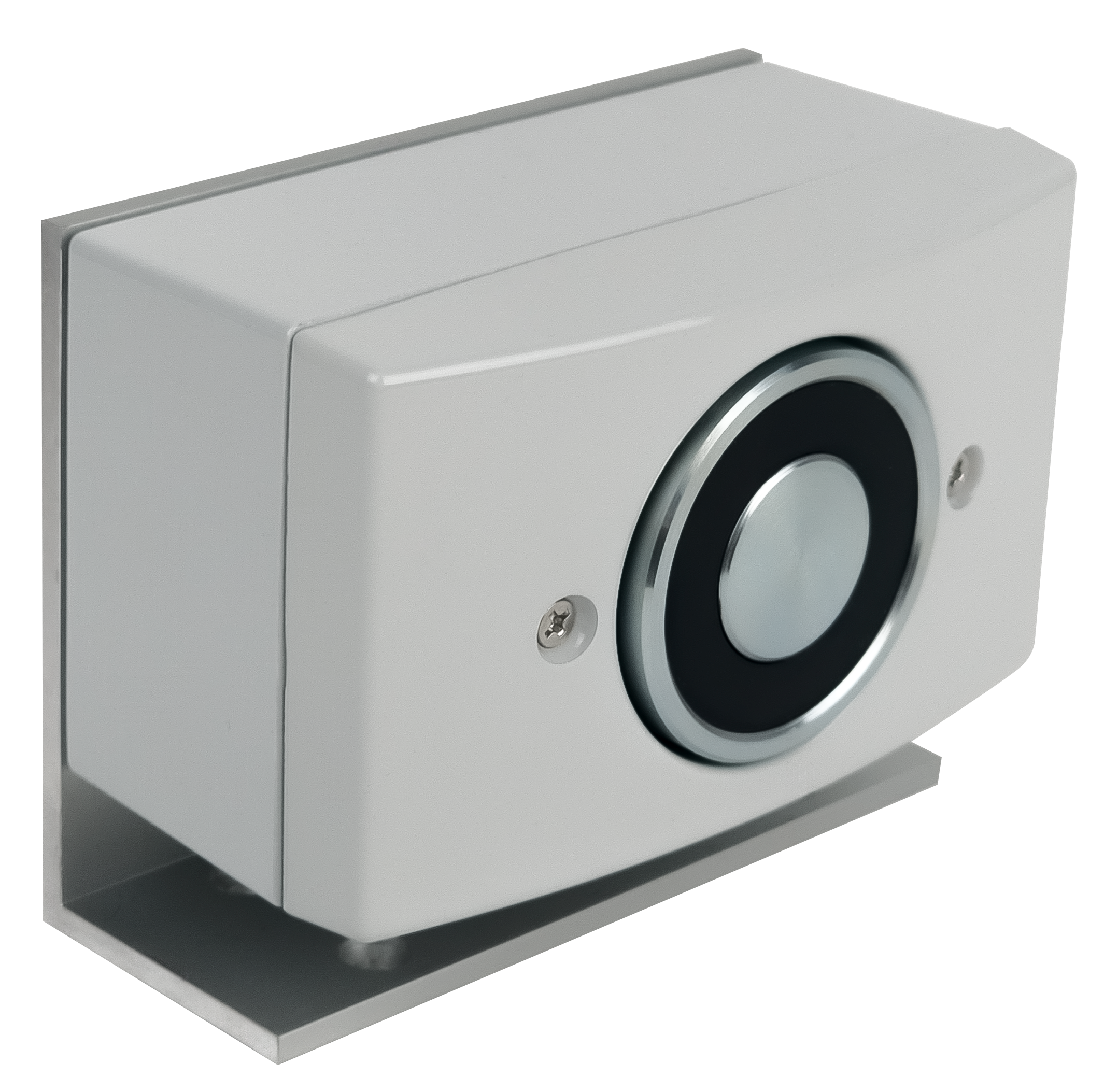

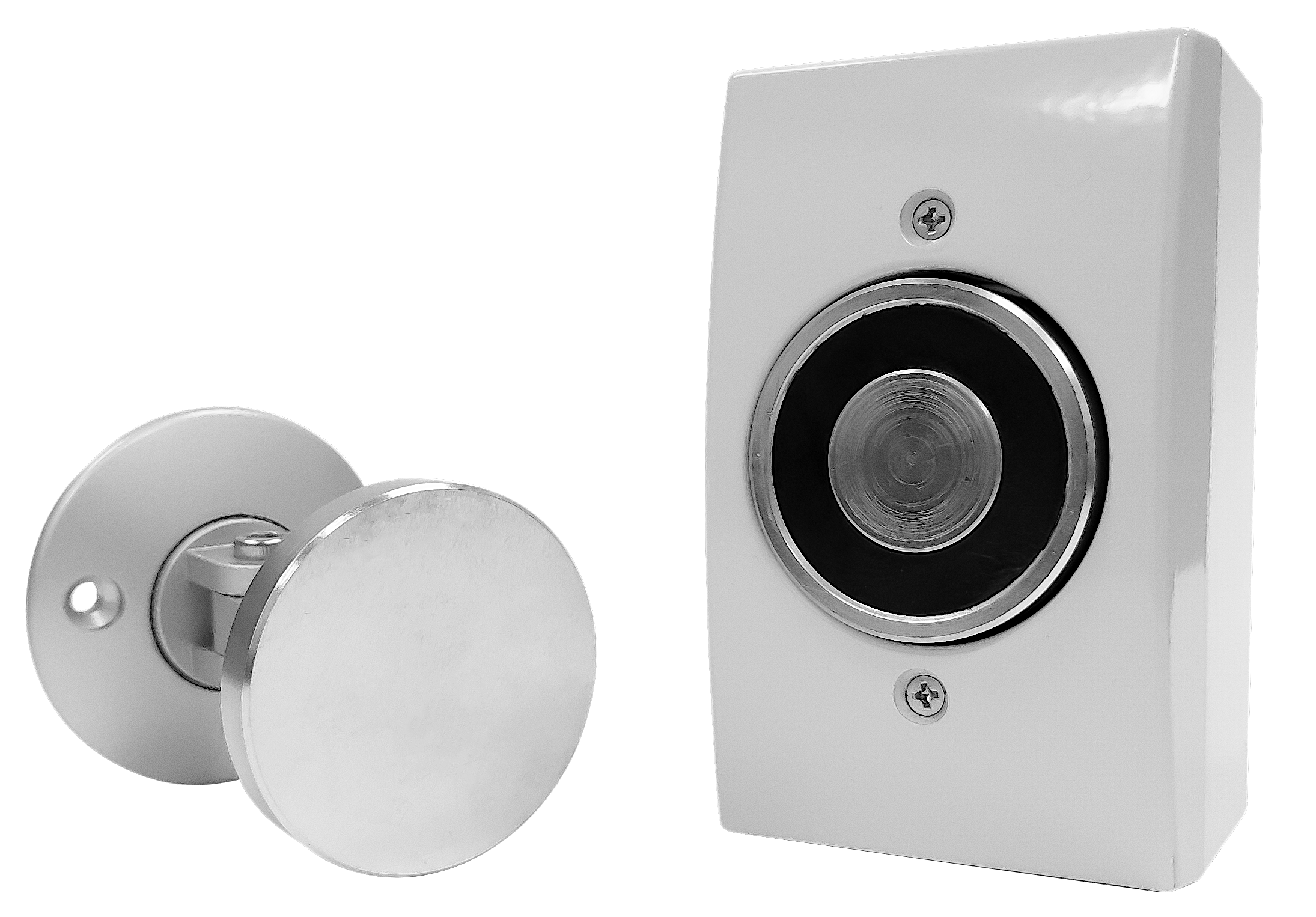

CX-95S-DH
Magnetic Door Holder Surface/Flush Mount
EDI DATA, APPROVALS
|
|
Magnetic Door Holder Surface/Flush Mount
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: 1.5lbs.
UPC:670454217851
|
| |
Extension Bars
click to expand section
|
|
Net Cost
|
|

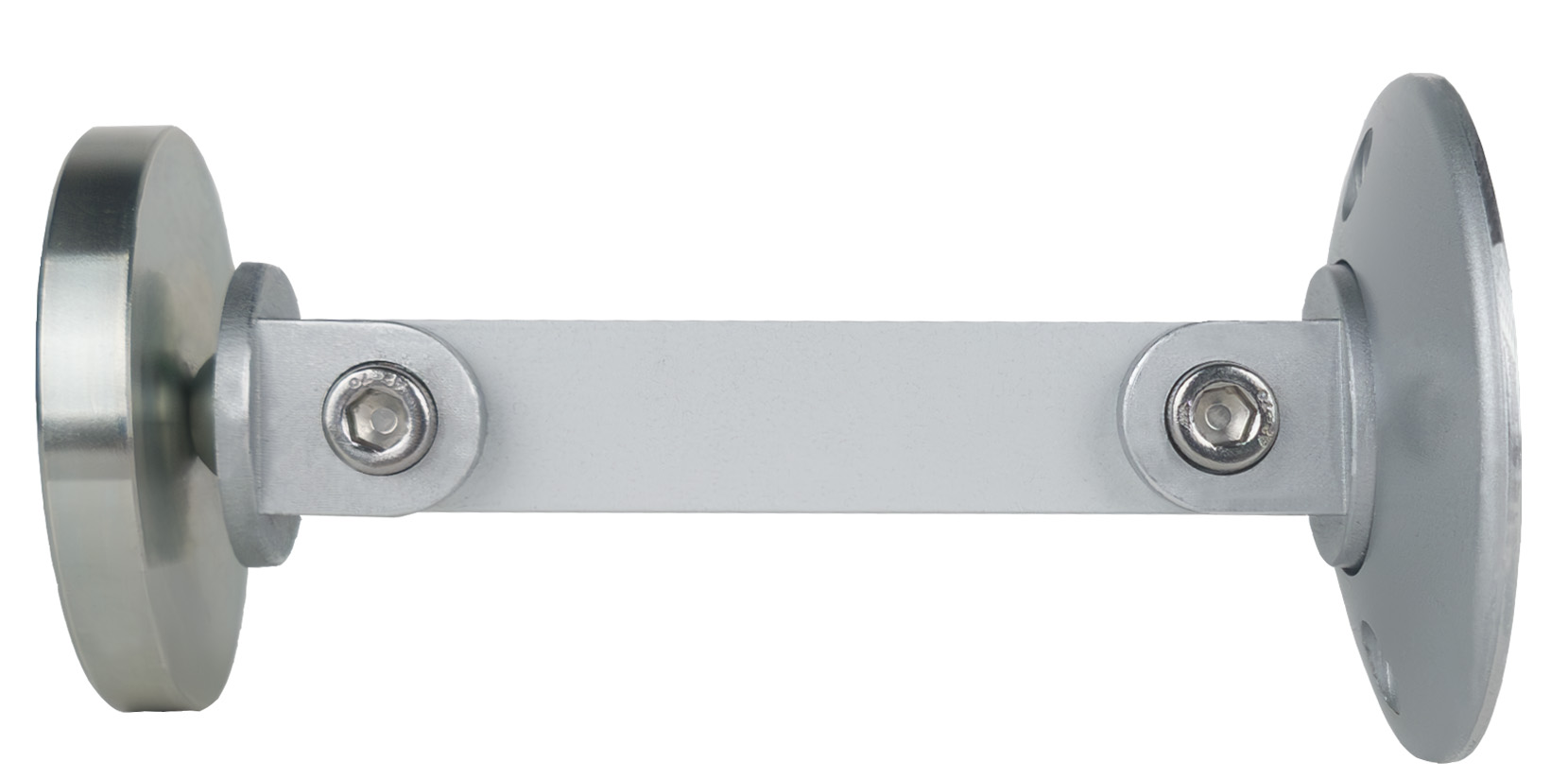

CX-95S-3E
Magnetic Door Holder Extension Bar 3" (Shown with Mounting & Armature Plates)
EDI DATA, APPROVALS
|
|
Magnetic Door Holder Extension Bar 3" (Shown with Mounting & Armature Plates)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: .5lbs.
UPC:670454218513
|
|

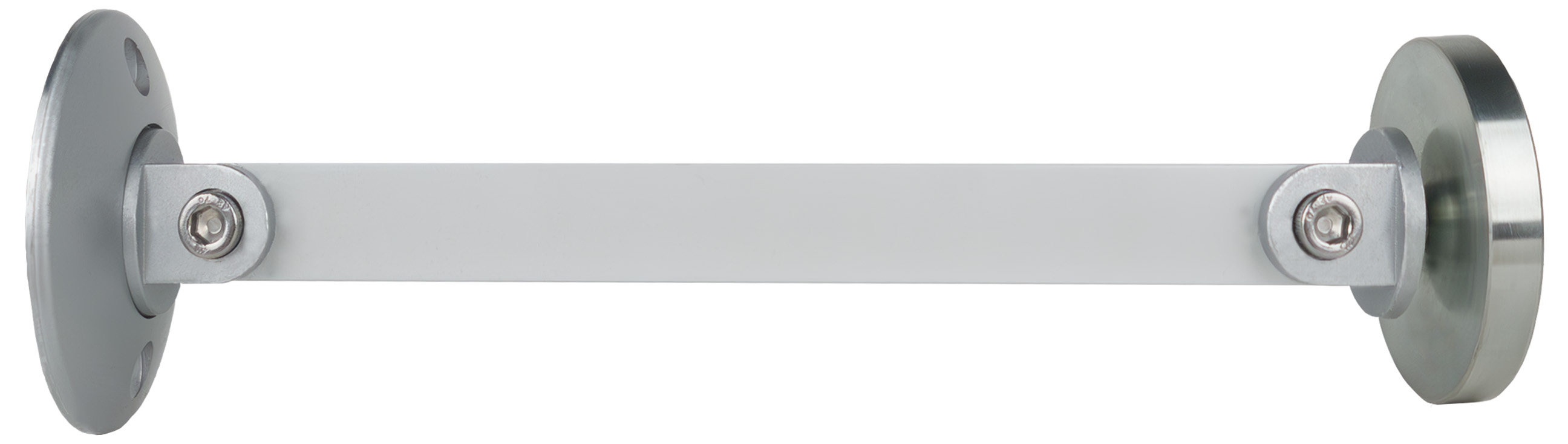

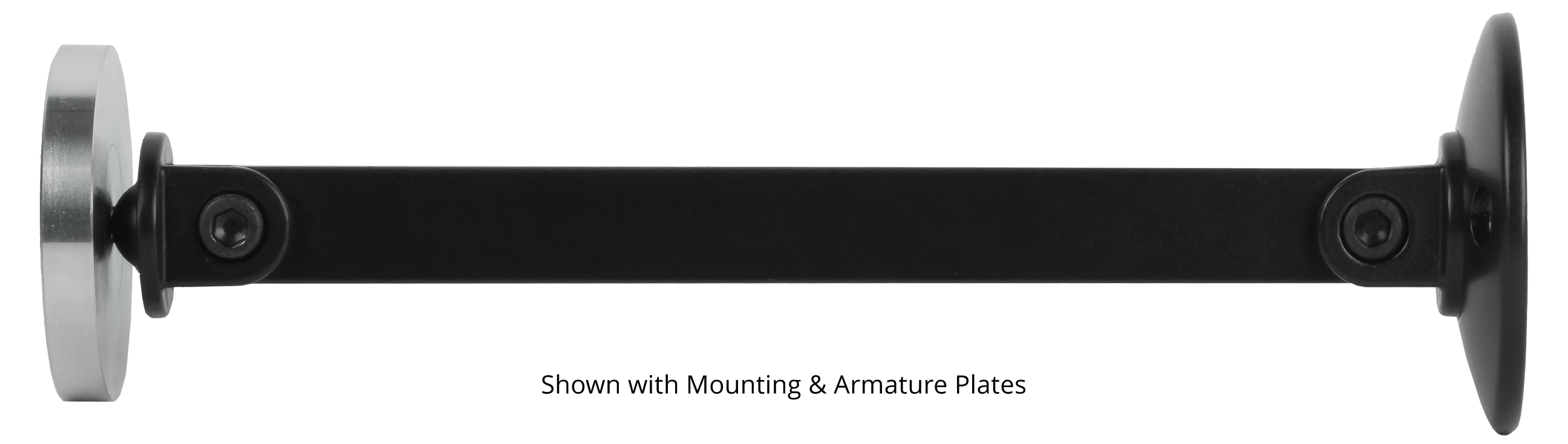

CX-95S-7E
Magnetic Door Holder Extension Bar 7" (Shown with Mounting & Armature Plates)
EDI DATA, APPROVALS
|
|
Magnetic Door Holder Extension Bar 7" (Shown with Mounting & Armature Plates)
|
EDI DATA
APPROVALS
|
|
|
|
| |
Dimensions: "L x "W x "H
Weight: .5lbs.
UPC:670454218520
|
| |
|
