CM-54, CM-55 & CM-57 Series Illuminated Push Plate Enclosures & Kits
|
|

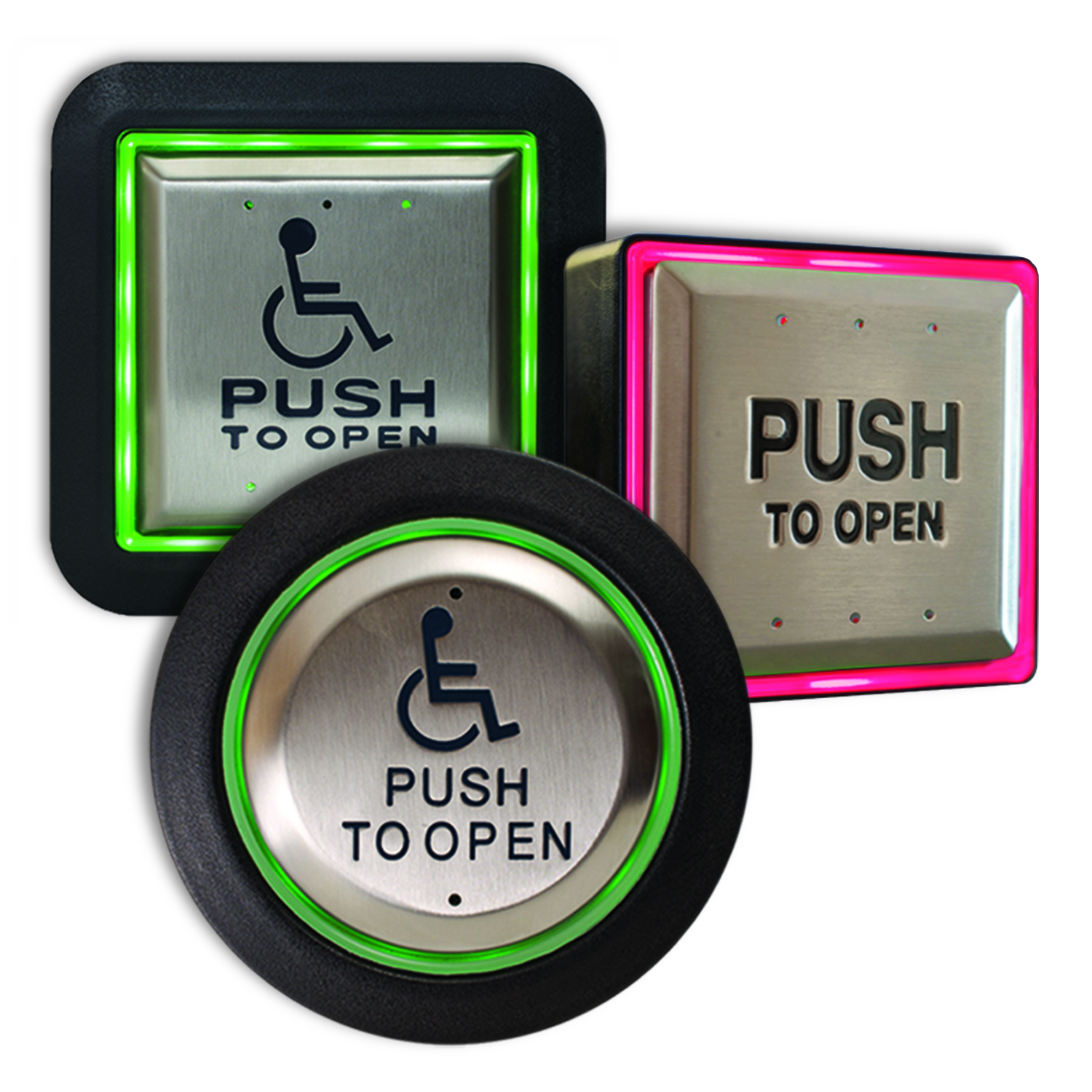

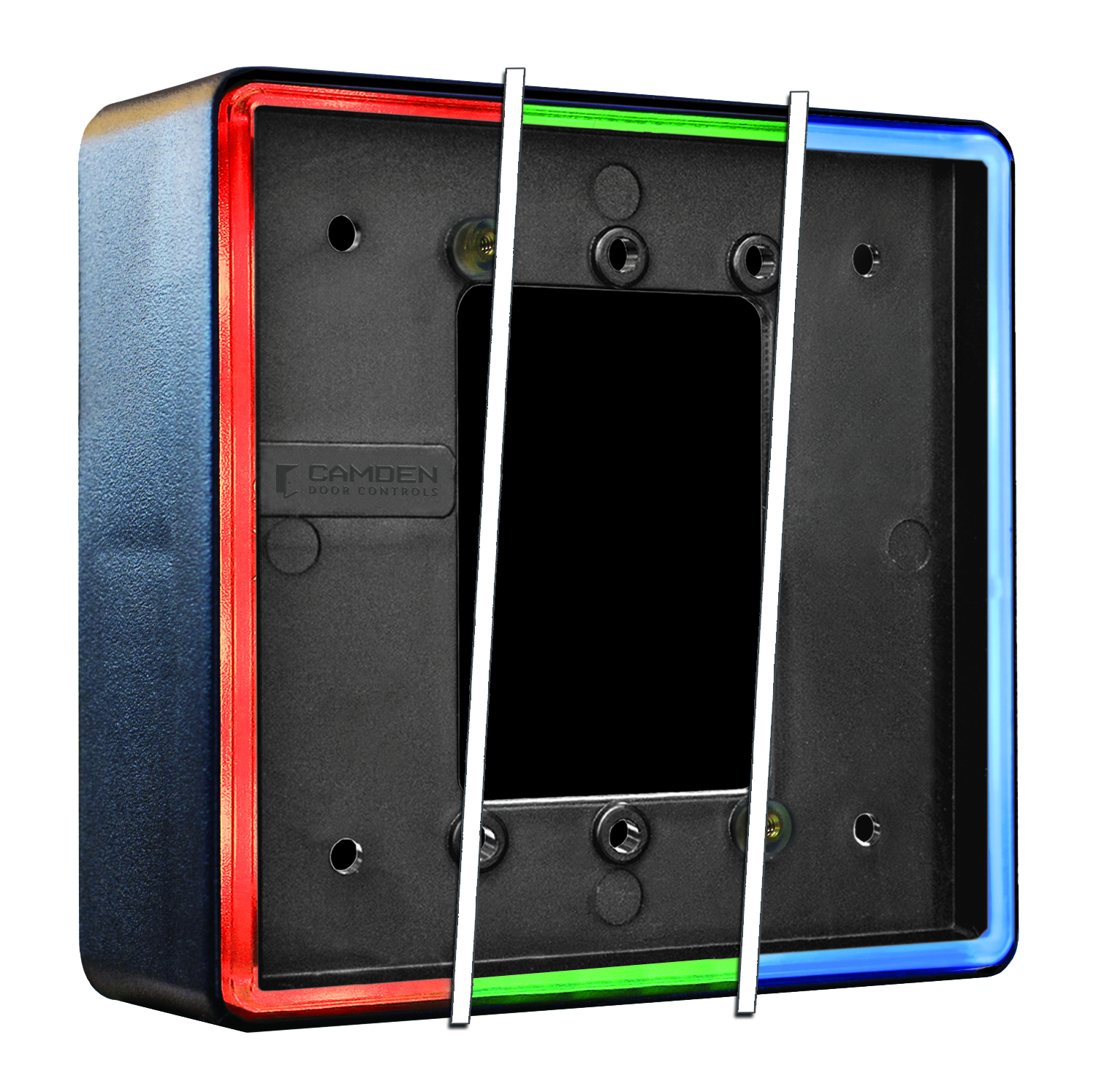

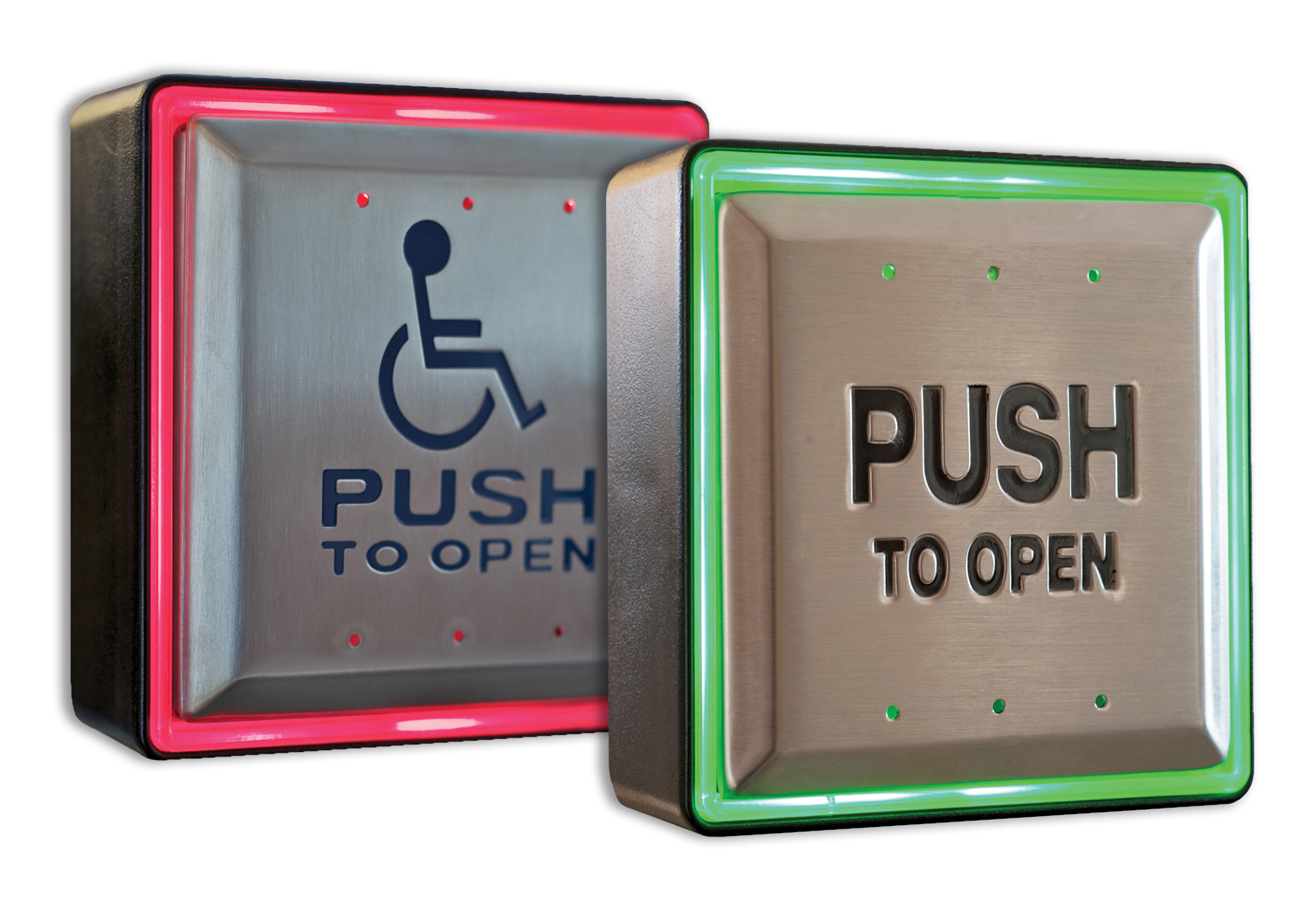

Aura ™ CM-54 (surface square) CM-55 (flush square) and CM-57 (flush round) illuminated push plate enclosures and switch kits provide high visibility and enhanced user convenience in ADA compliant automatic door and other applications.
'i' and 'GR' illuminated models offer 3 additional features: selection of backlight color activation, audible sounder confirming switch activation and Form 'C' contacts to switch your device.
Aura™ illuminated mounting boxes are compatible with the widest range of 4-1/2" All-Active push plate switches in the industry.
CM-40, CM-45 and CM-46 Push Plate Switch Kit Graphics:
'X' in illuminated switch kit model numbers indicates stock graphic option. Graphic options '1', '2', '3', '4' and '8' are at no extra cost. For additional CM-40, CM-45 and CM-46 graphic options, add $30.00 list. Aura™ Restroom Control Signs:
Add suffix to Aura™ switch kit to add instructional restroom sign. To order restroom sign separately, add prefix 'CM-' to option number (e.g.: CM-SE1) Lazerpoint RF™ Wireless Compatible:
Aura™ illuminated push plate switch enclosures are designed to support Lazerpoint RF™ wireless transmitters. Aura™ illuminated switches require 12/24V power.
Note: DPDT Contacts: CM-40, CM-45 or CM-46 'DP' option cannot be used with Aura™ illuminated enclosures.
|
|
|
| Blog Post | New Accessibility Symbol |
|
Competitive Models..
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Locknetics
|
PPH-200-LED
|
|
|
|
| CM-54, CM-55 & CM-57 Series Illuminated Push Plate Enclosures & Kits |
CM-54, CM-55 & CM-57 Series Illuminated Push Plate Enclosures & Kits
|
Aura ™ CM-54 (surface square) CM-55 (flush square) and CM-57 (flush round) illuminated push plate enclosures and switch kits provide high visibility and enhanced user convenience in ADA compliant automatic door and other applications.
'i' and 'GR' illuminated models offer 3 additional features: selection of backlight color activation, audible sounder confirming switch activation and Form 'C' contacts to switch your device.
Aura™ illuminated mounting boxes are compatible with the widest range of 4-1/2" All-Active push plate switches in the industry.
|
CM-40, CM-45 and CM-46 Push Plate Switch Kit Graphics:
'X' in illuminated switch kit model numbers indicates stock graphic option. Graphic options '1', '2', '3', '4' and '8' are at no extra cost. For additional CM-40, CM-45 and CM-46 graphic options, add $30.00 list. Aura™ Restroom Control Signs:
Add suffix to Aura™ switch kit to add instructional restroom sign. To order restroom sign separately, add prefix 'CM-' to option number (e.g.: CM-SE1) Lazerpoint RF™ Wireless Compatible:
Aura™ illuminated push plate switch enclosures are designed to support Lazerpoint RF™ wireless transmitters. Aura™ illuminated switches require 12/24V power.
Note: DPDT Contacts: CM-40, CM-45 or CM-46 'DP' option cannot be used with Aura™ illuminated enclosures. |
|
|
|
|
| Blog Post | New Accessibility Symbol |
|
|
Competitive Models
|
|
|
|
This product series is generally equivalent to the following competitive model(s):
|
| Manufacturer |
Part Number |
Camden Part Number |
|
Locknetics
|
PPH-200-LED
|
|
| |
|
| Features |
|
Specifications |
|
Resources |
|
|
-
Illuminated surface and flush mount box compatible with any CM-40, CM-45 or CM-46 'All Active' push plate switch
-
High efficiency LED technology
-
Improves switch visibilty, even in daylight
-
Flame and impact resistant polycarbonate construction
-
Selectable 12/24V AC/DC
| Voltage: |
12 or 24V AC/DC
|
| Contact Rating: |
3 A @ 30 VDC
|
| Sounder: |
85 DB
|
| Current Draw: |
|
CM-54i,
CM-55i:
|
130 mA.
|
|
CM-57GR:
|
110 mA.
|
| |
| Lumina (Blue): |
1500 MCD,
|
| Lumina (Red): |
5760 MCD,
|
| Lumina (Green): |
3780 MCD
|
| Contact Type: |
|
CM-54i,
CM055i,
CM-57GR:
|
1 SPDT Form 'C'
|
| |
| Dimensions: |
|
CM-54i:
|
5-1/4" x 5-1/4" x 2-1/8"
(133mm x 133mm x 54mm)
|
|
CM-55i:
|
6-1/2" x 6-1/2" x 2"
(165mm x 165mm x 51mm)
|
|
CM-57GR:
|
6-5/8" Dia. x 2"
(168mm x 51mm)
|
| |
|
|
Models
|
|
Click to Select Configuration Options to Customize Switch Model
|
|
|
|
|
PRODUCT SELECTION TOOL
|
| SELECT MODEL |
 |
|
|
|
|
PRODUCT SELECTION TOOL
|
| SELECT MODEL |
|
|
|
|
AURA™ ILLUMINATED ENCLOSURES
click to expand section
|
|
Net Cost
|
|
Surface, 4-1/2" Square, RED/GREEN/BLUE, c/w sounder, mount box
EDI Data, Approvals
|
|
Surface, 4-1/2" Square, RED/GREEN/BLUE, c/w sounder, mount box
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 6"L x 6"W x 4"H
Weight: 0.6lbs.
UPC: 670454184849
Country of Origin: CA
|
|

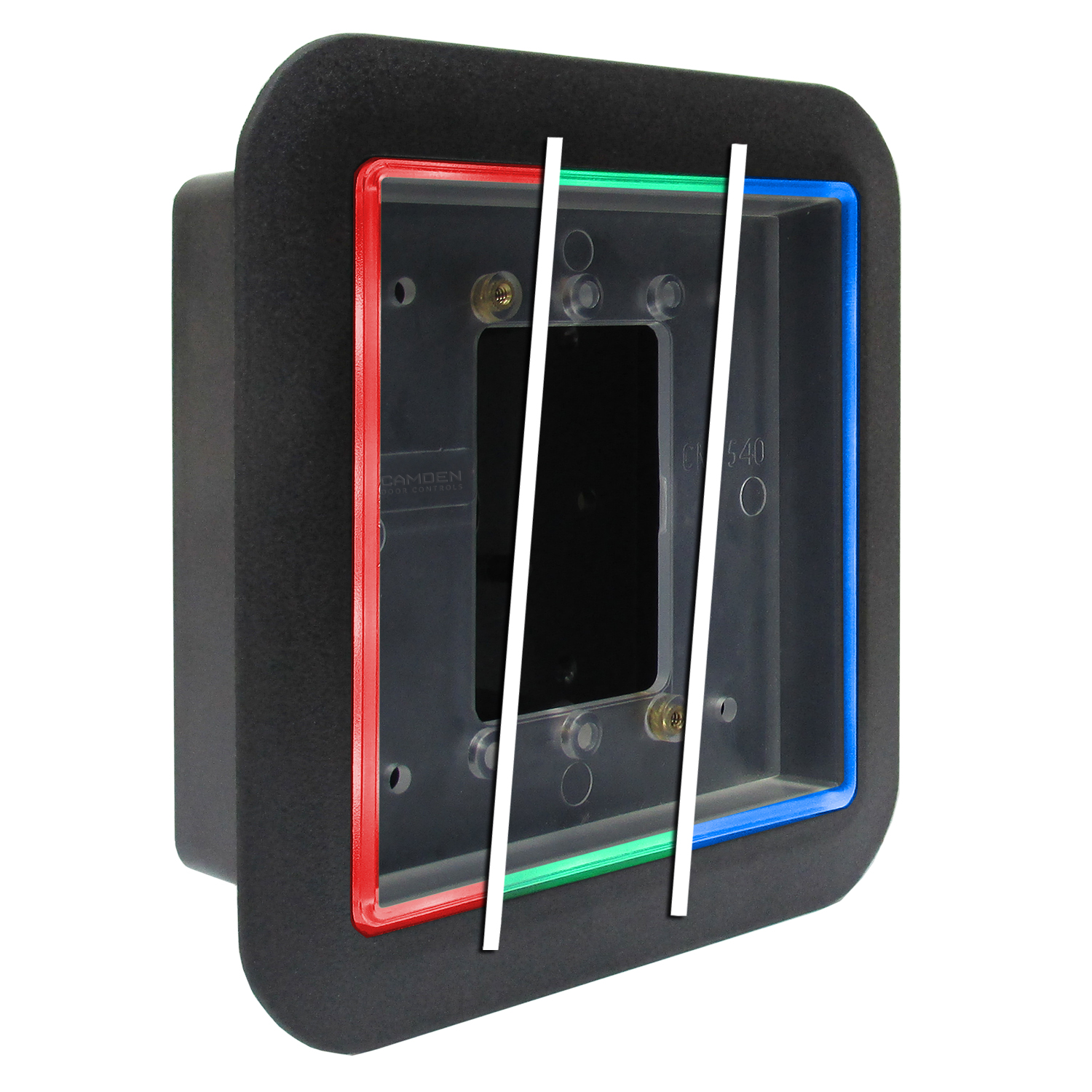

Flush, 4-1/2" Square, RED/GREEN/BLUE, c/w sounder, mount box
EDI Data, Approvals
|
|
Flush, 4-1/2" Square, RED/GREEN/BLUE, c/w sounder, mount box
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 6"L x 6"W x 6"H
Weight: 1.5lbs.
UPC: 670454184856
Country of Origin: CA
|
|
Flush, 4-1/2" Round, RED/GREEN, c/w sounder, mount box
EDI Data, Approvals
|
|
Flush, 4-1/2" Round, RED/GREEN, c/w sounder, mount box
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 6"L x 6"W x 6"H
Weight: 1.5lbs.
UPC: 670454179456
Country of Origin: CA
|
| |
|
AURA(tm) Illuminated Switch Kits - Surface Mount
click to expand section
|
|
Net Cost
|
|
 |

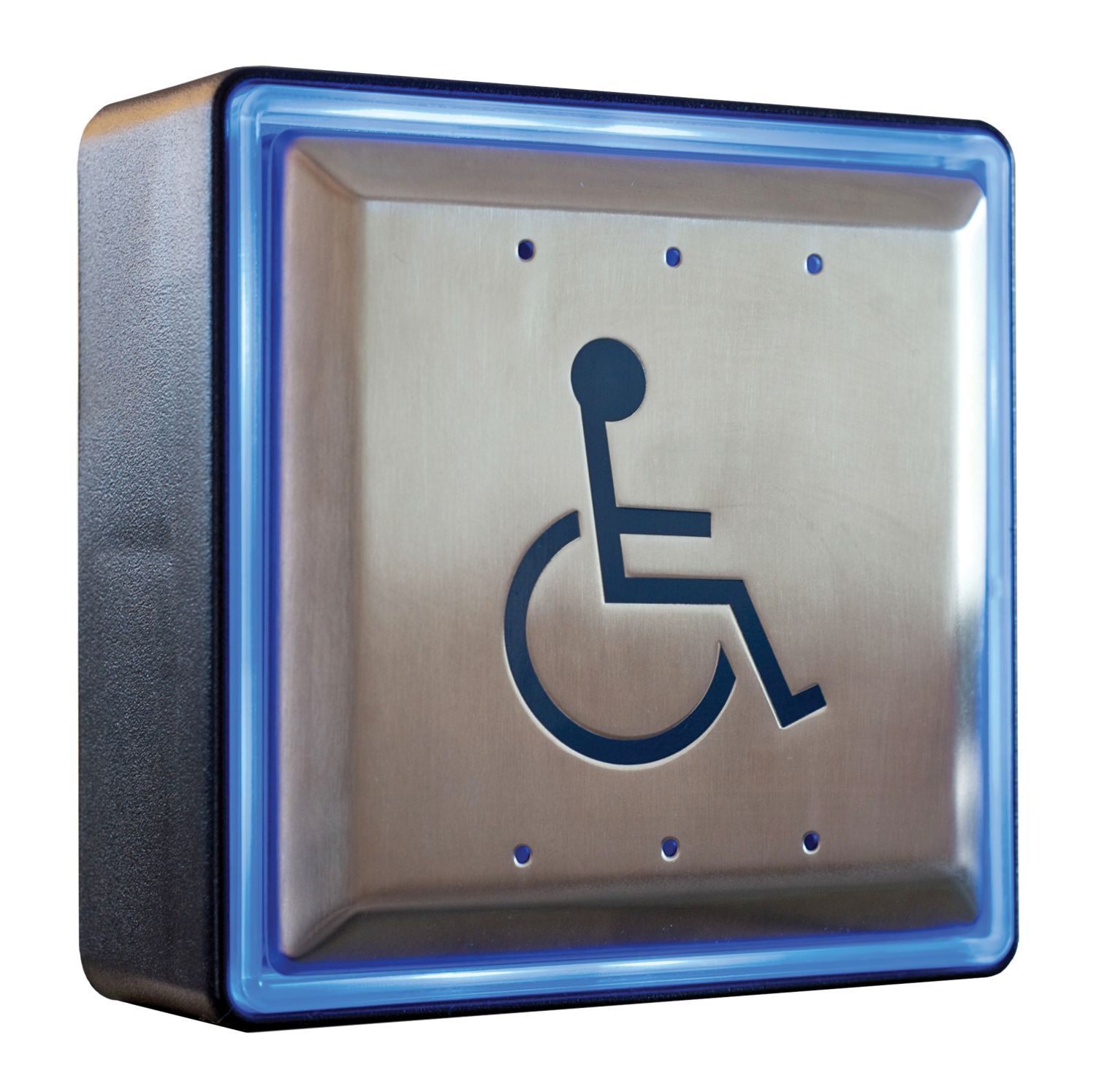

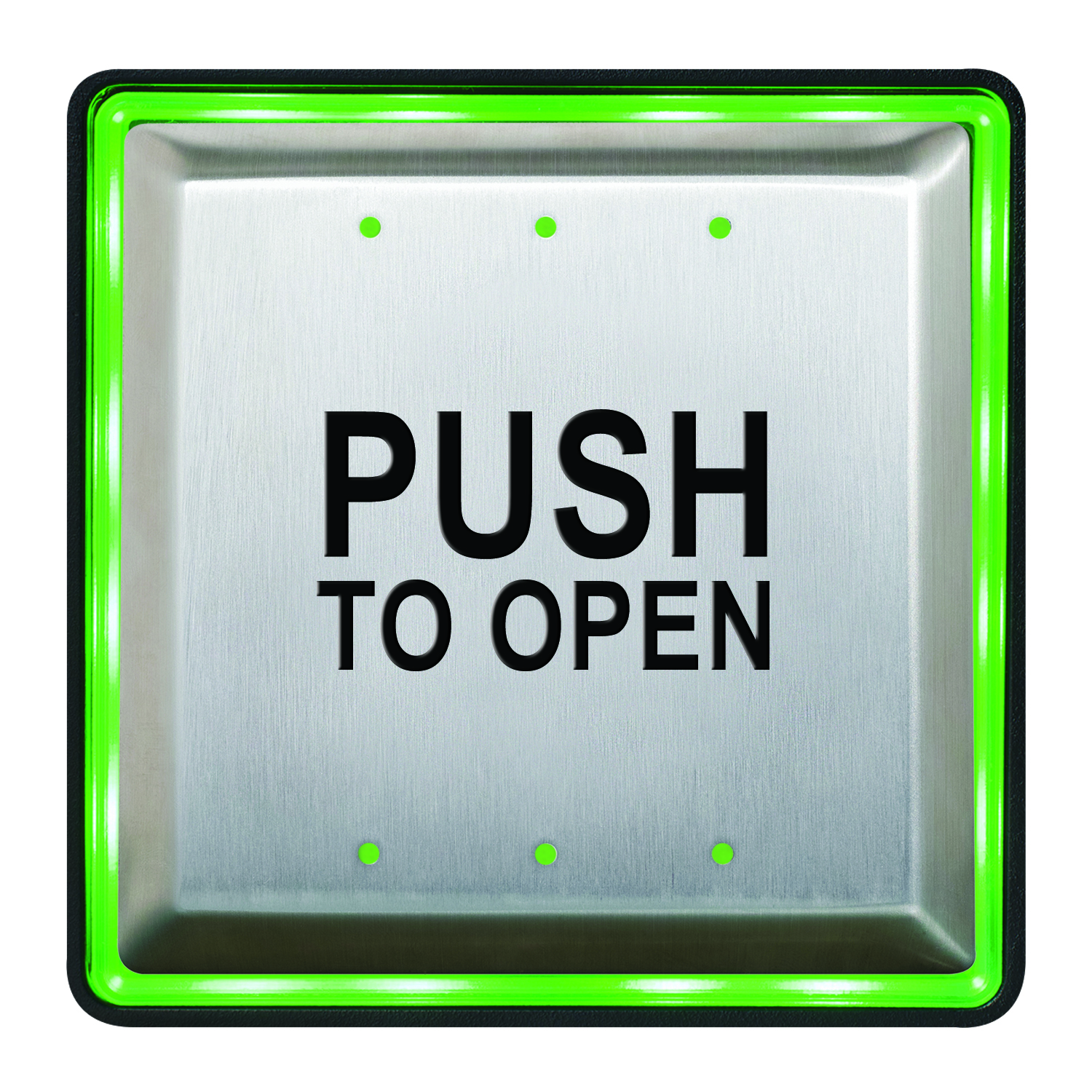

CM-45/X54 |
4-1/2" Square push plate (concealed screws) with sounder, illuminated RED/GREEN/BLUE surface mount CM-54i box
EDI Data, Approvals
|
|
4-1/2" Square push plate (concealed screws) with sounder, illuminated RED/GREEN/BLUE surface mount CM-54i box
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 6"L x 6"W x 4"H
Weight: 1.5lbs.
UPC: NA
Country of Origin: CA
|
|
|

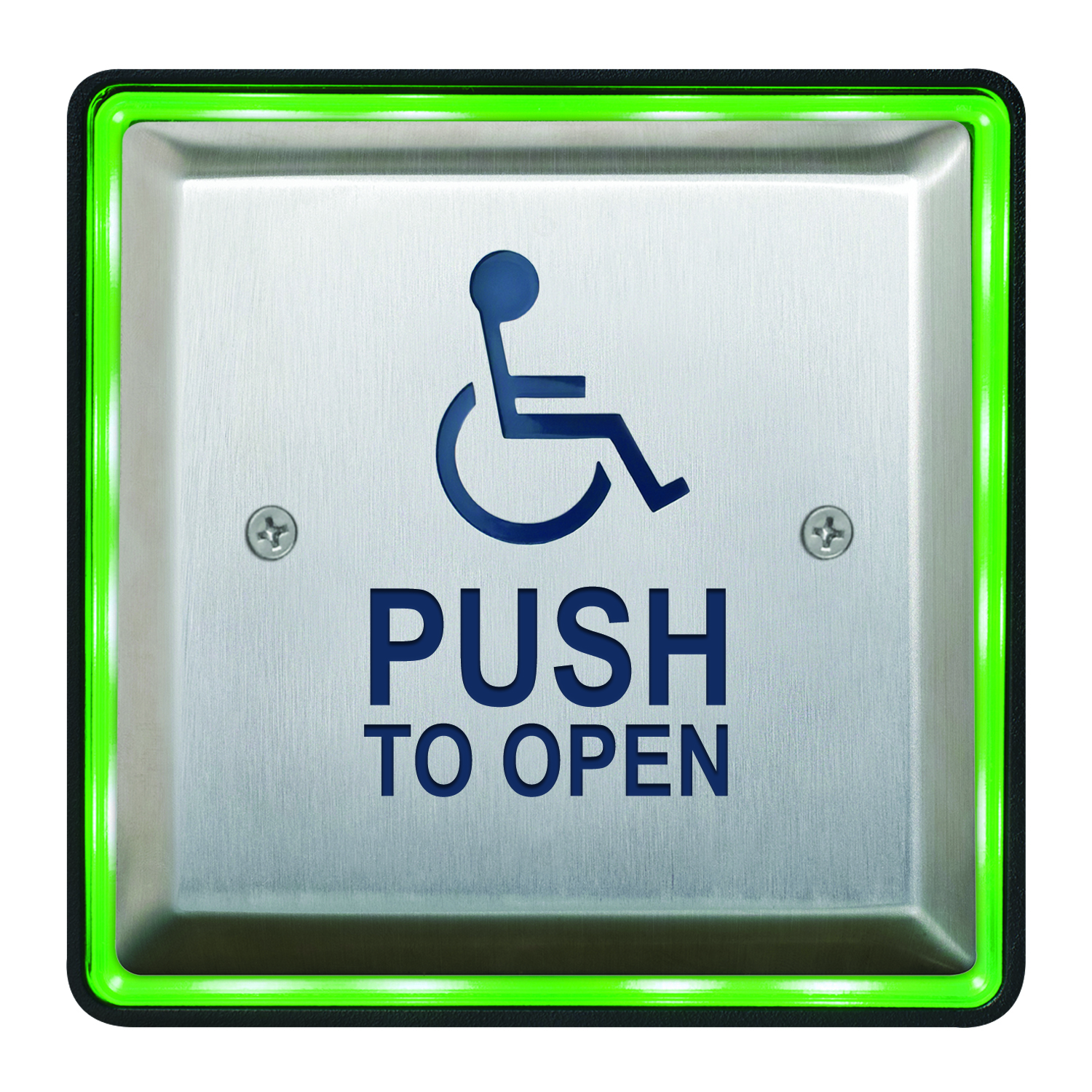

CM-46/X54 |
4-1/2" Square push plate (exposed screws) with sounder, illuminated RED/GREEN/BLUE surface mount CM-54i box
EDI Data, Approvals
|
|
4-1/2" Square push plate (exposed screws) with sounder, illuminated RED/GREEN/BLUE surface mount CM-54i box
|
EDI Data, Approvals
|
|
|
|
| |
Dimensions: 6"L x 6"W x 4"H
Weight: 1.5lbs.
UPC: NA
Country of Origin: CA
|
| |
|

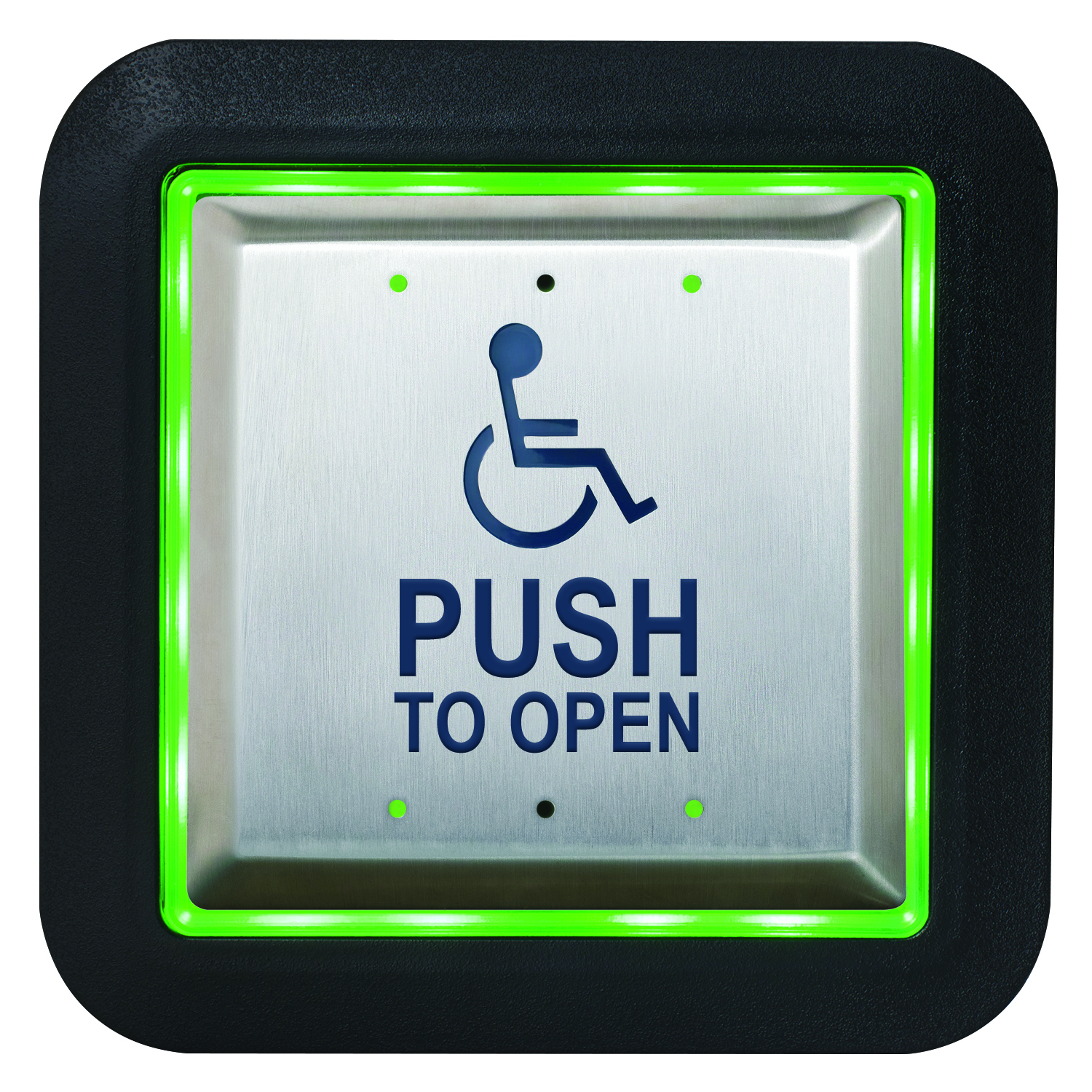

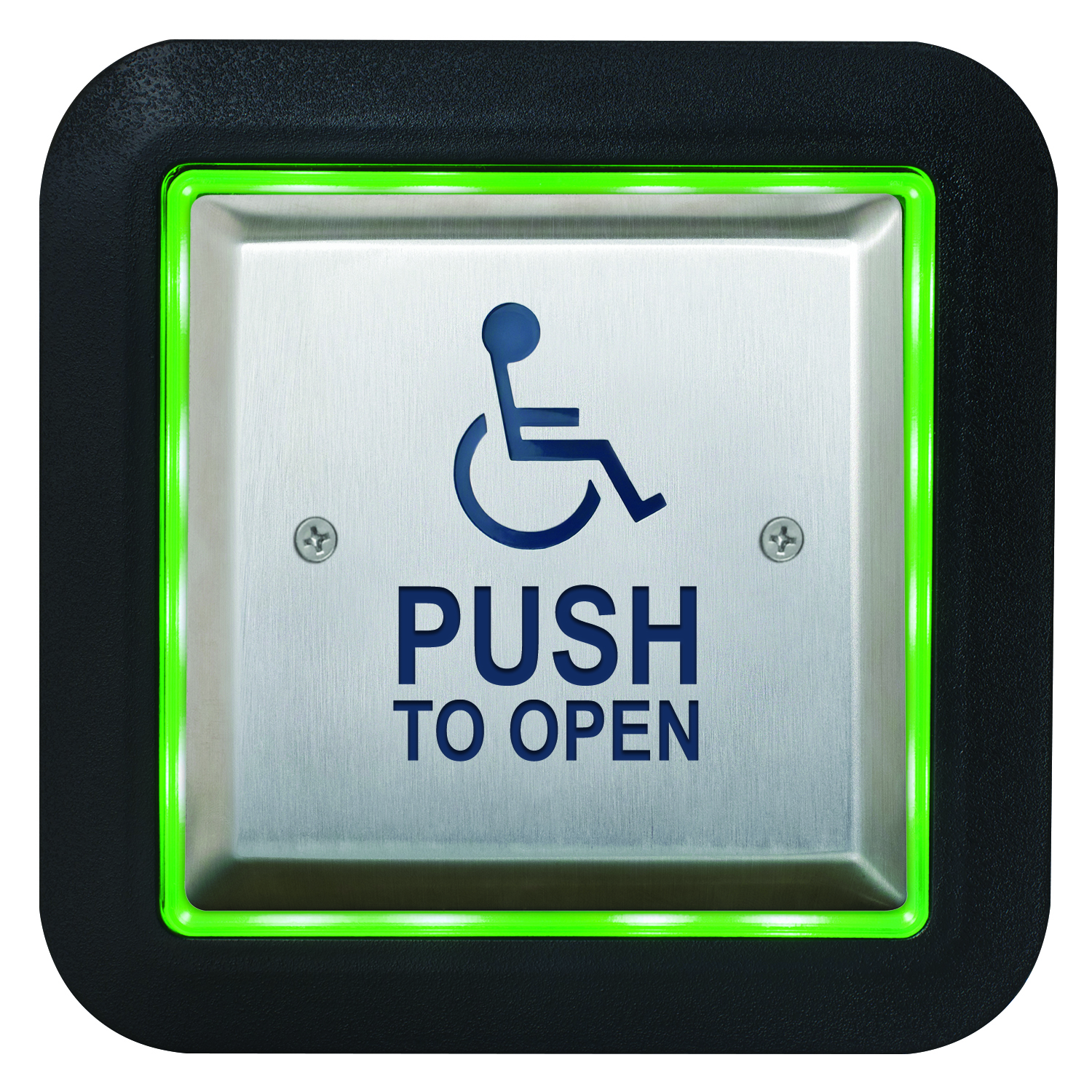

AURA(tm) Illuminated Switch Kits - Flush Mount
click to expand section
|
|
Net Cost
|
|
|

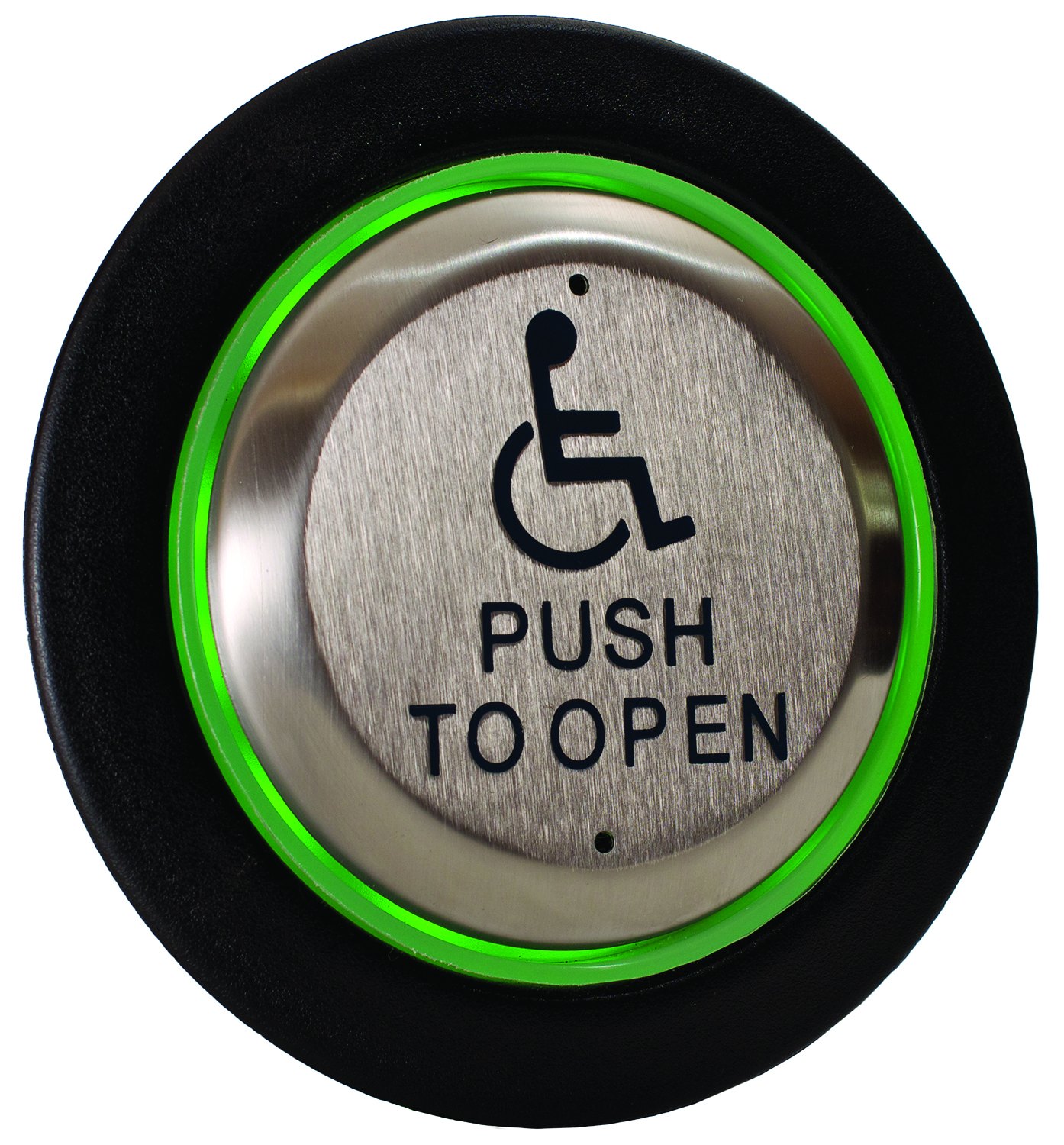

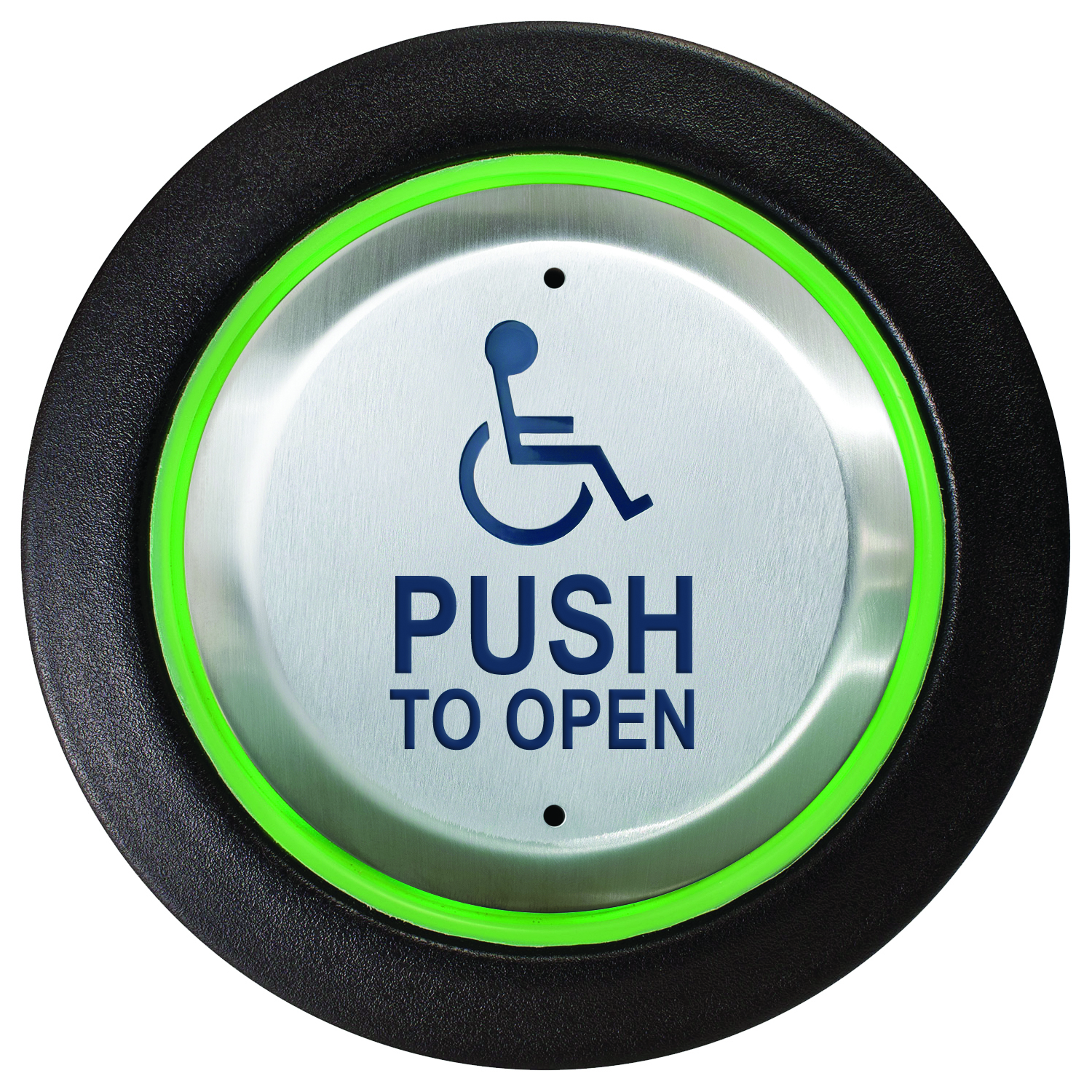

CM-40/X57 |
